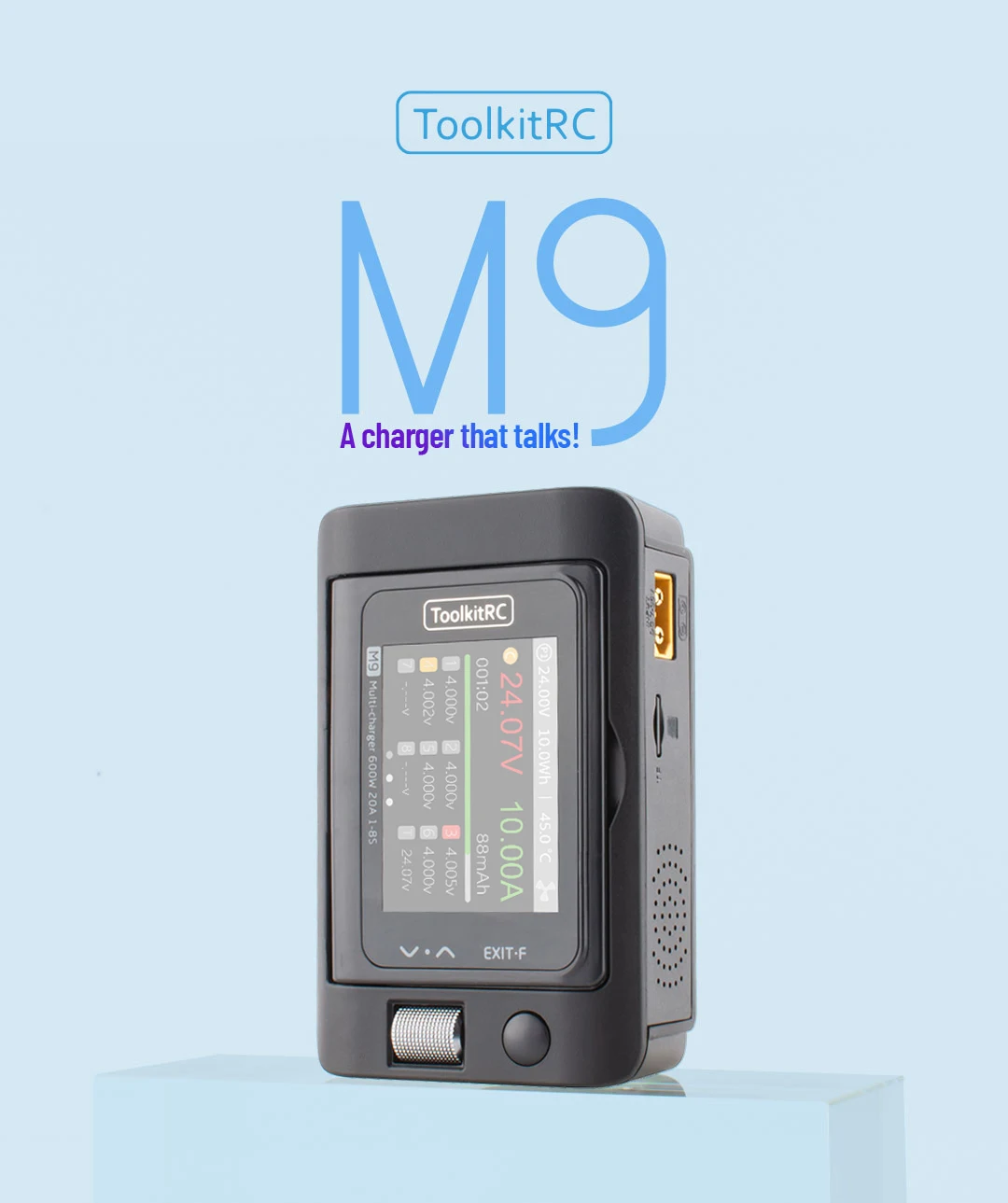

ToolkitRc M9 600W RC Model Balance Lipo LiFe Battery Charger 20A DC Smart Charger with Audio Function USB Fast Charing
2 orders (reference)
Description
ToolkitRc M9 600W RC Model Balance Lipo LiFe Battery Charger 20A DC Smart Charger with Audio Function USB Fast Charing High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Is it battery/power supply: N Is it charger/adapter: Y Is Batteries Included: No Plastic Type: ABS Model Number: M9
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | Y |
| Is Batteries Included | No |
| Plastic Type | ABS |
| Model Number | M9 |
| For Vehicle Type | Cars |
| Remote Control Peripherals/Devices | Battery Charging Units |
| Material | Plastic |
| Brand Name | ToolKitRc |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE,FCC,RoHS |
Product Details

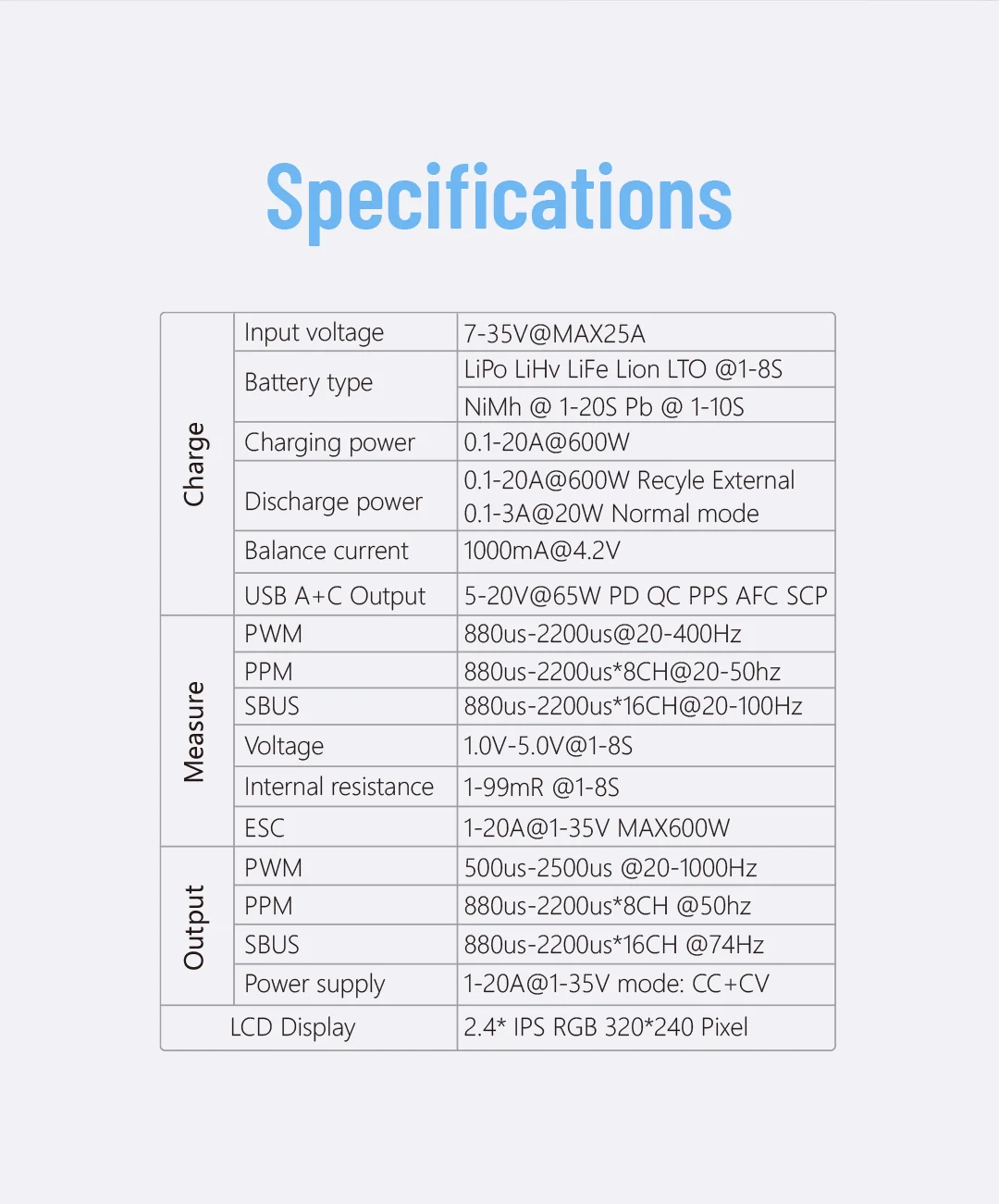

M9 SPEC
Measurer
PWM：880-2200us @ 20-400Hz
PPM：880-2200us * 8CH @ 20-50Hz
SBUS：880-2200us * 16CH @ 20-100Hz
voltage：1.0-5.0V @ 1-8S
Internal resistance：0.1 mR-99R @ 1-8S
ESC：600W @ 20A
Charger
input voltage：7.0-35.0V @MAX 25A
battery type：Lipo LiHV LiFe Lion LTO@1-8S NiMh @1-20S Pb @1-10S
balance current：1000mA @ 4.2V

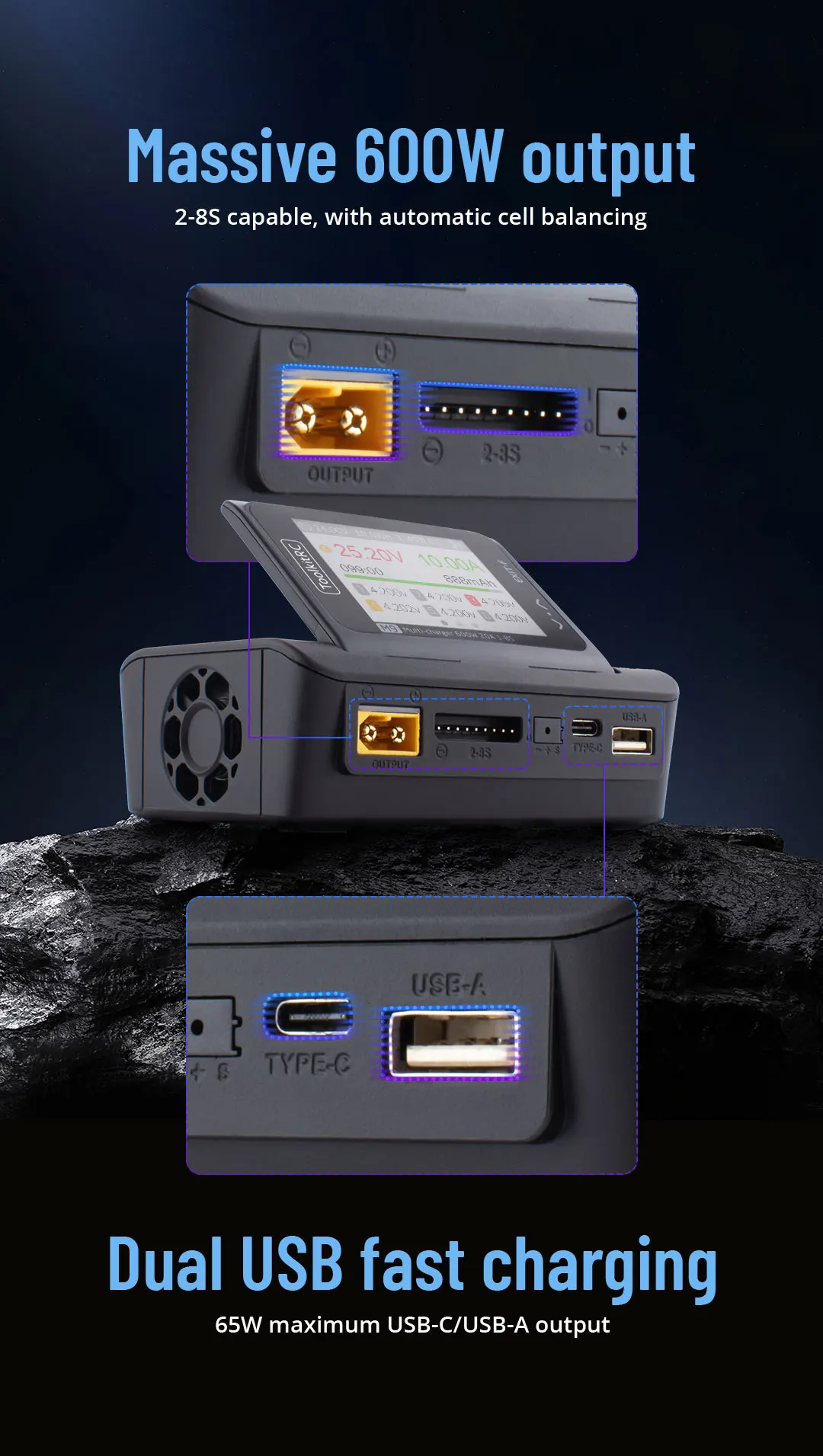

charging power：600W @MAX 20A
discharge power：600W @MAX 20A Recycle mode 20W@3A Normal mode
USB：65W@5.0-20.0V or Upgrade by USB-A
Output
PWM:500-2500us @ 20-1000Hz
PPM:880-2200us * 8CH @ 20-50Hz
SBUS:880-2200us * 16CH @ 20-100Hz
power supply:1.0-35.0V @1.0-20A mode:CC CV
Overcurrent response:<5ms
General
Product size：108*71*36mm
product weight：235g
packing size：135*81*44mm
packaging weight：330g

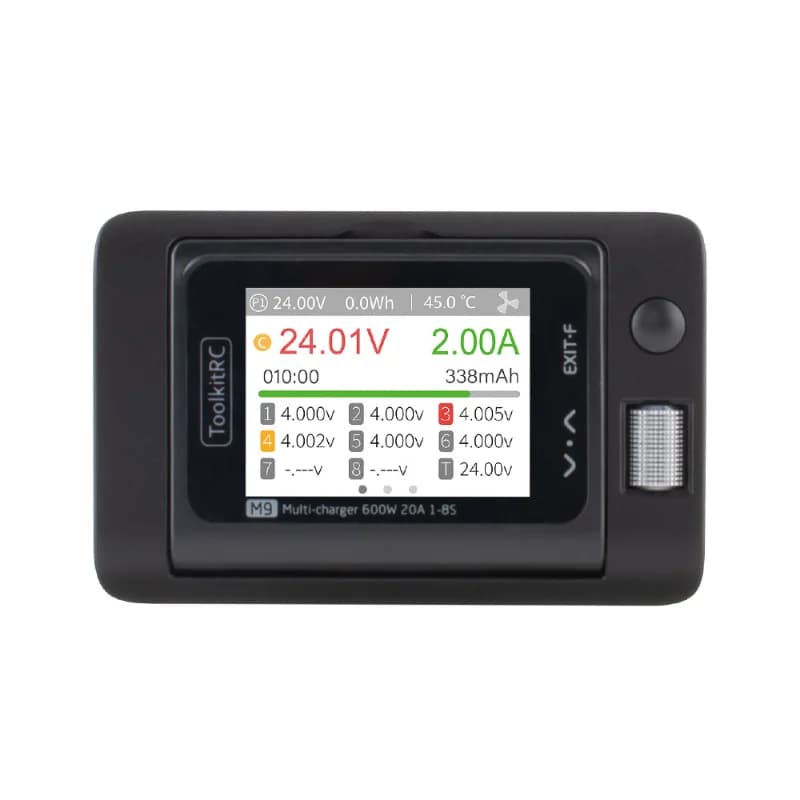

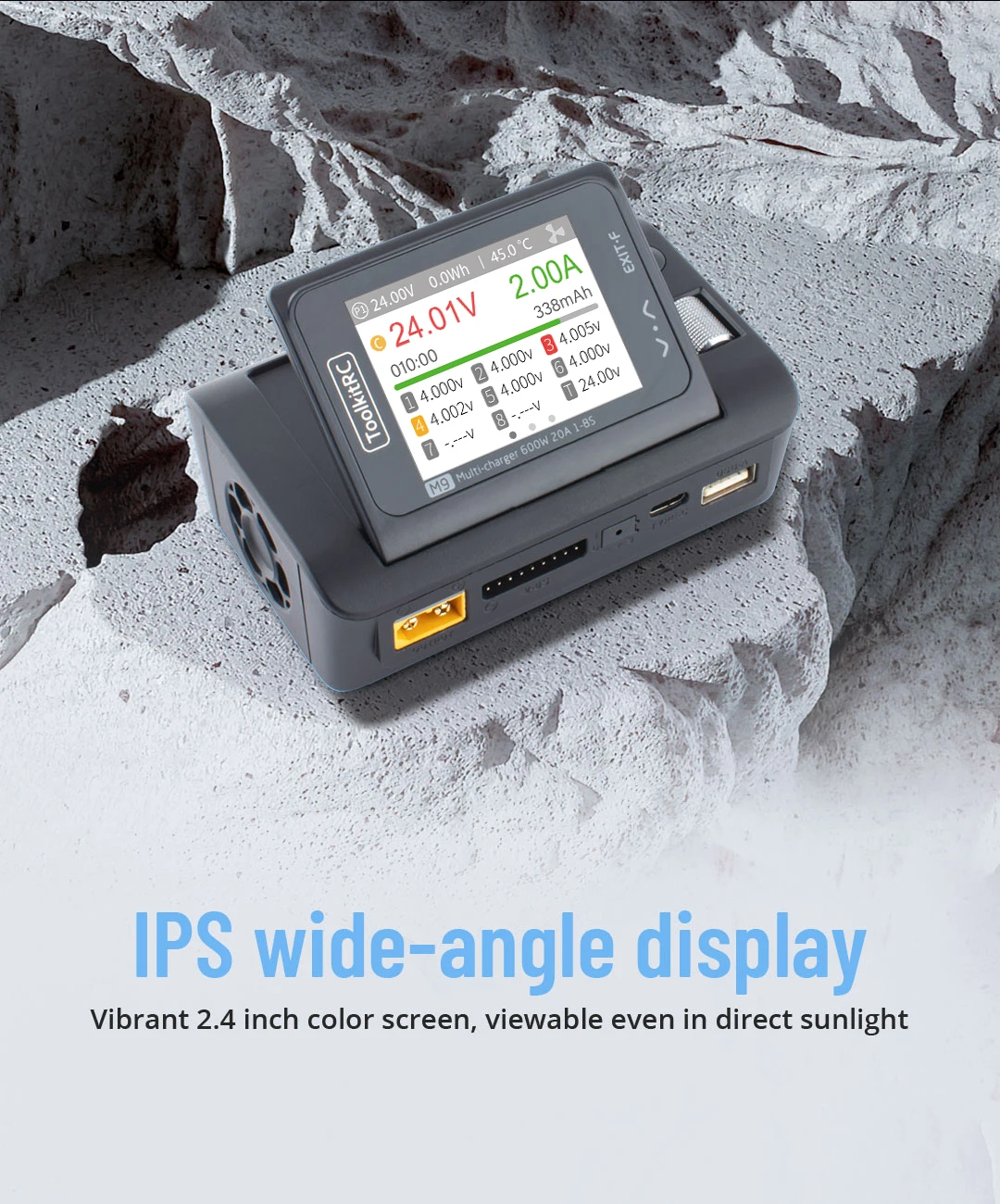

LCD：IPS 2.4 inch LCD 320*240
