VIFLY ToothStor - 4 Port 2S Balance Charger with Storage Mode Supports BT 3.0 and XH2.54 For RC FPV Freestyle Racing Drone

Reference price:

US $41.22

1-10 pcs$40(-3%)

10-100 pcs$38(-7%)

100+ pcs$36(-12%)

26 orders (reference)

Description

VIFLY ToothStor - 4 Port 2S Balance Charger with Storage Mode Supports BT 3.0 and XH2.54 For RC FPV Freestyle Racing Drone Voltage range: USB (5-20V DC) Power Source: DC Inbox adaptor: No High-concerned chemical: None Compatible Drone Brand: DJI Size: 109*56*30mm Package: Yes Weight: 142g

Select options

Variant

Quantity

View cart Get a Quote

Attribute

Value

Voltage range

USB (5-20V DC)

Power Source

Inbox adaptor

High-concerned chemical

None

Compatible Drone Brand

DJI

Size

109*56*30mm

Package

Yes

Weight

142g

Power Source

Origin

Mainland China

Drones Accessories Type

charger

Certification

CE,FCC

Product Details

VIFLY ToothStor 4 Port 2S Balance Charger with Storage Mode LCD Display LiHV/LiPo Battery

Features:

【4 Port 2S Balance Charger with Storage Mode】You can balance charge four 2S batteries at the same time. And they are 4 independent charging channels, not necessary to ensure the batteries are all the same voltage or the same size. In addition to charging the battery to full voltage, you can charge or discharge it to storage voltage for long time storage.

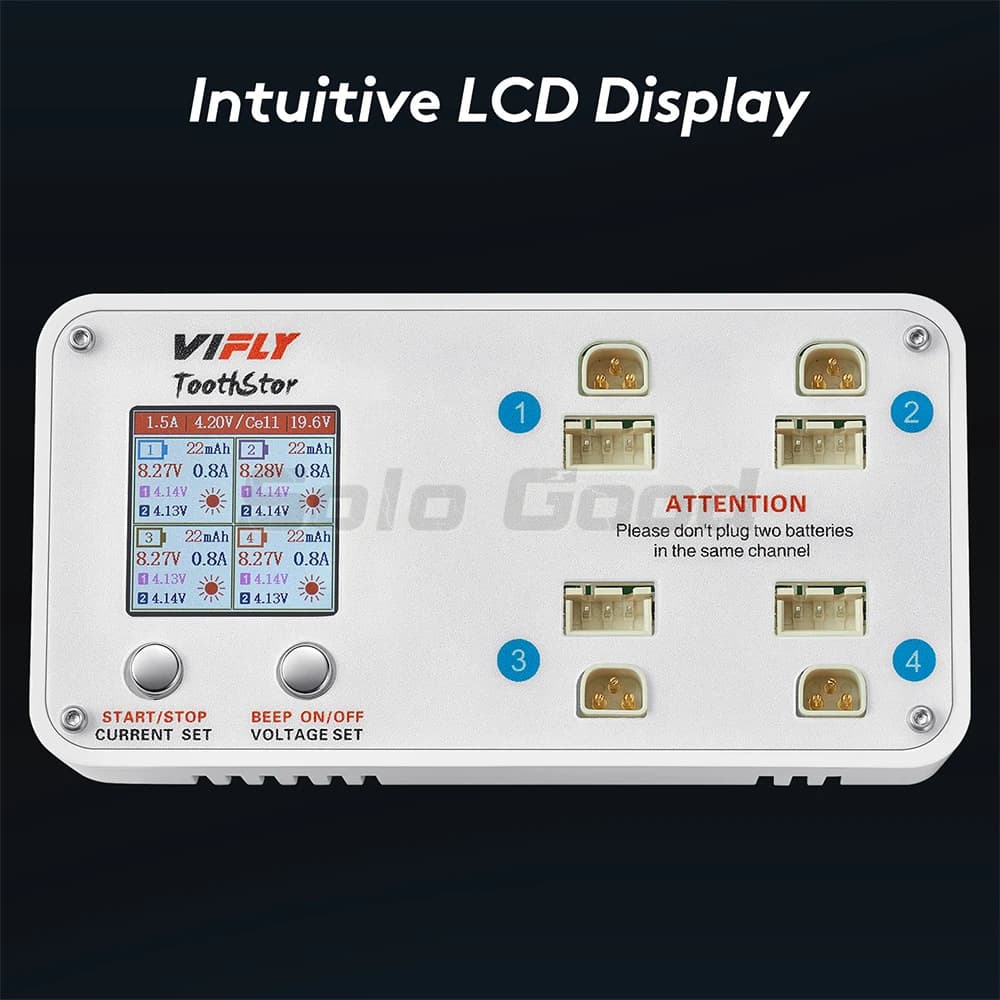

【Colorful LCD Screen, Intuitive Interface】VIFLY ToothStor installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.

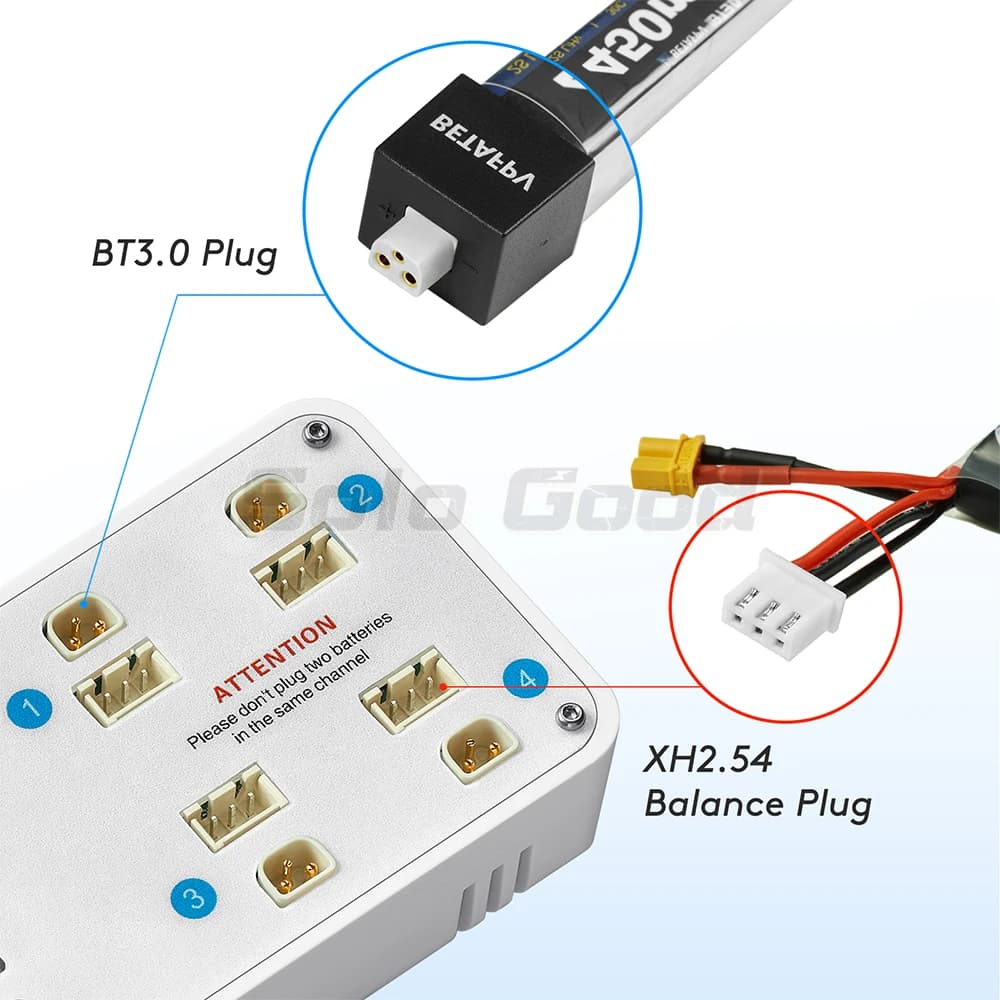

【Charge via Standard Balance Lead Only】VIFLY ToothStor charges batteries via the standard balance lead only (JST-XH2.54), that conveniently eliminating the need to connect the power lead like XT30, T-plugs, etc..

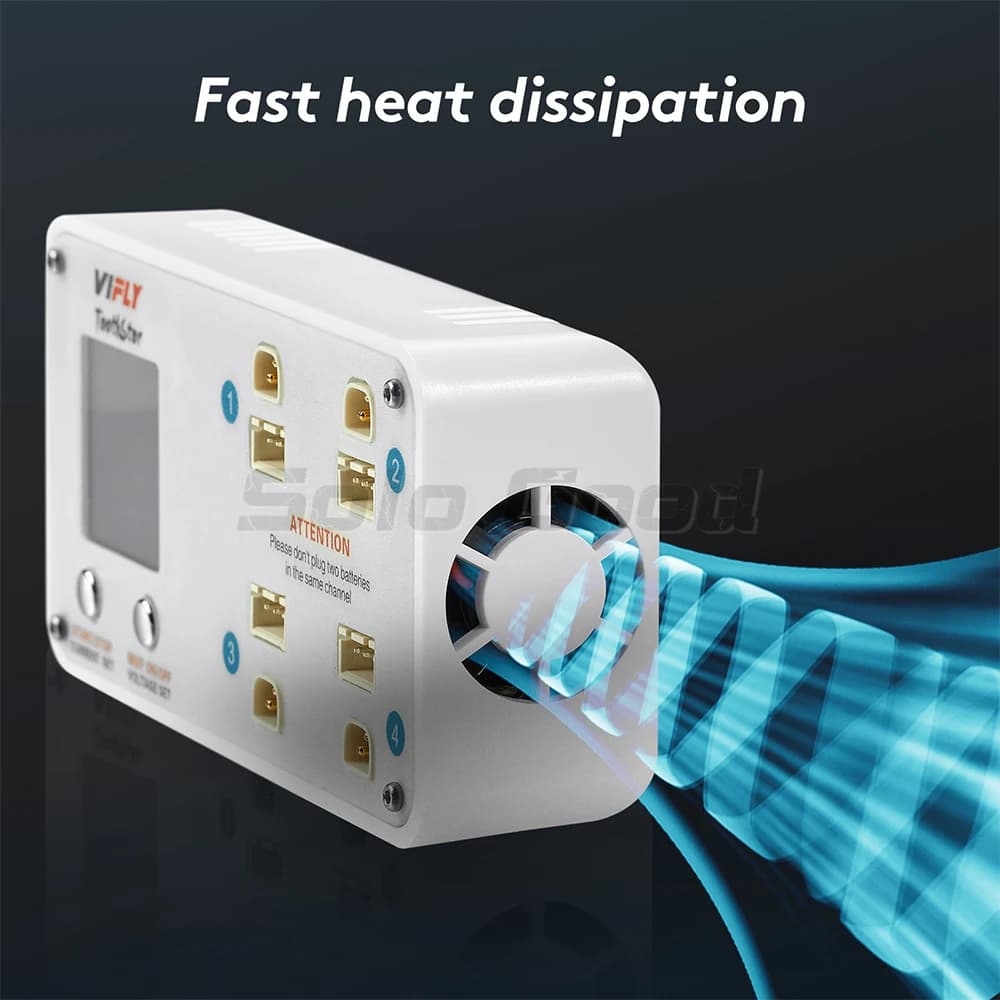

【Strong Heat Dissipation Capability】The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.

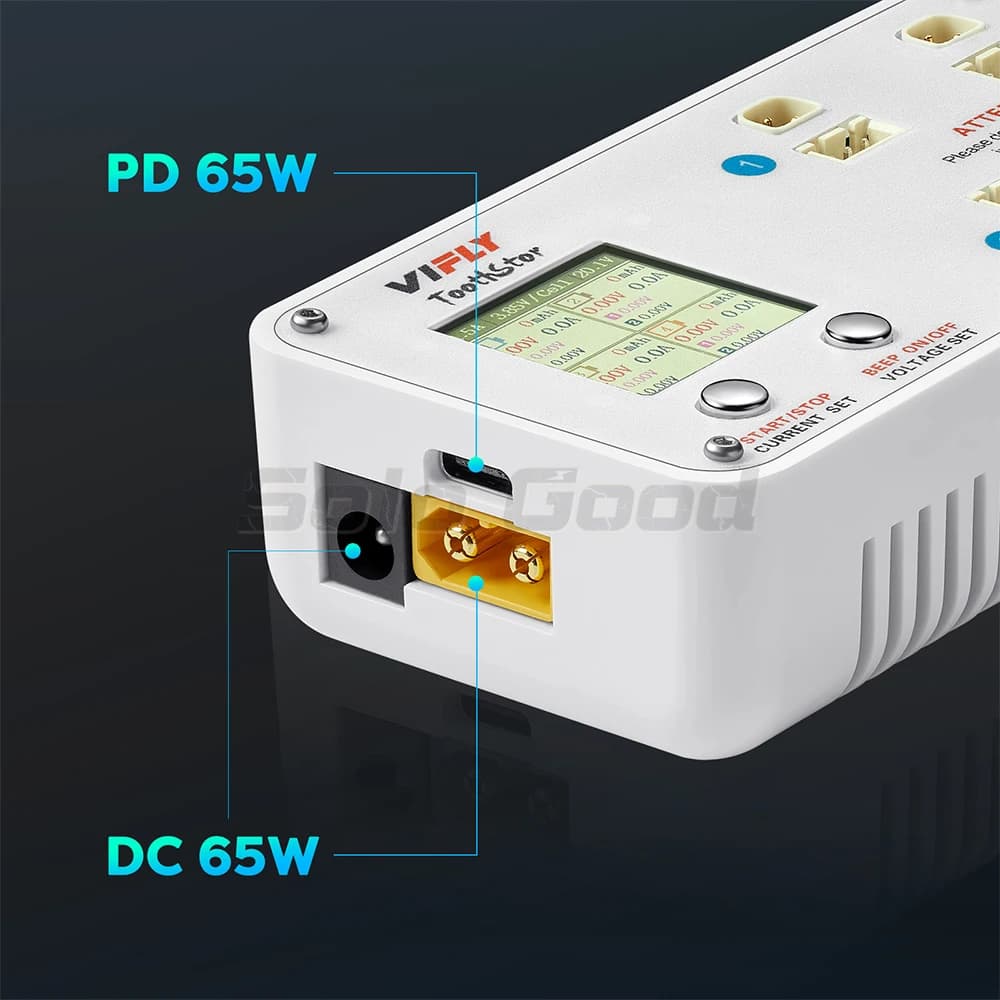

【Multiple Power Input】It supports Type-C, XT60 and DC power input. Type-C supports PD3.0 protocol that requests the input power must be higher than 65W.

【Memory Function】VIFLY ToothStor had the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.

【Buzzer Indication】VIFLY ToothStor added the buzzer to beep when one charging circle finished, if you don’t like beeping, you can turn the buzzer off manually.

Specifications:

Dimensions 109*56*30mm

Weight 142g

Input connector XT60, DC(5.5*2.1mm), USB-C(PD3.0)

Input voltage range 10V-26V

Minimum input power 65W

Max charging current 1.5A/port

Support battery connector XH2.54 3Pin & BT3.0

Battery type LiHV / LiPo

Storage voltage 3.80V/Cell & 3.85V/Cell

Max discharge current 0.2A/port

Balance Current 0.2A

Charge via Balance Port Only

VIFLY ToothStor charges batteries via the standard balance lead only (JST-XH2.54 or BT3.0), that conveniently eliminating the need to connect the power lead like XT30, T-plugs, etc.

Multiple Power Input

VIFLY ToothStor 2S charger supports Type-C, XT60 and DC power input. Type-C PD3.0 protocol requests the input power must be higher than 65W.

Strong Heat Dissipation Capability

The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.

Storage Charger and Discharger

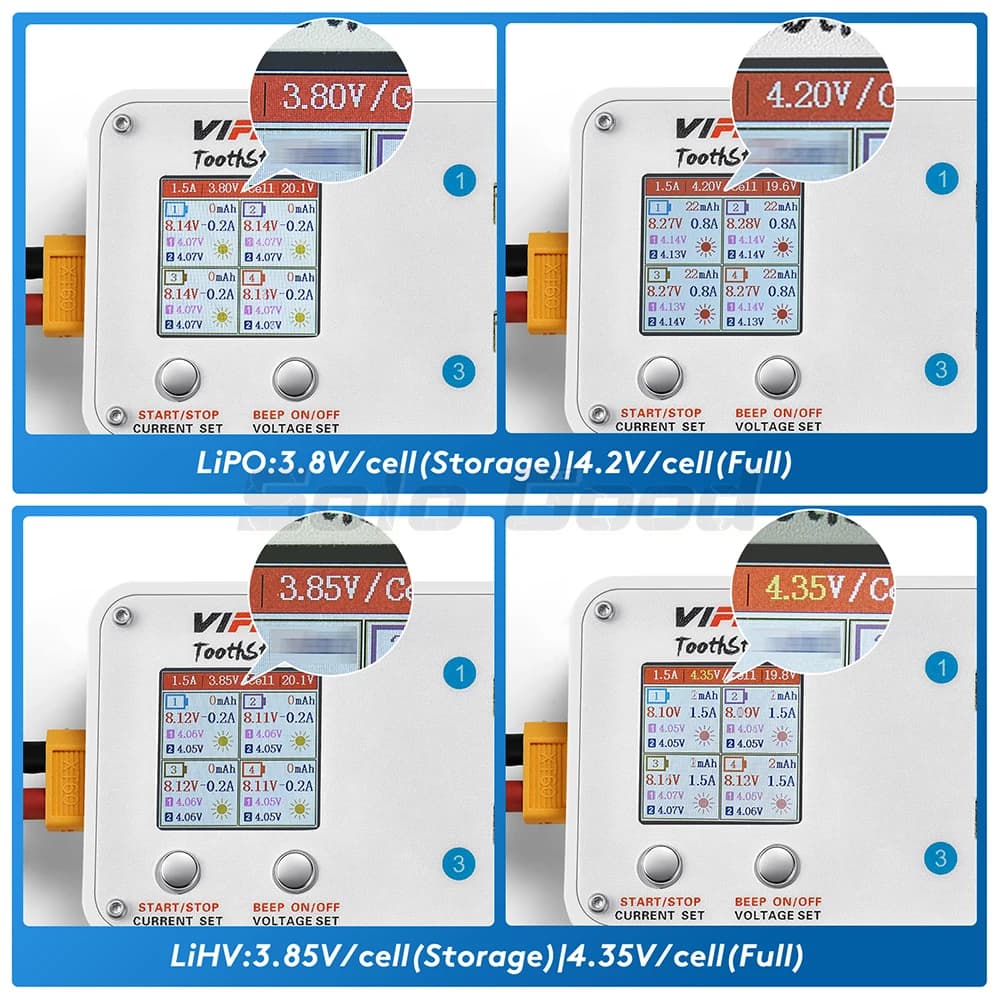

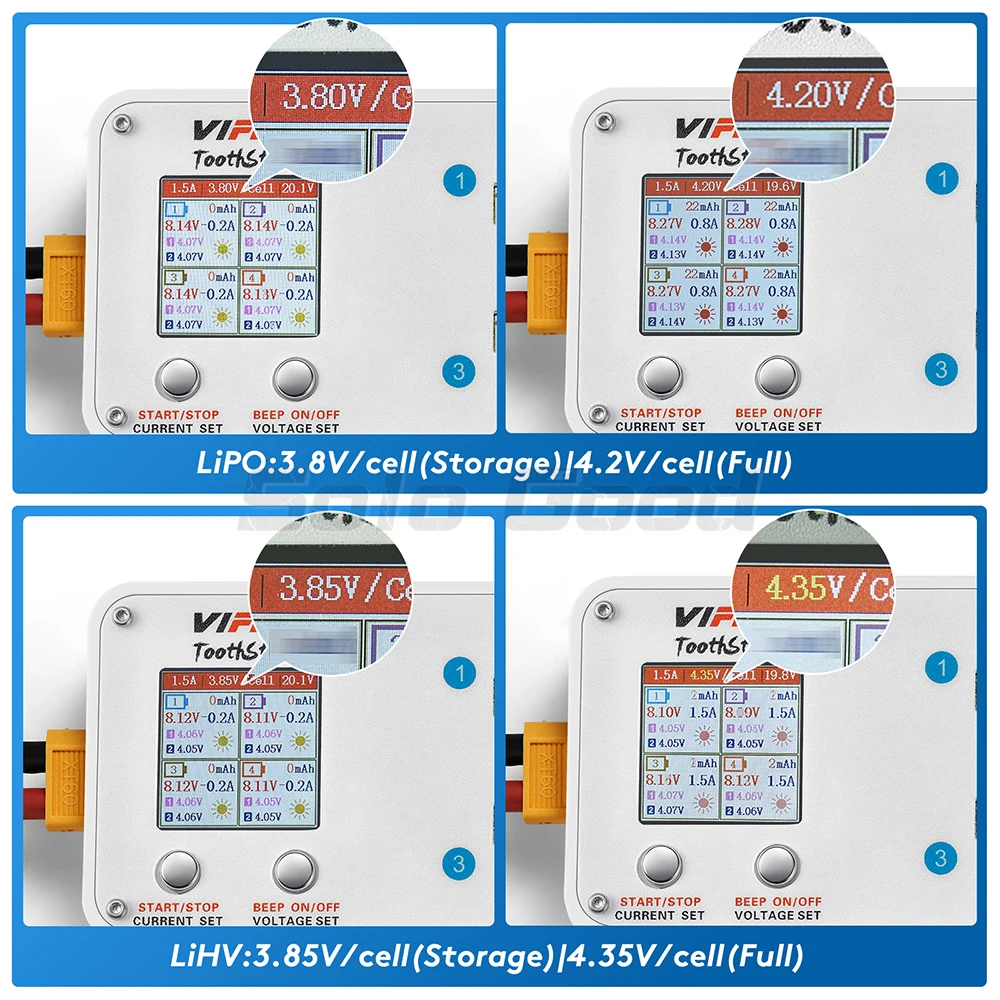

VIFLY ToothStor is a combination of 2S charger and discharger. It has 4 target voltages per cell (3.8V/3.85V/4.2V/4.35V), set your target voltage like 3.8V/cell (LiPo Storage Voltage), it will start the charging or discharging process automatically when the battery is lower or higher than 3.8V.
