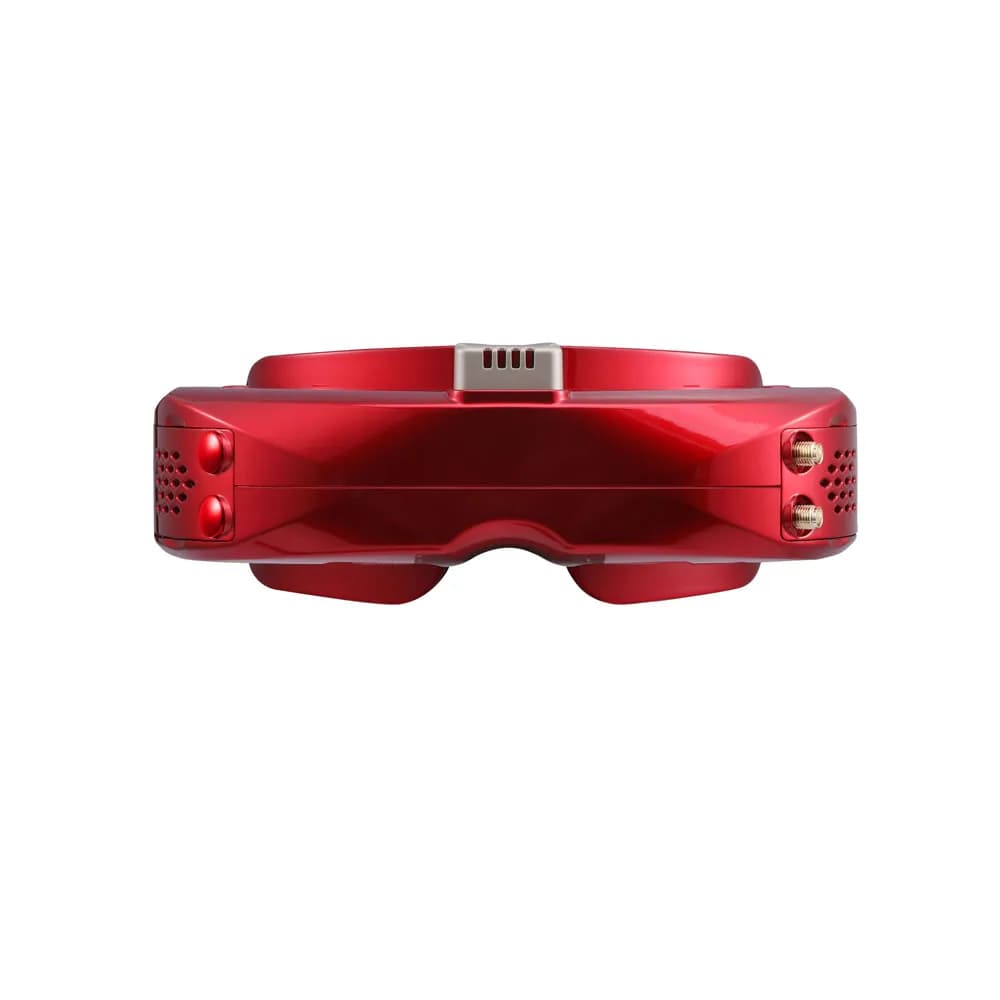

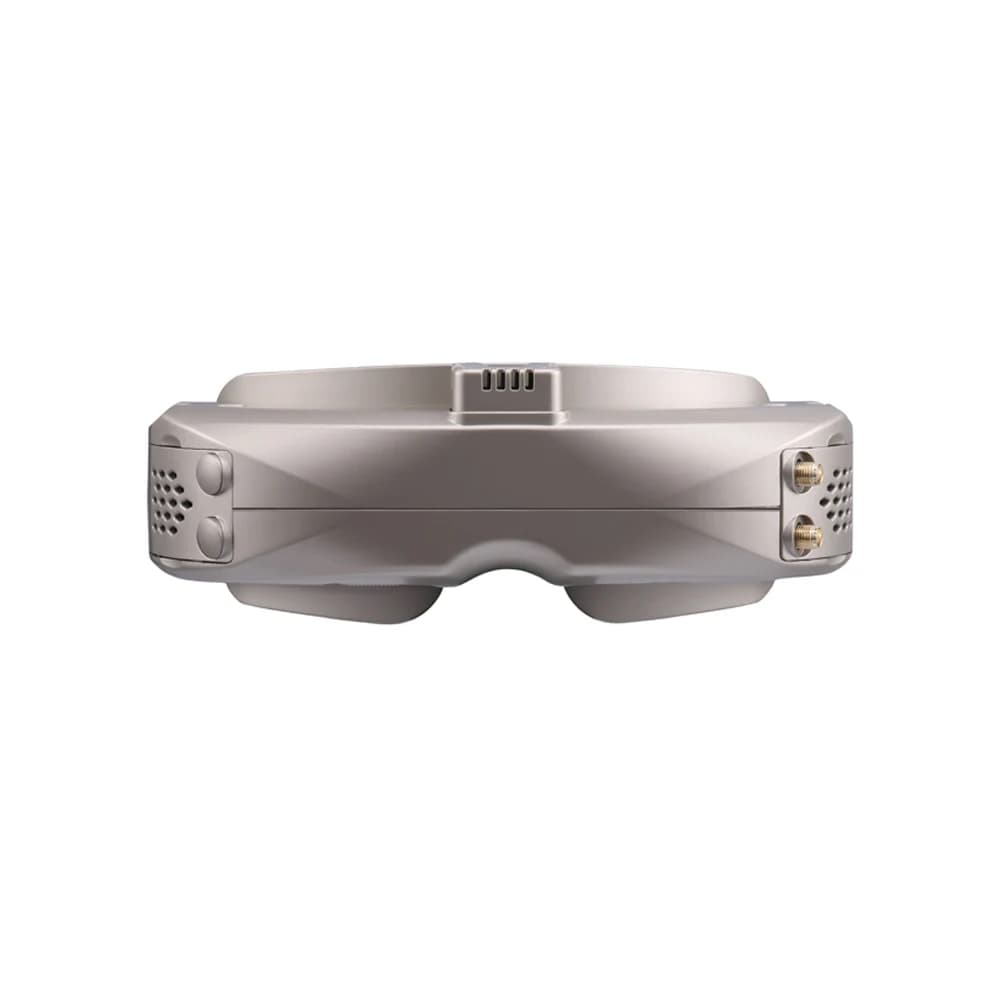

SKYZONE SKY04X PRO FPV Goggles OLED 5.8G 48CH Steadyview Receiver 1920X1080 HD DVR Head Tracker for RC Airplane Racing Drone
143 orders (reference)
Description
SKYZONE SKY04X PRO FPV Goggles OLED 5.8G 48CH Steadyview Receiver 1920X1080 HD DVR Head Tracker for RC Airplane Racing Drone High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: SKY04X pro For Vehicle Type: Airplanes
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | SKY04X pro |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | CVD |
| RC Parts & Accs | FPV Goggles |
| Material | Composite Material |
| Brand Name | Skyzone |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Focus | -6~+2 adjustable |
| Receiver | 5.8Ghz 100FPS SteadyView Receiver |
| Power Supply | DC 6.5-25.2V/USB 5V |
| Power Consumption | 720mA at 12V |
| Aspect Ratio | 4:3/16:9 |
| style | skyzone fpv goggles |
| style 2 | SKY04X V2 60FPS DVR 1280X960 OLED FPV Goggles |
Product Details
A new analog goggle in 2024? Why?! // SKY04X PRO REVIEW
>>>Features
The SKY04X PRO is upgrade version of SKY04X, with new optics and new OLED panel, the SKY04X pro can give pilot 52 degree of field of view, gives huge immersive fpv experience, also with new OLED panel, the 1920*1080 resolution and 100FPS frame rate, use can have way better experience when using the digital VRX system.
The new matte painting also avoid fingerprints and reduces glare .
To be aware, To cooling the high performance OLED panel, the right side bay is installed with cooling fan， so SKY04 X PRO didnt support quadversity mode.

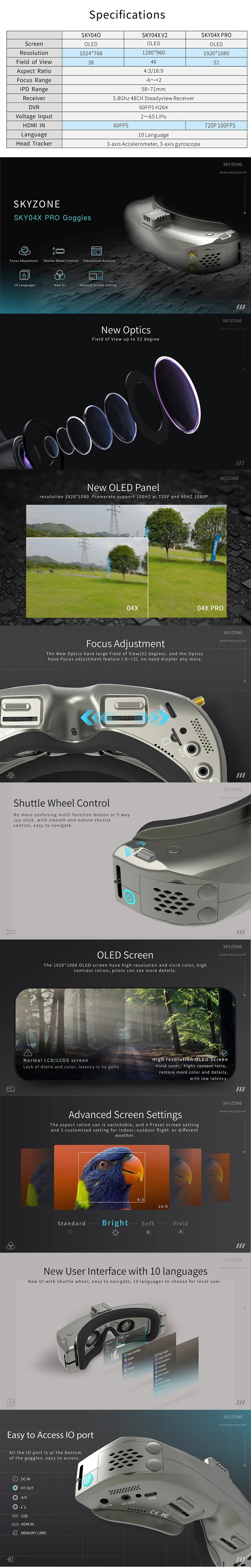

>>>SKY04X PRO Specifications
Screen:OLED
Resolution:1920X1080
FOV（Diagonal）:46°
Aspect Ratio:4:3/16:9
Focus:-6~+2 adjustable
Interpupillary distance (IPD):58-71mm
Receiver:5.8Ghz 48CH SteadyView Receiver
Language:10 Languages
Power Supply:DC 6.5-25.2V/USB 5V
Power Consumption:720mA at 12V
DVR:H264, 100fps,MOV 6Mbps, SD Card support up to 128Gb
Head Tracker:3-axis Accelerometer, 3-axis gyroscope
Dimentions :185*75*67mm
Weight:267g
>>>Package Included
1. Goggles*1
2. Receiver Module*1
3. Faceplate*2(wide and narrow)
4. Sponge with velcro*1
5. Zipper case*1
6. Power cable*1
7. Headtracker cable*1
8. 5.8GHz 2dB antennas*2
9. Video/Audio Cable*1
10. USB-C Cable*1
11. User Manual*1
