iFlight Skyviz 5.8GHz FPV Analog Goggles Dual 100Hz Micro-OLED 1920*1080 HD DVR Recording and Playback Function for RC Drone

Description

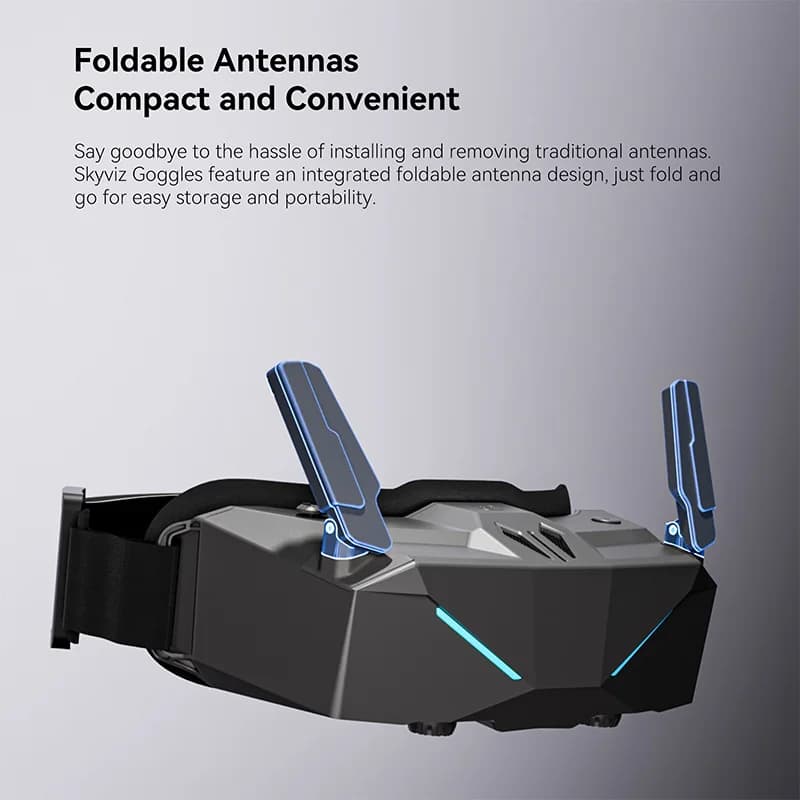

• The Skyviz Goggles are the first mecha-style, highly integrated FPV Analog goggles with a built-in fusion receiver and foldable antenna design, offering a compact and ergonomic layout.

• Supporting third-party HD video receivers with a dedicated mounting bracket, these goggles ensure compatibility and flexibility. The minimalist UI and intuitive controls enhance the user experience, while dual Micro-OLED displays (100Hz refresh rate) deliver ultra-smooth, crystal-clear visuals.


• Featuring a 7-element aspherical lens system, the Skyviz Goggles provide sharp, distortion-free images with no screen-door effect, adapting seamlessly to any diopter setting for unparalleled immersion.

Features

Uncompromised Visual Performance

Engineered with dual 100Hz Micro-OLED displays and a 7-element aspherical lens system, the goggles deliver stutter-free, high-fidelity imagery with zero screen-door effect. Customize your view with diopter adjustment (-7D to +2D) and IPD tuning (56-72mm) for universal comfort.

Modular Receiver & Input Flexibility

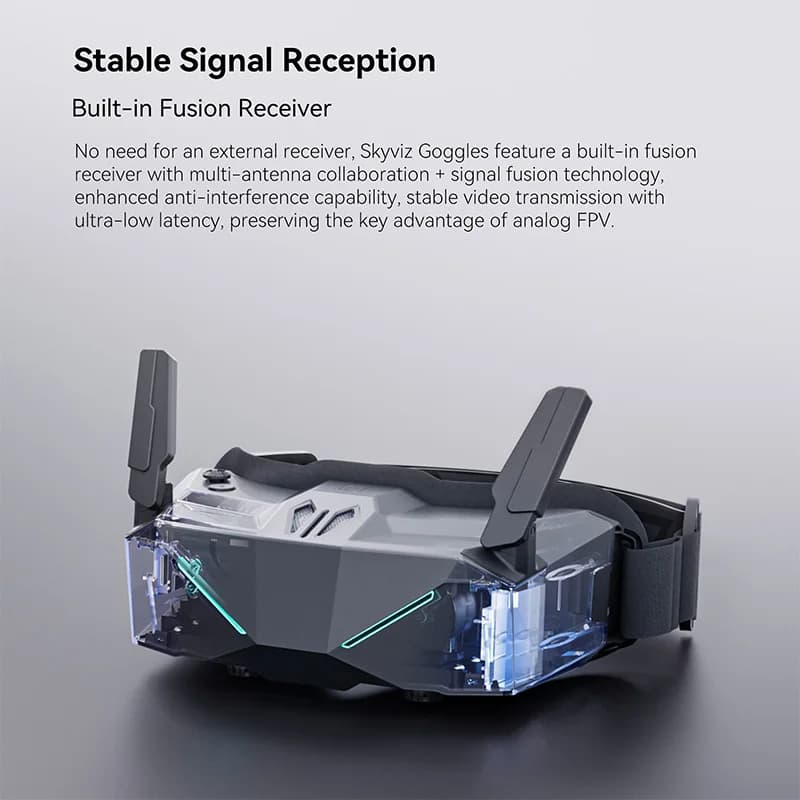

It uses an integrated receiver for high-quality image transmission and also supports third-party receivers. Compatible with VRX, AV, and HDMI input modes, it adapts to various usage scenarios.

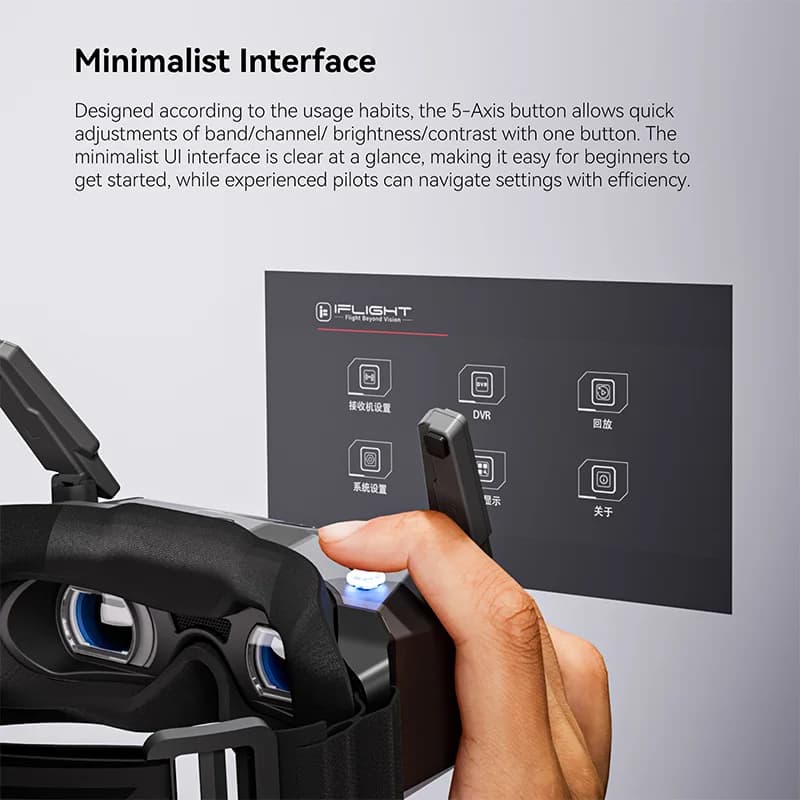

Customizable Display Settings

Tailor visuals with Race/Freestyle FOV modes, focus chart-assisted calibration, and granular image settings (brightness/contrast/color/sharpness). Toggle between 16:9 and 4:3 aspect ratios to match your feed.

Enhanced Usability Features

The DVR recording and playback function with adjustable settings, voltage display and calibration, and a multilingual interface in Chinese and English improve practicality.

Comfort & Customization

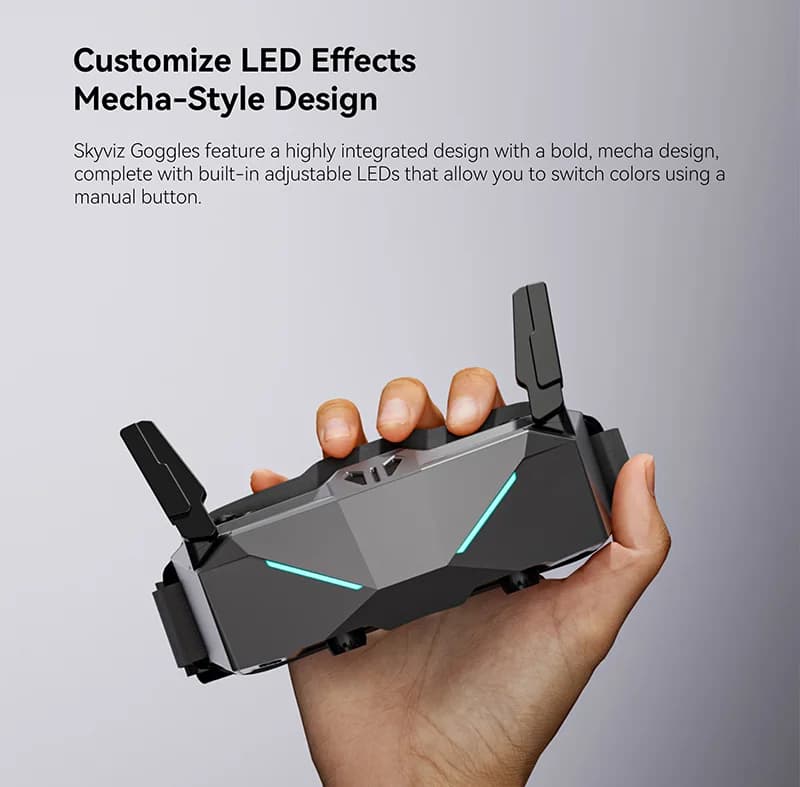

Manual control of the fan switch and speed provides comfort during long-term use, and the option to customize LED colors adds a personalized touch to the goggles' appearance.

Specification

• Product Name: Skyviz Analog Goggles

• Weight: Approx. 300grams（headband included）


• Dimensions (L×W×H): L174.5 * W101.6 * H69.5mm(Antenna folding)


• Screen Size (single screen): 0.49-inch


• Resolution (single screen): 1920×1080


• Refresh Rate: 100 Hz(Max)


• Interpupillary Distance Range: 56-72 mm


• Diopter Adjustment Range: -7.0 D to +2.0 D


• FOV (single screen): 44°


• Aspect Ratio: 16:9/4:3


• Receiver: Built-in receiver


• Language: Chinese and English


• Power interface: DC4.5


• HDMI-IN: Micro HDMI


• AV-IN 3.5mm


• Headphone jack: /


• DVR format: MP4


• DVR frame rate: 30FPS (CVBS)

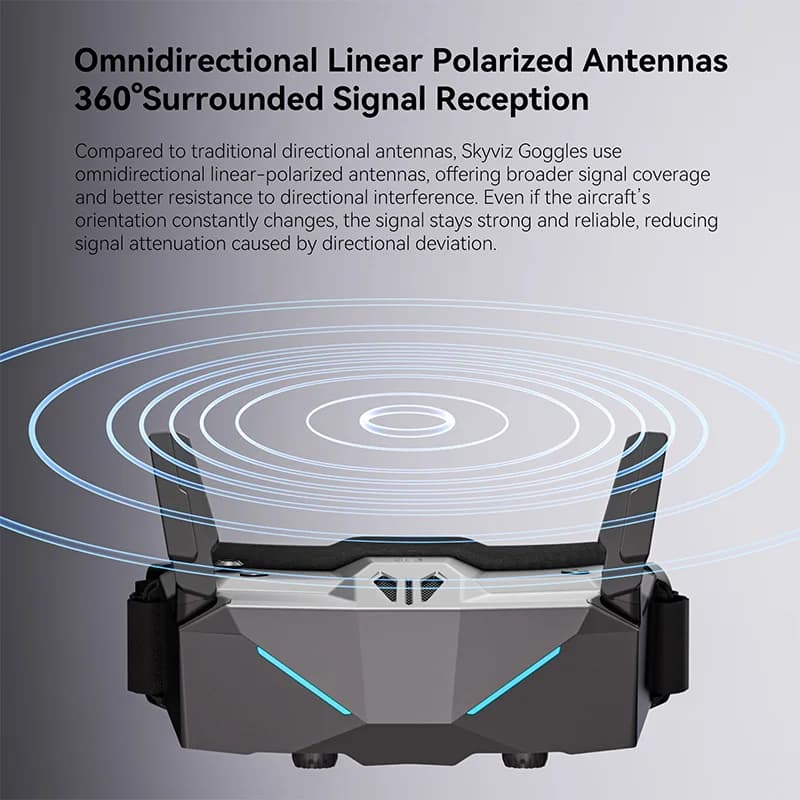

• Antenna: Omnidirectional linear polarization antenna


• Operating Temperature Range: -10°C to 40°C (14°F to 104°F)


• Power Input: 2-6S


• Supported SD Cards: microSD (up to 64 GB)
