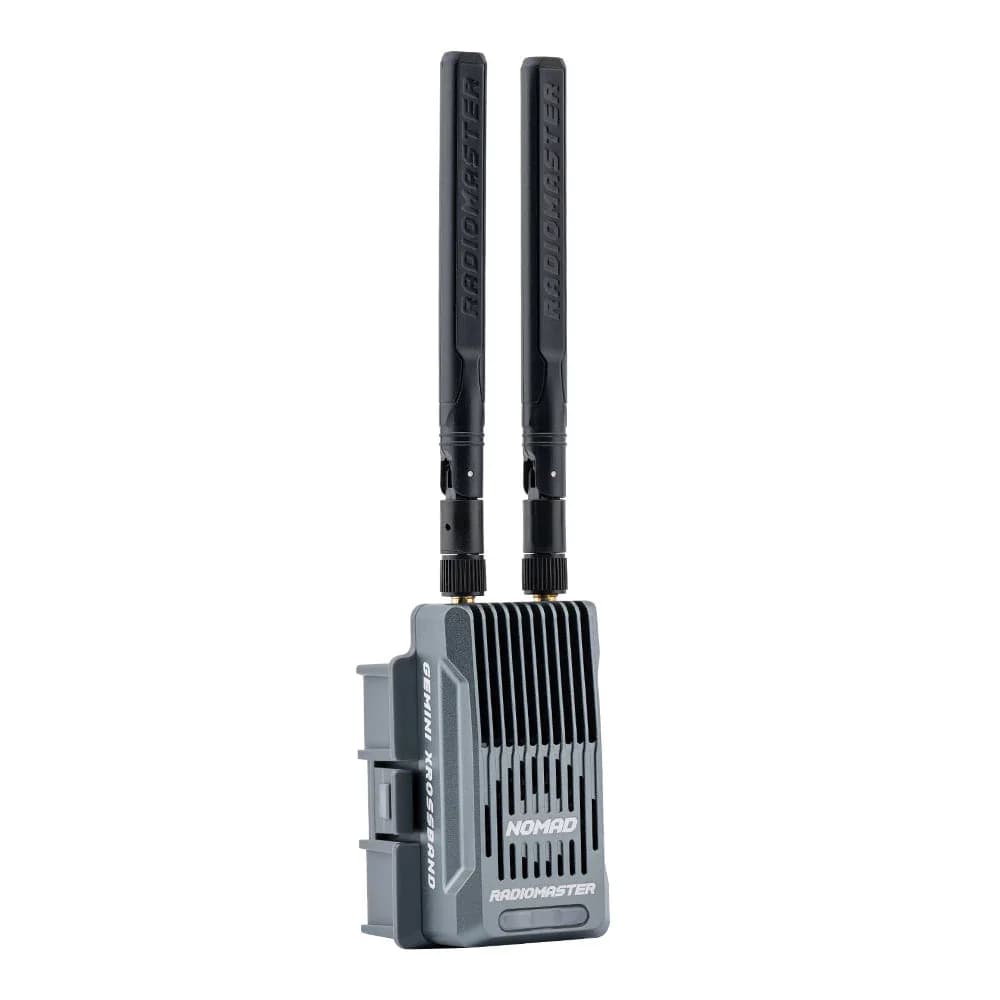

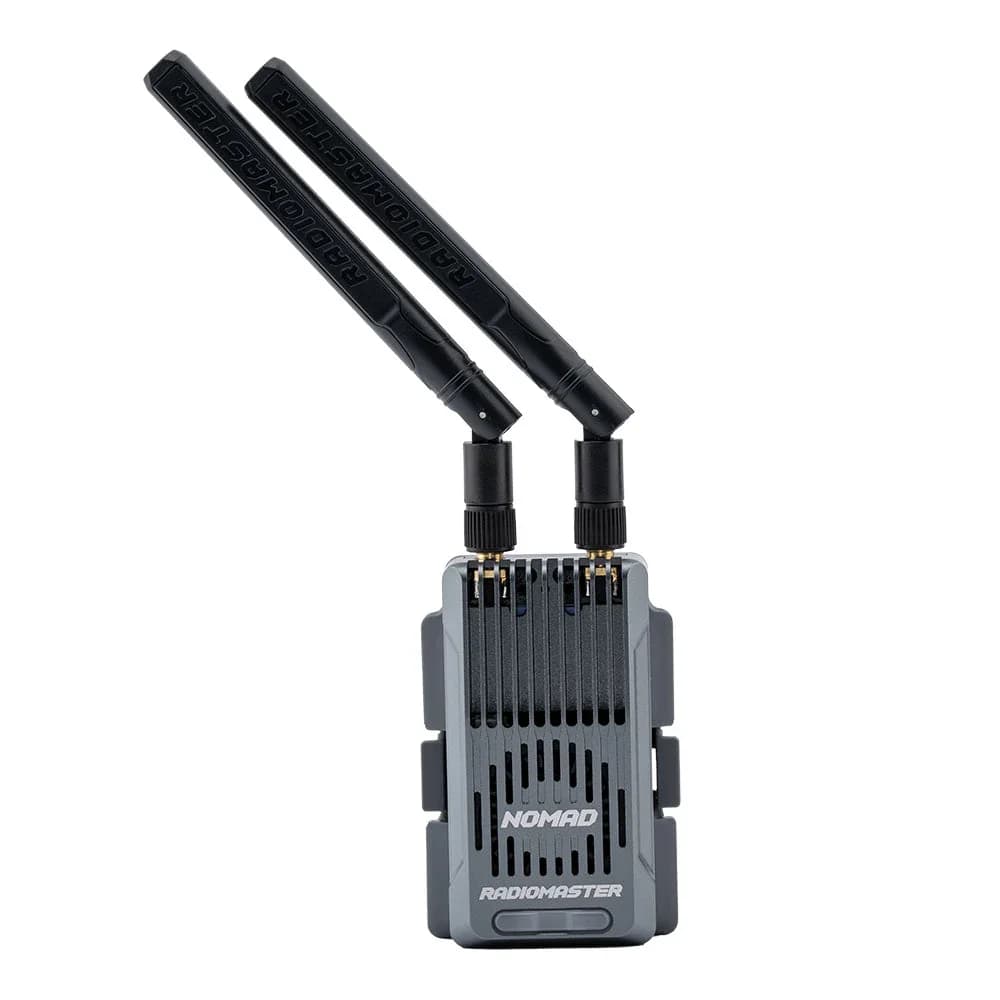

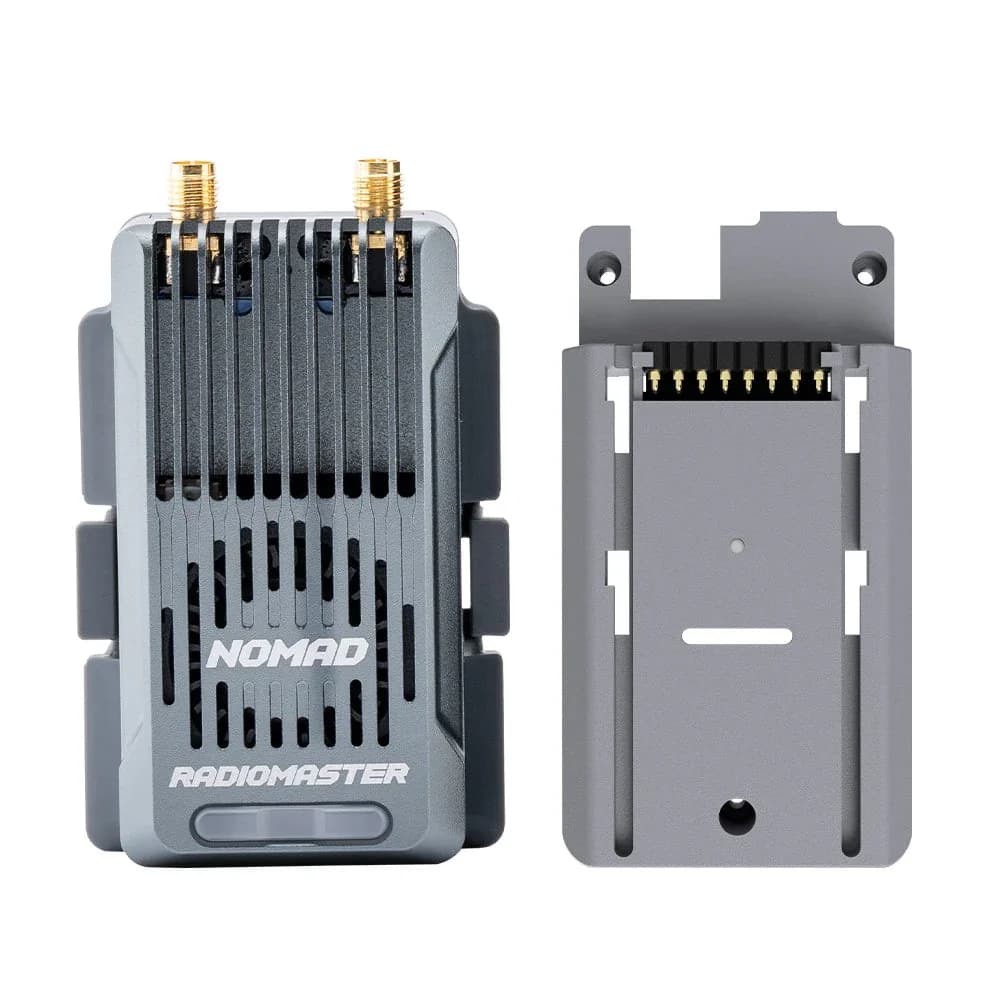

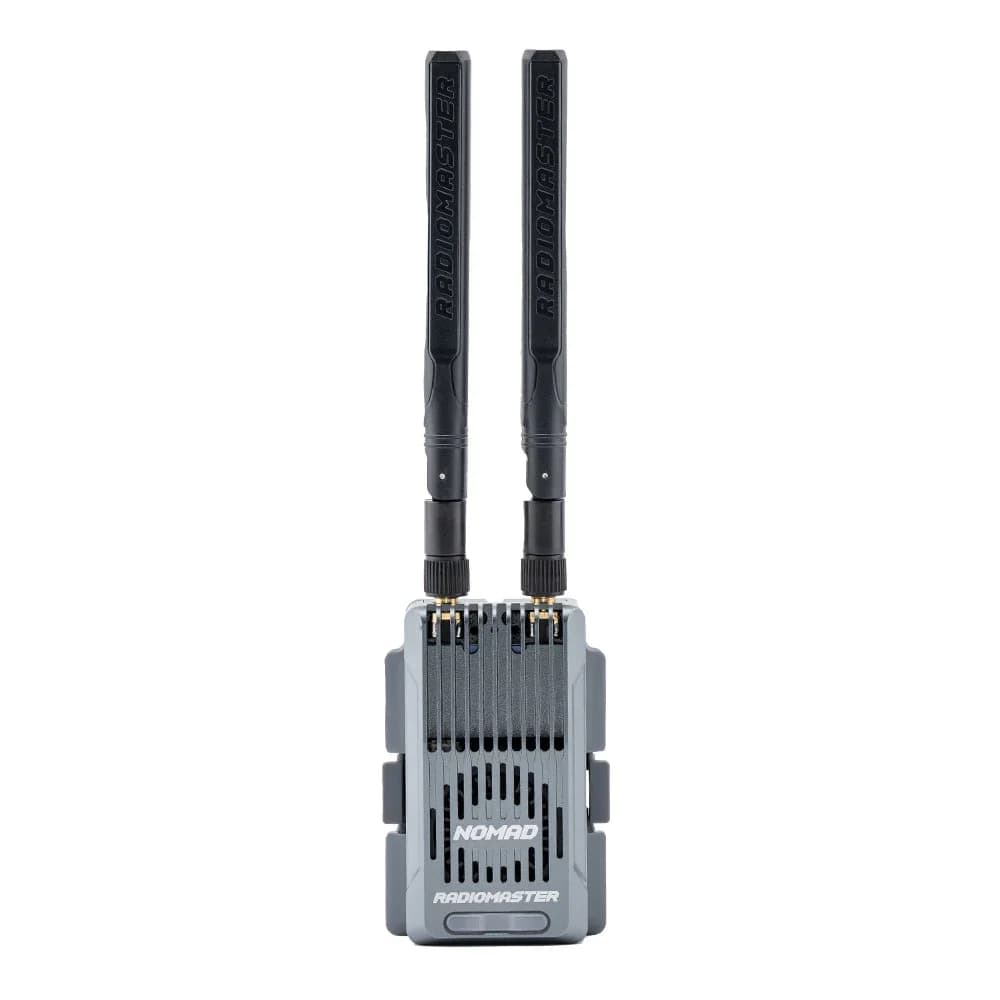

Radiomaster Nomad Dual Band Gemini Xrossband ExpressLRS Module Equipped with 2.4GHZ and 900MHZ Antennas Built-in RGB Light Strip
189 orders (reference)
Description
Radiomaster Nomad Dual Band Gemini Xrossband ExpressLRS Module Equipped with 2.4GHZ and 900MHZ Antennas Built-in RGB Light Strip Wireless Communication: RF Battery Included: No High-concerned chemical: None Model Number: Radiomaste Nomad Brand Name: RADIOMASTER Origin: Mainland China Drones Accessories Type: Remote Control
Specifications
| Attribute | Value |
|---|---|
| Wireless Communication | RF |
| Battery Included | No |
| High-concerned chemical | None |
| Model Number | Radiomaste Nomad |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
| Drones Accessories Type | Remote Control |
Product Details
Radiomaste Nomad Dual Band Gemini Xrossband ExpressLRS Module Equipped with 2.4GHZ and 900MHZ Antennas Built-in RGB Light Strip

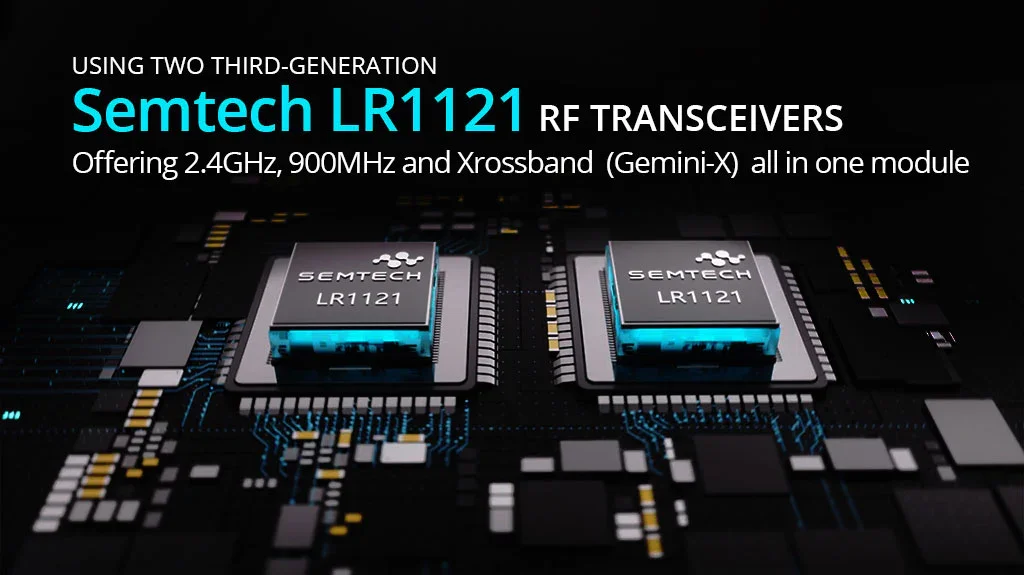

Presenting the RadioMaster Nomad: the next evolution in ExpressLRS RF design! The Nomad is equipped with dual 3rd-generation Semtech LR1121 transceivers, allowing for operation with both 2.4GHz and 868/900MHz frequencies using the advanced Gemini Xrossband protocol. This technology enables the transmitter to send packets on both bands simultaneously, reducing the risk of packet loss due to interference.

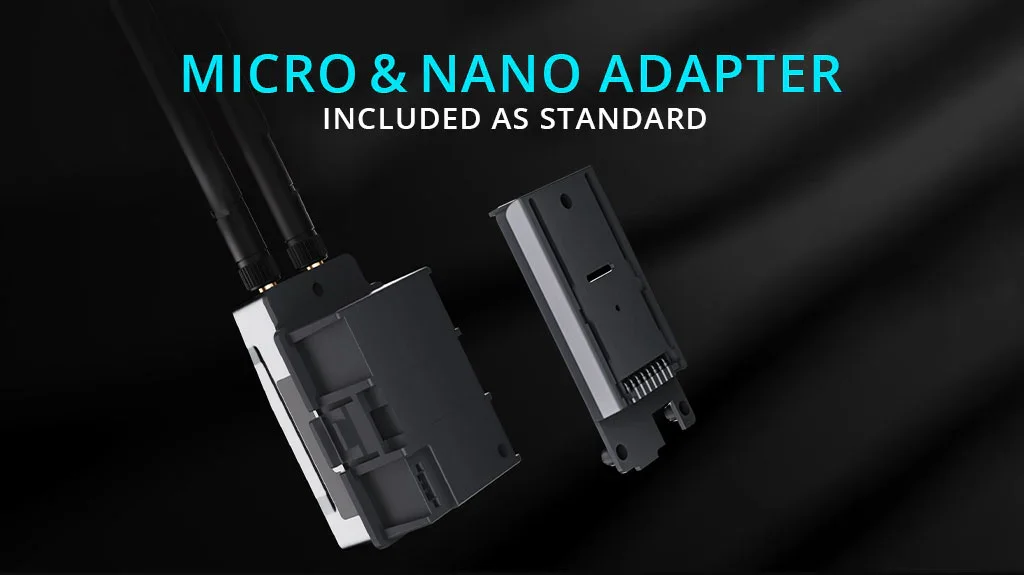

With dual 1-watt dual-band transceivers, the Nomad has exceptional range and revolutionary interference rejection for demanding environments providing enhanced performance and reliability. The Nomad comes with a micro module and nano module adapter, ensuring it works with most radios on the market today.
Whether you’re pushing the limits of range or operating in crowded environments, the Nomad delivers the reliability needed to explore new horzons.
The DBR4 ExpressLRS receiver pairs perfectly with the Nomad and offers seamless compatibility. Together, they push the boundaries of conventional performance, delivering unmatched reliability and efficiency of Gemini-X. Click here to learn more about DBR4 receiver.
Features

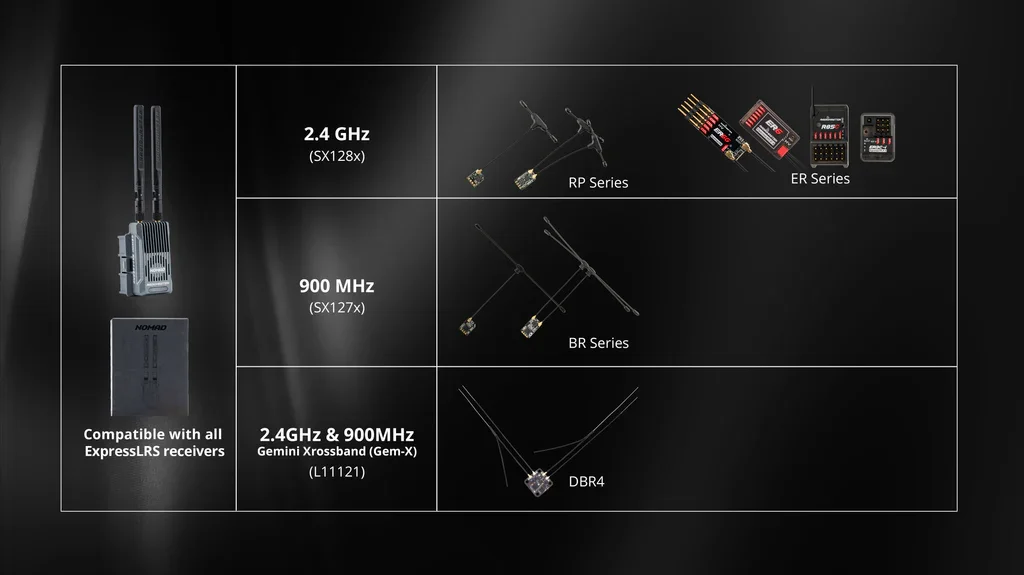

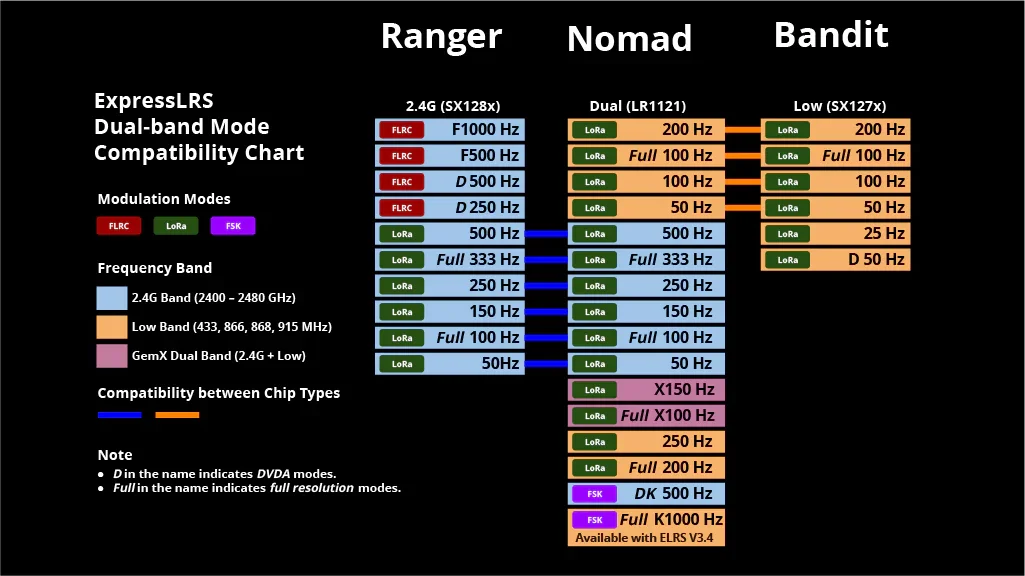

Compatible with all existing 2.4ghz and 900mhz ExpressLRS receivers. (See mode compatibility chart below)
Compatible with 2.4ghz+900mhz Dual band (Gem-X) ExpressLRS receivers
Twin Dual-band 1W transceivers
Experience unmatched reliability with dual-band ELRS Gemini Xrossband
ExpressLRS Gemini 2.4GHz
ExpressLRS Gemini 900MHz

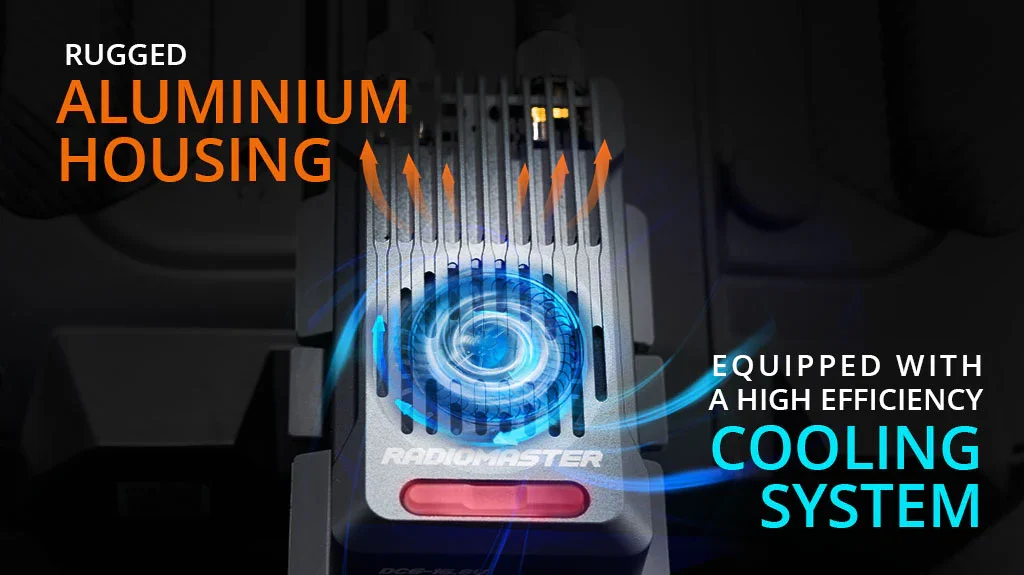

Powerful Cooling System with dual 1
watt transceivers, the Nomad boasts serious power, complemented by an advanced cooling system to keep your module cool even on the hott
st days

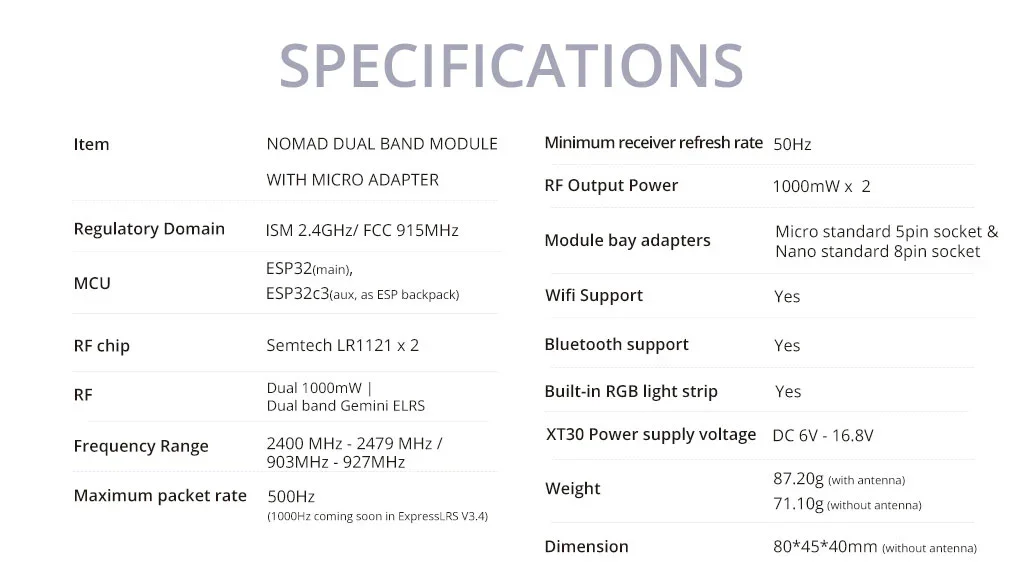

Specification
Item: Nomad Dual Band Module with Micro Adapter
Regulatory Domain: ISM_2.4, FCC_915
MCU: ESP32(main), ESP32c3(aux, as ESP backpack)
RF chip: Semtech LR1121 x 2Frequency Range: 2400 MHz - 2479 MHz / 903MHz - 927MHz
Maximum packet rate: 500Hz (1000Hz coming soon in ExpressLRS V3.5)
Minimum receiver refresh rate: 50Hz

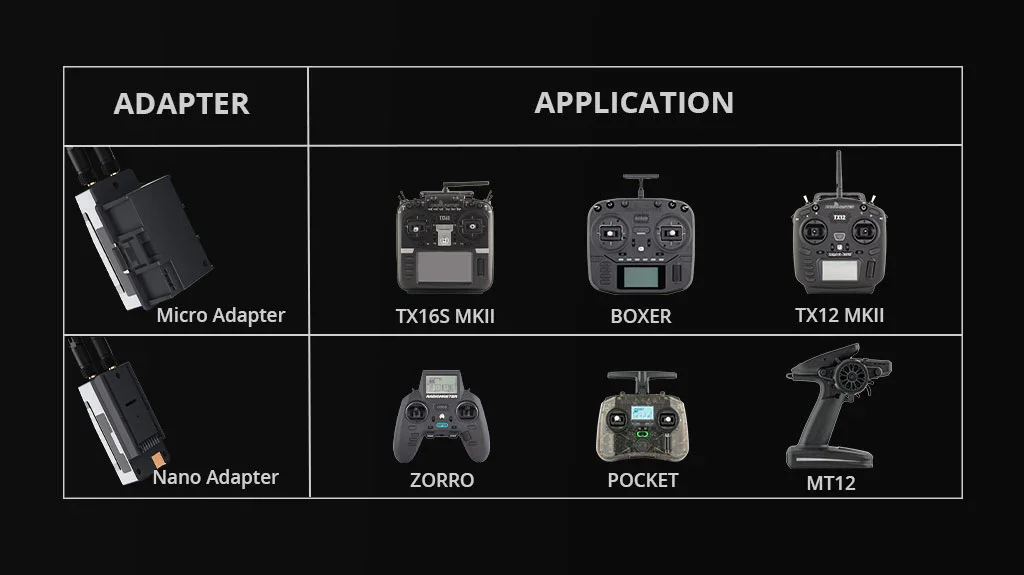

Module bay adapters: Micro standard 5pin socket & Nano standard 8pin socket
Wifi Support: Yes
Bluetooth support: Yes
Built-in RGB light strip

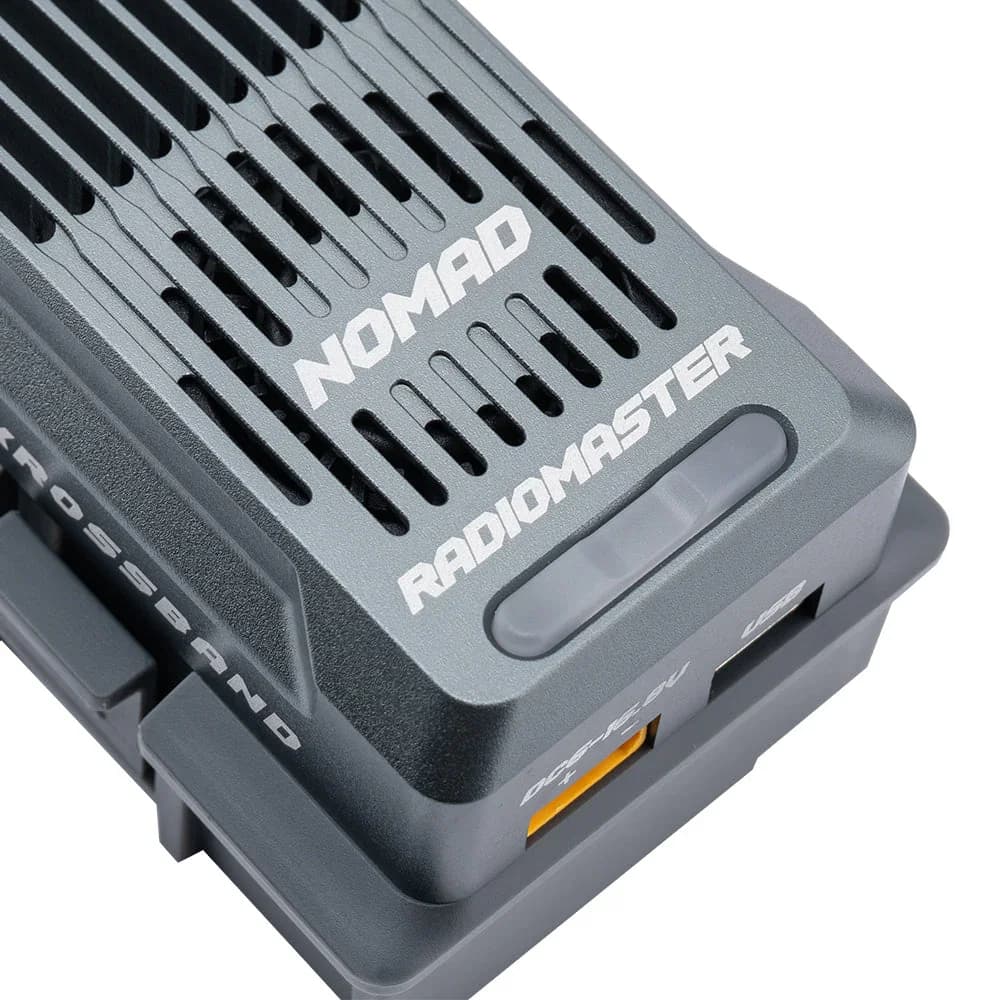

XT30 Power supply voltage: DC 6V - 16.8V
Weight: 87.20g (with antenna) / 71.10g (without antenna)
Dimension: 80*45*40mm (without antenna)
New Packet Rates
Sub-GHz 250Hz (-111dBm)
Speed Boost: Achieve faster packet rates with enhanced sub-GHz performance.
Sub-GHz 200Hz Full (-111dBm)
Double the packet rate compared to traditional 900MHz SX1276-based modules. This enhancement provides a significantly more robust and reliable connection, along with improved resistance to interference in demanding setups.
Enjoy faster data throughput and greater stability, making it an ideal upgrade for advanced configurations that rely on seamless telemetry and control.

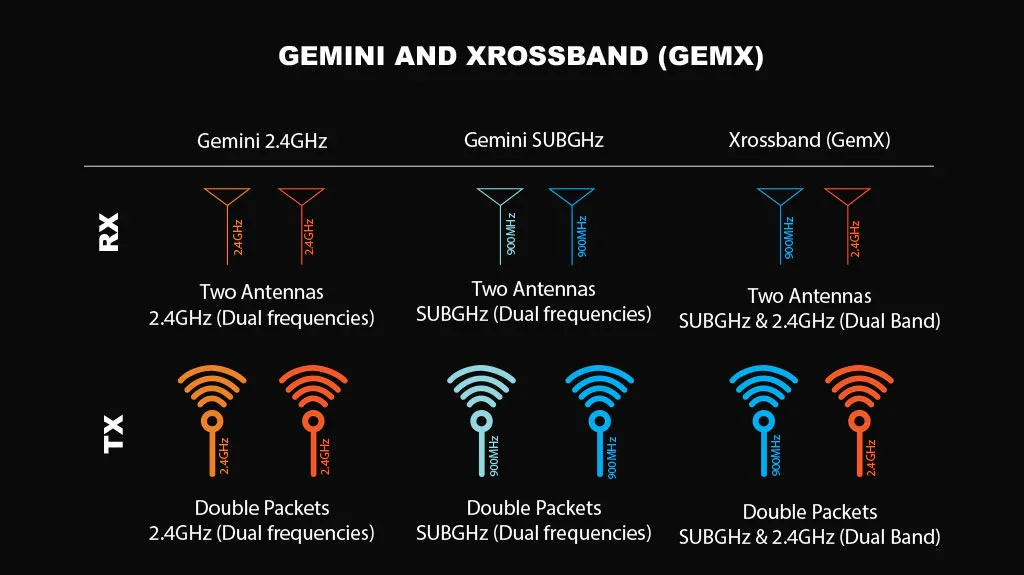

Dual Band X150Hz (-112dBm)
Gemini Mode: Experience simultaneous sub-GHz and 2.4GHz transmissions, providing robust performance and reduced interference with a packet rate of 150Hz.
Dual Band X100Hz Full (-112dBm)
Enhanced Gemini Mode: Achieve the same dual-frequency transmission benefits at a 100Hz packet rate with full 16 channel resolution, ensuring strong and stable connectivity even in challenging environments.
Introduction of K Modes
DK500 (Coming in ExpressLRS V3.5)
Design specifically from the ground up for lovers of speed and RC reliability. K modes are next generation FSK modulation with built in packet repair (Forward Error Correction). Just like FLRC D500, DK500 sends repeat packets to reduce packet loss in challenging race event environments. Coupled with a Gemini enabled Tx and Rx, nothing comes close to RC reliability.
K1000 Full SubGHs (Coming in ExpressLRS V3.5)
Yes, you read that correctly — 1000Hz on 868/900MHz!
This mode is designed for maximum data throughput, and despite the extremely high update rate, testing has shown it to remain impressively stable and responsive.
Package Includes
1 * Nomad Dual Band Module with Micro Adapter

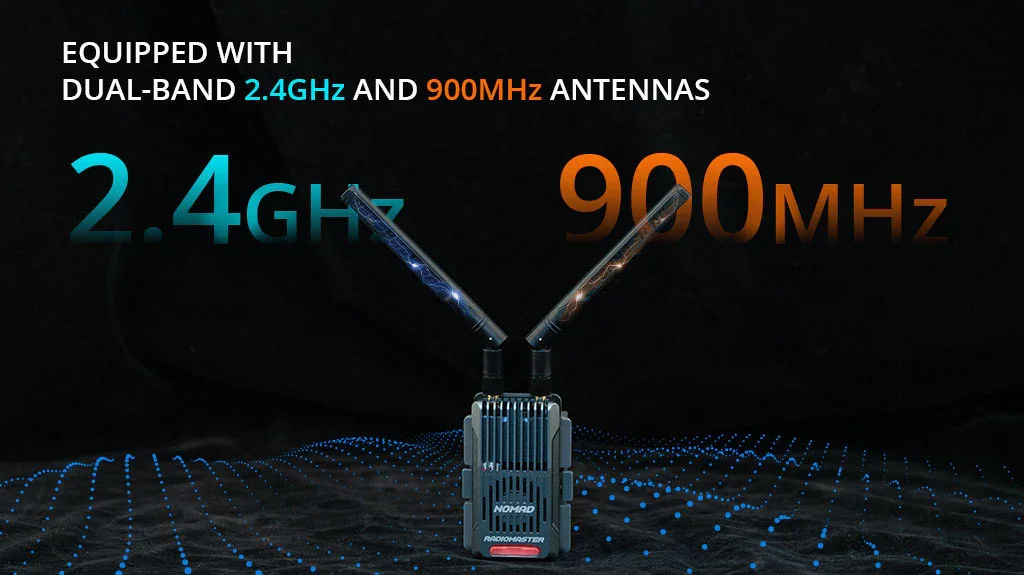

2 * Dual Band 2.4GHz / 900 MHz Antennas
1 * Nano Adapter
1 * Manual card
