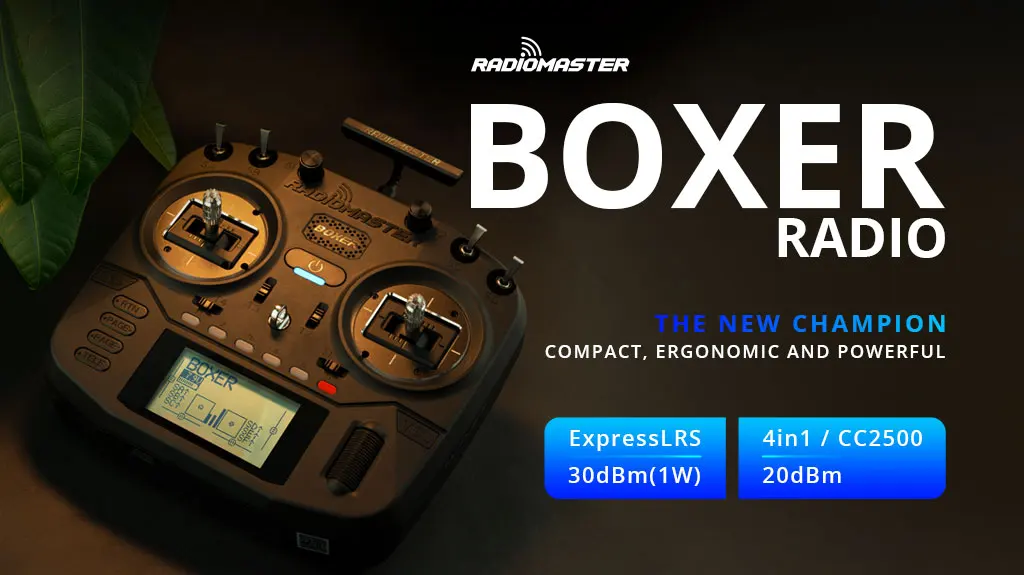

RadioMaster Boxer Radio Controller Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters EDGETX Open System 100% Original
500 orders (reference)
Description
RadioMaster Boxer Radio Controller Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters EDGETX Open System 100% Original Wireless Communication: RF Battery Included: No High-concerned chemical: None Package: Yes Weight: 532.5g Model Number: BOXER Brand Name: RADIOMASTER Origin: Mainland China
Specifications
| Attribute | Value |
|---|---|
| Wireless Communication | RF |
| Battery Included | No |
| High-concerned chemical | None |
| Package | Yes |
| Weight | 532.5g |
| Model Number | BOXER |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
| Drones Accessories Type | Remote Control |
| Certification | CE,FCC |
Product Details
Notes:
CC2500 (standard) Version supports all CC2500 protocols
4in1 (standard) Version supports all MPM protocols
ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)
----
CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Specifications:
Item: BOXER Radio
Size: 235*178*77mm
Weight: 532.5g
Frequency: 2.400GHz-2.480GHz
BOXER ELRS VERSION:
Internal RF Options: ELRS 2.4GHz
Supported protocols: Module dependent

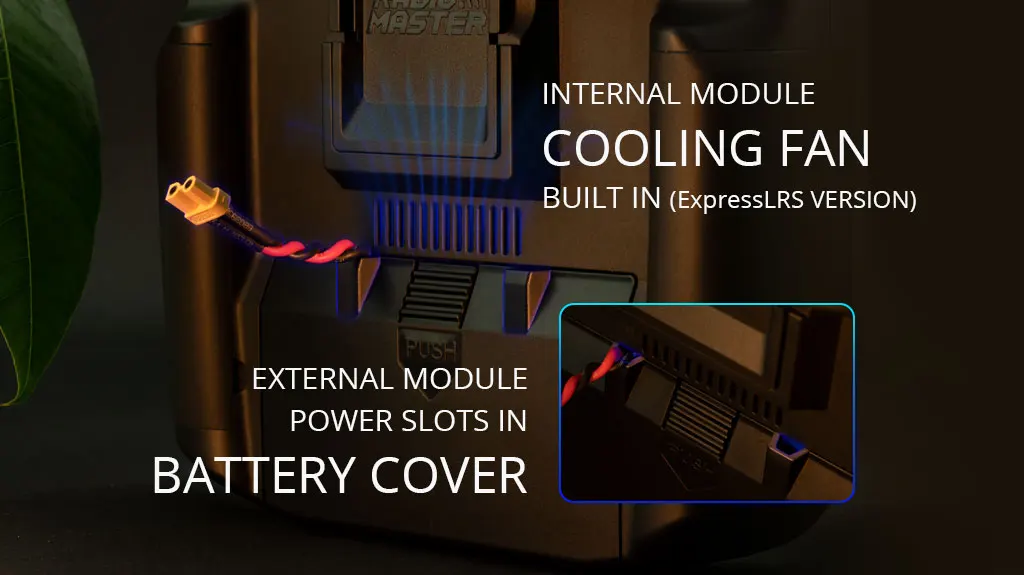

Cooling fan: Built in (ELRS version)
BOXER 4IN1 VERSION:
Internal RF Options: 4-in-1 multi-protocol
Supported protocols: Module dependent
BOXER CC2500 VERSION：
Internal RF Options: CC2500 multi-protocol
Supported protocols: Module dependent
Voltage Range: 6.6-8.4V DC
Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module)
Channels: Max 16 channels (Receiver dependent)

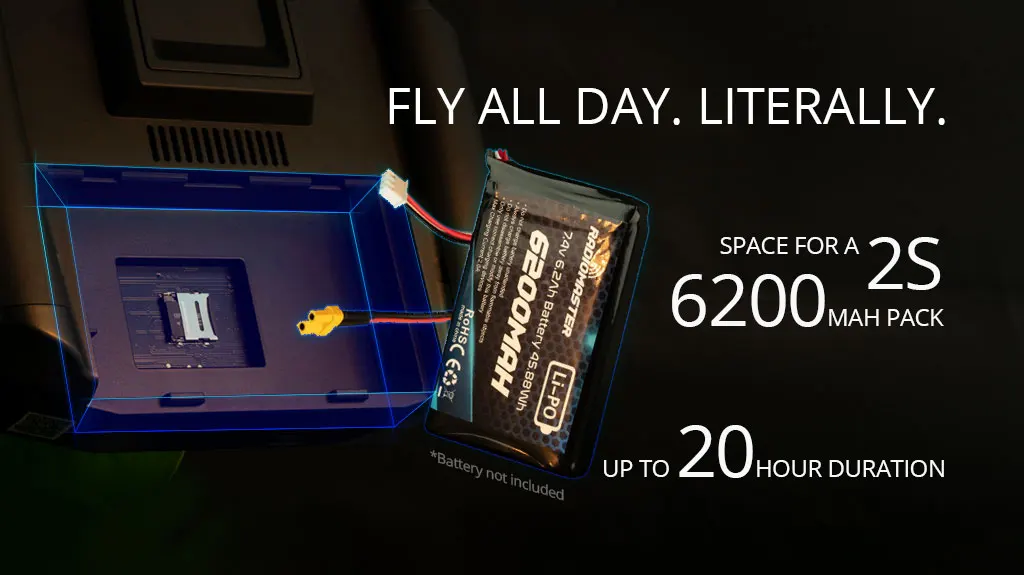

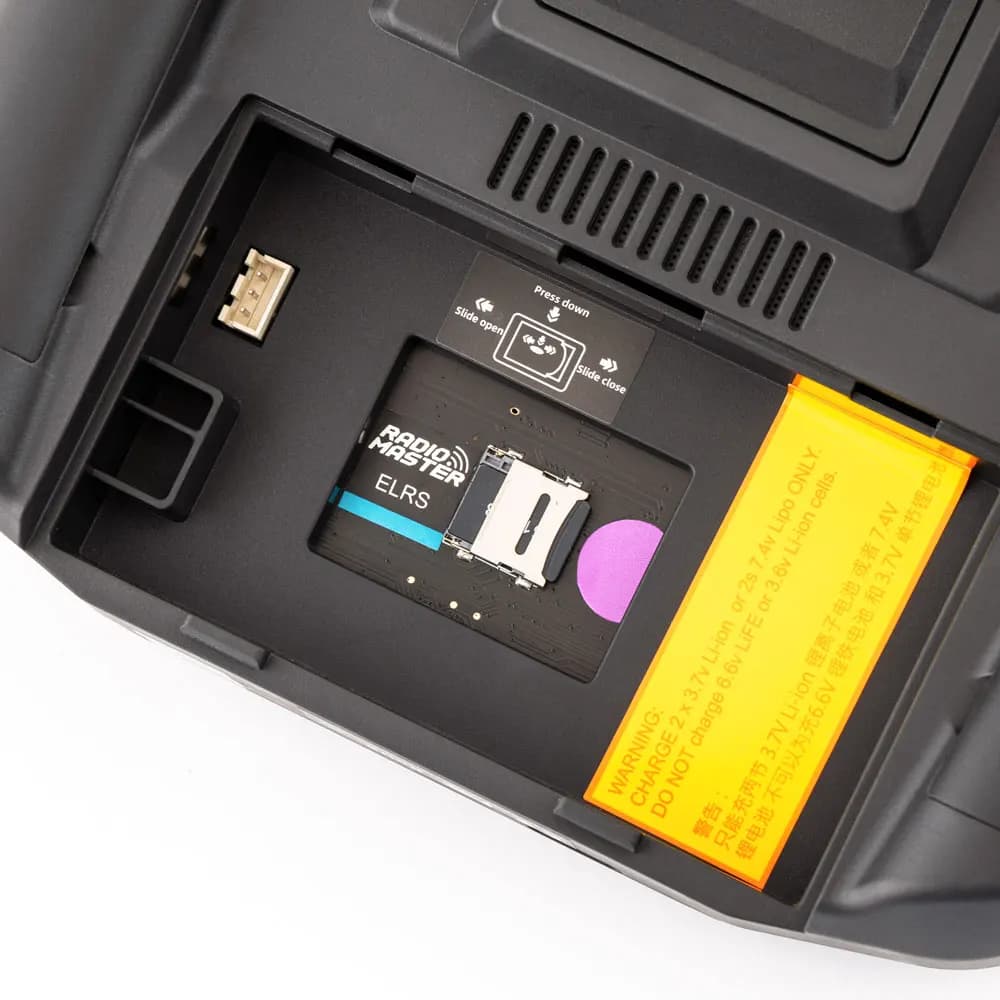

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
Display: 128*64 Monochrome LCD display

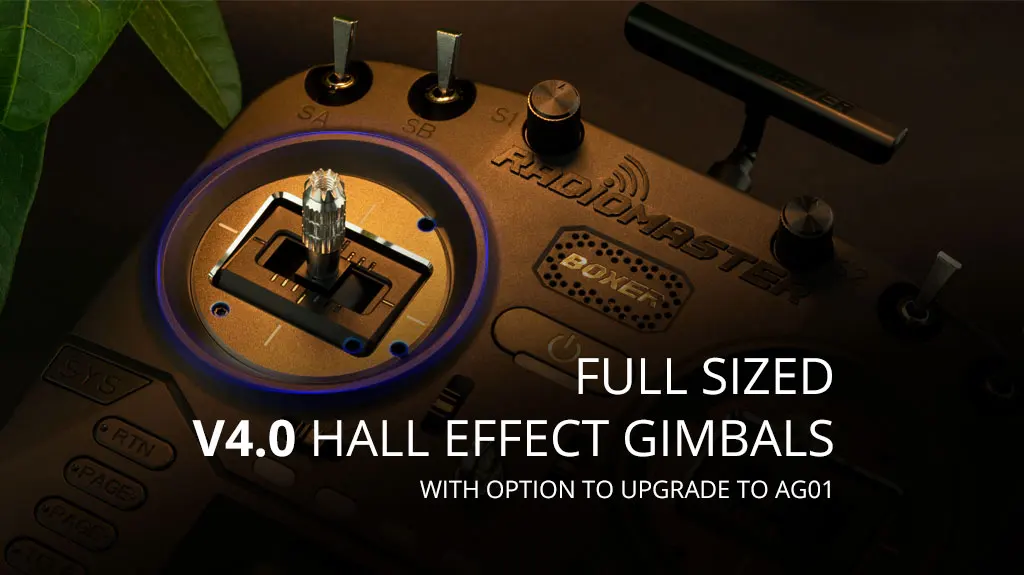

Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)

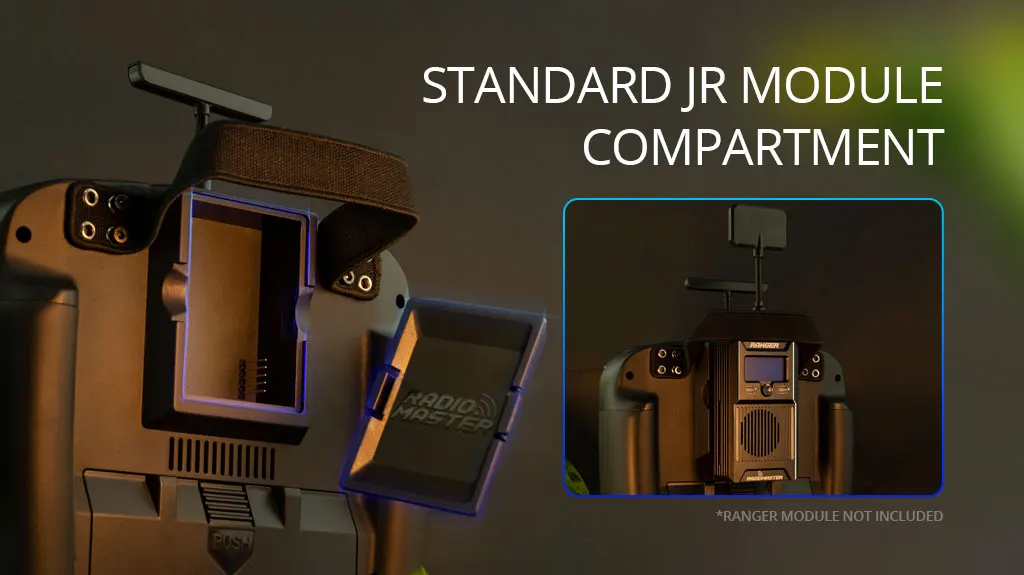

External module: JR / FrSKY / Crossfire compatible

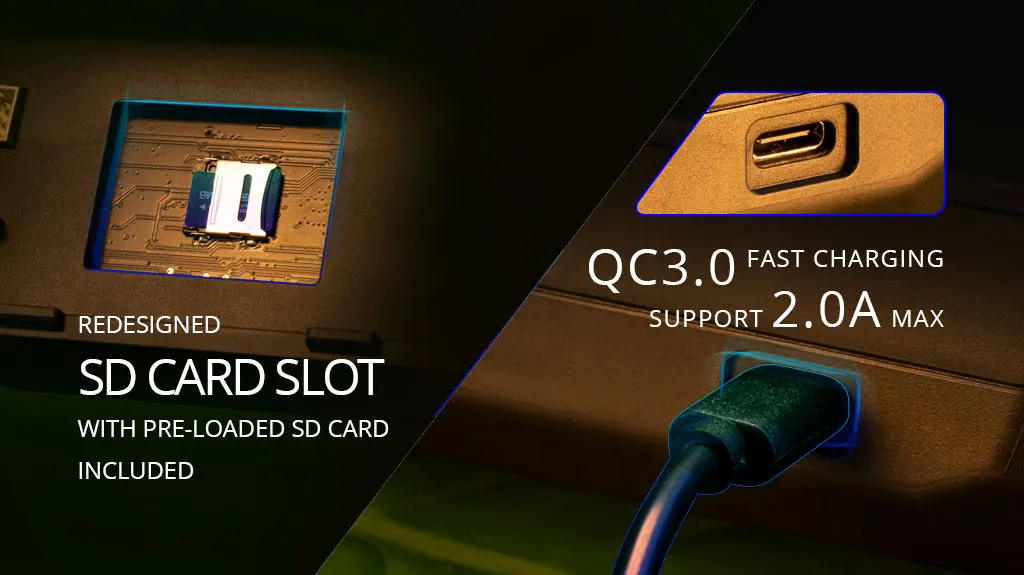

Upgrade Method: USB / SD card & EdgeTX Companion PC software
Package
1 * BOXER Radio
1 * Signature Carry Case

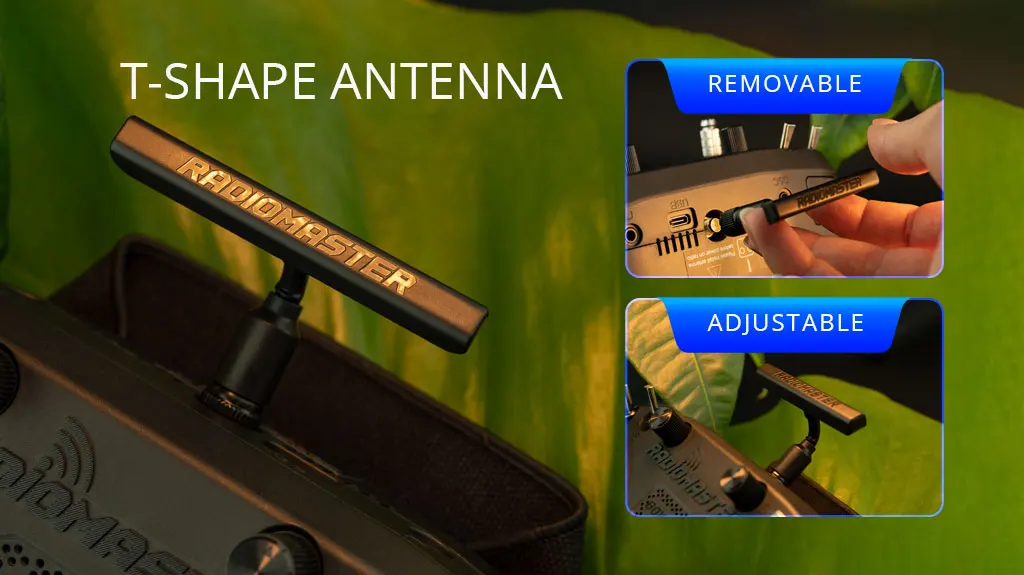

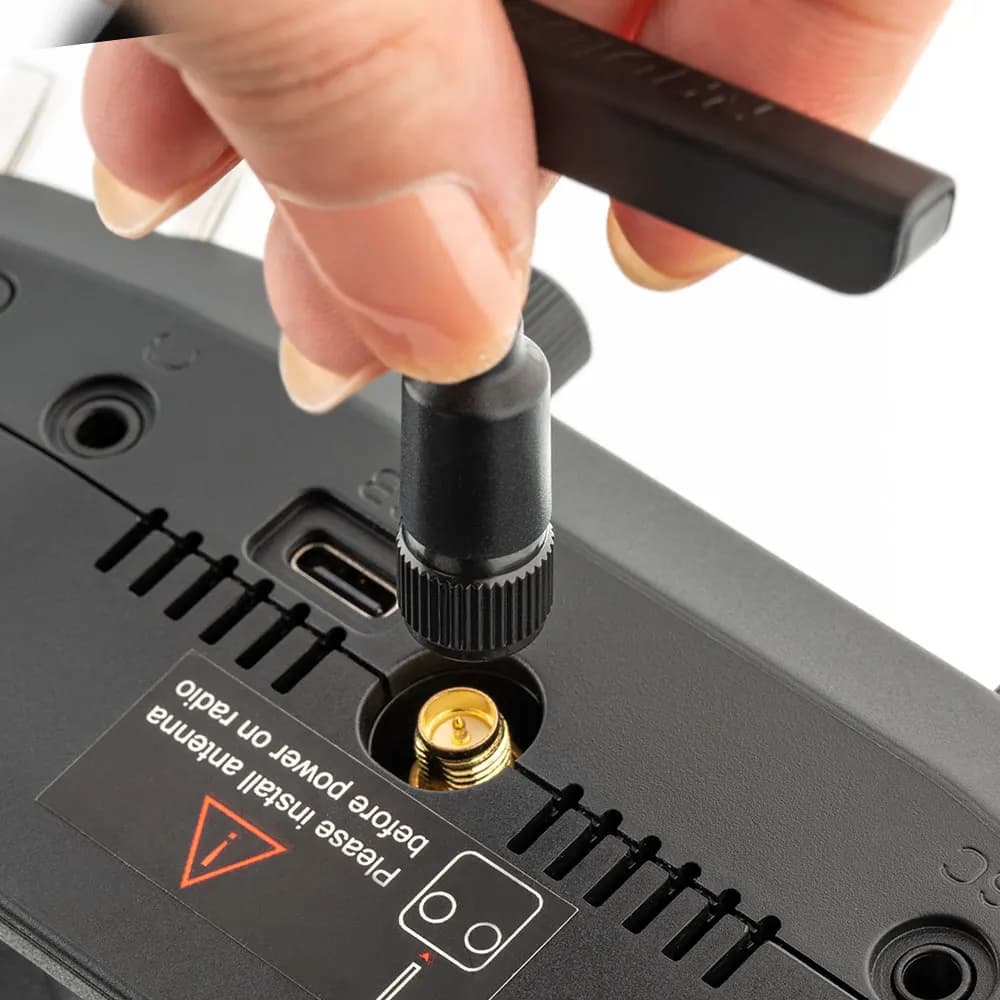

1 * T Antenna
1 * USB-C Cable
1 * Gimbal Protector
1 * 1.5mm Allen Key
2 * M4*4 Screws
4 * Low Tension Springs
1 * Stickers
1 * Manual

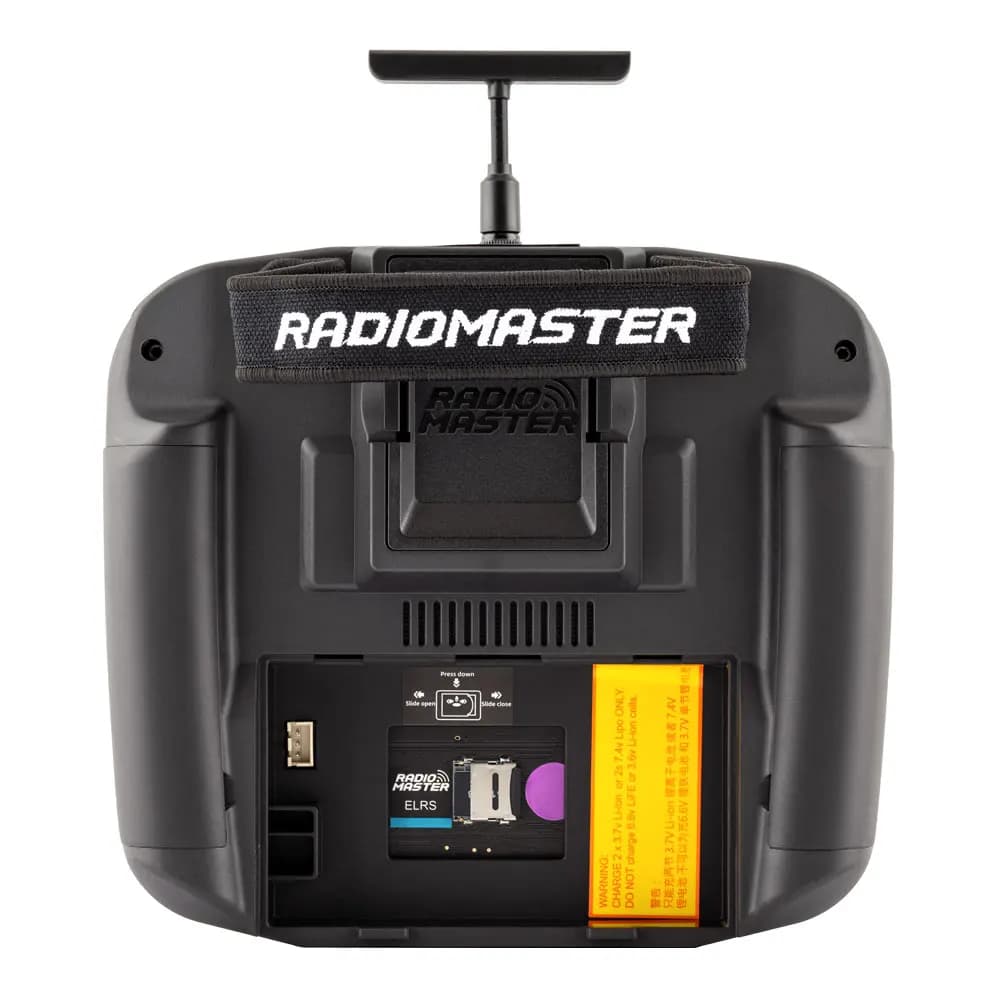

1 * 18650 Battery tray (Batteries not included)
