1pcs new Kingmax CLS1008M steel-toothed 450-480 helicopter swash plate 30E fixed-wing digital high-voltage servo
Description

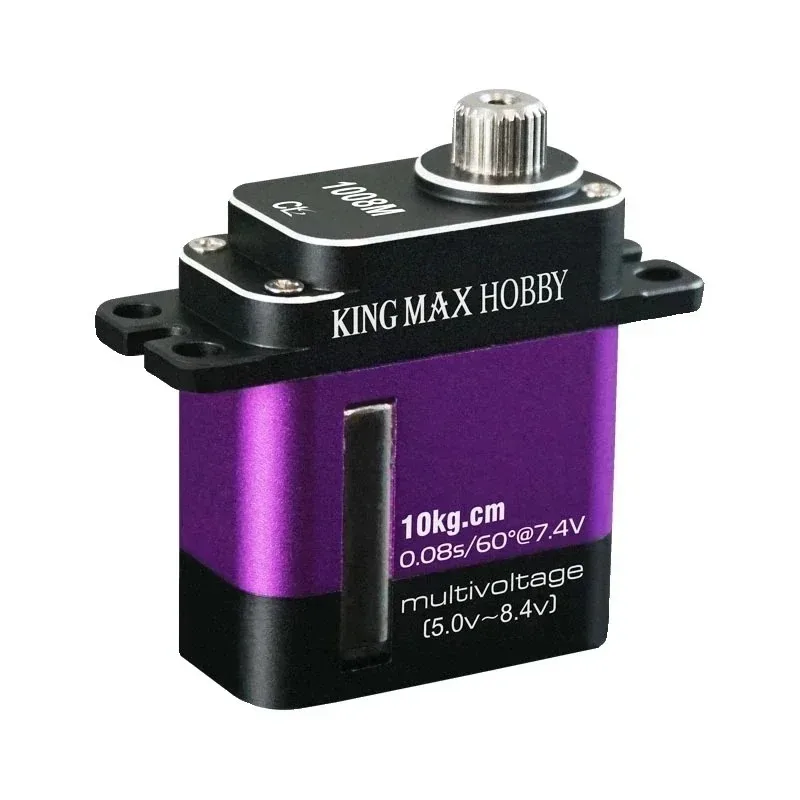

Kingmax CLS1008M 21g 10kg.cm DC 4.8V~8.4V Digital Metal Gears Mini Servo For 450-480 Class Helicopter Swashplate 30E Fixed-wing
FEATURE:
-- Programmable high performance matal gears mini digital servo
-- Full CNC aluminium hulls and structure
-- High-precision steel gears
-- High quality coreless motor
-- Dual ball bearings
Specifications
| Option | Values |
|---|---|
| Operating Speed(5.0V) |
|
| Operating Speed(6.0V) |
|
| Operating Speed(7.4V) |
|
| Operating Speed(8.4V) |
|
| Stall torque(7.4V) |
|
| Maximum working torque(7.4V) |
|
| Rated working torque(5.0V) |
|
| Rated working torque(6.0V) |
|
| Rated working torque(7.4V) |
|
| Rated working torque(8.4V) |
|
| Dimensions |
|
| Weight |
|
| Connector Wire Length |
|
Product Details
Kingmax CLS1008M 21g 10kg.cm DC 4.8V~8.4V Digital Metal Gears Mini Servo For 450-480 Class Helicopter Swashplate 30E Fixed-wing
FEATURE:
-- Programmable high performance matal gears mini digital servo
-- Full CNC aluminium hulls and structure
-- High-precision steel gears
-- High quality coreless motor
-- Dual ball bearings

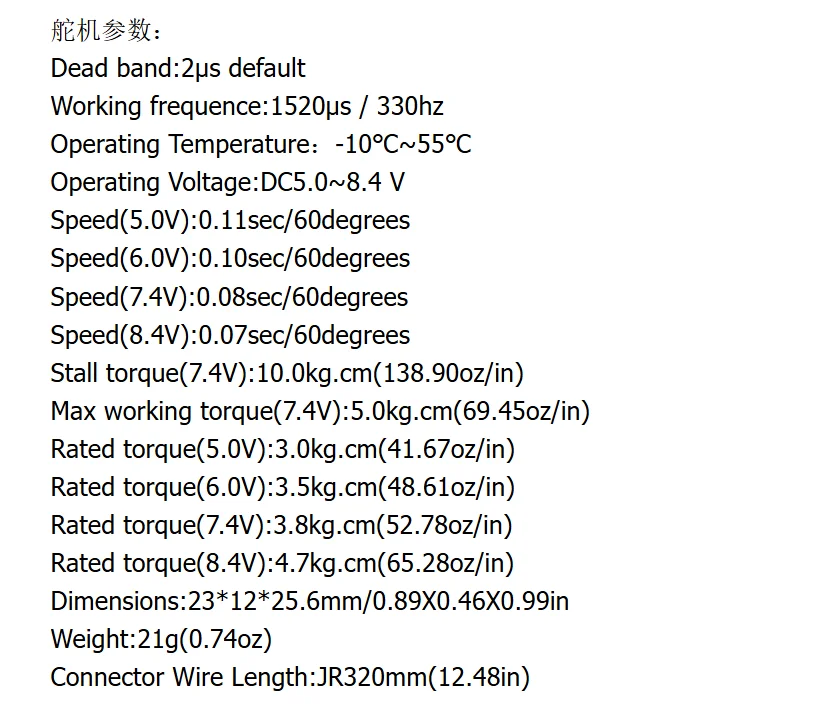

SPECIFICATIONS:
Operating Speed(5.0V):0.11sec/60degrees
Operating Speed(6.0V):0.10sec/60degrees
Operating Speed(7.4V):0.08sec/60degrees
Operating Speed(8.4V):0.07sec/60degrees
Stall torque(7.4V):10.0kg.cm(138.90oz/in)
Maximum working torque(7.4V):5.0kg.cm(69.45oz/in)
Rated working torque(5.0V):3.0kg.cm(41.67oz/in)
Rated working torque(6.0V):3.5kg.cm(48.61oz/in)
Rated working torque(7.4V):3.8kg.cm(52.78oz/in)
Rated working torque(8.4V):4.7kg.cm(65.28oz/in)

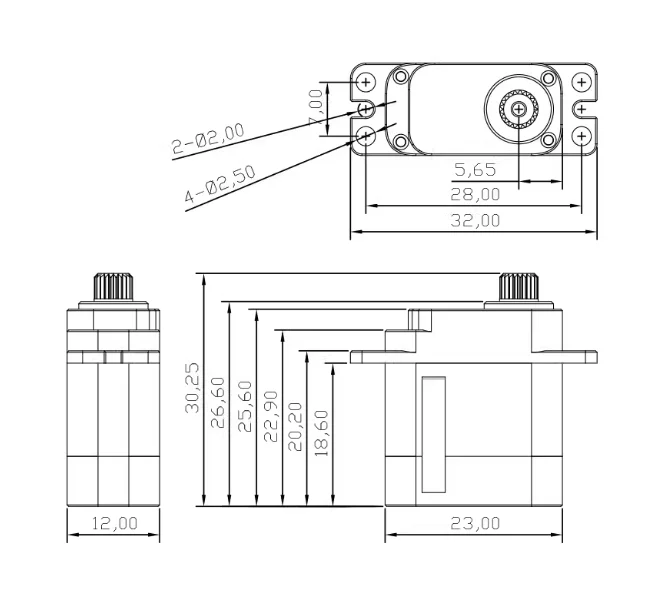

Dimensions:23*12*25.6mm/0.89X0.46X0.99in
Weight:21g(0.74oz)
Connector Wire Length:JR320mm(12.48in)
