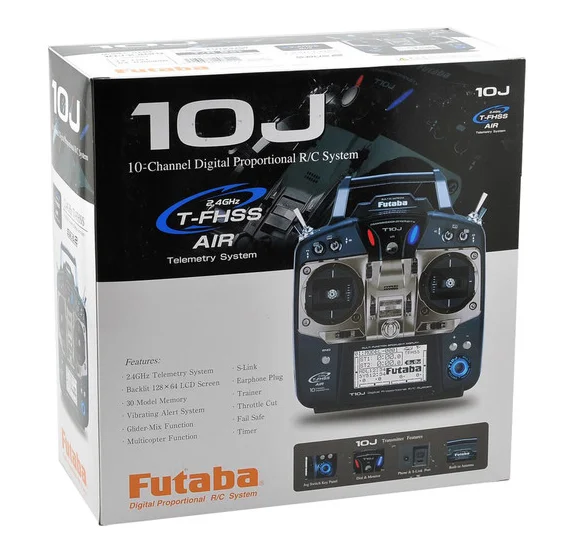

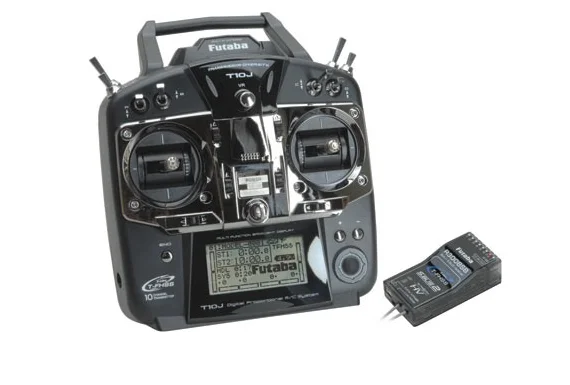

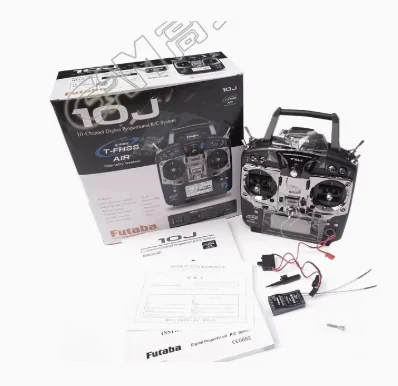

Original NEW in box Futaba T10J 10J 10-Channel 2.4GHz 2.4G Air T-FHSS S-FHSS Radio Transmitter R3008SB receiver TX RX for RC
Description
Original NEW in box Futaba T10J 10J 10-Channel 2.4GHz 2.4G Air T-FHSS S-FHSS Radio Transmitter R3008SB receiver TX RX for RC
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Material | Composite Material |
| Brand Name | RCMOY |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
utaba T-FHSS Airplane Spec Radio System Overview

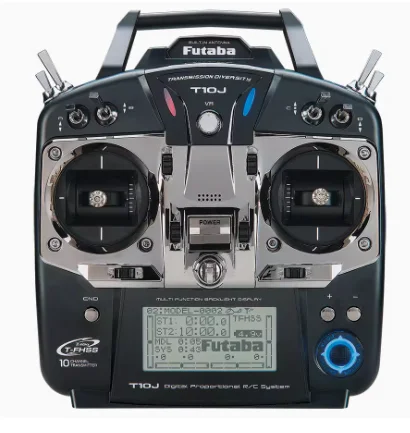

The 10J 2.4 GHz 10-Channel T-FHSS Radio System from Futaba features a airplane-optimized transmitter (radio controller) and receiver that can be used to control a multitude of RC aircraft, including fixed-wing planes, helicopters and multi-rotors, and gilders. The transmitter features 10 channels and supports receivers with the S-FHSS and T-FHSS Air protocols, such as the included R3008SB. The throttle gimbal is ratcheted rather than smooth, which is considered the preferred arrangement by many airplane fliers. The transmitter also defaults to the Mode 2 stick operation when powered on, where roll and pitch are controlled with the pilot's right hand while yaw and throttle are controlled with the pilot's left hand.
For 10-channel control, the transmitter features one variable knob, five 2-position switches, two 3-positions switches, one momentary switch, and two digital levers. It is able to store settings for up to 30 models and features a built-in S.Bus programming link for optional S.Bus servos. Both the transmitter and receiver are telemetry-compatible, with the data viewed on the transmitter's back-lit LCD screen and audibly reported via a headphone jack. The system also provides vibration and audio alerts for alarm conditions and low battery warnings.
Futaba T-FHSS, S-FHSS 2.4 GHz security
Airplane, heli, glider, and multi-rotor software
30-model memory
S.Bus capable T-FHSS receiver
Telemetry support
Synthesized voice for telemetry data
Vibration alerts for alarm conditions and low battery
User-updatable software (requires optional CIU-2 interface)
Wireless data transfer among 10J transmitters
Built-in S.Bus programming link for S.Bus servos
10-character model and user naming
128 x 64 dot backlit LCD display
10 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)
Built-in diversity antenna
Jog dial and three buttons for fast, easy programming
Sub-trim and fail-safe (all channels)
Servo reversing, endpoint adjustment, digital trims, dual rates/exponential & ATL
Trim step adjustability
Trainer system
Throttle cut
Internal time with two countup/countdown timers
Model timer
Range check mode
Servo cycle w/bar graph displays
Assignable switch/lever/functions (channels 5 to 10)
6 programmable mixes
9 factory-defined mixes
Flaperons with differential rate
Flap trim
Differential ailerons
Gyro sensitivity
5-point throttle and pitch curves
Throttle delay
Idle down
6 programmable mixes
3 factory-defined mixes
5 wing types
Gyro sensitivity
Motor menu
2 flight conditions
6 programmable mixes
10 factory-defined mixes
8 swash plate types
5 flight conditions w/ delay
Throttle curve (4 curves, 5 points)
Pitch curve (5 curves, 5 points)
Throttle hold and delay
Swash AFR
Electronic swash ring
6 programmable mixes
Gyro sensitivity/mixing
Center stick alarm
This is the Futaba R3008SB T-FHSS 2.4GHz S.Bus2 8/32 Channel Telemetry Receiver.
Bi-directional communication with a T-FHSS Air-2.4GHz Futaba transmitter using the S.BUS2 port
Standard PWM output ports and S.BUS output ports
One year limited warranty through Hobby Services beginning at date of purchase
Specifications
Size: 0.98 x 1.86 x 0.56" (24.9 x 47.3 x 14.3mm)
Weight: 0.36oz (10.1g)
Power Requirement: 4.8-7.4V
Battery F/S Voltage: Sets up with a transmitter
Extra Voltage Port: 0 ~ 70V DC
