T10J 10-Channel 2.4GHz RC Transmitter Controller Set with 8CH Receiver, T-FHSS Protocol, Compatible with RC Helicopter Drone



Main functional configurations

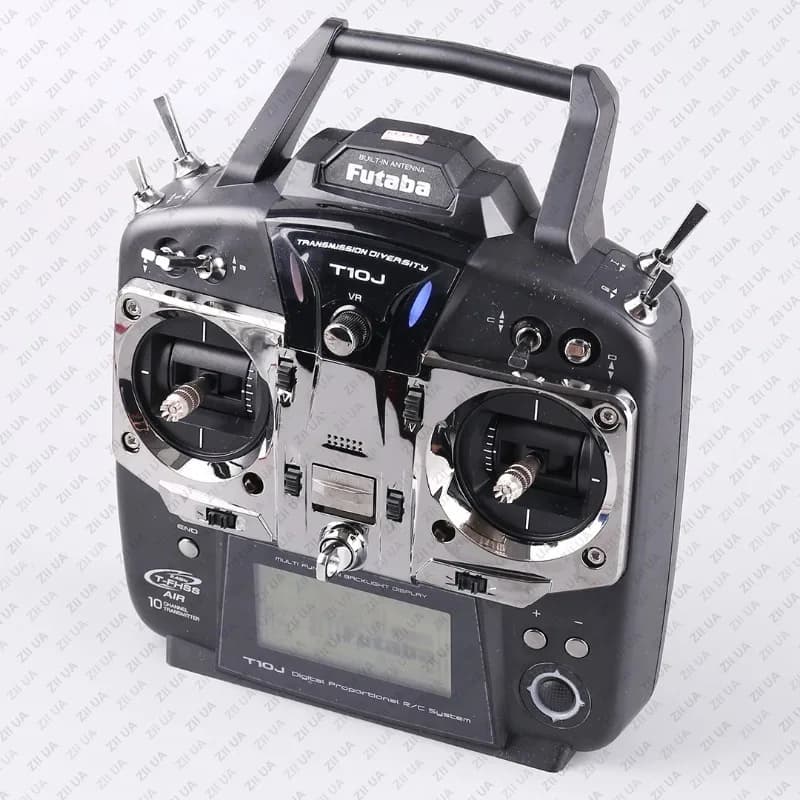

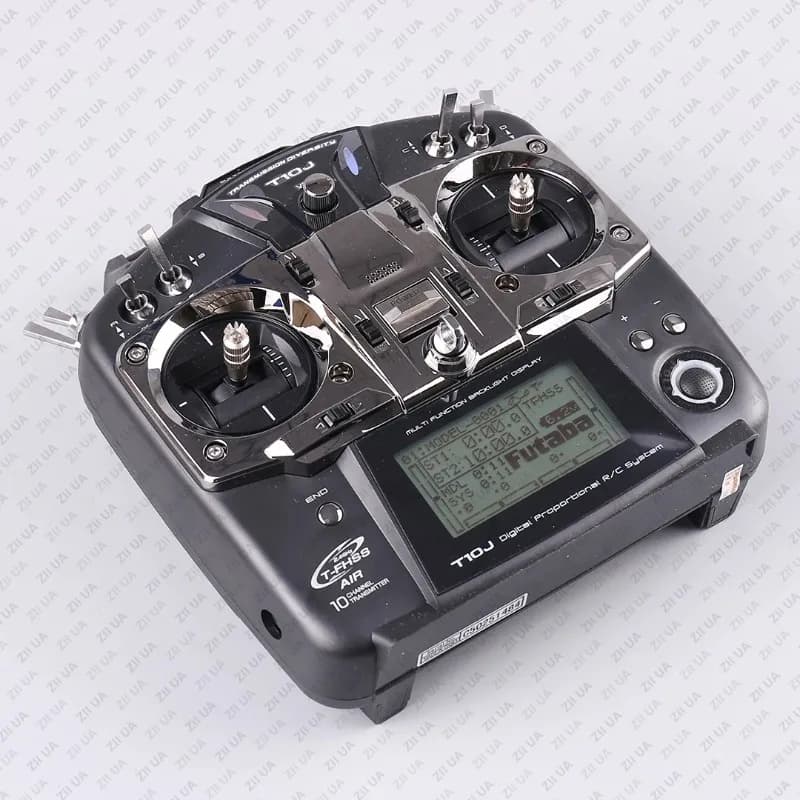

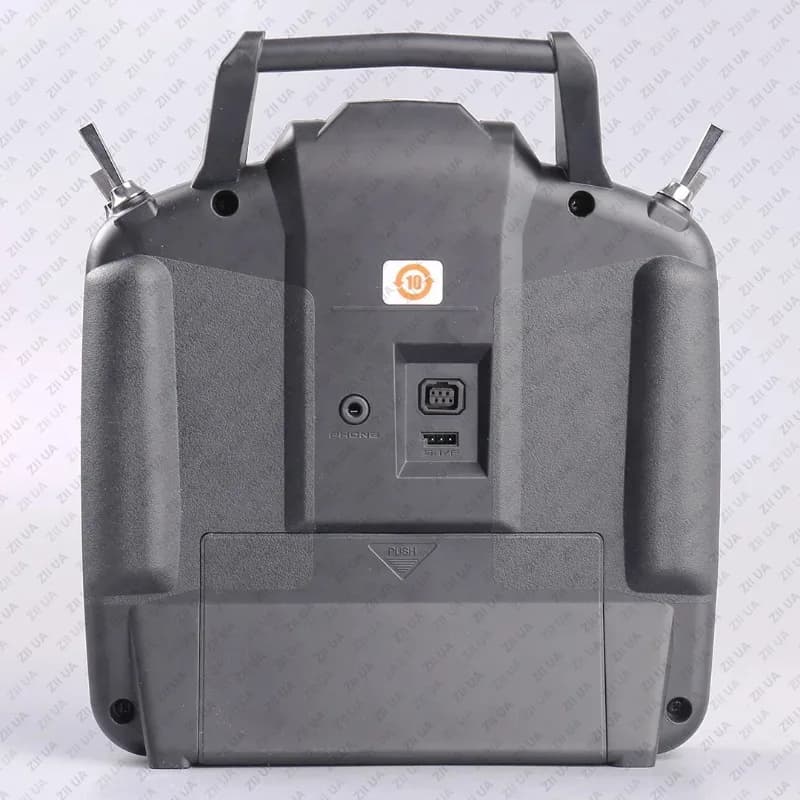

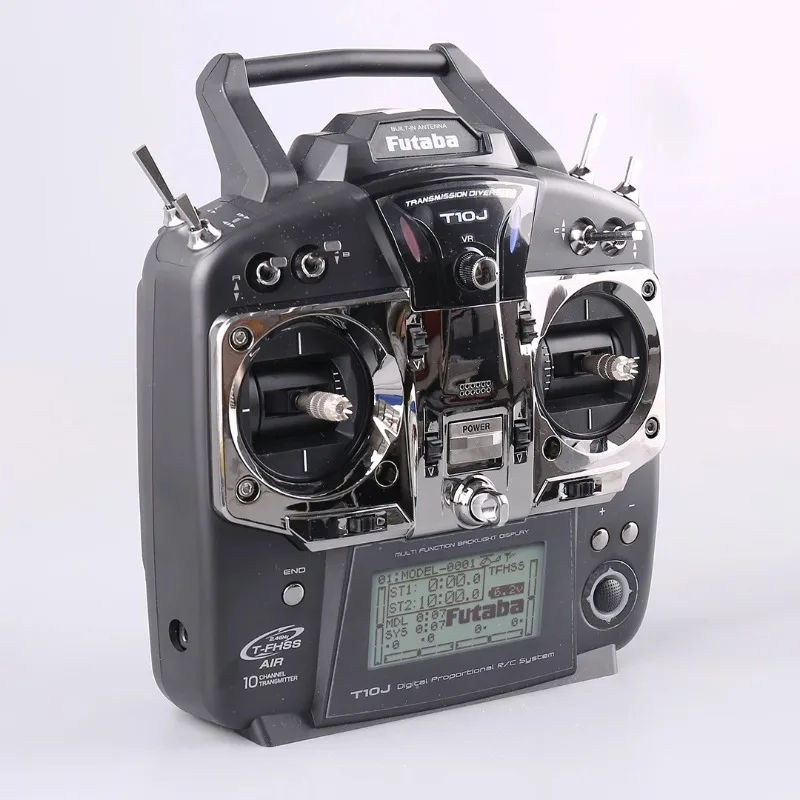

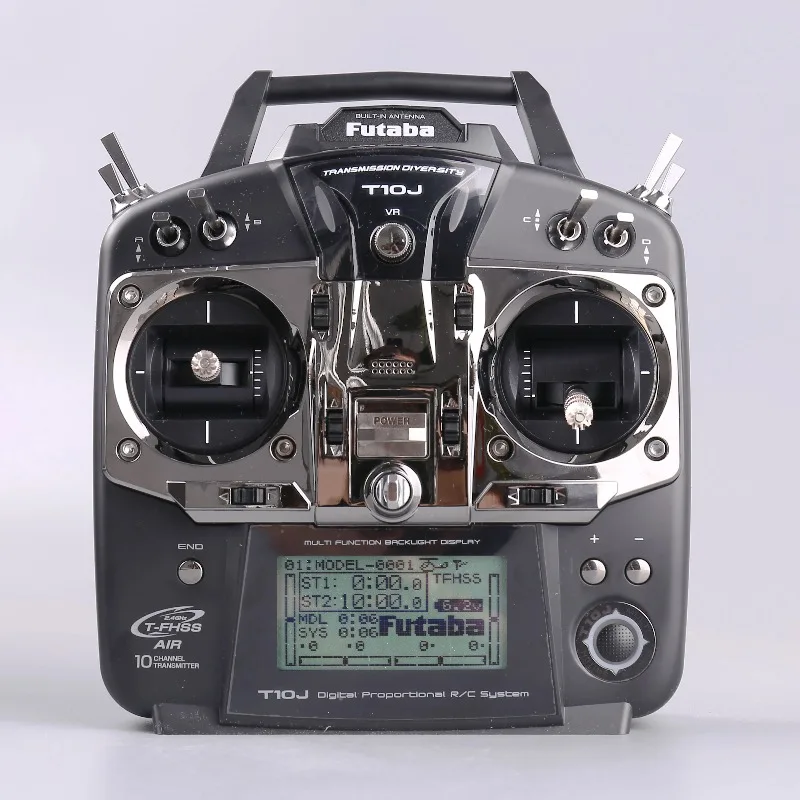

Transmitter: Futaba T10J

Receiver: R3008SB receiver

Instruction manual: One copy of English instruction manual (currently, Chinese instruction manual is included in all licensed products)

Three wire switch (for oil engine) * 1

Hand changing metal white shrapnel (for fixed wings) * 1

Plastic screwdriver * 1

The DJI multi axle package includes: Beijing licensed cargo package+one throttle return (limited to multi axle use, not applicable to fixed wing and helicopter)

Helicopter/fixed wing/multi rotor compatible equipment

2.4GHz bidirectional communication system (T-FHSS AIR mode or 10ch)

Alarm/vibration (battery, hybrid control, timing, bidirectional data)

10 channel software

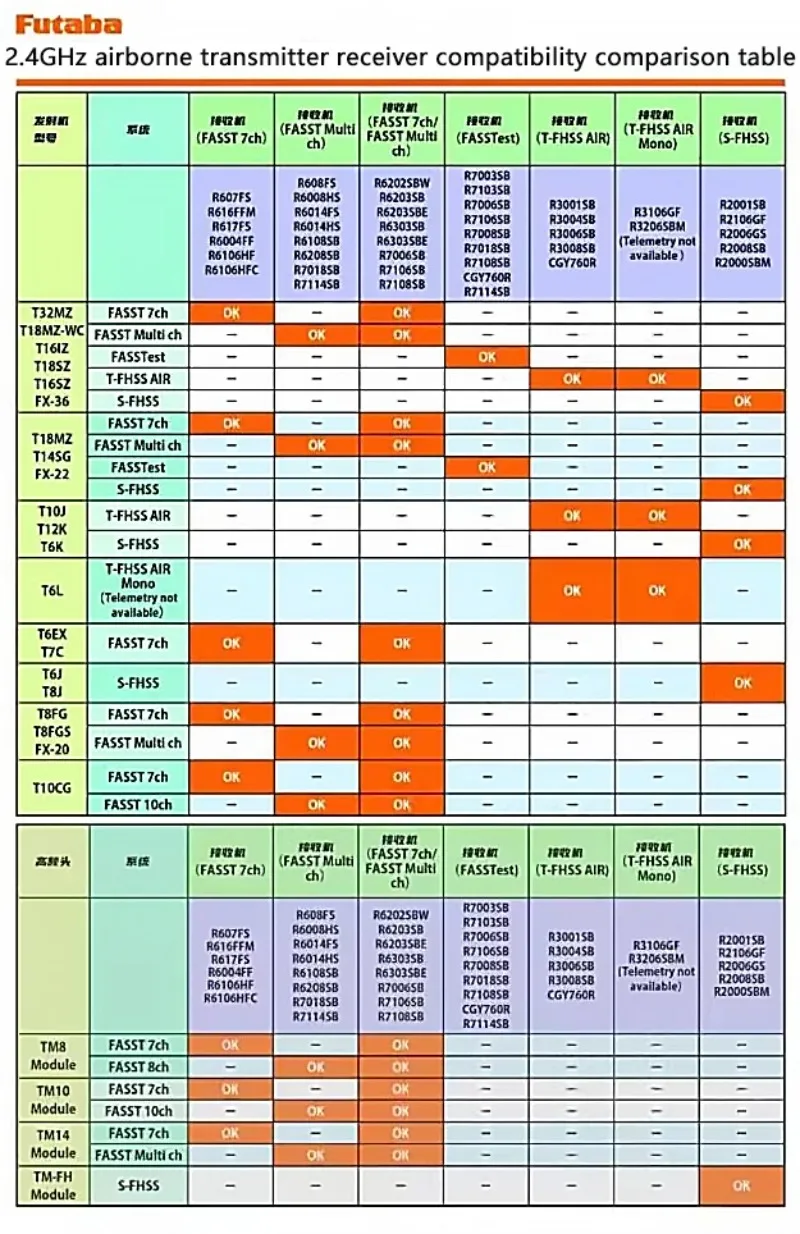

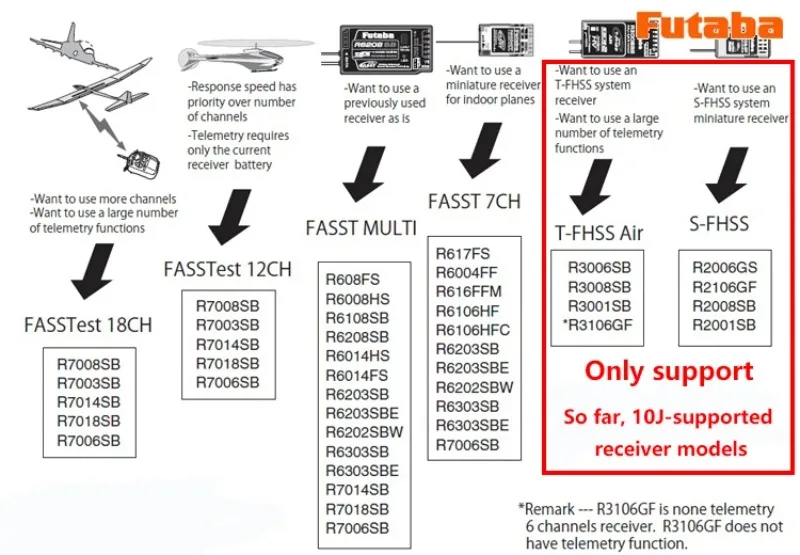

S-FHSS standard receiver, such as 3008SB

Remote control distance: about 500 meters (depending on electromagnetic environment)

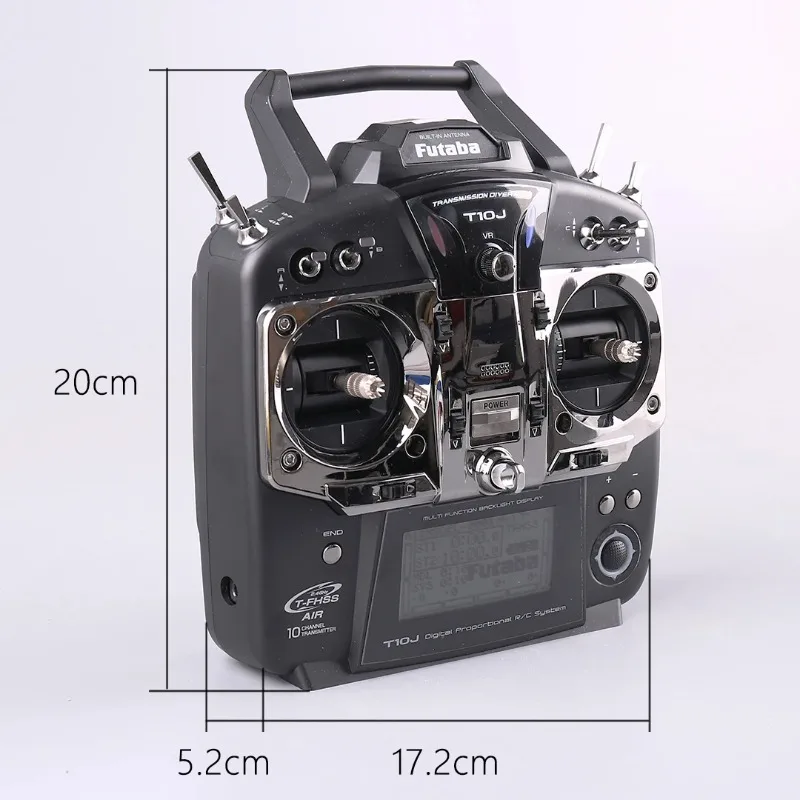

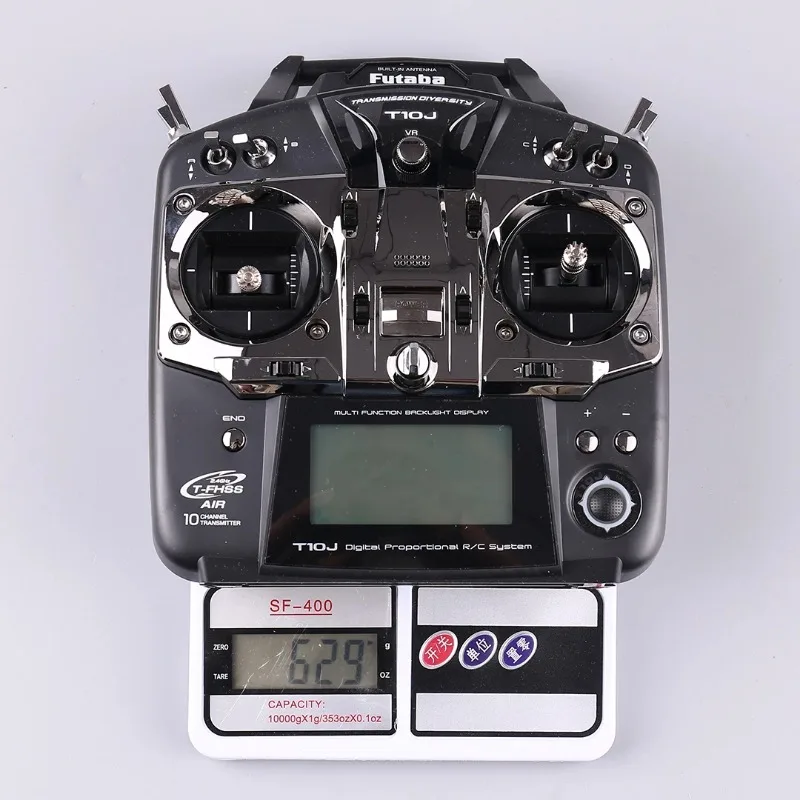

Texture: Weight approximately 629g



Main features

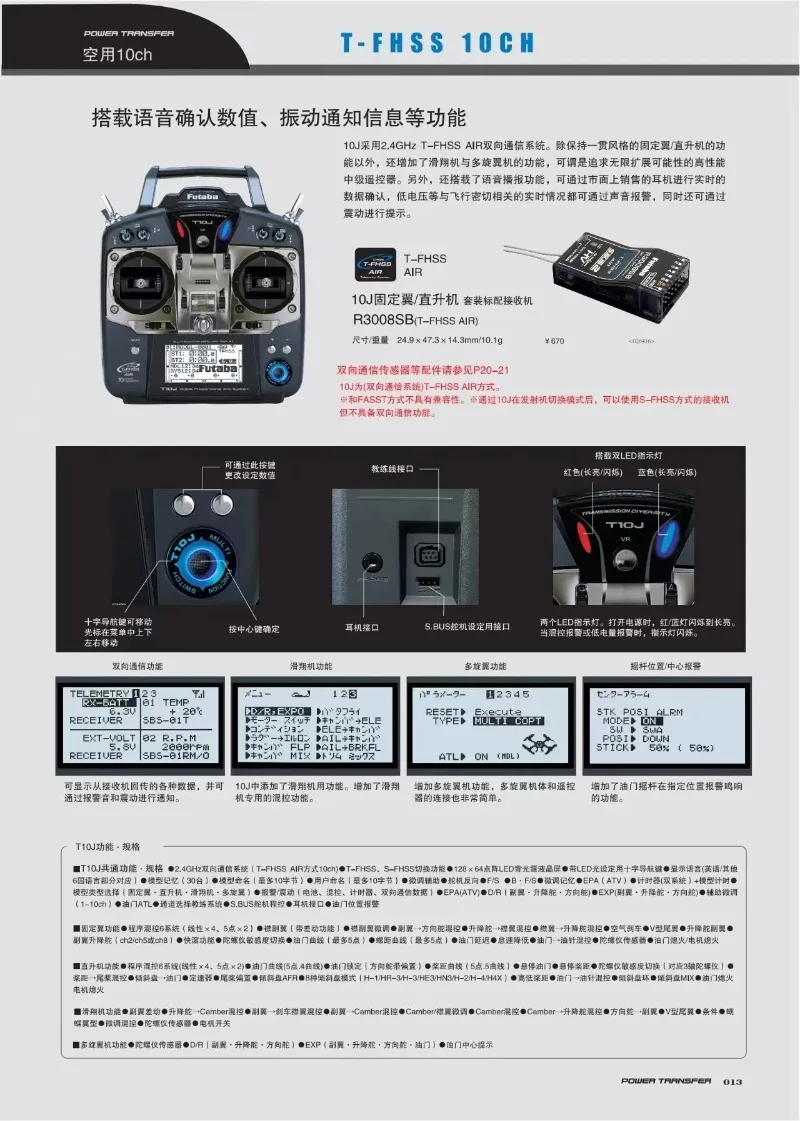

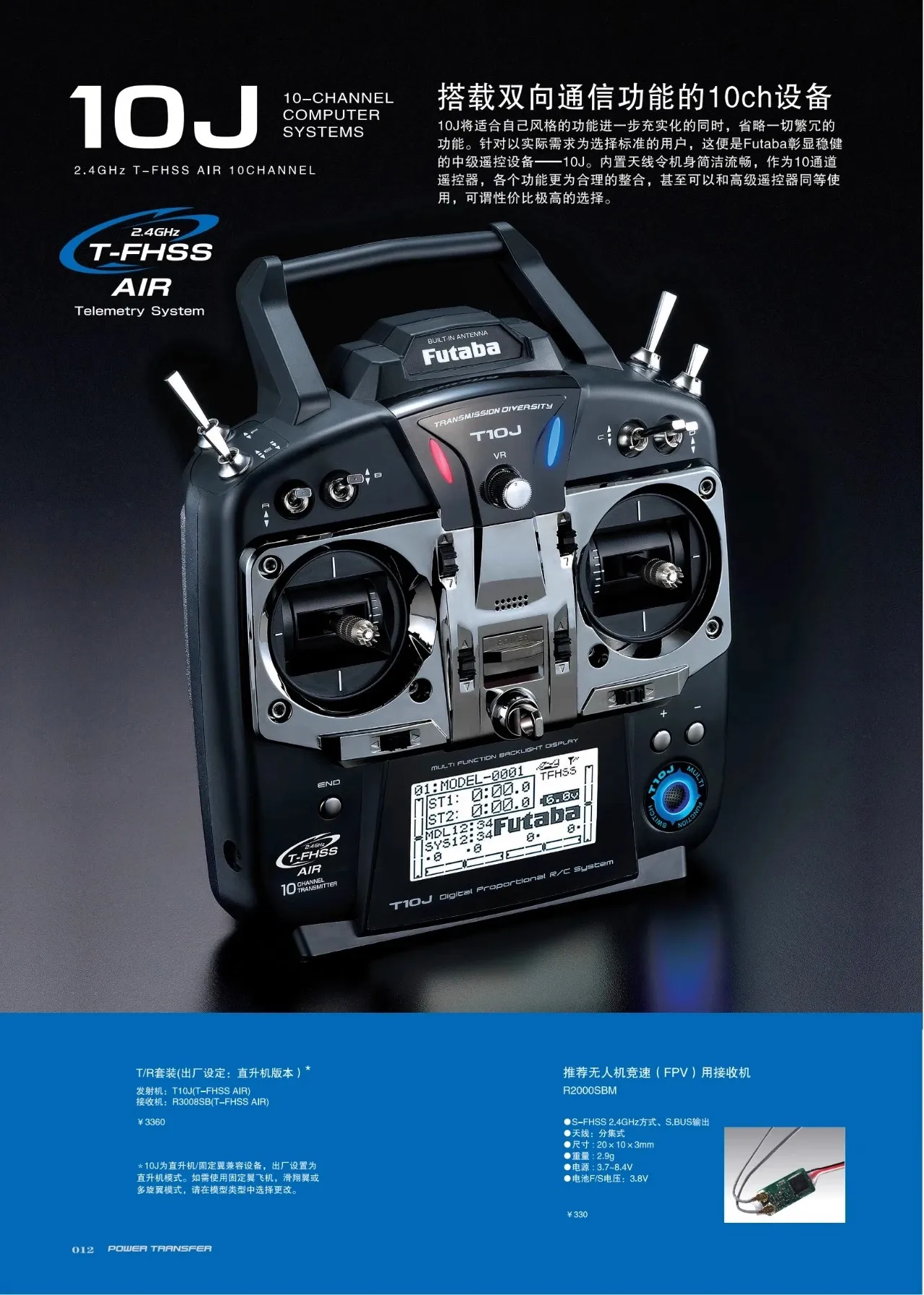

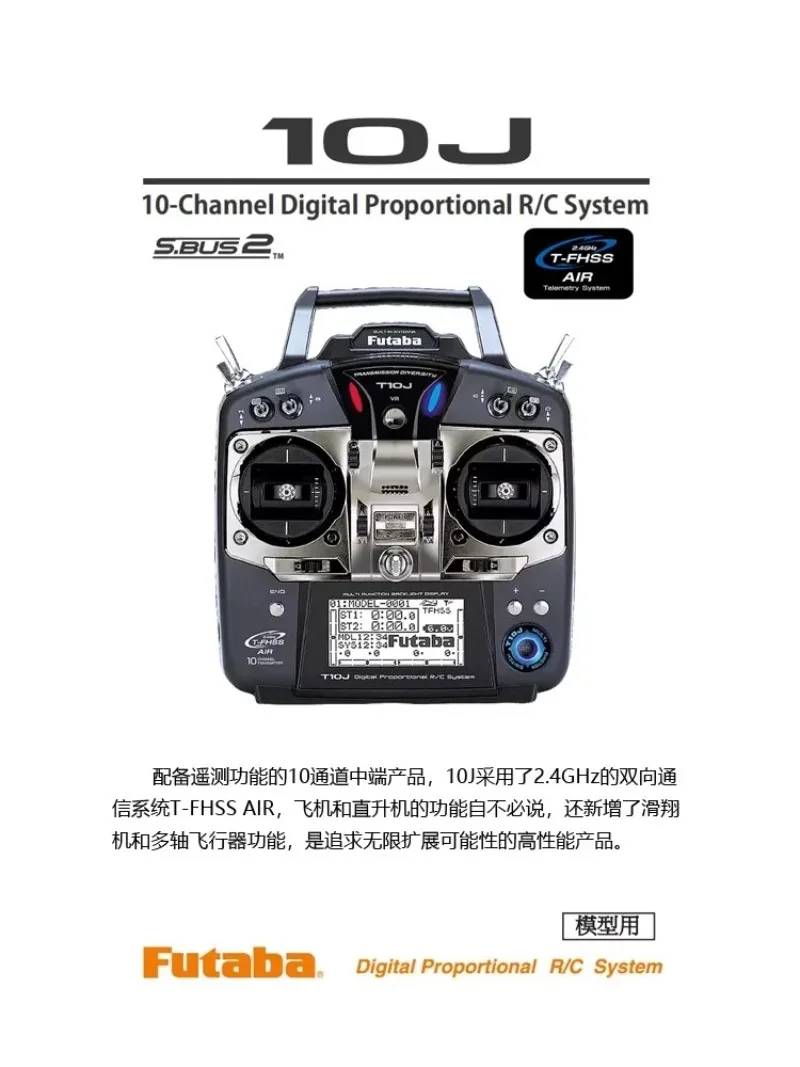

The new 10J2.4 GHz adopts the T-FHSS AIR standard, supports bidirectional communication system, adds glider mode and multi axis mode, and is equipped with a vibrator and voice alarm function. The low voltage alarm will display a vibration prompt. This is the third remote control 10J released by Futaba after the 6J and 8J, paired with its dedicated new receiver - R3008SB single receiver.

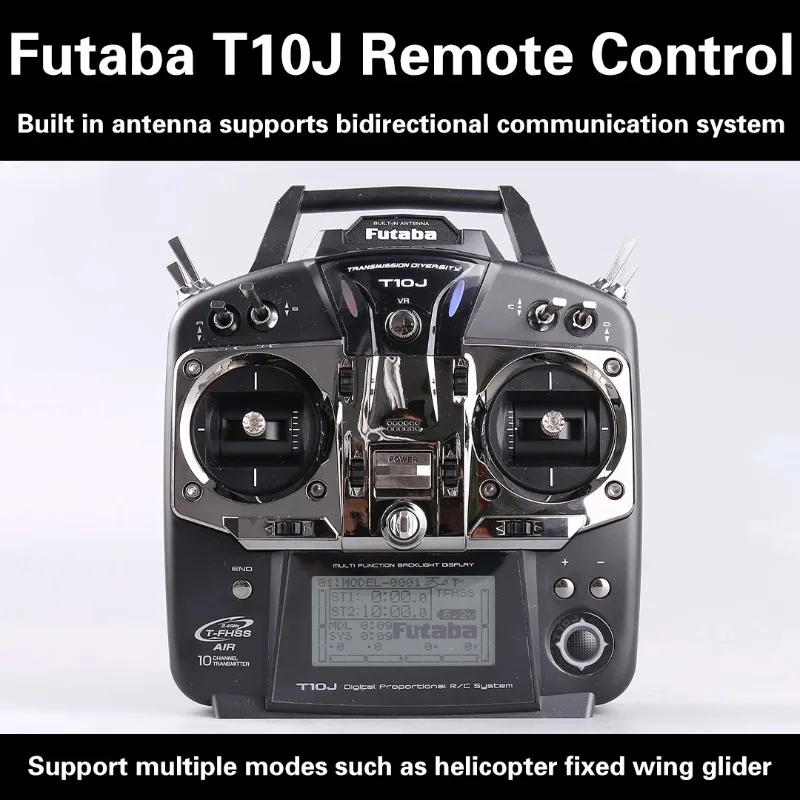

1. Built in antenna, simple appearance

2. Supports multiple modes such as helicopter, fixed wing, multi rotor, glider, etc

3. Custom switches allow you to set the desired functions

4. LCD screen with backlight

5. Industry leading brand with stable signal

This is the Futaba 10JH 2.4 GHz S/FHSS Radio System with an included R3008SB Receiver. The 10JH helicopter system features a non-ratcheted throttle stick and will automatically default to helicopter settings with mode 2 stick functions when powered up.

The Futaba 10J is packed with features. 10 channels, telemetry, full programmability and simple updates. The telemetry data is easily viewed on the backlit LCD screen and can be heard audibly through headphones. Three buttons and a jog dial make it exceptionally easy to program, and functions can be assigned to a multitude sticks, switches, knobs and levers. Plus, it's light weight, easy to handle and equipped with an astonishing 30 model memory. All those features and more are included in a radio that's also the first to have multi-rotor helicopter programming.

Even with all its features, the Futaba 10J is still the most inexpensive telemetry enabled radio system on the planet. It's priced right for a first time radio, but packed with so many features pros will love it as well. It's perfect for a whole host of applications with Airplane, helicopter, glider and multi-rotor menus. Updating is simple, so your transmitter will never be out of date*. So when you're ready for a radio that can fly anything, comes packed with features and includes a powerful telemetry-enabled receiver, pick up the Futaba 10J. You'll be glad you did.

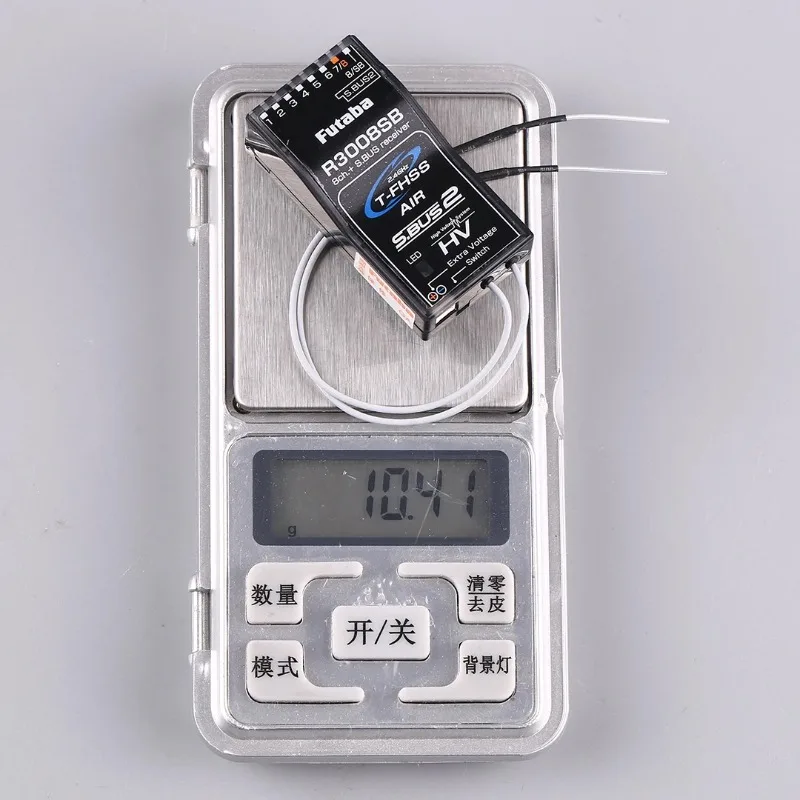

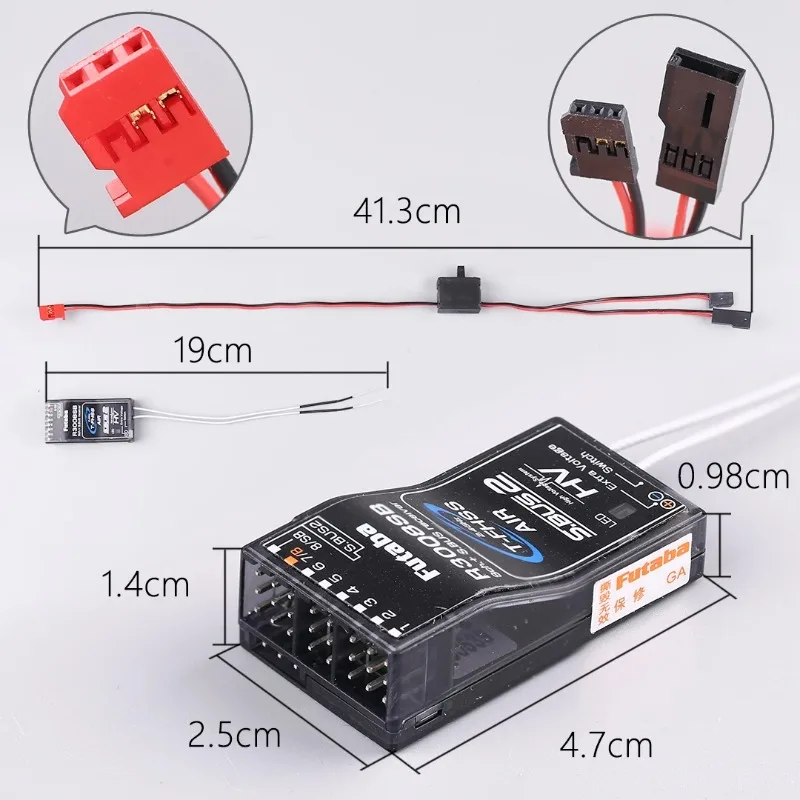

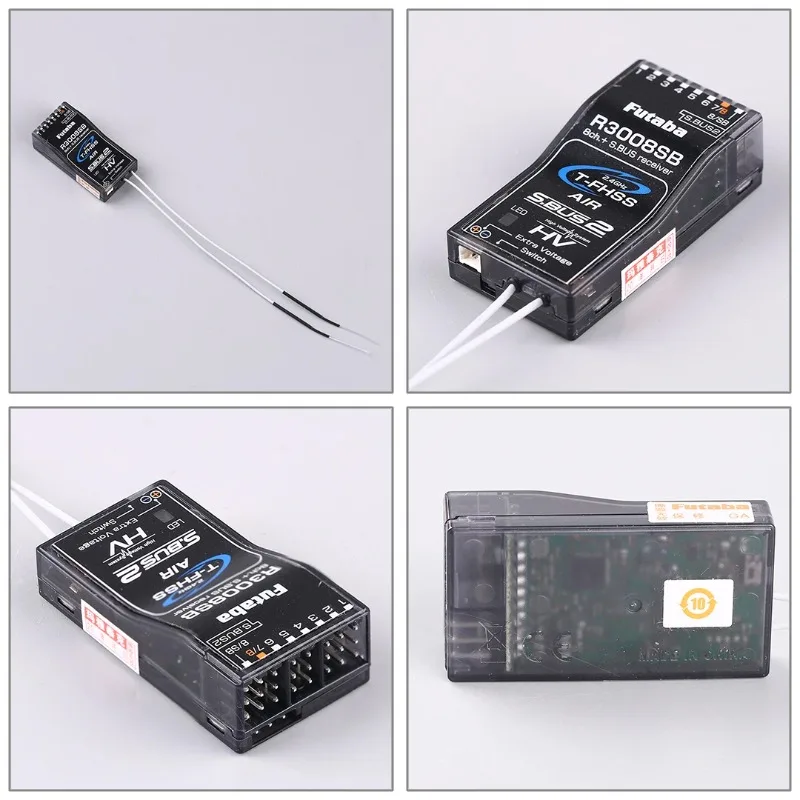

R3008SB Receiver

The R3008SB is a T-FHSS telemetry-capable receiver that features S.Bus and S.Bus2 compatibility, with 8 conventional ports. The receiver also features an external battery voltage connector for the CA-RVIN-700 External Voltage Cable (FUTM5551).

System Features:

• Futaba T-FHSS, S-FHSS 2.4GHz security

• Airplane, heli, glider and multi-rotor software

• 30-model memory

• S.Bus capable T-FHSS receiver

• Telemetry

• Synthesized voice for telemetry data

• Vibration alerts for alarm conditions and low battery

• User-updatable software (*requires optional CIU-2 interface)

• Wireless data transfer among 10J transmitters

• Built-in S.Bus programming link for S.Bus servos

• 10-character model and user naming

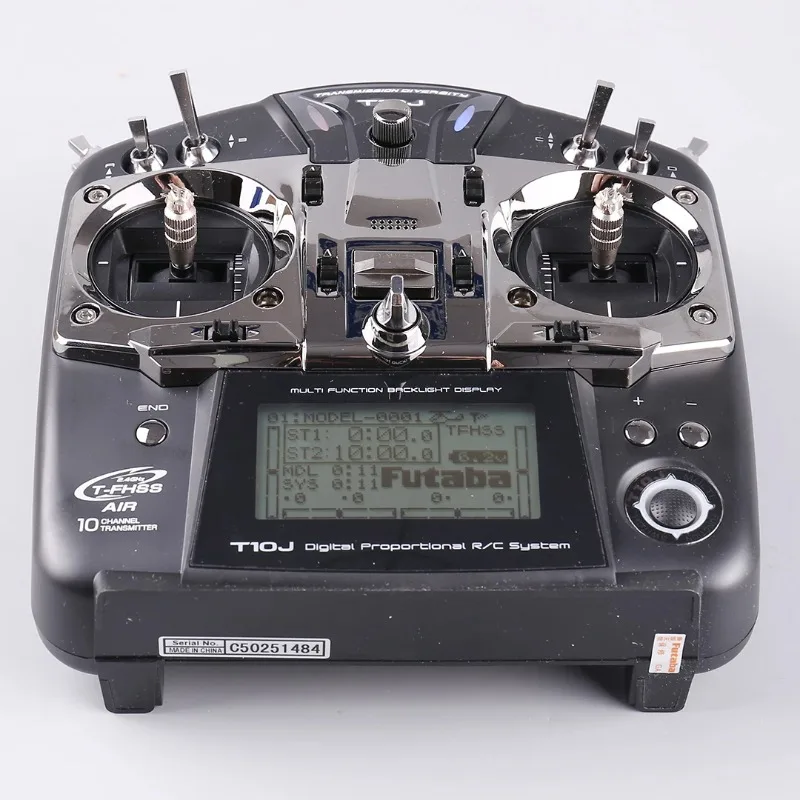

• Large (128 x 64 dot) backlit LCD display

• 10 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)

• Built-in diversity antenna

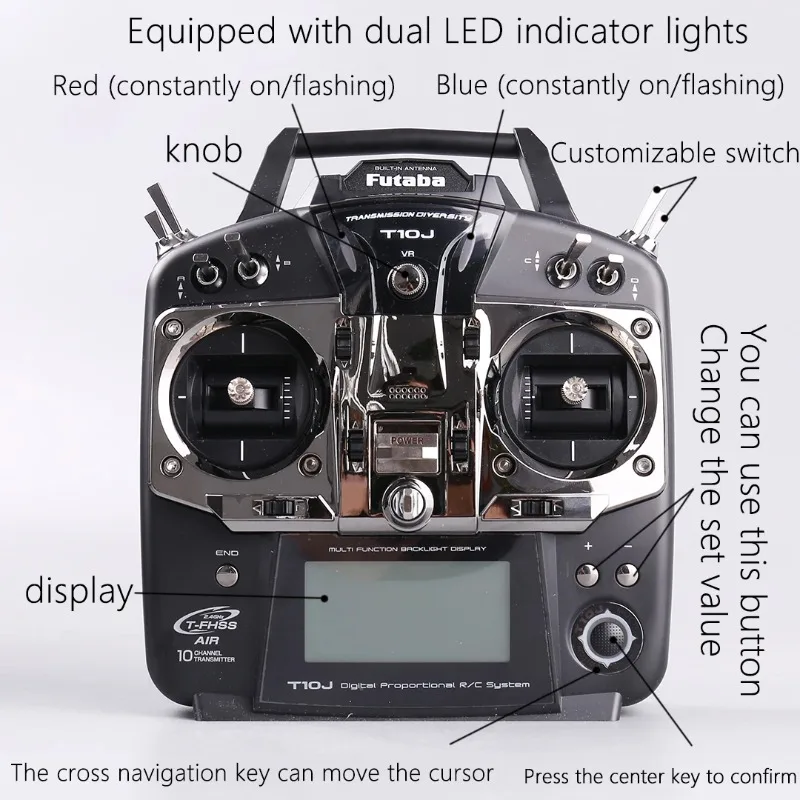

• Jog dial and 3 buttons for fast, easy programming

• Sub-trim and fail-safe (all channels)

• Servo reversing, endpoint adjustment, digital trims, dual rates/exponential* & ATL

• Trim step adjustability

• Trainer system

• Throttle cut

• 2 count-up/-down timers + integrated timer

• Model timer

• Range check mode

• Servo cycle w/bar graph displays

• Assignable switch/lever/functions (Ch. 5-10)

Menu's:

• Helicopter:



• • 6 programmable mixes

  • 10 factory-defined mixes

  • 8 swash plate types

  • 5 flight conditions w/delay

  • Throttle curve (4 curves, 5 points)

  • Pitch curve (5 curves, 5 points)

  • Throttle hold & delay

  • Swash AFR

  • Electronic swash ring



• Airplane:



• • 6 programmable mixes

  • 9 factory-defined mixes

  • Flaperons with differential rate

  • Flap trim

  • Differential ailerons

  • Gyro sensitivity

  • 5-point throttle & pitch curves

  • Throttle delay

  • Idle down



• Glider:



• • 6 programmable mixes, plus:

  • 3 factory-defined mixes

  • 5 wing types

  • Gyro sensitivity

  • Motor menu

  • 2 flight conditions



• Multi-Rotor:



• • 6 programmable mixes, plus:

  • Gyro sensitivity/mixing

  • Center stick alarm

Specifications:

• Transmitter:

•

• • Type:2-stick, 10 channel, T-FHSS Air-2.4GHz system

  • Transmitter Frequency:2.4GHz band

  • System:T-FHSS Air, S-FHSS, switchable

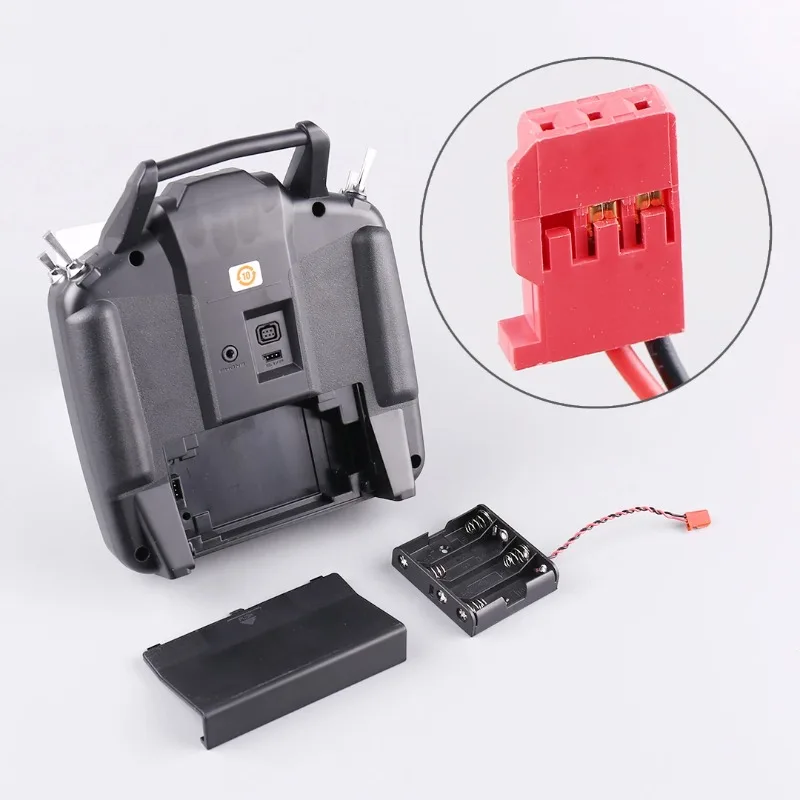

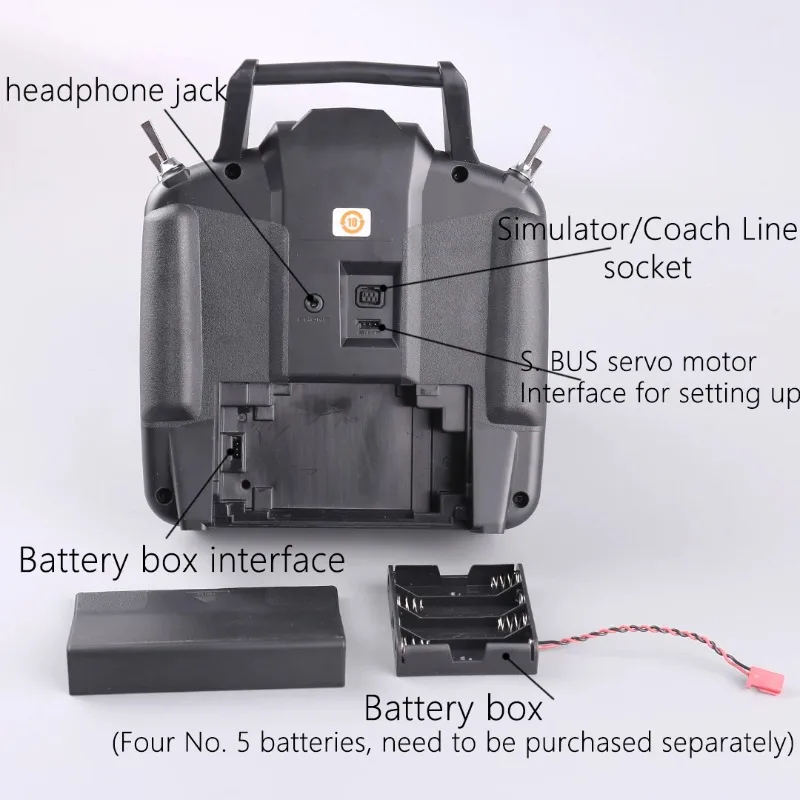

  • Power Supply:6.0V dry battery

  •

• R3008SB Receiver:



• • Type:T-FHSS Air-2.4GHz, dual antenna diversity, S.BUS system

  • Power Requirement:4.8-7.4V battery or regulated output from ESC*

  • Size:0.98x1.86x0.56" (24.9x47.3x14.3mm)

  • Weight:0.36oz (10.1g)

  • Battery F/S Voltage:Sets up with transmitter

*NOTE:When using ESC's make sure the regulated output capacity meets usage application

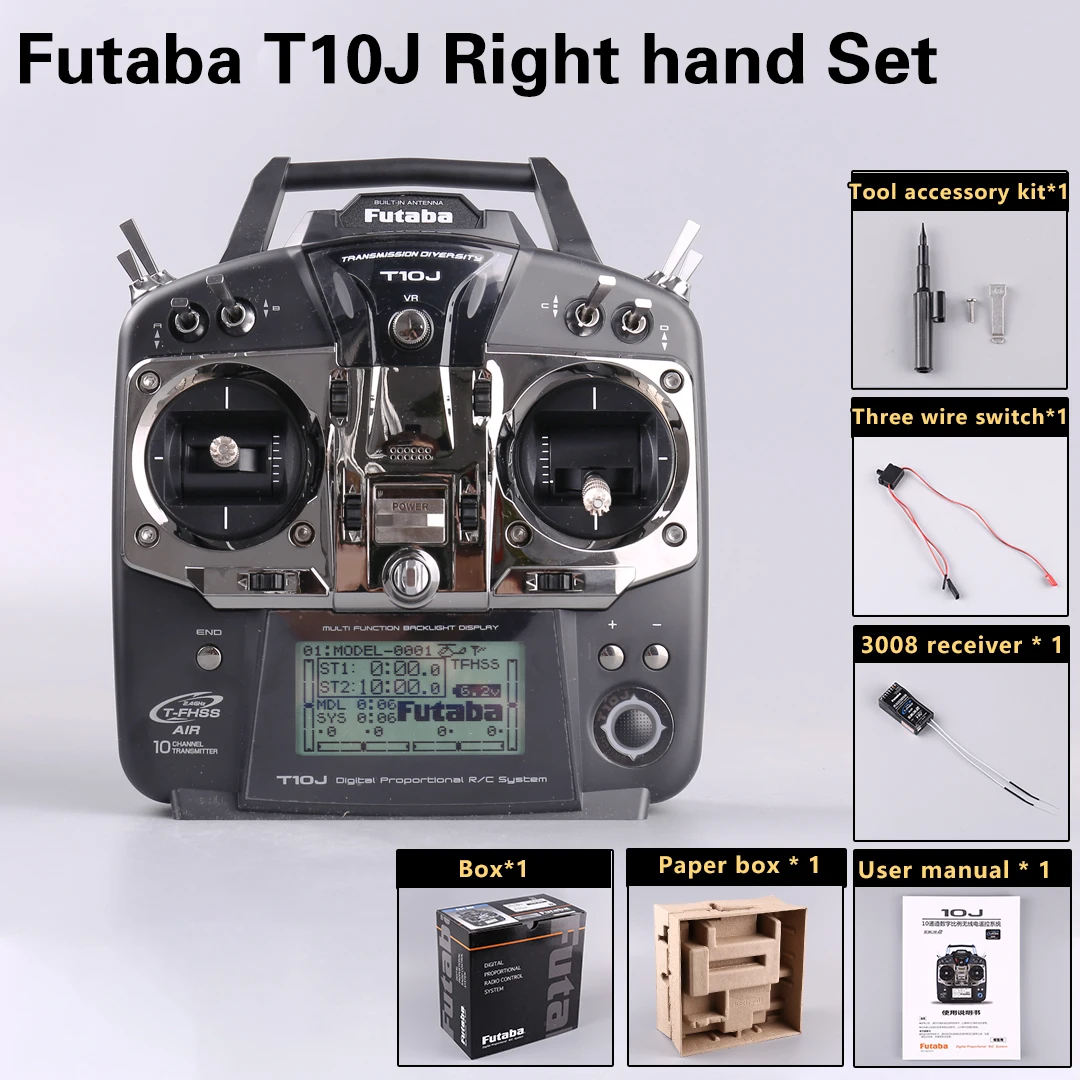

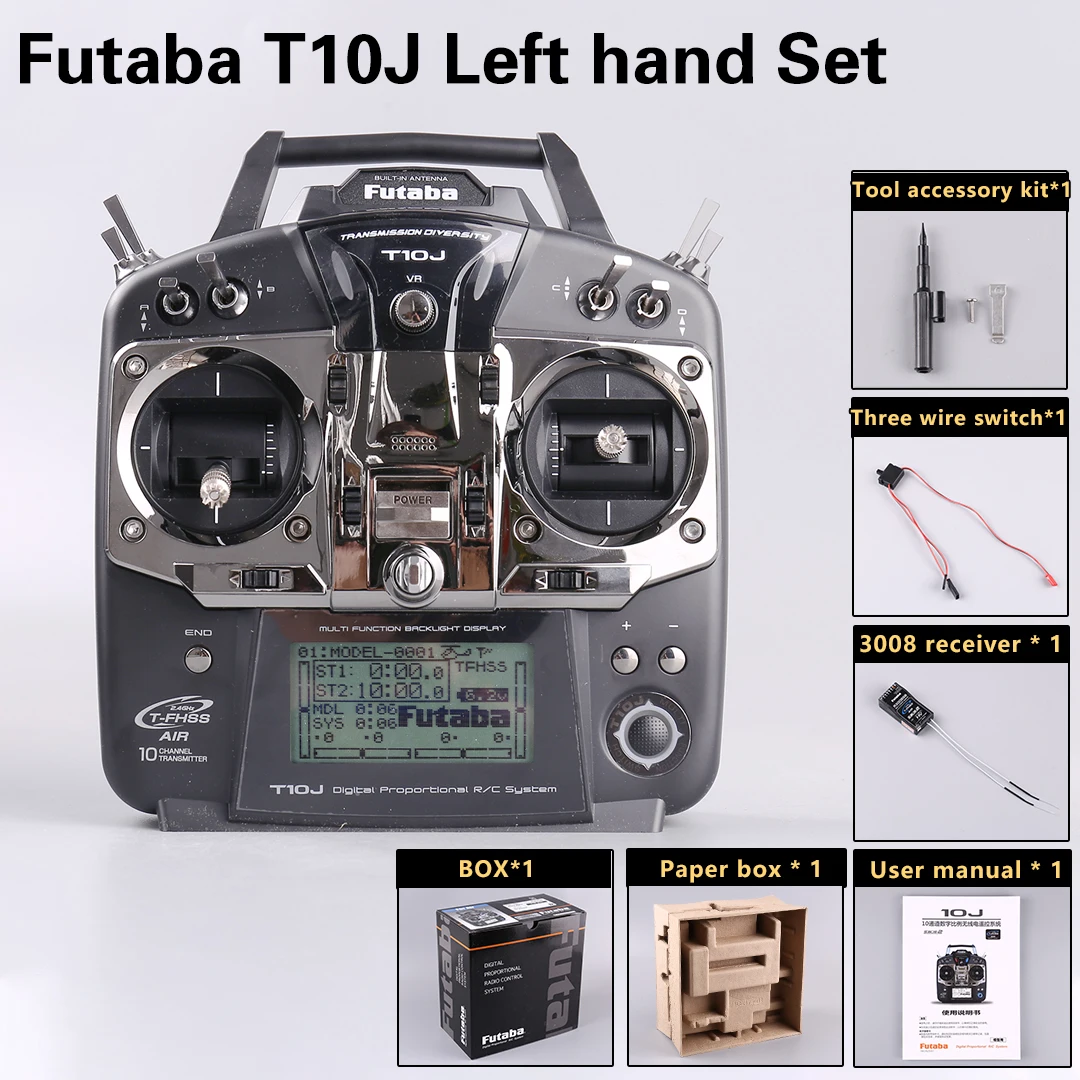

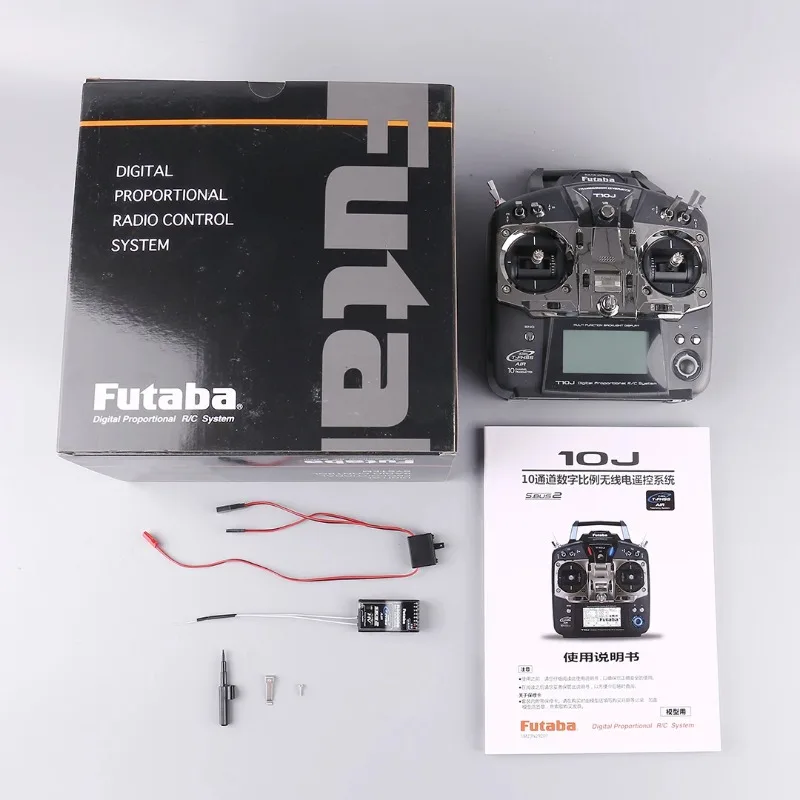

Includes:

• Futaba 10JH 2.4GHz 10-Channel S/FHSS Transmitter

• R3008SB Receiver

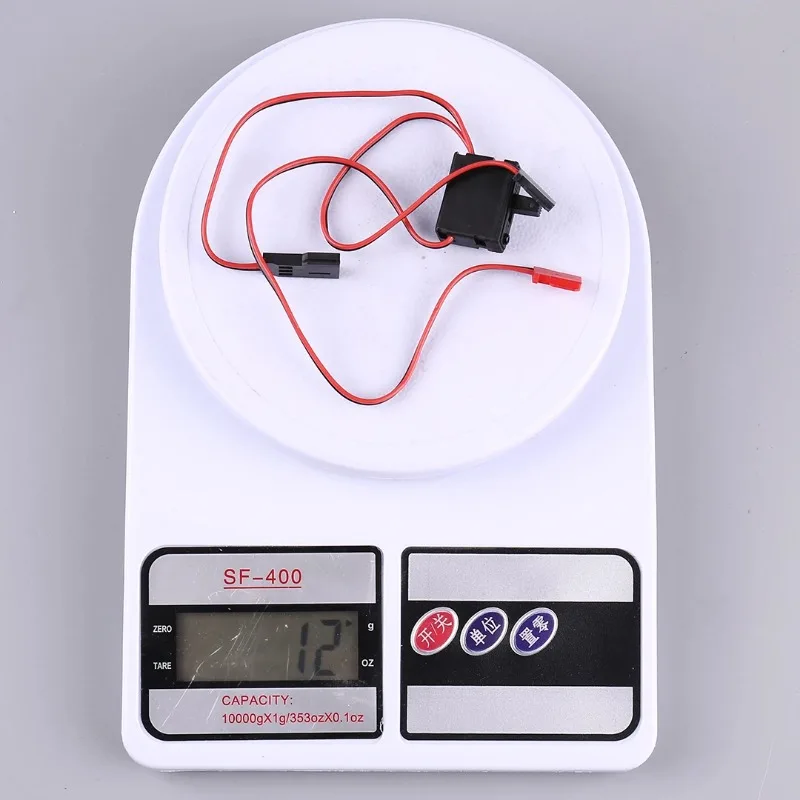

• FUTL7685 Switch Harness

• Instruction Manual

10J is a helicopter/fixed wing compatible device, set to helicopter mode at the factory. If you need to use fixed wing aircraft, glider, or multi rotor mode, please make a selection change in the model type

Special precautions:

• 1.When using some of the simple simulators sold on Other platforms , FUTABA devices may experience high-frequency head failures due to non-standard wire sequence of the simulator's square port wires or abnormal current in the pins. Please pay special attention.

• 2. The interval between power on and off should not be too short, and the power button should not be frequently and quickly switched back and forth, as it may cause high-frequency head failure due to startup current.

• 3.When charging FUTABA devices with a charger, do not perform power on operations as it may cause damage to the power module.
