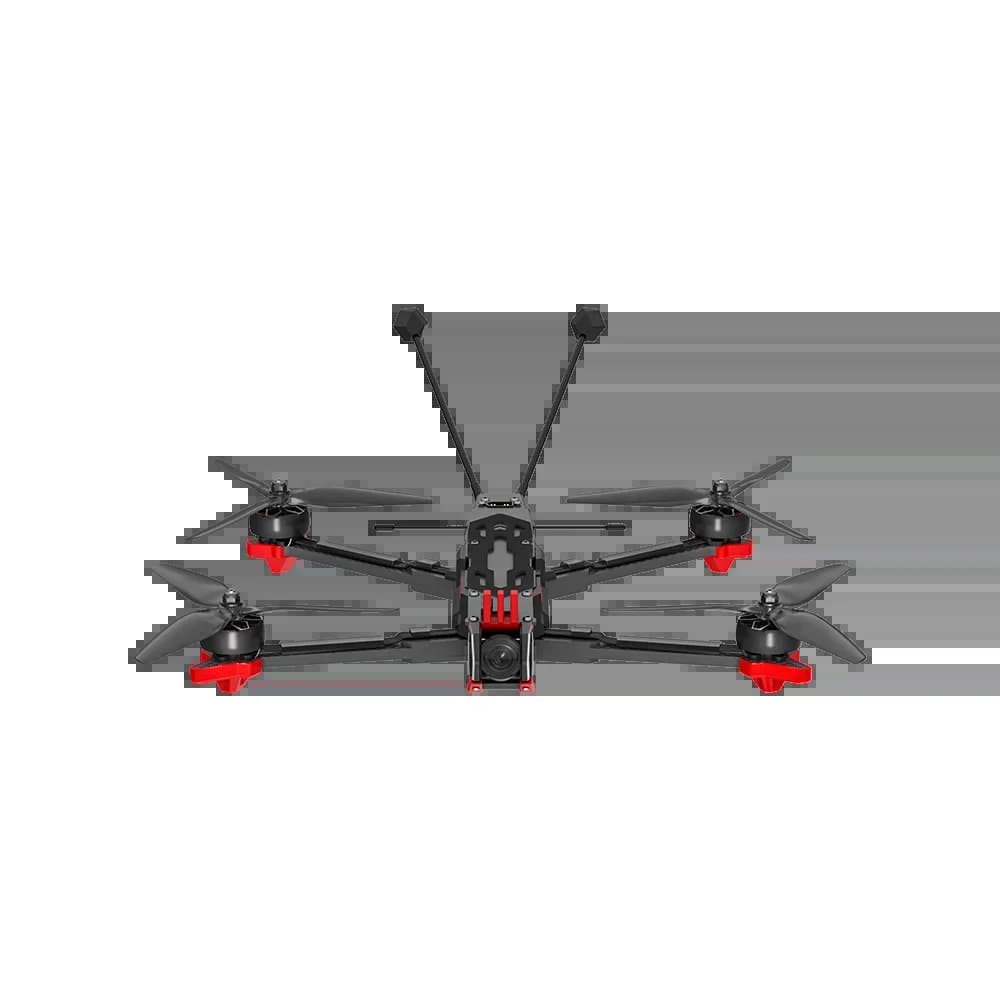

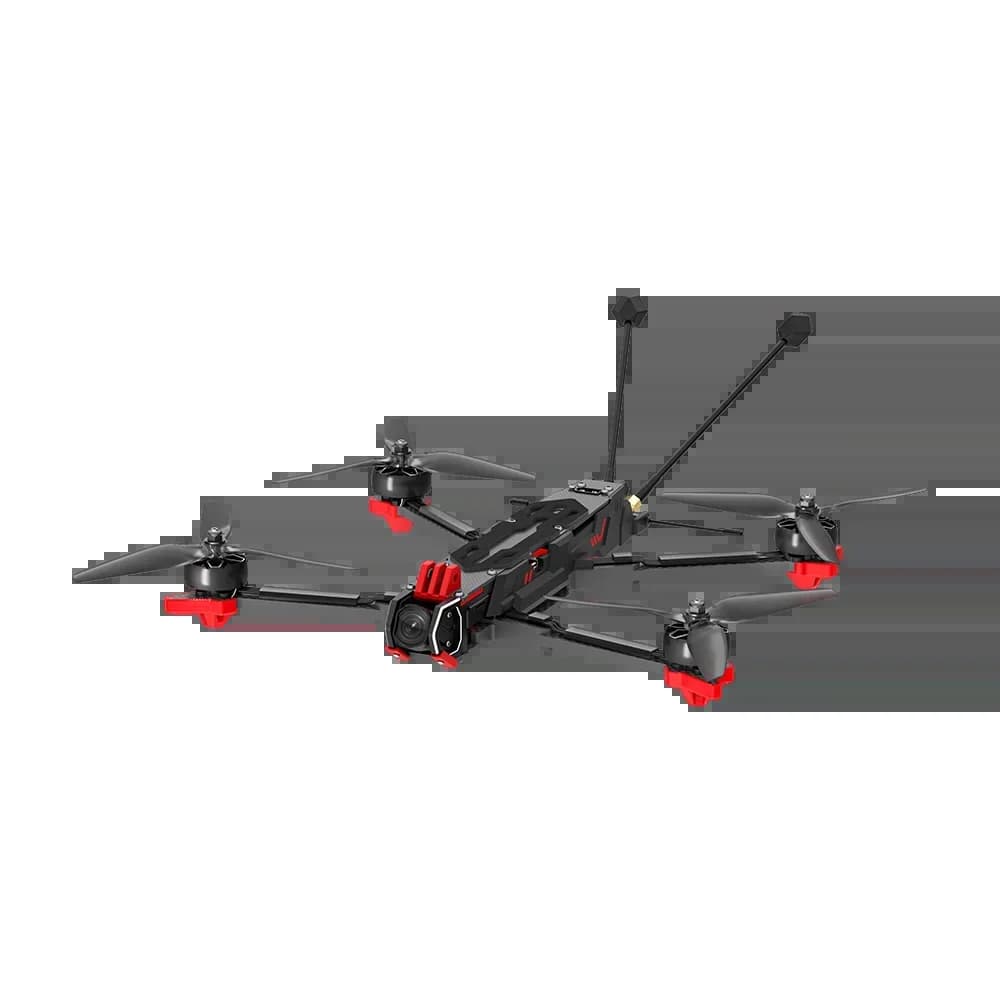

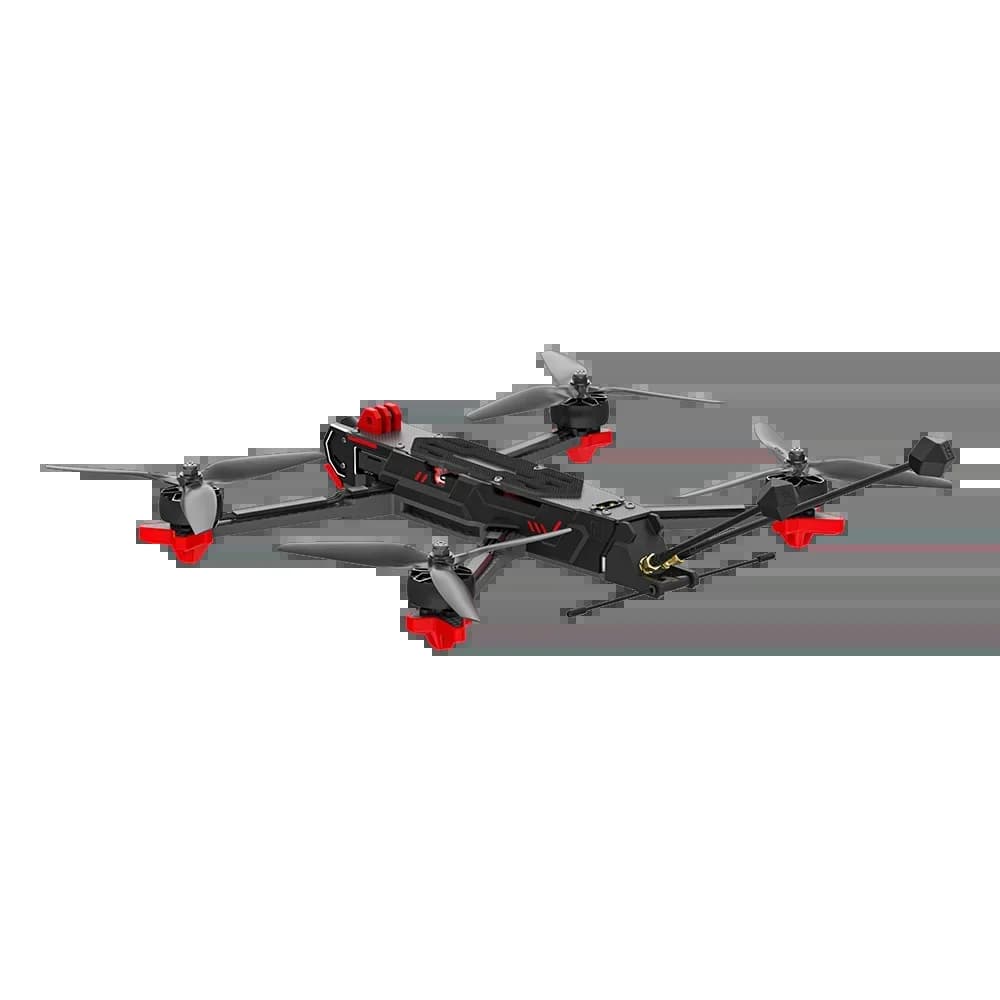

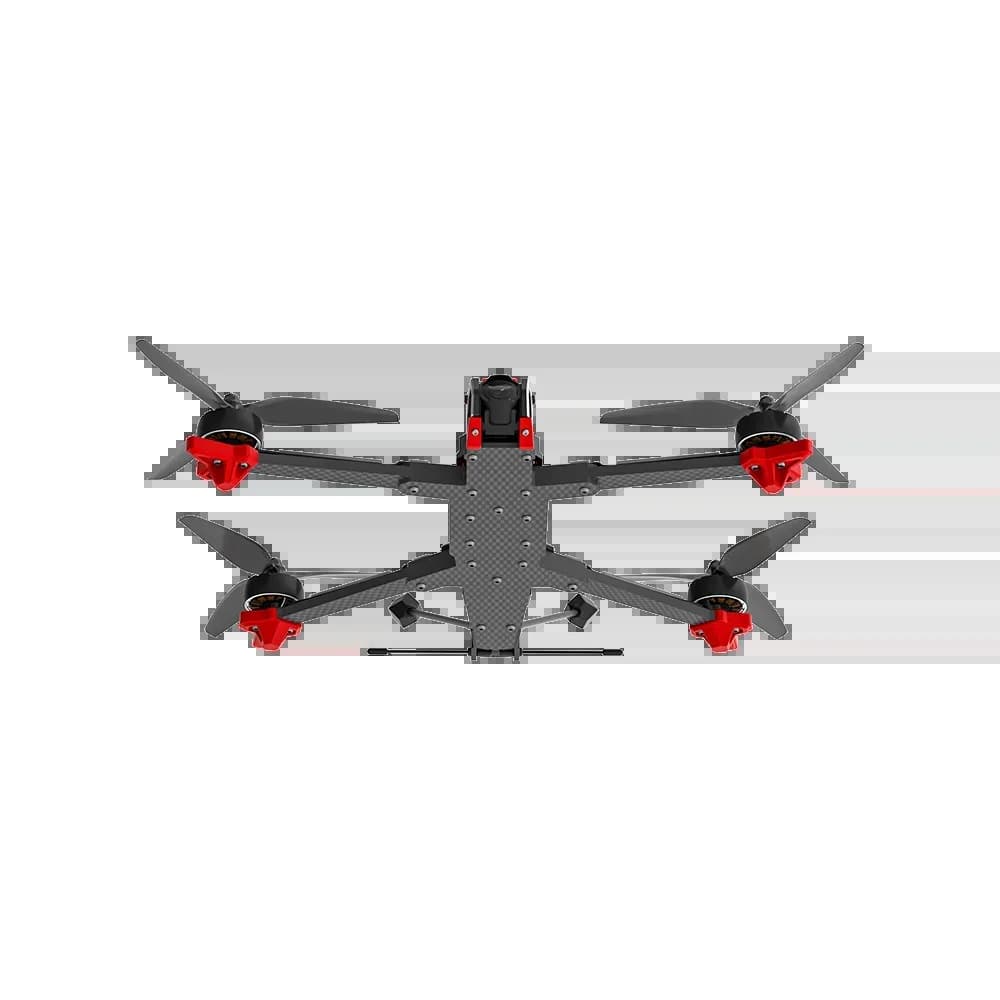

iFlight SH CineLR 7 O4 Waterproof Version 6S HD 7inch Drone BNF with O4 Air Unit
Description
Tip for buyers in the United States ａｎｄ Ｉｓｒａｅｌ:
The shipping method: Seller's Shipping Method,requires approximately 9-16 daysfor transportation.
We have shipping experience in these two countries, please rest assured to place orderｓ.
If you have any questions, please feel free to contact our online customer service. Thank you
Description
iFlight's new generation FPV drone, the 7-inch long-range CineLR 7, combines sleek design, easy maintenance, and a high-performance electronics system. Designed for immersive FPV experiences and professional video recording, CineLR 7 delivers exceptional flight performance and cinematic-quality footage. Whether you're tackling freestyle tricks, high-speed pursuits, or long-range filming, CineLR 7 is engineered to meet diverse flying needs with precision and reliability.
Highlights
Innovative Frame Design, No Props in View
SH Series adopted an innovative frame design with no props in view while allowing flexibility for freestyle tricks. With balanced motor output, provides enhanced overall flight performance.
Quick-release Side Panels
Quick-release side panels provide protection against debris and allow for easy maintenance while ensuring a cleaner setup with no cable entanglement.
4K Stabilized Video
SH Series is equipped with the latest DJI O4 Pro Air Unit, upgraded with 1.1/1.3-inch image sensor, it captures delicate details in low-light environments. With a 155° ultra-wide angle, capturing breathtaking visuals. Enjoy real-time video transmission with up to 1080p/100fps for an immersive flying experience. (Source DJI)
Up to 25mins Long-range Flight Time
Capable of carrying an efficient high capacity battery, explore the skies like never before with extended flight time. Recommended 6S 4000mAh Li-Ion above (slow cruising) or 6S 3300mAh lipo battery.
High-performance Core Electronics System
Equipped with racing-grade BLITZ Mini F7 FC and BLITZ E55R 4-IN-1 ESC for high-intensity flight maneuvers. It features a larger MOS and offers a 65A max burst current, which enhances stability and improves heat dissipation.
Built-in high-precision GPS Module
The integrated high-precision GPS module with tpu cover prevents signal loss from external damage, reducing flyaway risks and enhancing device safety.
Specificaiton
Product Name: SH CineLR 7 6S O4 HD
Geometry: H-shaped
FC: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O4 Air Unit Pro
Frame: 334mm wheelbase
Motor: XING2 2809 1250KV motors
Prop: HQ 7.5X3.7X3 propellers
Weight: 770±5g(Without Battery)
Dimensions (L×W×H): 285*196*45mm
Operating Temperature Range: -20° to 40° C
Antennas: Dual Antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Video Transmission
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz23dBm(CE)/5.8GHz33dBm(FCC)/14dBm(CE)/30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

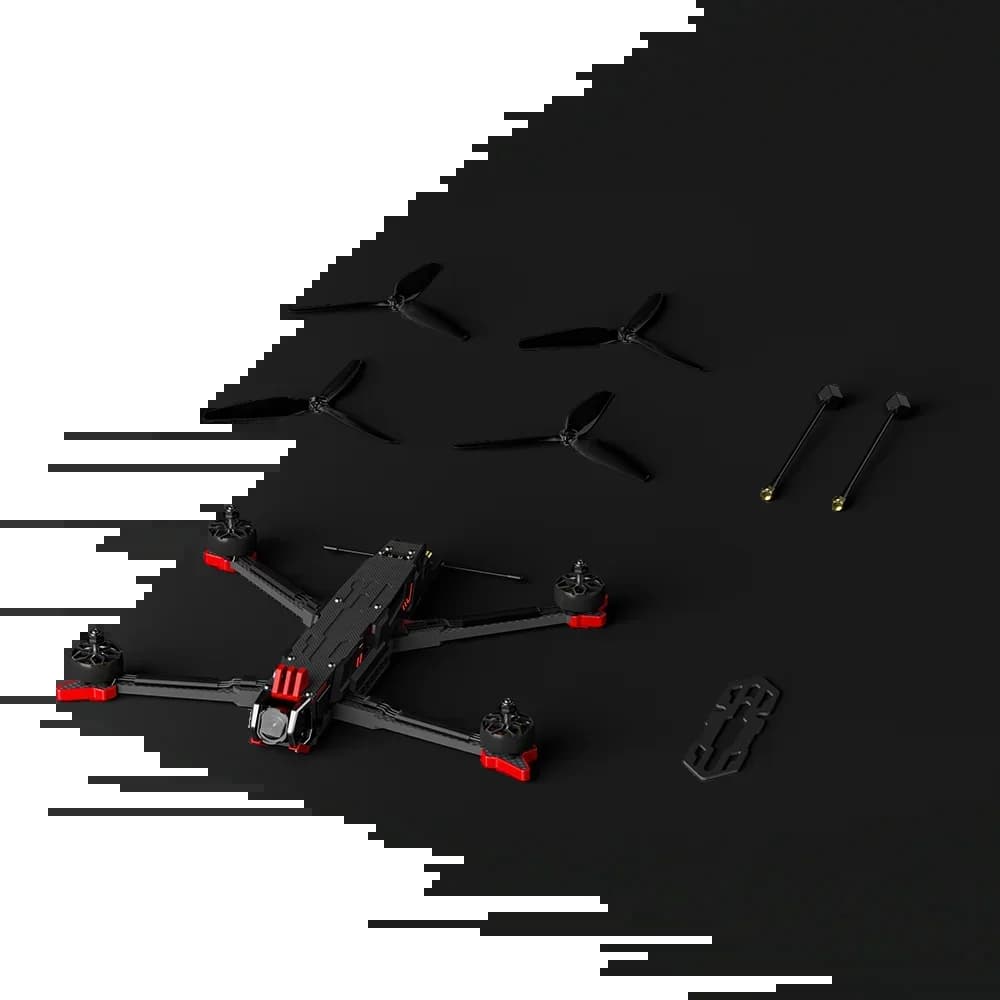

Packing List
1 x SH CineLR 7 6S O4 HD
1 x Battery pad
2 x 7.5 inch Prop(Pairs)
1 x Battery strap
1 x Screw bag
Important
All iFlight BNFs are tested before shipment to guarantee the highest qualit
Note
- iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
- Any military combat purpose or military combat related use;
- Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
- iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.
If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
Compatibility
DJI Goggles 3 / DJI Goggles N3+ DJI FPV Remote Controller 3
DJI Goggles 2 / DJI Goggles Integra+ DJI FPV remote control 2
(Or another Radio to match the RX in the Drone)
The flight control firmware needs to be configured to support the SBUS protocol so that the DJI FPV remote controller can be used.
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Obstacle avoidance types |
|
| Motor Type |
|
| Integrated propeller guard |
|
| Max Wind Speed Resistance |
|
| Max Takeoff Weight |
|
| Equipped with Aerosol Spraing System/Spread Tank Volume |
|
| Video Maximum Resolution[Pixel X Pixel] |
|
| Category |
|
| Aircraf Operating Frequency |
|
| Drone Weight |
|
| Camera Mount Type |
|
| GPS |
|
| Display Control |
|
| Connectivity |
|
| Control Channels |
|
| Flight Time |
|
| Remote Distance |
|
| Camera Integration |
|
| Camera Features |
|
| Brand Name |
|
| Origin |
|
| Sensor Size |
|
| Aerial Photography |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Obstacle avoidance types | No support |
| Motor Type | Brushless Motor |
| Integrated propeller guard | Not Include |
| Max Wind Speed Resistance | < 10 KM/H |
| Max Takeoff Weight | <1kg |
| Equipped with Aerosol Spraing System/Spread Tank Volume | No |
| Video Maximum Resolution[Pixel X Pixel] | 1080i/P（1920*1080） |
| Category | Camera Drone |
| Aircraf Operating Frequency | Other |
| Drone Weight | Around 770g |
| Camera Mount Type | Other |
| GPS | Yes |
| Display Control | Yes |
| Connectivity | APP Controller |
| Control Channels | 4 channels |
| Flight Time | others |
| Remote Distance | / |
| Camera Integration | Camera Included |
| Camera Features | 1080p HD Video Recording |
| Brand Name | IFLIGHT |
| Origin | Mainland China |
| Sensor Size | 1/1.28 Inches |
| Aerial Photography | Yes |
