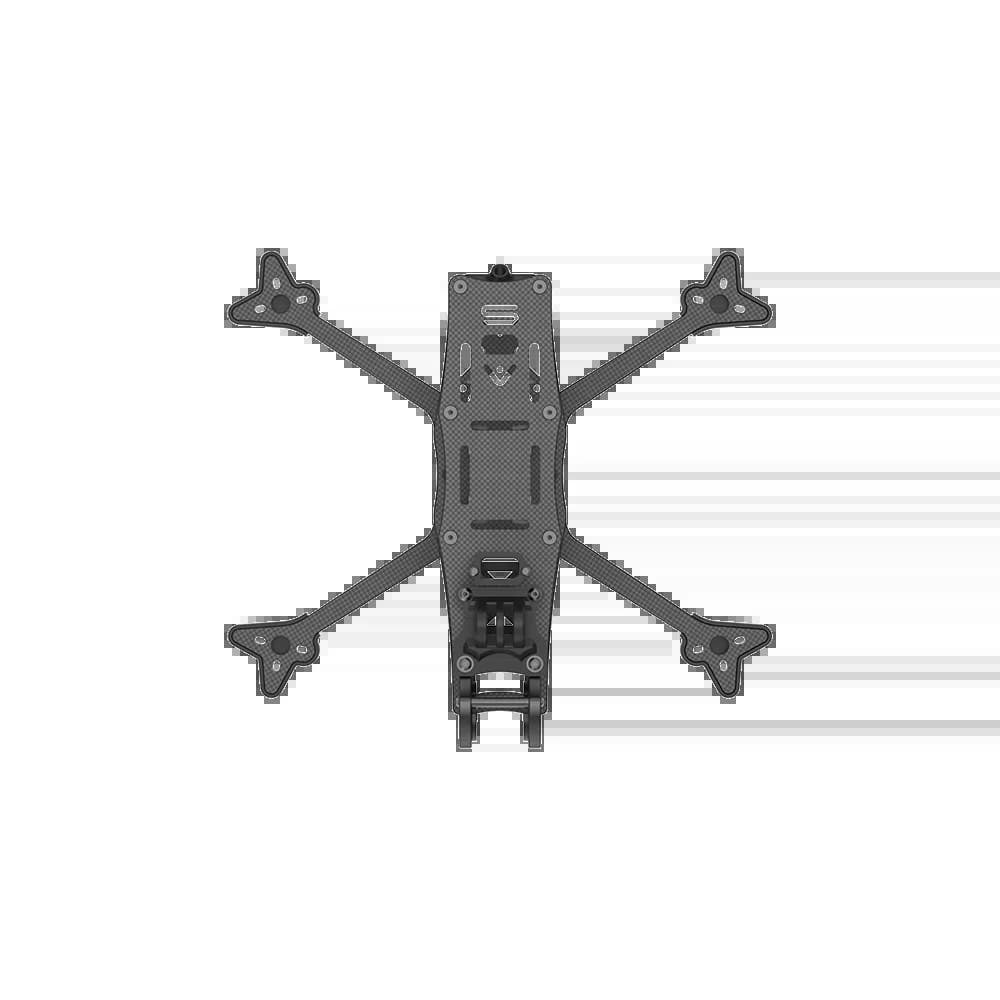

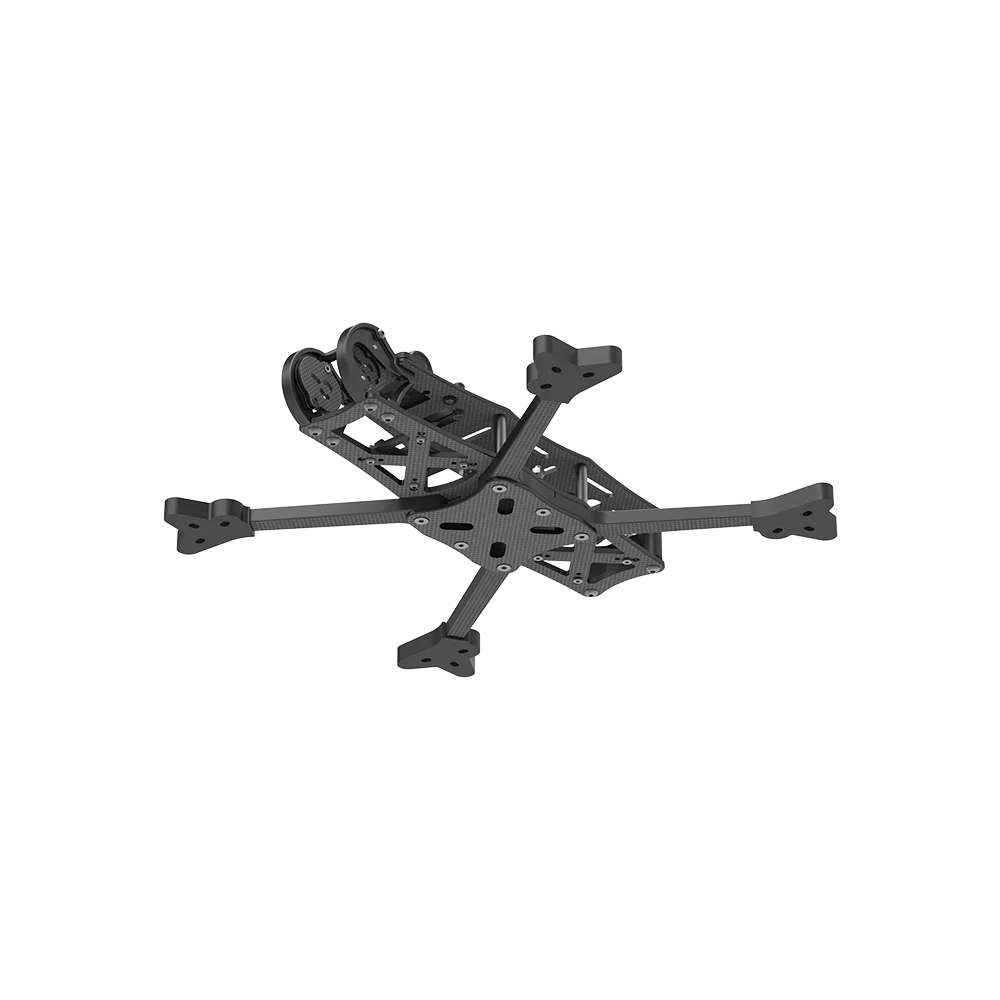

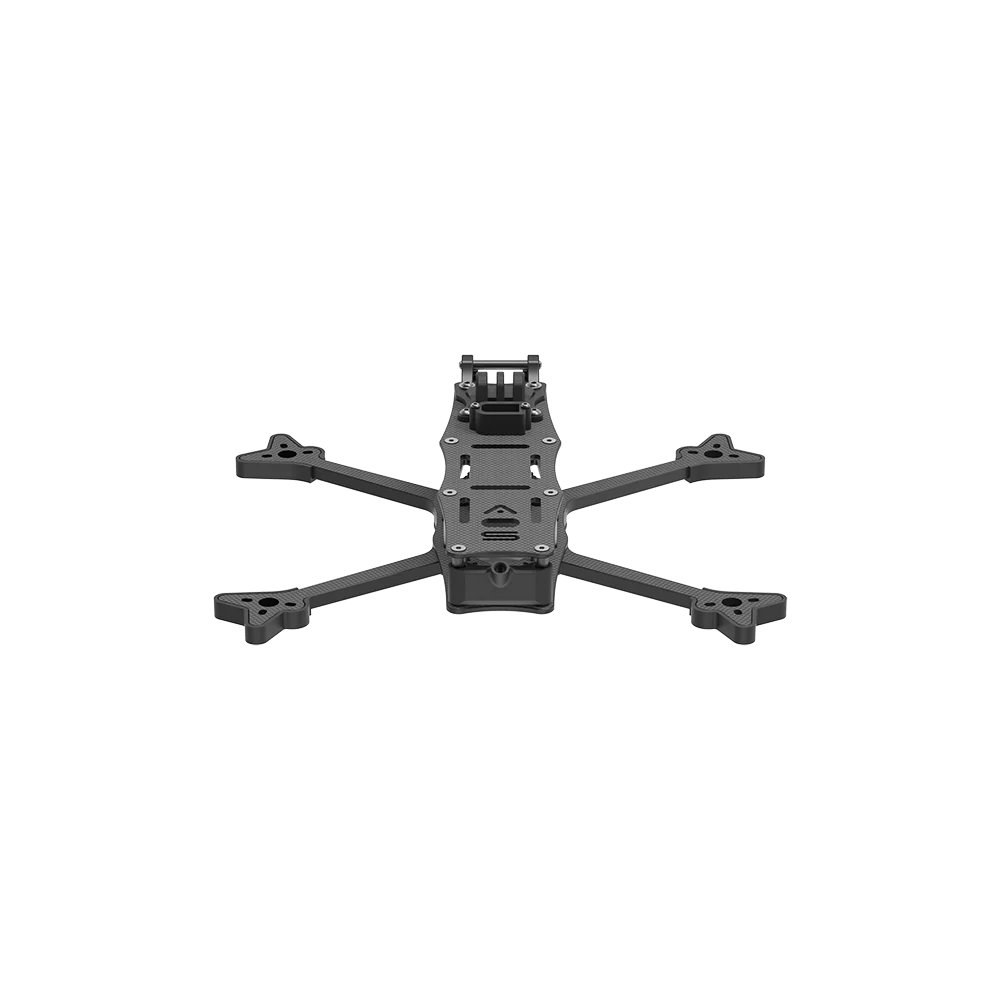

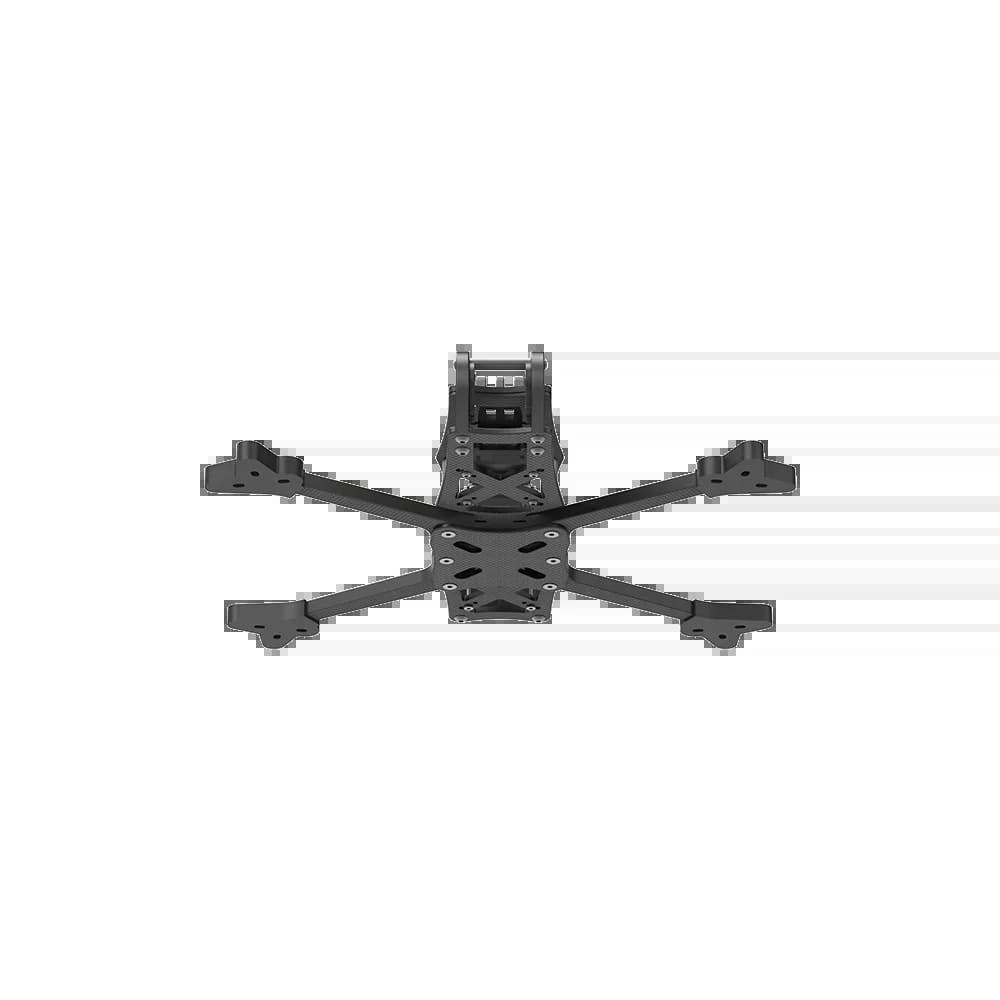

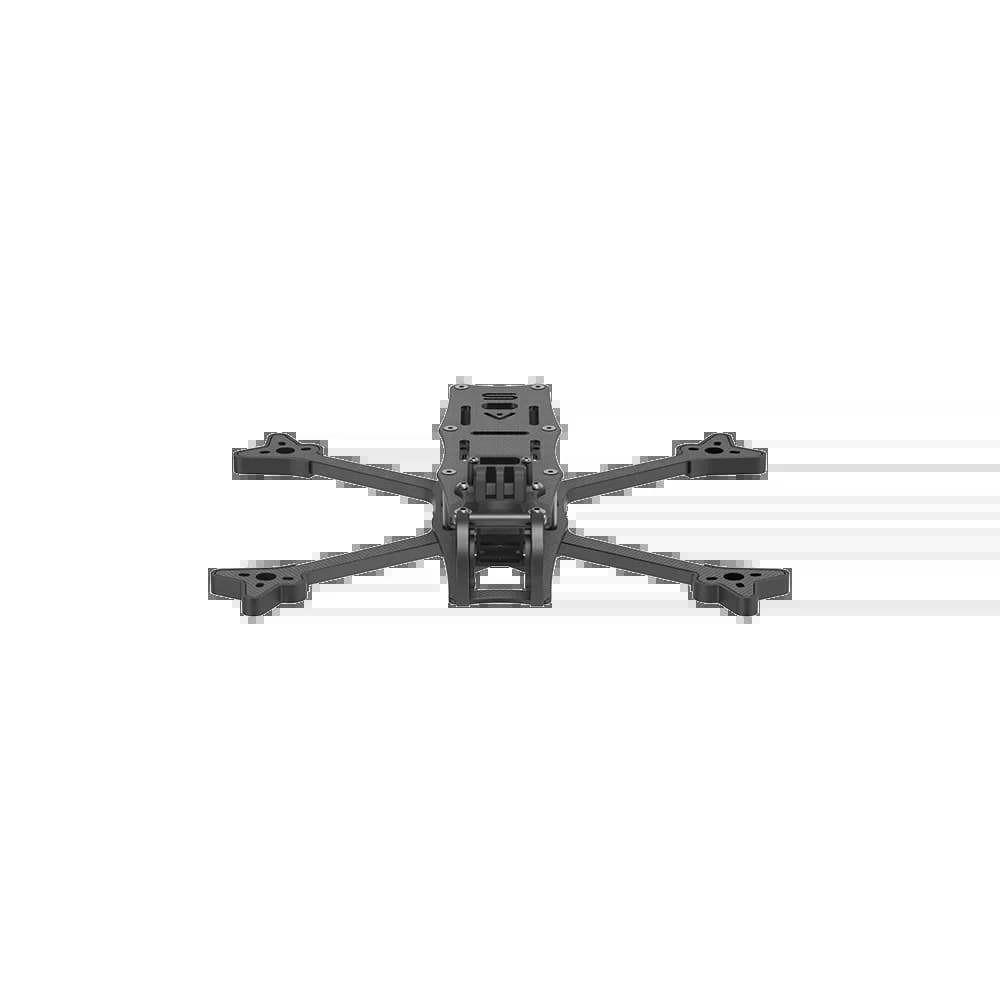

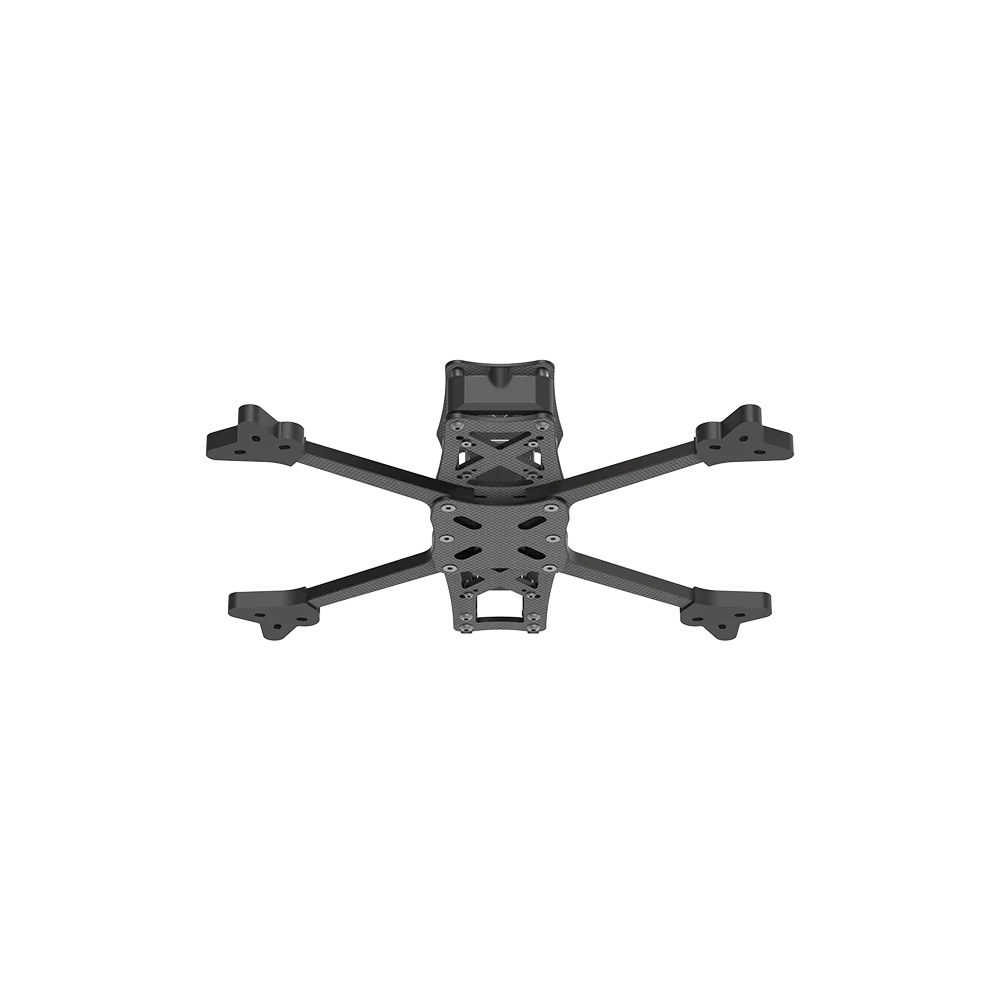

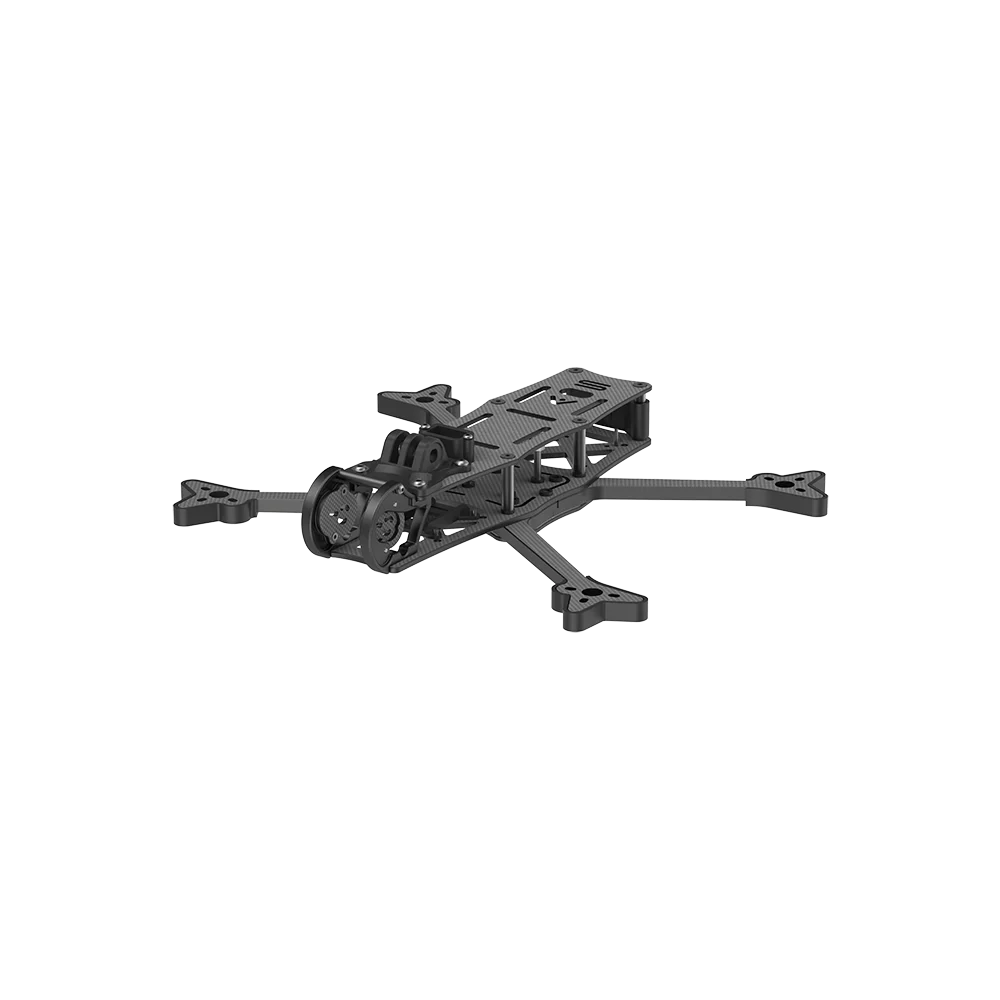

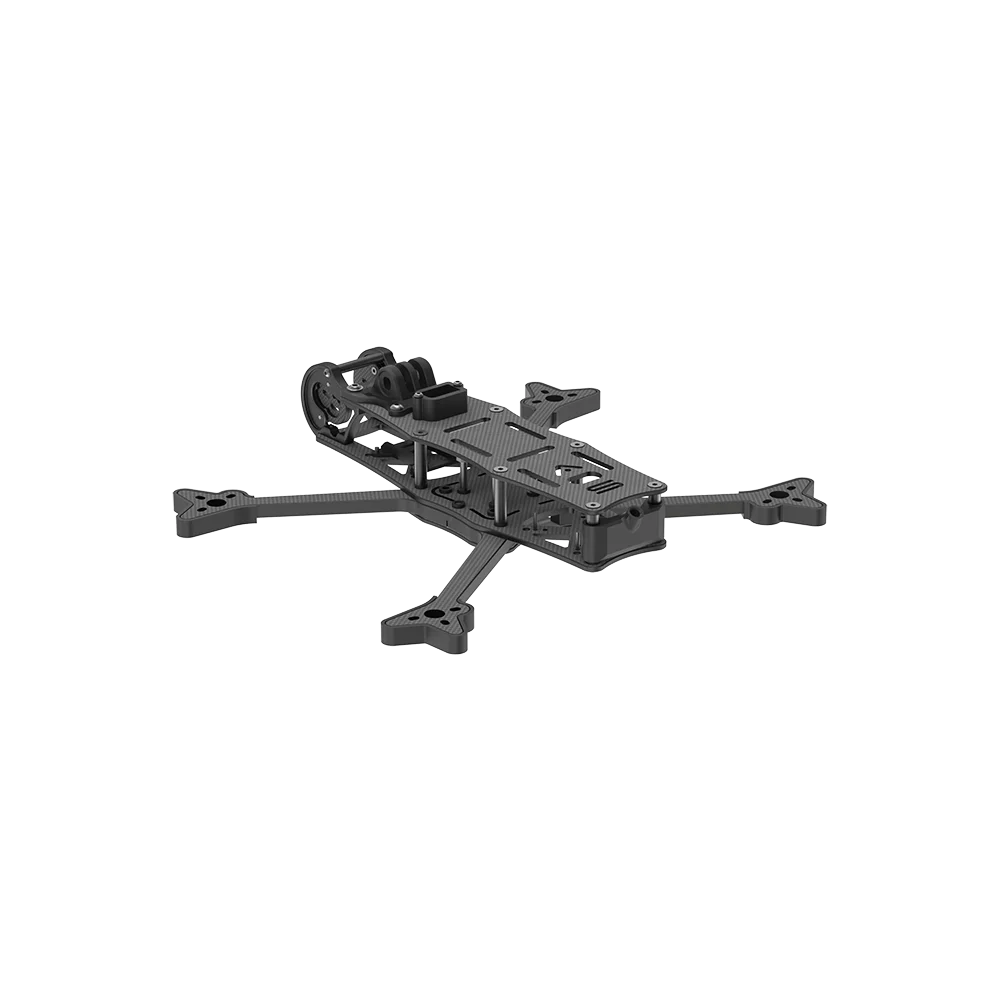

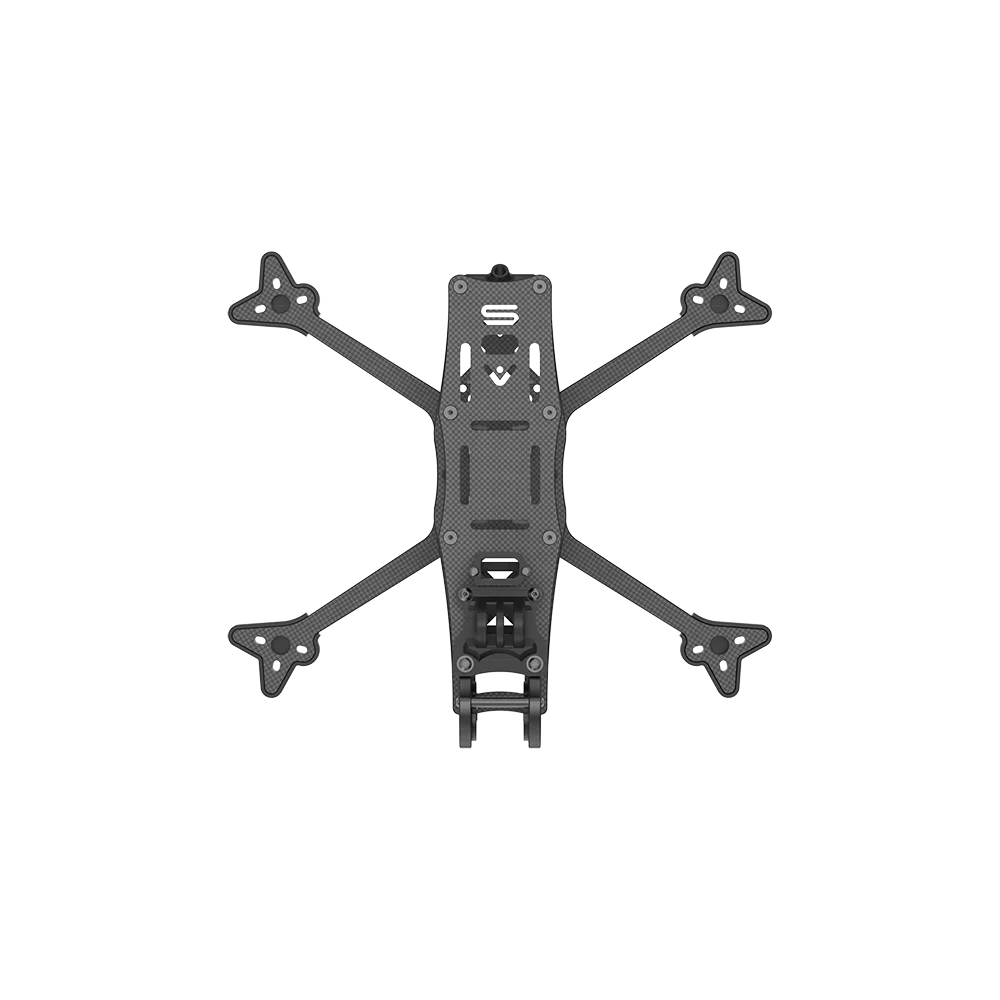

iflight AOS 5 V5.1 O4 Version FPV Frame Kit with 6mm arm for FPV - 1

iflight AOS 5 V5.1 O4 Version FPV Frame Kit with 6mm arm for FPV

iFlight

Reference price:
US $113.29
1-10 pcs$110(-3%)
10-100 pcs$105(-7%)
100+ pcs$99(-12%)

Description

iflight AOS 5 V5.1 O4 Version FPV Frame Kit with 6mm arm for FPV

Select options
Variant
Quantity
View cartGet a Quote

Specifications

AttributeValue
High-concerned chemicalNone
Brand NameIFLIGHT
OriginMainland China
Drones Accessories TypeBody shell

Product Details

Description

Discover the future of 5" FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials.
V5.1 upgrades interlocking arm geometry and adds a central spine, reinforcing arms and stiffening the FC mount.

Specifications

Product Name: AOS 5 V5.1 Frame Kit

Frame wheelbase: 228mm

Frame Dimension: L180*W140*H34 mm

Arm Thickness: 6mm

Top Plate Thickness: 2mm

Bottom Plate Thickness: 2mm

Upper Plate Thickness: 2.5mm

Max Flight Stack Height: 20mm

Max VTX Height: 20mm

Flight Stack Mounting: 20*20 Φ3mm / 30.5*30.5 Φ3mm

VTX Mounting: 20*20 ⌀2mm / 25.5*25.5 Φ2mm/30.5*30.5 Φ3mm

Motor Mounting: 19x19-φ3mm/16x16-φ3mm

Weight: 165±5g

Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit Pro


Packing List

1 x AOS 5 V5.1 Frame Kit

1 x TPU Parts

1 x Screw Bag

2 x Battery Strap

2 x Battery pads


Note

Tolerance Note

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

Shipping Note

The frame will be shipped as separate components. Assembly is required by the user. Images on the page are for display purposes only.

Compatibility Note

Before purchase, please confirm the installation dimensions of your flight controller, ESC, VTX, and other accessories to ensure compatibility with the frame.
