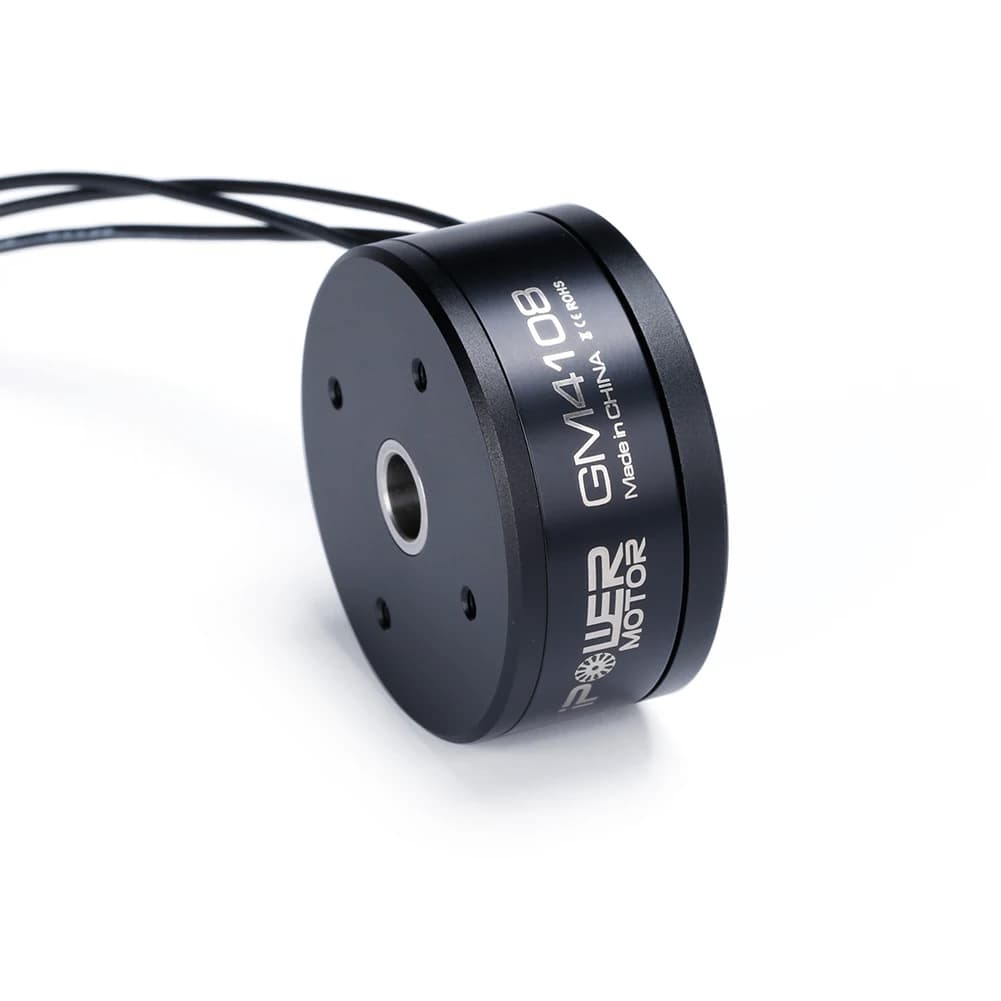

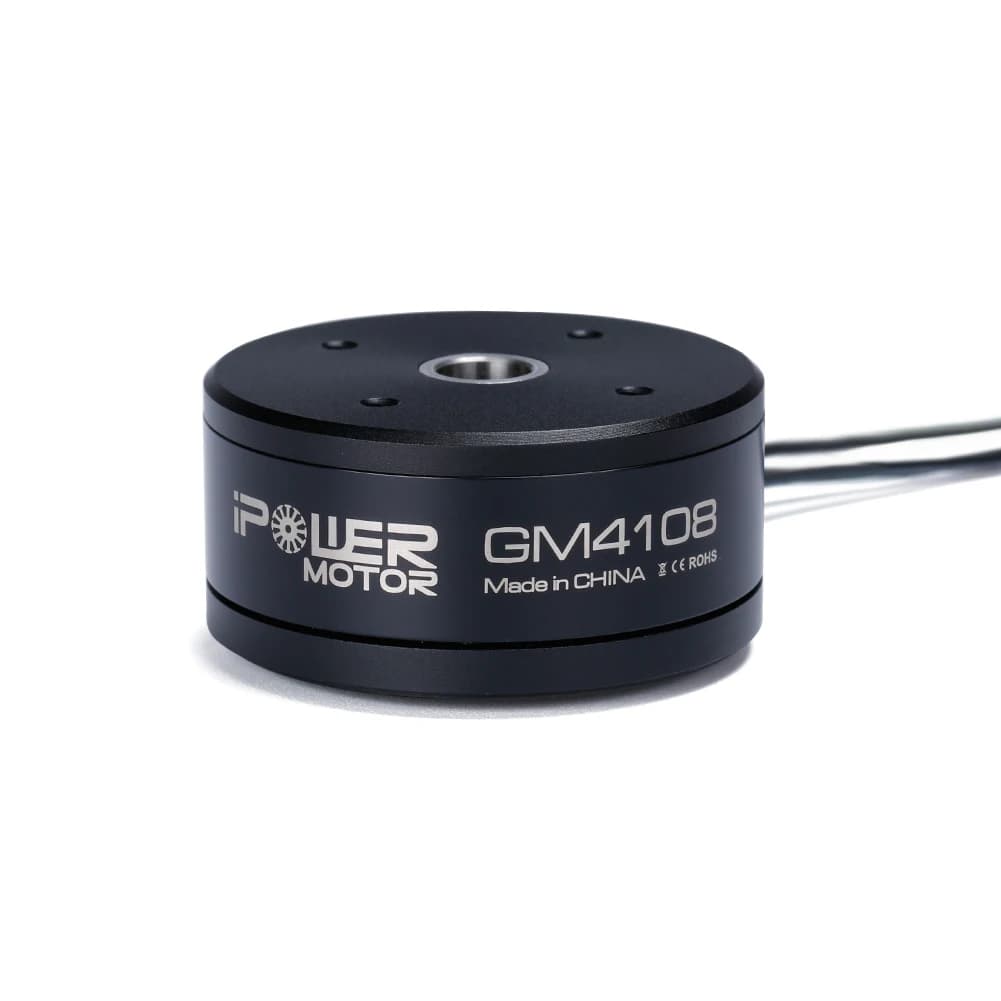

iFlight iPower GM4108H-120T Gimbal Brushless Motor with 8mm Hollow Shaft Lidar
Description
Specification: Model: GM4108H Motor Out Diameter: 47±0.05mm Motor Height: 22.7.3±0.2mm Hollow Shaft(OD): 10-0.008/-0.012mm Hollow Shaft(ID): 8+0.05/0mm Wire Length: 265±3mm Cable AWG: #24 Motor Weight: 124±0.5g Wire plug: 2.5mm dupont connector No-load current: 20V No-load volts: 0.07±0.1A No-load Rpm: 513~567 RPM Load current: 20V Load volts: 1.5A Load torque(g): 1200-1800 Motor internal resistance: 11.1Ω±5%Resistance varies with temperature High voltage test: DC500V 1mA@2sec Rotor housing runout: ≤0.1mm Steering (axle extension): Clockwise High-low temperature test High temperatureKeep at 60 for 100 hours, and the motor can wor knormally after 24 hours at room temperature Low temperatureKeep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature Maximum power: ≤25W Working current: 3-5S Working temperature: -20~60;10~90%RH Package included: 1 x iPower GM4108H-120T Gimbal Motor 1 x Aluminium slipringoptional
Specification:
Model: GM4108H

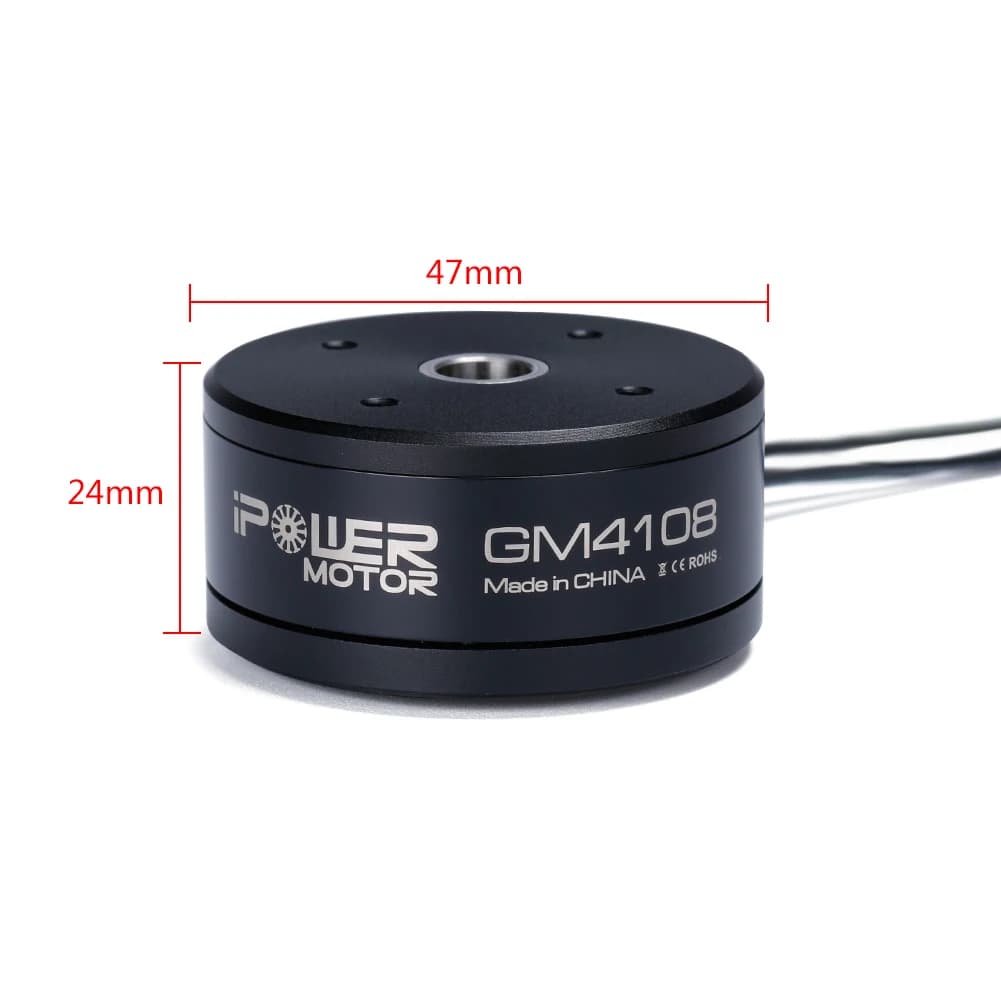

Motor Out Diameter: 47±0.05mm
Motor Height: 22.7.3±0.2mm
Hollow Shaft(OD): 10-0.008/-0.012mm
Hollow Shaft(ID): 8+0.05/0mm
Wire Length: 265±3mm
Cable AWG: #24

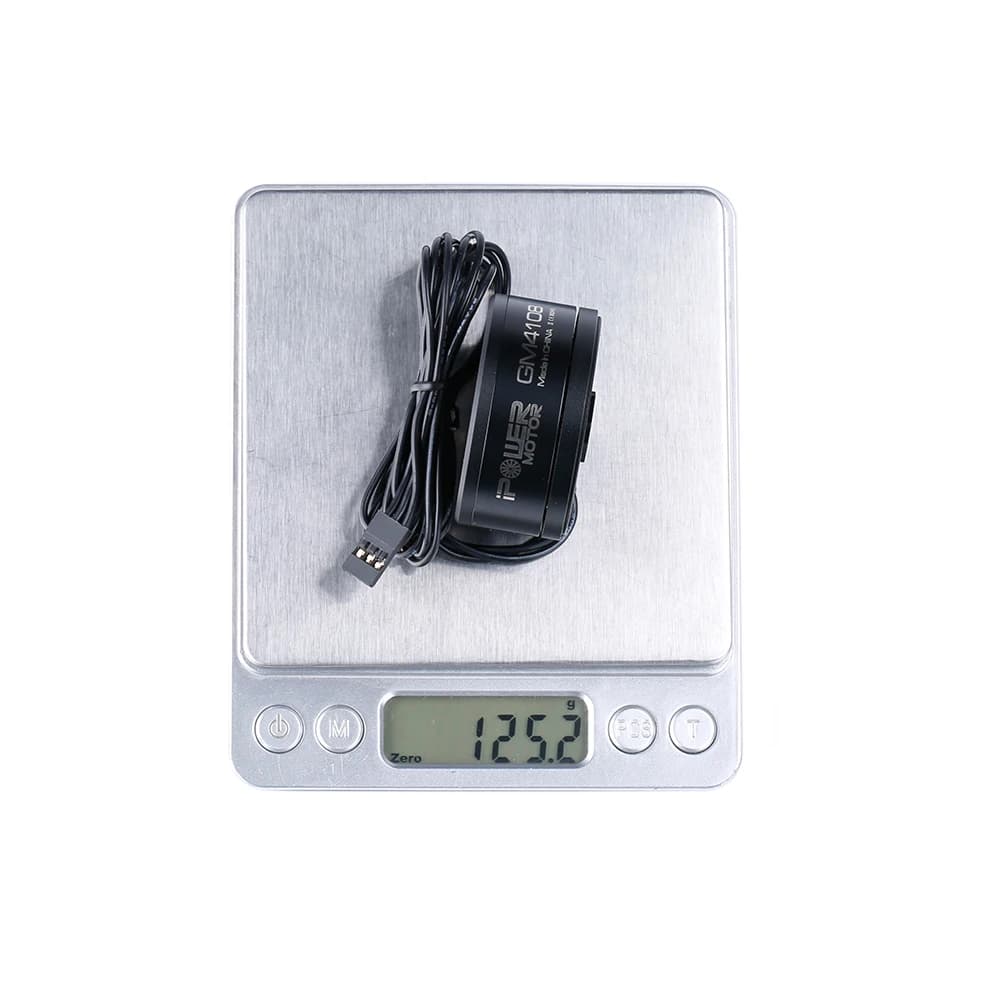

Motor Weight: 124±0.5g
Wire plug: 2.5mm dupont connector
No-load current: 20V
No-load volts: 0.07±0.1A
No-load Rpm: 513~567 RPM
Load current: 20V
Load volts: 1.5A
Load torque(g): 1200-1800
Motor internal resistance: 11.1Ω±5%Resistance varies with temperature
High voltage test: DC500V 1mA@2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): Clockwise
High-low temperature test
High temperatureKeep at 60 for 100 hours, and the motor can wor knormally after 24 hours at room temperature
Low temperatureKeep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤25W
Working current: 3-5S
Working temperature: -20~60;10~90%RH
Package included:
1 x iPower GM4108H-120T Gimbal Motor

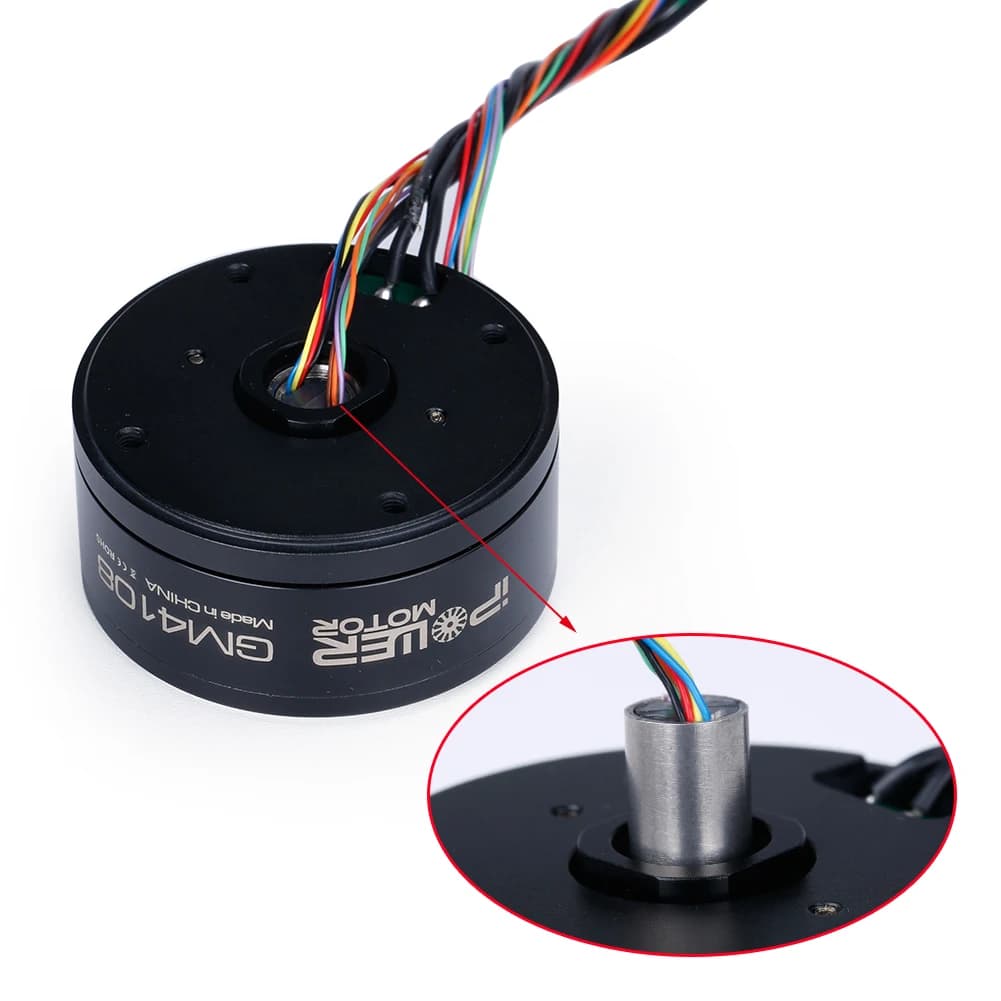

1 x Aluminium slipringoptional
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Compatible Drone Brand |
|
| Size |
|
| Package |
|
| Weight |
|
| Model Number |
|
| Brand Name |
|
| Origin |
|
| Drones Accessories Type |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Compatible Drone Brand | GoPro |
| Size | 47*24 |
| Package | Yes |
| Weight | 0.4 kg |
| Model Number | GM4108 |
| Brand Name | IFLIGHT |
| Origin | Mainland China |
| Drones Accessories Type | Motor |
Product Details
Specification:
Model: GM4108H
Motor Out Diameter: 47±0.05mm
Motor Height: 22.7.3±0.2mm
Hollow Shaft(OD): 10-0.008/-0.012mm
Hollow Shaft(ID): 8+0.05/0mm
Wire Length: 265±3mm
Cable AWG: #24
Motor Weight: 124±0.5g
Wire plug: 2.5mm dupont connector
No-load current: 20V
No-load volts: 0.07±0.1A
No-load Rpm: 513~567 RPM
Load current: 20V
Load volts: 1.5A
Load torque(g): 1200-1800
Motor internal resistance: 11.1Ω±5%Resistance varies with temperature
High voltage test: DC500V 1mA@2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): Clockwise
High-low temperature test
High temperatureKeep at 60 for 100 hours, and the motor can wor knormally after 24 hours at room temperature
Low temperatureKeep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤25W
Working current: 3-5S
Working temperature: -20~60;10~90%RH
Package included:
1 x iPower GM4108H-120T Gimbal Motor
1 x Aluminium slipringoptional
