BETAFPV Cetus X Brushless FPV Quadcopter Adjustable Camera Indoor Racing Drone ELRS 2.4G Outdoor RC Helicopter



Cetus X with the classical Cetus flight controller version is released. It supports the position hold function, which provides easier control to pilots. If select the Betaflight FC version, pilots are able to get and learn tons of FPV knowledge via the popular open source Betaflight flight controller community. Both FC versions perform great in power and speed and feature higher-grade control modes for pilots to get advanced.

FPV Simulator Supported

First time flying a quadcopter? You can learn and practice flying a quadcopter through an FPV simulator before real flying. LiteRadio 3 is available to play FPV simulators like DRL/DCL/Uncrashed/Liftoff. More convenient for practicing and charging at the same time. Here is the display of Liftoff.

Various Modes, Accessible to All

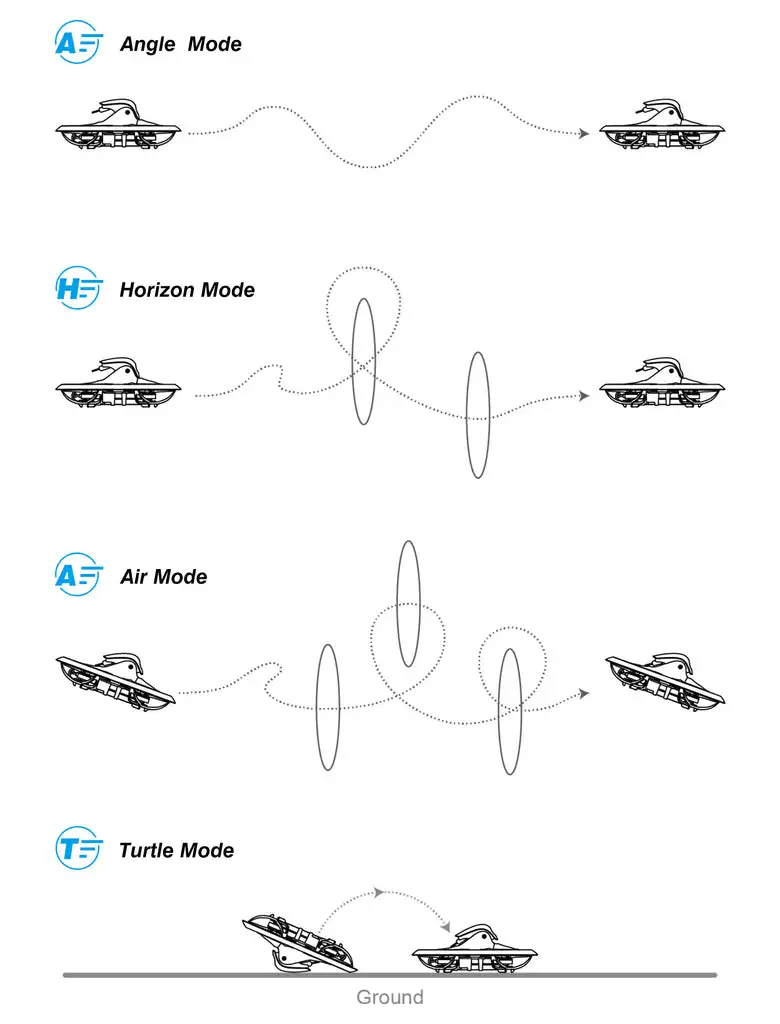

Cetus X (Betaflight FC) supports Angle/Horizon/Air Modes, which can satisfy the different needs of pilots and adapt to various flight environments. When the quadcopter falls to the ground and upside down, you can activate turtle mode by LiteRadio 3 transmitter to flip it over and resume flying.

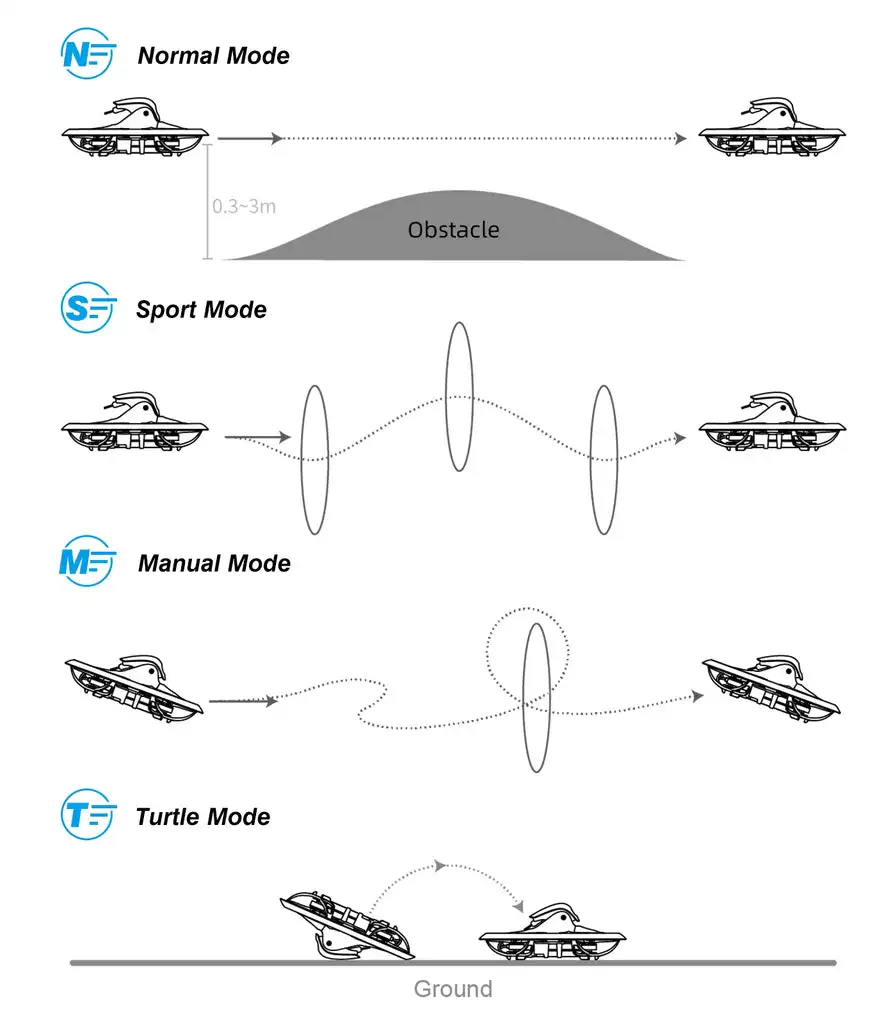

The version with Cetus FC has N/M/S three flight modes and supports 3 different speeds with SLOW/MID/FAST. Whether you're a seasoned FPV pilot or a complete beginner, the Cetus X FPV Kit helps anyone fly confidently from day one.

Note: The slow speed of Cetus FC version is not available on its M mode.



Cetus X BNF Version

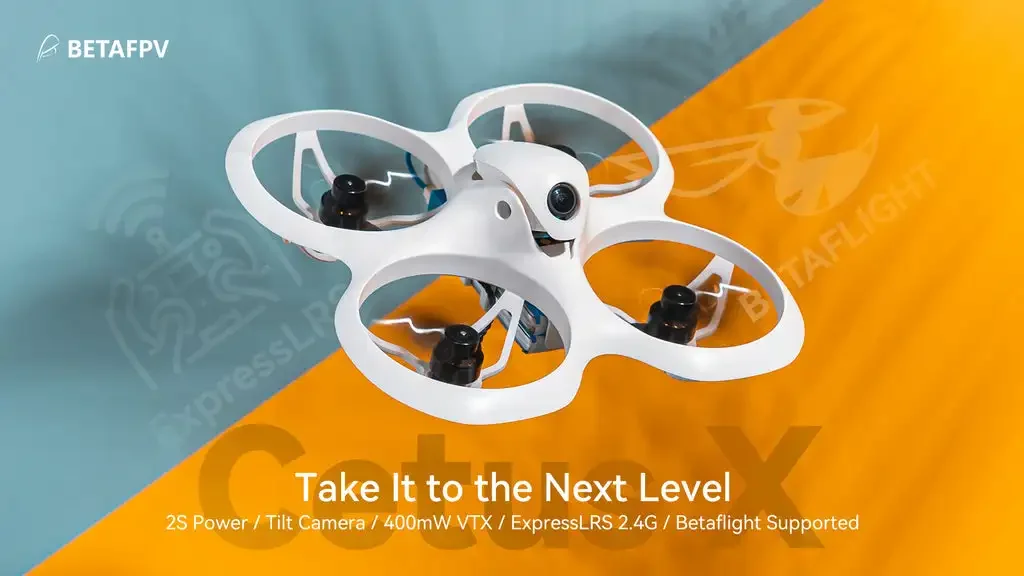

Cetus X Brushless Quadcopter is a 2S power whoop drone and a primary choice for beginners who want to get advanced flight skills. It features a stronger propulsion system for a speedier and more violent flight, which is capable of performing diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Meanwhile, it supports the Betaflight configurator which is a popular application to configure RC aircraft.

Bullet Point

• An excellent preference for beginners to get advanced level. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startup due to its stronger propulsion system.

• Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoor.

• Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), and 2*BT2.0 450mAh 1S 30C battery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight.

• Flying a drone expertly is the first step to being a drone master and the next is to set up. With the support of Betaflight configurator, beginners are able to learn flight controller settings, which is an essential way to get drone experience.

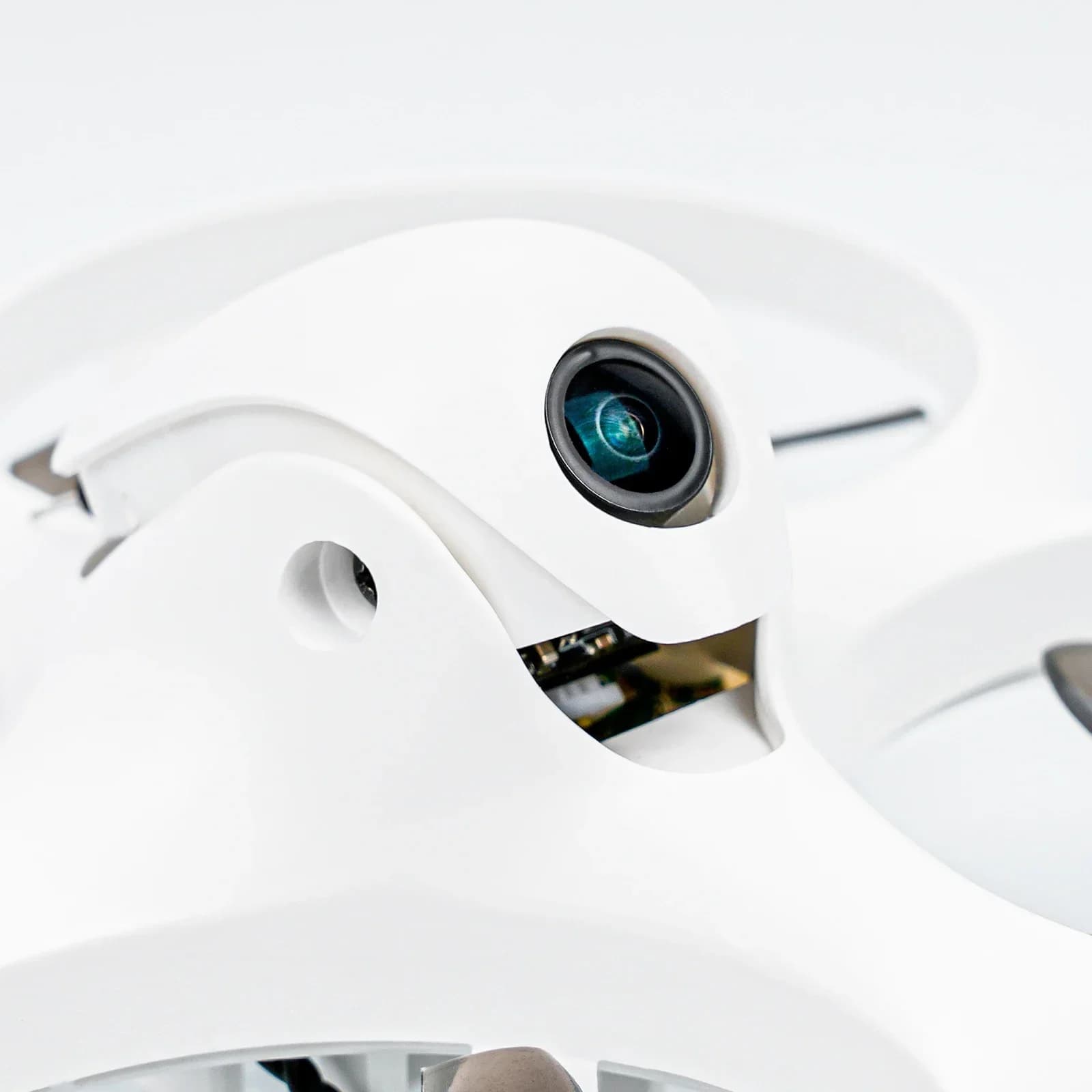

• Classical white design inherited from Cetus Series and made of PA12 material, Cetus X frame has an excellent impact resistance in drop & impact. The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.

•

Specification

• Item: Cetus X Brushless Quadcopter

• Weight: 55g

• Wheelbase: 95mm

• FC: F4 1S 12A FC V2.2 (ELRS 2.4G)

• Motors: 1103 11000KV Motor

• Props: Gemfan 2020 4-Blades Props

• Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)

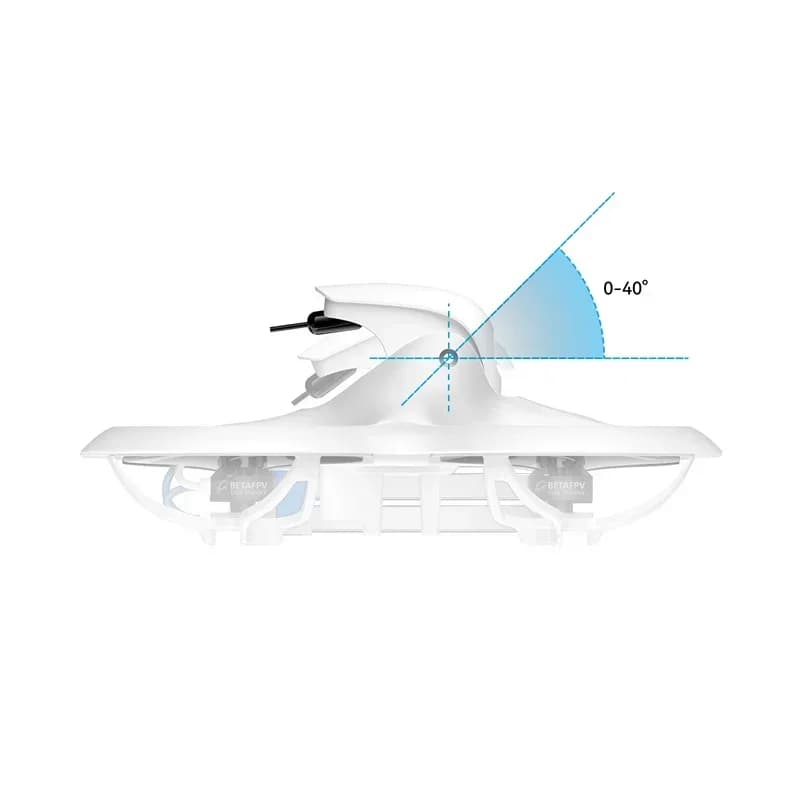

• Camera Adjustable Angle: 0°-40°

• Receiver Protocol: ELRS 2.4G/Frsky D8

• VTX: M04 25-400mW VTX

• Battery: 2*BT2.0 450mAh 1S 30C Battery

• Flight time: 5 mins

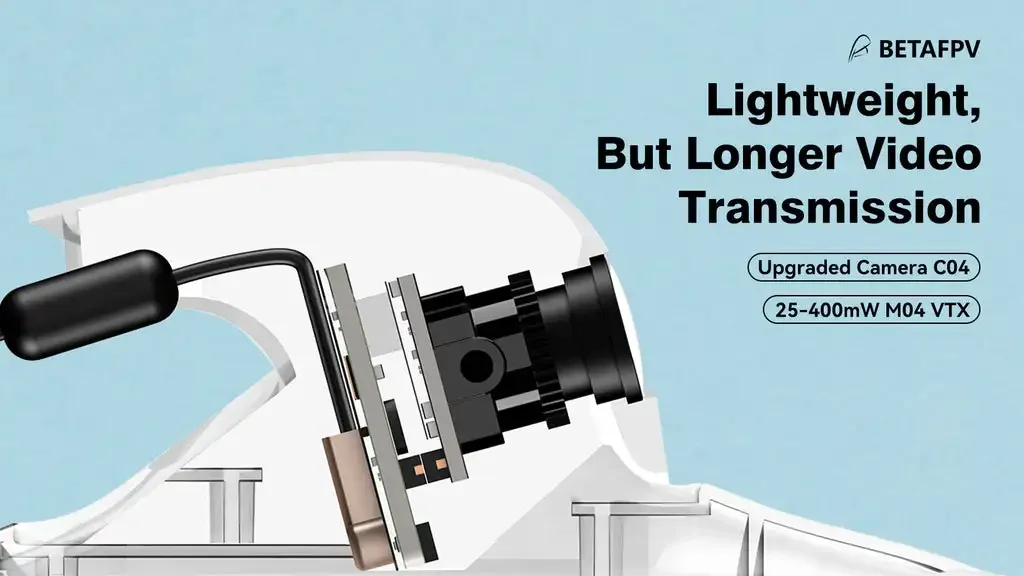

Improved Video Transmission

Cetus X Brushless Quadcopter comes with M04 25-450mW VTX and C04 FPV camera. M04 25-450mW VTX features a lightweight and adjustable output power for longer distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G, pilots can fly whoop drones longer to explore more possibilities and fun. In addition, C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows a better quality in FPV flight compared with C02 FPV camera.

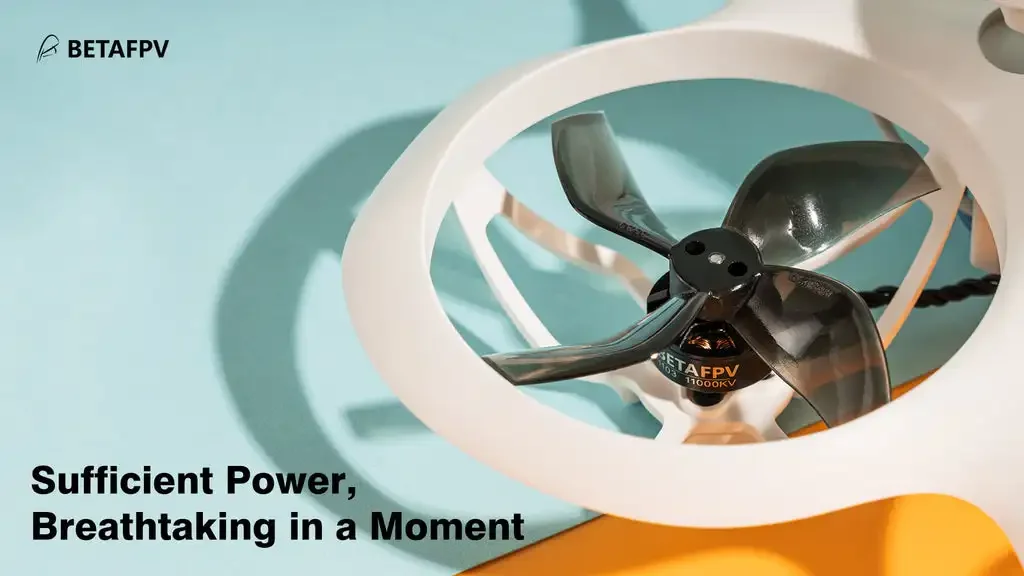

Powerful Propulsion System

Equipped with 1103 11000KV Brushless Motor and Gemfan 2020 4-blade props. 1103 motors are designed for 2S quadcopters with incredible power, smooth and quiet operation, and light enough. Besides, Cetus X quadcopter adopts 2020 4-blade props, which are lighter and durable enough, offering pilots a high-efficiency flight experience.

Primary Choice for Next Level

Cetus X Brushless Qaducopter Betaflight FC version supports configuring on Betaflight configurator. It is a primary choice for beginners who start to learn drone configuring, which helps beginners to get advanced level. With the Betaflight configurator, you can calibrate accelerometer, custom OSD content, adjust the video transmitter and etc.

Note: Please DO NOT configure ESC or Motor settings on Betaflight configurator.

F4 1S 12A FC V2.2

F4 1S 12A FC board with version V2.2 is first used on Cetus X BNF drone. Here is the specification of the F4 1S 12A FC (ELRS) V2.2.

• CPU: STM32F411CEU6 (100MHZ )

• Six-Axis: BMI270 (SPI connection)

• Firmware version: betaflight_4.3.1_BETAFPVF4SX1280

• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)

• Receiver: SPI ELRS 2.4G Receiver

• Motor Pin Connector: 1.25mm Header Pins

• Mounting Hole Size: 26mm x 26mm (suitable for whoop pattern mounting hole)

• USB Port: SH1.0 4-Pin

• Built-in ESC with 12A continuous and peak 25A current

• ESC input voltage: 1S-2S

• ESC firmware: C_X_30_REV16_7_20220802.hex for BB51 BLHeli_S hardware

• Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM

As you know, the yaw axis will be not working anymore on ICM20689 gyrometer some times. Listening to pilot's feedback, working with the developer on Betaflight, contacting with the FAE on TDK. But until now, not solved. So we update the gyro to BOSH BMI270 since V2.2 version. Also, all the Betaflight FC boards will update the gyrometer to BOSH BMI270 or TDK ICM42688 following.

Pay attention, ONLY the newest Betaflight firmware 4.3.1 start to support this BMI270 gyrometer or ICM42688. Please check the below link to download the firmware.

Note: If your FC board has the yaw axis issue unfortunately, please feel free to email support@betafpv.com for a replacement. Order list and a short video for this issue would be appreciated.

The BLHeli_S firmware could support the BB51 hardware now. This V2.2 board is powered by BB51 hardware. If you want to setup the ESC specification, please update to the newest BLHeliSuite-16714902a first.

Note: BetaFlight Configurator, BLHeli Configurator, Bluejay Configurator are invalid for the BB51 ESC now.

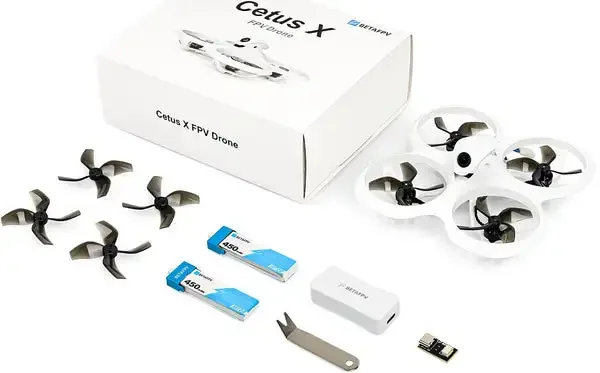

Cetus X BNF version Package List

• 1 * Cetus X Brushless Quadcopter (Betaflight FC or Cetus FC Version)

• 1 * BT2.0 Battery Charger and Voltage Tester

• 2 * BT2.0 450mAh 1S 30C Battery

• 1 * Phillips Screwdriver

• 1 * Prop Removal Tool

• 1 * Type-C Adapter

• 4 * Gemfan 2020 4-Blades Props
