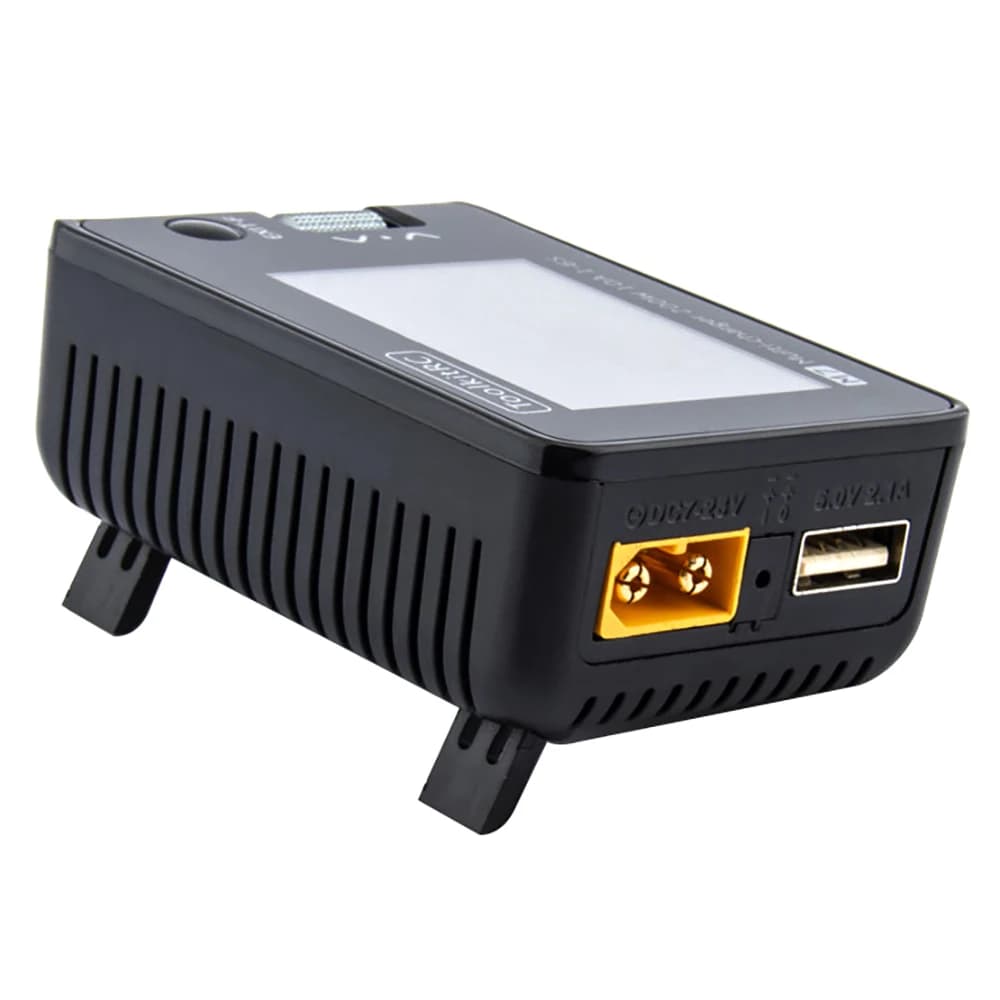

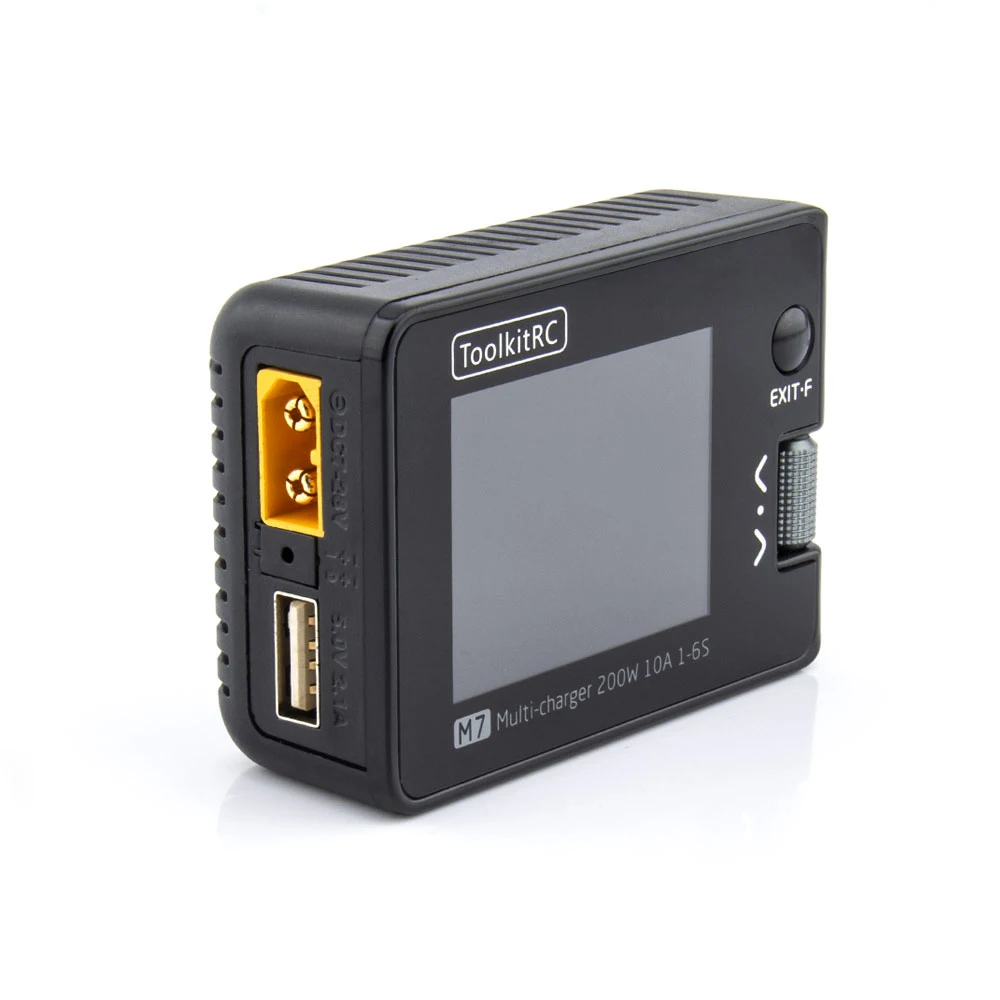

ToolkitRC M7 Charger Intelligent Discharge Lithium Battery 1S 2S 3S-6S Server ESC Receiver Detection IPS Model Toy Accessories

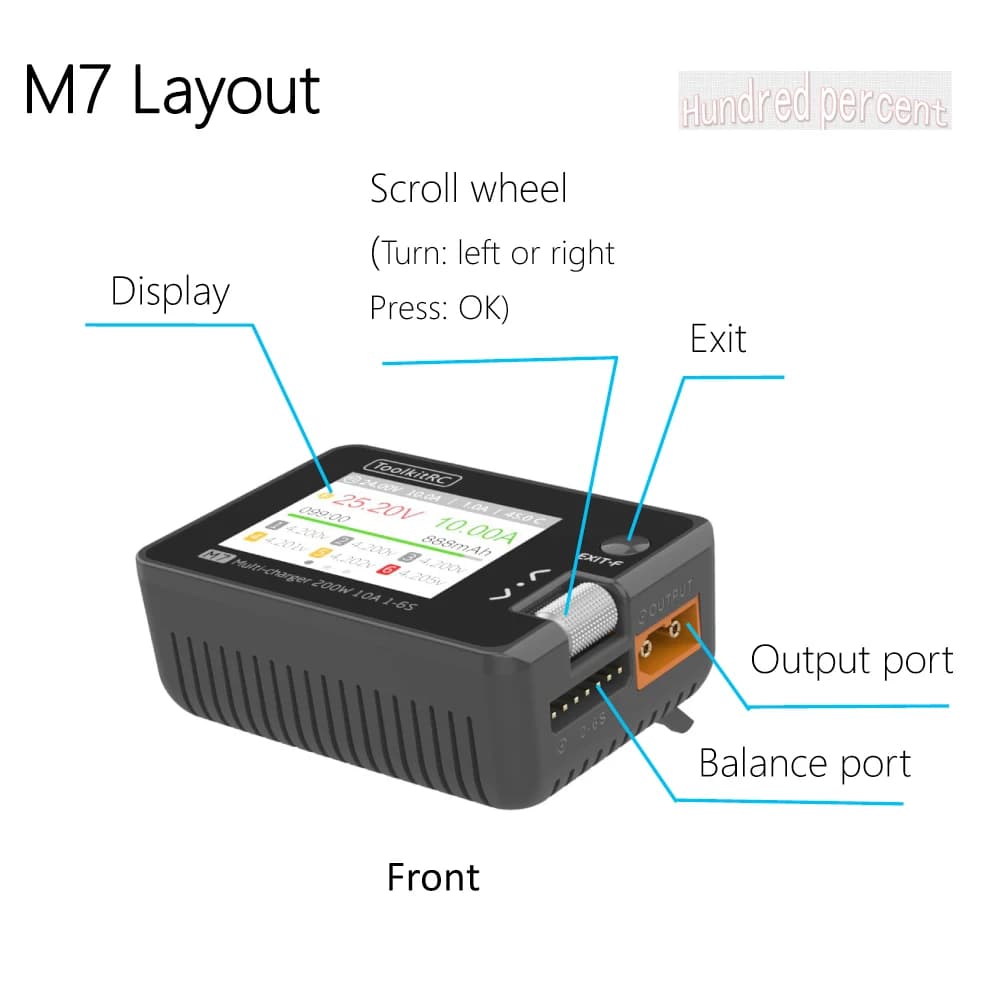

M7 is a multifunctional tool chain product that integrates functions such as a balanced charger and discharger, an electric display, a signal measuring device, and a signal source.

M7 SPECS:

Product size: 73*51*27 mm

Product weight: 90g

Pack size: 84*79*39 mm

Pack weight: 150g

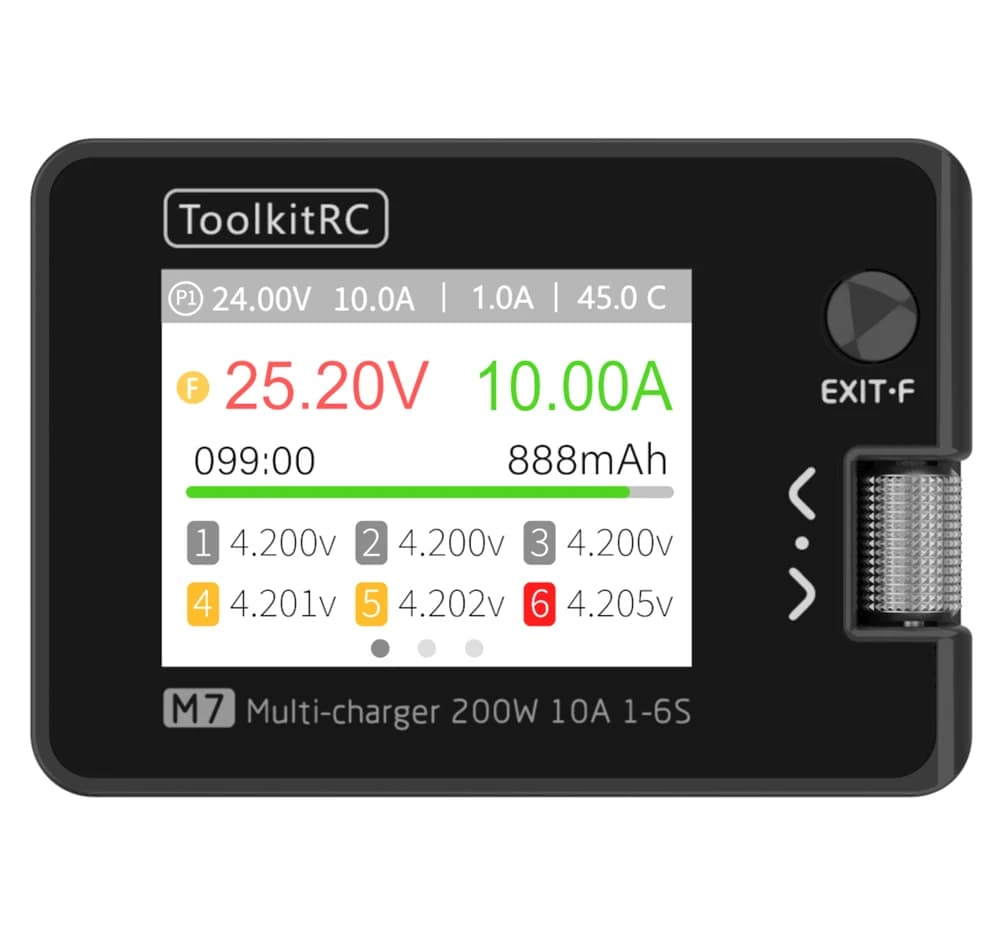

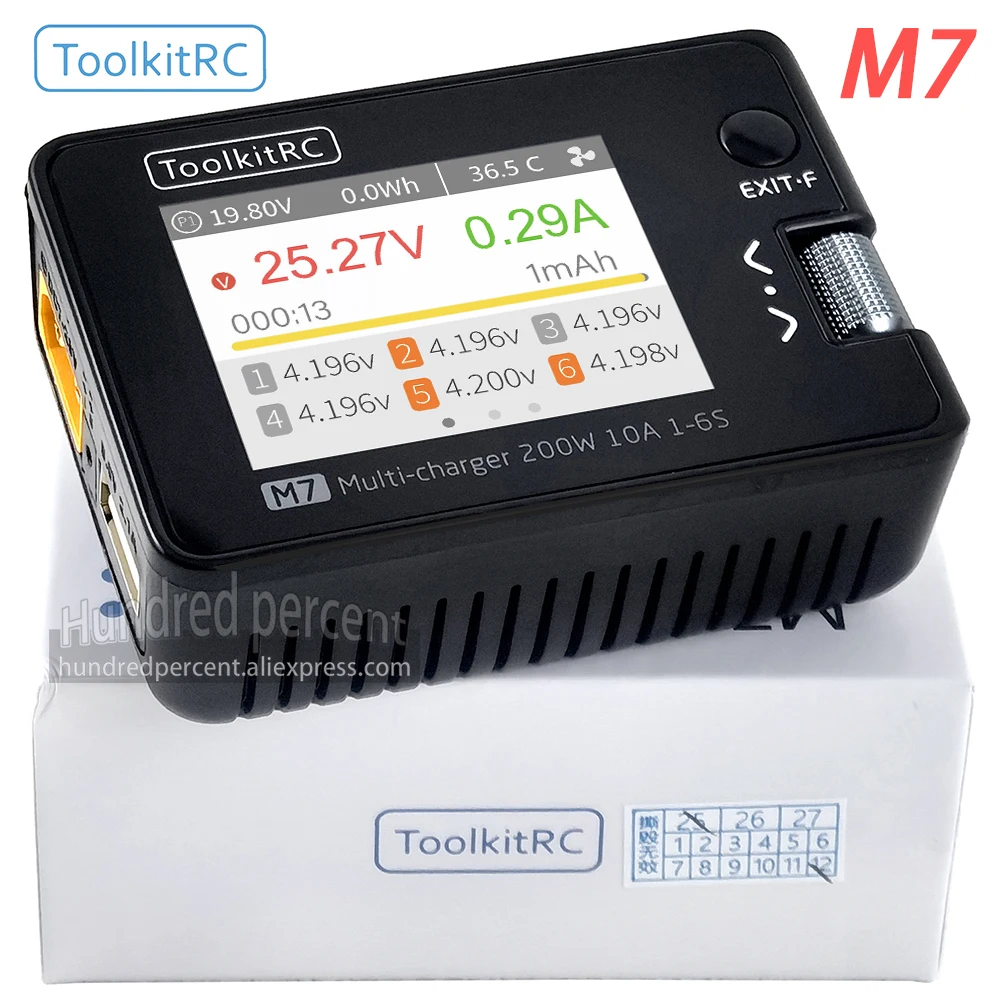

LCD: IPS 2.0inch LCD 320*240 Pixel

Input voltage: 7.0-28.0V @MAX 12A

Type of battery: Lipo LiHV LiFe Lion@1-6

NiMh @1-16S Pb @1-10S

Balance current: 400mA @2-6S

Charger power: 200W @MAX 10A

Discharge power: 200W @MAX 10A Recycle mode

10W@3A Normal mode

USB: 2.1A @5.0V or Upgrade

Input:

PWM: 880-2200us @20-400Hz

PPM: 880-2200us*8CH @20-50Hz

SBUS: 880-2200us*16CH @20-100Hz

Voltage: 1.0-5.0V @1-6S

Internal resistance: 1-99mR @1-6S

ESC: 200W@10A PWM Output

Output:

PWM: 500-2500us @20-1000Hz

Power supply: 1.0-28.0V @1.0-10A mode:CC+CV

OverCurrent Cutoff time: <5ms

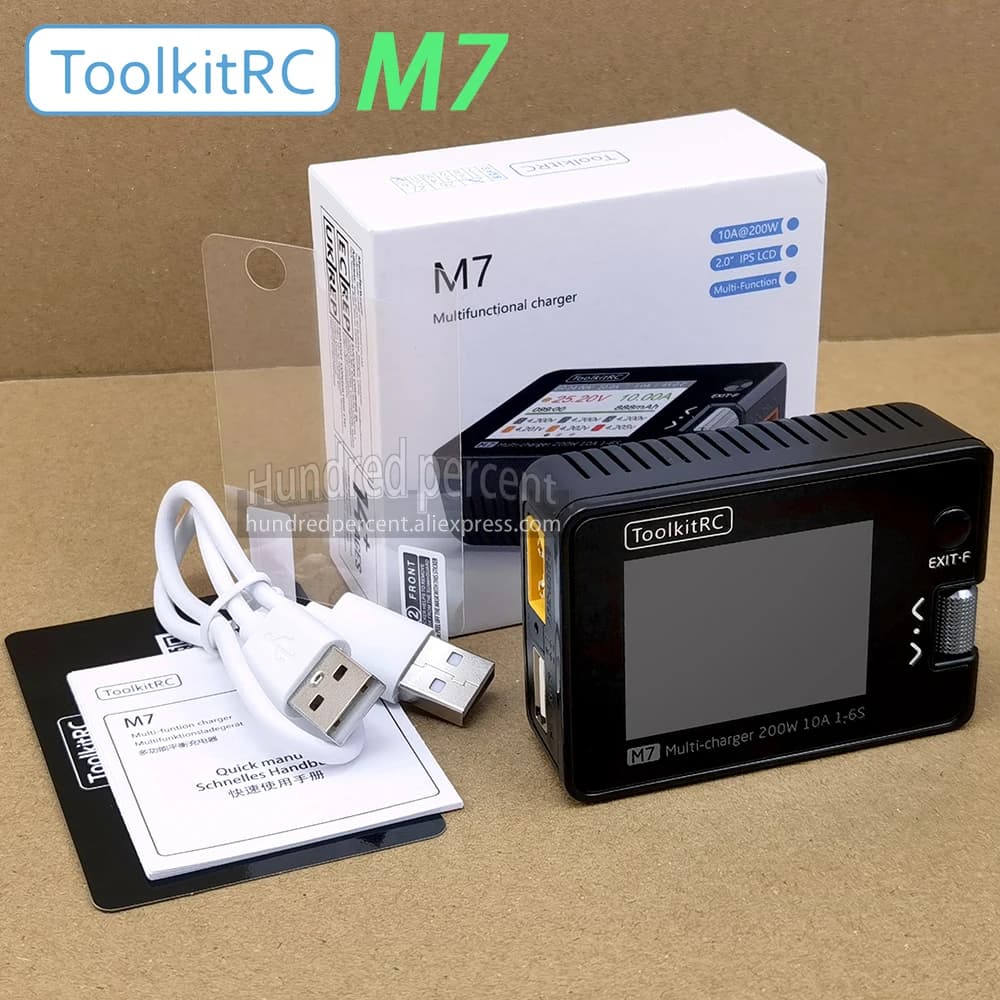

Packaging included:

1X ToolkitRC M7 Charger

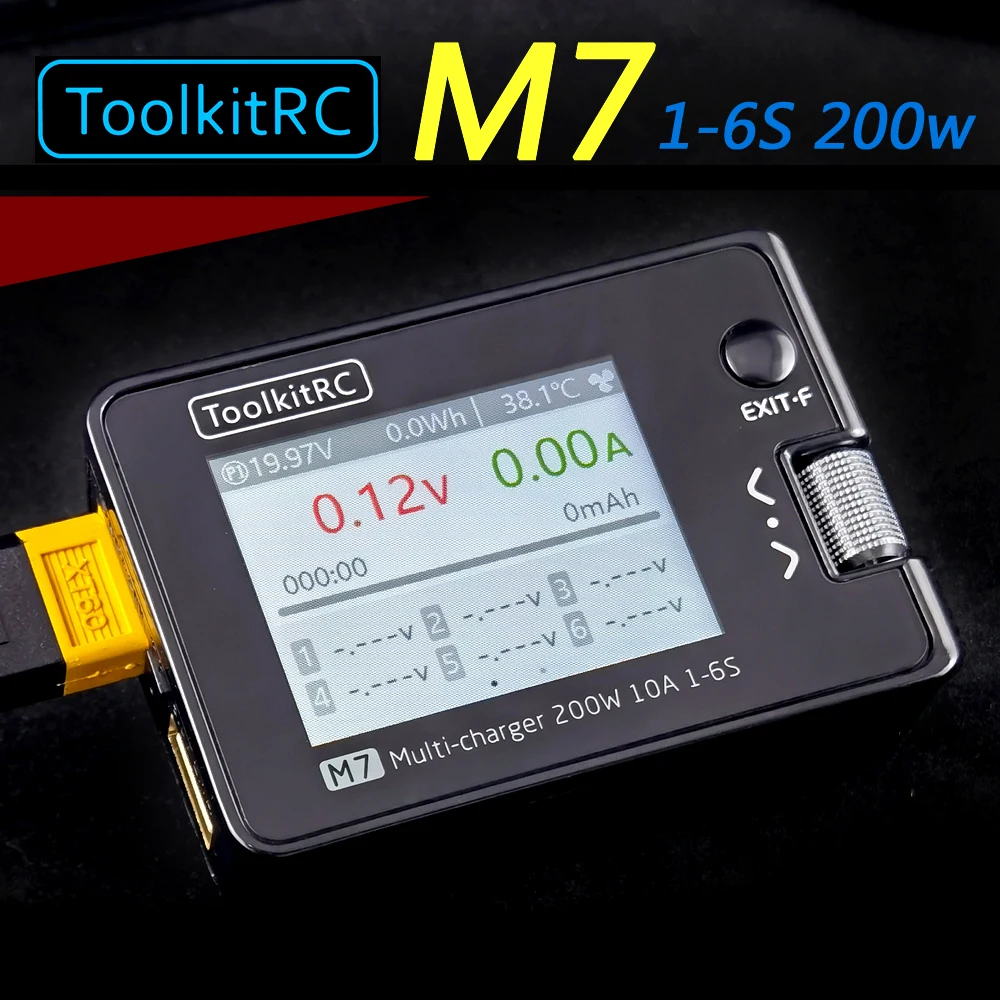

Note: After the M7 charger is powered on, it will display a voltage of 0.12V in an unloaded state, which is normal and does not affect use. If the voltage displayed is inaccurate after connecting your battery, you can use a multimeter to measure the battery voltage, record it on paper, and then enter the voltage calibration page of the M7 charger to manually calibrate the voltage.Other functions

1. Firmware upgrade

After connecting the M7 to the computer with the USB data cable in the box, the computer will recognize a U

disk named T oolkit. Download the upgrade file app.upg

on the official website and overwrite the files in the U

disk to upgrade the firmware.

2. USB 5.0V output

In addition to the above upgrade functions, the USB

interface can also output 2.0A current to charge mobile

devices.

3. Automatically continue charging and discharging

When a battery is fully charged, after unplugging the

battery for 2 seconds, connect to the next battery, the

device will automatically continue to charge and

discharge, you can start and stop this function in the

settings menu

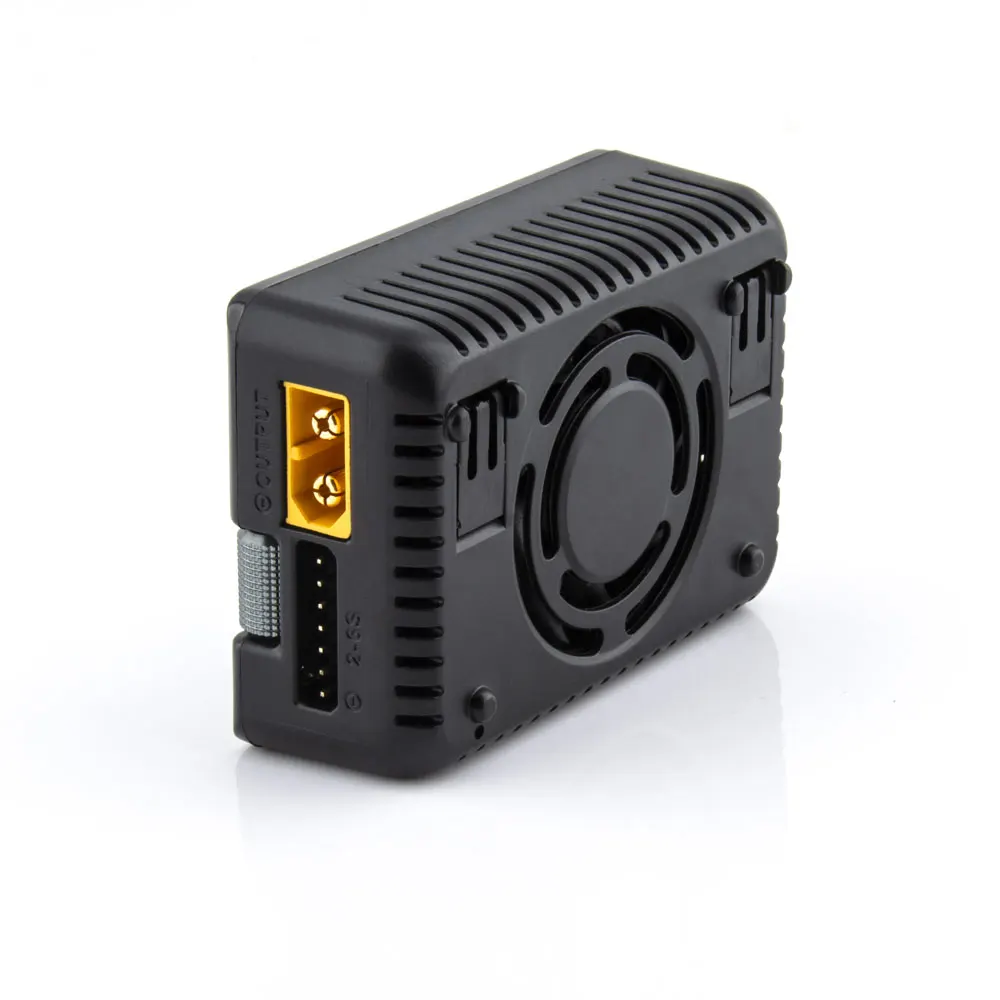

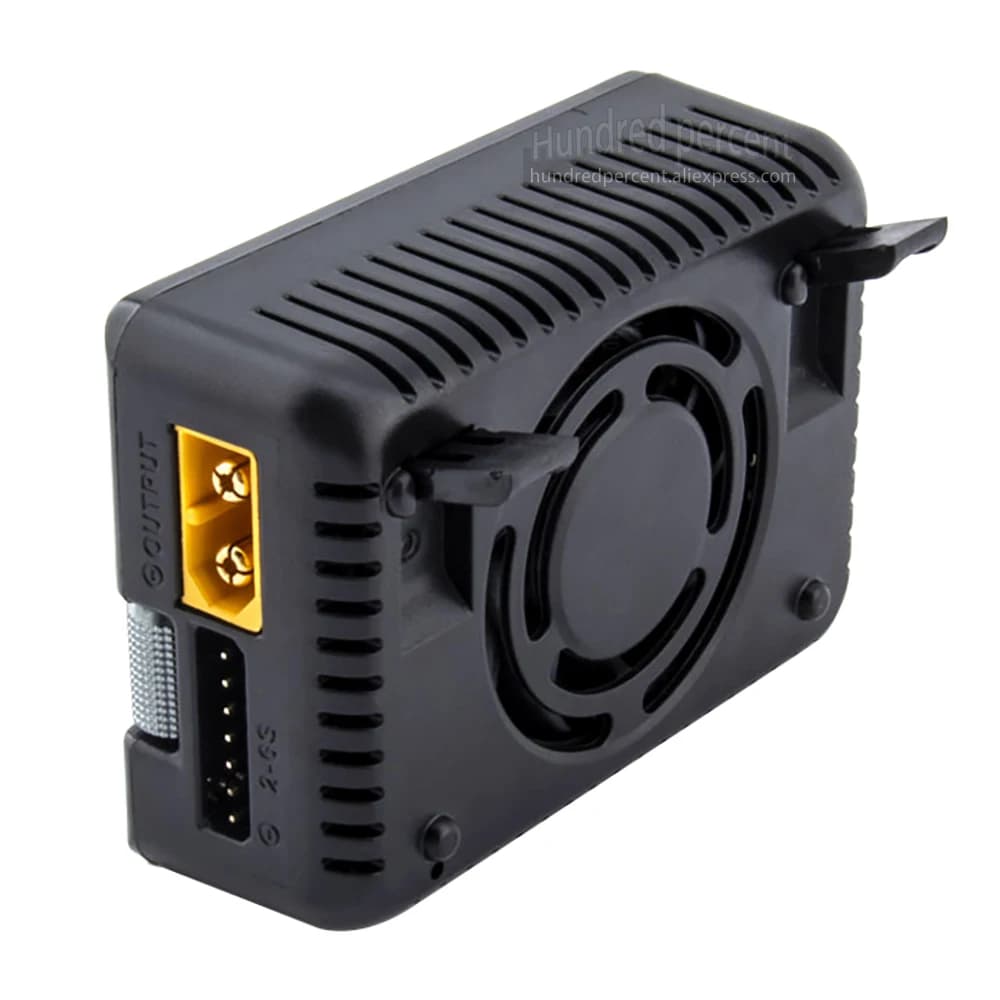

4. Fan level

When the internal temperature of the device exceeds

45°C, the fan turns on half-speed air volume to reduce

noise. When the internal temperature exceeds 53°C, the

fan turns on full-speed air volume to enhance heat

dissipation.

6. Manually calibrate the voltage

In the shutdown state, press and hold the [roller]

without releasing, connect the power supply, and the

system will enter the manual voltage calibration function.

Use a voltmeter to measure the actual voltage of each

battery, move the cursor to the corresponding voltage

value, modify the voltage value to be consistent with the@ToolkiRC 2021 44

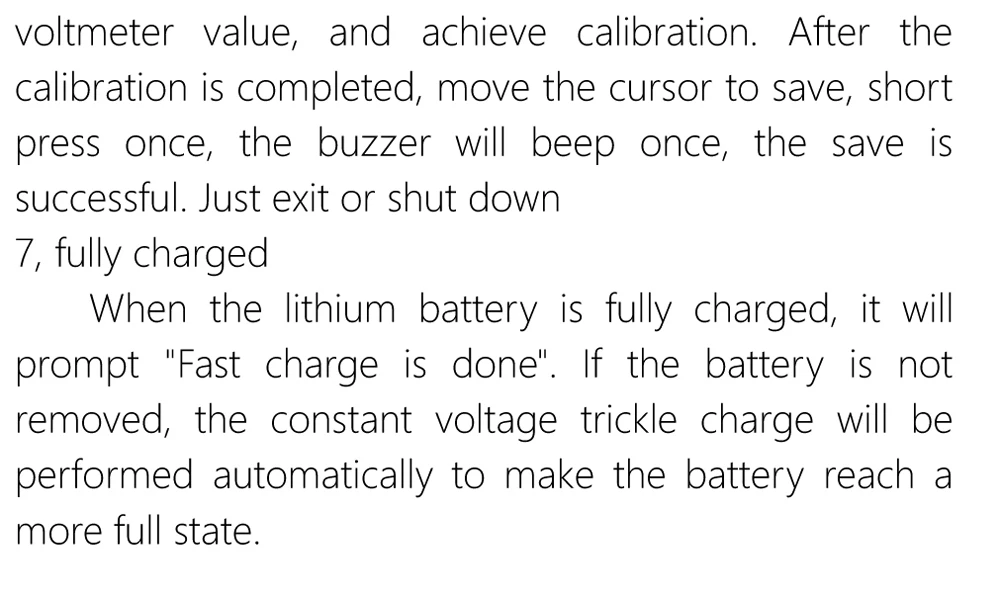

voltmeter value, and achieve calibration. After the

calibration is completed, move the cursor to save, short

press once, the buzzer will beep once, the save is

successful. Just exit or shut down

7, fully charged

When the lithium battery is fully charged, it will

prompt "Fast charge is done". If the battery is not

removed, the constant voltage trickle charge will be

performed automatically to make the battery reach a

more full state.
