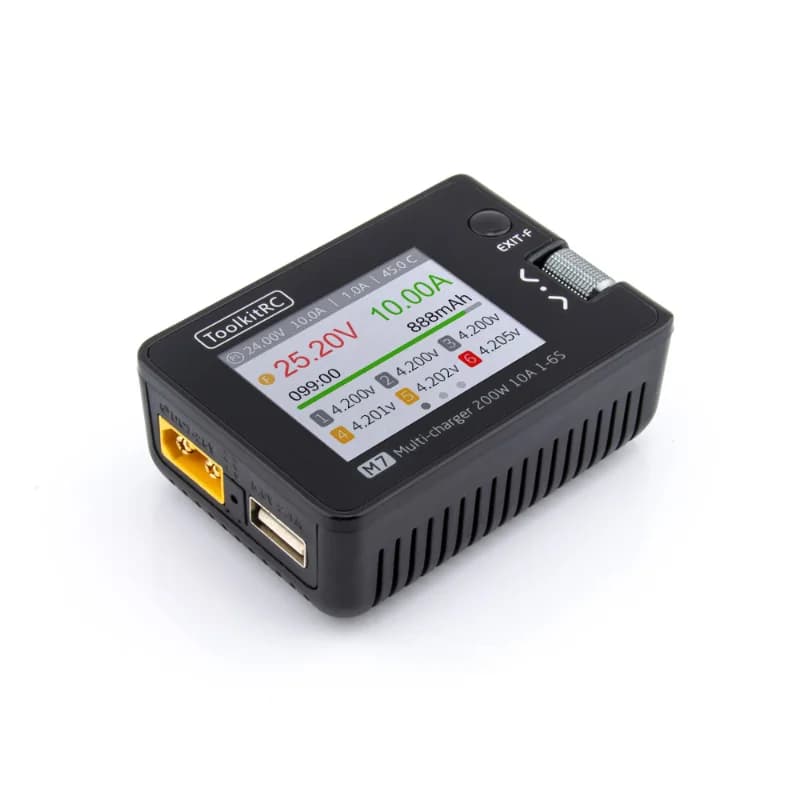

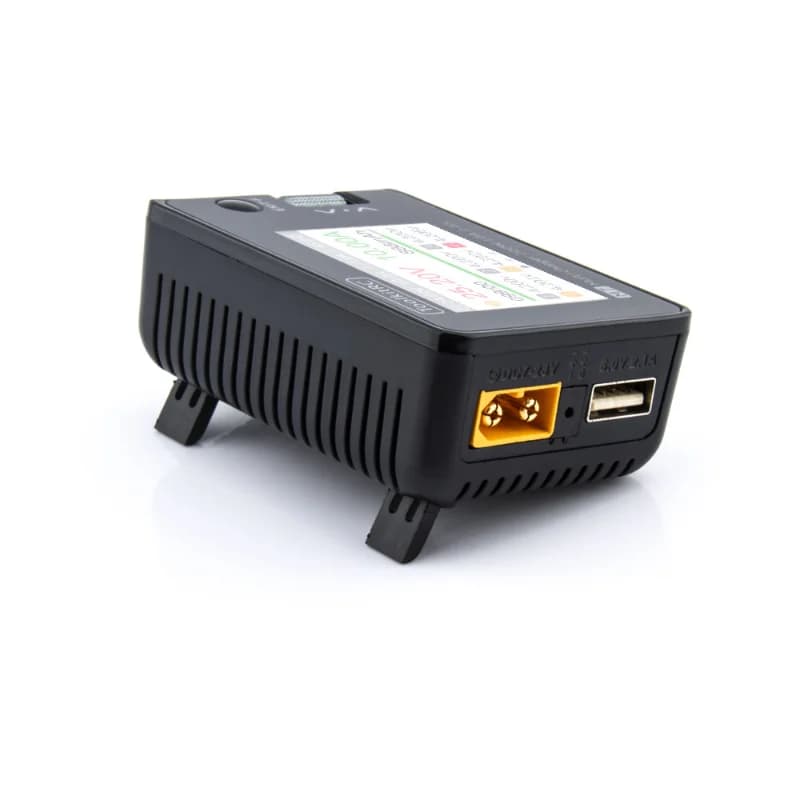

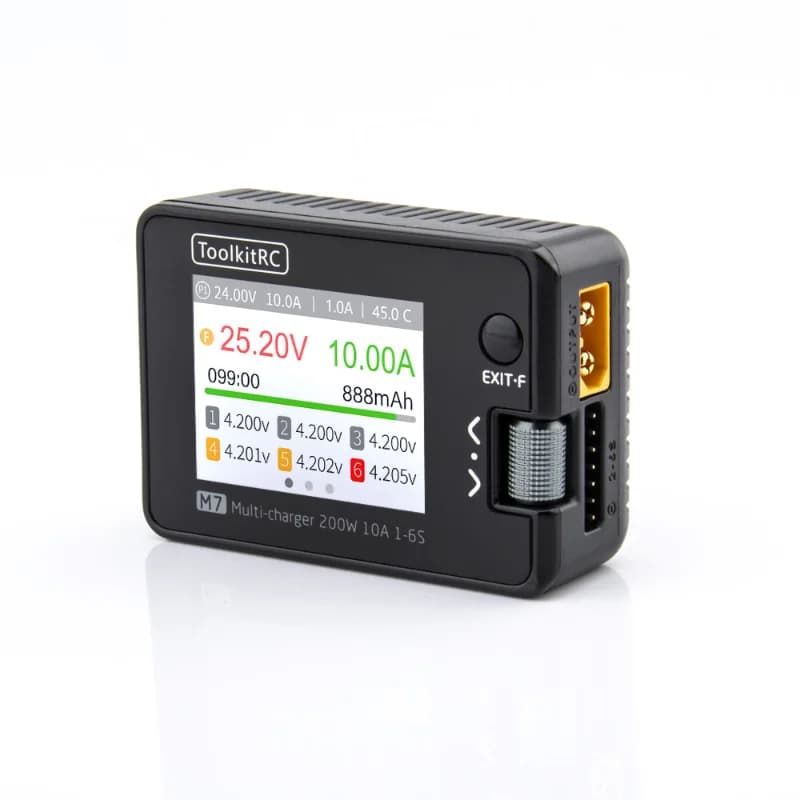

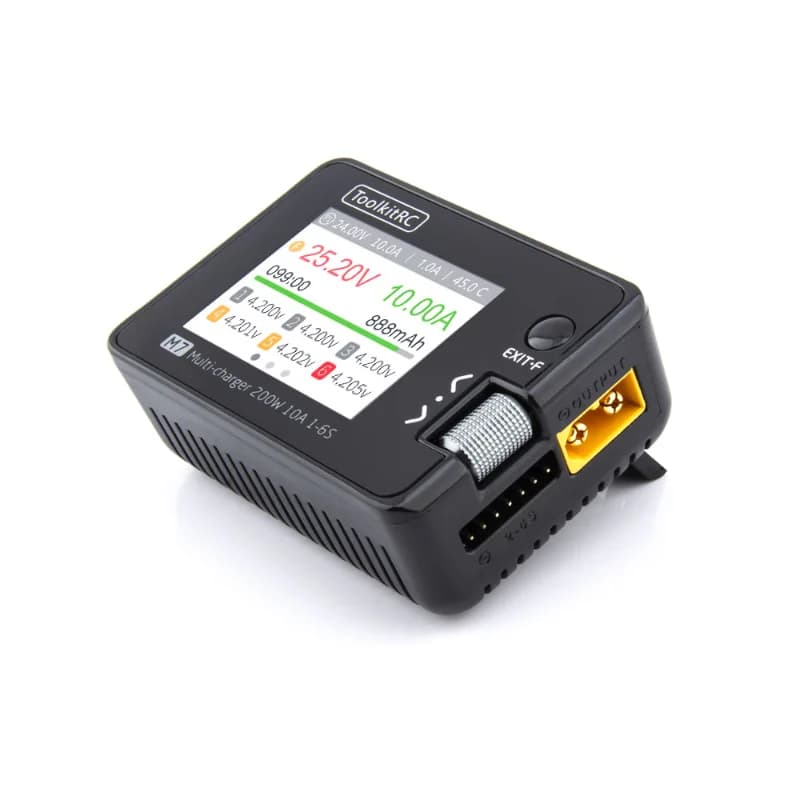

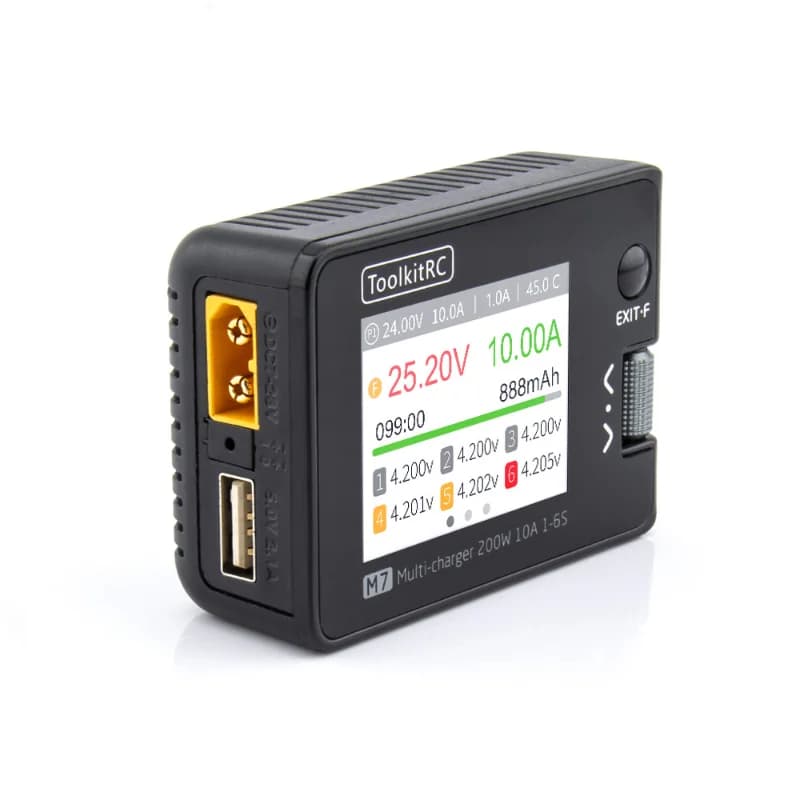

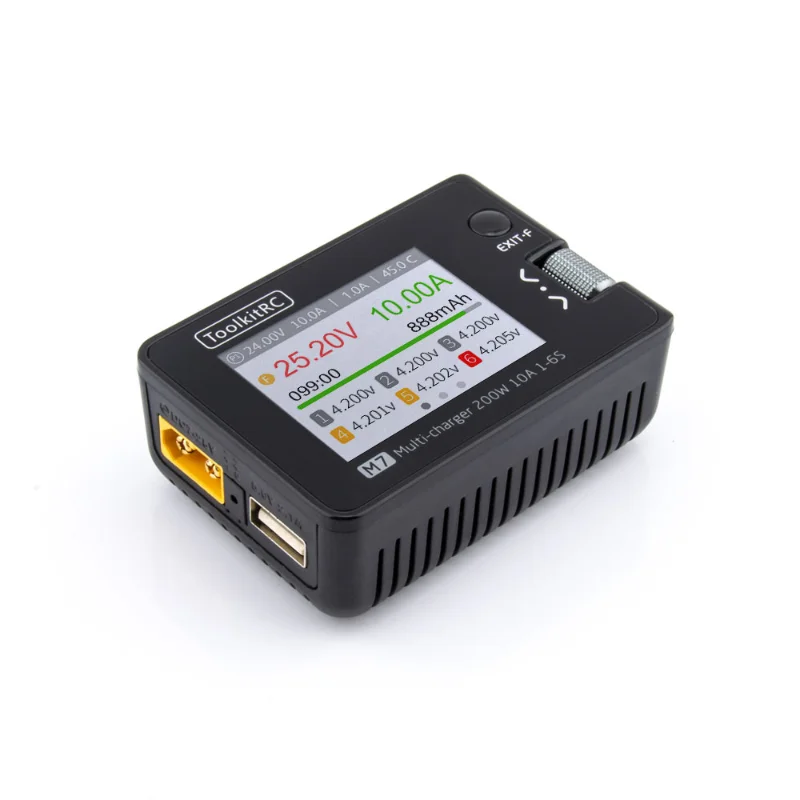

ToolkitRC M7 Balance Charger Discharger Multi Function Charger for 1-6S Lipo Battery RC Airplanes Fixed-Wing Lithium Battery
9 orders (reference)
Description
Output:
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
OverCurrent Cutoff time: <5ms
Input:
PWM: 880-2200us @20-400Hz
Voltage: 1.0-5.0V @1-6S
Internal resistance: 1-99mR @1-6S
ESC: 200W@10A PWM Output
M7 SPECS:
Product size: 73*51*27 mm
Product weight: 90g
Pack size: 84*79*39 mm
Pack weight: 150g
LCD: IPS 2.0inch LCD 320*240 Pixel
Input voltage: 7.0-28.0V @MAX 12A
Type of battery: Lipo LiHV LiFe Lion@1-6S NiMh @1-16S Pb @1-10S
Balance current: 400mA @2-6S
Charger power: 200W @MAX 10A
Discharge power: 200W @MAX 10A Recycle mode,10W@3A Normal mode
USB: 2.1A @5.0V or Upgrade
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Plastic Type |
|
| Model Number |
|
| For Vehicle Type |
|
| Remote Control Peripherals/Devices |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | Y |
| Is Batteries Included | No |
| Size | 73*51*26mm |
| Plastic Type | ABS |
| Model Number | M7 |
| For Vehicle Type | Cars |
| Remote Control Peripherals/Devices | Battery Charging Units |
| Material | Plastic |
| Brand Name | ToolKitRc |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE,FCC,RoHS |
Product Details

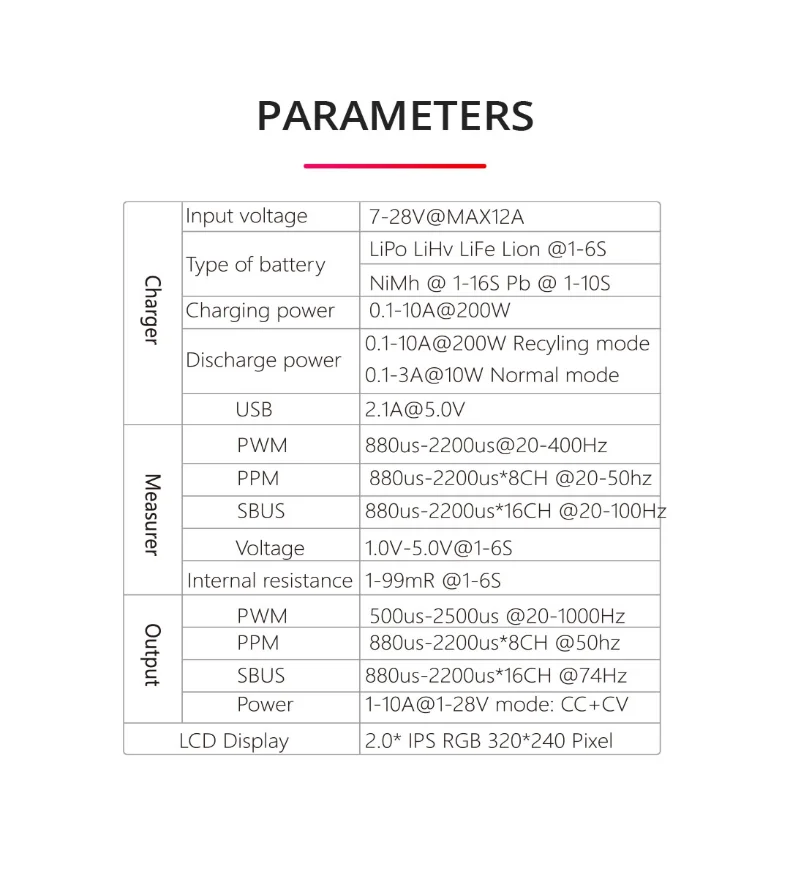

Specifications:
Output:
PWM: 500-2500us @20-1000Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
OverCurrent Cutoff time: <5ms
Input:
PWM: 880-2200us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us*16CH @20-100Hz
Voltage: 1.0-5.0V @1-6S
Internal resistance: 1-99mR @1-6S
ESC: 200W@10A PWM Output
M7 SPECS:
Product size: 73*51*27 mm
Product weight: 90g

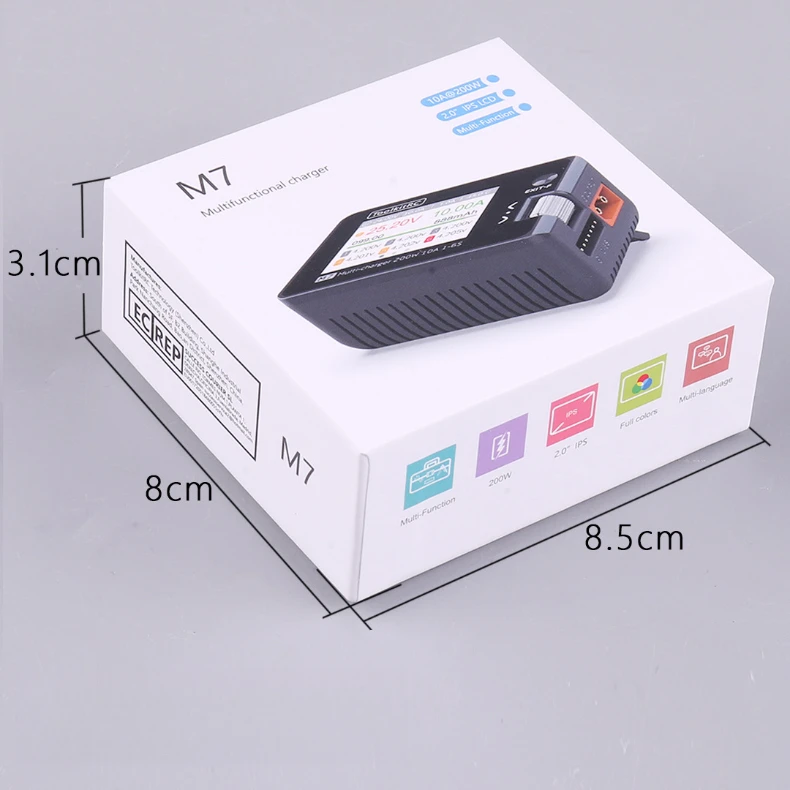

Pack size: 84*79*39 mm
Pack weight: 150g

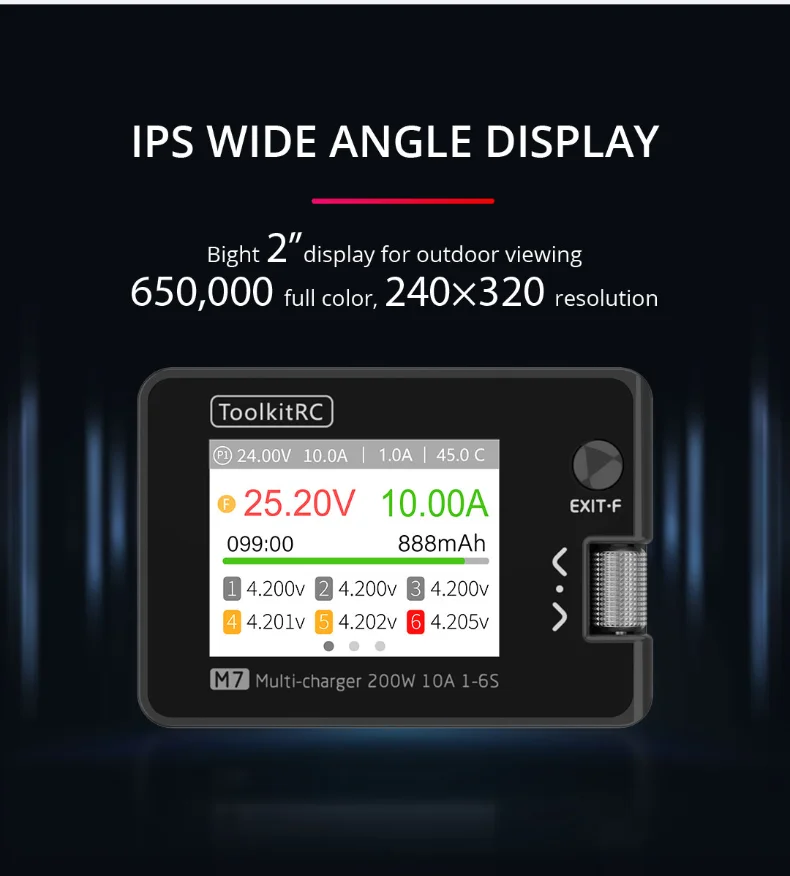

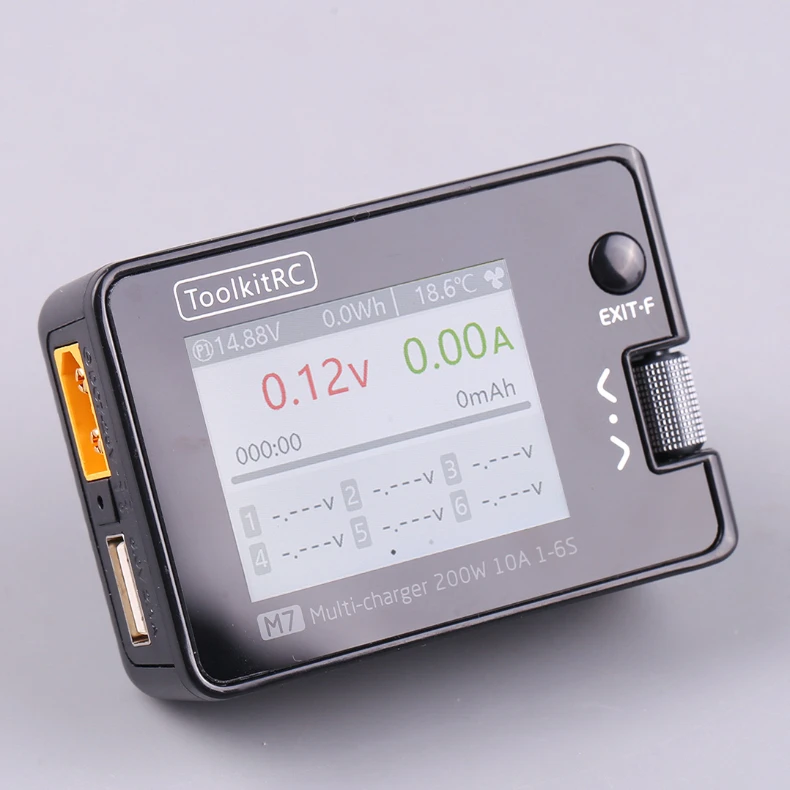

LCD: IPS 2.0inch LCD 320*240 Pixel

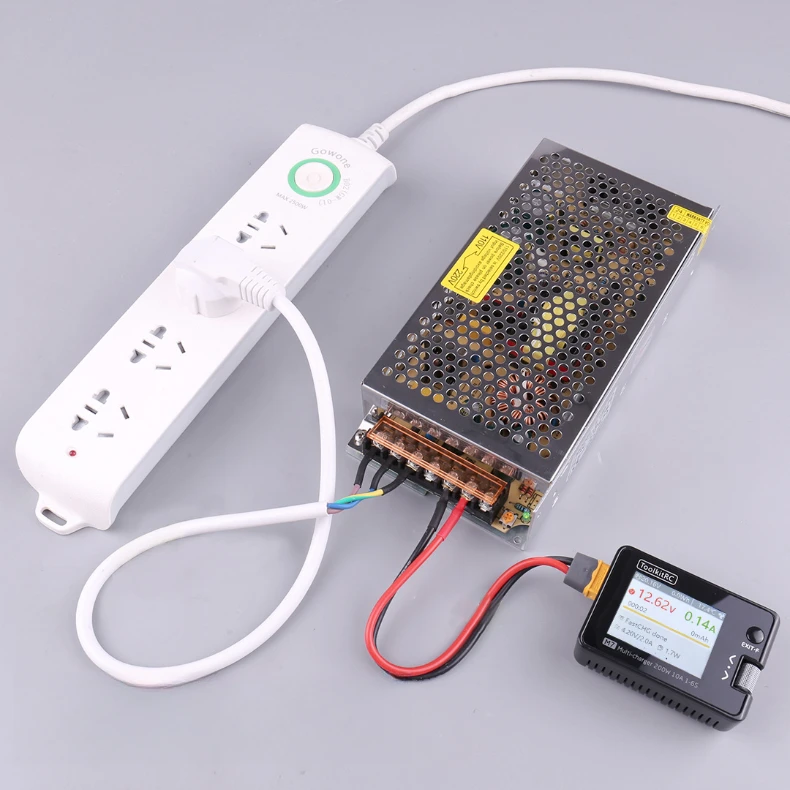

Input voltage: 7.0-28.0V @MAX 12A
Type of battery: Lipo LiHV LiFe Lion@1-6S NiMh @1-16S Pb @1-10S
Balance current: 400mA @2-6S

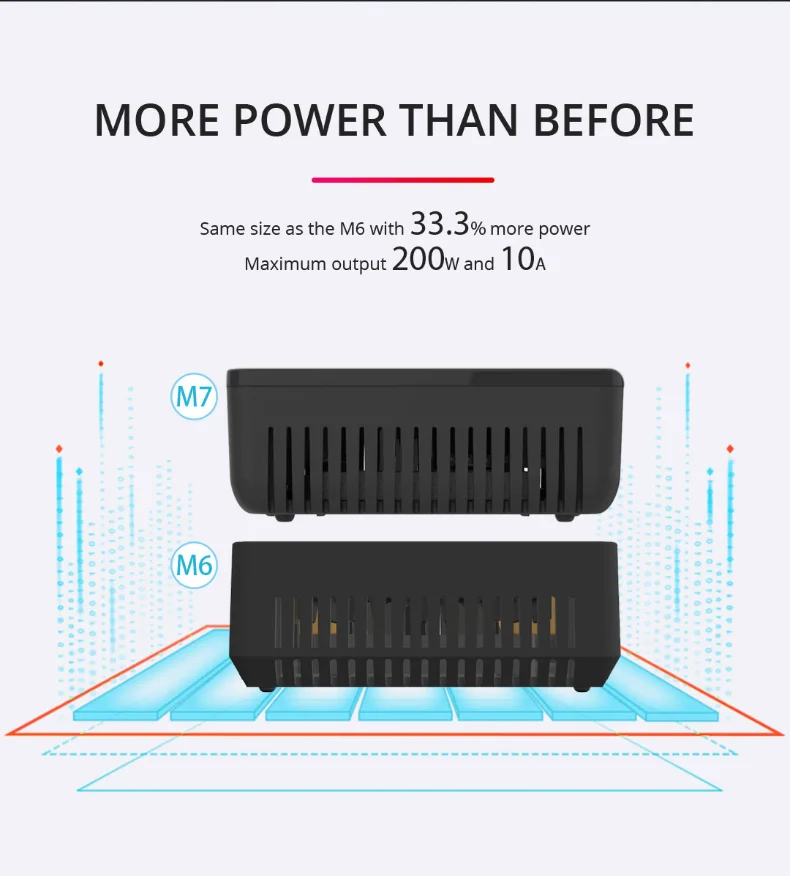

Charger power: 200W @MAX 10A
Discharge power: 200W @MAX 10A Recycle mode,10W@3A Normal mode
USB: 2.1A @5.0V or Upgrade
