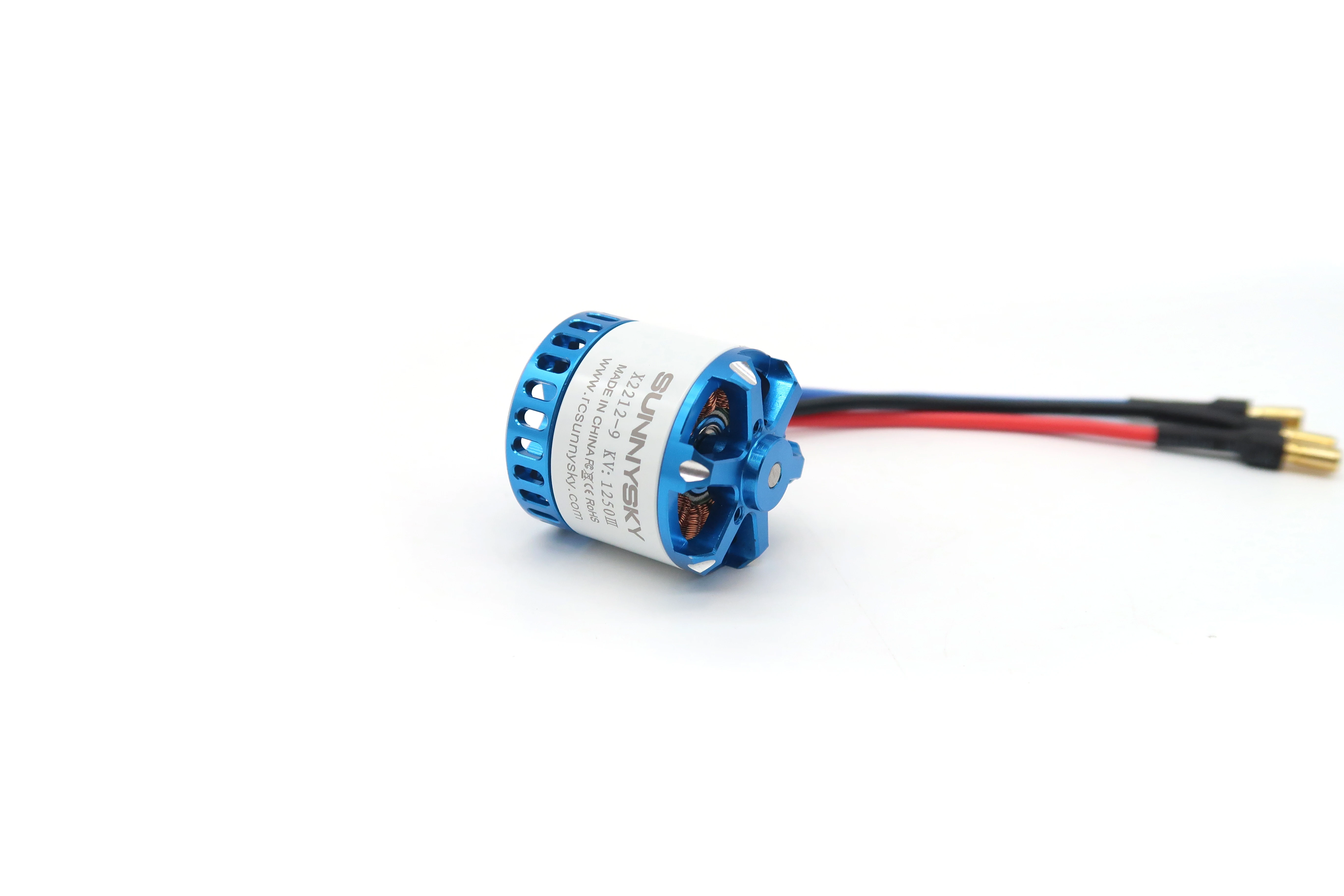

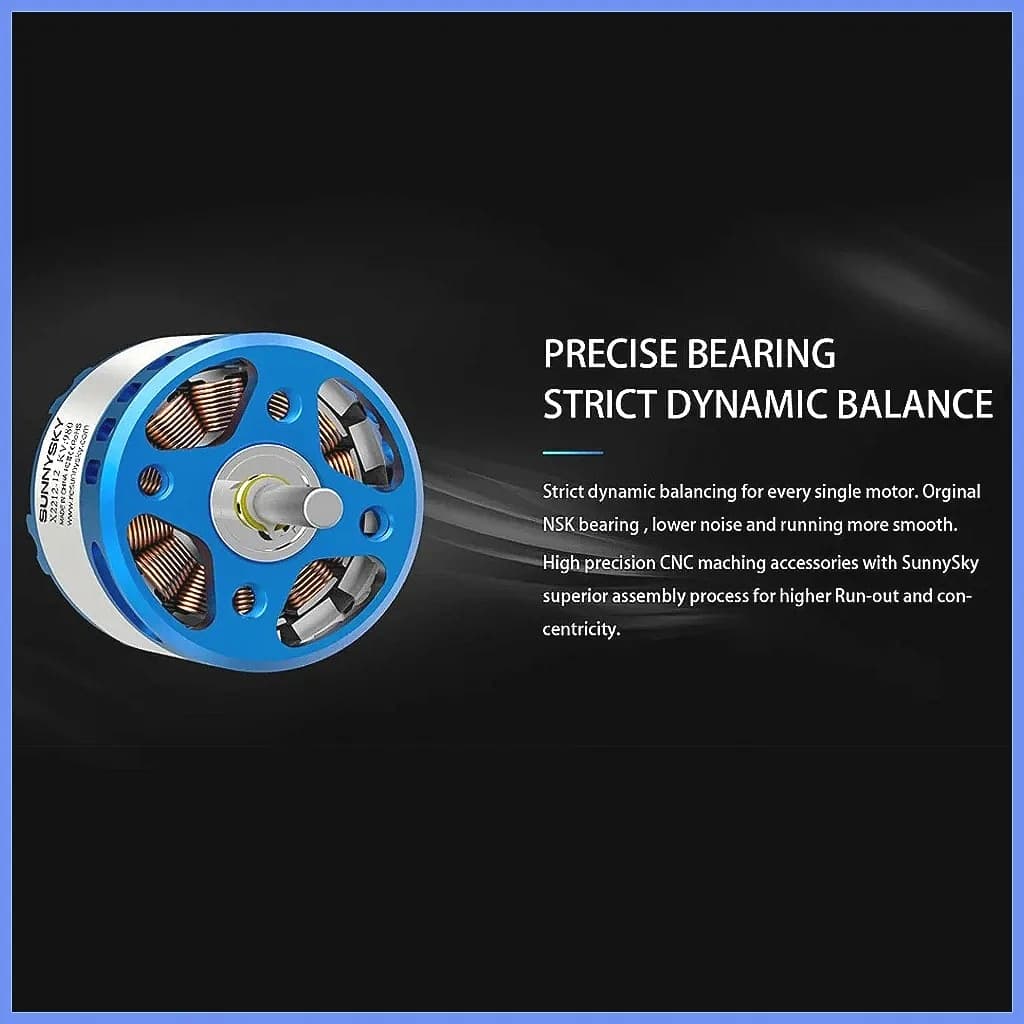

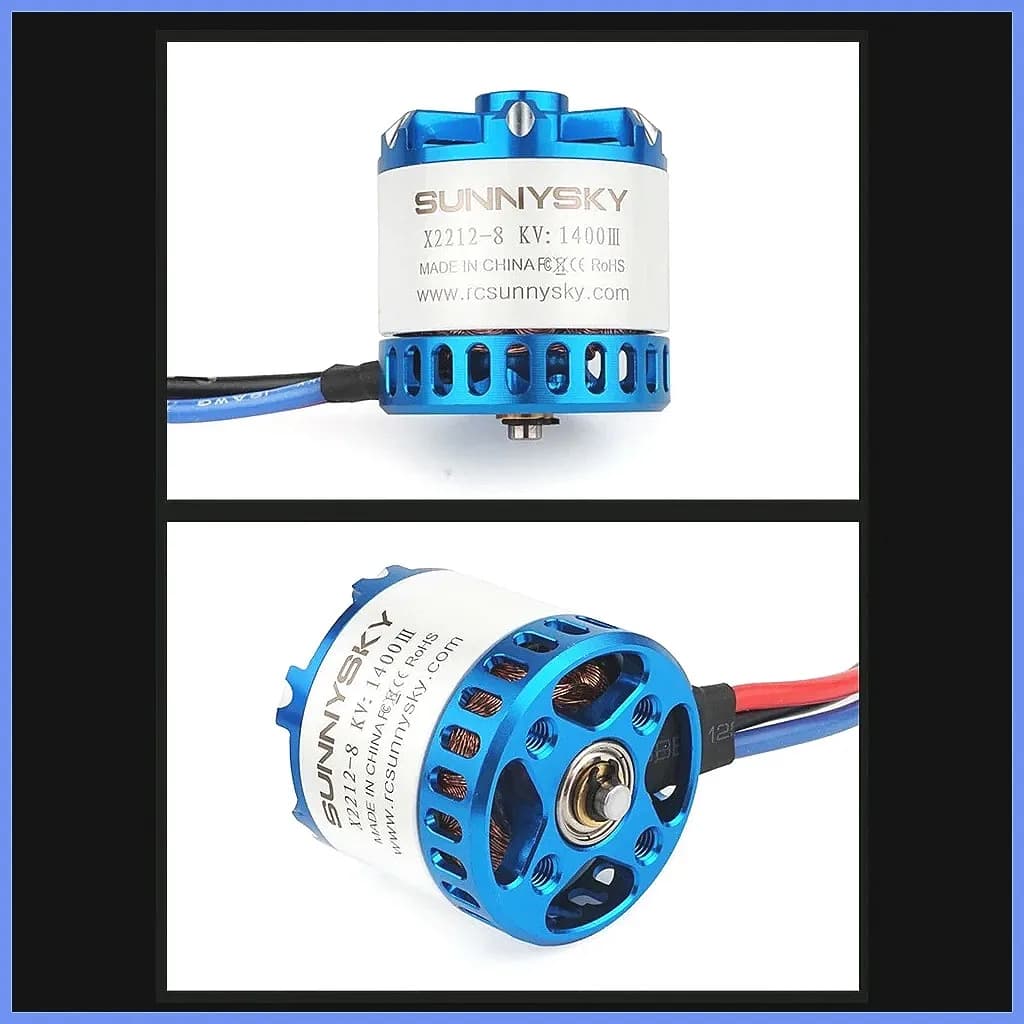

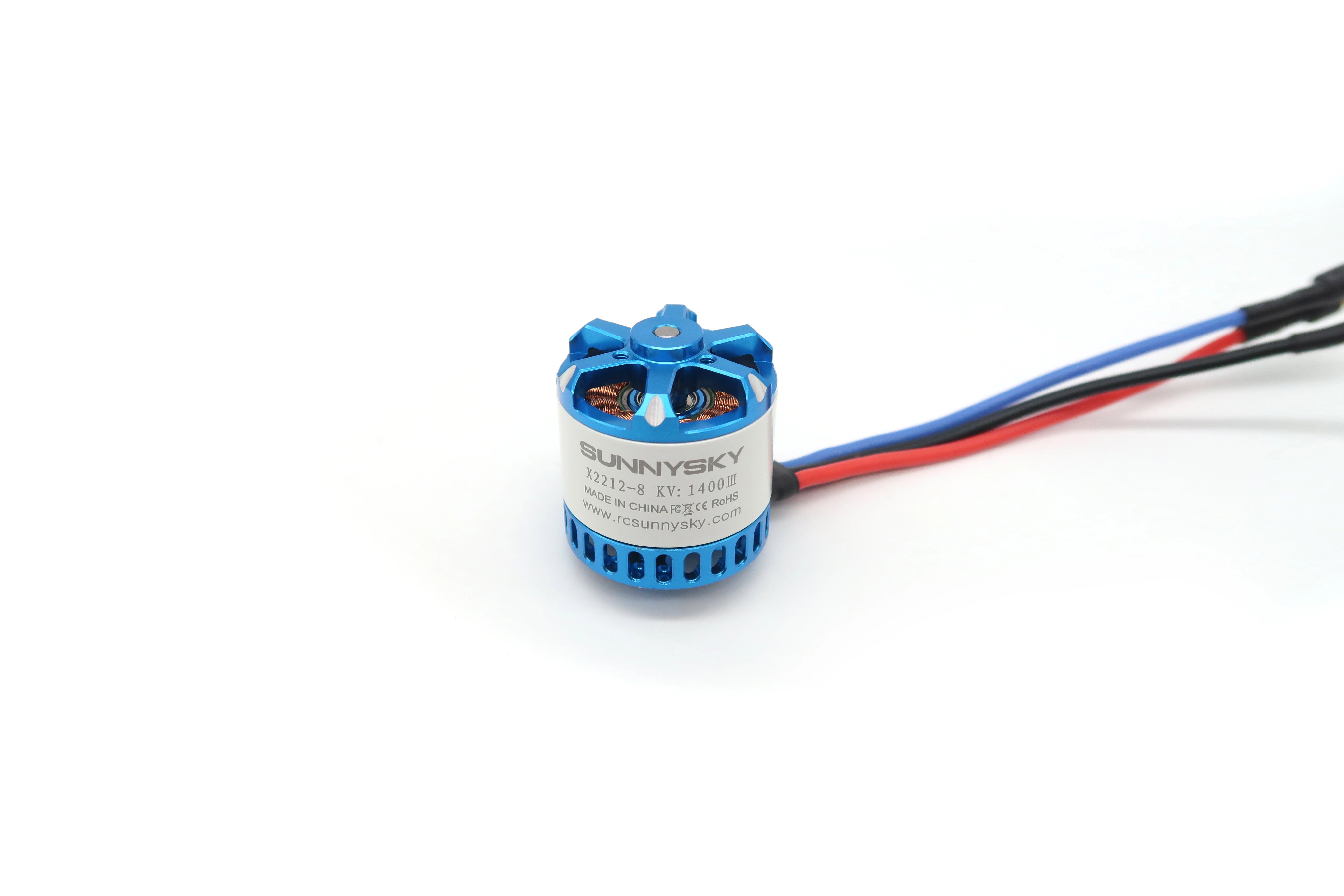

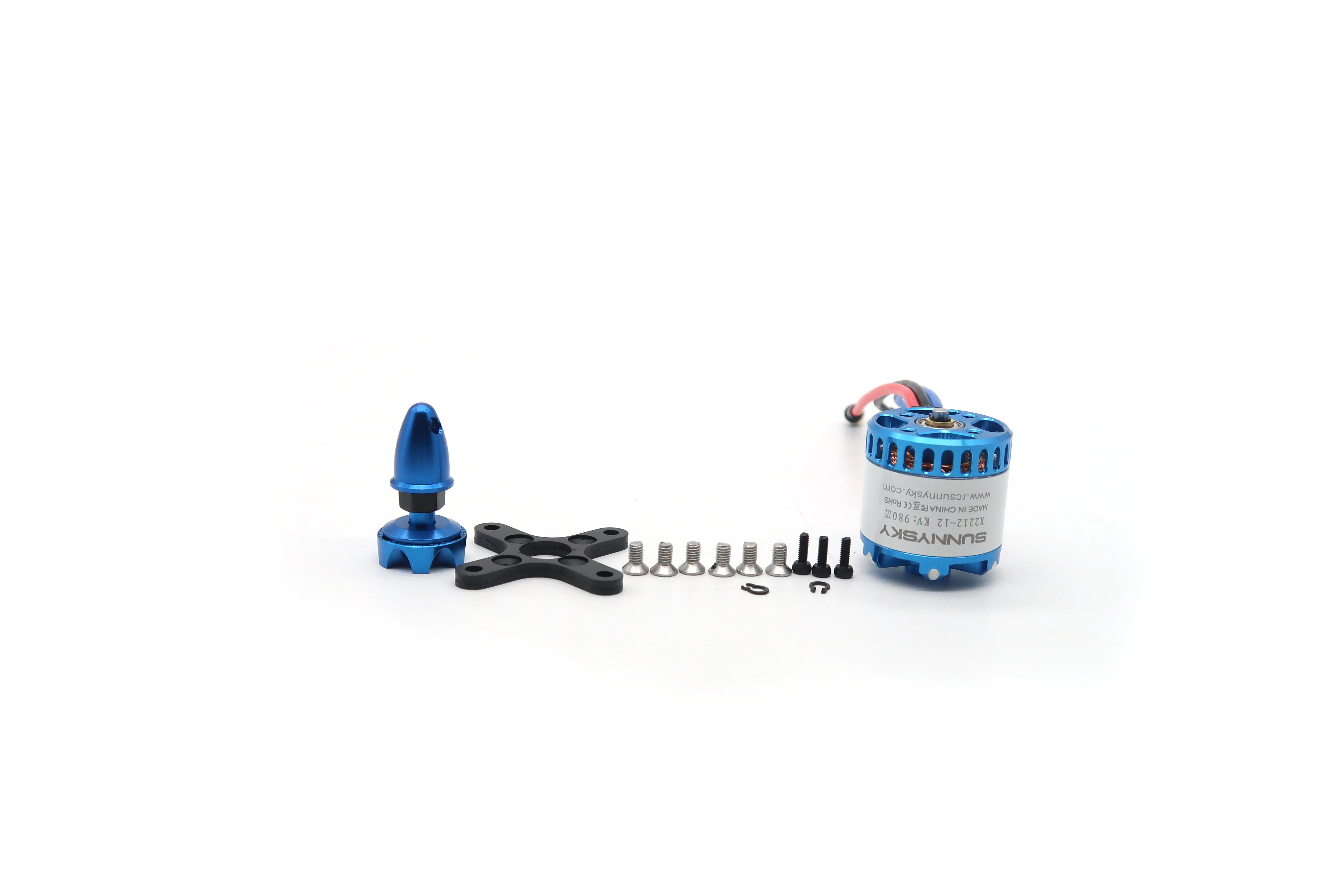

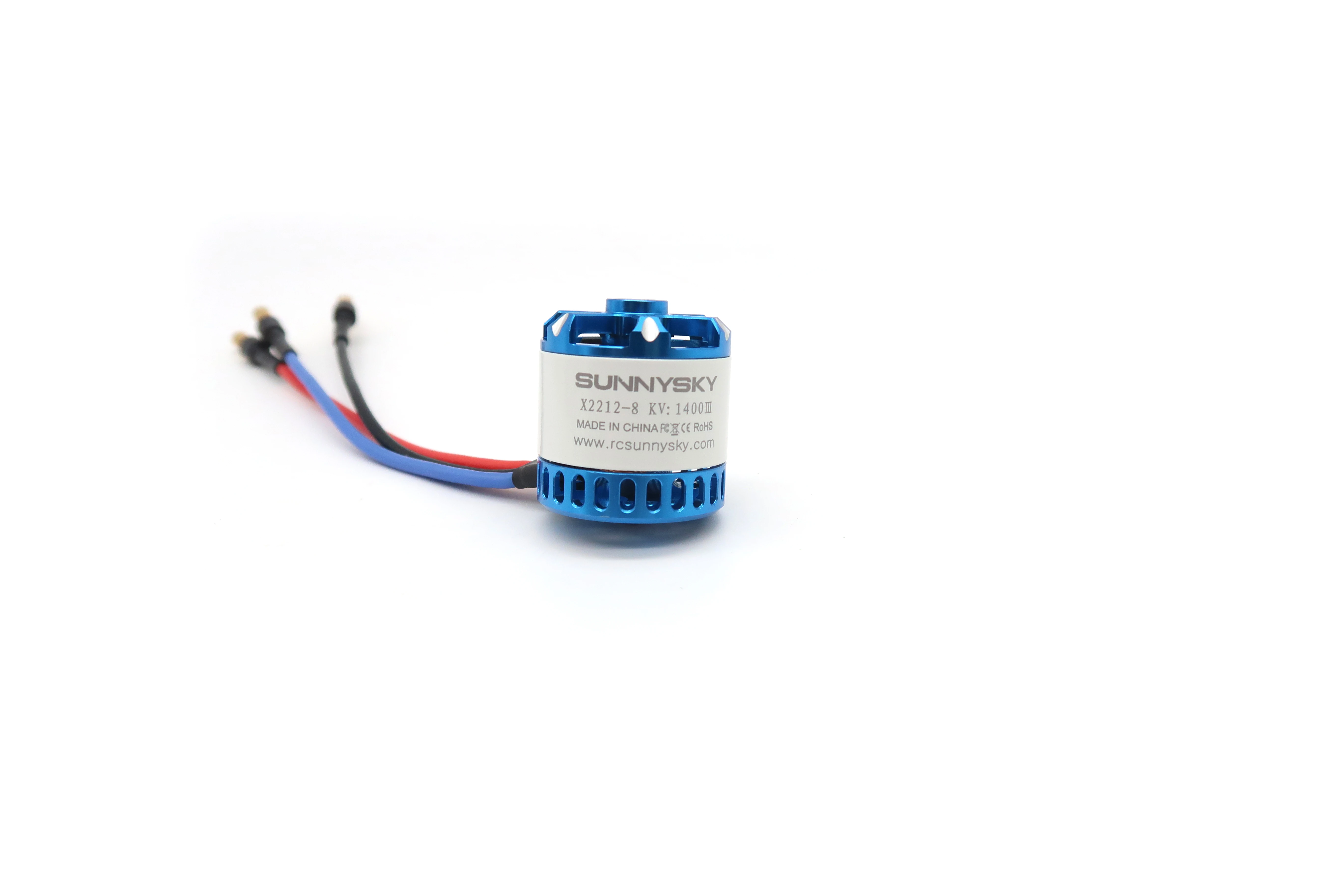

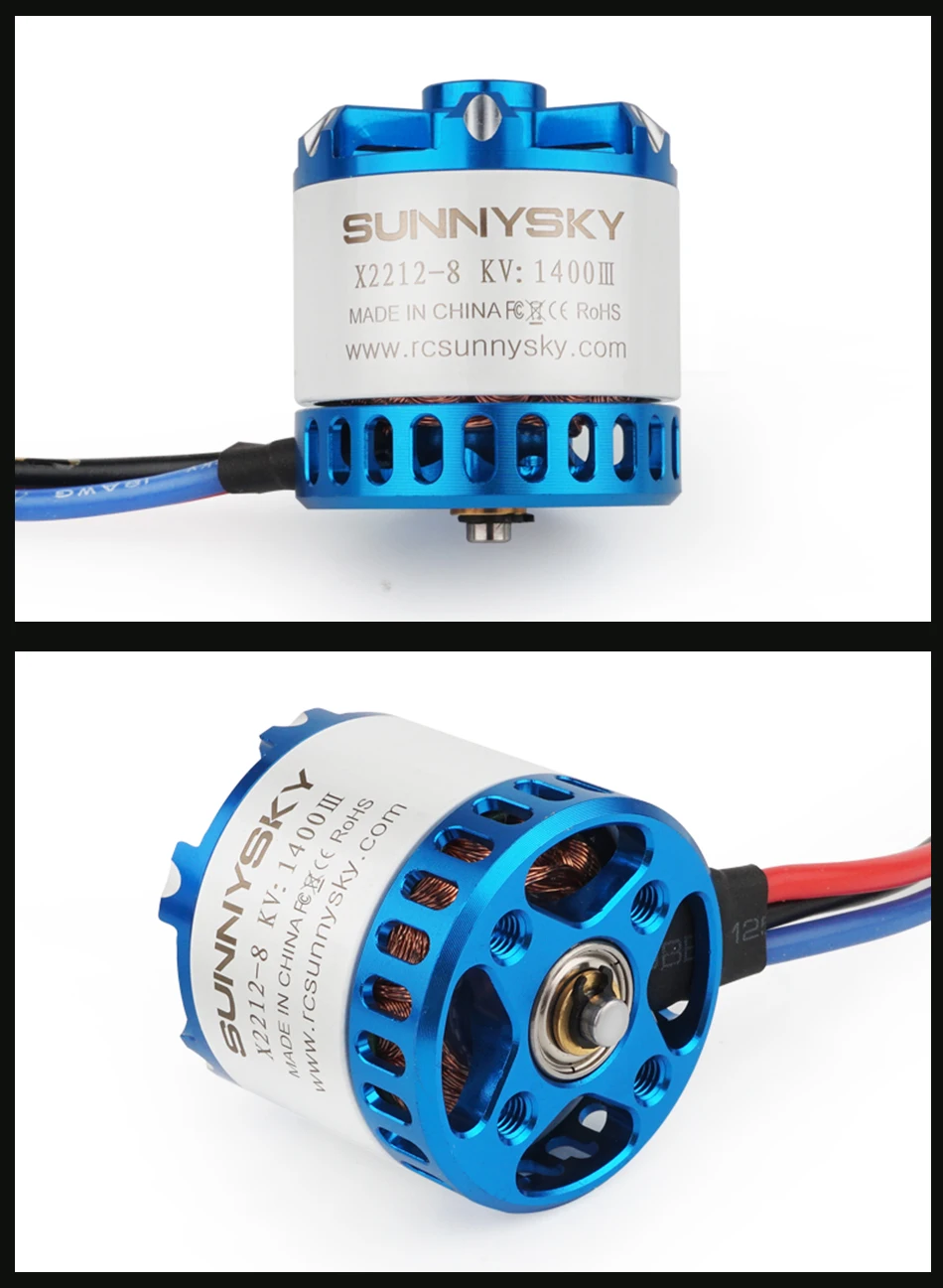

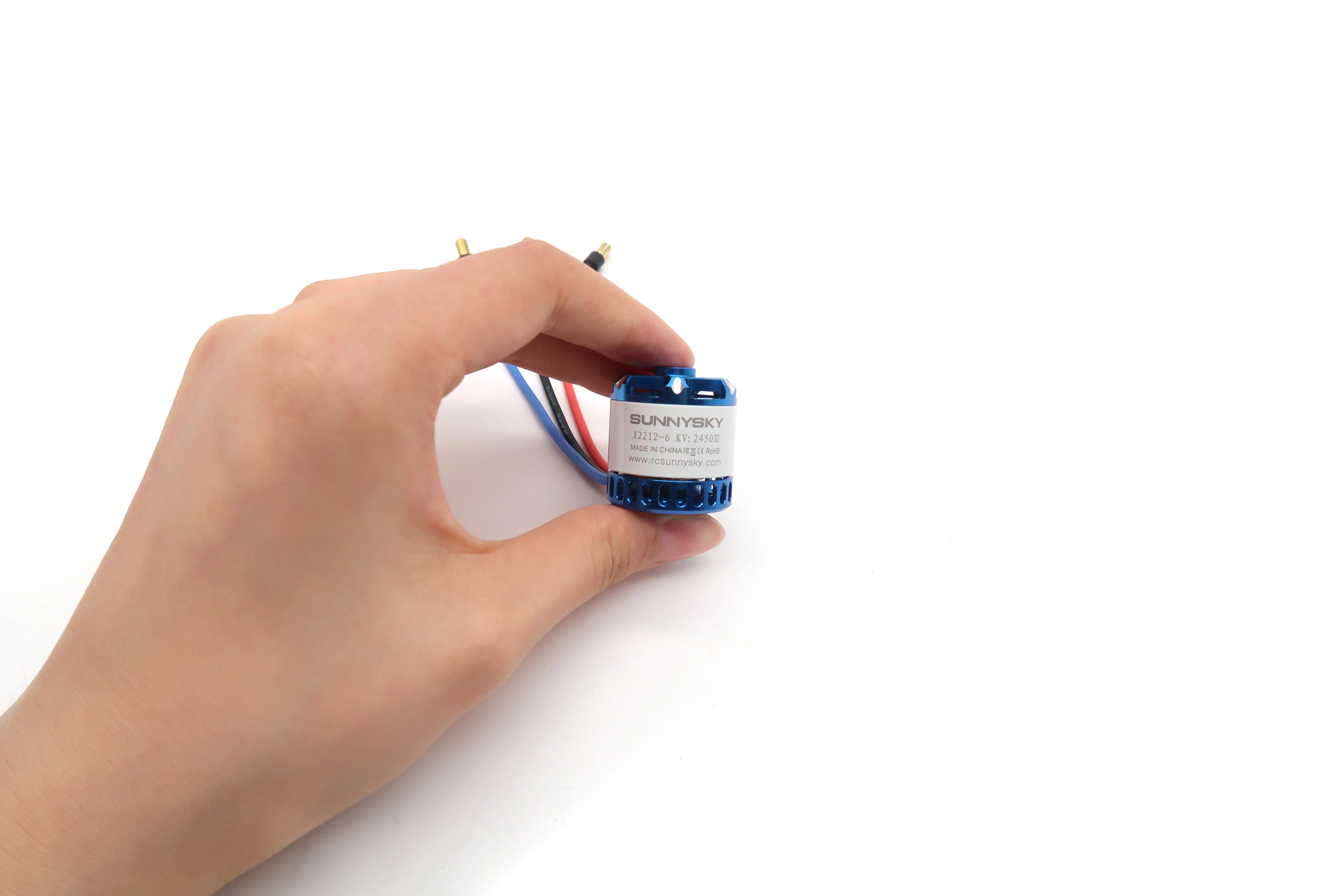

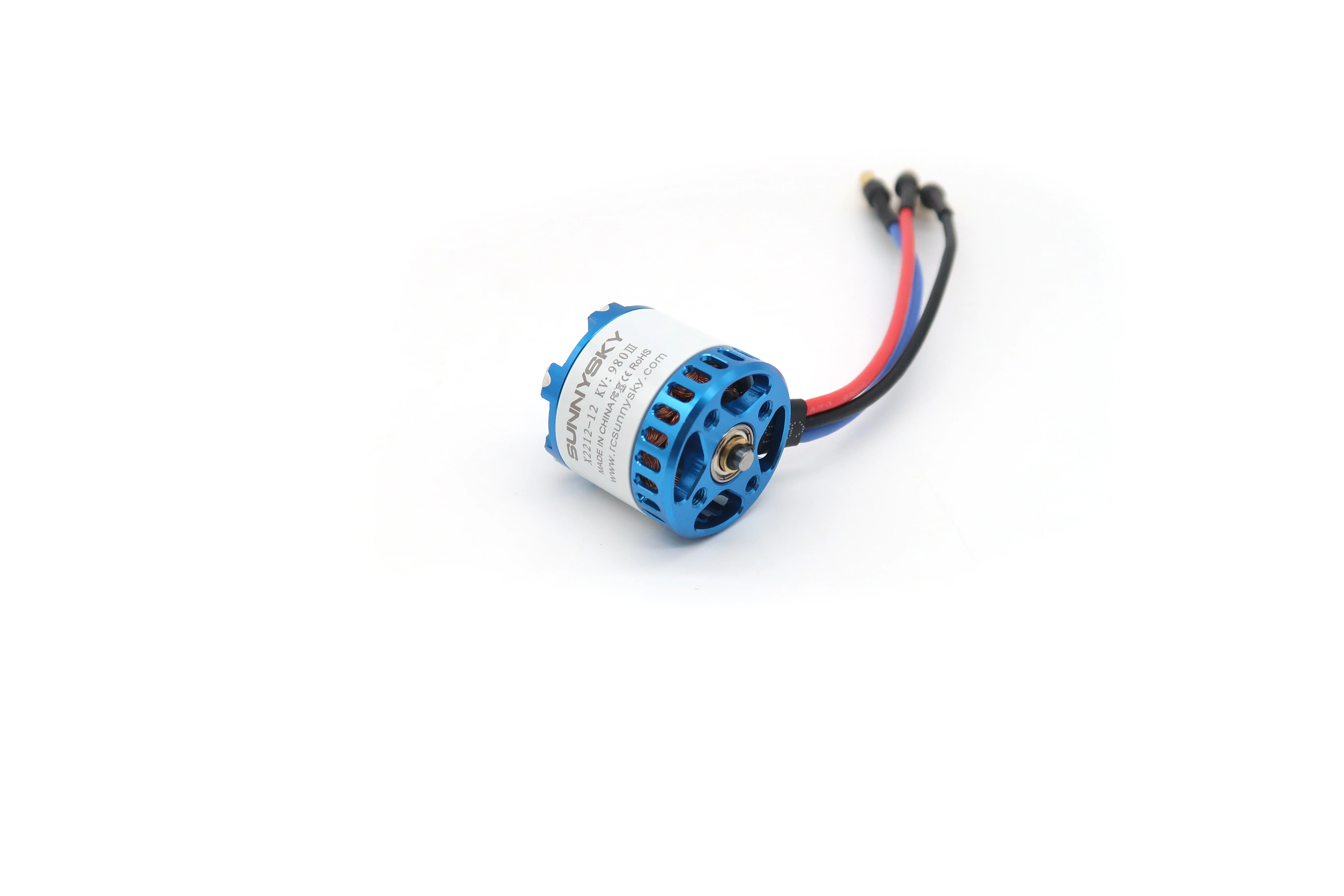

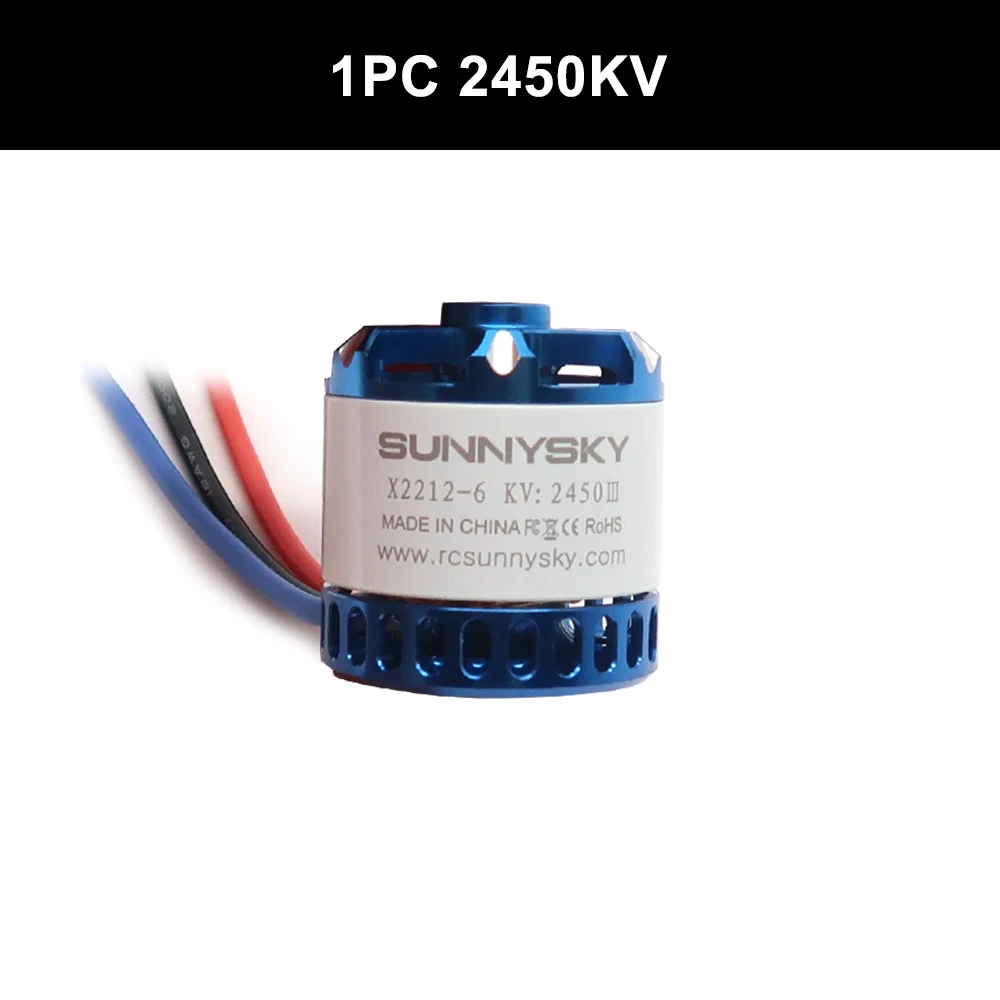

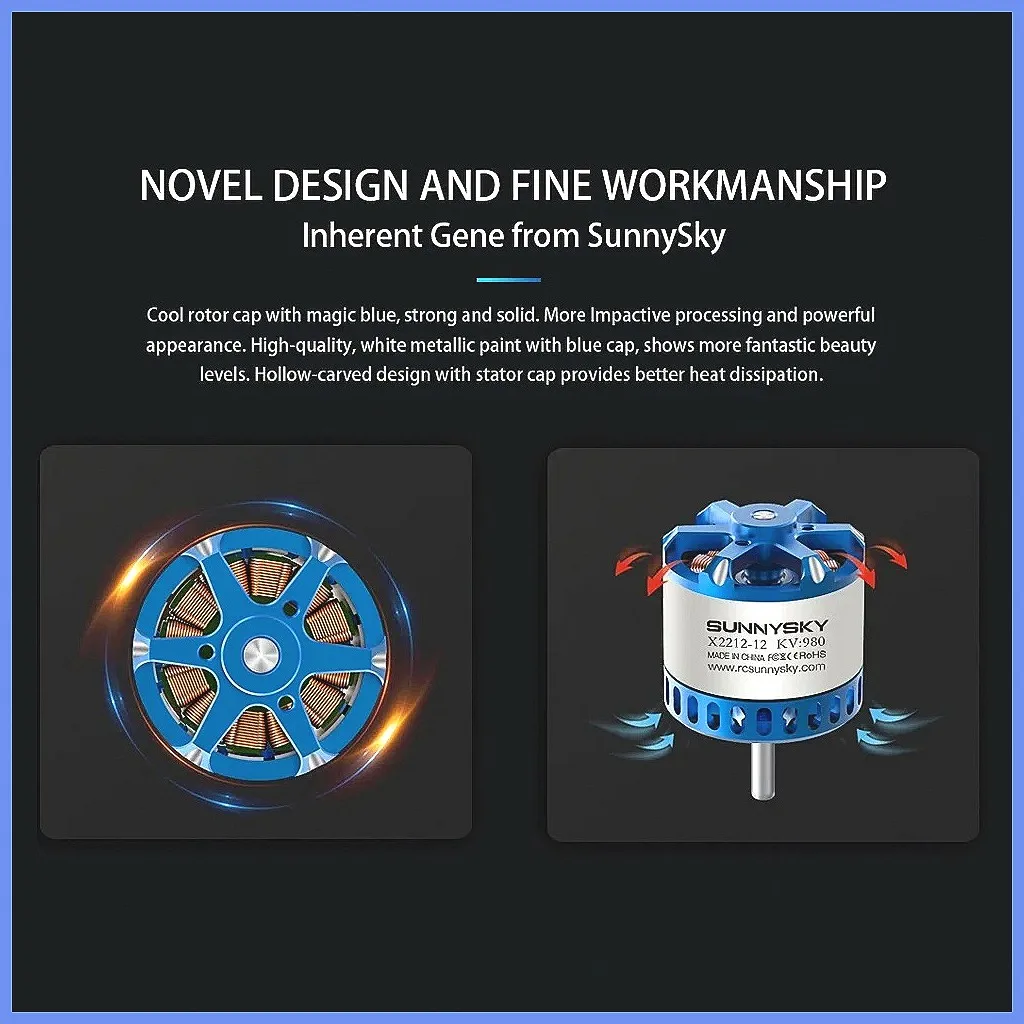

SUNNYSKY X2212 Brushless Motor 980KV/1250KV/1400KV/2450KV for RC Airplane Drone with Original Box
From $38.83
Est. $38.83 / unit (1-9 pcs)
$35 @ 10+ pcs$33 @ 100+ pcs
Description
SUNNYSKY X2212-III 980KV 1250KV 1400KV 2450KV Motor with Original Box for RC Model
Variant
Selected priceUSD 38.89
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Electronic |
|
| DIY Supplies |
|
| Origin |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Electronic | No |
| DIY Supplies | Electrical |
| Origin | Mainland China |
Product Details
SUNNYSKY X2212-III 980KV 1250KV 1400KV 2450KV Motor with Original Box for RC Model
|
Motor model/KV value |

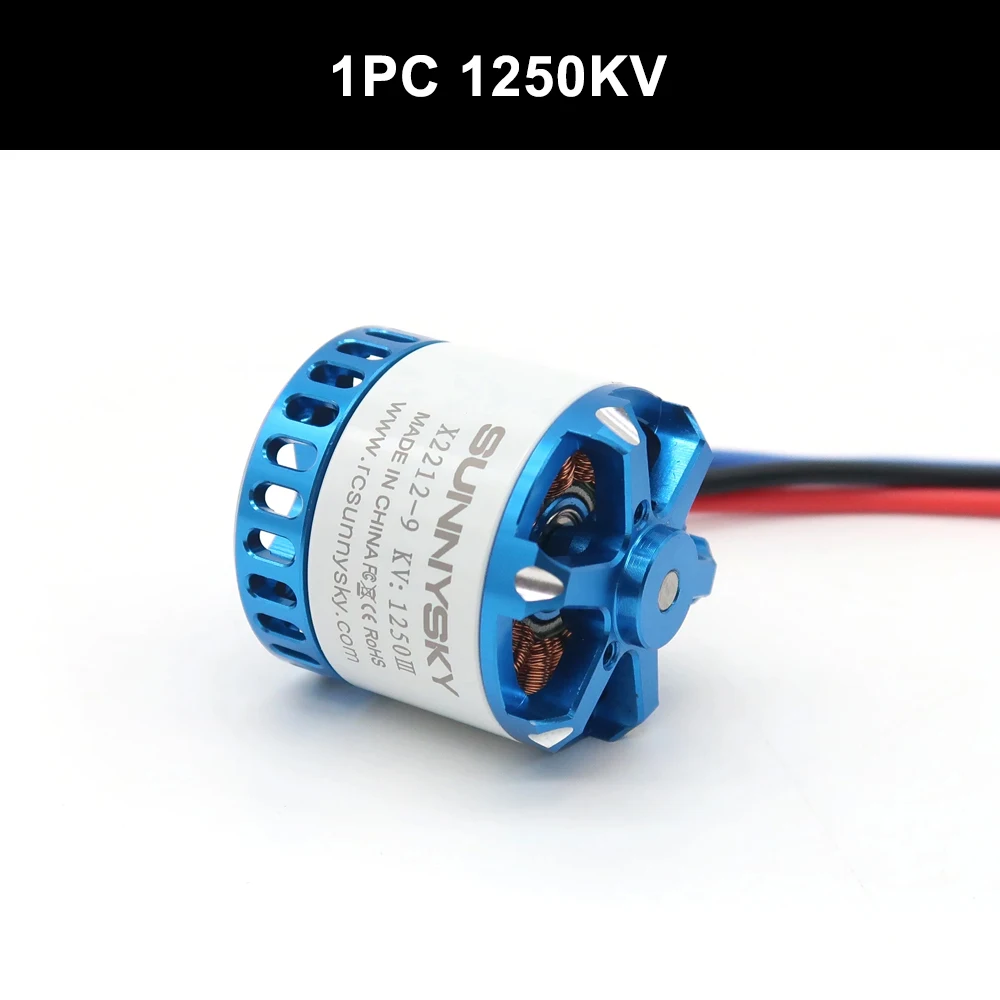

X2212-III/ KV1250 |

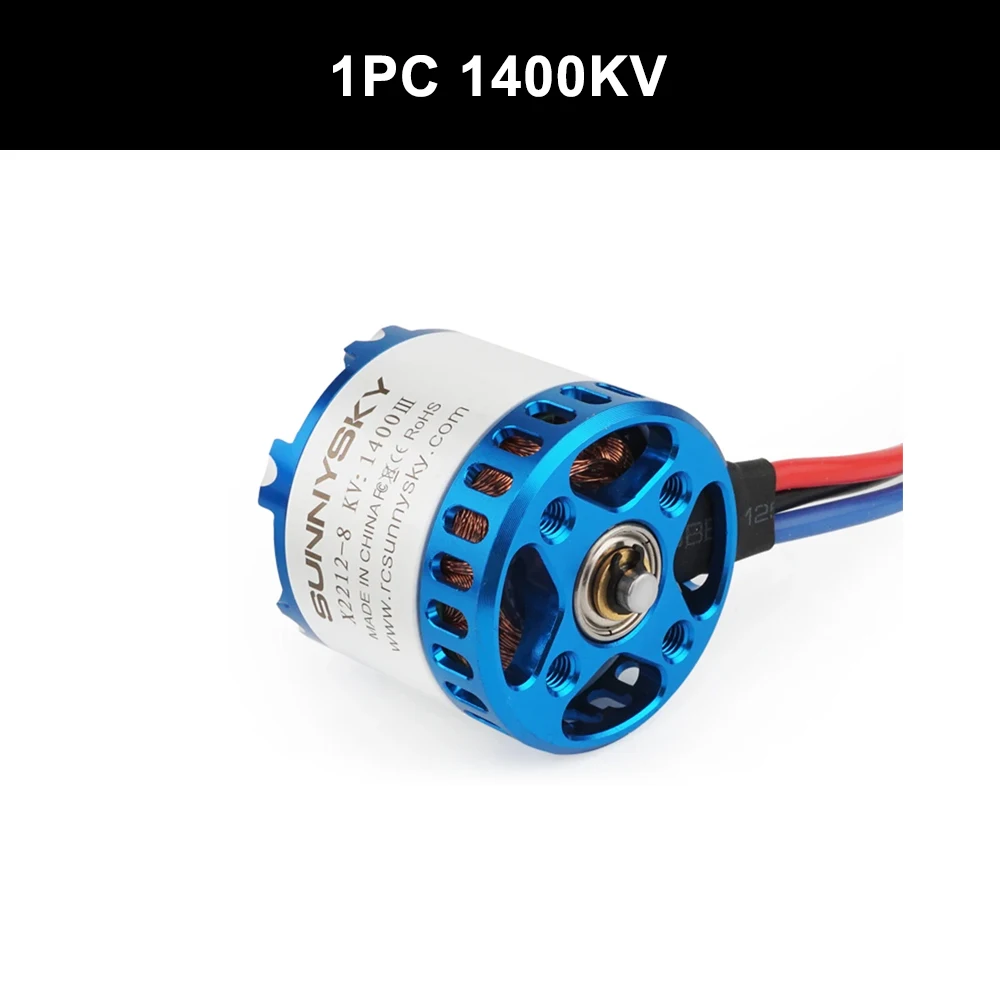

X2212-III/ KV1400 |
|

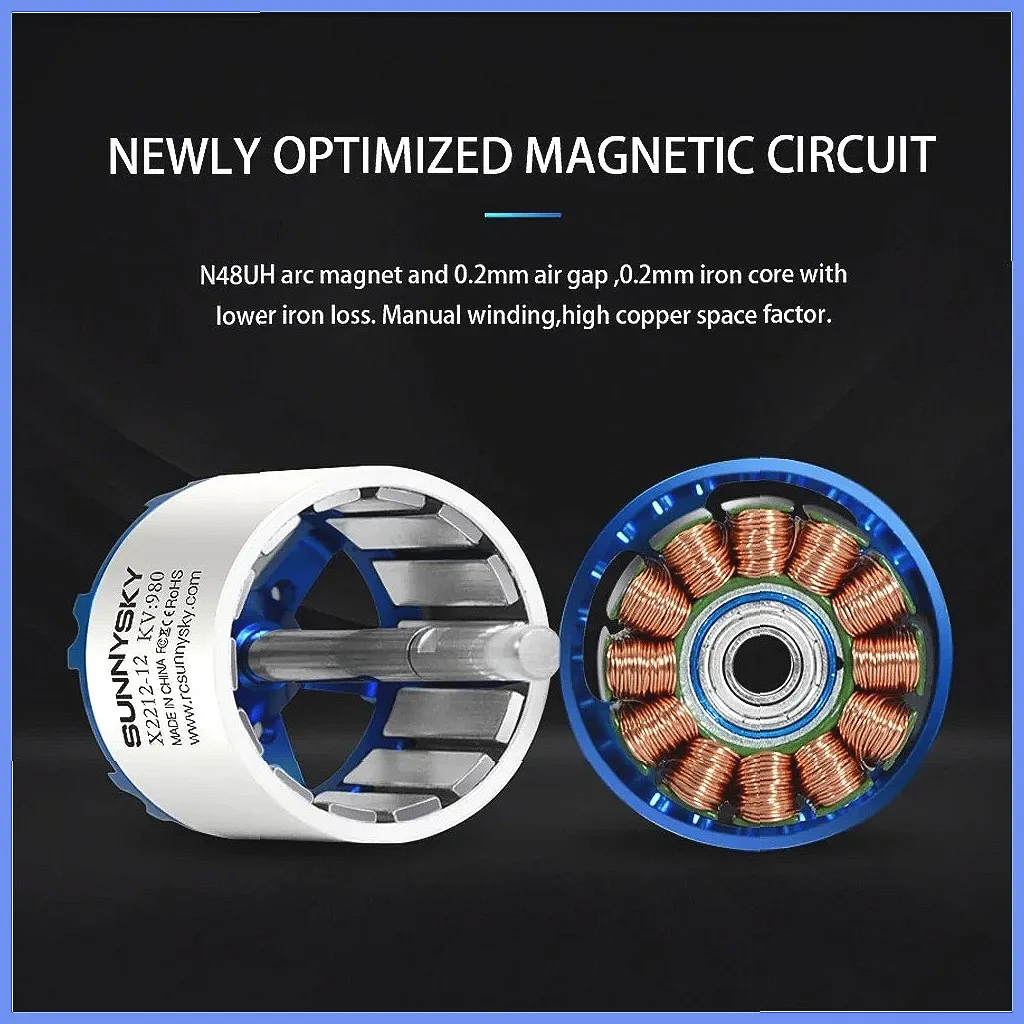

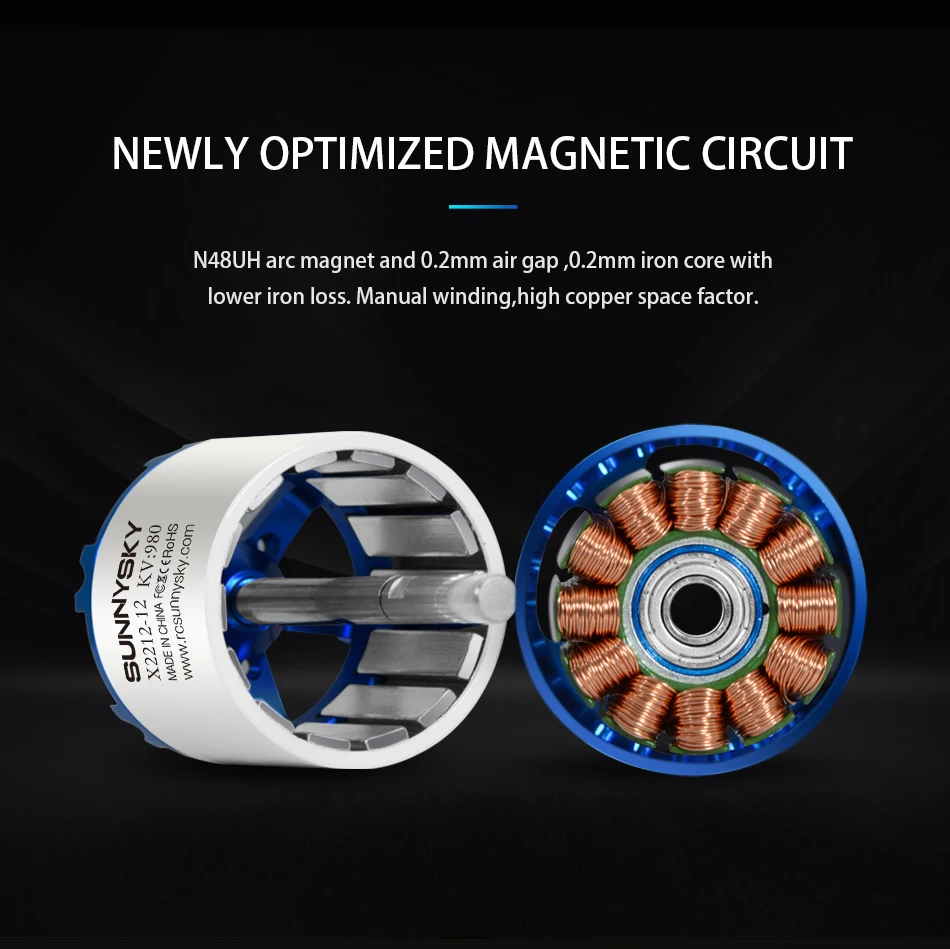

Number of slot poles |
12N14P |
12N14P |
|
Interphase internal resistance |
54mΩ |
43mΩ |
|
Motor size |
Motor length：30mm |
Motor length：30mm |
|
Shaft diameter |
3.175mm |
3.175mm |
|
Silicone wire specifications |
20AWG 100mm |
20AWG 100mm |
|
Weight (including line) |
59g |
57g |
|
rated voltage（Lipo） |
3-4S |
3-4S |
|
no-load current |
0.8A/10V |
1A/10V |
|
maximum continuous power |
518W |
560W |
|
Maximum continuous current |
35A/30S |
37A/30s |
|
Suggest using electric adjustment |
30-40A |
30-40A |
|
Recommended propellers |
APC9047 APC9060 APC8060 APC7060 |
APC9047 APC9045 APC8038 APC7060 APC8060 |
