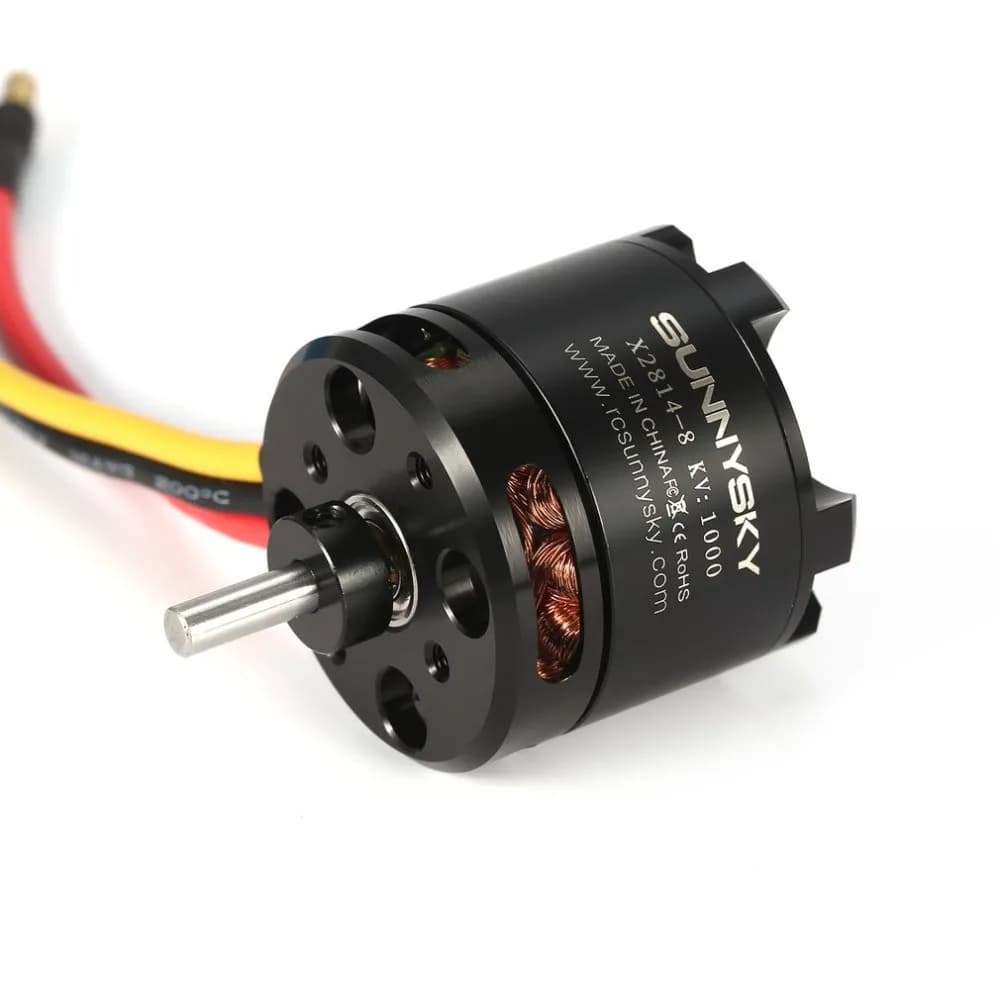

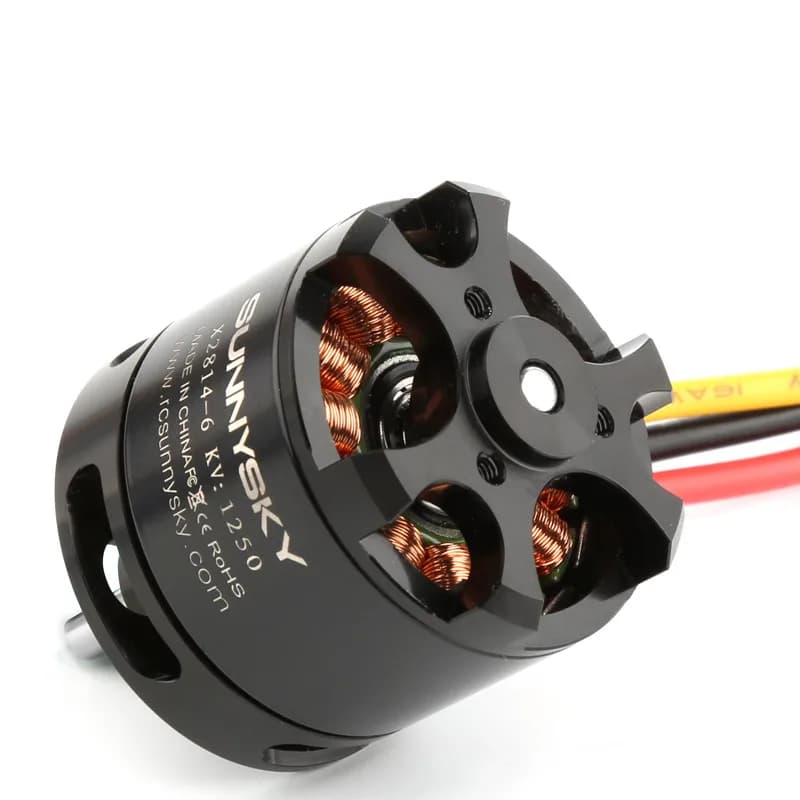

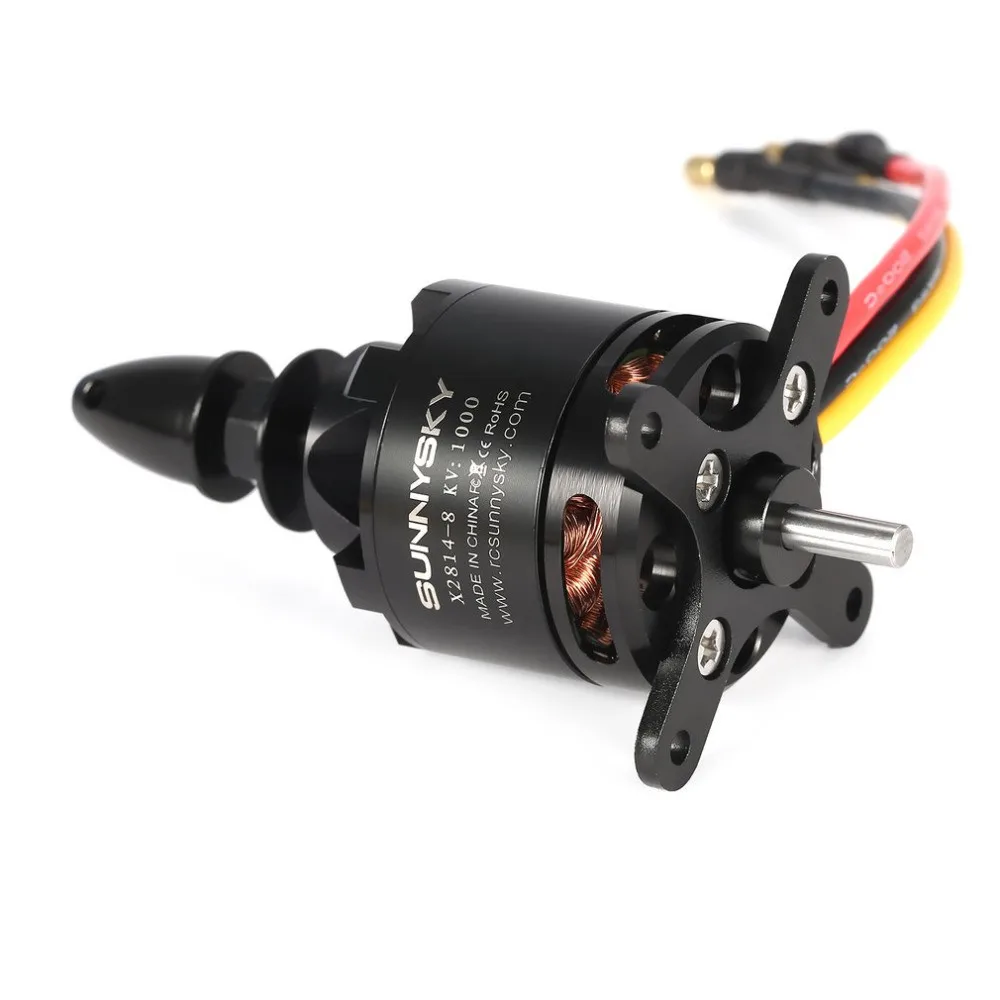

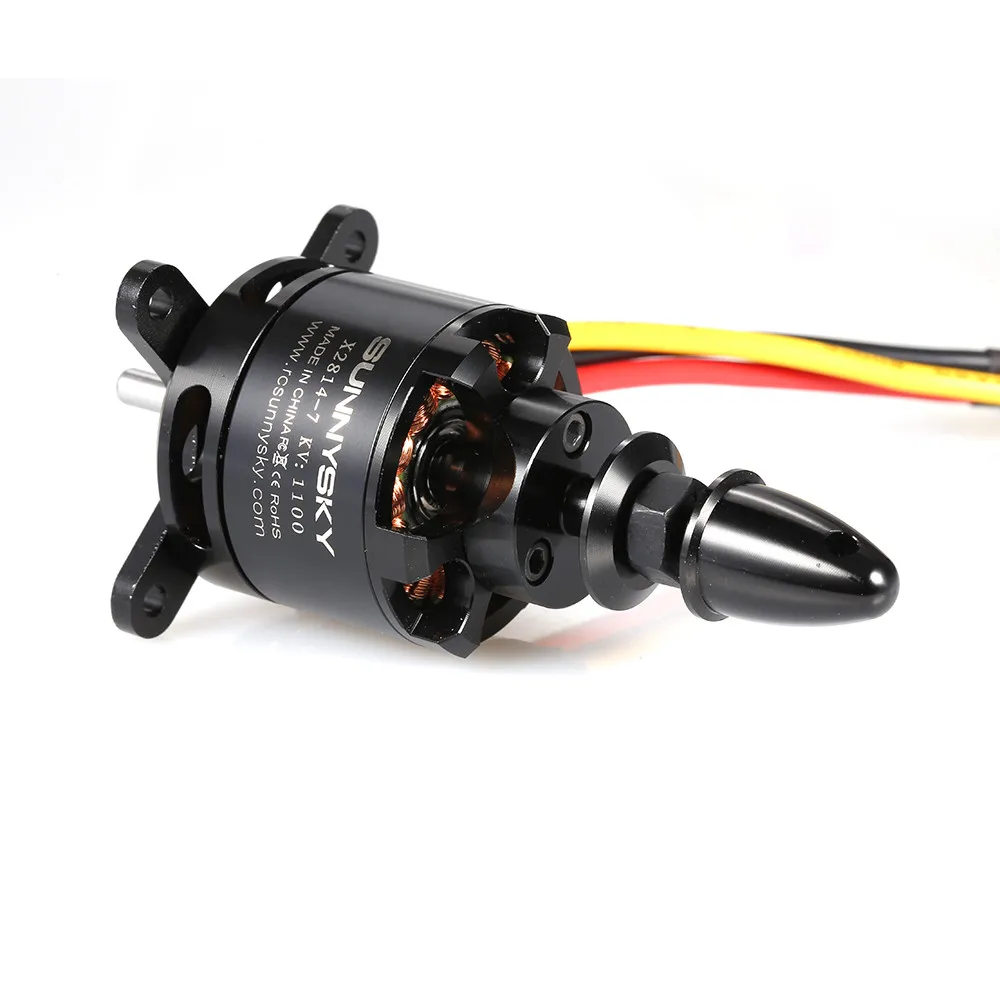

1PC Original SUNNYSKY X2814 900KV 1000KV 1100KV 1250KV External Rotor Brushless Motor for RC 3D fixed-wing Aircraft Airplanes
157 orders (reference)
Description
Item:SUNNYSKYX2814 KV900 KV1000 KV1100 KV1250Motor
Parameters:
Material: Copper+Metal
Color: Black
KV value: KV900, KV1000, KV1100, KV1250
Number of slots: 12N14P
Interphase internal resistance: 52Milliohm, 38Milliohm, 32Milliohm, 25Milliohm
Motor size: Diameter 35x36mm
Axis Diameter: 4mm
Specification of Silicone Wire for Motor: 16AWG 100mm
Motor weight (including wire): 108g
Working rated voltage (Lipo): 3-4S
No-load current: 0.7A/10V, 1A/10V, 1.5A/10V, 2.1A/10V
Maximum continuous power: 570W, 600W, 600W, 880W
Maximum continuous current: 40A/30S, 40A/30S, 40A/30S, 55A/15S
Recommended use of electric regulation: 40A, 45A, 50A, 70A
Recommended propeller specifications:
APC11x5.5,APC11x7, APC11x8, APC13x6.5, APC13x8 For KV900
APC11x5.5,APC12x6, APC12x8, APC13x6.5 For KV1000
APC9x6,APC10x5, APC11x5.5, APC11x7 For KV1100
APC8060, APC9060 For KV1250
NOTE:
The motor factory has welded 3.5 banana heads, ready to use.
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is Batteries Included |
|
| Is it charger/adapter |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is Batteries Included | No |
| Is it charger/adapter | N |
| Technical parameters | value 2 |
| Model Number | X2814 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Lithium Battery |
| RC Parts & Accs | Motors |
| Material | Metal |
| Brand Name | NoEnName_Null |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Item:SUNNYSKYX2814 KV900 KV1000 KV1100 KV1250Motor
Parameters:
Material: Copper+Metal
Color: Black
KV value: KV900, KV1000, KV1100, KV1250
Number of slots: 12N14P
Interphase internal resistance: 52Milliohm, 38Milliohm, 32Milliohm, 25Milliohm
Motor size: Diameter 35x36mm
Axis Diameter: 4mm
Specification of Silicone Wire for Motor: 16AWG 100mm
Motor weight (including wire): 108g
Working rated voltage (Lipo): 3-4S
No-load current: 0.7A/10V, 1A/10V, 1.5A/10V, 2.1A/10V
Maximum continuous power: 570W, 600W, 600W, 880W
Maximum continuous current: 40A/30S, 40A/30S, 40A/30S, 55A/15S
Recommended use of electric regulation: 40A, 45A, 50A, 70A
Recommended propeller specifications:
APC11x5.5,APC11x7, APC11x8, APC13x6.5, APC13x8 For KV900
APC11x5.5,APC12x6, APC12x8, APC13x6.5 For KV1000
APC9x6,APC10x5, APC11x5.5, APC11x7 For KV1100
APC8060, APC9060 For KV1250
NOTE:
The motor factory has welded 3.5 banana heads, ready to use.

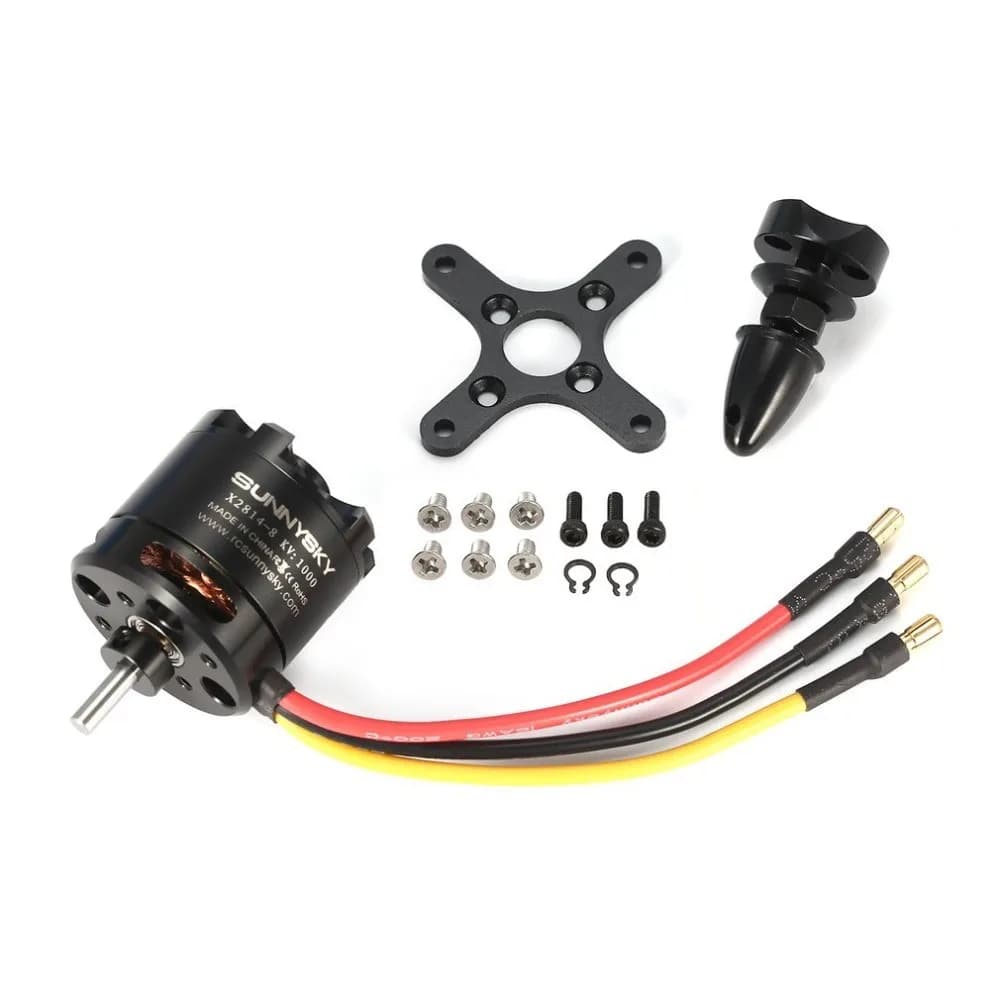

Package Included:
X2814 KV900orKV1000orKV1100orKV1250Motor x1
Bag of Accessories x1
