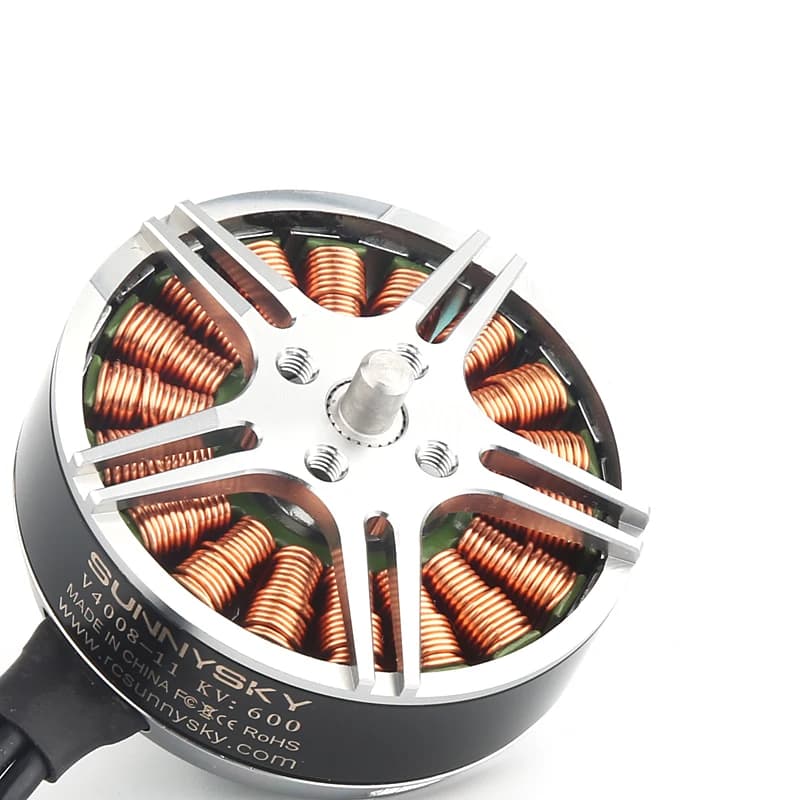

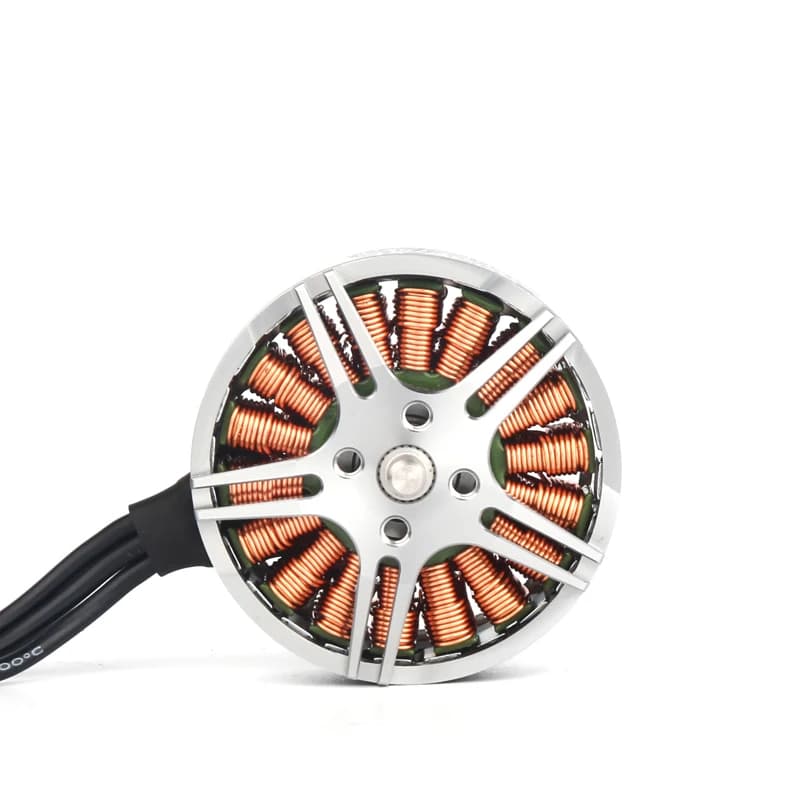

Sunnysky V4008 380KV 600KV 6S Brushless Motor

Reference price:

US $93.13

1-10 pcs$90(-3%)

10-100 pcs$86(-7%)

100+ pcs$82(-12%)

Description

Sunnysky V4008 380KV 600KV 6S Brushless Motor High-concerned chemical: None Electronic: No Model Number: V4008 DIY Supplies: Electrical Origin: Mainland China

Select options

Variant

Quantity

View cart Get a Quote

Attribute

Value

High-concerned chemical

None

Electronic

Model Number

V4008

DIY Supplies

Electrical

Origin

Mainland China

Product Details

Prop(inch)	Voltage(V)	RPM	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
EOLO CN12*5	22.2	2983	0.7	200	16	12.87	68℃
		3514	1.2	300	27	11.26
		4020	1.7	400	38	10.60
		4440	2.3	500	51	9.79
		4785	2.9	600	64	9.32
		5204	3.6	700	80	8.76
		5568	4.3	800	95	8.38
		5830	5	900	111	8.11
		6167	5.8	1000	129	7.77
		6964	8.4	1293	186	6.93
	25	2993	0.6	200	15	13.33
		3501	1.1	300	28	10.91
		4008	1.5	400	38	10.67
		4440	2	500	50	10.00
		4780	2.6	600	65	9.23
		5212	3.2	700	80	8.75
		5624	3.8	800	95	8.42
		5855	4.5	900	113	8.00
		6172	5.2	1000	130	7.69
		6738	6.8	1200	170	7.06
		7662	10.2	1580	255	6.20
EOLO CN13*5	22.2	2483	0.6	200	13	15.02	83℃
		2978	1	300	22	13.51
		3367	1.5	400	33	12.01
		3762	2	500	44	11.26
		4124	2.6	600	58	10.40
		4440	3.3	700	73	9.56
		4716	4	800	89	9.01
		4915	4.7	900	104	8.63
		5232	5.4	1000	120	8.34
		5757	7.05	1200	157	7.67
		6109	8.9	1400	198	7.09
		6704	11.2	1610	249	6.48
	25	2465	0.5	200	13	16.00
		2873	0.9	300	23	13.33
		3379	1.3	400	33	12.31
		3758	1.9	500	48	10.53
		4125	2.4	600	60	10.00
		4525	2.9	700	73	9.66
		4782	3.5	800	88	9.14
		5026	4.2	900	105	8.57
		5282	4.9	1000	123	8.16
		5760	6.4	1200	160	7.50
		6250	7.9	1400	198	7.09
		6621	9.8	1600	245	6.53
		7015	11.7	1800	293	6.15
		7283	13.1	1945	328	5.94
EOLO CN15*5.5	22.2	1915	0.5	200	11	18.02	100℃2min20s
		2358	0.8	300	18	16.89
		2656	1.3	400	29	13.86
		3040	1.8	500	40	12.51
		3267	2.3	600	51	11.75
		3482	2.9	700	64	10.87
		3716	3.5	800	78	10.30
		3920	4.2	900	93	9.65
		4131	4.9	1000	109	9.19
		4504	6.35	1200	141	8.51
		4816	8.15	1400	181	7.74
		5185	9.9	1600	220	7.28
		5450	12	1800	266	6.76
		6013	16.4	2210	364	6.07
	25	1932	0.4	200	10	20.00
		2333	0.8	300	20	15.00
		2679	1.2	400	30	13.33
		2992	1.55	500	39	12.90
		3281	2.1	600	53	11.43
		3460	2.6	700	65	10.77
		3726	3.1	800	78	10.32
		3926	3.7	900	93	9.73
		4166	4.4	1000	110	9.09
		4513	5.7	1200	143	8.42
		4868	7.2	1400	180	7.78
		5186	8.9	1600	223	7.19
		5469	10.7	1800	268	6.73
		5730	12.6	2000	315	6.35
		6035	14.8	2200	370	5.95
		6443	19.4	2651	485	5.47

Prop(inch)	Voltage(V)	RPM	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
EOLO CN13*5	14.8	2511	1	200	15	13.51	75℃
		2960	1.6	300	24	12.67
		3429	2.4	400	36	11.26
		3808	3.3	500	49	10.24
		4188	4.2	600	62	9.65
		4440	5.3	700	78	8.92
		4757	6.3	800	93	8.58
		5046	7.35	900	109	8.27
		5317	8.5	1000	126	7.95
		5702	11.1	1200	164	7.30
		6505	16.4	1550	243	6.39
	16	2470	0.9	200	14	13.89
		2951	1.6	300	26	11.72
		3381	2.3	400	37	10.87
		3716	3	500	48	10.42
		4157	3.9	600	62	9.62
		4489	4.8	700	77	9.11
		4725	5.8	800	93	8.62
		5041	6.8	900	109	8.27
		5272	7.8	1000	125	8.01
		5817	10.2	1200	163	7.35
		6173	13	1400	208	6.73
		6916	18.3	1760	293	6.01
EOLO CN15*5.5	14.8	1931	0.8	200	12	16.89	85℃
		2337	1.4	300	21	14.48
		2725	2.1	400	31	12.87
		3025	2.9	500	43	11.65
		3258	3.7	600	55	10.96
		3535	4.6	700	68	10.28
		3741	5.6	800	83	9.65
		3972	6.6	900	98	9.21
		4133	7.6	1000	112	8.89
		4583	10.15	1200	150	7.99
		4846	12.9	1400	191	7.33
		5208	16.1	1600	238	6.71
		5456	19.5	1800	289	6.24
		5757	23.4	2029	346	5.86
	16	1950	0.8	200	13	15.63
		2358	1.3	300	21	14.42
		2706	2	400	32	12.50
		3002	2.7	500	43	11.57
		3306	3.4	600	54	11.03
		3562	4.3	700	69	10.17
		3776	5.3	800	85	9.43
		3915	6.2	900	99	9.07
		4260	7.15	1000	114	8.74
		4519	9.4	1200	150	7.98
		4865	12	1400	192	7.29
		5178	14.8	1600	237	6.76
		5466	18.6	1800	298	6.05
		5728	21.3	2000	341	5.87
		6048	26.2	2276	419	5.43
