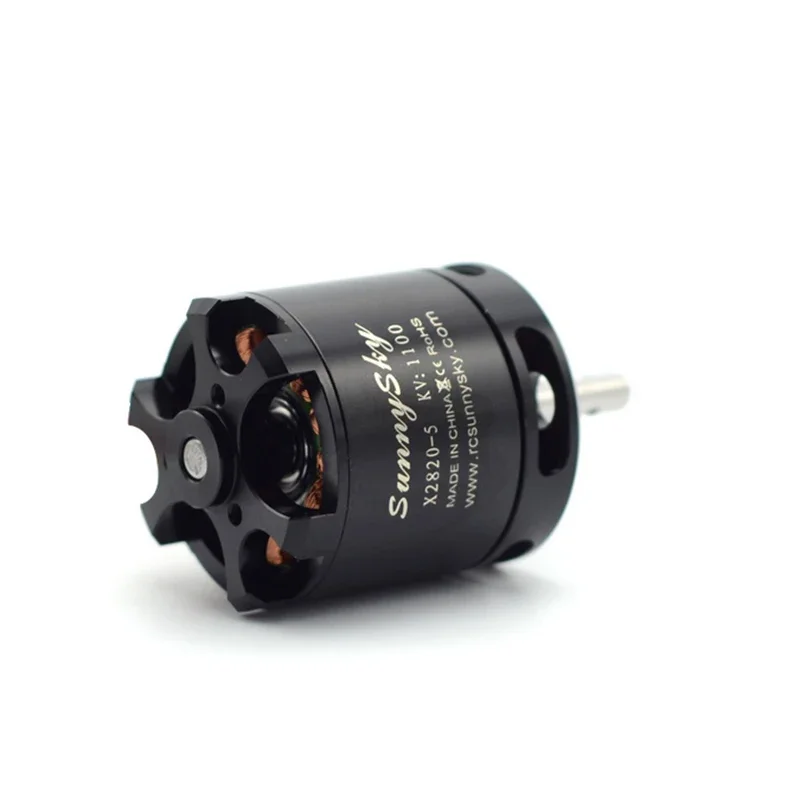

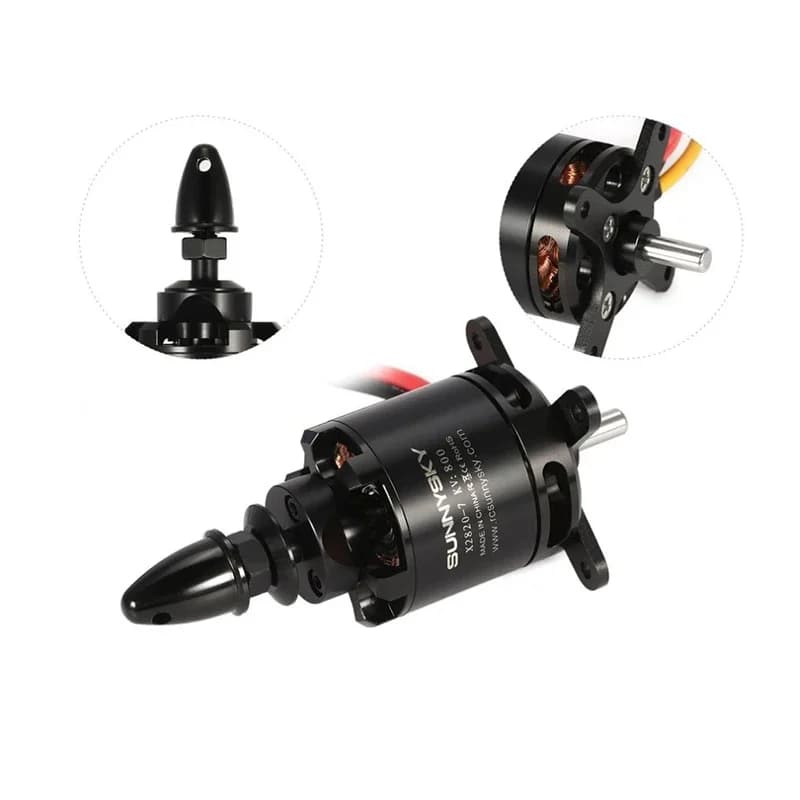

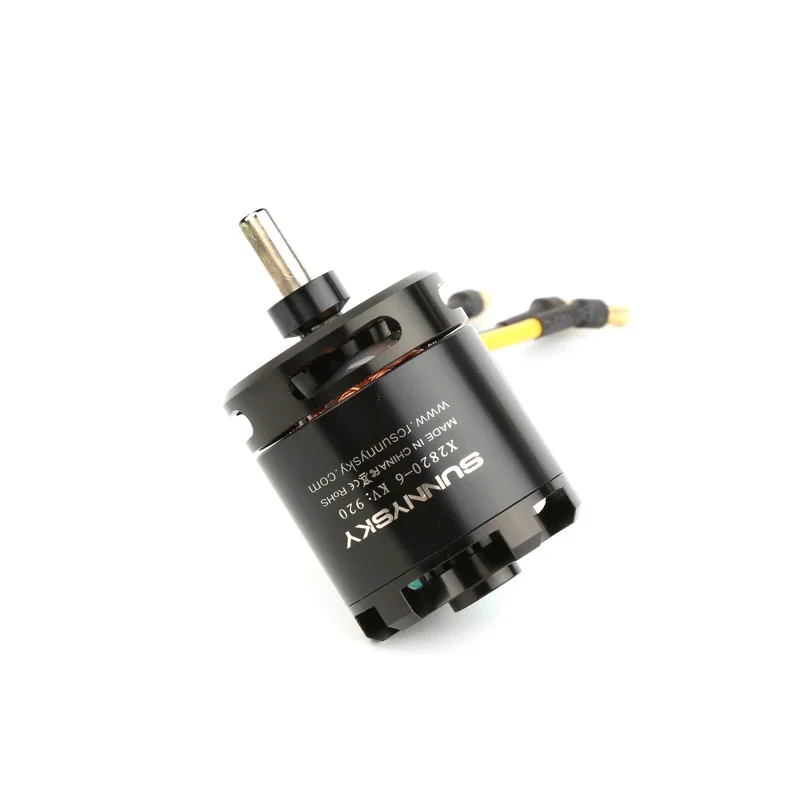

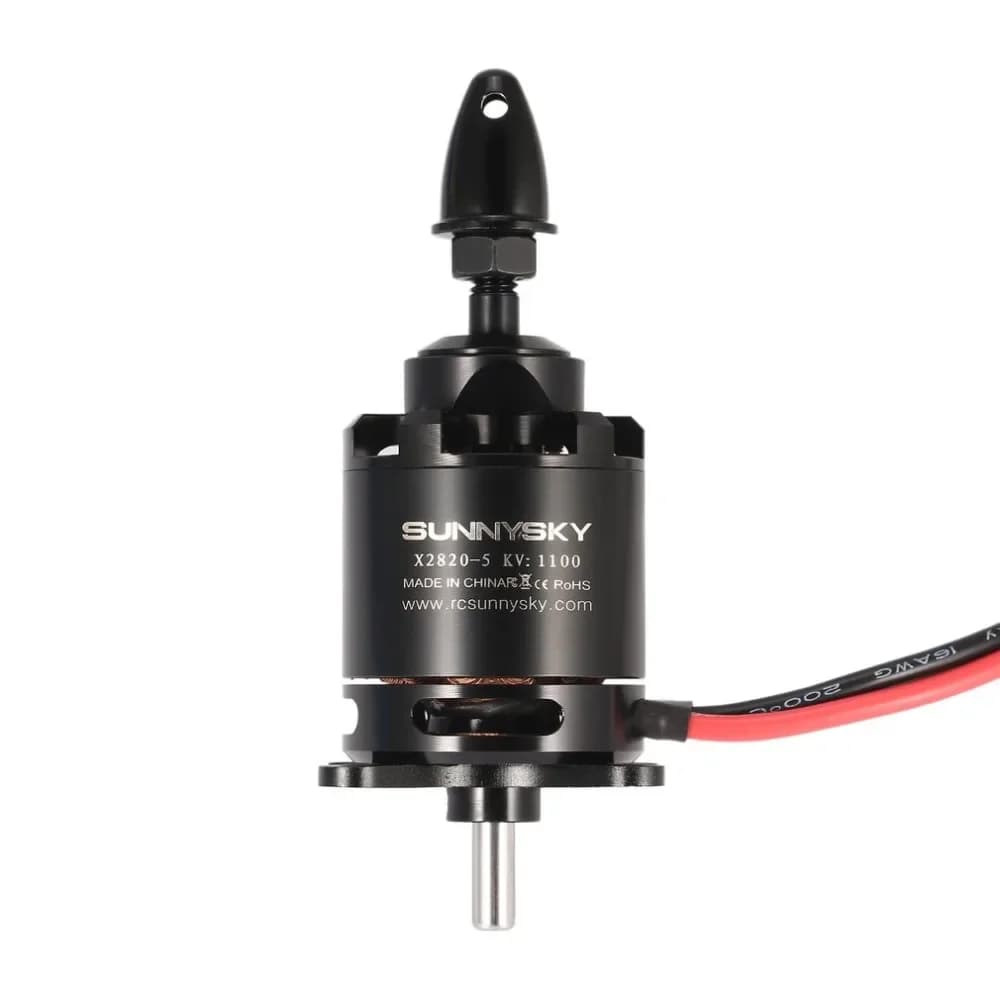

SUNNYSKY X2820 Series External Rotor Brushless Motor 800KV 920KV 1100KV 3~5S Lipo 5mm Shaft RC Fixed-wing Aircraft
6 orders (reference)
Description
Item Name:SUNNYSKY X2820 Series Brushless Motor
Product Parameters:
Material: Copper+Metal
Color: Black

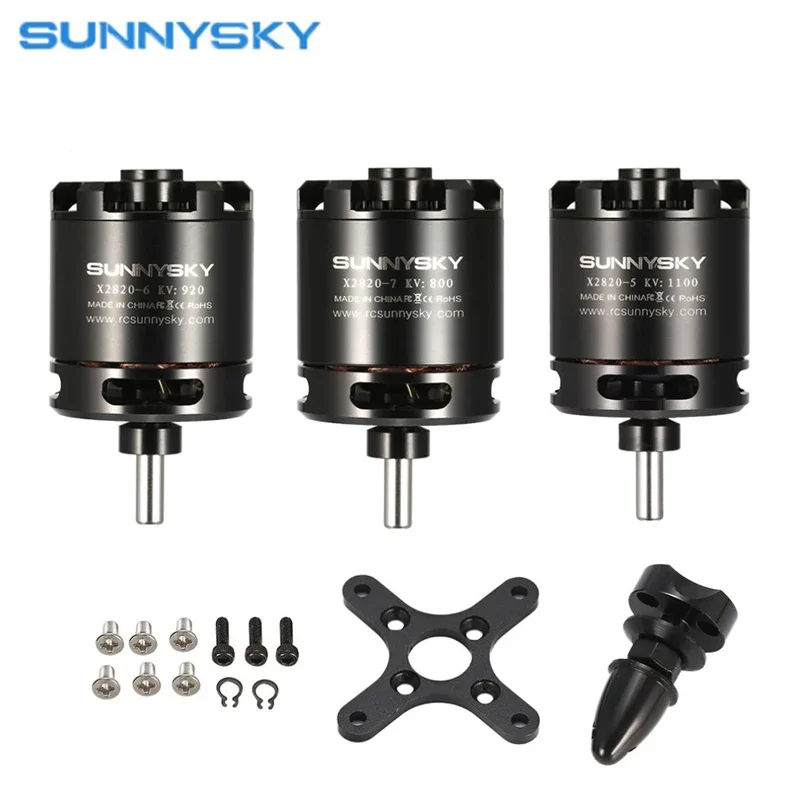

KV value: 800KV, 920KV, 1100KV
Number of slots: 12N14P
Axis Diameter: 5mm
Specification of Silicone Wire for Motor: 16AWG 100mm
Motor weight (including wire): 138g
Working rated voltage (Lipo): 3-5S
800KV
Interphase internal resistance: 41 mΩ
No-load current: 0.9A/10V
Maximum continuous power: 700W
Maximum continuous current: 46A/30S
Recommended use of electric regulation: 60A
Recommended propeller specifications:
PC11x5.5, APC12x6, APC12x8, APC13x6.5, APC13x8

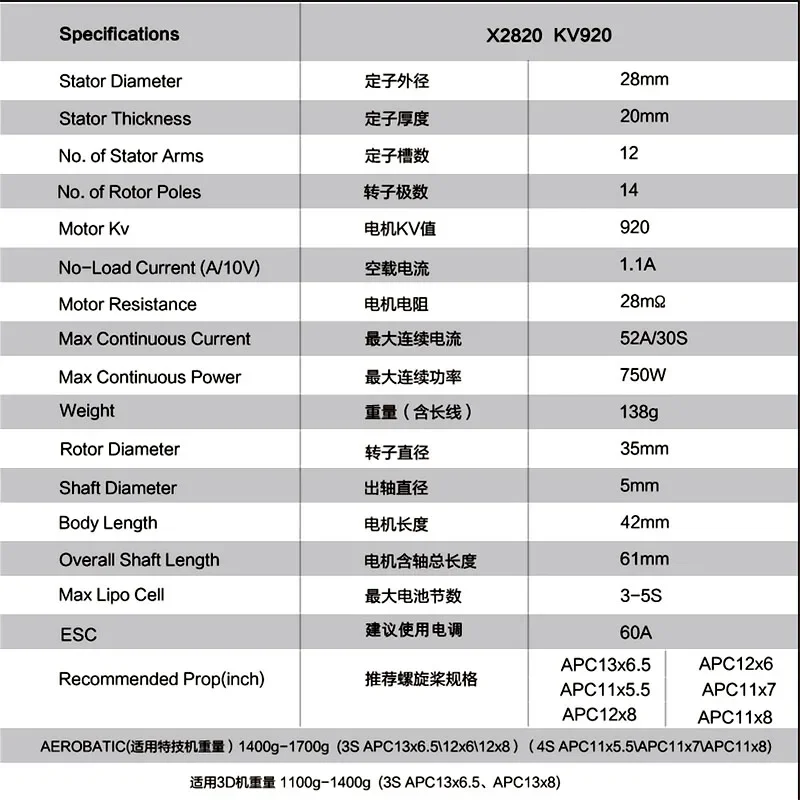

920KV
Interphase internal resistance: 28 mΩ
No-load current: 1.1A/10V
Maximum continuous power: 750W
Maximum continuous current: 52A/30S
APC11x5.5, APC11x7, APC11x8, APC12x6, APC12x8, APC13x6.5
1100KV
Interphase internal resistance: 19 mΩ
No-load current: 1.3A/10V
Maximum continuous power: 880W
Maximum continuous current: 60A/15S
APC11x5.5, APC11x7, APC11x8, APC12x6, APC9060, APC105
NOTE:

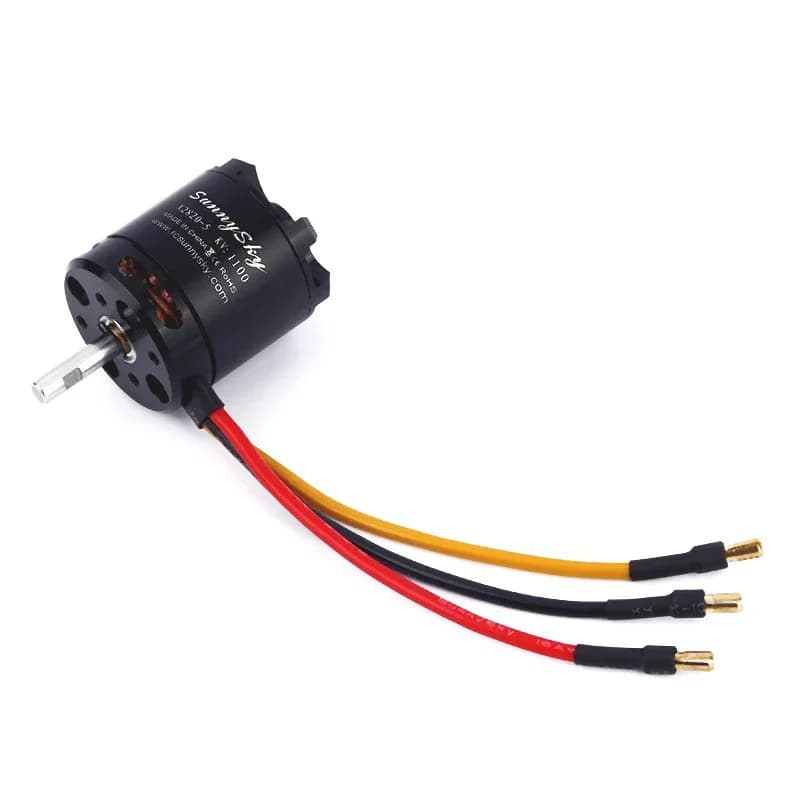

The motor factory has welded 3.5 banana heads, ready to use.
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Model Number |
|
| For Vehicle Type |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | Y |
| Is it charger/adapter | Y |
| Is Batteries Included | No |
| Model Number | X2820 |
| For Vehicle Type | Airplanes |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| RC Parts & Accs | Motors |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Item Name:SUNNYSKY X2820 Series Brushless Motor
Product Parameters:
Material: Copper+Metal
Color: Black
KV value: 800KV, 920KV, 1100KV
Number of slots: 12N14P
Axis Diameter: 5mm
Specification of Silicone Wire for Motor: 16AWG 100mm
Motor weight (including wire): 138g
Working rated voltage (Lipo): 3-5S

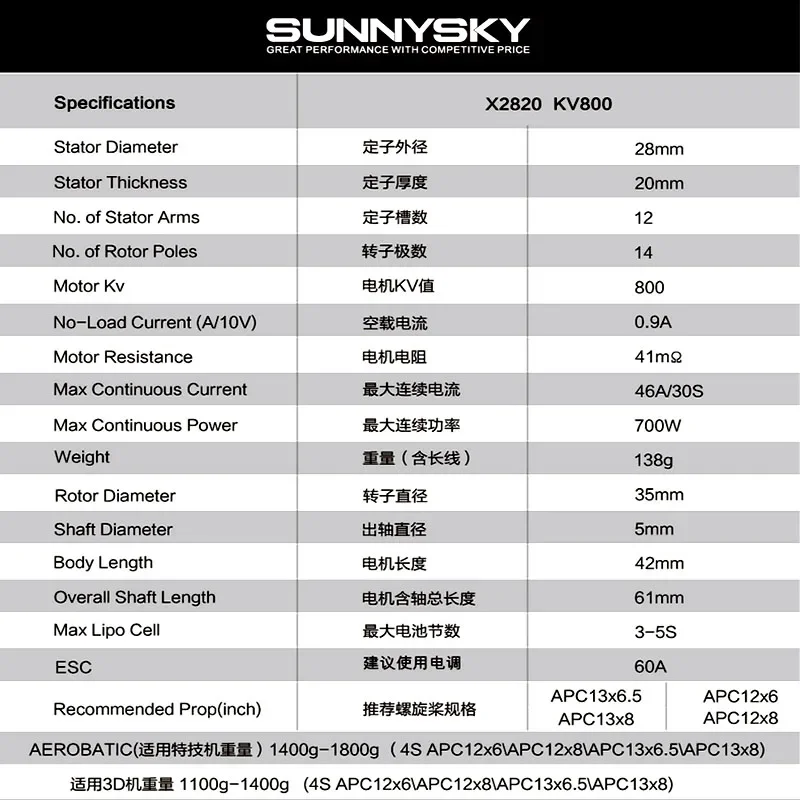

800KV
Interphase internal resistance: 41 mΩ
No-load current: 0.9A/10V
Maximum continuous power: 700W
Maximum continuous current: 46A/30S
Recommended use of electric regulation: 60A
Recommended propeller specifications:
PC11x5.5, APC12x6, APC12x8, APC13x6.5, APC13x8
920KV
Interphase internal resistance: 28 mΩ
No-load current: 1.1A/10V
Maximum continuous power: 750W
Maximum continuous current: 52A/30S
Recommended use of electric regulation: 60A
Recommended propeller specifications:
APC11x5.5, APC11x7, APC11x8, APC12x6, APC12x8, APC13x6.5
1100KV
Interphase internal resistance: 19 mΩ
No-load current: 1.3A/10V
Maximum continuous power: 880W
Maximum continuous current: 60A/15S
Recommended use of electric regulation: 60A
Recommended propeller specifications:
APC11x5.5, APC11x7, APC11x8, APC12x6, APC9060, APC105
NOTE:
The motor factory has welded 3.5 banana heads, ready to use.

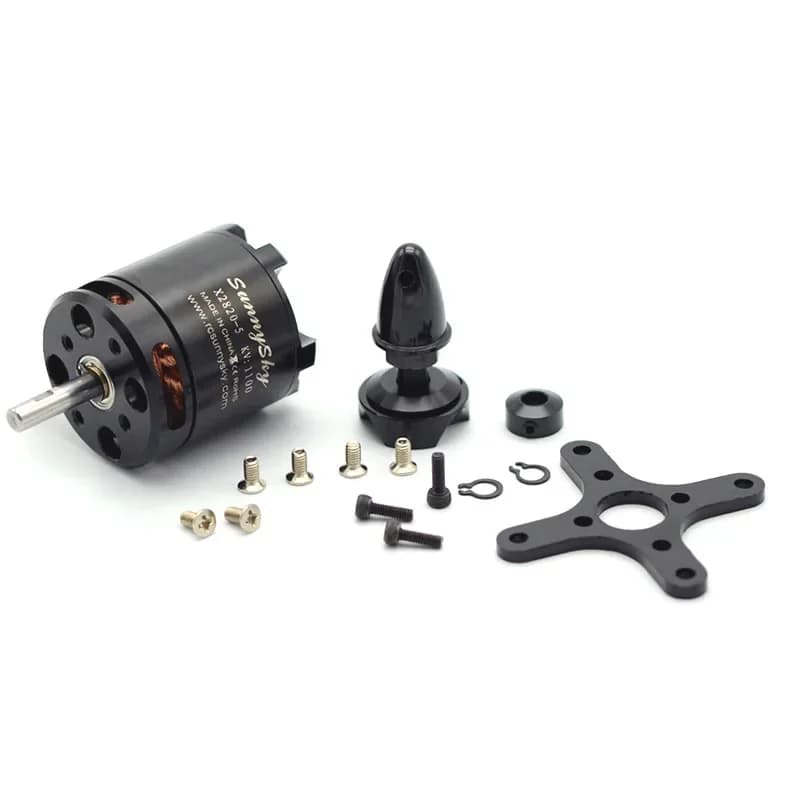

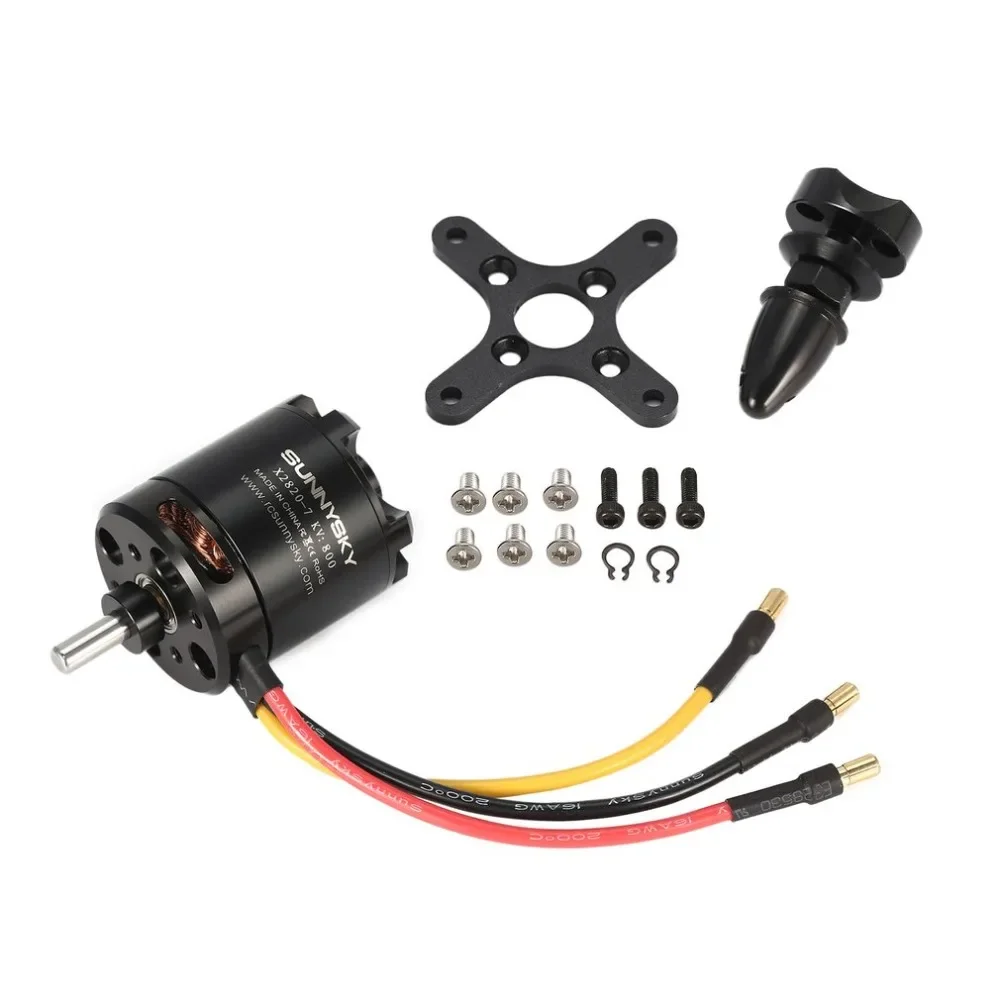

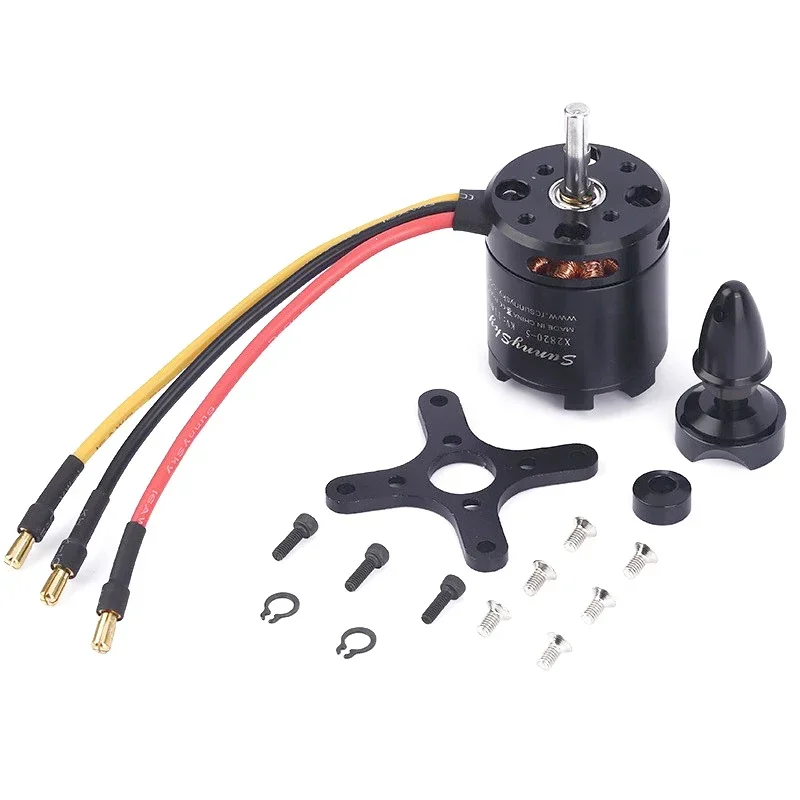

Package Included:
SUNNYSKY X2820 Series Brushless Motor x1
Bag of Accessories x1
