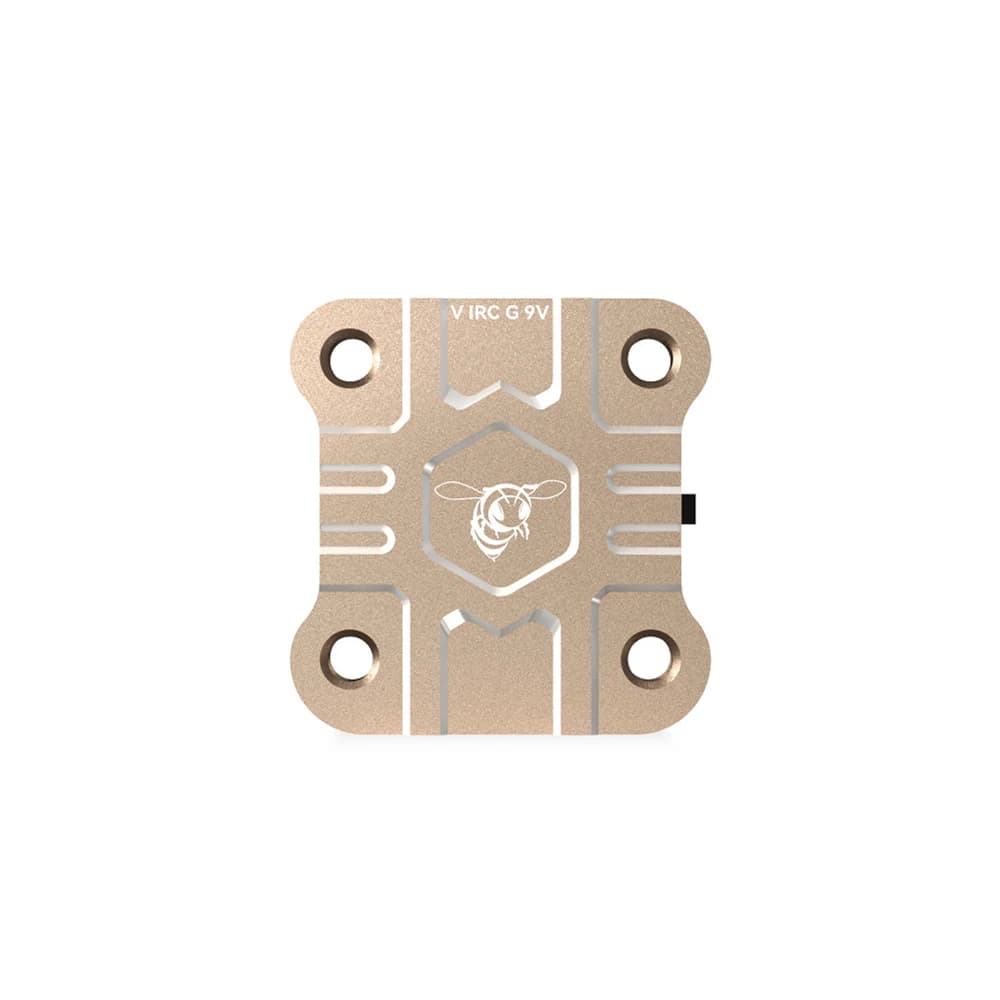

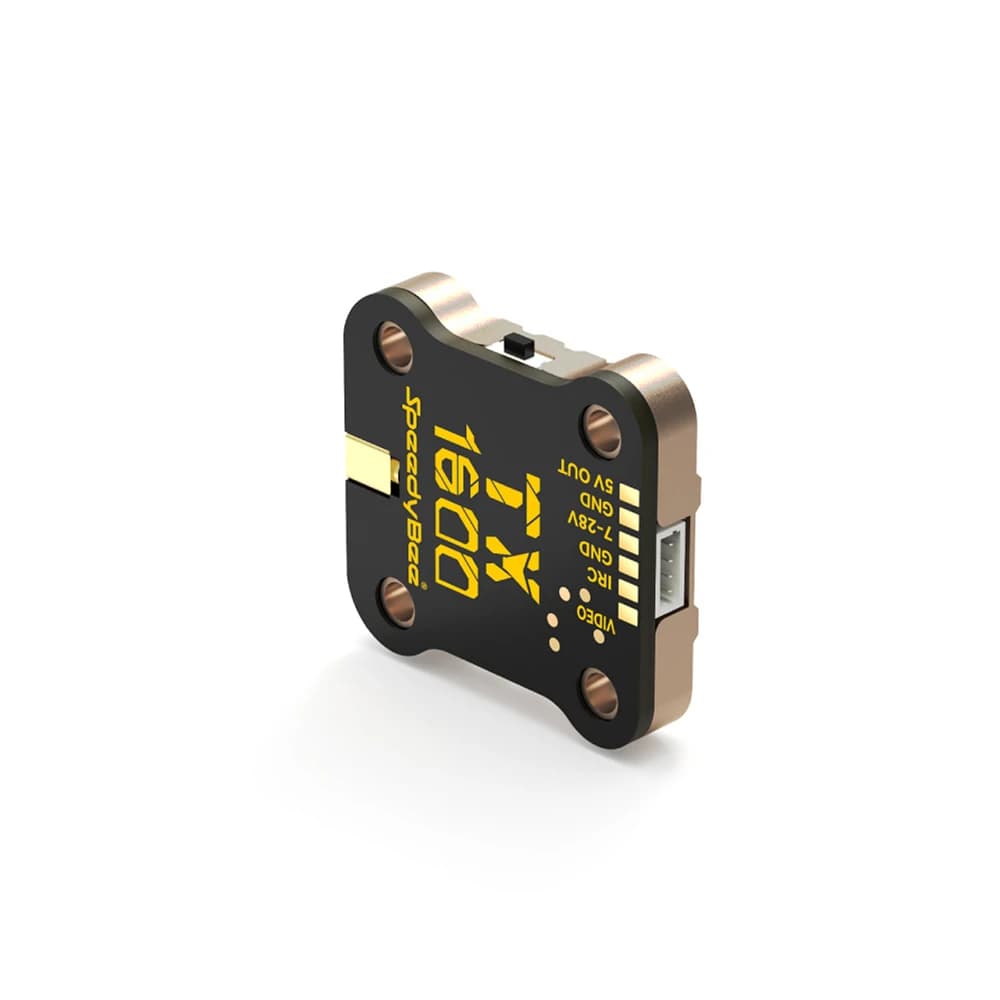

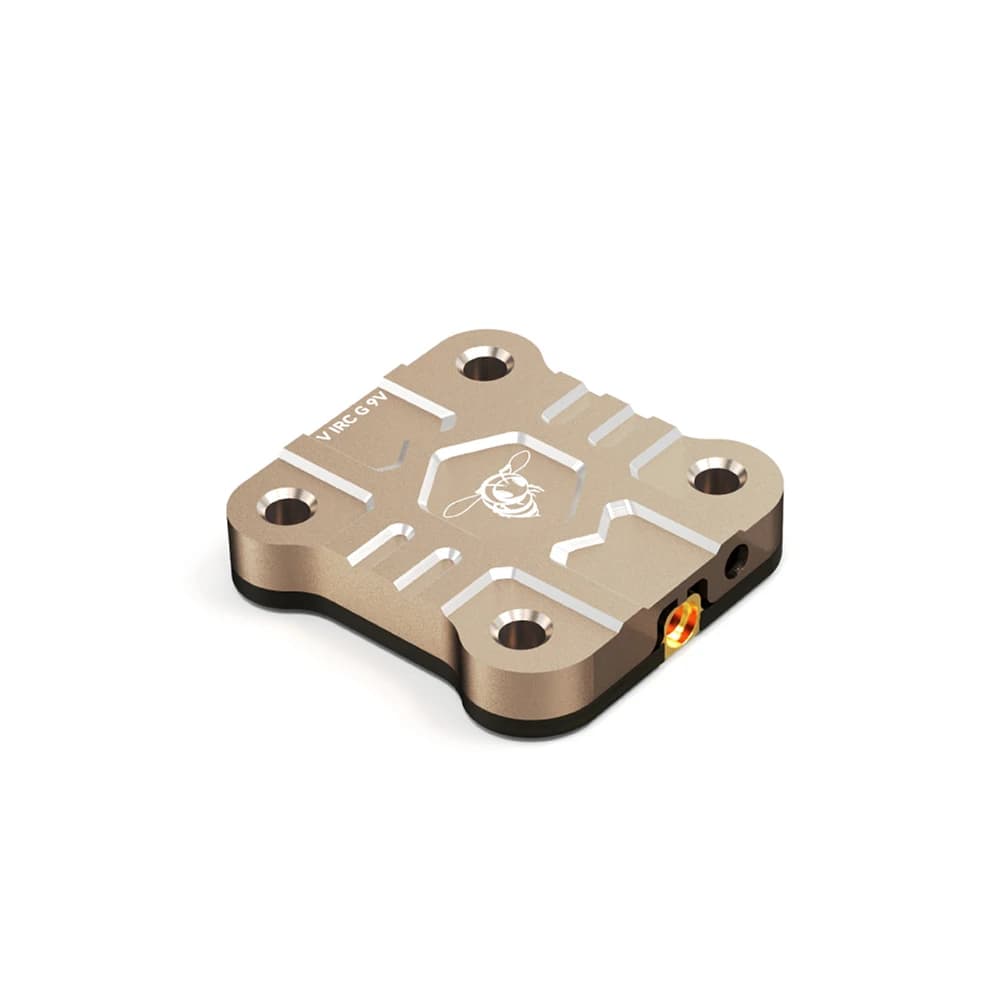

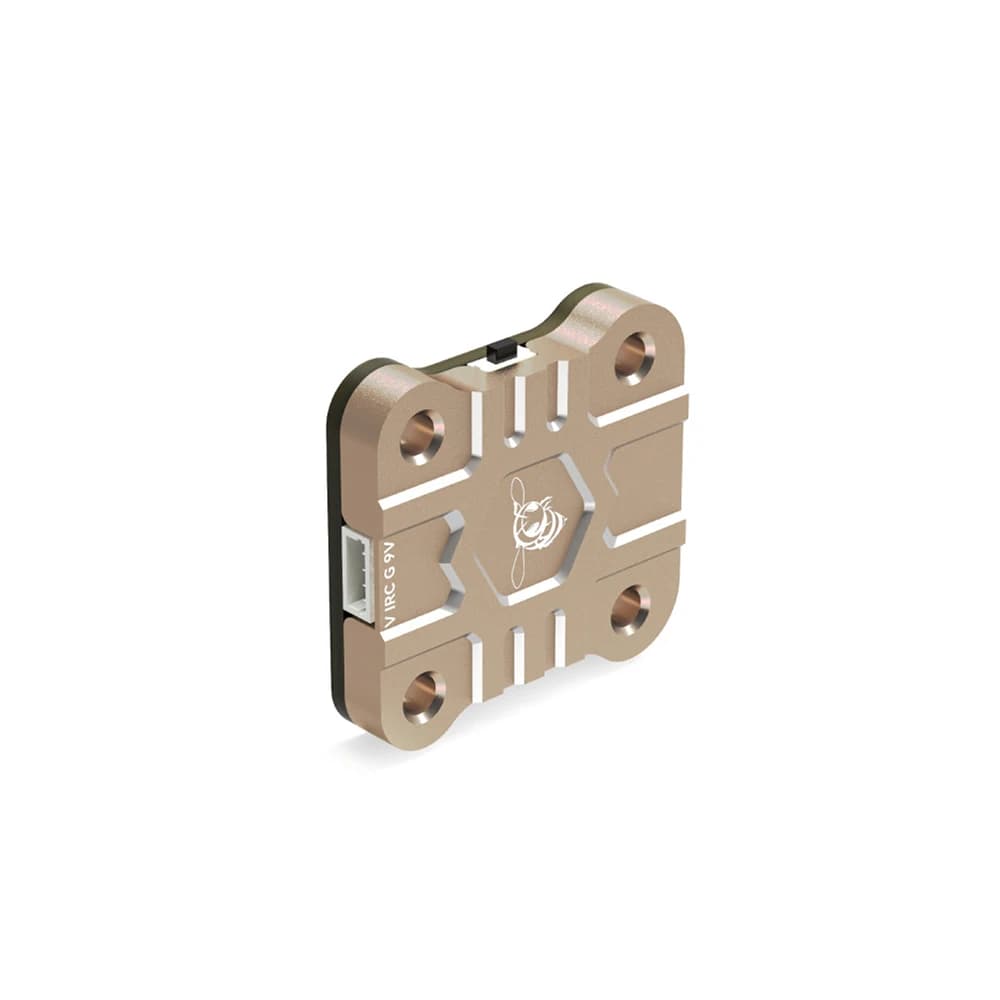

SpeedyBee TX ULTRA TX1600 5.8GHz 48CH 1.6W Analog VTX High-efficiency Heat Sink 2-6S LIPO 20X20mm for FPV Long Range Drones
Reference price:
US $53.67
1-10 pcs$51(-3%)
10-100 pcs$49(-7%)
100+ pcs$47(-12%)
11 orders (reference)
Description
SpeedyBee TX ULTRA TX1600 5.8GHz 48CH 1.6W Analog VTX High-efficiency Heat Sink 2-6S LIPO 20X20mm for FPV Long Range Drones High-concerned chemical: None Compatible Drone Model: Speedybee Package: Yes Weight: 50g Model Number: TX ULTRA Compatible Drone Brand: Speedybee Brand Name: SpeedyBee Origin: Mainland China
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Compatible Drone Model | Speedybee |
| Package | Yes |
| Weight | 50g |
| Model Number | TX ULTRA |
| Compatible Drone Brand | Speedybee |
| Brand Name | SpeedyBee |
| Origin | Mainland China |
Product Details
Specifications
Model SpeedyBee TX ULTRA
Frequency Channel 5.8GHz 48CH

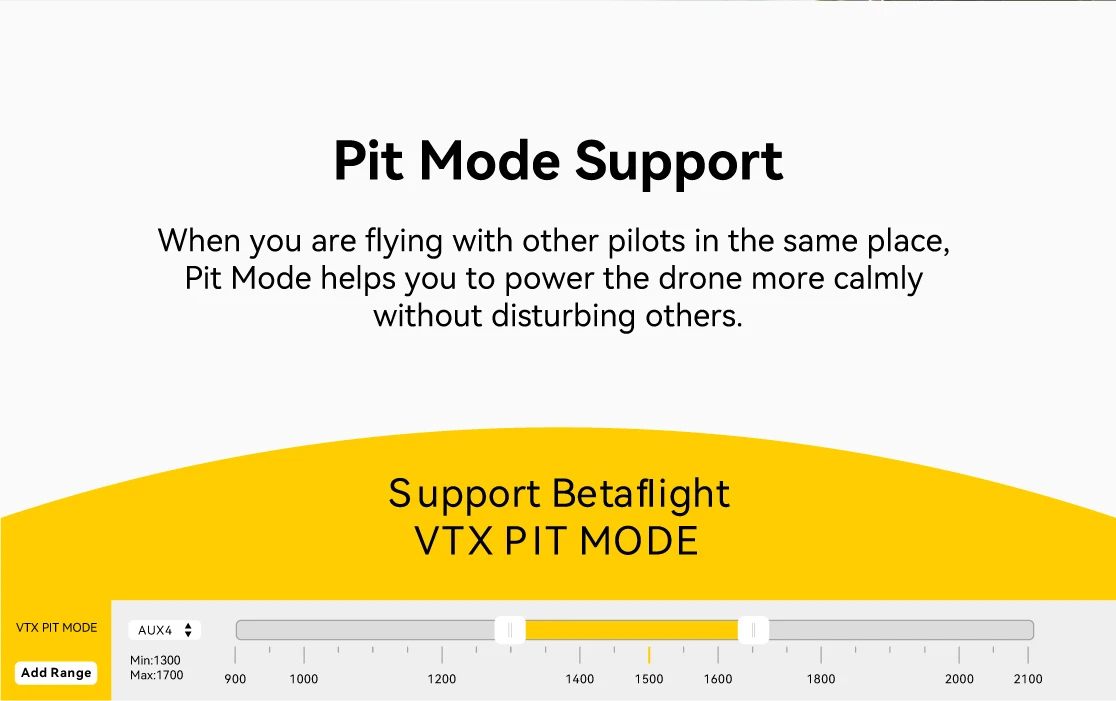

Output Power PIT / 25mW / 200mW / 800mW / Max mW
Working Current 12V @ 90~560mA
Voltage out 5V @ Max 300mA
Voltage in 7-28V (6S)
Video Input Impedance 75 Ohm
Antenna Connector MMCX
Weight 7g (without antenna)

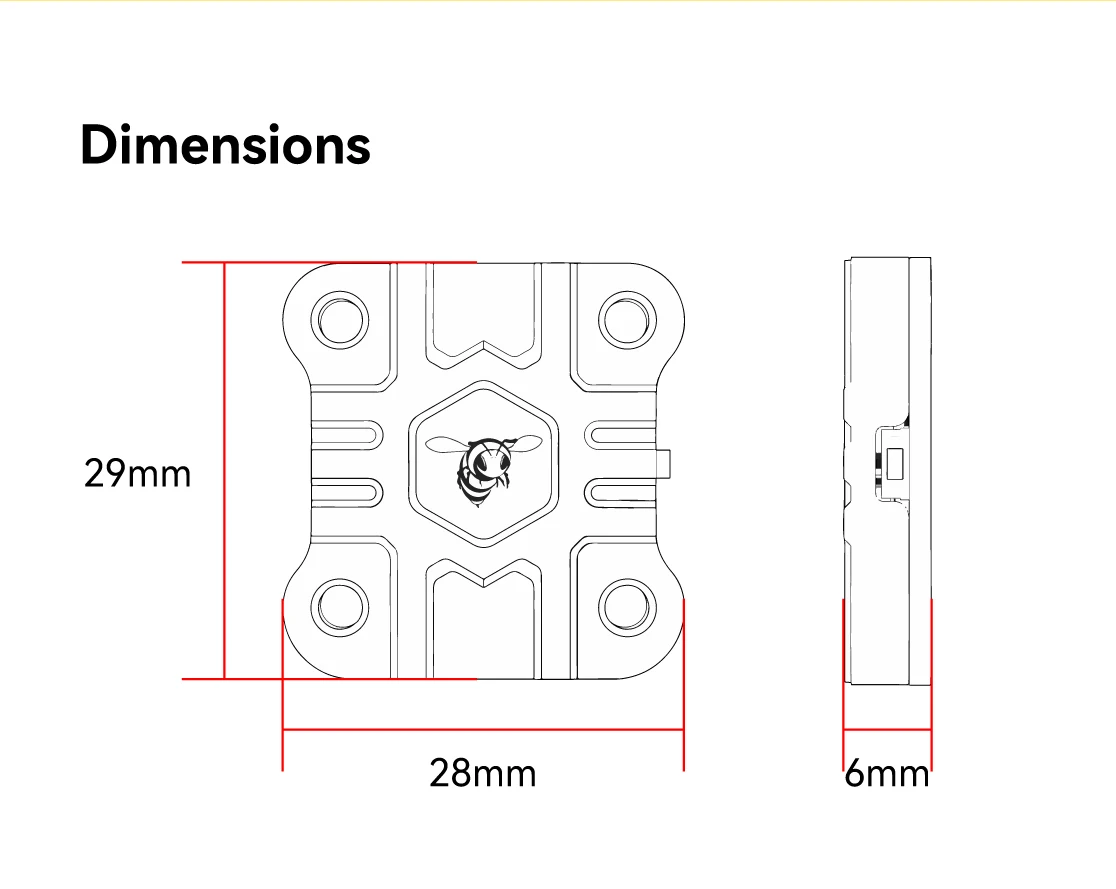

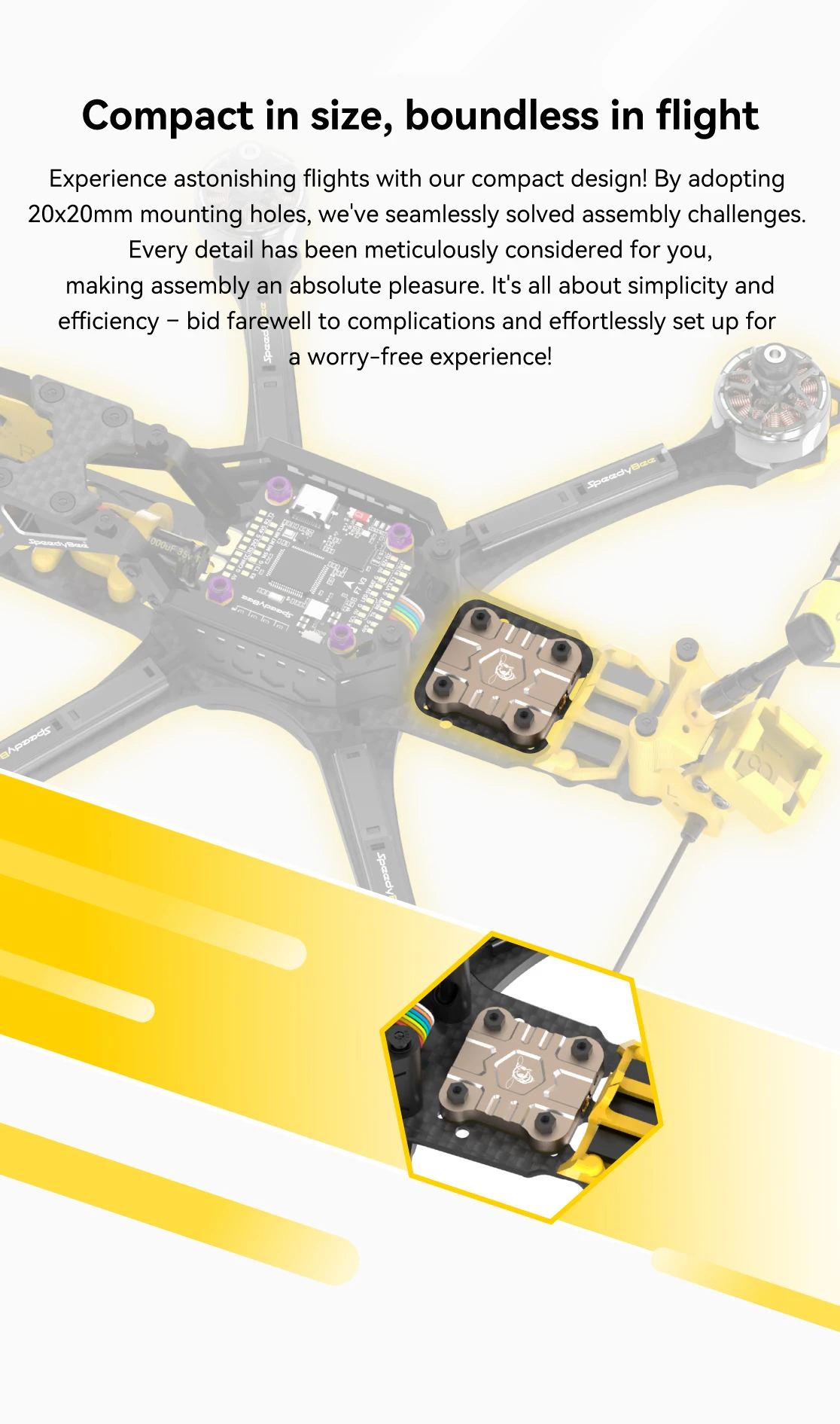

PCB Size 29mm*28mm*6mm @ 20*20mm M2 holes
