RadioMaster TX16S MKII V4.0 16CH 2.4G Hall Gimbals ELRS 4in1 Transmitter Remote Control Support EDGETX OPENTX
355 orders (reference)
Description
Notes:

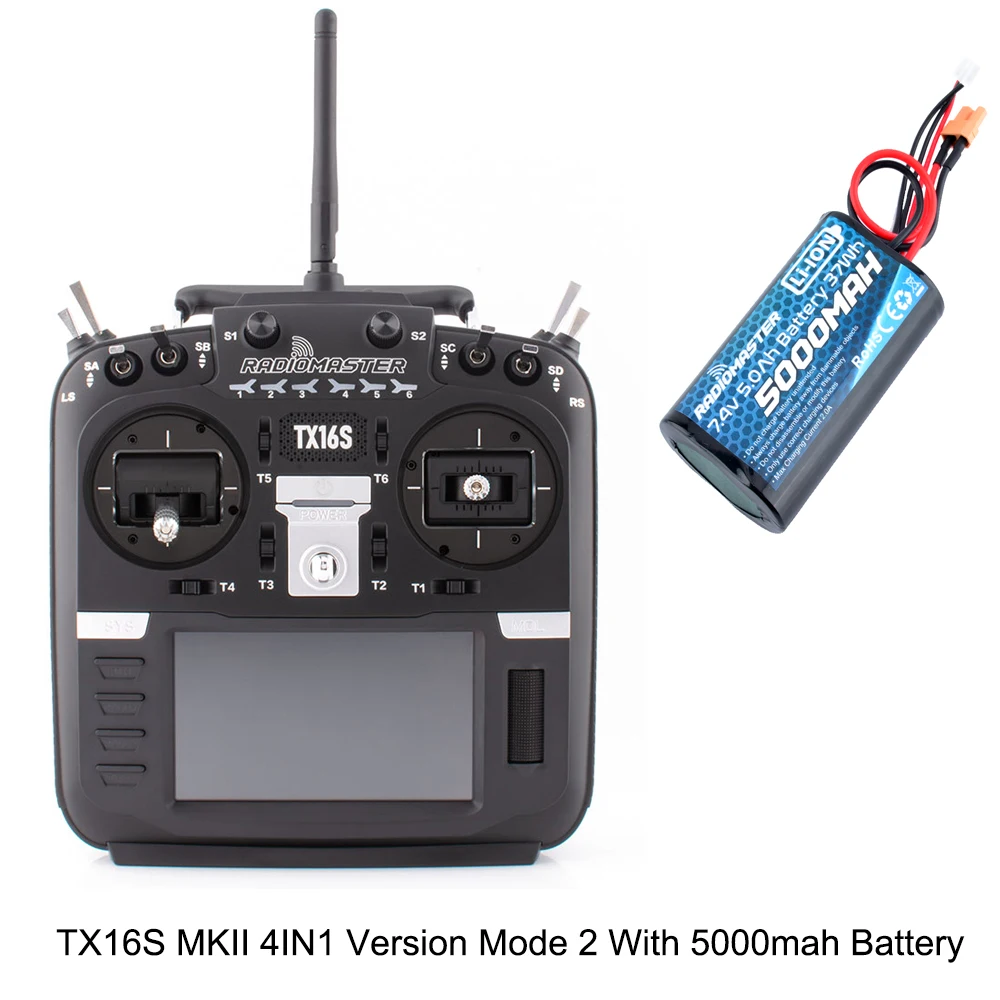

★ 4in1 (standard) Version supports all MPM protocols
★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW
(Max power is hardware dependnant)

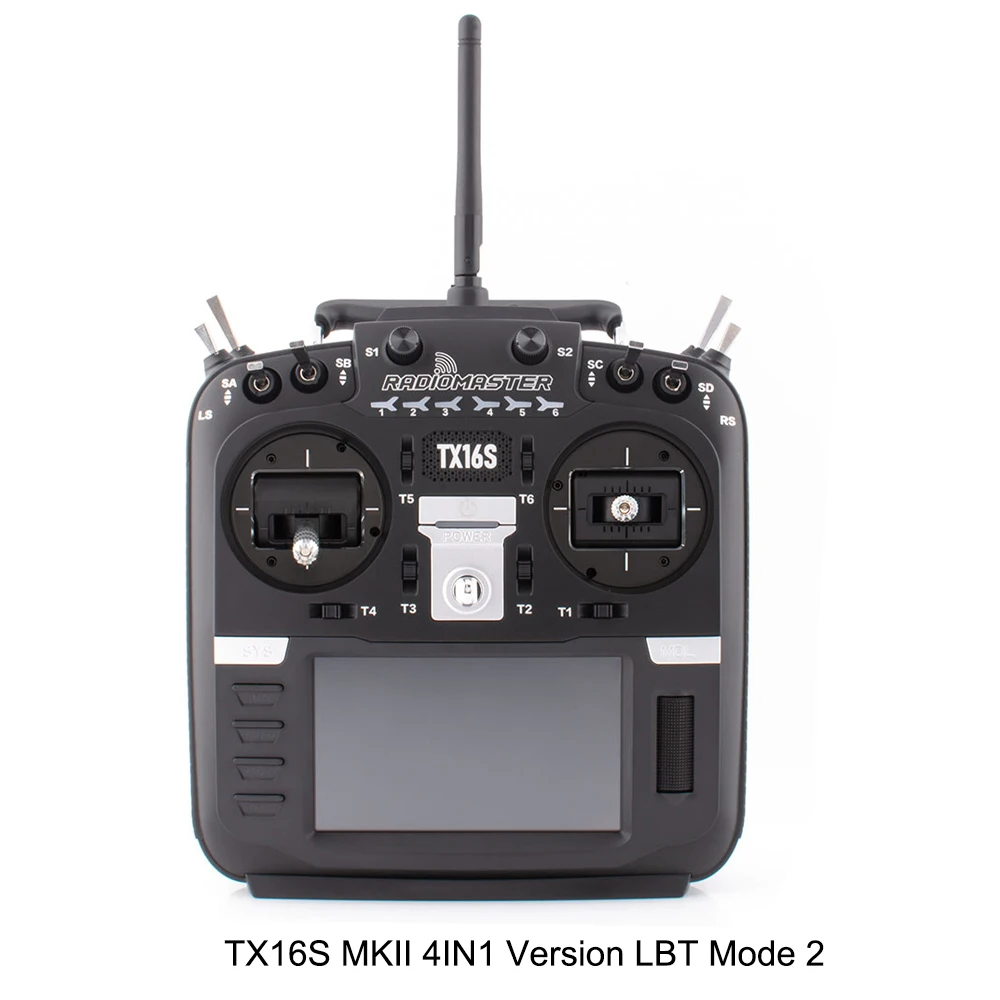

★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX

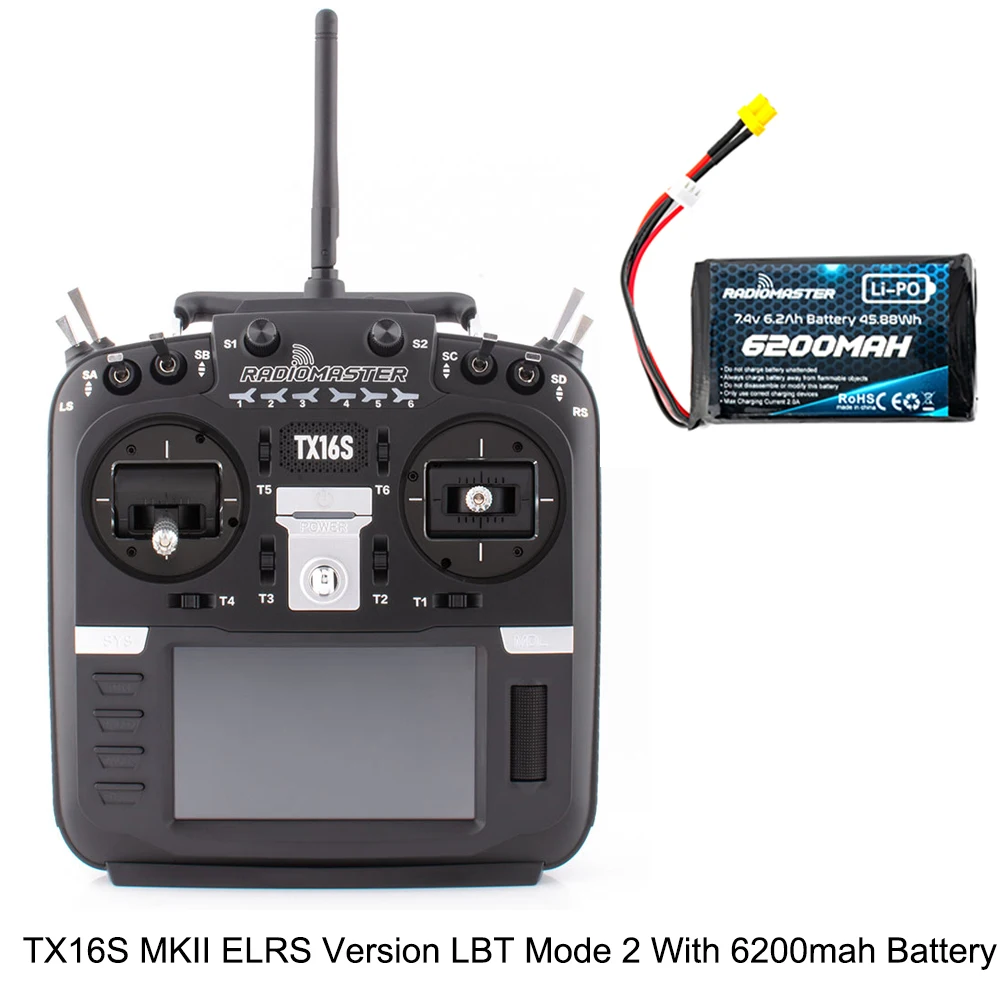

★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Size:287x129x184mm
Weight:750g(without battery)
Transmission frequency: 2.400GHz-2.480GHzTransmitter
Module:
Option 1: Internal
4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: lnternal ELRS(SX1280)
Working voltage:6.6-8.4v
firmware:EdgeTX
Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS)
Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour
touch display with a resolutionof 480* 272
Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia
Option2:AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
IMPROVEMENTS
-lmproved internal circuity and optimized power supply.
-New charge circuitry with integrated reverse-polarity protection.
-Optimized Charge IC, better balancing and uSB-C charge urrent,management.

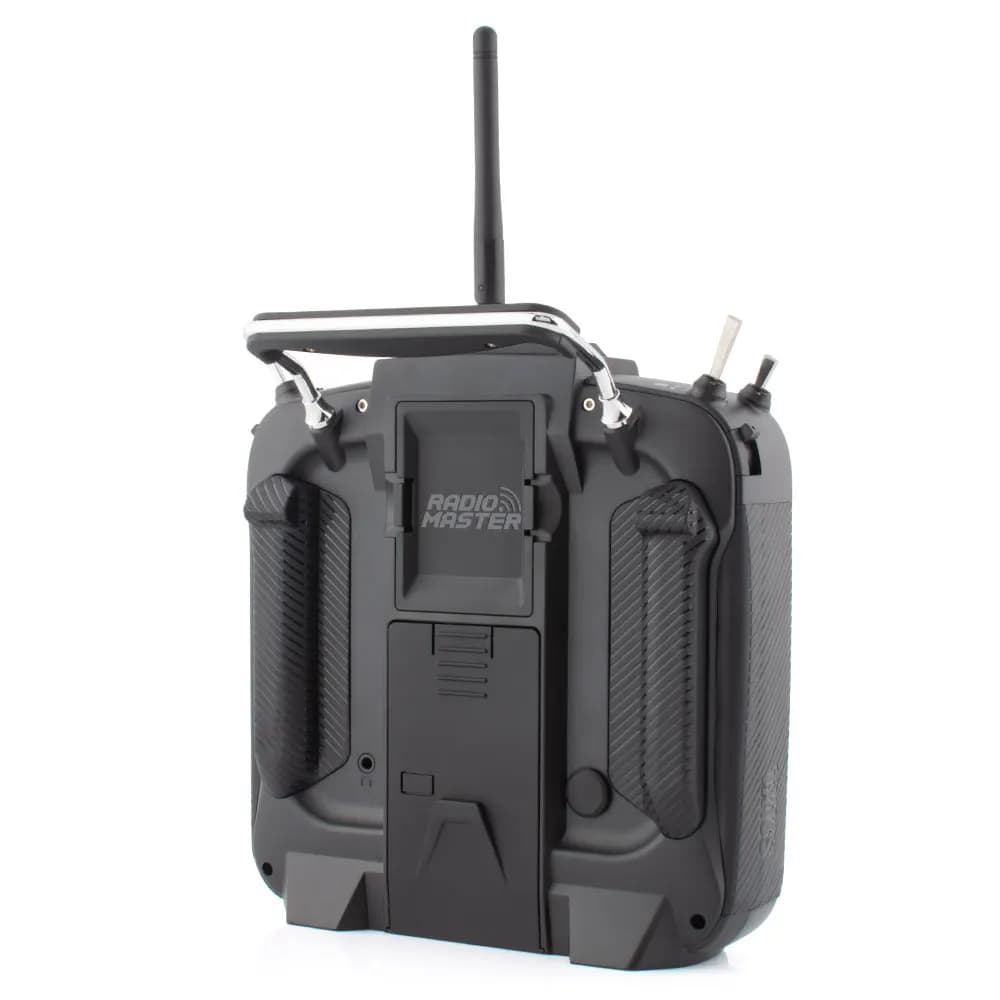

-Rear mounted audio jack provides headphone output
-V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)
-Optional high/low rear grips included for improved ergonomics.
--lmproved S1/S2 knobs with clear centre-detents.
-lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery
cover for improved battery access.
-Retooled body shell with improved fit and finish.
-Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods
-lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions.
MAX units feature carbon look face plates and CNC finishing components and buttons.
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | Yes |
| Technical parameters | KV1100 |
| Model Number | RadioMaster TX16S MKII V4.0 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Adapter |
| RC Parts & Accs | Radio Systems |
| Material | Plastic |
| Brand Name | RADIOMASTER |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Notes:
★ 4in1 (standard) Version supports all MPM protocols
★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW
(Max power is hardware dependnant)
★ 4in1 LBT Version (Europe)is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX
★ ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
Size:287x129x184mm
Weight:750g(without battery)
Transmission frequency: 2.400GHz-2.480GHzTransmitter
Module:
Option 1: Internal
4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: lnternal ELRS(SX1280)
Working voltage:6.6-8.4v
firmware:EdgeTX
Module Firmware:Multiprotocol- Module(4IN1) OR-ExpressLRS(ELRS)
Channels:Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT full-colour
touch display with a resolutionof 480* 272
Gimbal:Option 1: V4.0 Hall sensor with Aluminium fascia
Option2:AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
IMPROVEMENTS
-lmproved internal circuity and optimized power supply.
-New charge circuitry with integrated reverse-polarity protection.
-Optimized Charge IC, better balancing and uSB-C charge urrent,management.
-Rear mounted audio jack provides headphone output
-V4.0 Gimbal improved centring and temperature stability (Same circuitry as AG01)
-Optional high/low rear grips included for improved ergonomics.
--lmproved S1/S2 knobs with clear centre-detents.
-lmproved LS/RS Sliders with smoother feel and better centre-detents.- Redesigned battery
cover for improved battery access.
-Retooled body shell with improved fit and finish.
-Trainer socket changed to standard TRS 3.5mm socket.- Rear DIY Socket added for personalised mods
-lmproved internal plastics for better longevity.·Available ELRS and 4in1 versions.
MAX units feature carbon look face plates and CNC finishing components and buttons.
