ISDT 608PD DC 240W/10A USB C 140W/5A Smart Digital Charger PD60 60W 6A UC2 1S/2S LiPo Smart Battery Balance Digital Charger

ISDT 608PD DC 240W/10A USB C 140W/5A Smart Digital Charger PD60 60W 6A UC2 1S/2S LiPo Smart Battery Balance Digital Charger

608PD Feature:

【Support daul mode input: DC 240W/USB-C 140W】 The ISDT 608PD lipo battery charger is new generation of pocket chargers. It supports DC 240W high power, max.10A charging current and USB-C (PD3.1)140W input, max. 5A current, which can be 2~6S lithium/life/ liion/ lipo/lihv/1~16s ni-mh/cd battery charger. Committed to being the best lipo charger for your RC car, plane, drone, spektrum or traxxs batteries.

【RC battery charger with power mode! 】ISDT 608PD is equipped with a bidirectional USB-C port, which not only supports 140W input, but also supports 100W output. When the RC battery is used as a power source, it can charge our mobile phones, laptops and MacBooks with a maximum output power of 100W. Yes, it is not only a 6s 240W lipo charger, but also a 100W USB C PD charger! The design allows energy to be diverted to save energy. (Power adapter and cable not included!!!)

【More worry and time saving】The new generation 608PD supports preset 5 battery types and battery parameters. One-click charging simplifies the operation steps for us. Charging operation is faster!

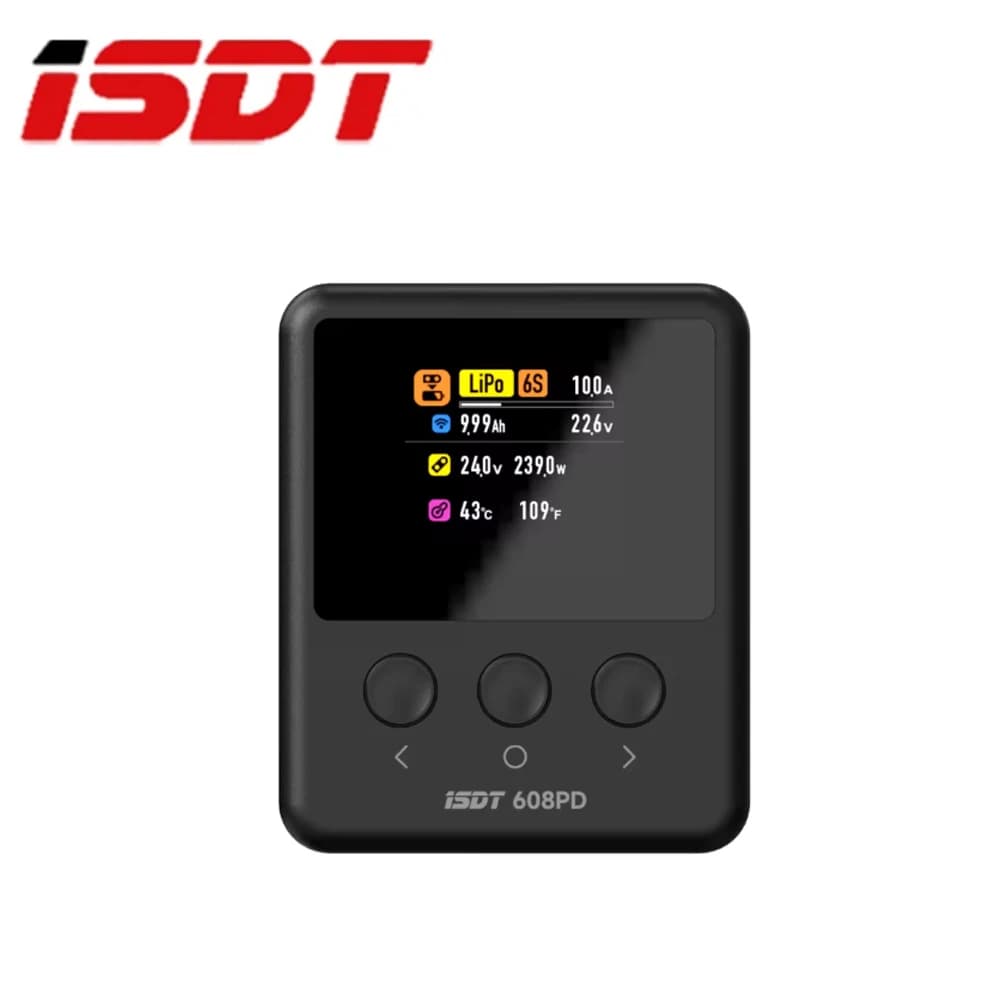

【IPS Screen:Low power consumption】 The lipo balance charger with a 1.5” IPS screen, auto-brightness adjustable, 178°visible angle，display clear and distinct even in varies hard environment or angles as well as in strong sunshine, reduce light damage to user’s eyes.

【ISDT 6S charger with cooling fan】Advanced crafty cooling air duct ，Active cross-flow cooling air duct design, initiative ball bearing cooling fan, with accurate designed aluminum alloy fins and Hi-Tech silicon heat conduct pad, built up a High efficiency heat dissipation system.

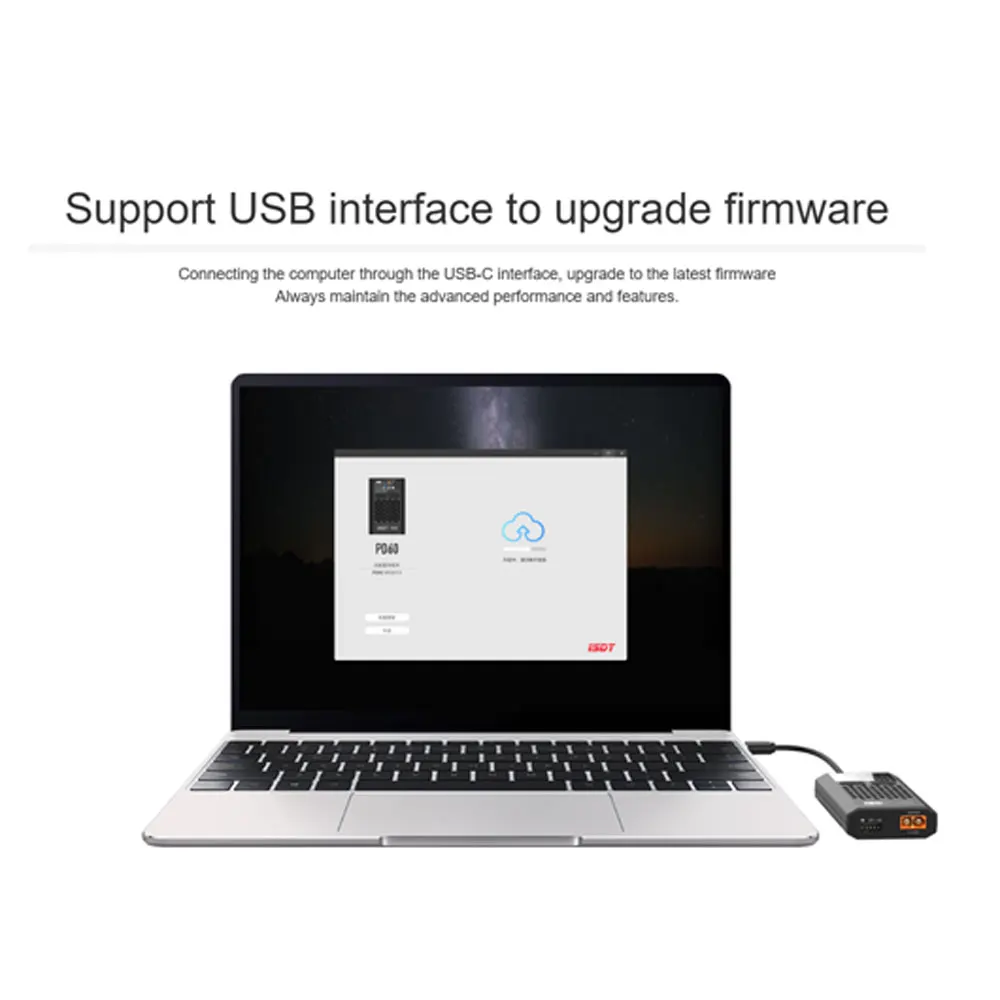

【Support "ISDLink" APP Remote Control 】In APP, you can perform an OTA upgrade of your lipo charger, preset charging tasks, monitor the charging process at any time. Wirelessly operate, awesomely simple. Besides, you also can upgrade the charger on PC by USB port.

【Note】 When 608PD uses PD input, if the computer is used as the power supply, the machine switch key will be locked due to insufficient power, but the app can operate the switch. Therefore, it is recommended to connect a power supply that supports PD output power.

608PD Parameter:

Maximum Input Current: DC 10A,USB-C 5A

Input voltage range: DC 5-30V, USB-C 5-28V

Output Voltage Range: DC 3.0~30V

Charging Current: 0.5~10.0A

Maximum charging power: 240W/10A

Maximum Discharge Power: USB-C 100W/5A （power mode

Support battery type and series: LiFe,LiPo,LiHv(4.35V~4.50V)1-6S/Pb 1-12S/NiMH 1-16S

Balance Current: 0.8A/Cell Max

Operating Temperature: 0~40℃ Storage Temperature: -20~60

Abnormal battery voltage alarm: Support

Alarm for string number setting error: Support

Dimension: 72.5×60×26.6mm

Weight: 85g(±10%)

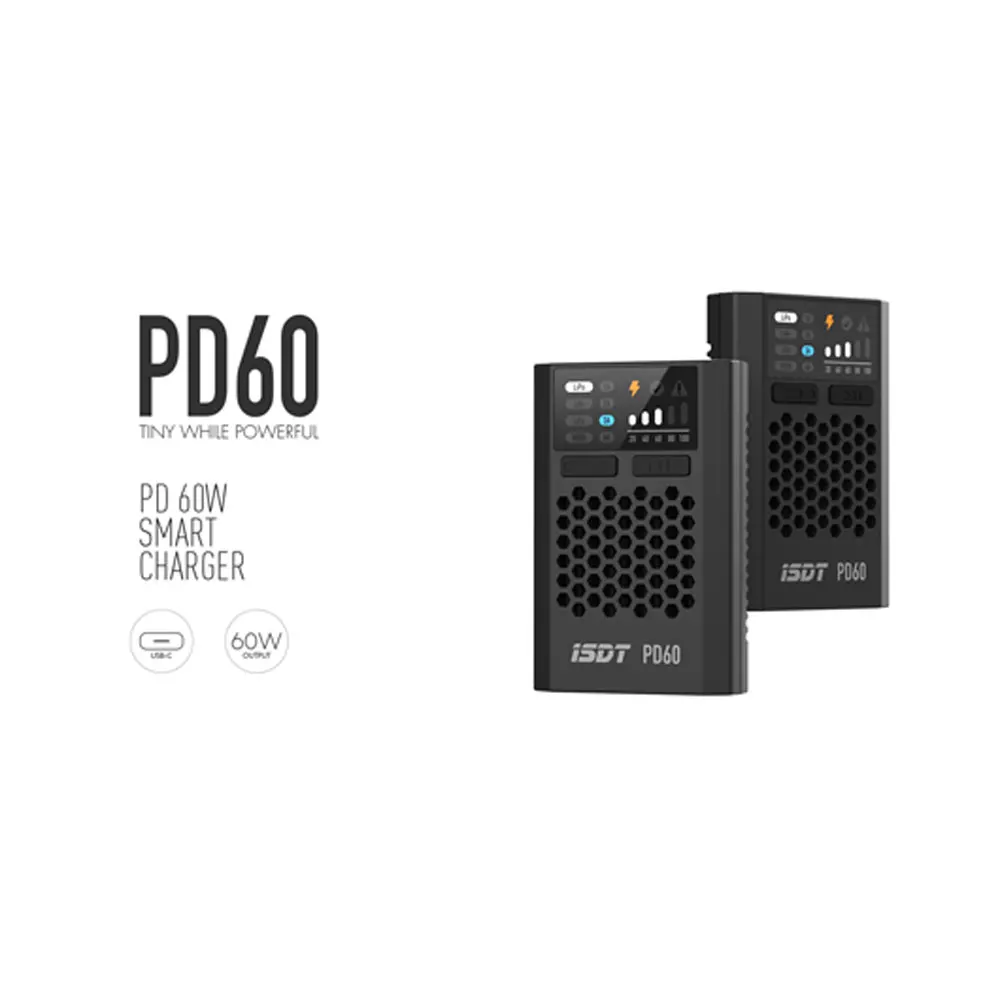

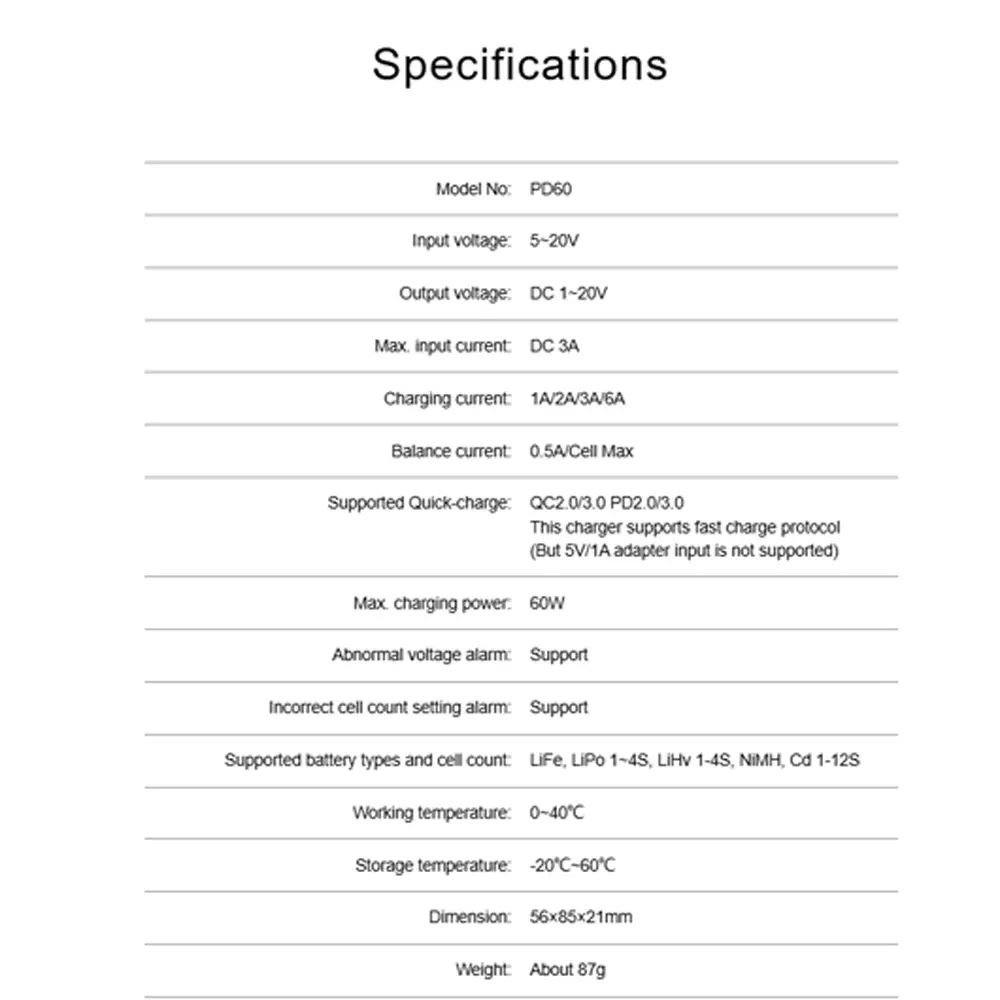

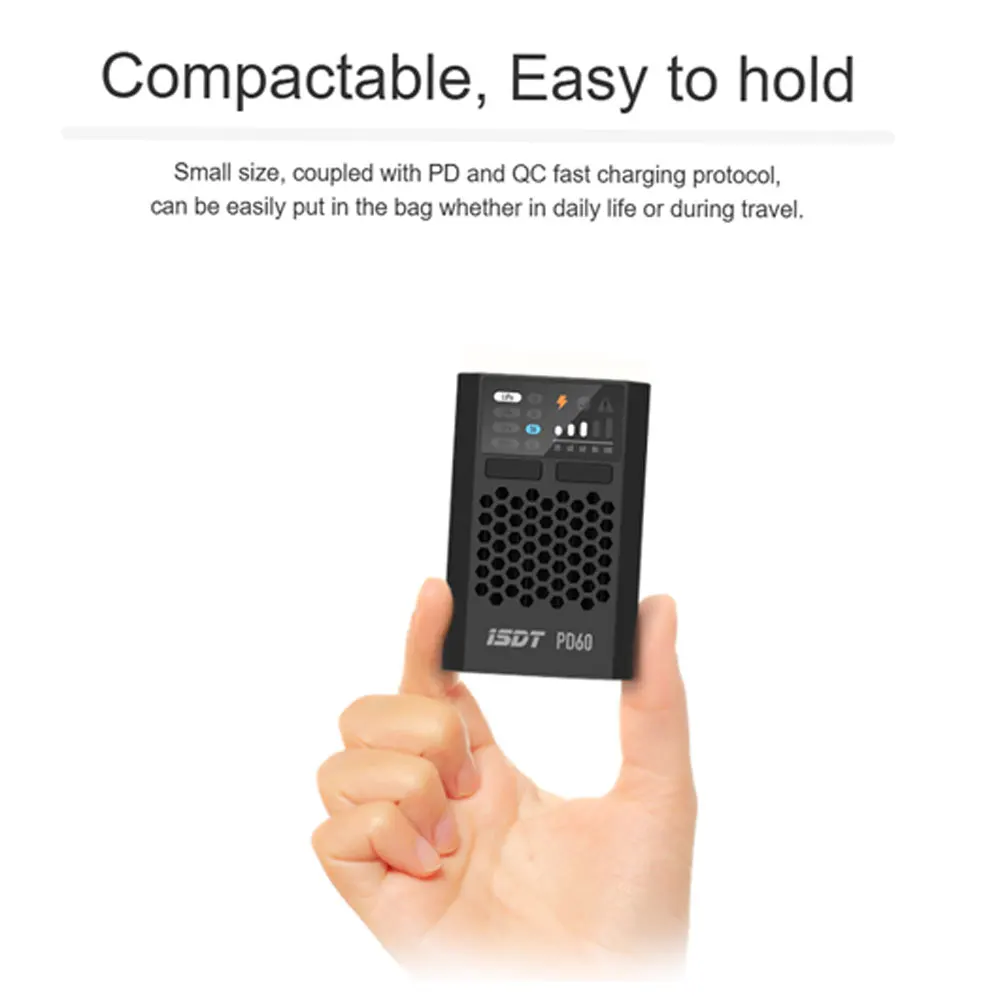

Model No.:PD60

Input voltage: DC 5V-20V

Output voltage: DC 1.0V-20V

Max Input Current: 3A

Charging Current: 1A/2A/3A/6A

Max Charging Power: 60W

Balance Current: 0.5A/Cell Max

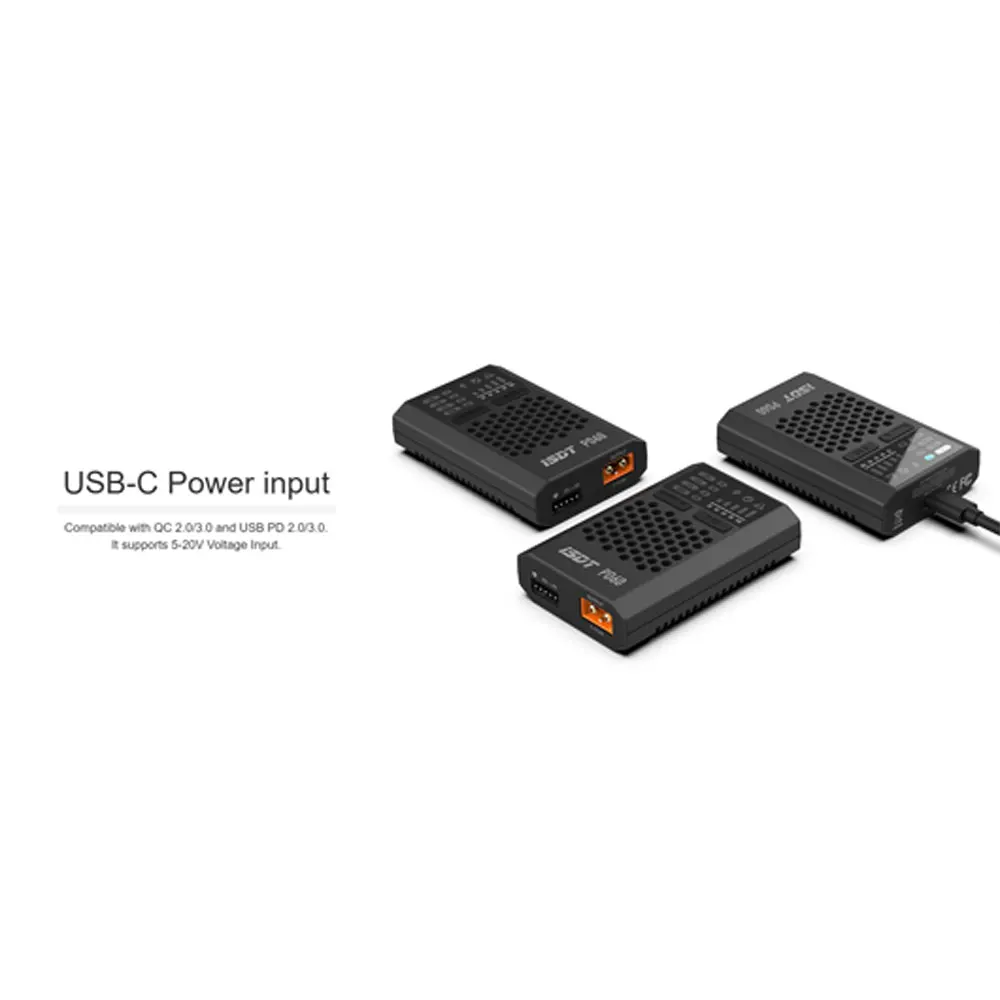

Support Quick-Charge: PD2.0/3.0,QC 2.0/3.0

(Not supported 5V/1A power supply input)

Support Battery Types and Cell Count: LiFe/LiHV,LiPo 1-4S

NIMH/Cd 1-12S

Abnormal Voltage Alarm: Support

Incorrect Cell Count Setting Alarm: Support

Working temperature: 0-40°C

Storage temperature: -20-60°C

Dimension: 56x85x21mm

Weight: 87g

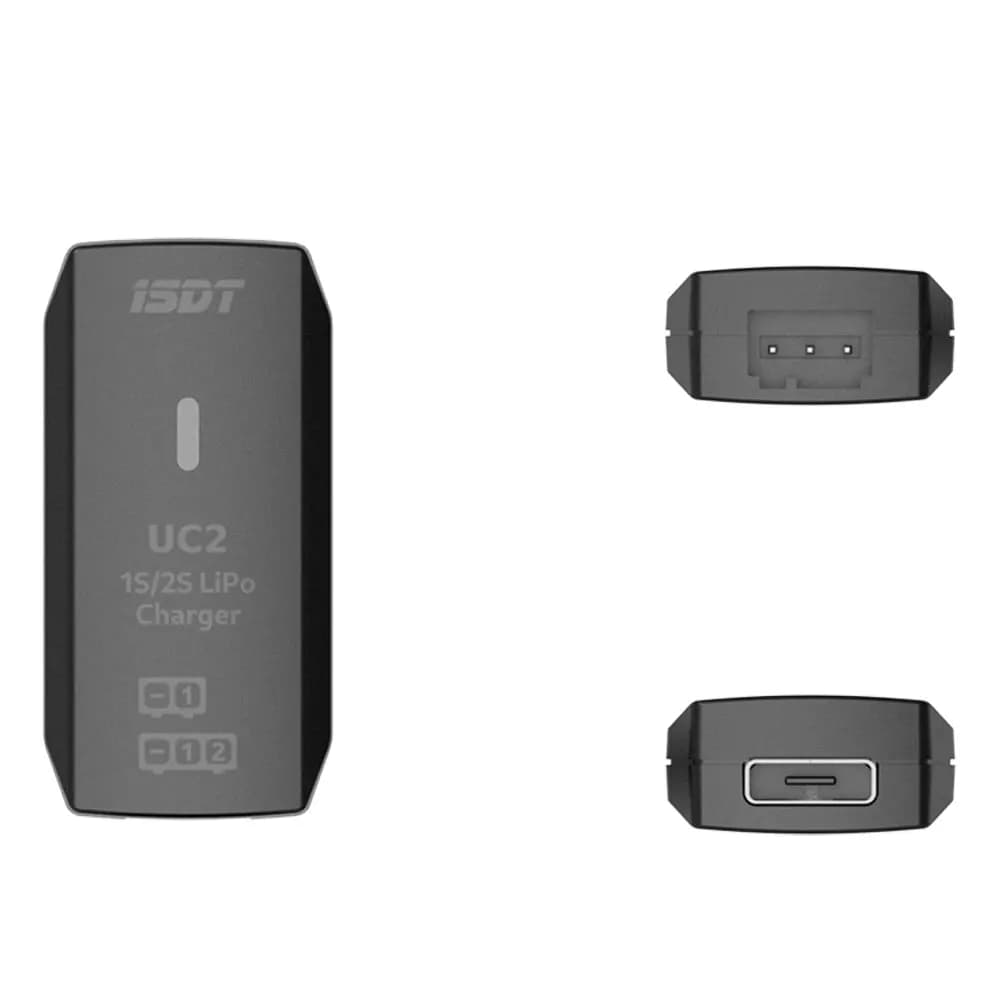

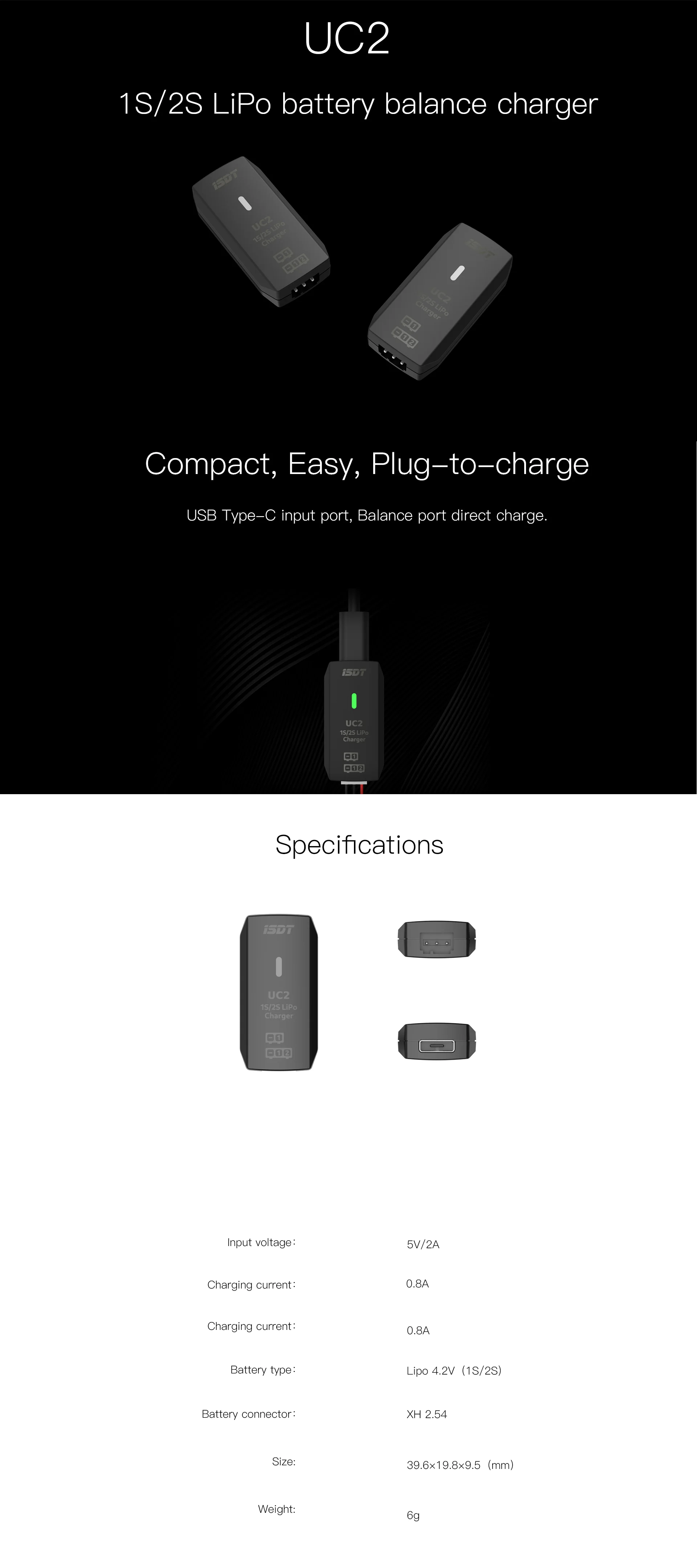

UC2 Specification:

Input voltage: 5V/2A

Charging Current: 0.8A

Battery Type: Lipo 4.2V (1S/2S)

Battery connector: XH2.54

Output voltage: 5.0~12.0V

Size: 39.6x19.8x9.5mm

Weight: 6g
