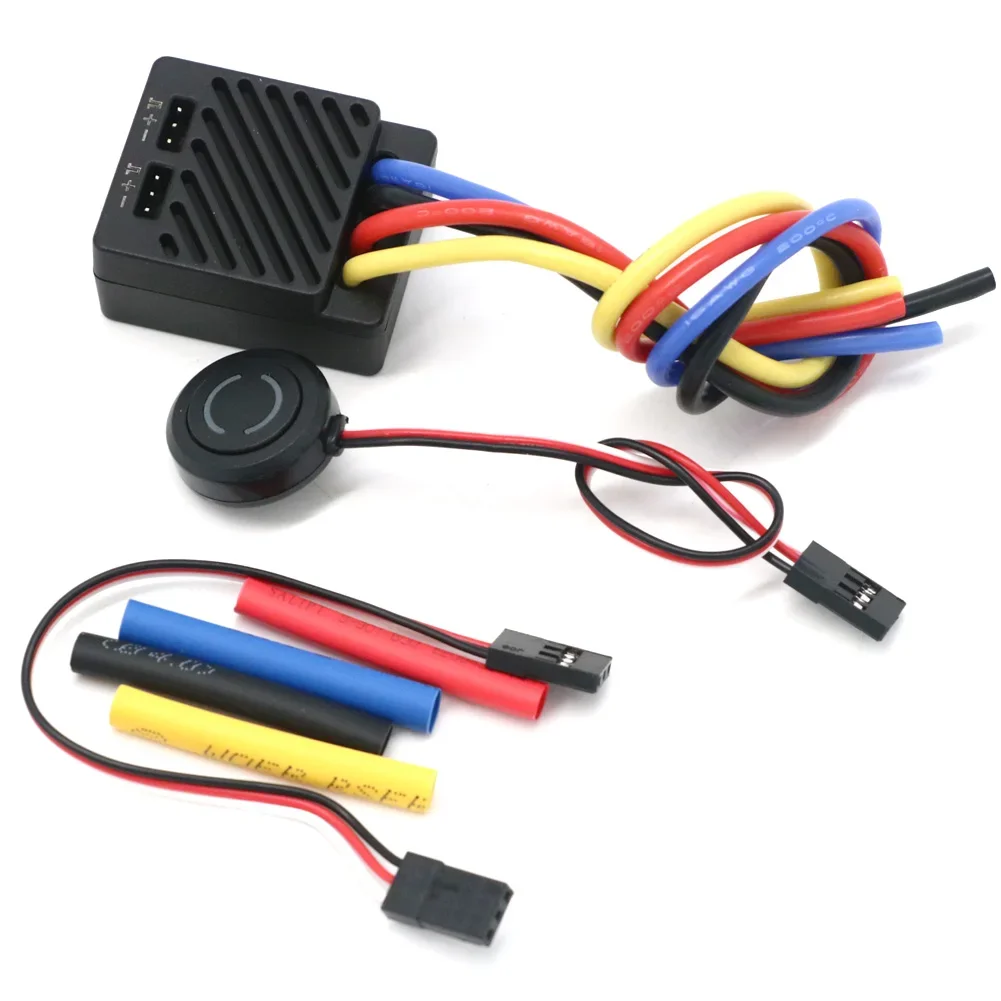

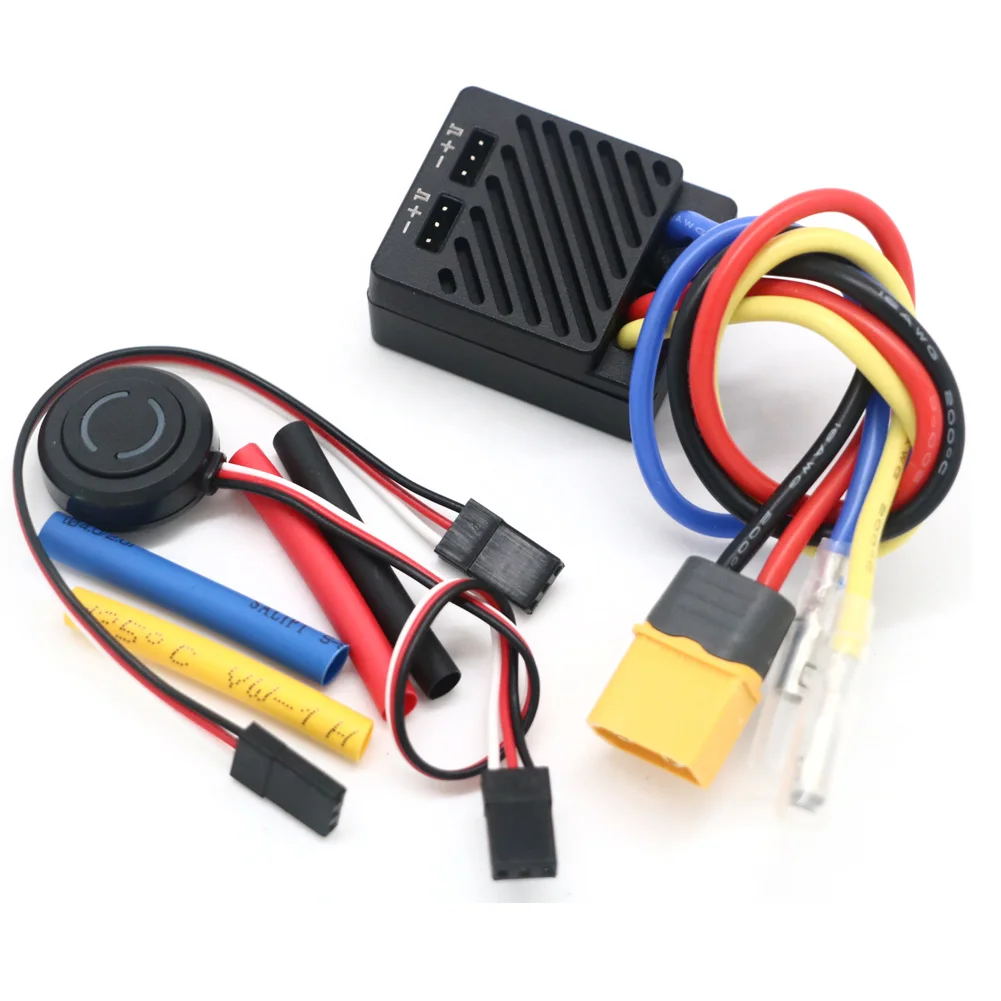

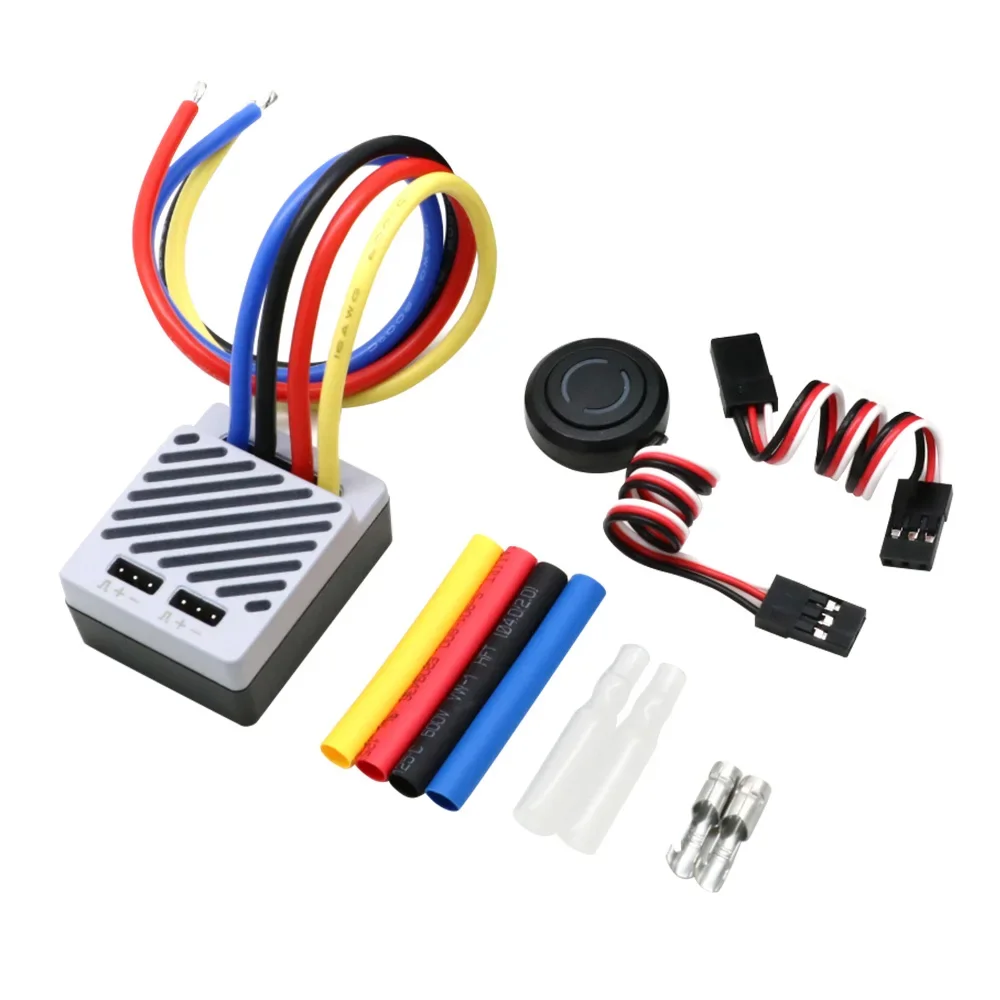

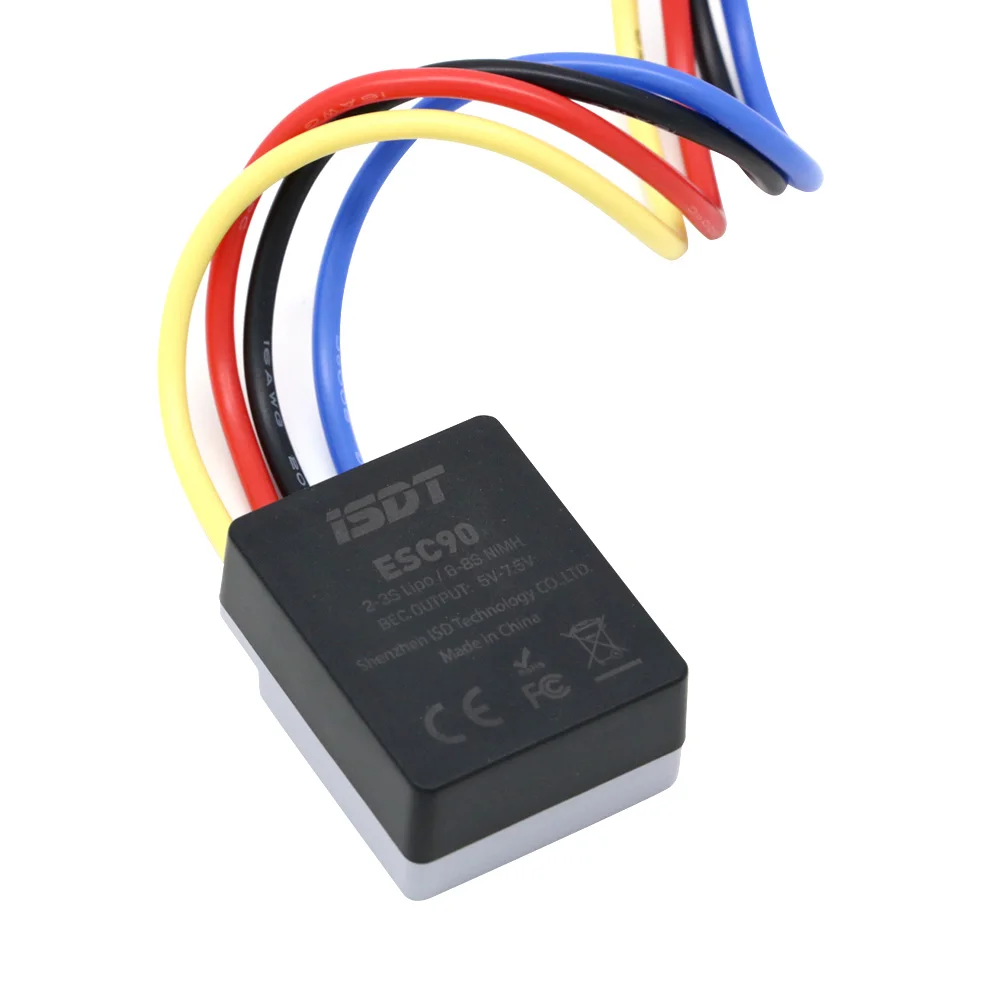

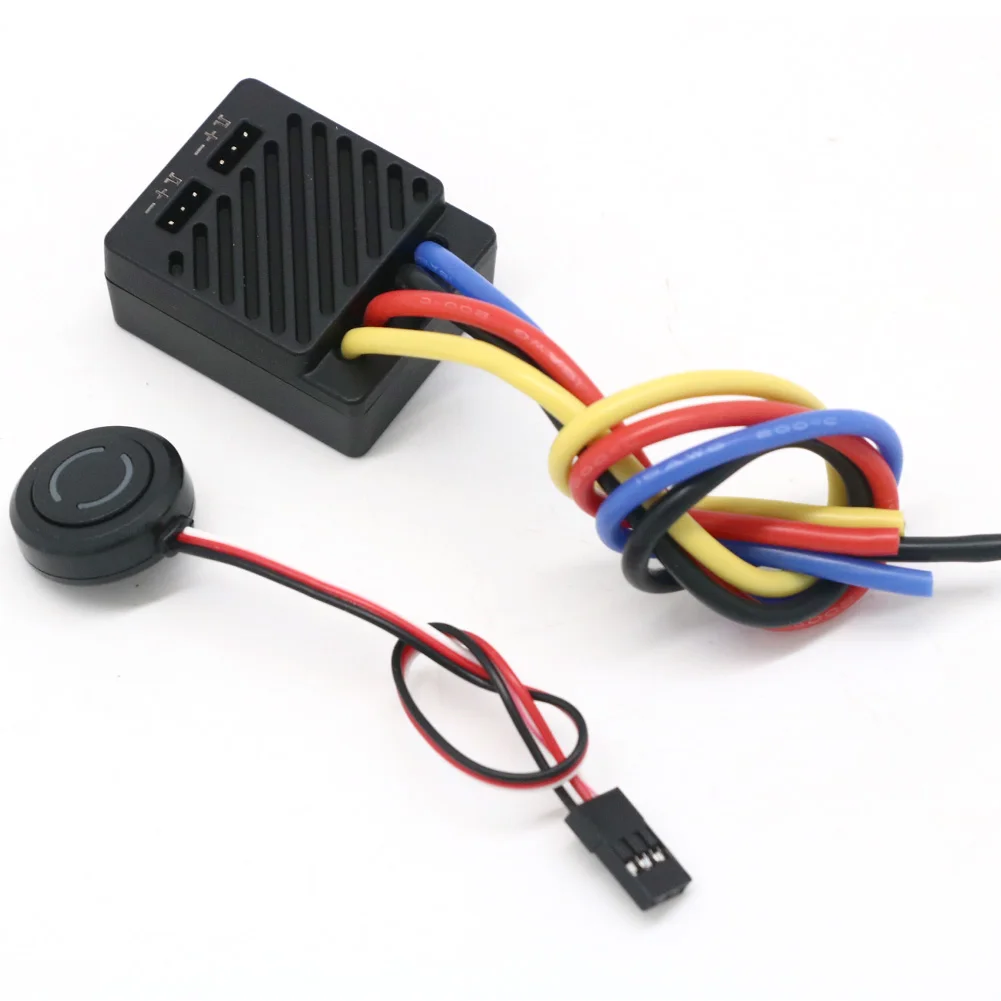

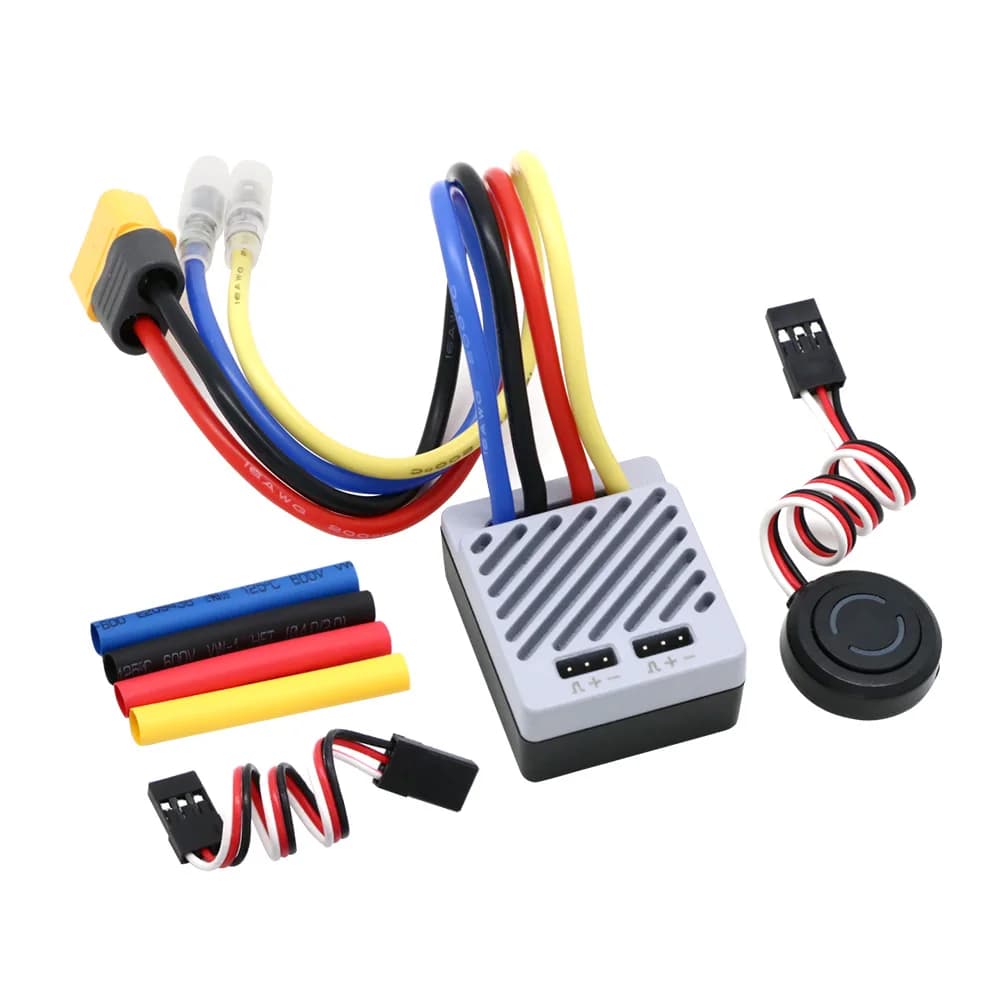

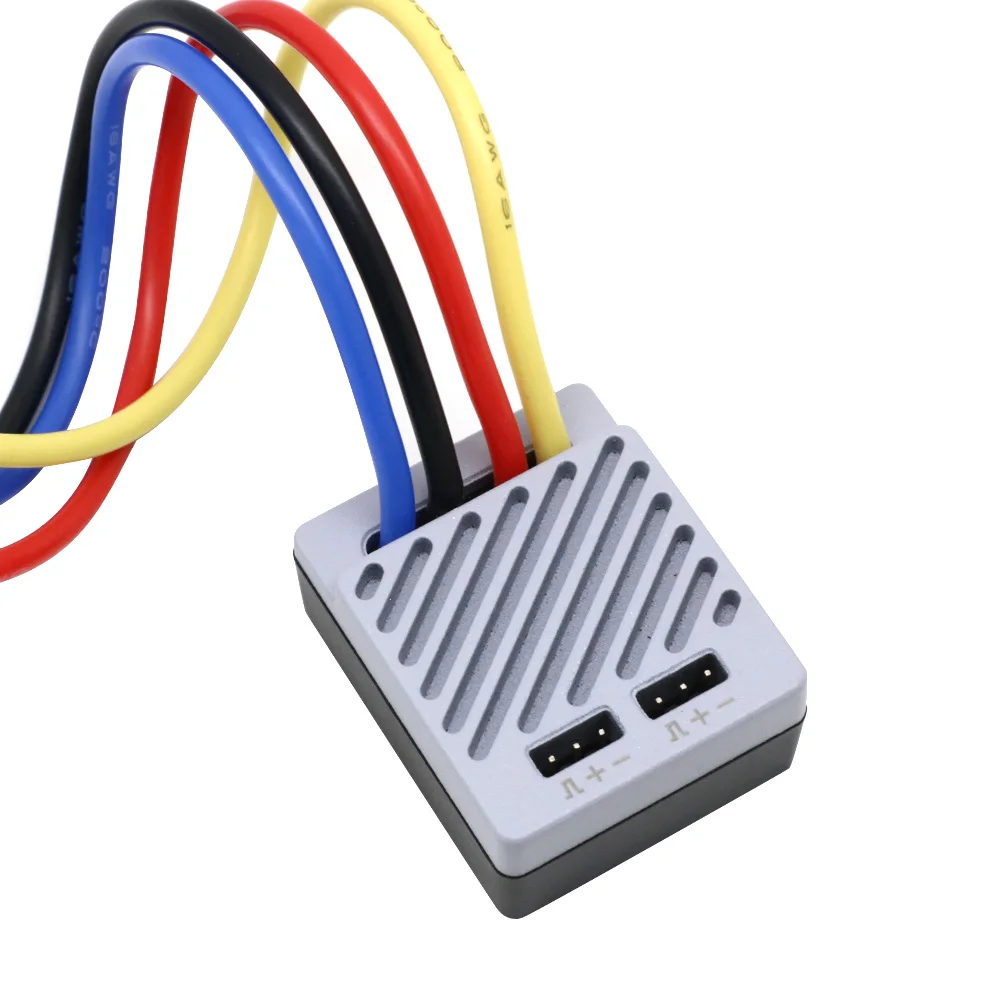

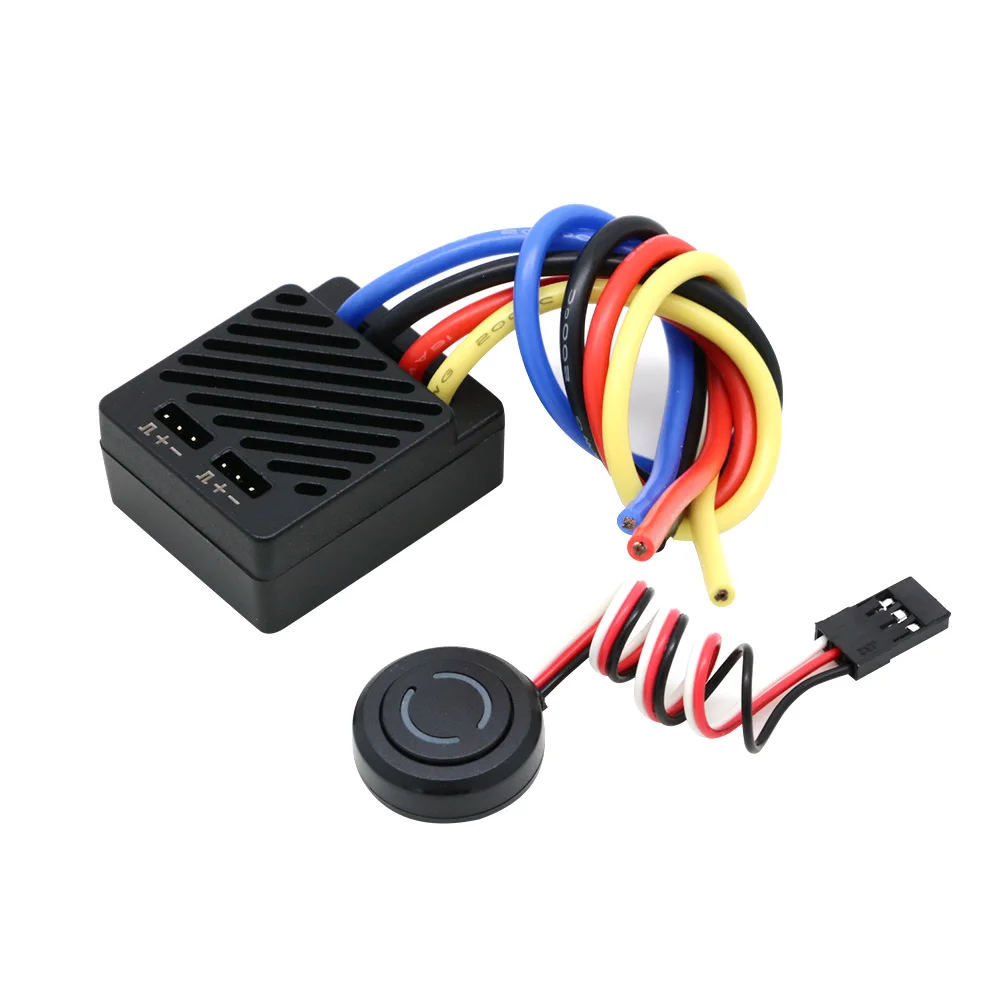

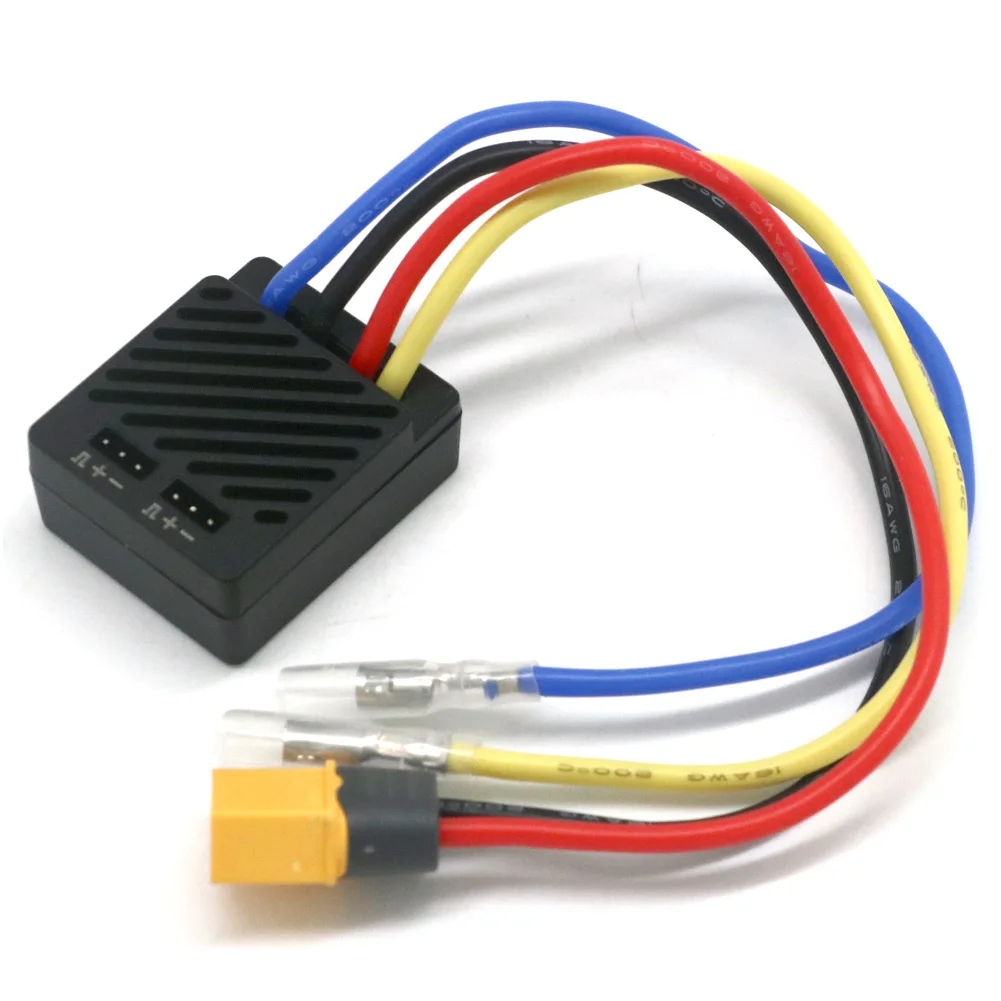

ISDT ESC70 ESC90 WP 1080 70A 90A Waterproof ESC 2~3S Adjustable BEC Phone Control 540/550 Brushed Motor For 1/8 1/10 Car

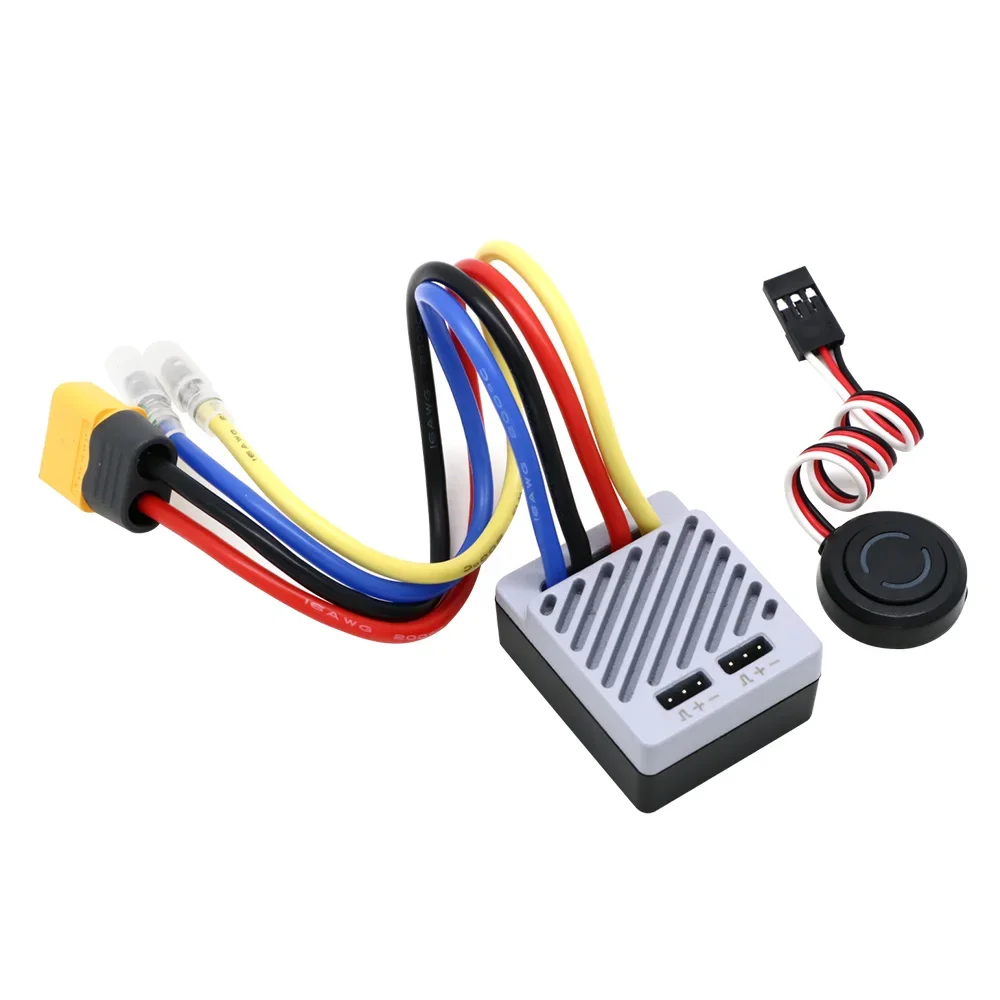

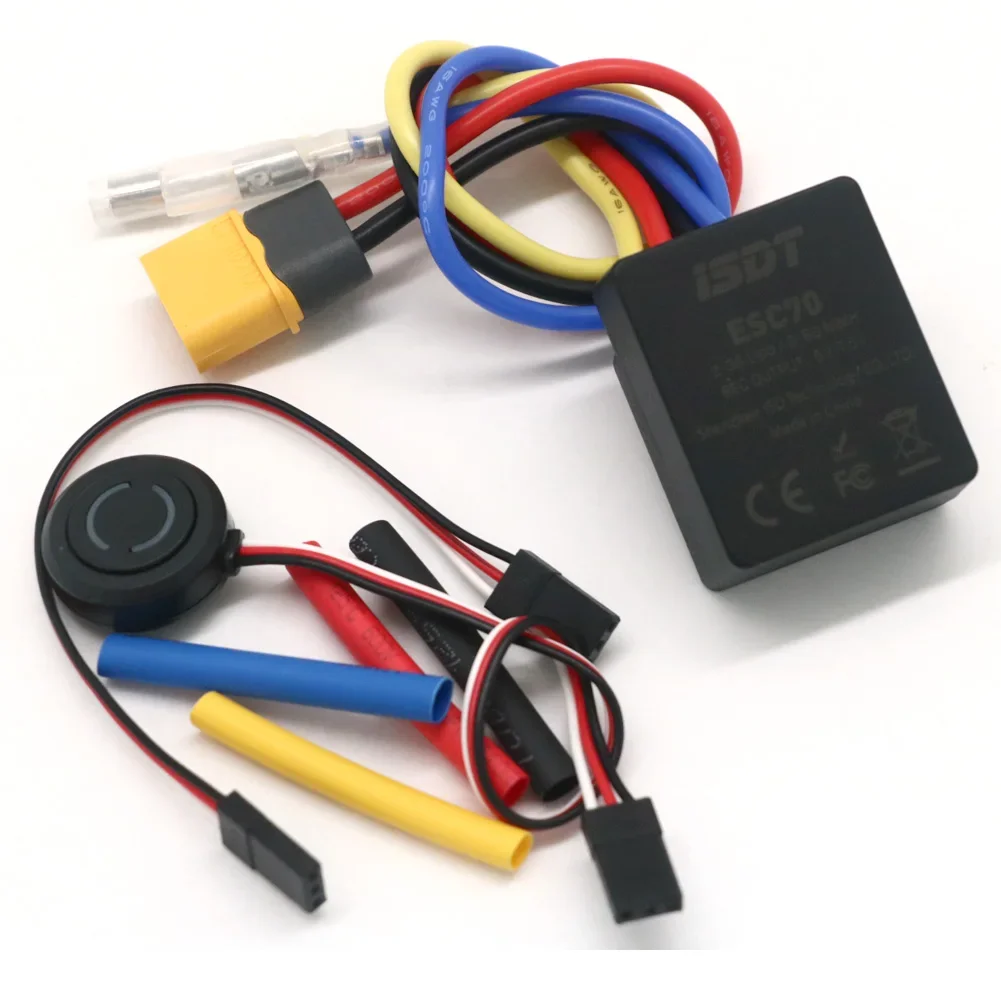

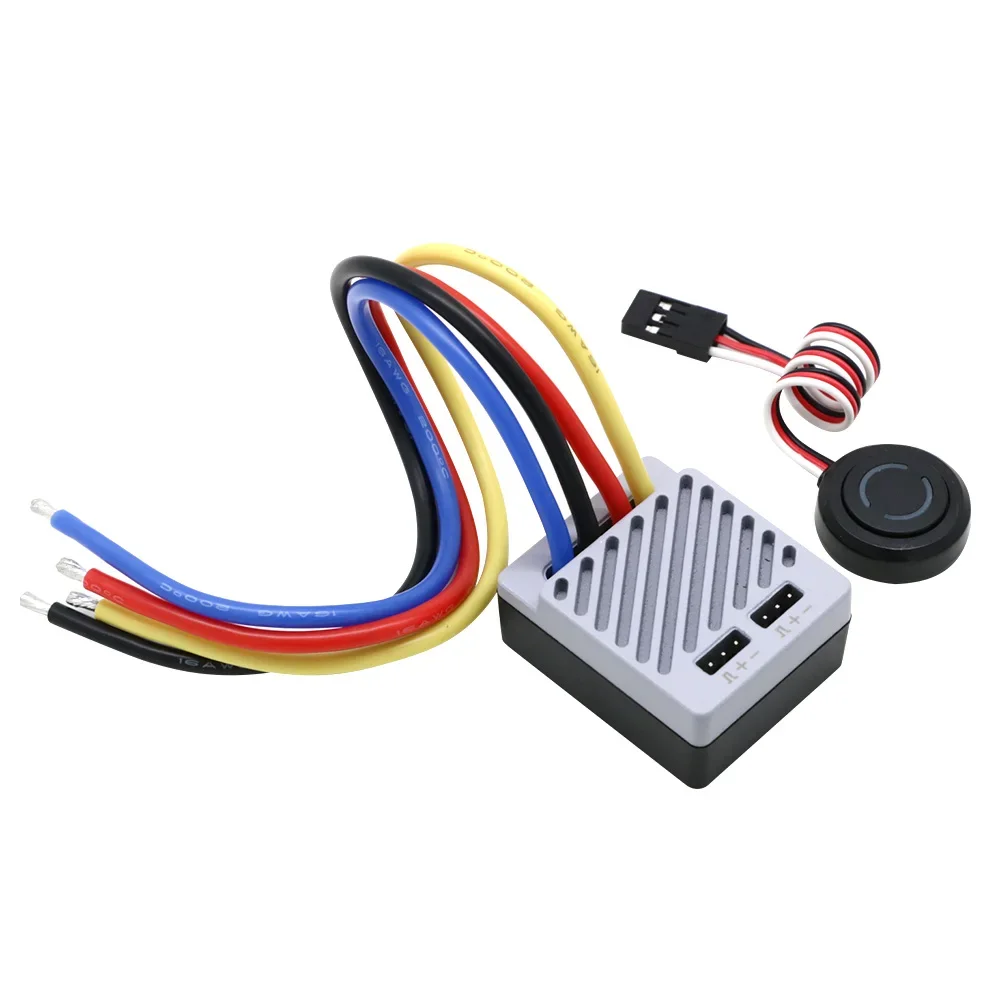

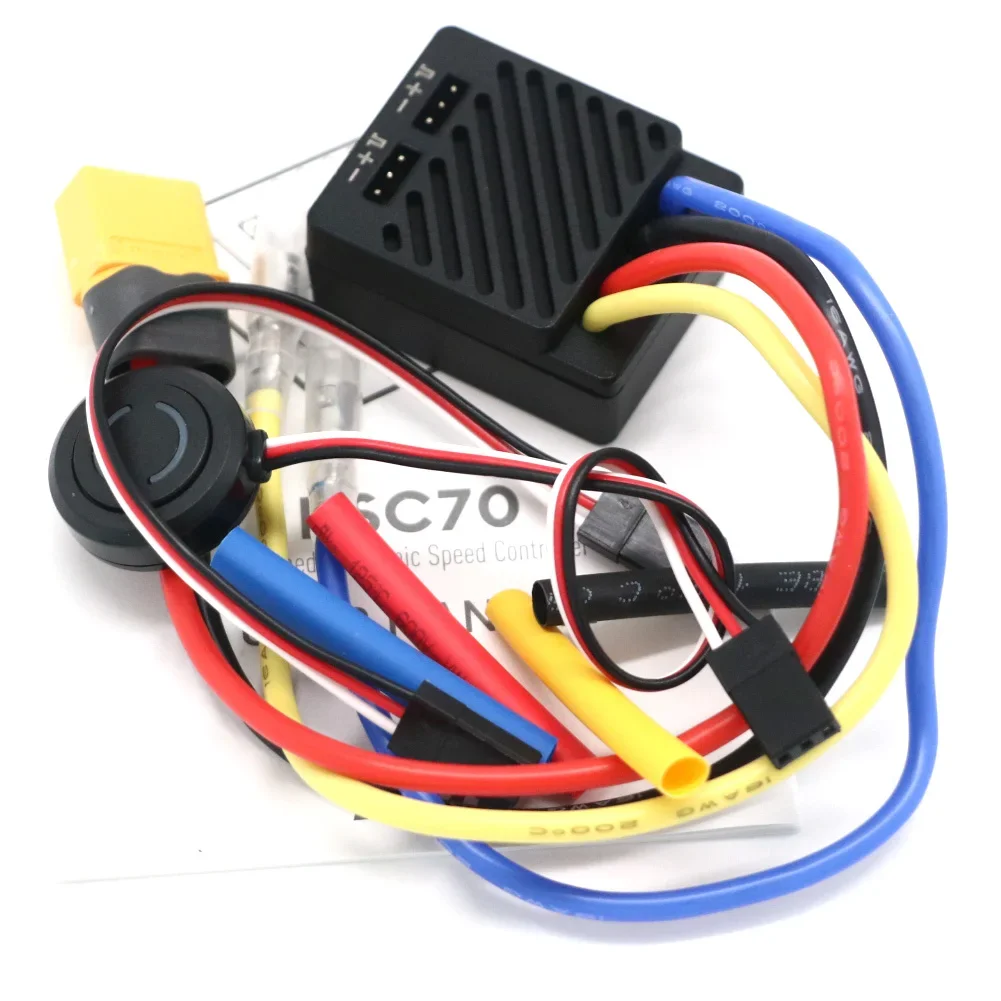

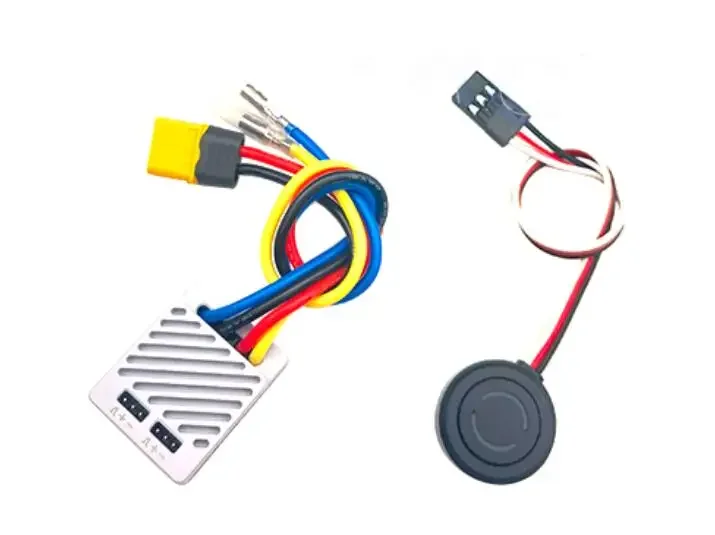

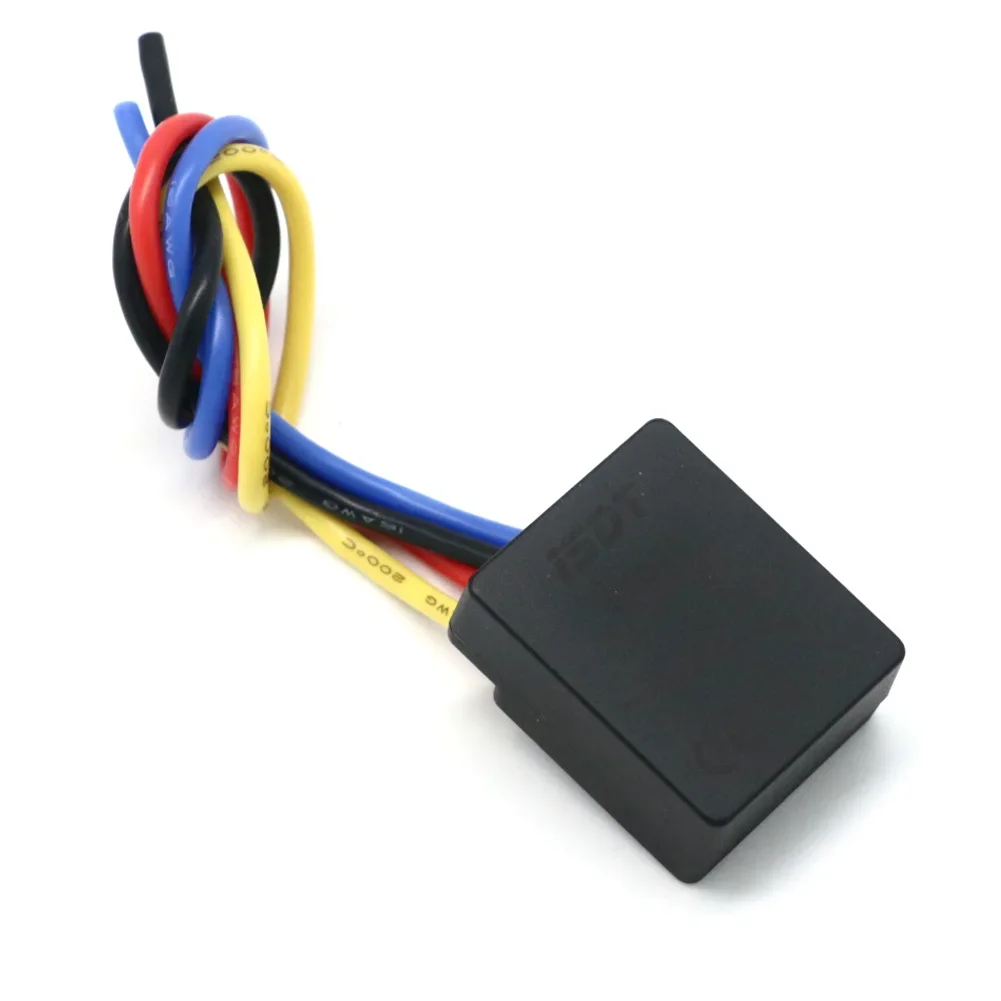

ISDT ESC70 WP 1080 70A Brushed (2-3S) Motor ESC Electronic Speed Controller Waterproof XT60-Plug RC Car 1:10 1:8 ISDT ESC70 WP

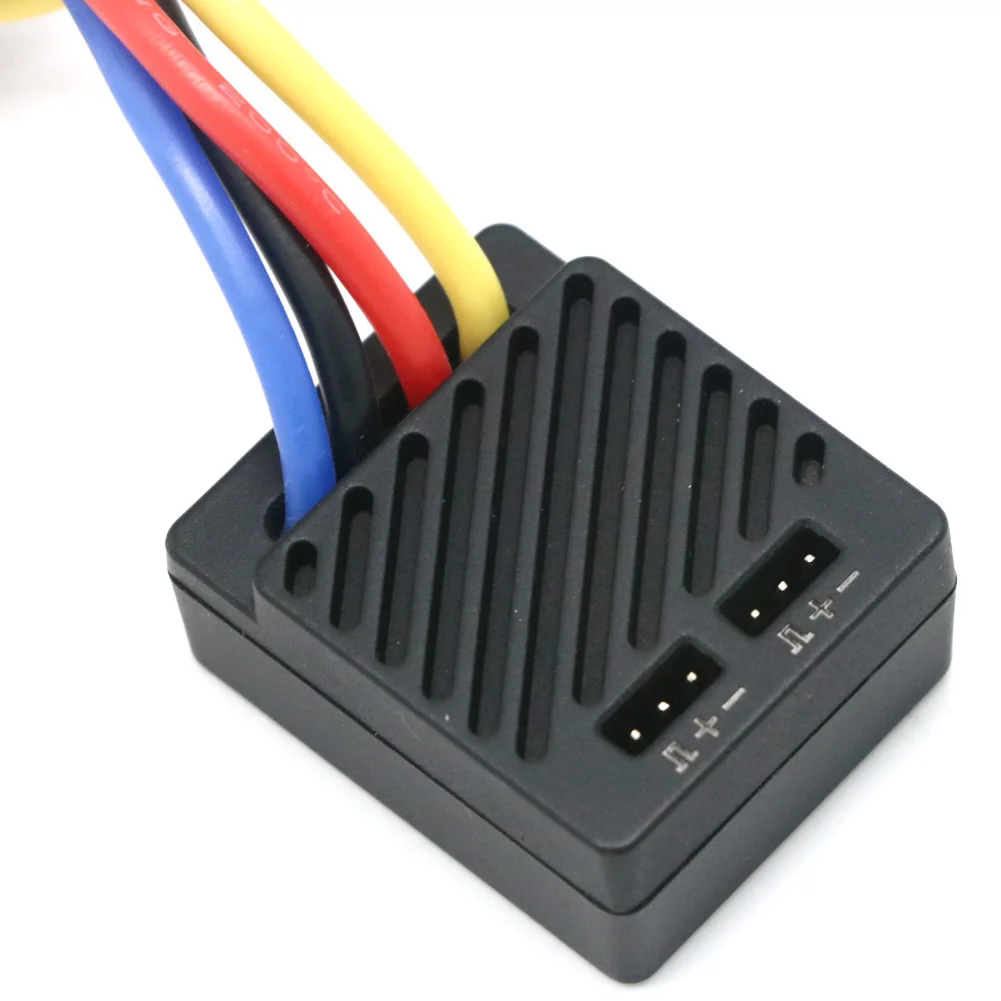

• Fully waterproof design for all conditions. (Note: please clean and perform maintenance after use for avoiding corrosion)

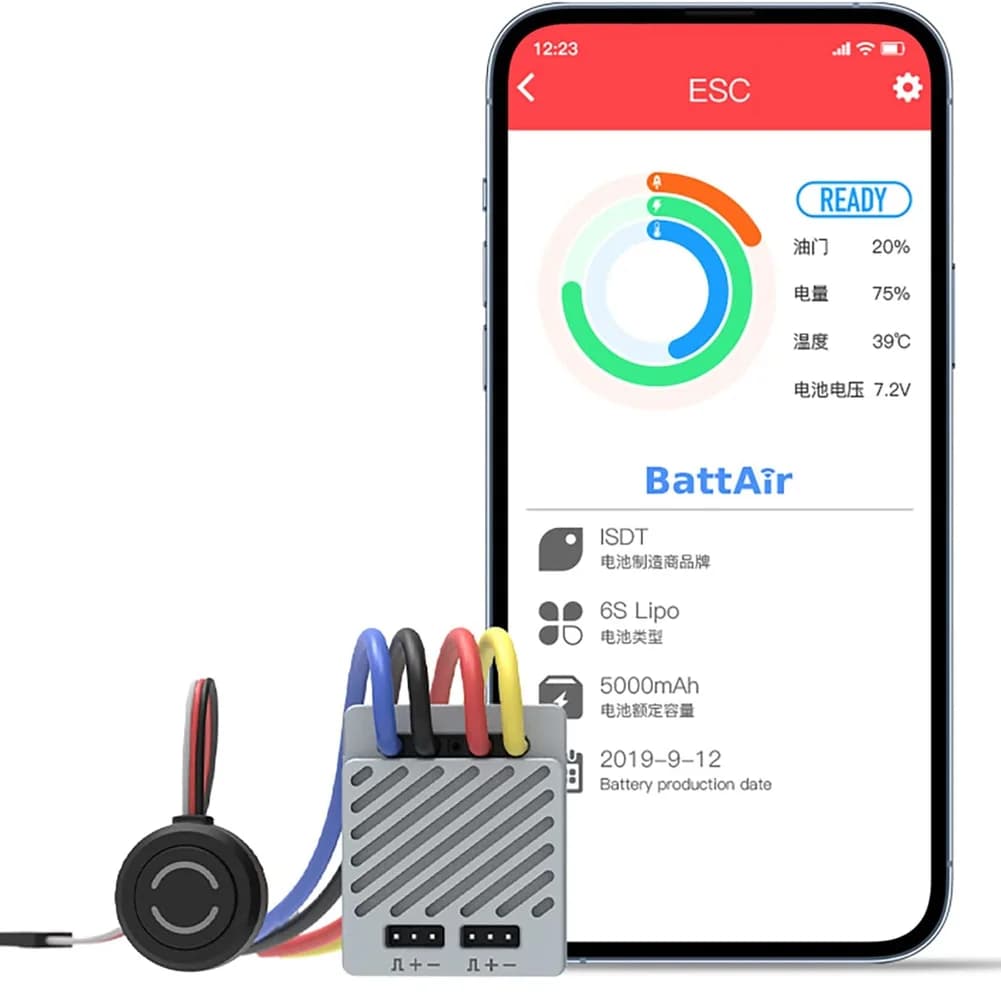

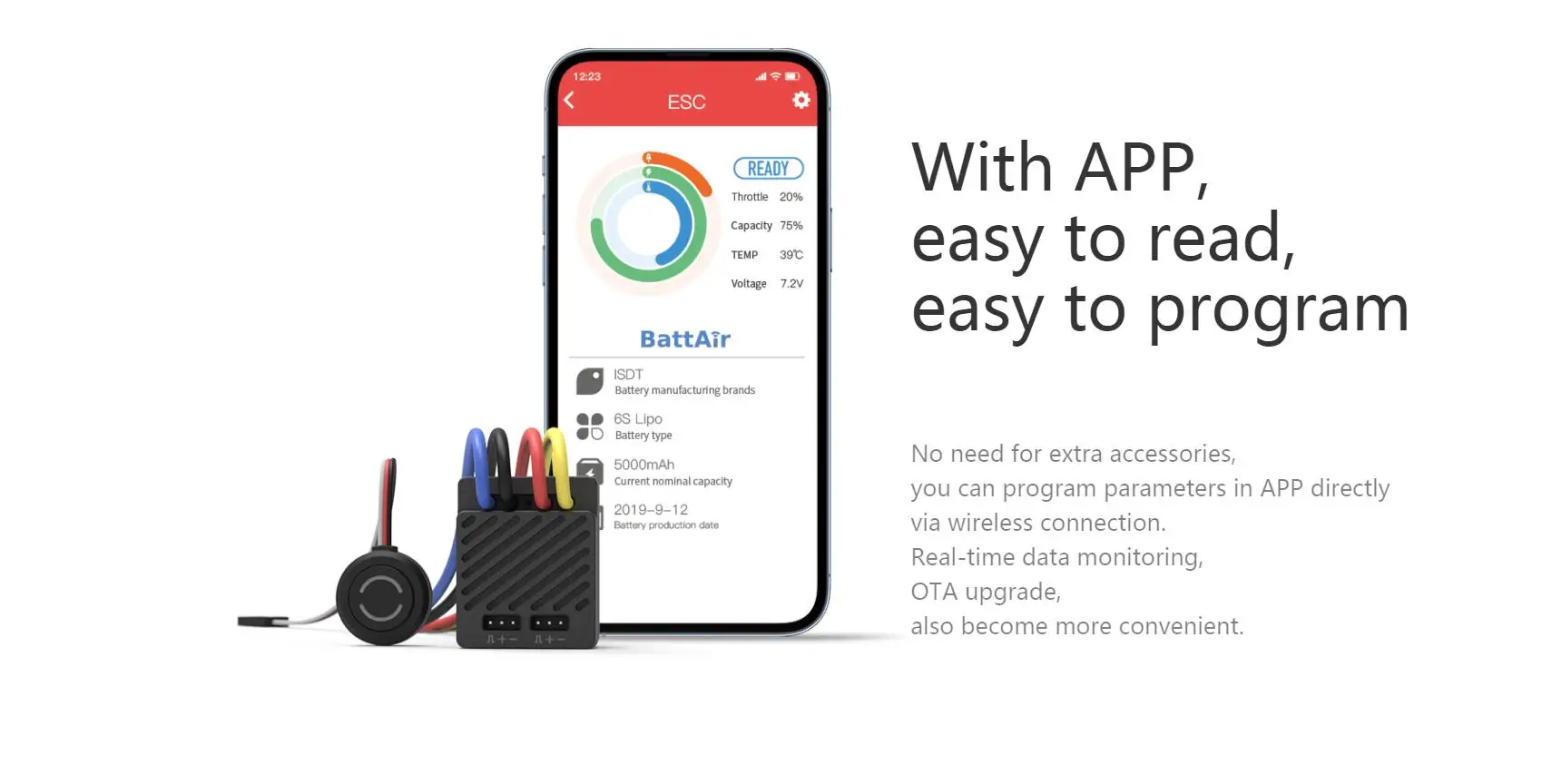

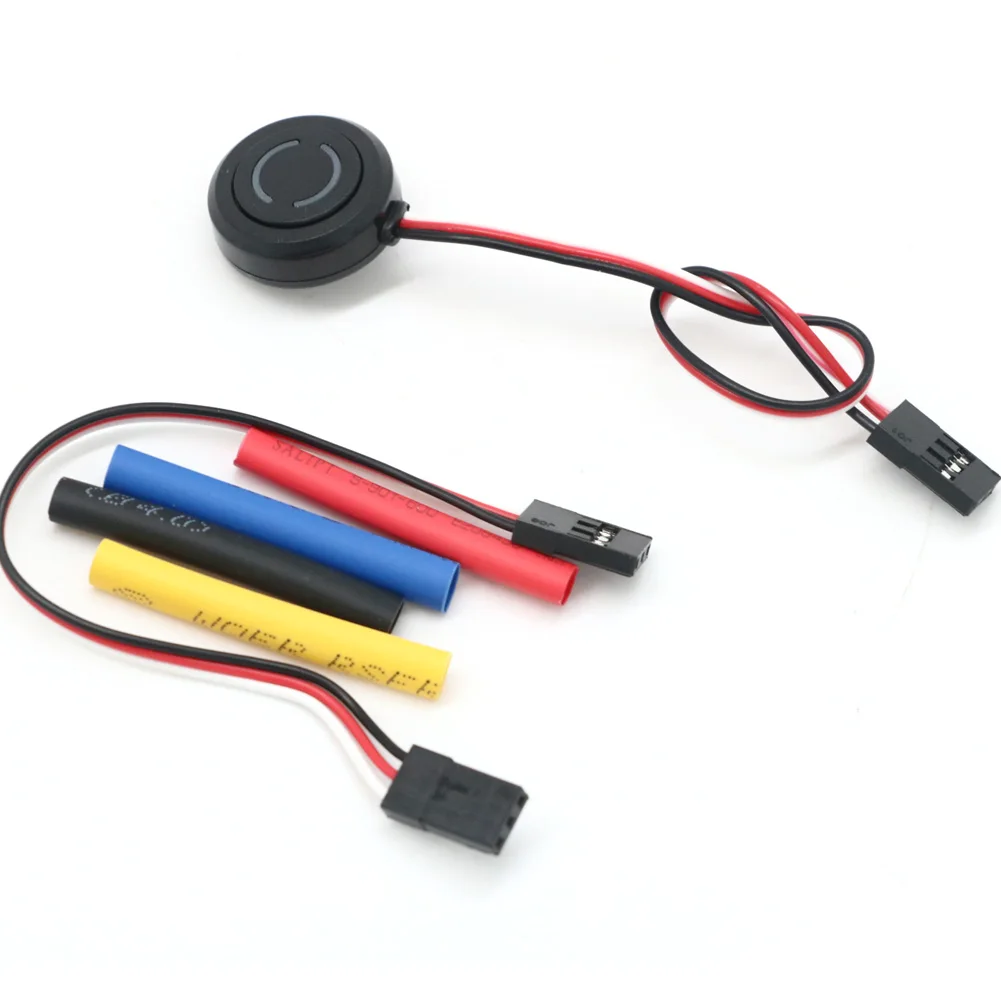

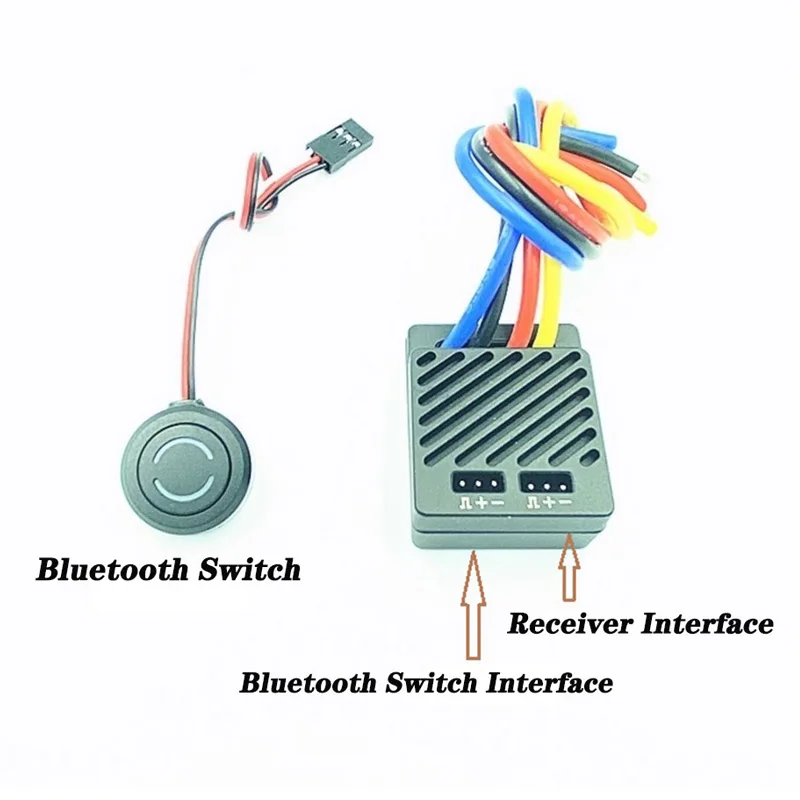

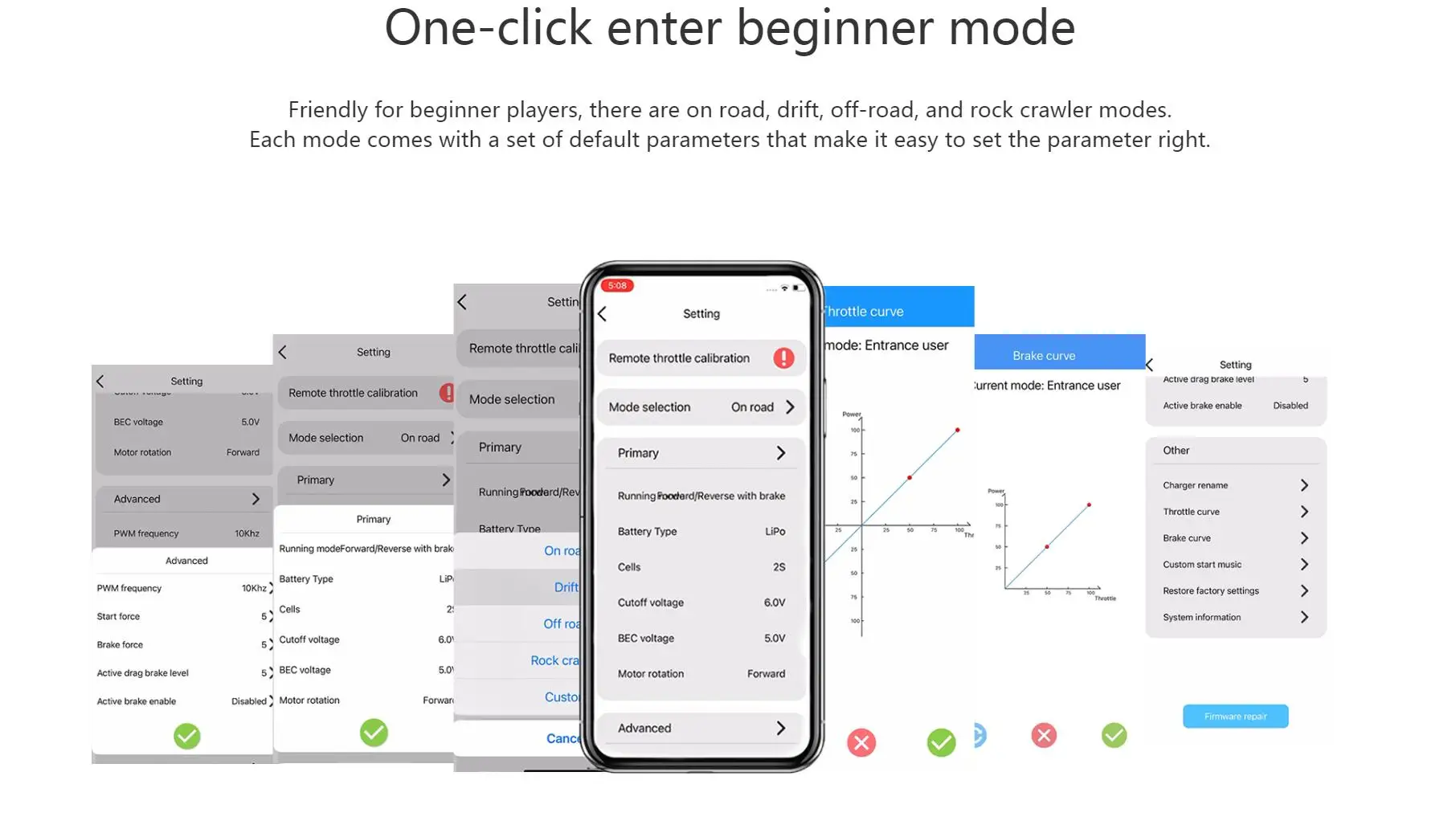

• Advanced electronic switch and Bluetooth two-in-one module, Support real time operating parameter and status via the ISD Go APP.

• Built-in BEC with adjustable output features; outputs continuous current up to 3A, and support 5V to 7.5V with 0.1V adjustment via ISD Go APP. Support various powerful rc applications and high-voltage servos.

• Adjustable PWM frequency and advanced synchronous function provide ideal throttle curve and outstanding performance for dierent vehicles, conditions.

• Adjustable Active drag brake function and adjustable Brake force or initial braking. Slope anti-skid locking function specially designed for RC Crawler that characteristics operating on toughest terrain.

• Multiple protection functions: battery low voltage protection, over temperature protection, throttle out of control protection, BEC overvoltage and undervoltage protection

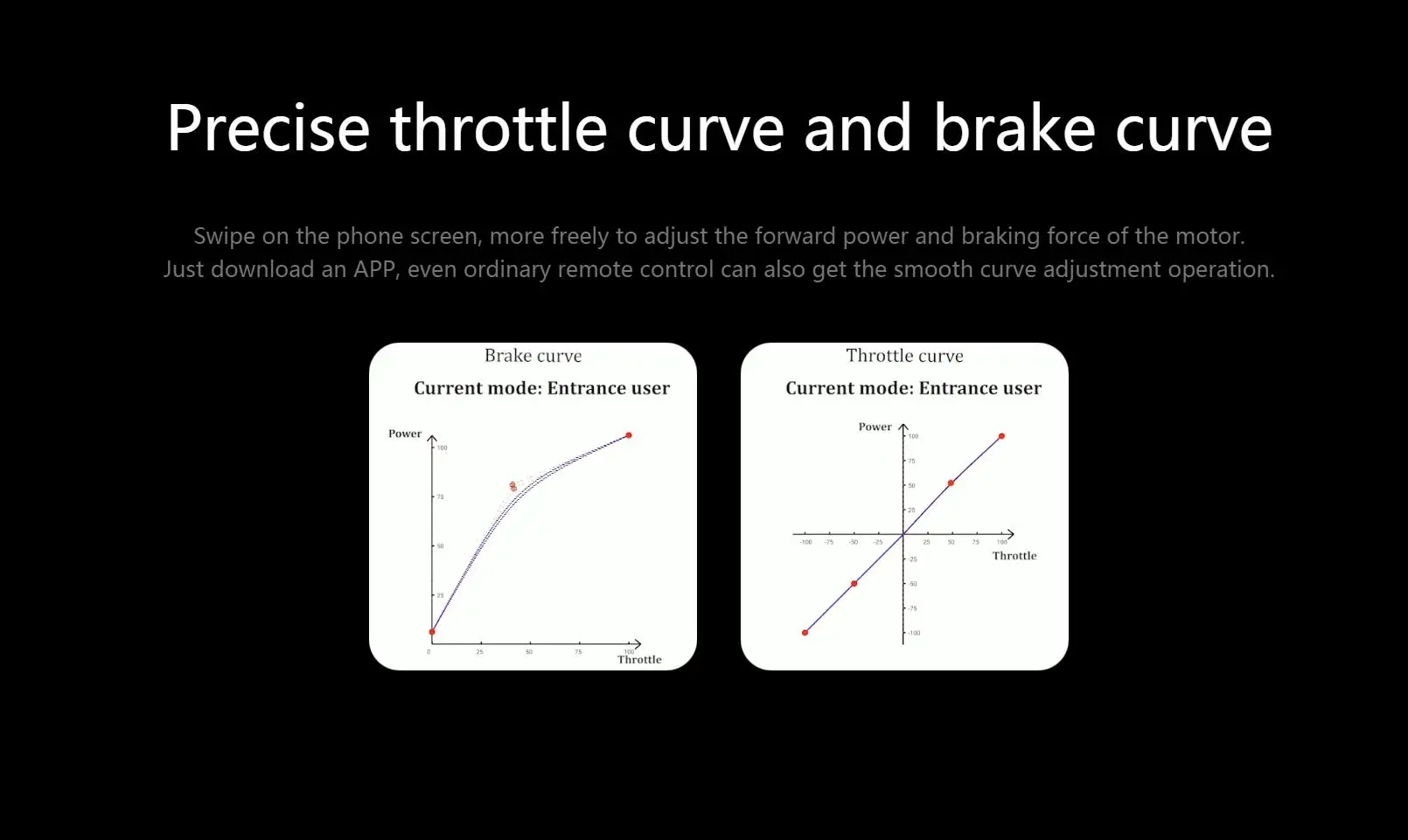

• Stepless adjustment of throttle and brake curve

• Customizable start tone

• OTA upgrades firmware and updates functions in time

• Ramp anti-skid locking function designed for climbing car

Specifications：

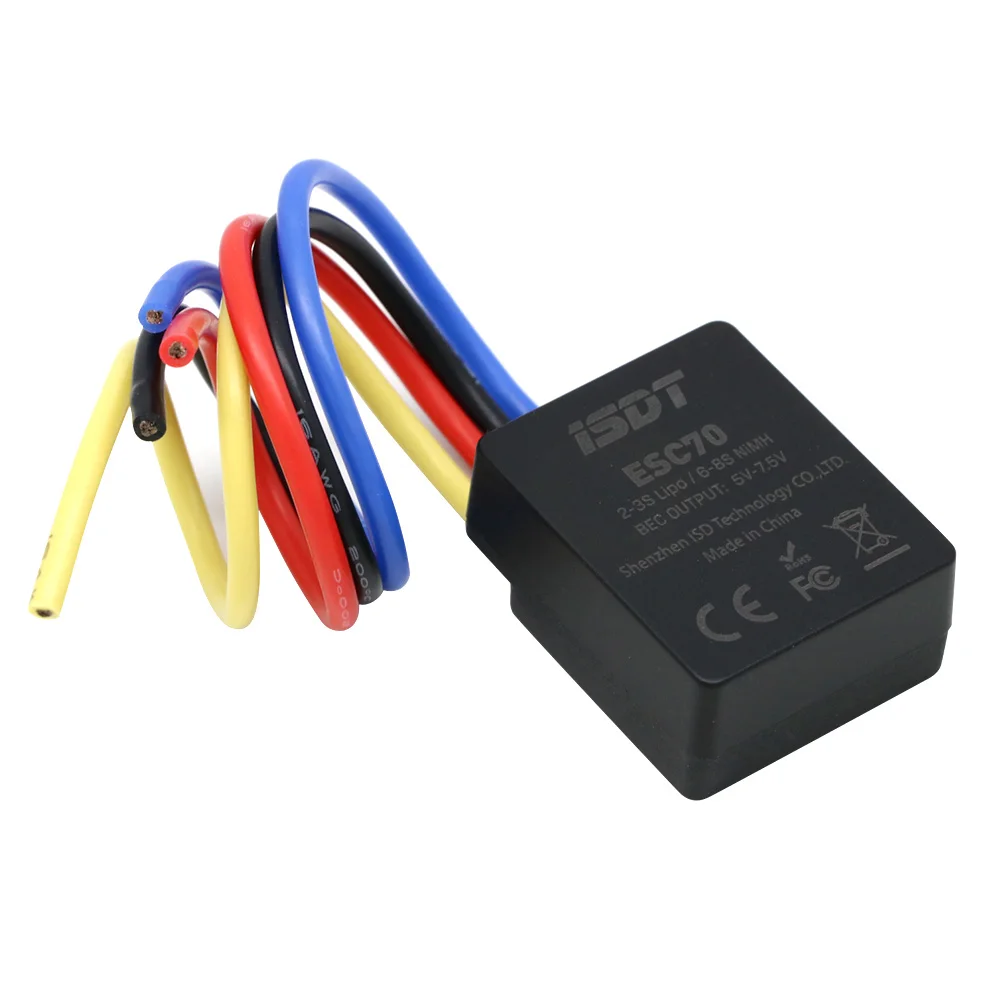

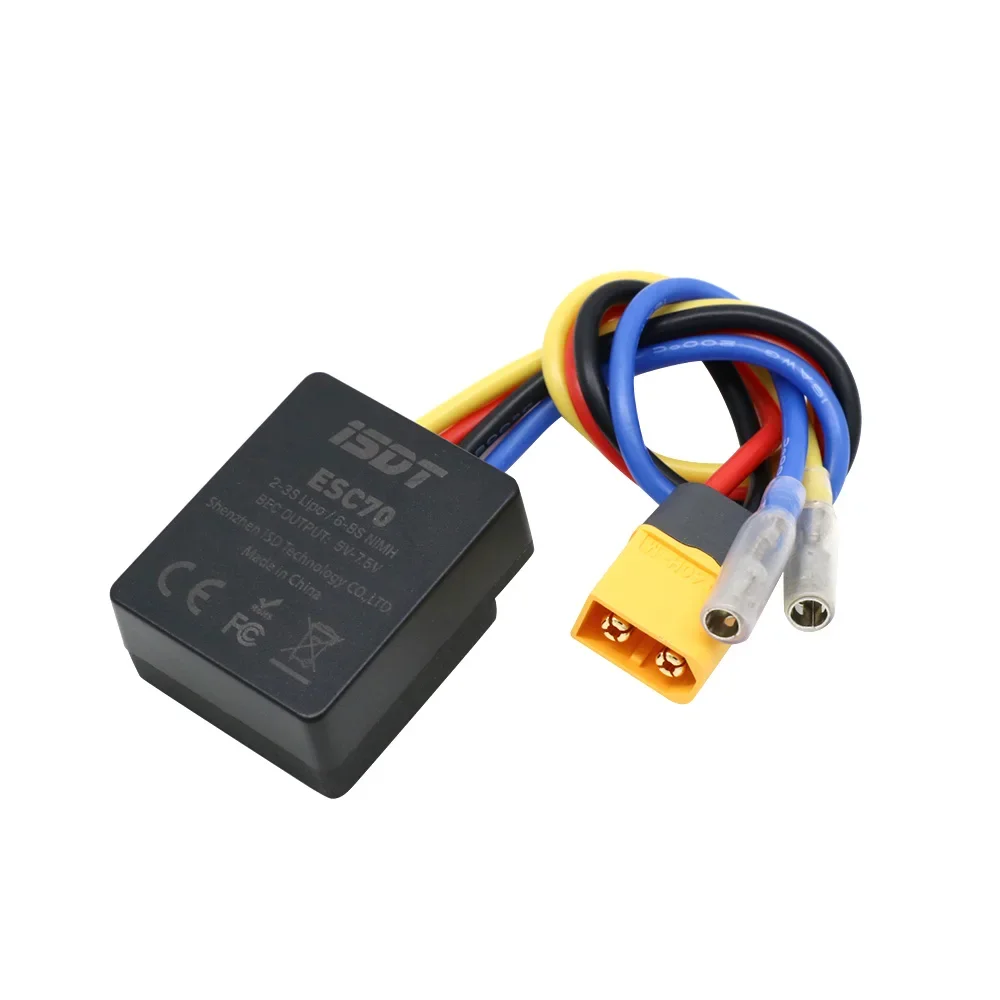

Item Brand:ISDT

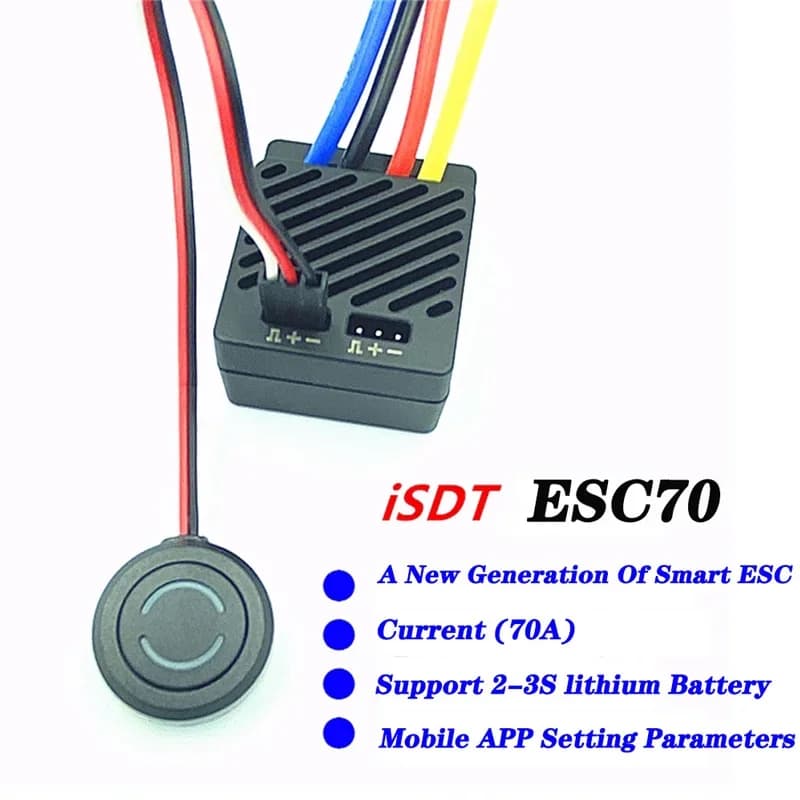

Model:ESC70

Cont./Peak Current:70/120A

Motor Type:540/550/775 Brushed Motor

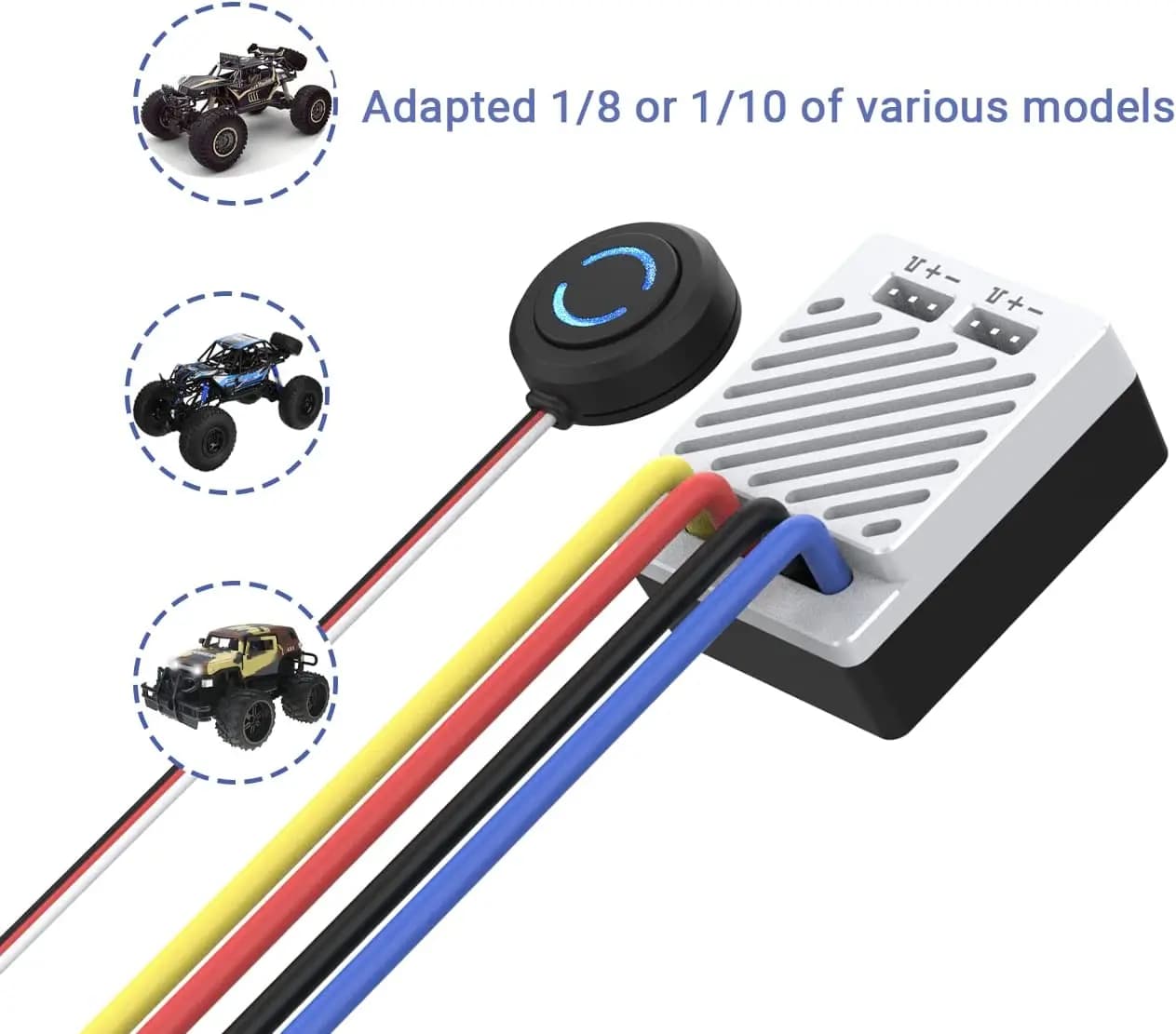

Application:1/8 1/10

Support batteries:Lipo(2-3S)/NiMH(6-8S)

BEC Output:5V-7.5V Switch (Stepping 0.1V)

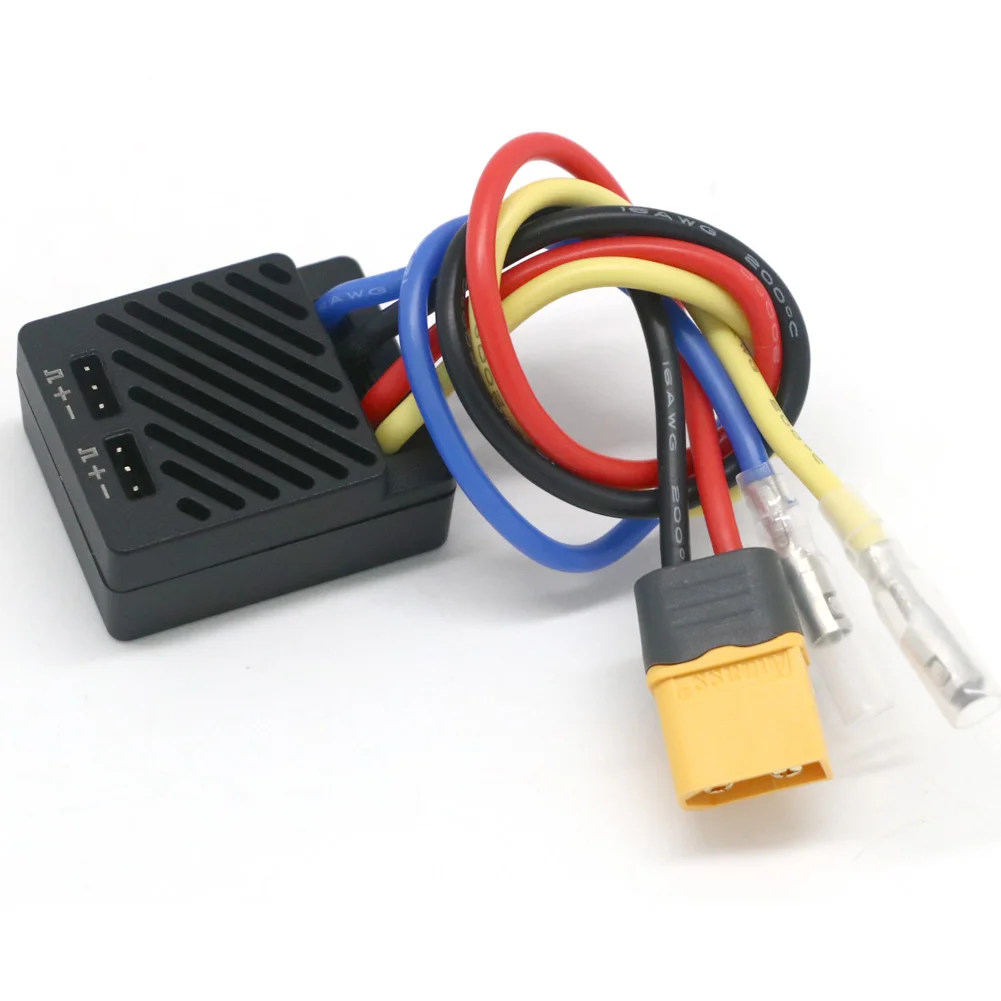

Wire/Connectors:16AWG 200mm / No

Explanation for LED Status

Power On:Short press once-white LED flashes

Standby:Green LED on

Error:Red LED flashes

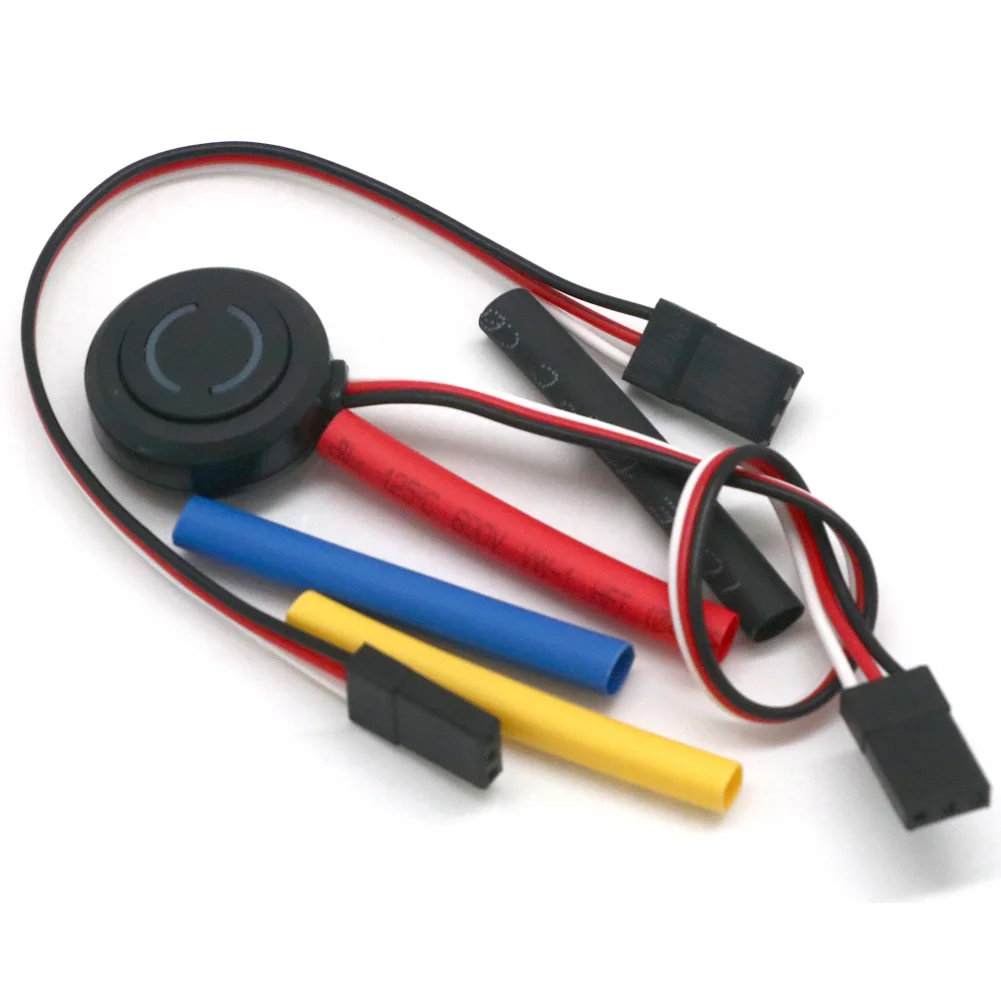

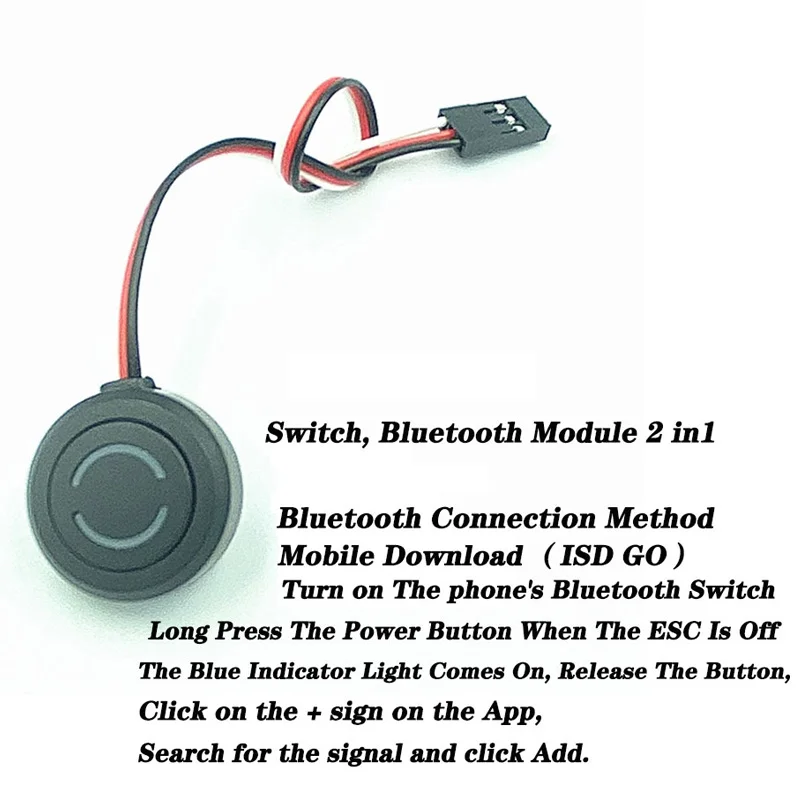

Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes

Bluetooth Connected: Blue LED ON

Power Off: Long press once
