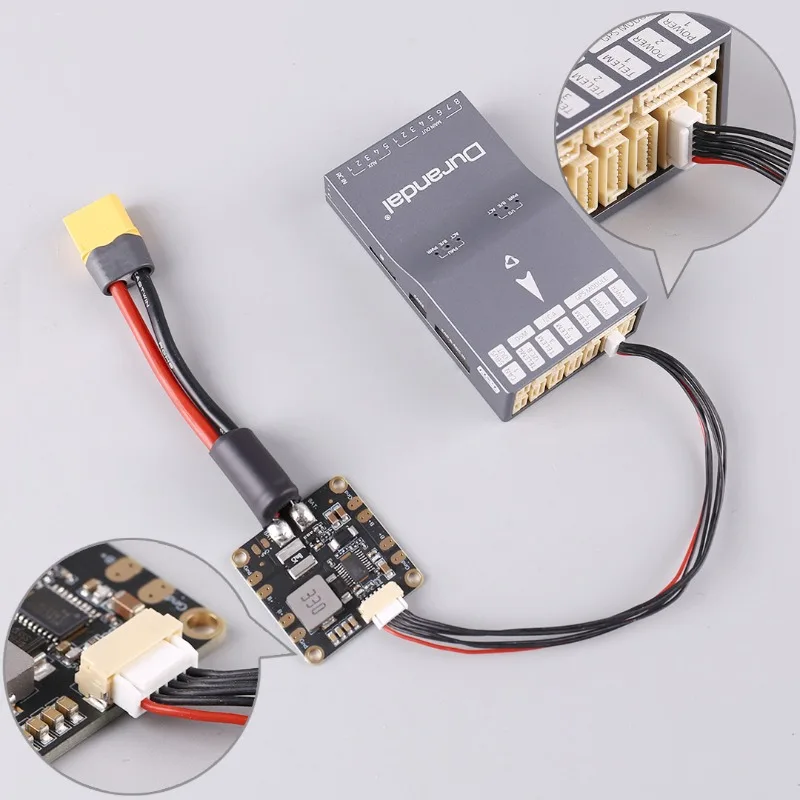

Holybro PM06 15019 14S Power Module 2S-14S Input Voltage 60A Rated Current for Pixhawk 4 (Mini) Durandal Pix32 RC FPV Drone

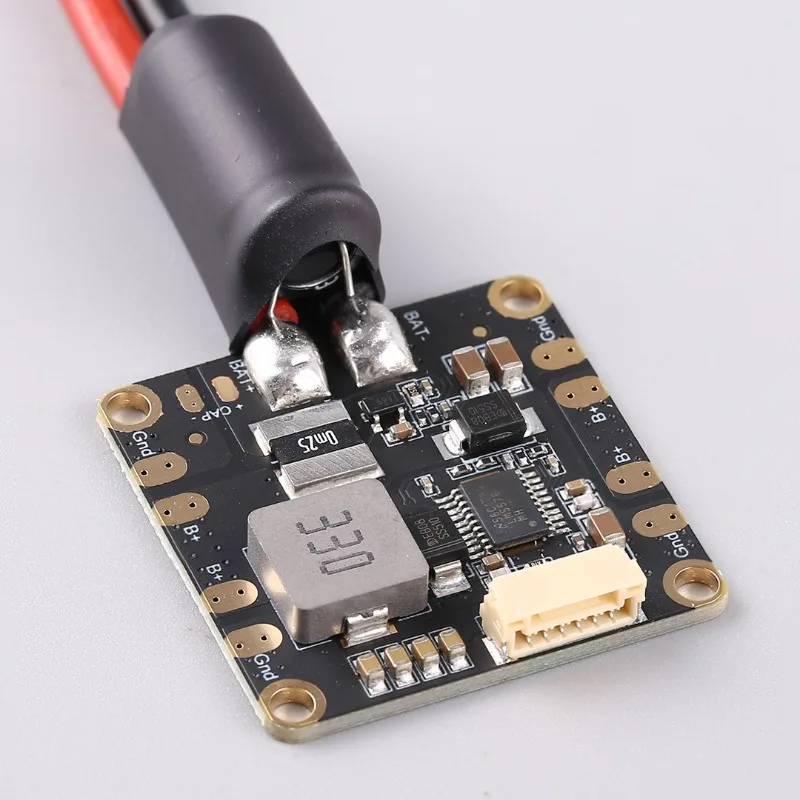

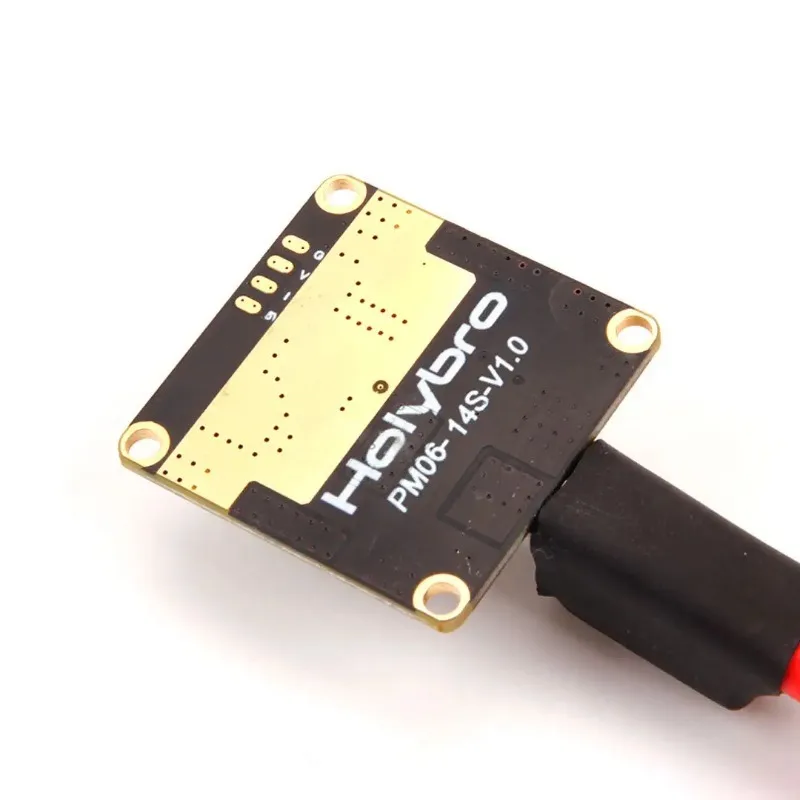

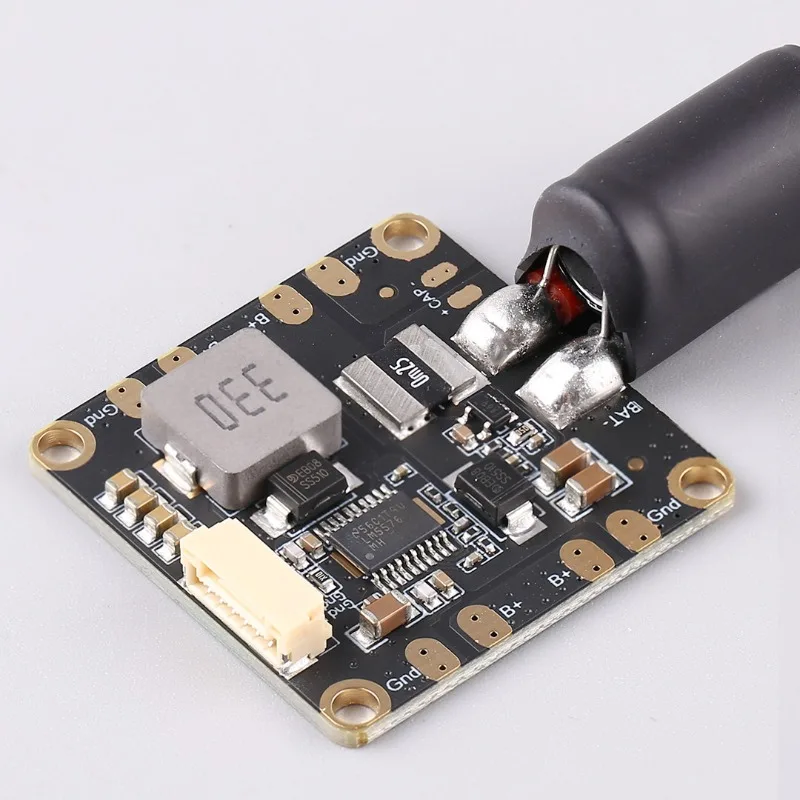

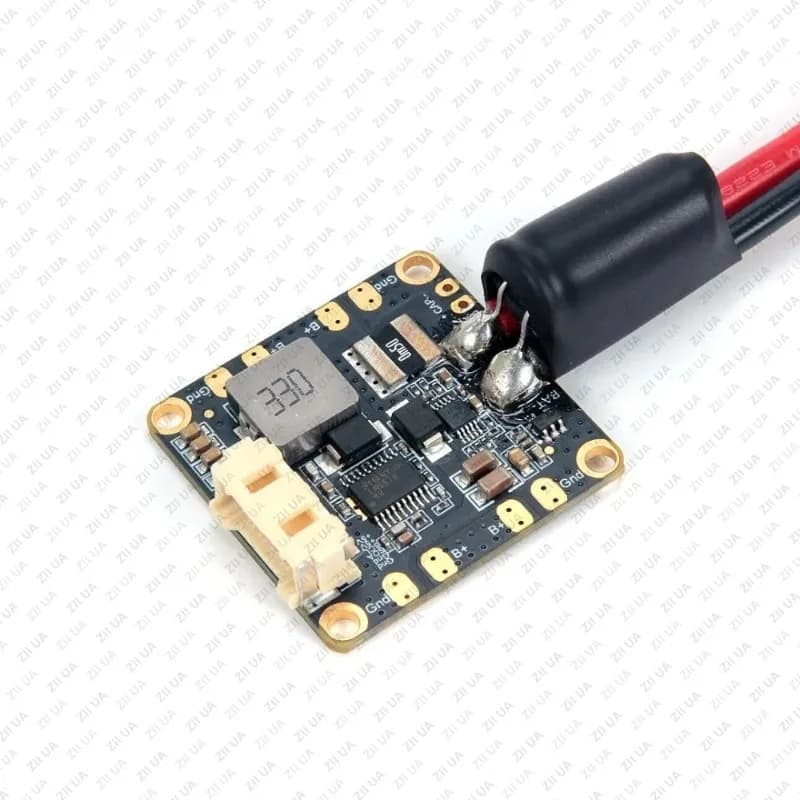

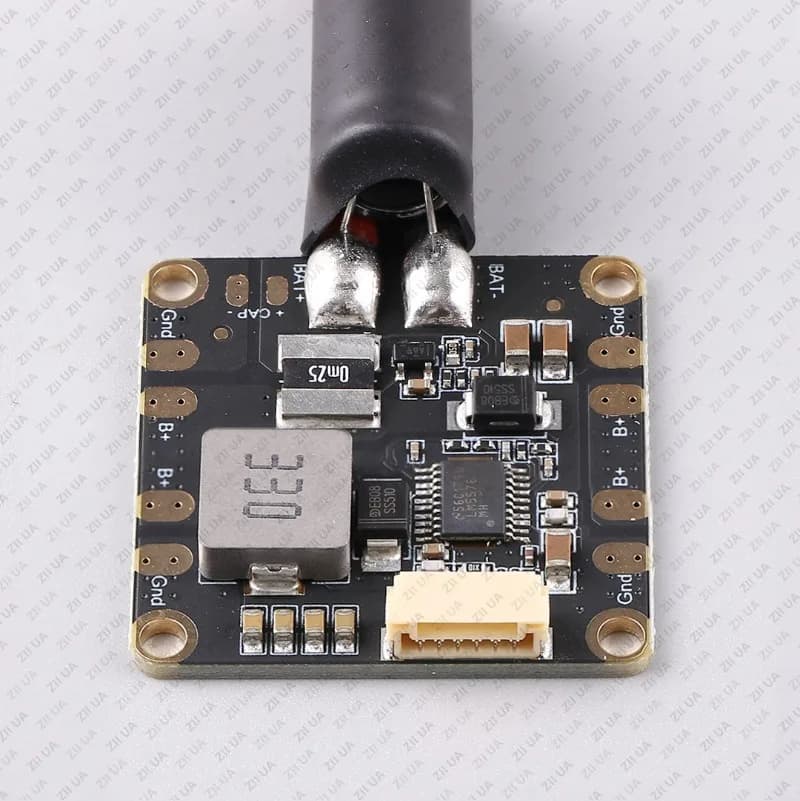

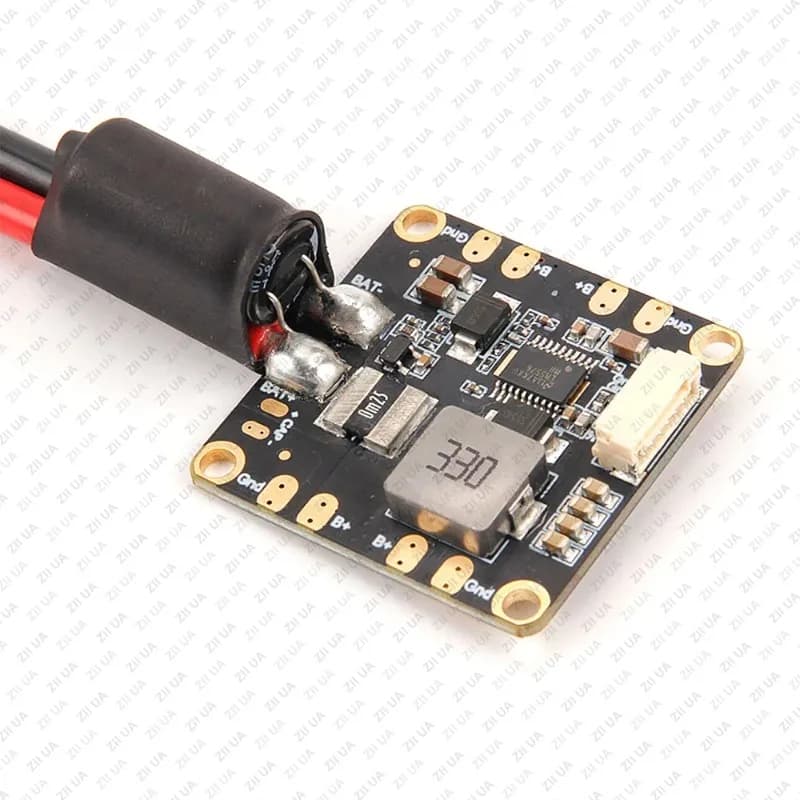

This PM06 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated power distribution for 4 ESCs. It comes with pre-soldered wires, capacitor, and XT60 connector.


Specifications:

• Input voltage (10S version): 2S-10S

• Input voltage (14S version): 2S-14S

• PCB Cont. Current Rating: 70A

• PCB Burst Current Rating: 120A (<60 Sec)

• Output: DC 5.2V & 3A Max

• Ouput Max Power : 18W

• Voltage Divider: 18.182

• Amperes per Volt: 36.364

Please Note:

• The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.

• This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Mechanical Specification:

• Dimensions: 35x35x5mm

• Mounting hole: 30.5mm*30.5mm

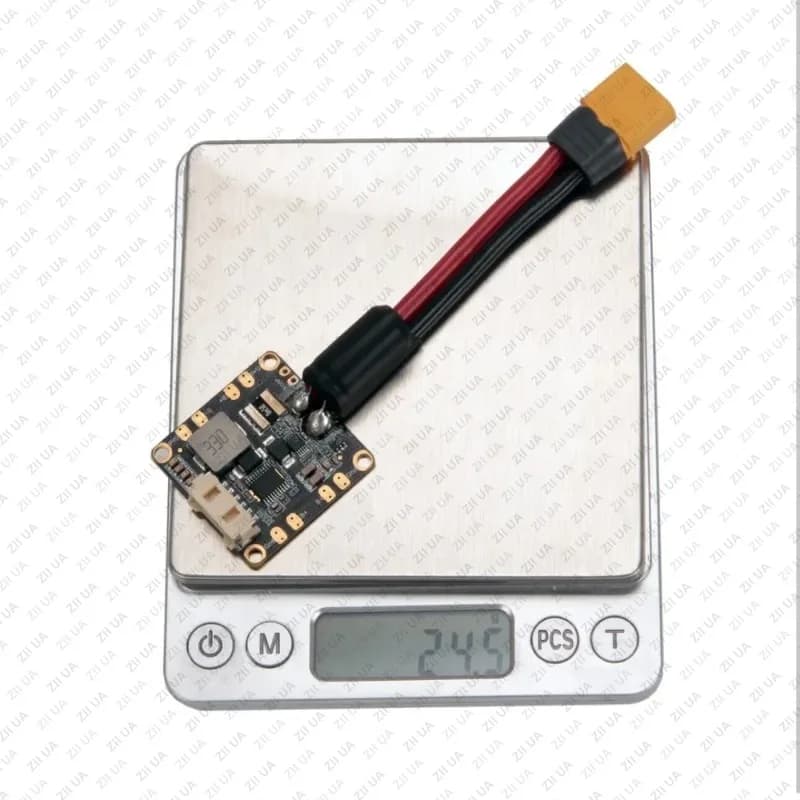

• Weight: 24g

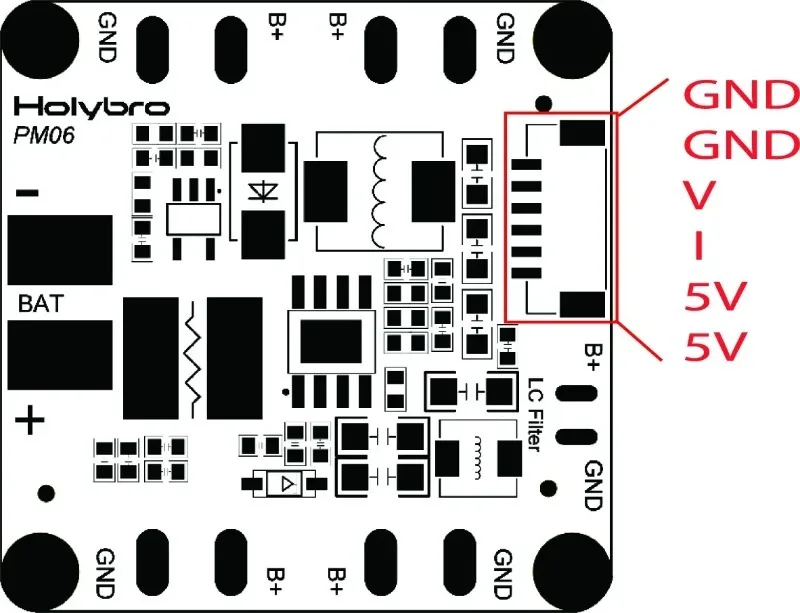

Pin Map:

Setup guide for PX4 & Ardupilot can be found in the Holybro Doc here.

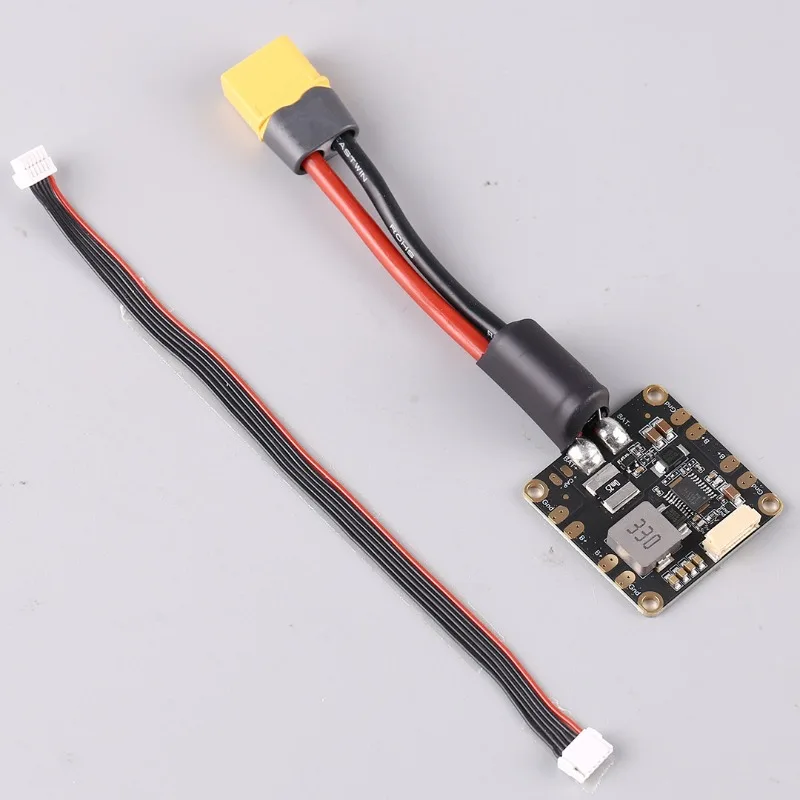

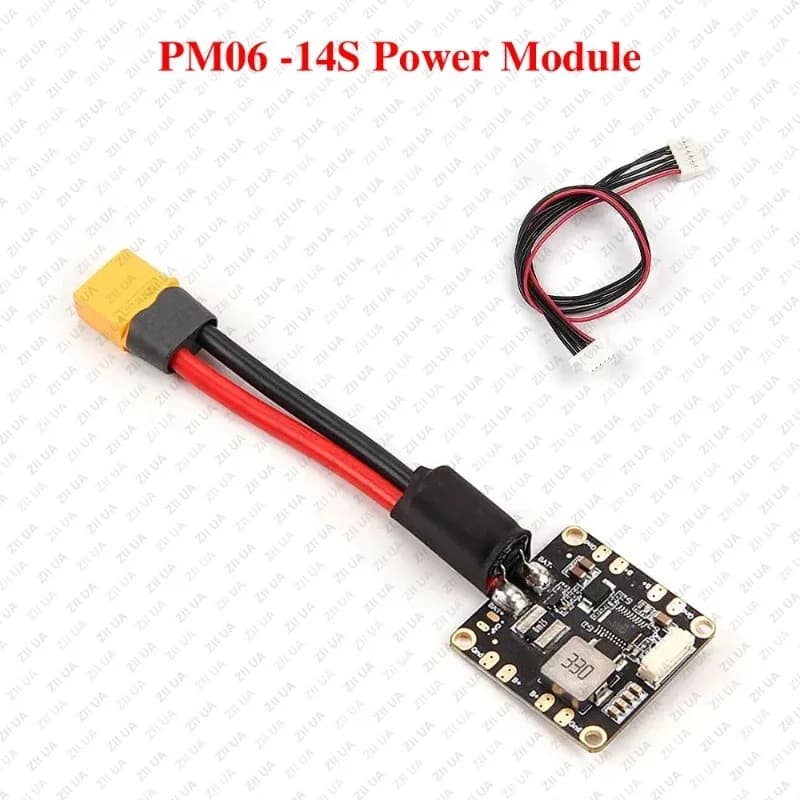

Package Includes

• 1x  PM06 board

• 1x  80mm XT60 connector wire (installed)

• 1x  Electrolytic capacito: 220uF 63V(installed)

• 1x  JST GH 6pin cable

• 1x  JST SH 6pin cable

---

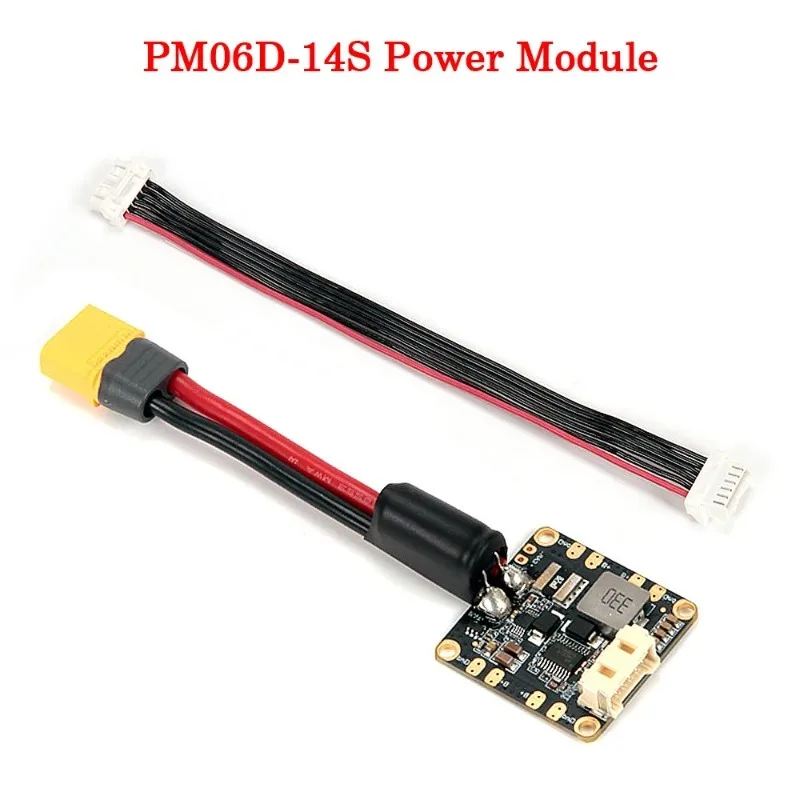

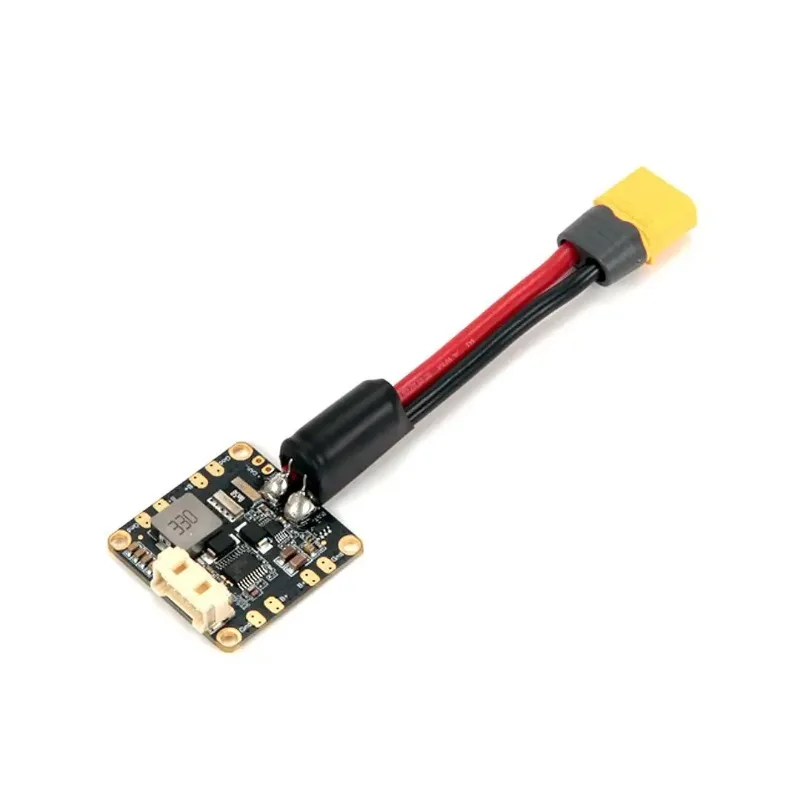

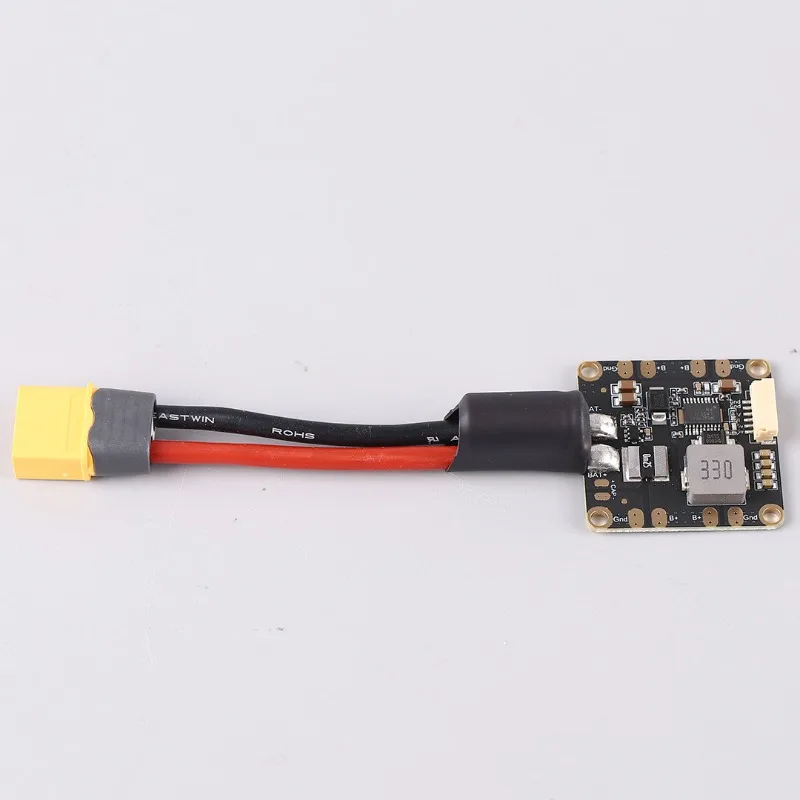

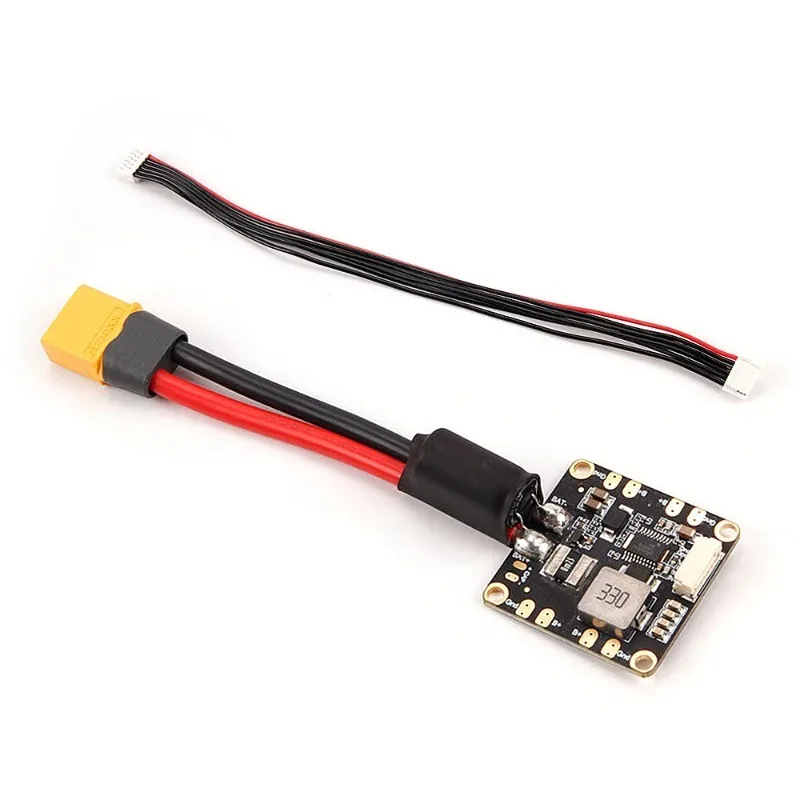

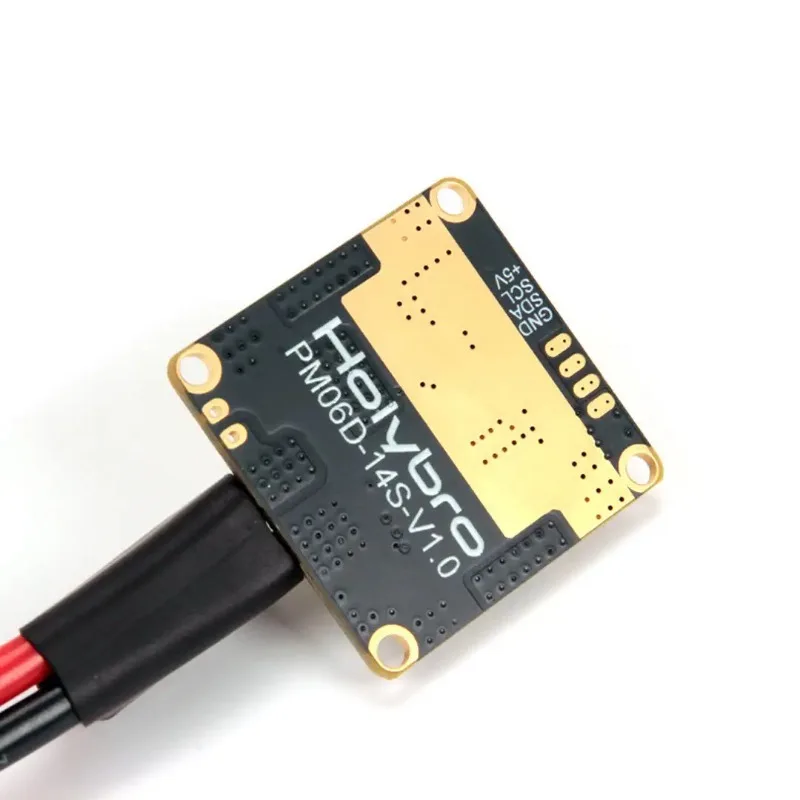

PM06D-14S Power Module:

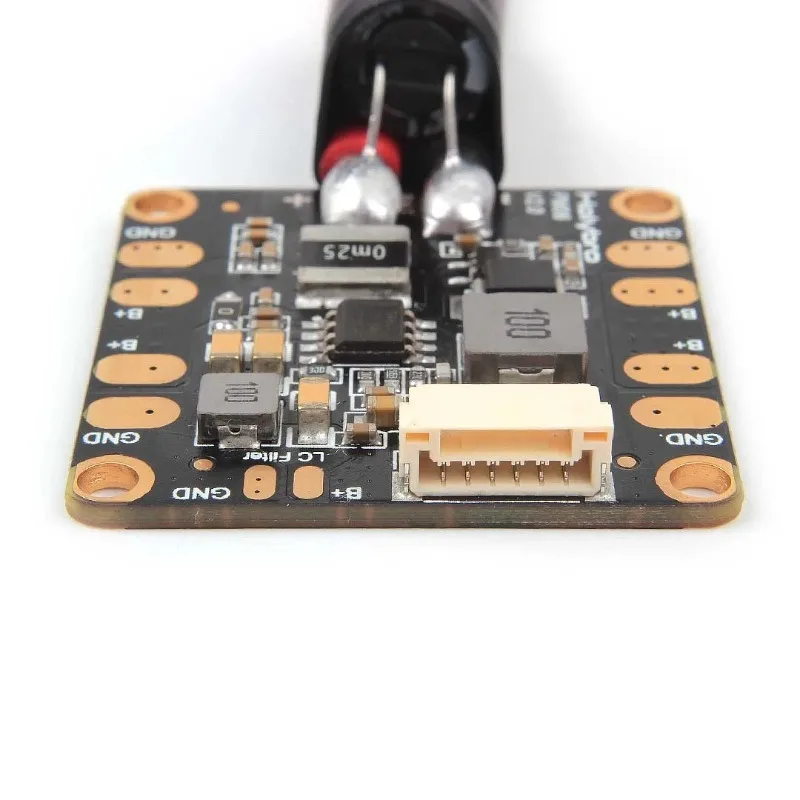

PM06D provides regulated power supply for your Pixhawk® 5X & 6X from the battery,as well as current consumption and battery voltage measurements, all through a 6pin cable. It has built-in power distribution, allowing you power your ESC and FC with the same board.

The on-board switching regulator outputs 5.2V and a maximum of 3A from LiPo batteries up to 14S. The Power Module comes completely assembled with a XT60 connector and a capacitor. The Molex 2.00mm pitch CLIK-Mate Wire-to-Board connector is rated for 3.0A current per contact.

Specification

• Input voltage: 2S- 14S

• PCB Cont. Current Rating: 70A

• PCB Burst Current Rating: 120A (<60 Sec)

• Max current sensing: 327A

• Voltage and current monitor with I2C compatible interface

• Connector Outputs: 5.2V and 3A max

• Weight: 24.5g

Current Rating:

The PM06D comes with XT60 plugs with 14 AWG silicone wires rated for 30A continuous current and 60A burst current (<1 minute). If a higher current is needed, the plug type and wire size should be changed accordingly. You can refer to this chart as reference.

PX4 Parameter Setup:

If you are using the PM06D 14S version, you must set SENS_EN_INA228to enable.

Package Includes:
