Holybro X500 V2 Full Kit Drone Power Kit 4-axis Almost Ready-to-Fly (ARF) Kit
42 orders (reference)
Description
Holybro X500 V2 Full Kit Drone Power Kit 4-axis Almost Ready-to-Fly (ARF) Kit High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Material: Composite Material Origin: Mainland China Recommend Age: 14+y
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

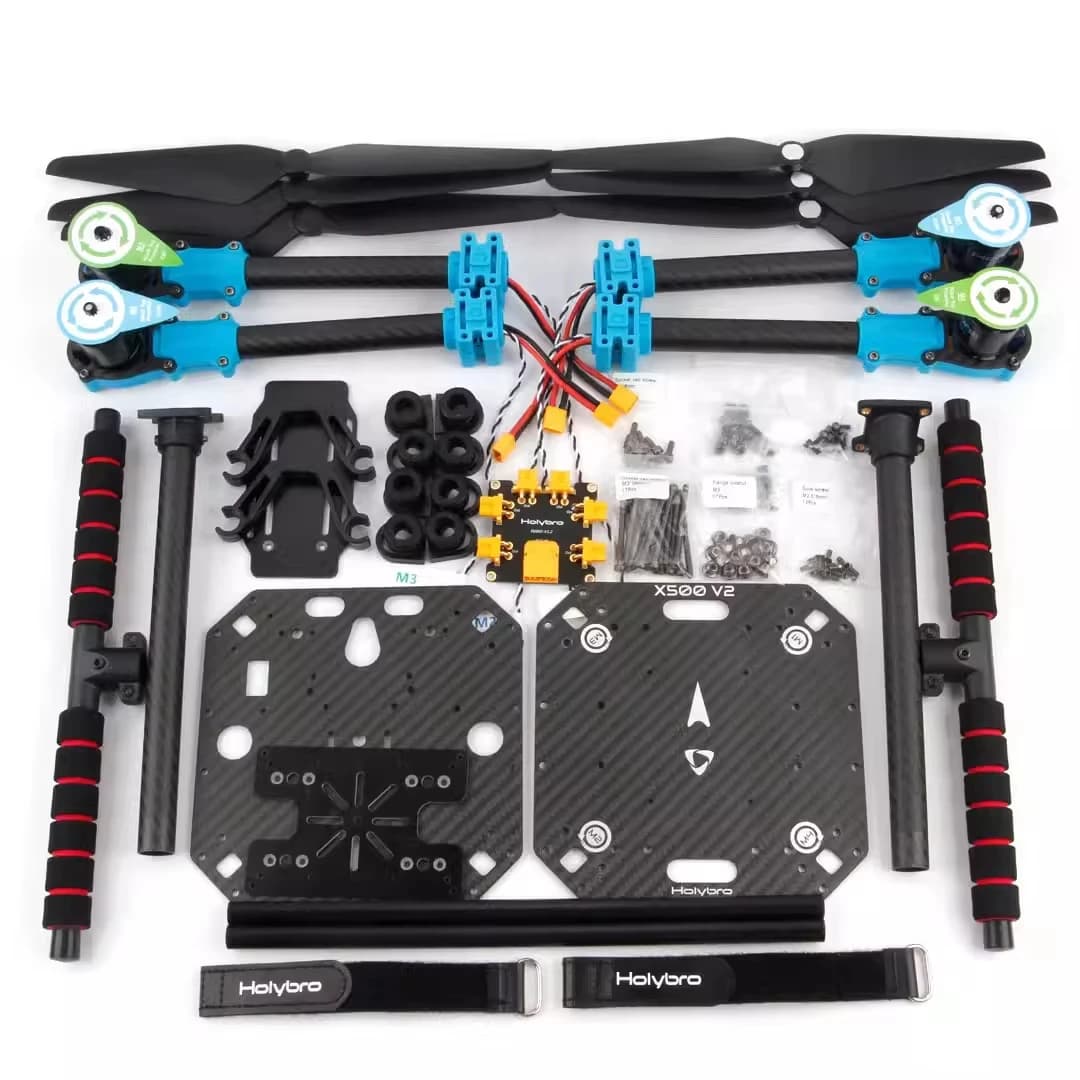

Kit Contents

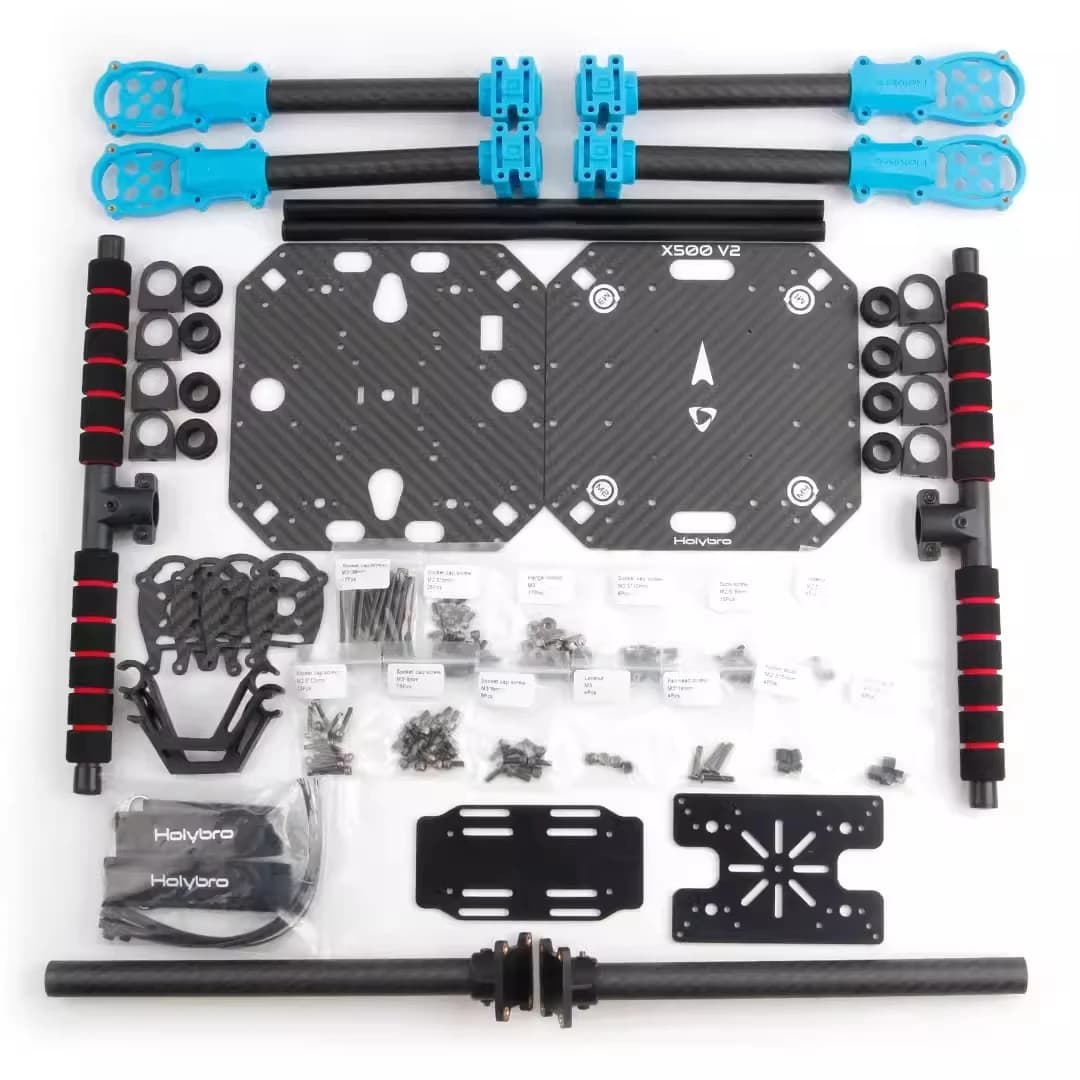

X500 V2 Frame Kit (SKU30120) - includes:
Body - Full Carbon Fiber Top & Bottom plate (144 x 144mm, 2mm thick)
Arm - High strength & ultra-lightweight 16mm carbon fiber tubes with newly designed fiber reinforced nylon connectors
Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
Dual 10mm Ø rod x 250 mm long rail mounting system
Battery mount with two Battery Straps
Hand tools for installation
The X500 V2 Frame Kit is made with full carbon fiber twill, with carbon fiber tube arms supported by the newly designed fiber reinforced nylon connectors with convenient notches on both motor and body sides, providing a much easier & more straightforward installation. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes with connectors that has been thickened and strengthened.

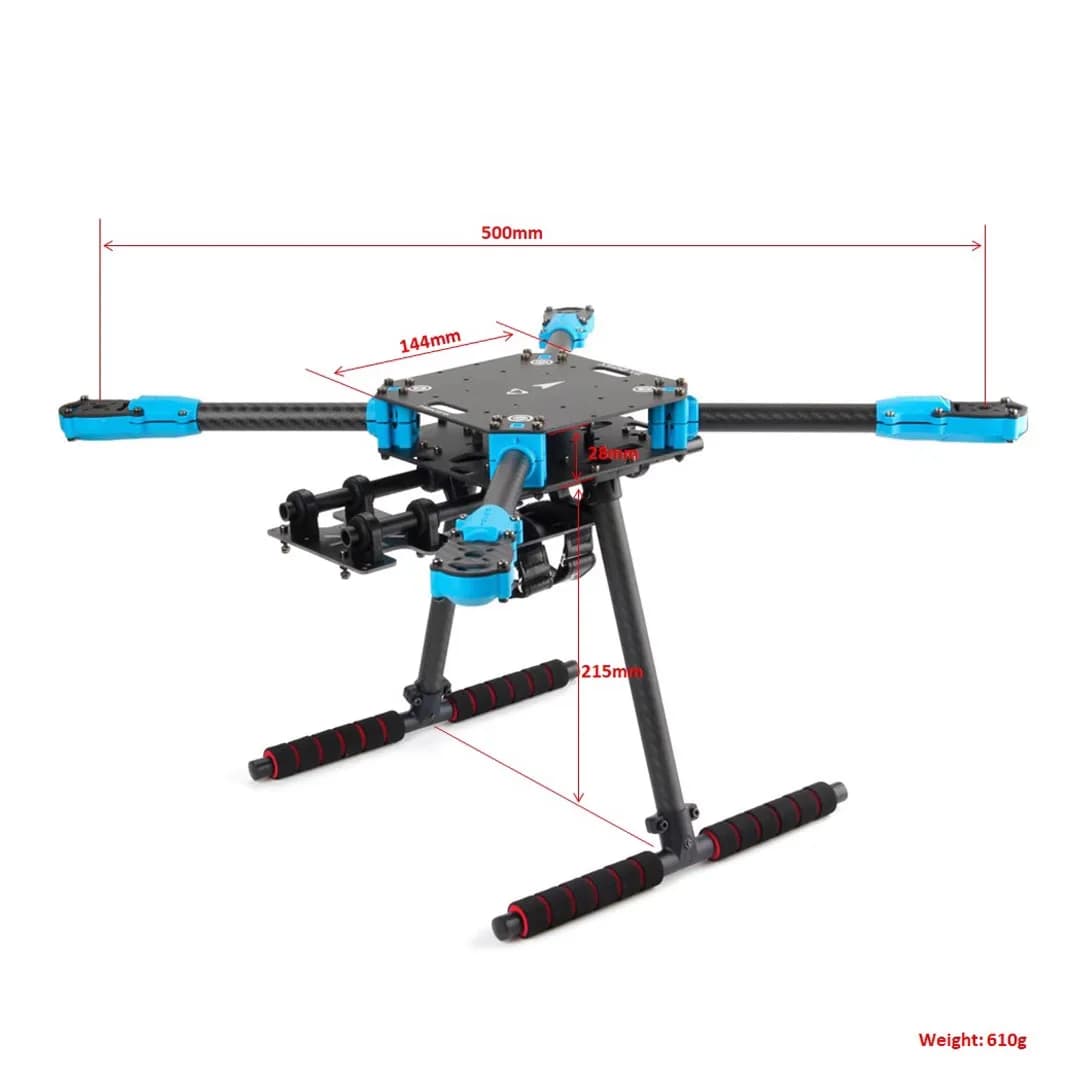

Mechanical Specification:
- Wheelbase: 500mm
- Motor mount pattern: 16x16mm
- Frame Body: 144x144mm, 2mm thick
- Landing gear height: 215mm
- Space between top and bottom plates: 28mm
- Weight: 610g
X500 V2 ARF Kit (SKU30125) - includes:
X500 V2 Frame Kit
- With Preinstalled Items:
Motors - Holybro 2216 KV920 Motor (4 pcs)
ESCs - BLHeli S ESC 20A (4 pcs)
1045 Propellers (6 pcs)
Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals
The X500 V2 ARF (Almost Ready-to-Fly) Kit is an affordable, lightweight, and robust carbon fiber professional drone kit that is easy to assemble (less than 15 minutes). It comes with the X500 V2 Frame Kit and motors, ESCs, power distribution boards and propellers preinstalled. It is perfectly compatible with various flight controllers such as the Holybro Pixhawk series, Durandal, Pix32 V5, etc. There are numerous improvements compared the previous model.
Almost Ready-to-Fly (ARF) Kit Feature:
- New design and minimal assembly time (~15 minutes)
- Carbon Fiber frame with fiber-reinforced nylon connectors providing easy & straightforward installation
- Pre-installed motors & ESCs with simple XT30 power plugs for PDB
- Power distribution board (PDB) with XT60 & XT30 plugs - no soldering needed
- Mount for companion computer such as Raspberry Pi & Nvidia Jetson Nano
- Optional depth camera mount for Intel RealSense & Structure Core
