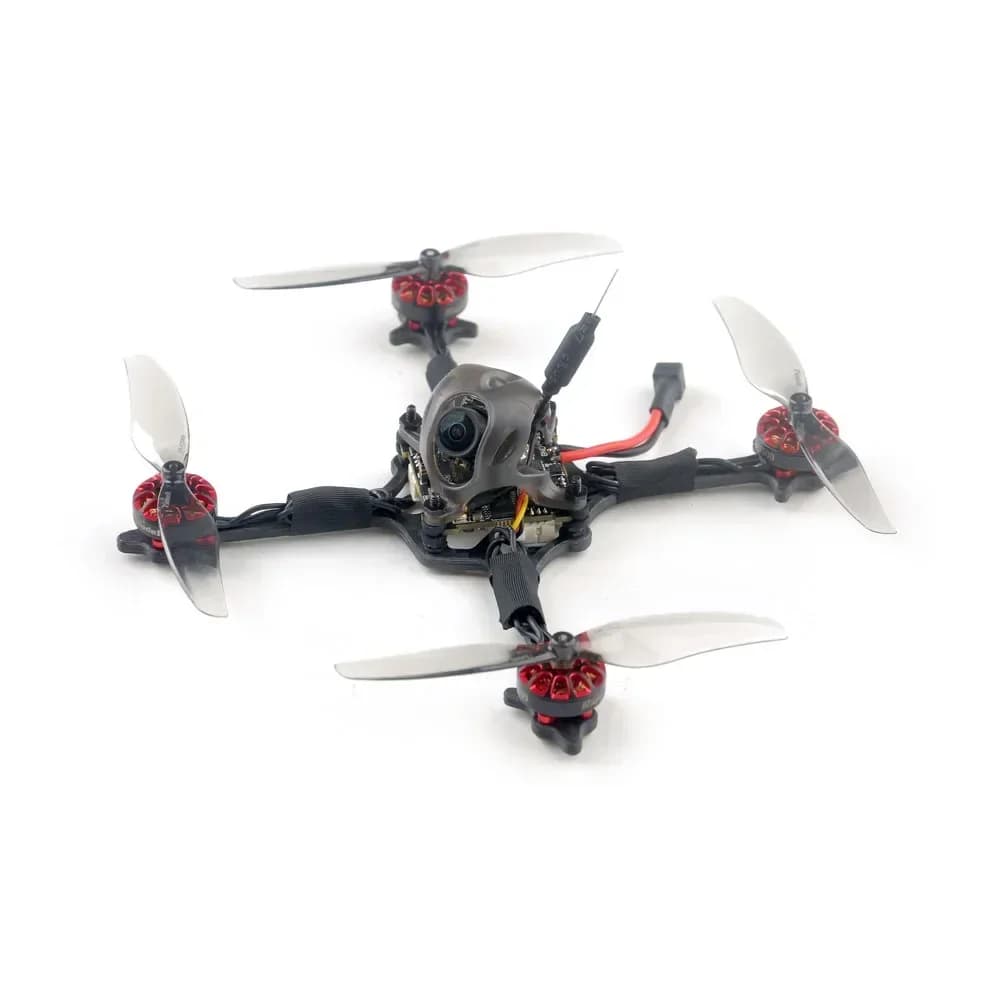

HappyModel Crux3 1S ELRS - 3inch FPV Drone Toothpick Quadcopter F4 2G4 Built-in SPI ELRS 2.4G Caddx Ant EX1202.5 KV11500
30 orders (reference)
Description
Update log: The Crux3 1S ELRS v2.0 version comes with ELRS F4 2G4 V3.1 which was built-in OPENVTX could support max 400mw output. Please use following vtxtable
# VTX Table
# SMARTAUDIO
# vtxtable
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 0 5885 5905 0 0
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable powerlevels 5
vtxtable powervalues 1 2 14 20 26
vtxtable powerlabels 0 RCE 25 100 400
save
Noticed: Not include the Insta360 go2 or CaddxFPV peanut camera.
Features:
40gram 1s brushless Toothpick drone
AIO Flight controller with ELRS Receiver and 5.8G VTX
CADDX ANT Camera
New 1202.5 KV11500 brushless motor
Recommend to use 1s 450mah/650mah/660mah/720mah battery

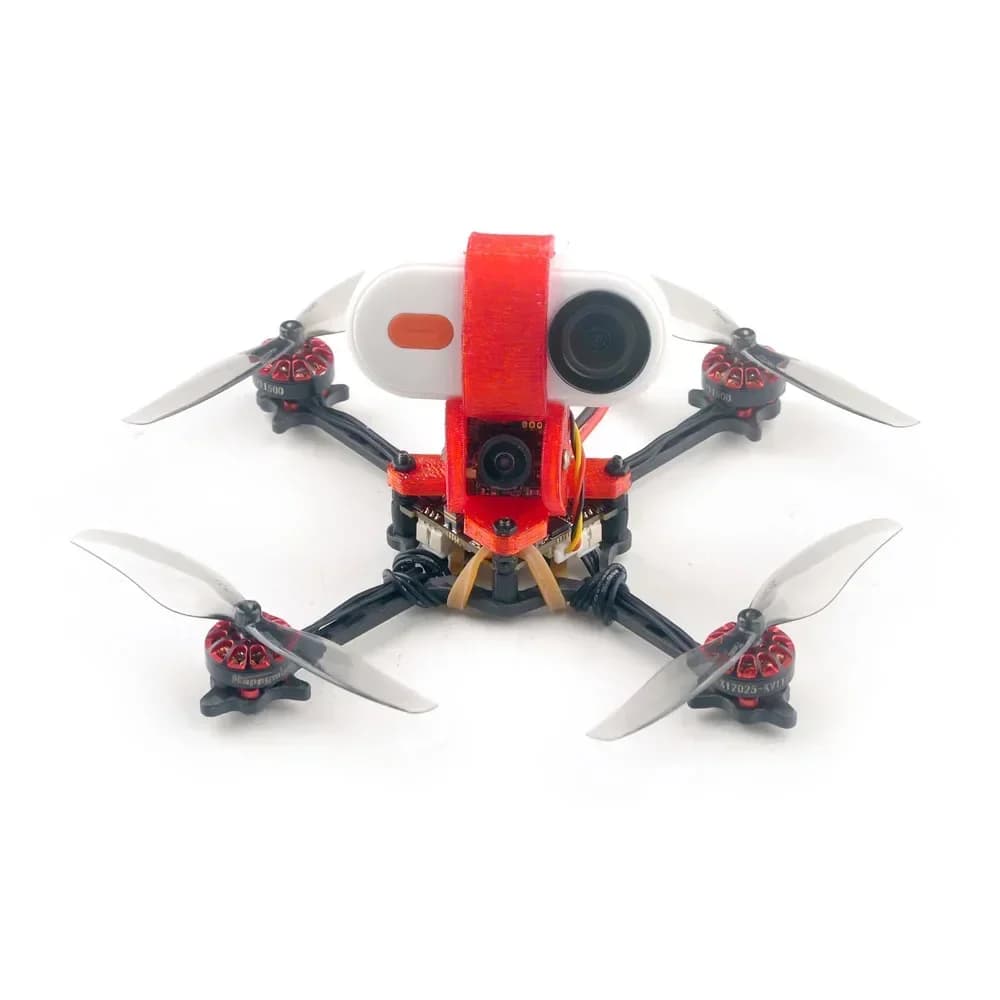

Compatible with CaddxFPV Peanut and Insta360 GO2

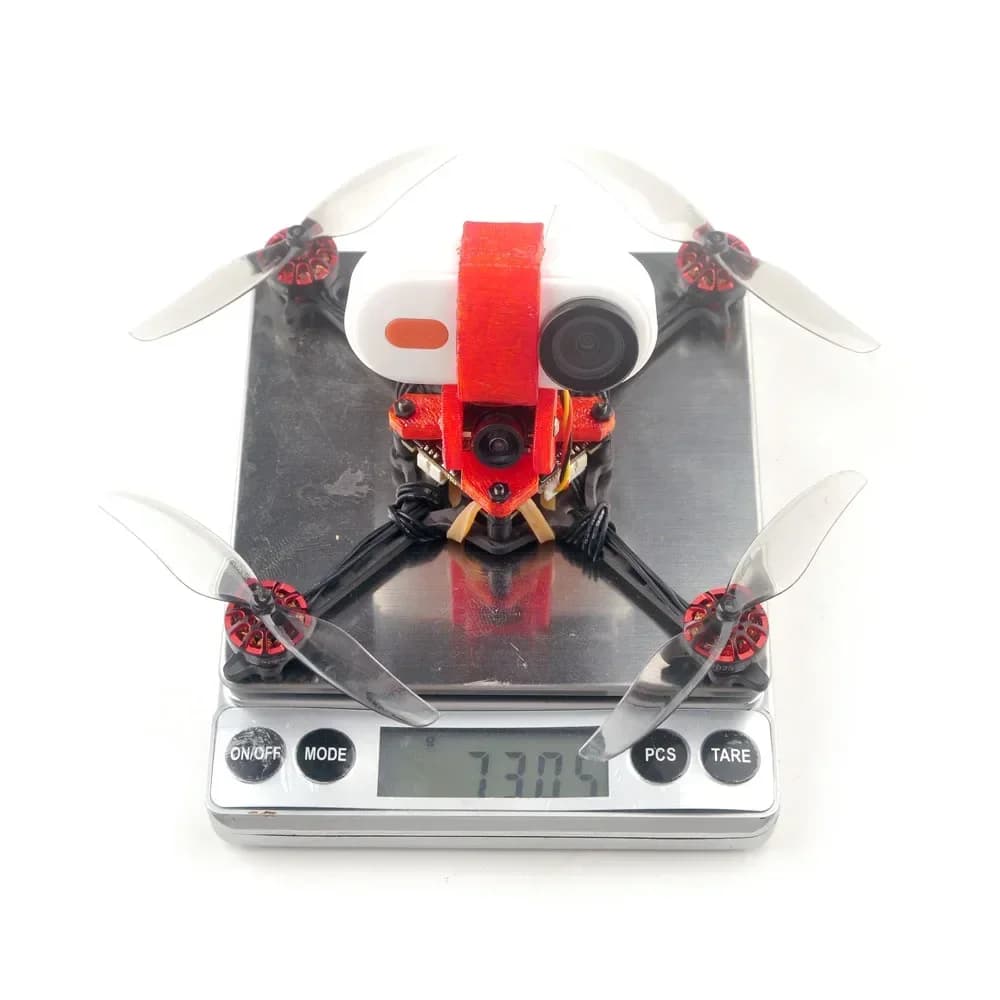

Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Anti-wind Ability |
|
| Drone Weight |
|
| Takeoff Weight |
|
| Transit Time (Days) |
|
| Video Capture Resolution |
|
| Indoor/Outdoor Use |
|
| Camera Mount Type |
|
| Controller Mode |
|
| Model Number |
|
| Flight Time |
|
| Controller Battery |
|
| Control Channels |
|
| Is Batteries Included |
|
| Remote Distance |
|
| Remote Control |
|
| Aerial Photography |
|
| Package Includes |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Anti-wind Ability | / |
| Drone Weight | / |
| Takeoff Weight | / |
| Transit Time (Days) | / |
| Video Capture Resolution | Other |
| Indoor/Outdoor Use | Indoor-Outdoor |
| Camera Mount Type | Other |
| Controller Mode | MODE1,MODE2 |
| Model Number | Crux3 1S ELRS |
| Flight Time | <5 |
| Controller Battery | / |
| Control Channels | 2 CHANNELS |
| Is Batteries Included | No |
| Remote Distance | / |
| Remote Control | No |
| Aerial Photography | No |
| Package Includes | Original Box |
| Material | Plastic |
| Origin | Mainland China |
| Recommend Age | 14+y |
Product Details
Update log: The Crux3 1S ELRS v2.0 version comes with ELRS F4 2G4 V3.1 which was built-in OPENVTX could support max 400mw output. Please use following vtxtable
# VTX Table
# SMARTAUDIO
# vtxtable
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 0 5885 5905 0 0
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable powerlevels 5
vtxtable powervalues 1 2 14 20 26
vtxtable powerlabels 0 RCE 25 100 400
save
Noticed: Not include the Insta360 go2 or CaddxFPV peanut camera.
Features:
40gram 1s brushless Toothpick drone
AIO Flight controller with ELRS Receiver and 5.8G VTX
CADDX ANT Camera
New 1202.5 KV11500 brushless motor
Recommend to use 1s 450mah/650mah/660mah/720mah battery
Compatible with CaddxFPV Peanut and Insta360 GO2
Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery
Specifications:
Brand Name: Happymodel
Item Name: Crux3 1S ELRS
Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)

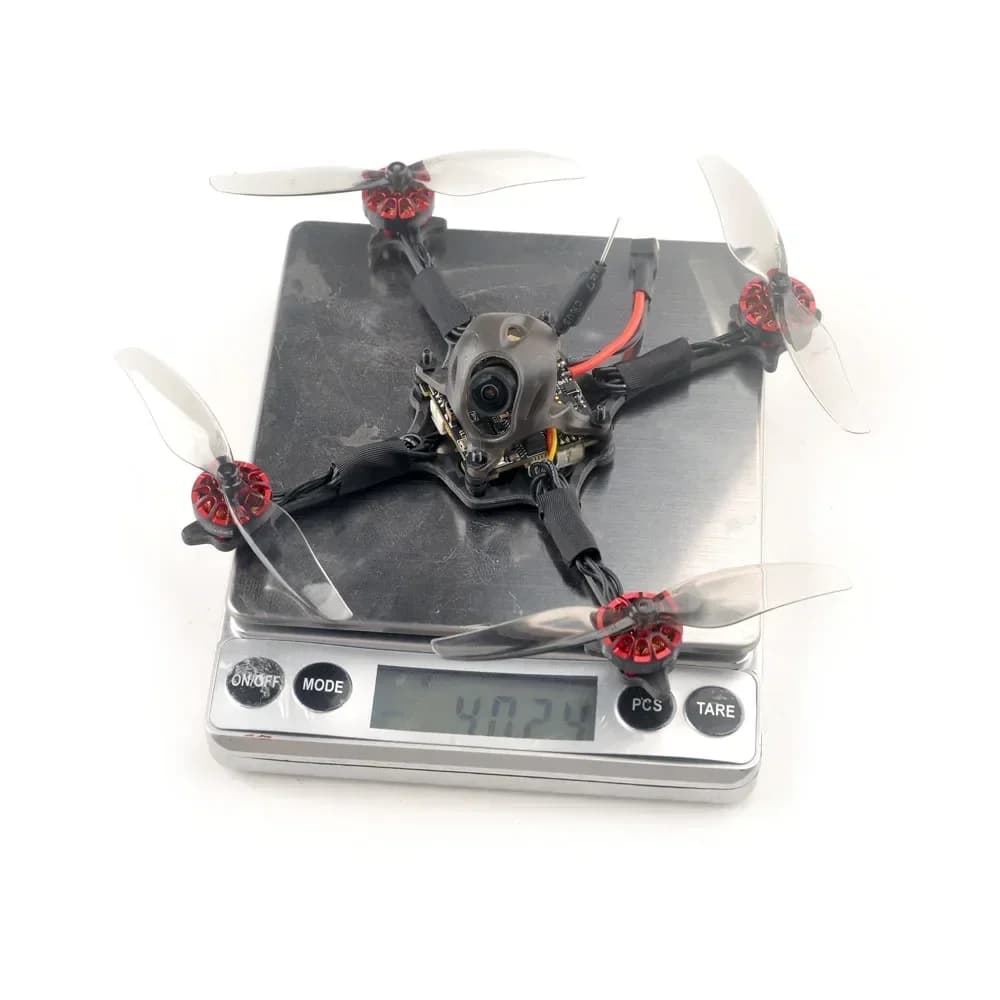

Weight: 40g(without battery)

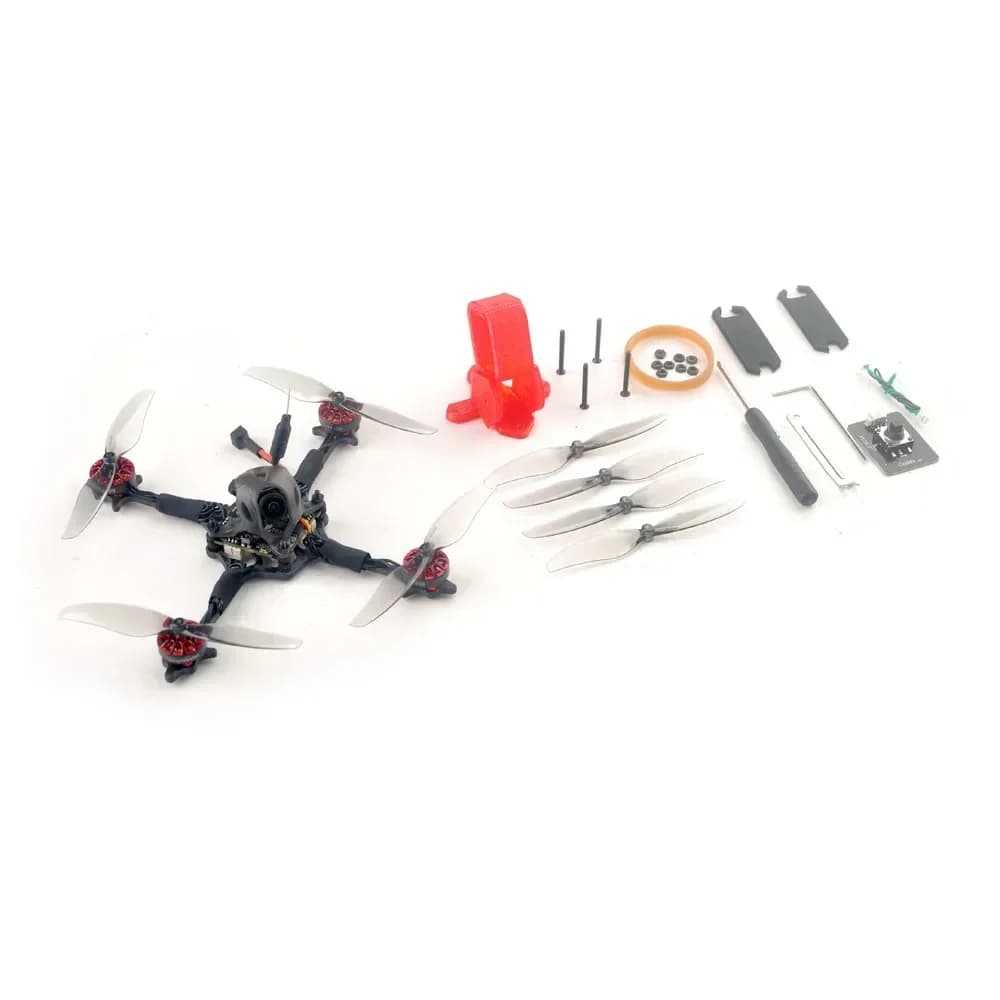

Package includes:
| Item Name | Qty |
| Crux3 Frame and canopy | 1 |
| ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver | 1 |
| Happymodel EX1202.5 KV11500 brushless motor | 4 |
| Gemfan 75mm bi-blade Propellers(4cw+4ccw) | 1 |
| Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera | 1 |
| 5.8G 25mw~200mw 40ch vtx (Flight controller built-in) | 1 |
| Screw Driver | 1 |
| Propeller disassemble tool | 1 |
| 3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut | |
| Happymodel Handbag | 1 |
| Motor | Mode: EX1202.5 KV11500 Configu-ration:9N12P Stator Diamter:12mm Stator Length:2.5mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ14mm*14.5mm Weight(g):4.4g No.of Cells(Lipo):1S |
| Propellers | Gemfan 75mm Center Thickness:5mm Prop Diameter:75mm Center Hole diameter:1.5mm Pitch:0.9in |
| Flight controller | MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI ExpressLRS 2.4GHz receiverBuilt-in 5V 1A BECFlight controllerfirmware target: CRAZYBEEF4SX1280 |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT300 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHzAntenna : SMD antenna Telemetry output Power: <12dBmReceiver protocol to flight controller: CRSFCould bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest |
| Onboard 5.8g VTX | Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race bandSmartaudio ready |
| Caddx ANT 1200tvl camera | Image Sensor: 1/3″ CMOS Sensor Horizontal Resolution: 1200 TVL TV System: NTSC or PAL IMAGE: 16:9 or 4:3 Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >52dB (AGC OFF) Video Output: CVBS Lens: 1.8mm Min. Illumination: 0.001Lux@F1.2 Auto Gain Control: YES BLC: YES WDR: Global WDR DNR: 3D DNR Dimensions: 14*14mm(with bracket to 19*19mm) Wide Power Input: DC 3.7-18V Work Temperature: -20℃~+60℃ Weight: 2g (N.W.) |
