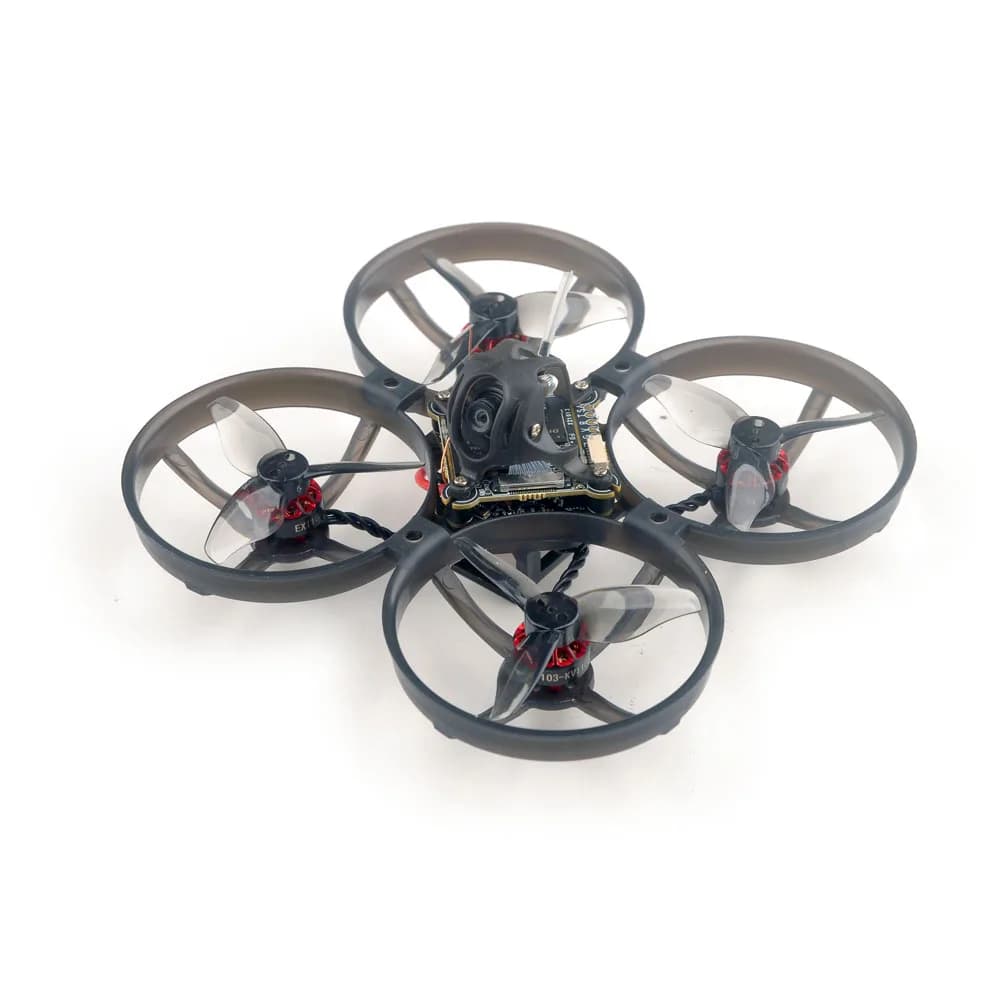

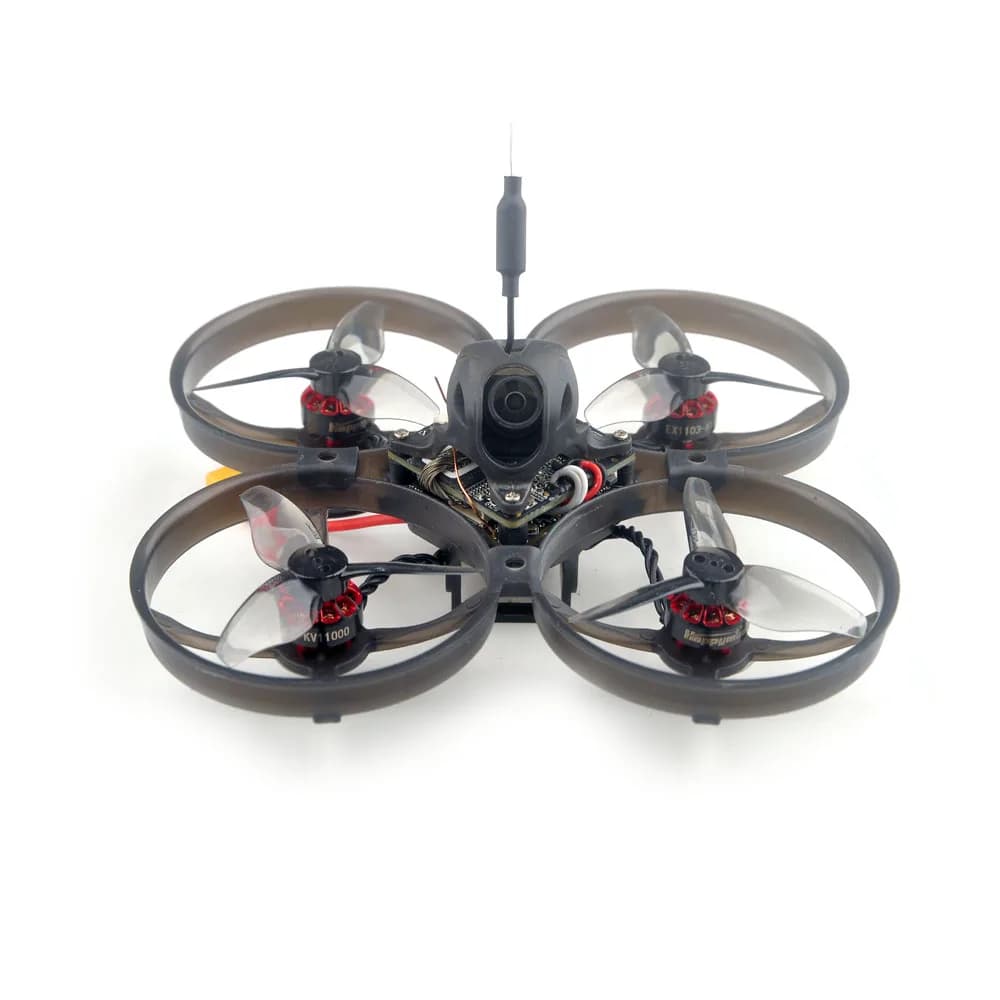

HappyModel Mobula 8 HD 2S 85mm Digital Micro FPV Whoop Drone Walksnail Avatar HD / HDZERO / DJI O3 CrazyF405 EX1103 KV11000
35 orders (reference)
Description
NOTE:This product requires FPV ride-through machine experience. If you have no experience in using it, we do not recommend purchasing it and we do not support returns without reason.（All products sold by our merchants are original and genuine, and we have relevant certificates.）

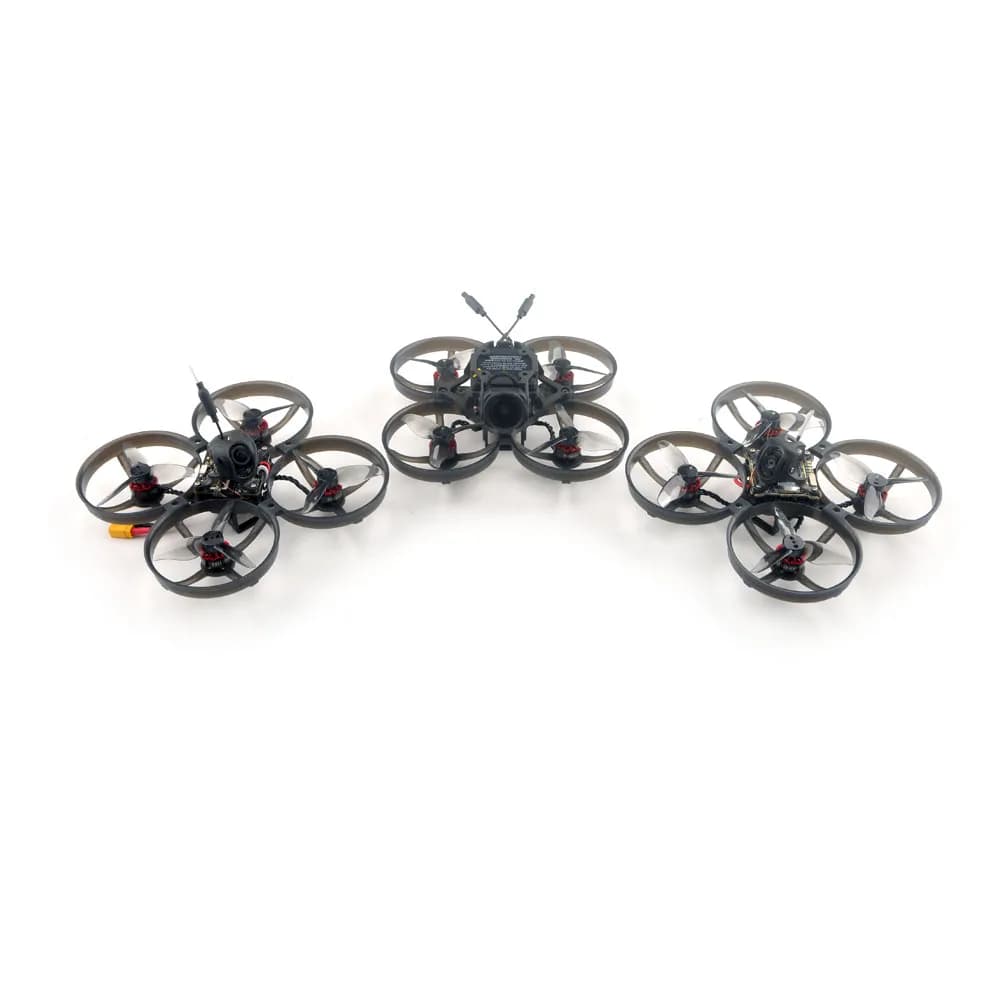

The New Mobula8 Digital HD Micro FPV whoop comes with a new flight controller which is specific for Digital HD CINEWHOOP. Built in UART ExpressLRS receiver and 12A 4-IN-1 BLheli_S ESC. The same Brushless motor and Gemfan 2023 propeller like the Mobula8 Analog version. Comes With DJI O3, Walksnail avatar and HDZERO VTX option. Smooth flight and High definition video transmission would bring us exited FPV experience.
Notice: DJI O3 air unit warranty service is undertaken by DJI according to their warranty policy, please noted. If you purchase this product you agree to this policy.
Features:
Digital HD FPV experience
New CrazyF405 ELRS HD flight controller
Powerful and Smooth
UART ExpressLRS receiver
Built-in blackbox for Gyroflow and PID Tune
Spare parts specifications:
Motor
Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S
Propellers
Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm
Flight controller
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
Onboard UART ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

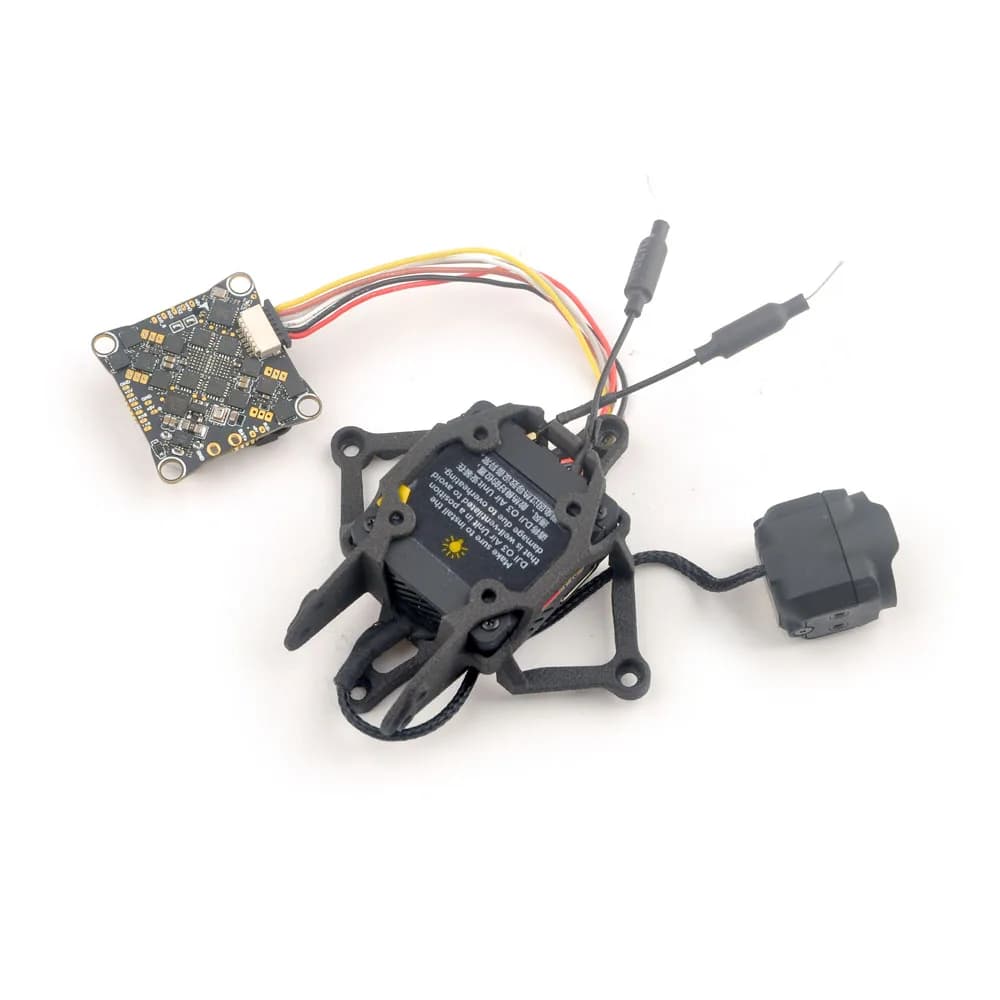

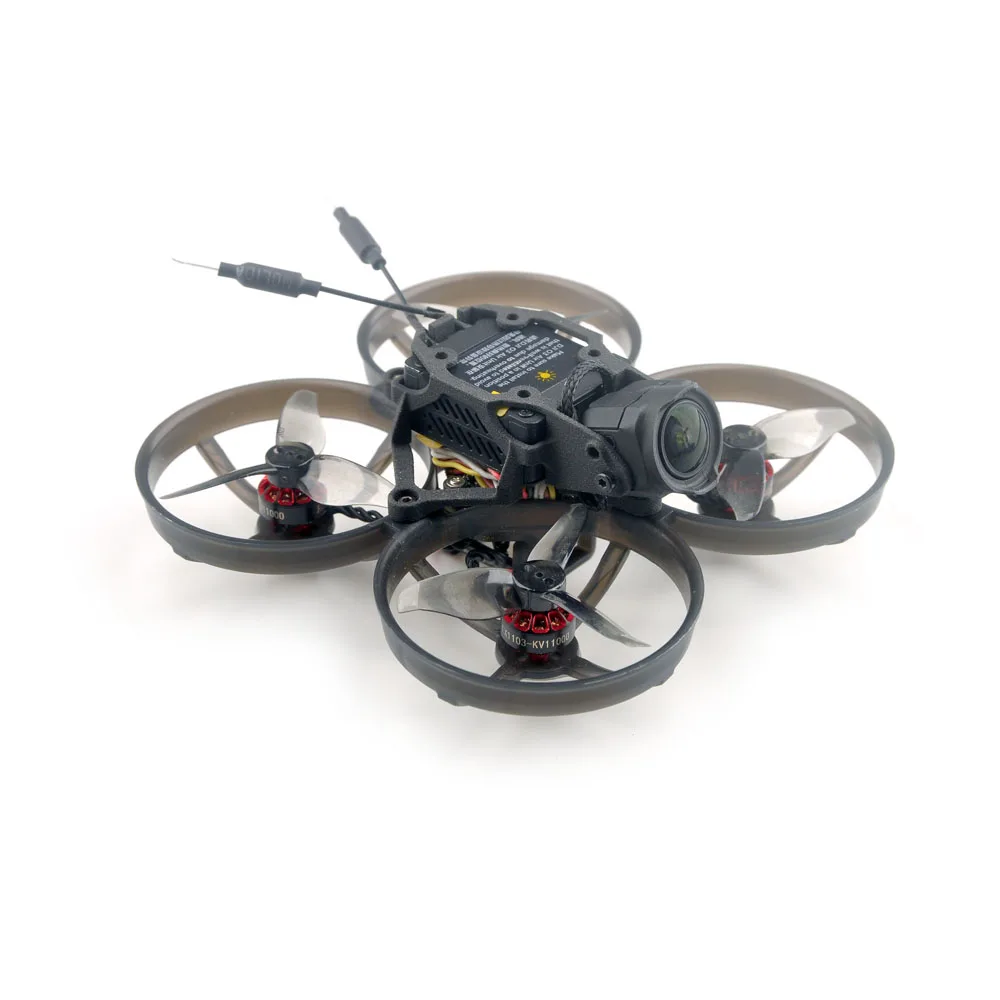

DJI O3 Air Unit
Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
D-Cinelike mode for Vivid Colors
Flagship O3+ Video Streaming
Customizable Canvas Mode
155° Super-Wide FOV
1/1.7-Inch Sensor
Compact in Size

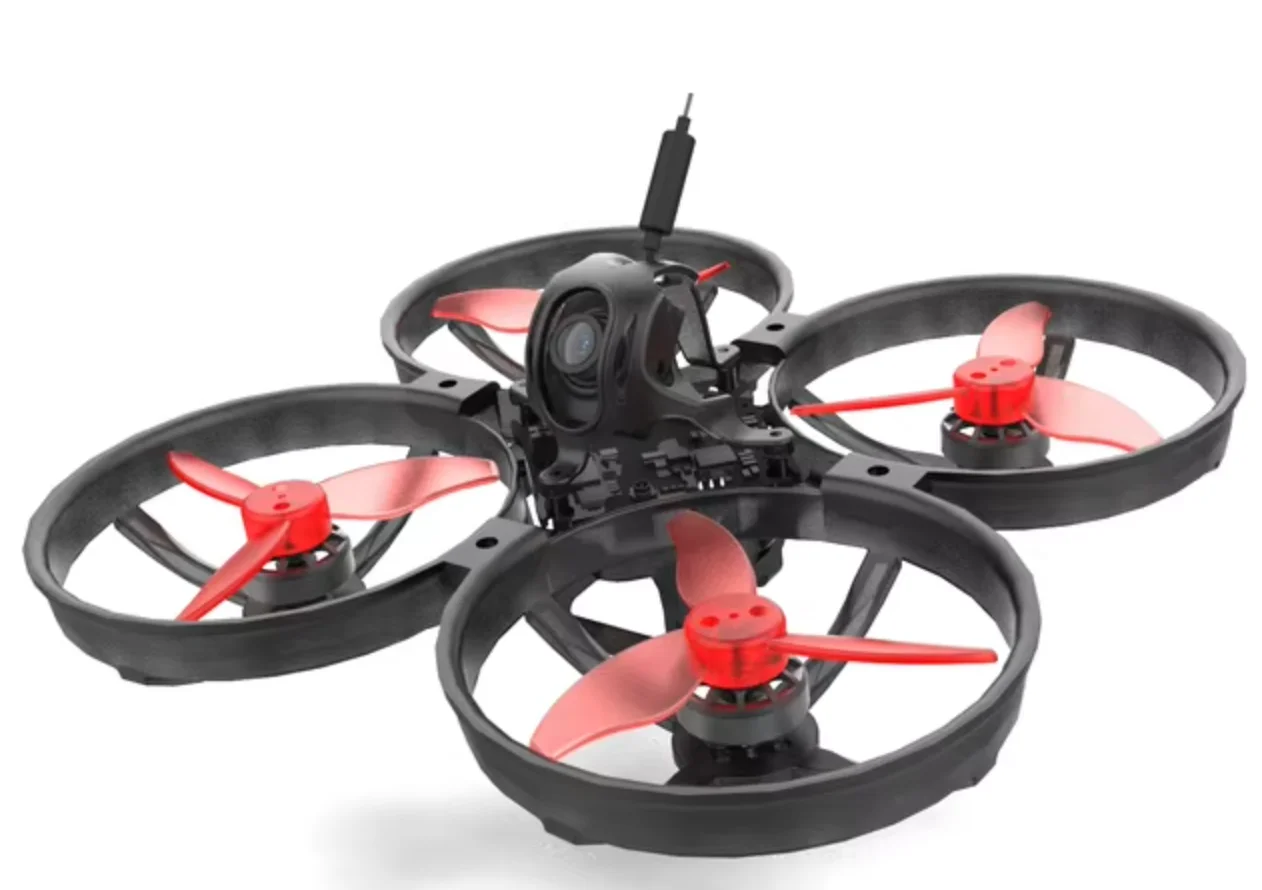

Walksnail version
Camera
Model Avatar lite camera
Image Sensor 1/2.7”1nch
Resolution 1080P/60fps,720P/120fps,720P/60fps
Ratio 16/9 4/3
Lens 2.1mm
FOV 170°
Aperture F2.0
Shutter Rolling Rolling shutter
Min.Illumination 0.001Lux
Weight 1.8g
Dimensions 14*14*16mm
VTX
Model Avatar mini 1s module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes 25.5*25.5mm
Dimensions 30*30*6.5mm
Storage 8G
Recording 1080p/720p
Weight 5.1g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 3.1V-5V
Supported FC System Betaflight
OSD Canvas mode
Bitrate 25mbps 50mbps
Latency Average delay 22ms
Antenna IPEX

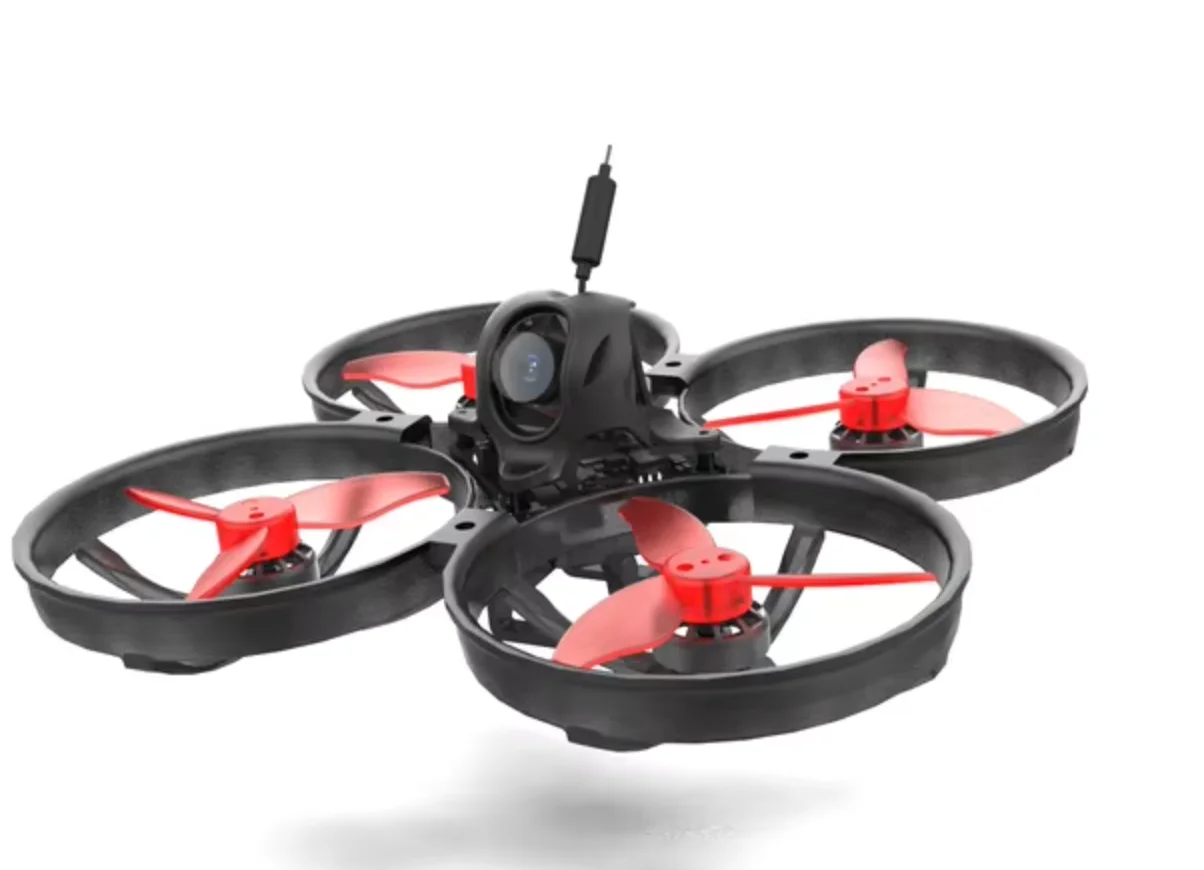

HDZERO Version
HDZero Nano Lite Camera
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX
1-3S Input
25mW/200mW RF Output-SmartAudio Support
25.5×25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5×32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Anti-wind Ability |
|
| Drone Weight |
|
| Takeoff Weight |
|
| Transit Time (Days) |
|
| Video Capture Resolution |
|
| Operator Skill Level |
|
| Indoor/Outdoor Use |
|
| Camera Mount Type |
|
| Controller Mode |
|
| Is Batteries Included |
|
| Flight Time |
|
| Control Channels |
|
| Controller Battery |
|
| Remote Distance |
|
| Remote Control |
|
| Package Includes |
|
| Material |
|
| Features |
|
| Recommend Age |
|
| Origin |
|
| Aerial Photography |
|
| Type |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Anti-wind Ability | none |
| Drone Weight | none |
| Takeoff Weight | none |
| Transit Time (Days) | none |
| Video Capture Resolution | Other |
| Operator Skill Level | Beginner,Intermediate,expert |
| Indoor/Outdoor Use | Indoor-Outdoor |
| Camera Mount Type | Other |
| Controller Mode | MODE1,MODE2 |
| Is Batteries Included | No |
| Flight Time | 10~20 |
| Control Channels | 12 Channels & Up |
| Controller Battery | none |
| Remote Distance | none |
| Remote Control | No |
| Package Includes | Original Box |
| Material | Plastic |
| Features | Other |
| Recommend Age | 14+y |
| Origin | Mainland China |
| Aerial Photography | No |
| Type | Airplane |
Product Details
NOTE:This product requires FPV ride-through machine experience. If you have no experience in using it, we do not recommend purchasing it and we do not support returns without reason.（All products sold by our merchants are original and genuine, and we have relevant certificates.）
The New Mobula8 Digital HD Micro FPV whoop comes with a new flight controller which is specific for Digital HD CINEWHOOP. Built in UART ExpressLRS receiver and 12A 4-IN-1 BLheli_S ESC. The same Brushless motor and Gemfan 2023 propeller like the Mobula8 Analog version. Comes With DJI O3, Walksnail avatar and HDZERO VTX option. Smooth flight and High definition video transmission would bring us exited FPV experience.
Notice: DJI O3 air unit warranty service is undertaken by DJI according to their warranty policy, please noted. If you purchase this product you agree to this policy.
Features:
Digital HD FPV experience
New CrazyF405 ELRS HD flight controller
Powerful and Smooth
UART ExpressLRS receiver
Built-in blackbox for Gyroflow and PID Tune
Package includes:
Item Name | Qty |
Mobula8 Frame | 1 |
CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4 | 1 |
EX1103 KV11000 brushless motor | 4 |
Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) | 1 |
Option1: DJI O3 Air unit | 1 |
Option2: Walksnail avatar HD Mini 1S lite kit | |
Option3: HDZERO Whoop Lite bundle | |

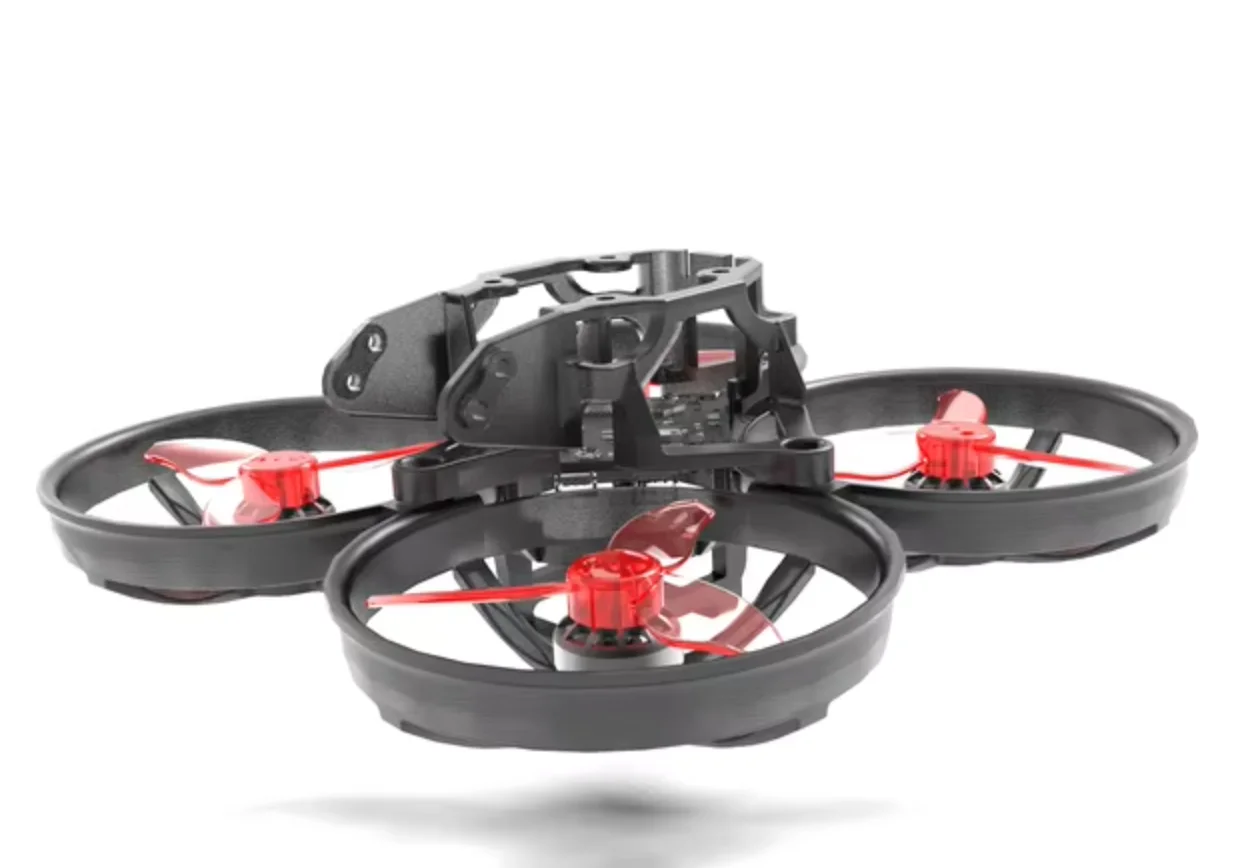

Option4: No VTX and camera version | |
Canopy(DJI O3/Walksnail/HDZERO optional) | 1 |
Screw driver | 1 |
Spare parts specifications:
Motor | Mode: EX1103 KV11000 |
Propellers | Weight:0.88g |
Flight controller | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) |
Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV |
Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz |
DJI O3 Air Unit | Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2 |
Walksnail version | Camera |
HDZERO Version | HDZero Nano Lite Camera |
