HappyModel RS0802 KV20000 1S Brushless Motor CW CCW For FPV Freestyle Mobula7 Mobula7 HD 1S Tinywhoop Drones
From US $31.20 - 44.19
Est. US $31.20 - 44.19 / unit (1-9 pcs)
$29 @ 10+ pcs$27 @ 100+ pcs
36 orders (reference)
Description

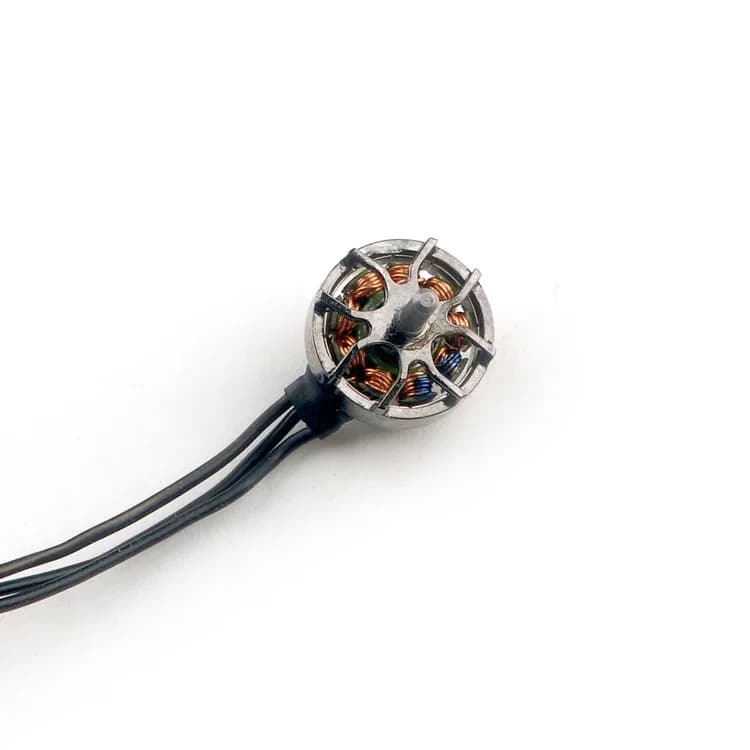

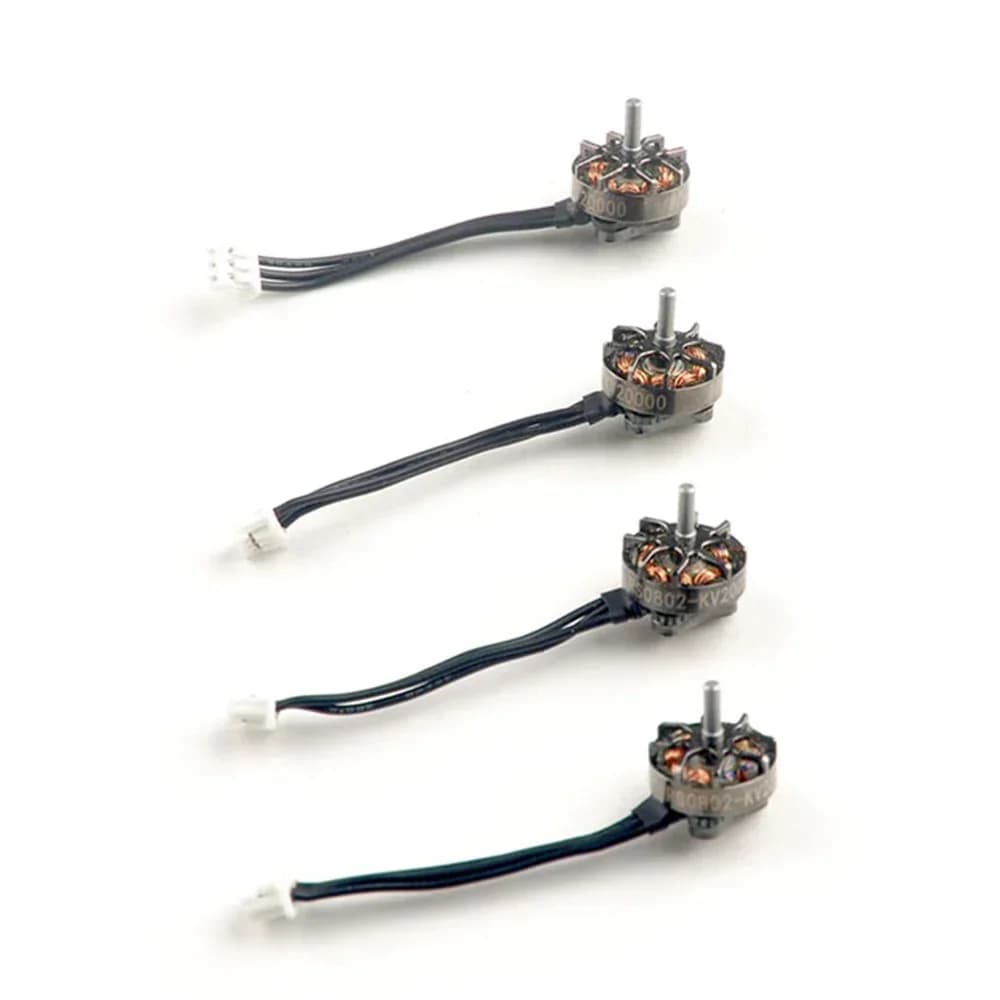

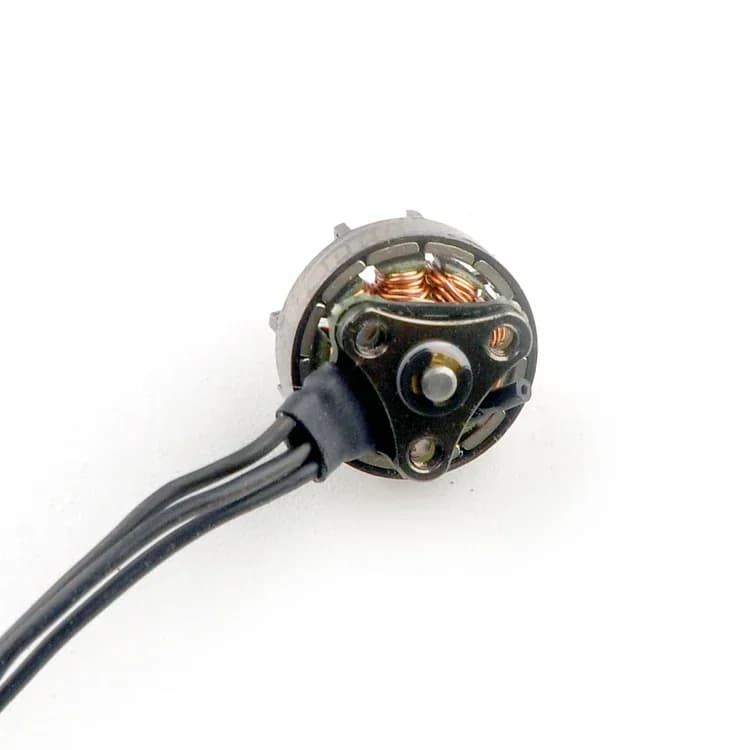

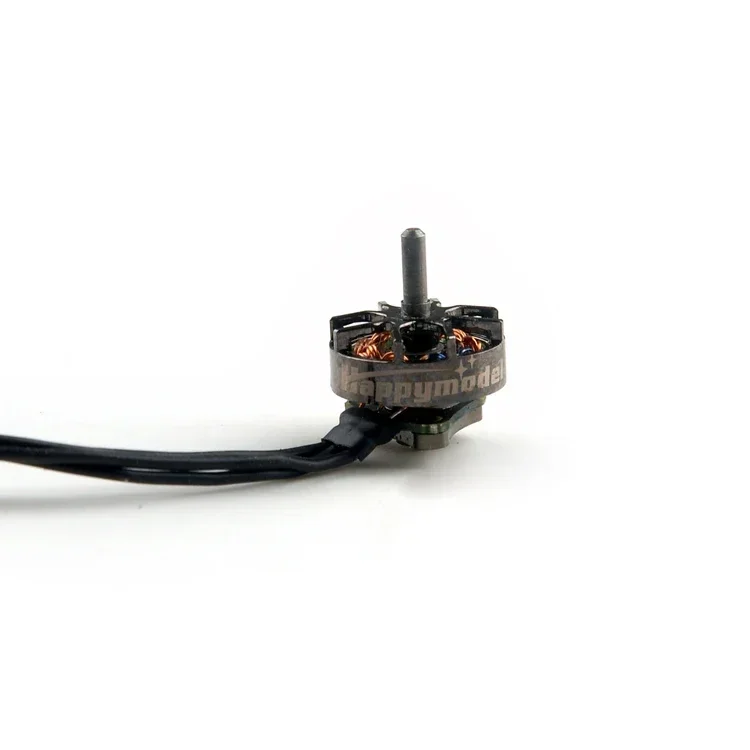

Happymodel RS0802 20000KV Miniature Brushless Motor
Product Parameters:
Brand: Happymodel
Model: RS0802 1S brushless motor
KV value: 20000kv (Mobula7 1S original motor)
Motor shaft: 1.5mm
Slot class: 9N12P
Stator diameter: 8mm
Stator length: 2mm
Motor size: diameter φ10.5mm* length 13.5mm
Terminal: JST 1.25mm Crazybee series flight control straight plug
Outlet length: 30mm (excluding terminals)

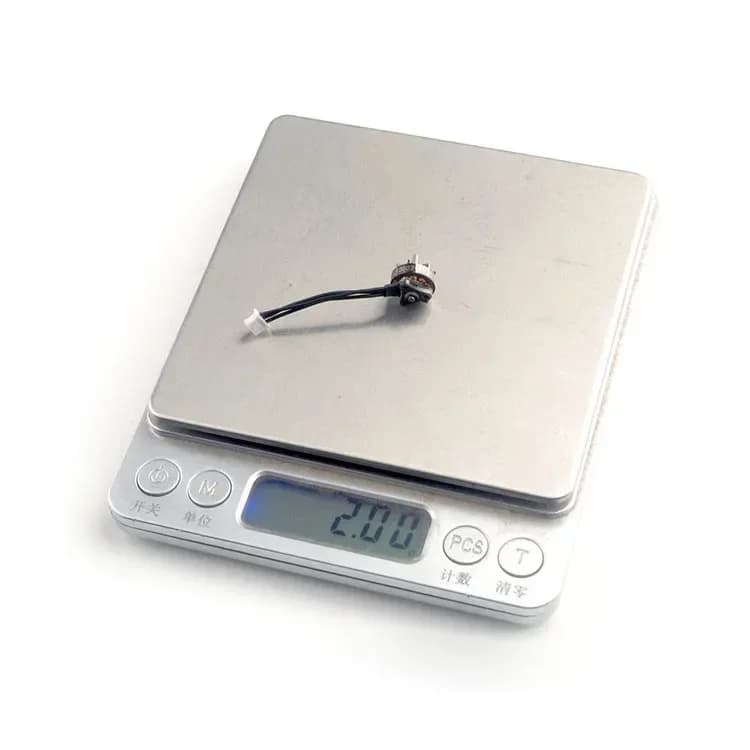

Weight: 2g
Compatible for Mobula7 and Mobula7 HD 1S Version
The black wire (the plug is marked with a red dot) is used with Crazybee series flight controllers, and it is CW steering
The black wire (with no red dot on the plug mark) is used with Crazybee series flight controllers, it is CCW steering
Variant
Selected priceUSD 40.70
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | AS SHOW |
| Technical parameters | KV1100 |
| Model Number | HappyModel RS0802 KV20000 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Motor |
| RC Parts & Accs | Motor |
| Material | Composite Material |
| Brand Name | HawkSpeed |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Happymodel RS0802 20000KV Miniature Brushless Motor
Product Parameters:
Brand: Happymodel
Model: RS0802 1S brushless motor
KV value: 20000kv (Mobula7 1S original motor)
Motor shaft: 1.5mm
Slot class: 9N12P
Stator diameter: 8mm
Stator length: 2mm
Motor size: diameter φ10.5mm* length 13.5mm
Terminal: JST 1.25mm Crazybee series flight control straight plug
Outlet length: 30mm (excluding terminals)
Weight: 2g
Compatible for Mobula7 and Mobula7 HD 1S Version
The black wire (the plug is marked with a red dot) is used with Crazybee series flight controllers, and it is CW steering
The black wire (with no red dot on the plug mark) is used with Crazybee series flight controllers, it is CCW steering
Package Included:
Happymodel RS0802 20000KV CW Brushless Motor x 1
or
Happymodel RS0802 20000KV CCW Brushless Motor x 1
or
Happymodel RS0802 20000KV CW Brushless Motor x 2
Happymodel RS0802 20000KV CCW Brushless Motor x 2
Product Parameters:
Brand: Happymodel
Model: RS0802 1S brushless motor
KV value: 20000kv (Mobula7 1S original motor)
Motor shaft: 1.5mm
Slot class: 9N12P
Stator diameter: 8mm
Stator length: 2mm
Motor size: diameter φ10.5mm* length 13.5mm
Terminal: JST 1.25mm Crazybee series flight control straight plug
Outlet length: 30mm (excluding terminals)
Weight: 2g
Compatible for Mobula7 and Mobula7 HD 1S Version
The black wire (the plug is marked with a red dot) is used with Crazybee series flight controllers, and it is CW steering
The black wire (with no red dot on the plug mark) is used with Crazybee series flight controllers, it is CCW steering
Package Included:
Happymodel RS0802 20000KV CW Brushless Motor x 1
or
Happymodel RS0802 20000KV CCW Brushless Motor x 1
or
Happymodel RS0802 20000KV CW Brushless Motor x 2
Happymodel RS0802 20000KV CCW Brushless Motor x 2
