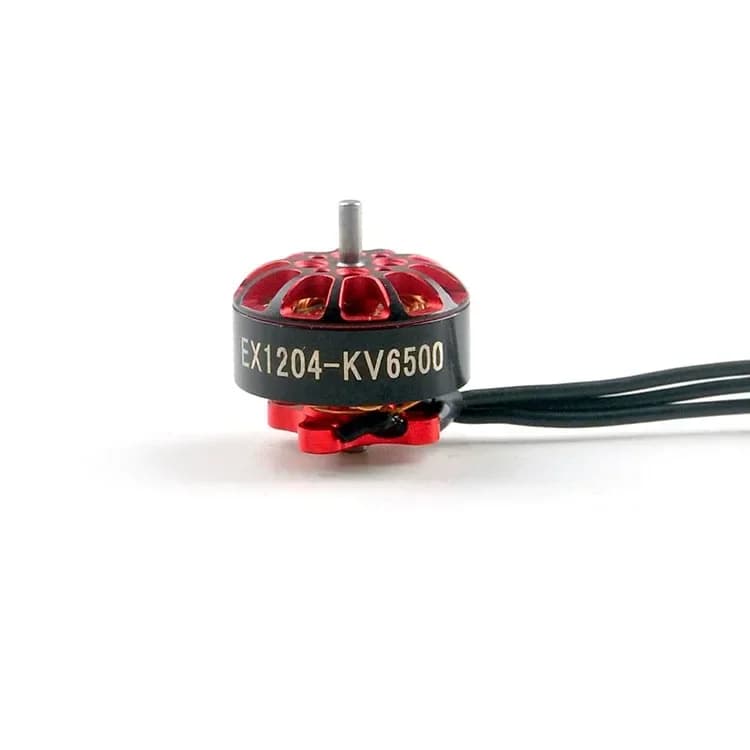

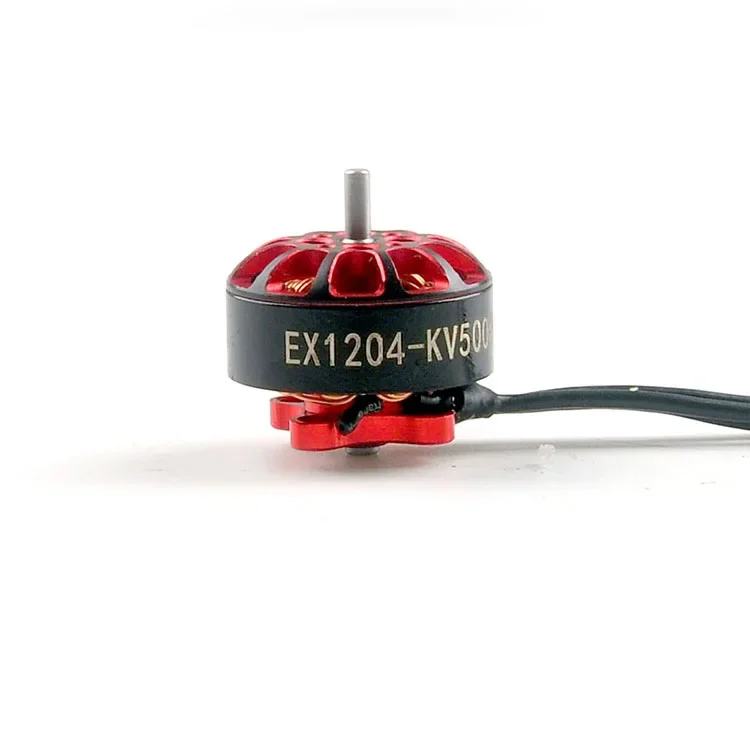

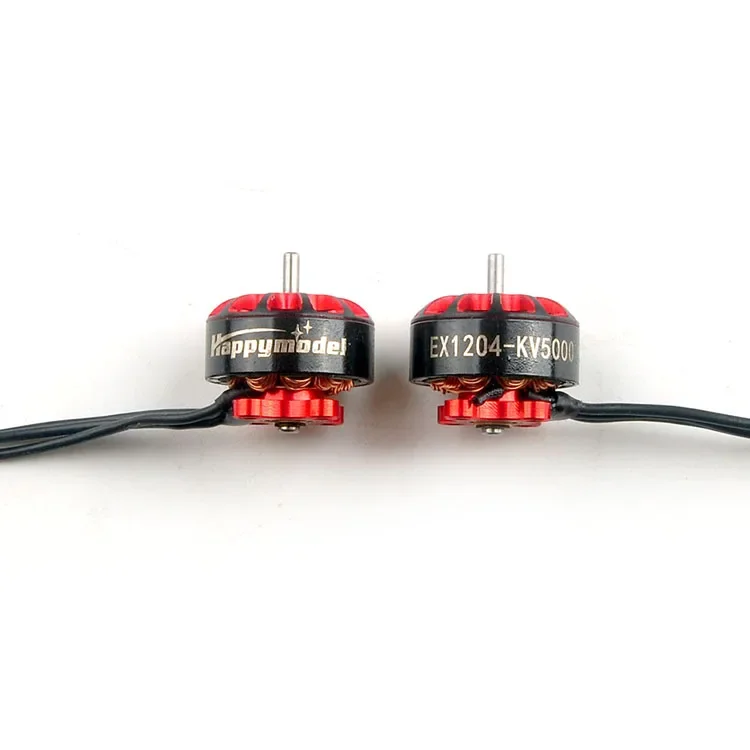

HappyModel EX1204 1204 Brushless Motor 5000KV 2-4S 6500KV 2-3S 1.5mm Shaft for 3 Inch Toothpick FPV Racing Drone
47 orders (reference)
Description

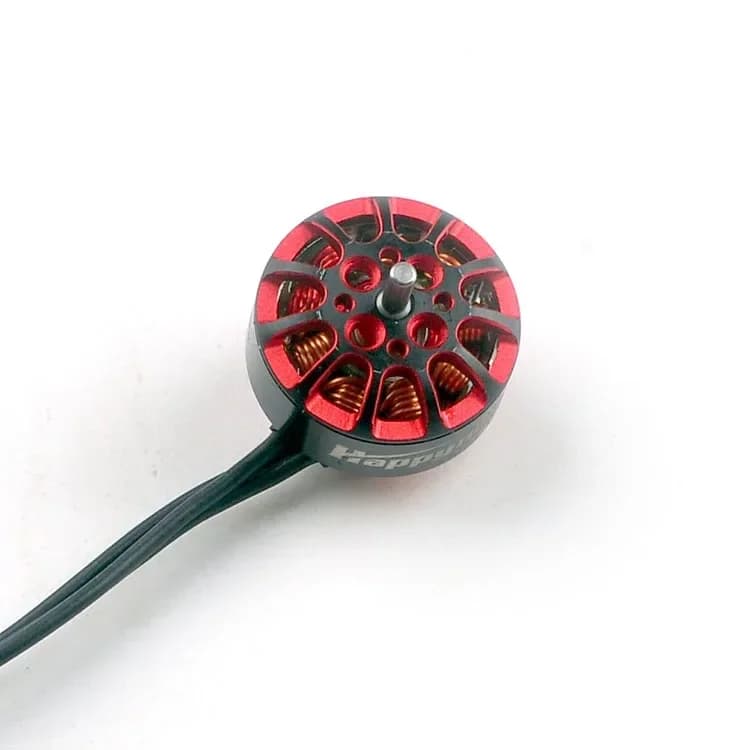

Happymodel new EX1204 brushless motor, weighs only 5.9g, cool design, imported NMB double bearings, 2mm inner shaft, efficient, durable and smooth,
there are two KV values to choose from, KV5000 or KV6500, 3 inch advanced Micro brushless Excellent power choice for Racing drone.
1.5mm motor output shaft, line length 60mm

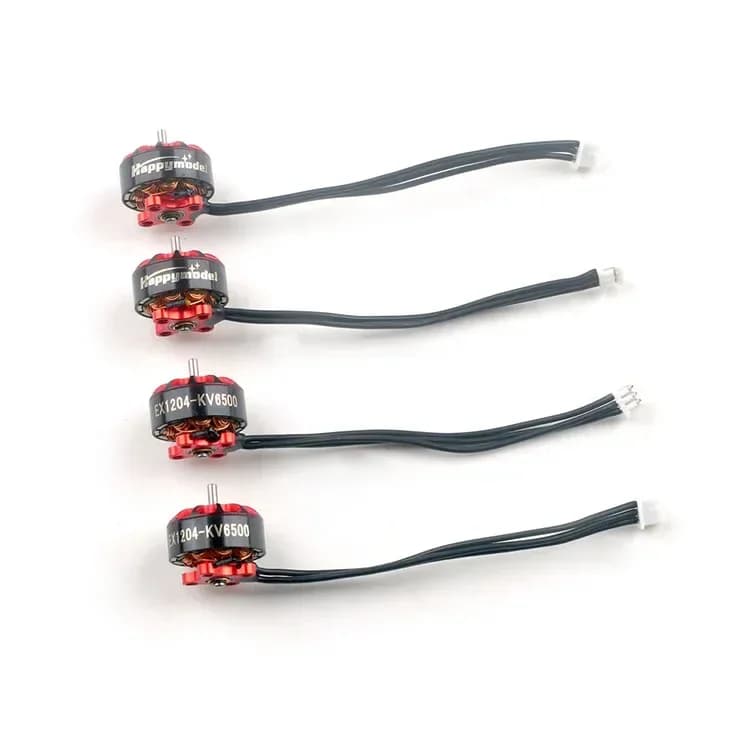

The black wire (plug marked with red dots) is used with Crazybee series flight control for CW steering (can be reversed in BLHELI)
The black wire (plug without red dot) is used with Crazybee series flight control. It is CCW steering (can be reversed in BLHELI)
Mode: EX1204
KV option: KV5000 or KV6500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:4mm
Inner Shaft Diameter:Φ2mm
Outer Shaft Diameter:Φ1.5mm

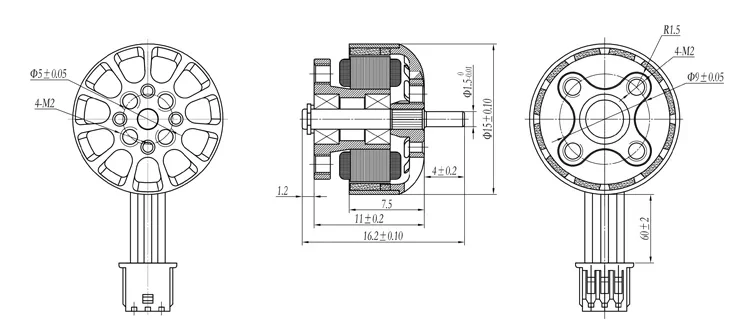

Motor Dimension(Dia.*Len):Φ15mm*16.2mm

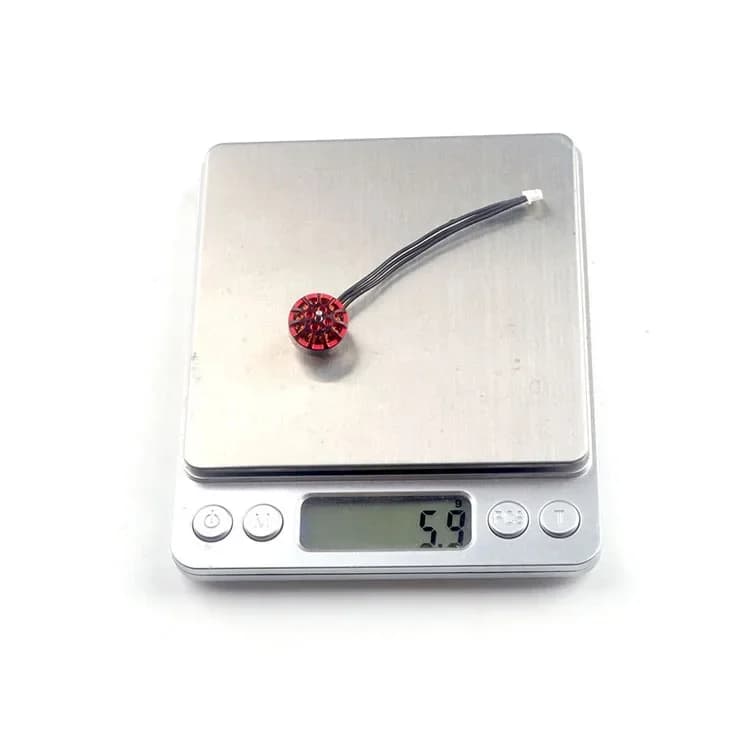

Weight(g):5.9g
No.of Cells(Lipo):
KV5000 support 2-4s
KV6500 support 2-3s
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | AN |
| Technical parameters | KV1100 |
| Model Number | Happymodel EX1204 Motor |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Motors |
| RC Parts & Accs | Motors |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Description
Happymodel new EX1204 brushless motor, weighs only 5.9g, cool design, imported NMB double bearings, 2mm inner shaft, efficient, durable and smooth,
there are two KV values to choose from, KV5000 or KV6500, 3 inch advanced Micro brushless Excellent power choice for Racing drone.
1.5mm motor output shaft, line length 60mm

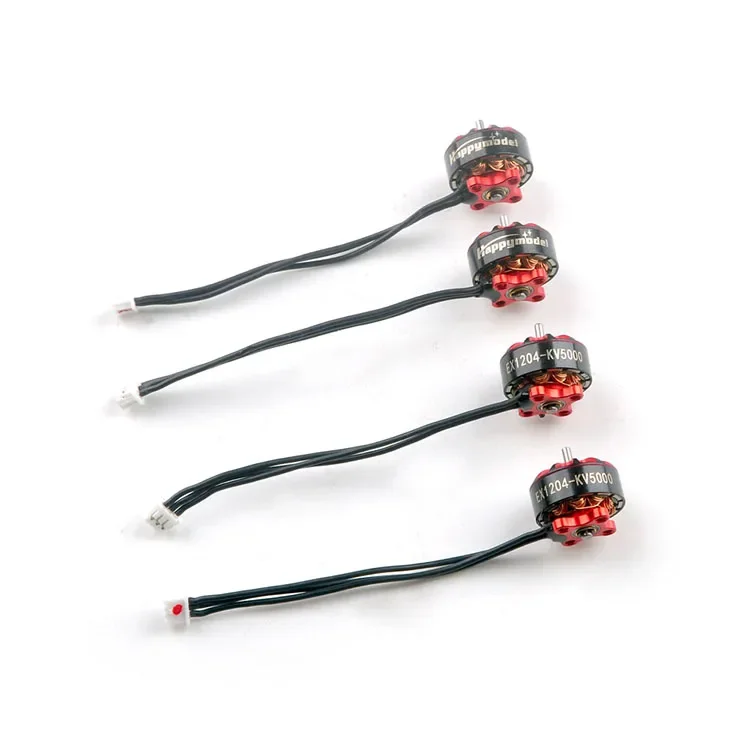

The black wire (plug marked with red dots) is used with Crazybee series flight control for CW steering (can be reversed in BLHELI)
The black wire (plug without red dot) is used with Crazybee series flight control. It is CCW steering (can be reversed in BLHELI)
Mode: EX1204
KV option: KV5000 or KV6500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:4mm
Inner Shaft Diameter:Φ2mm
Outer Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ15mm*16.2mm
Weight(g):5.9g
No.of Cells(Lipo):
KV5000 support 2-4s
KV6500 support 2-3s
Package include:

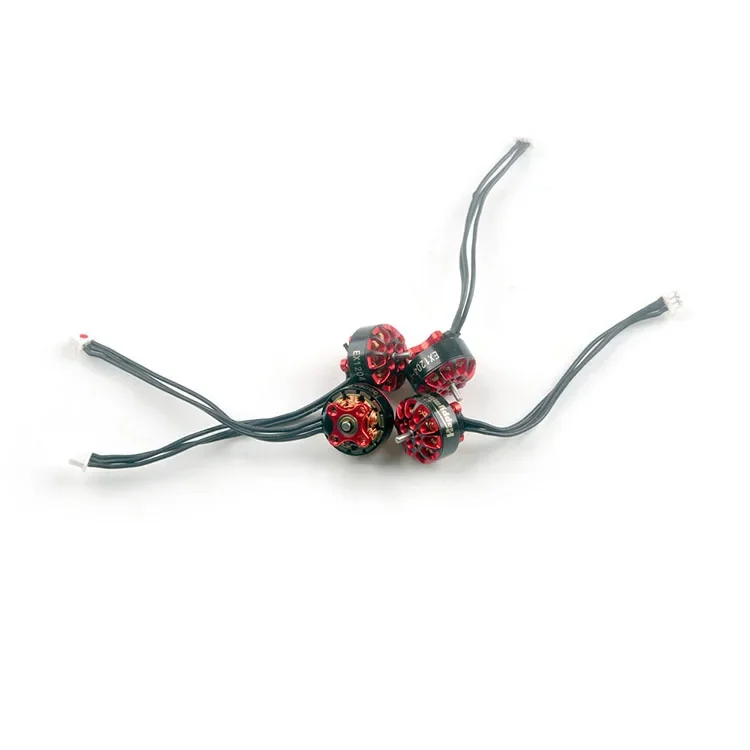

1/4pcs Happymodel EX1204 Motor
