HGLRC SPECTER F460 STACK MPU6000 F405 Flight Controller BLHELI_S 60A 4in1 ESC 30X30mm 2-6S
Description
HGLRC SPECTER F460 STACK MPU6000 F405 Flight Controller BLHELI_S 60A 4in1 ESC 30X30mm 2-6S High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No For Vehicle Type: Helicopters RC Parts & Accs: Speed Controllers Material: Composite Material
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| For Vehicle Type | Helicopters |
| RC Parts & Accs | Speed Controllers |
| Material | Composite Material |
| Brand Name | HGLRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Features:
* The flight control adopts the extremely stable MPU6000 gyroscope;
* The flight control main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;
* The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;
* It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;
* Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;
* Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;
* Integrated 16M black box, can record flight data;
* Onboard galvanometer module, real-time viewing of data such as current feedback through the flight control;

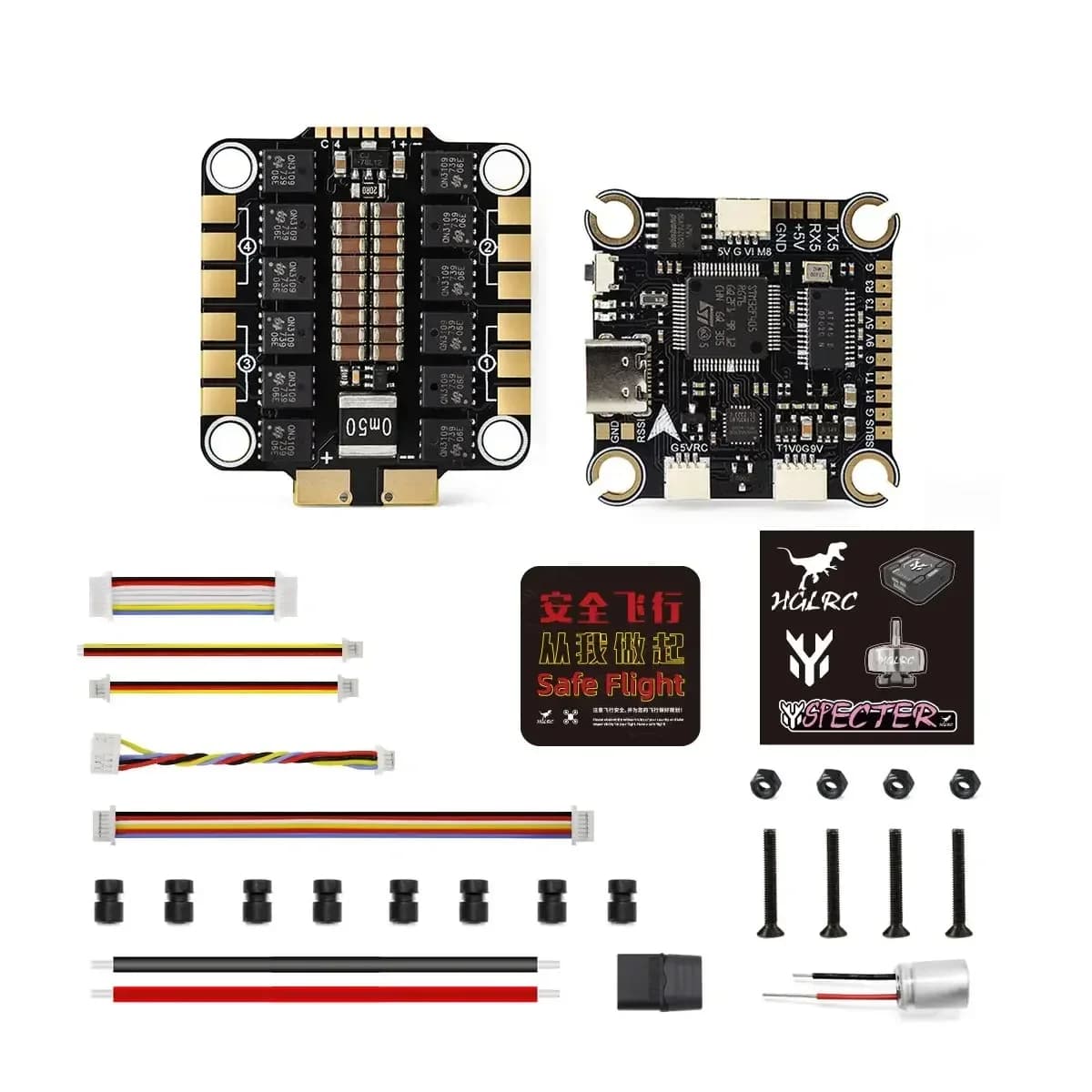

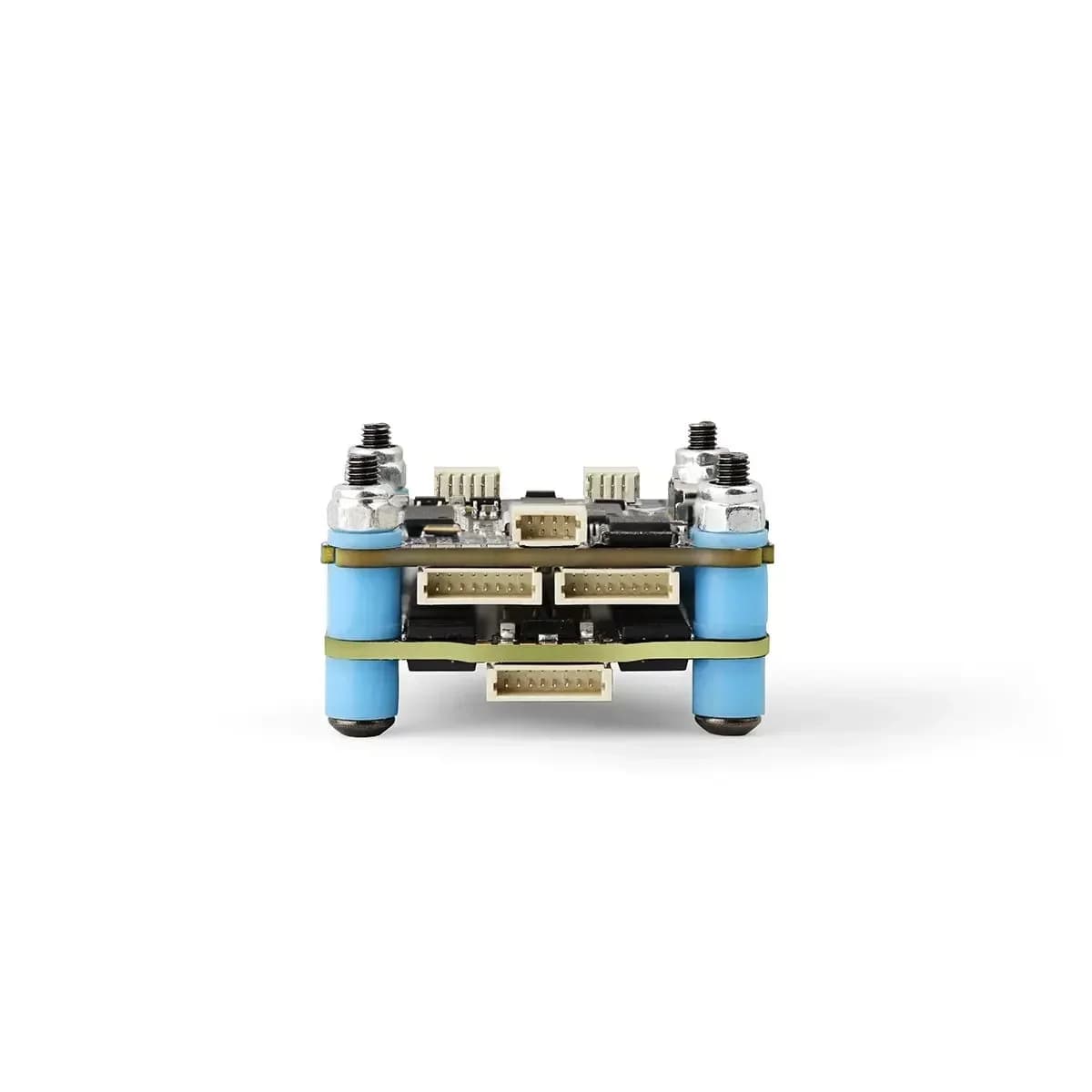

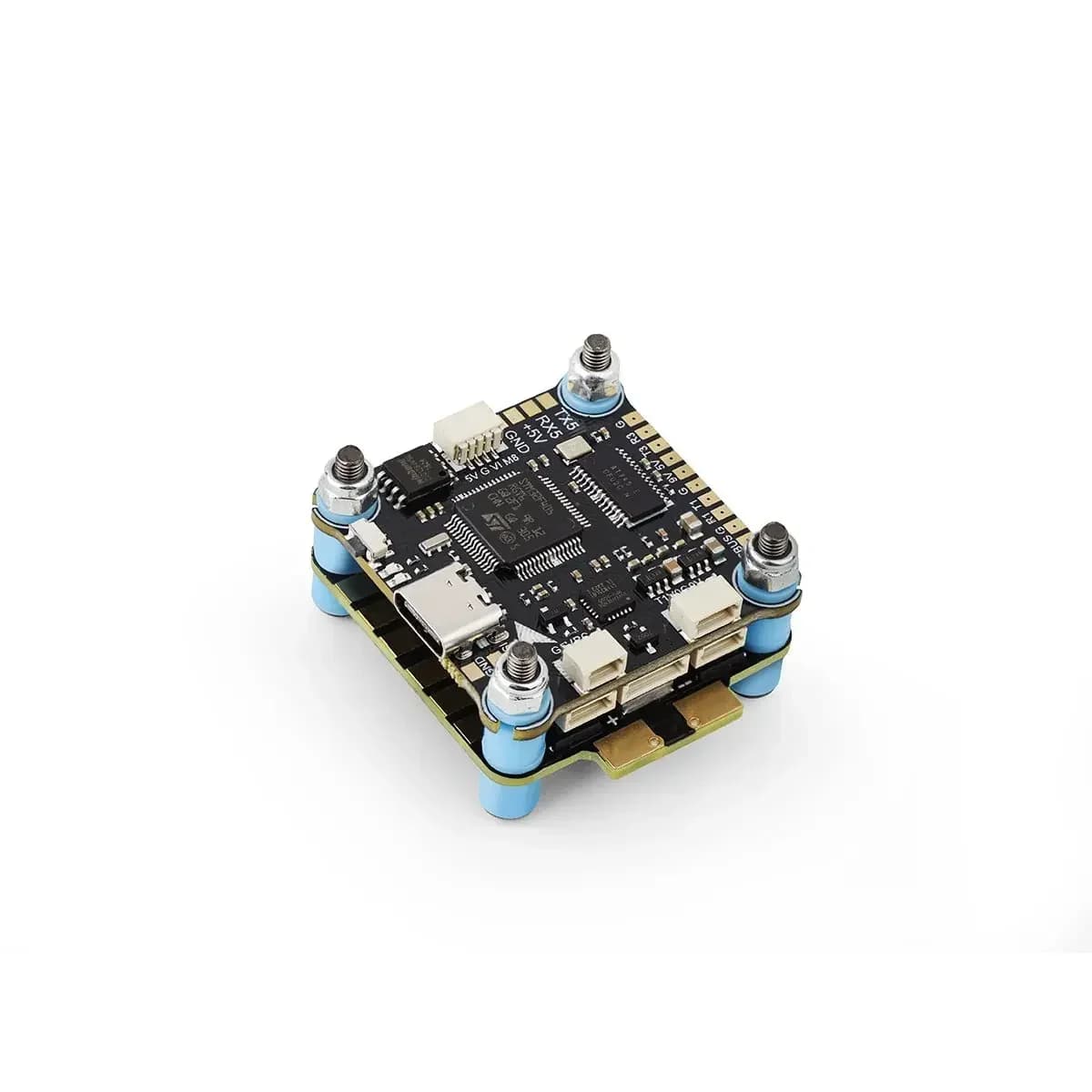

Item Name:HGLRC SPECTER F460 STACK
Input Voltage:2-6S Lipo (7.4V-22.8V)
Installing Hole:30.5x30.5mm, M3
Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot
Weight:29g

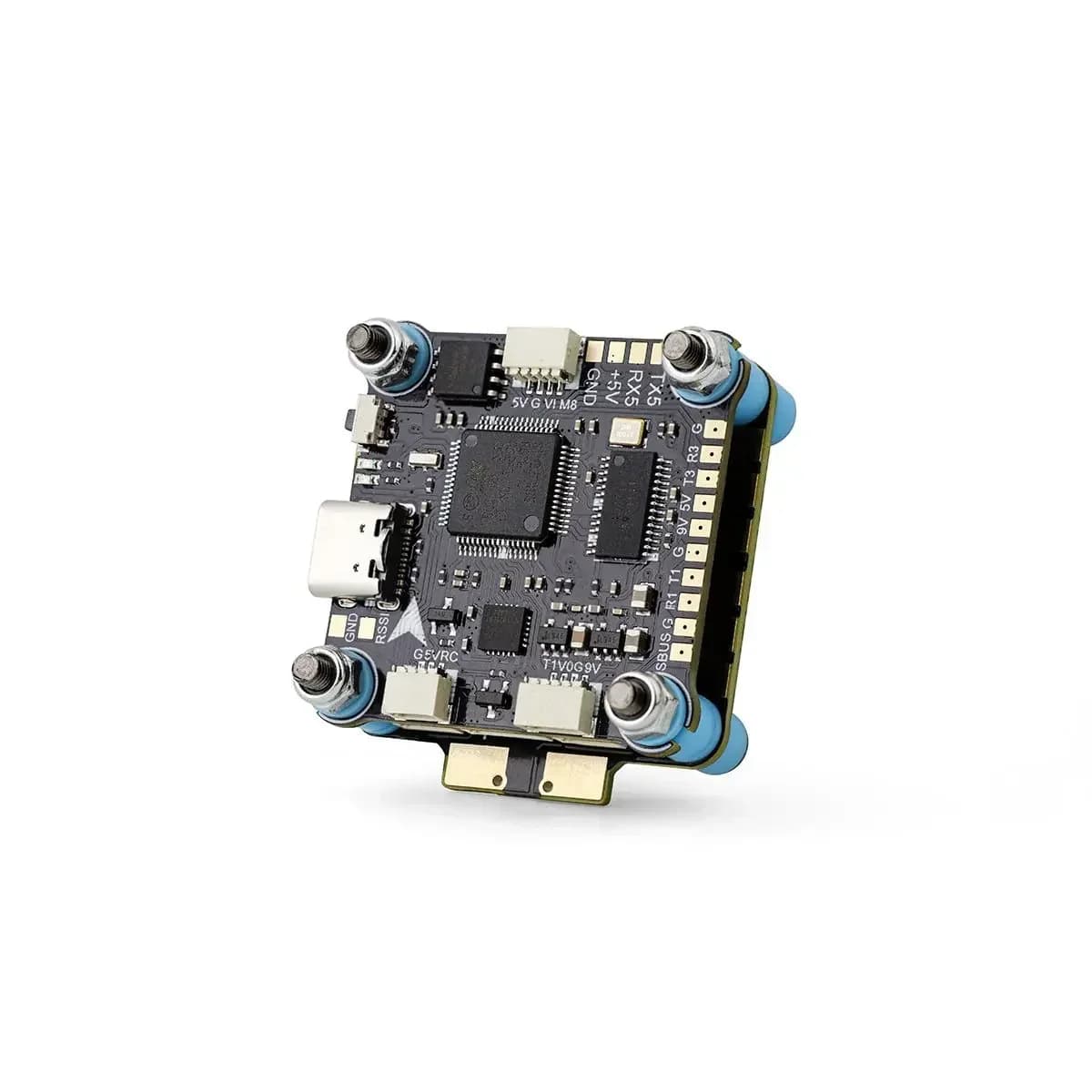

SPECTER F405 FC
MCU:STM32F405
GYRO:MPU6000
OSD:AT7456E
Blackbox:16MB
UART:4
BEC:9V2A/5V2.5A
FC Firmware:HGLRCF405V2
Size:38mm*38mm
SPECTER 60A ESC
Constant Current:60A
Peak Current:70A(10s)
ESC Firmware:BL_S (J-H-30)
Size:37x42.7mm
