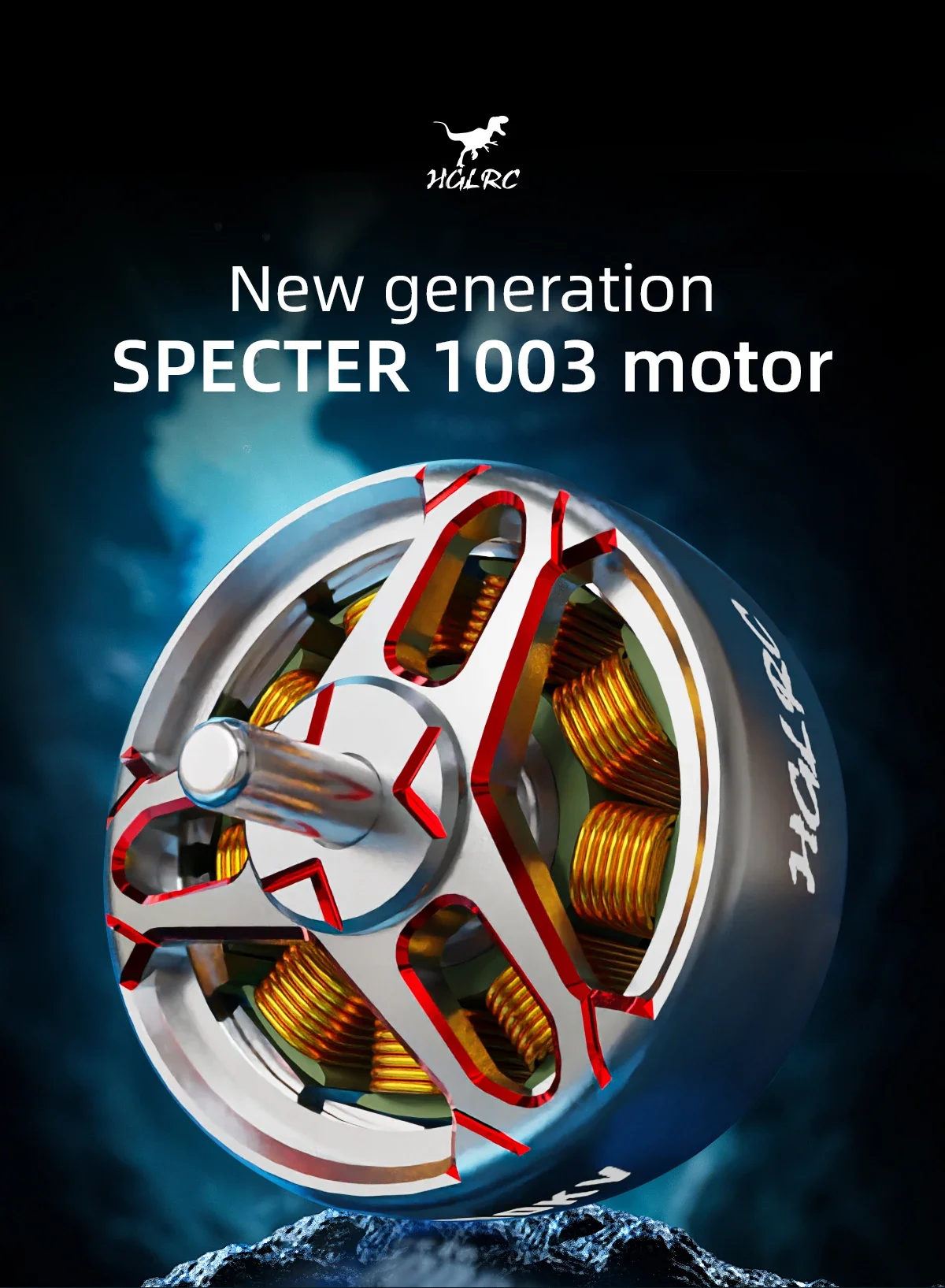

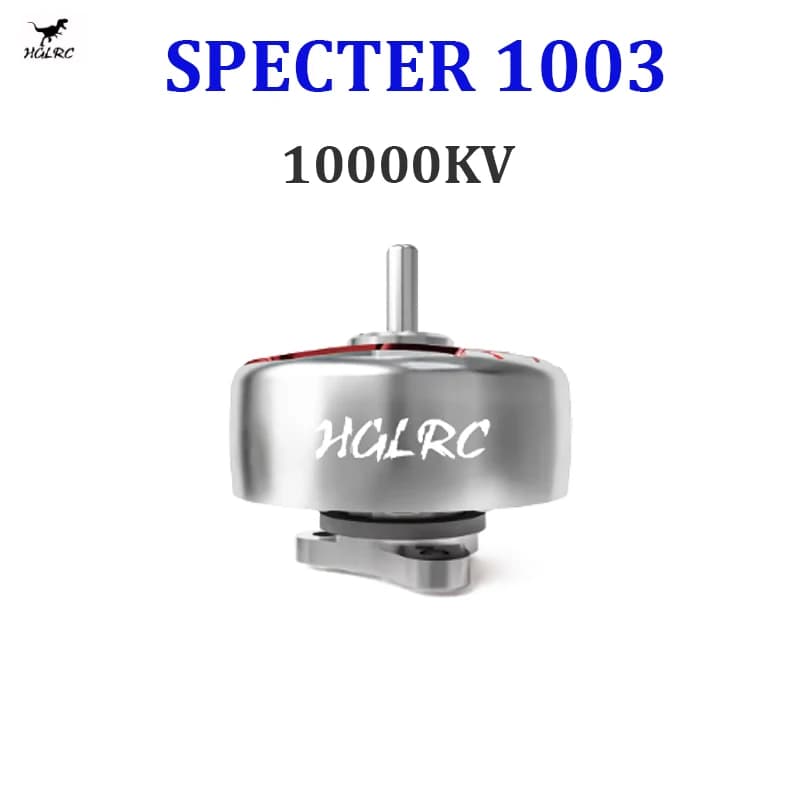

HGLRC SPECTER 1003 KV10000 Motor 1-2S for 75mm wheelbase FPV freestyle drone
Description
HGLRC SPECTER 1003 KV10000 Motor 1-2S for 75mm wheelbase FPV freestyle drone High-concerned chemical: None Brand Name: HGLRC Origin: Mainland China For Vehicle Type: Airplanes Material: Metal Quantity: 1 pcs Model Number: SPECTER 1003 10000KV Upgrade Parts/Accessories: Hydraulic Transmission Box
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Brand Name | HGLRC |
| Origin | Mainland China |
| For Vehicle Type | Airplanes |
| Material | Metal |
| Quantity | 1 pcs |
| Model Number | SPECTER 1003 10000KV |
| Upgrade Parts/Accessories | Hydraulic Transmission Box |
| Remote Control Peripherals/Devices | Motor |
| Tool Supplies | Assembled class |
| Technical parameters | KV1100 |
| Four-wheel Drive Attributes | Motors |
| Wheelbase | Screws |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| RC Parts & Accs | Motor Components |

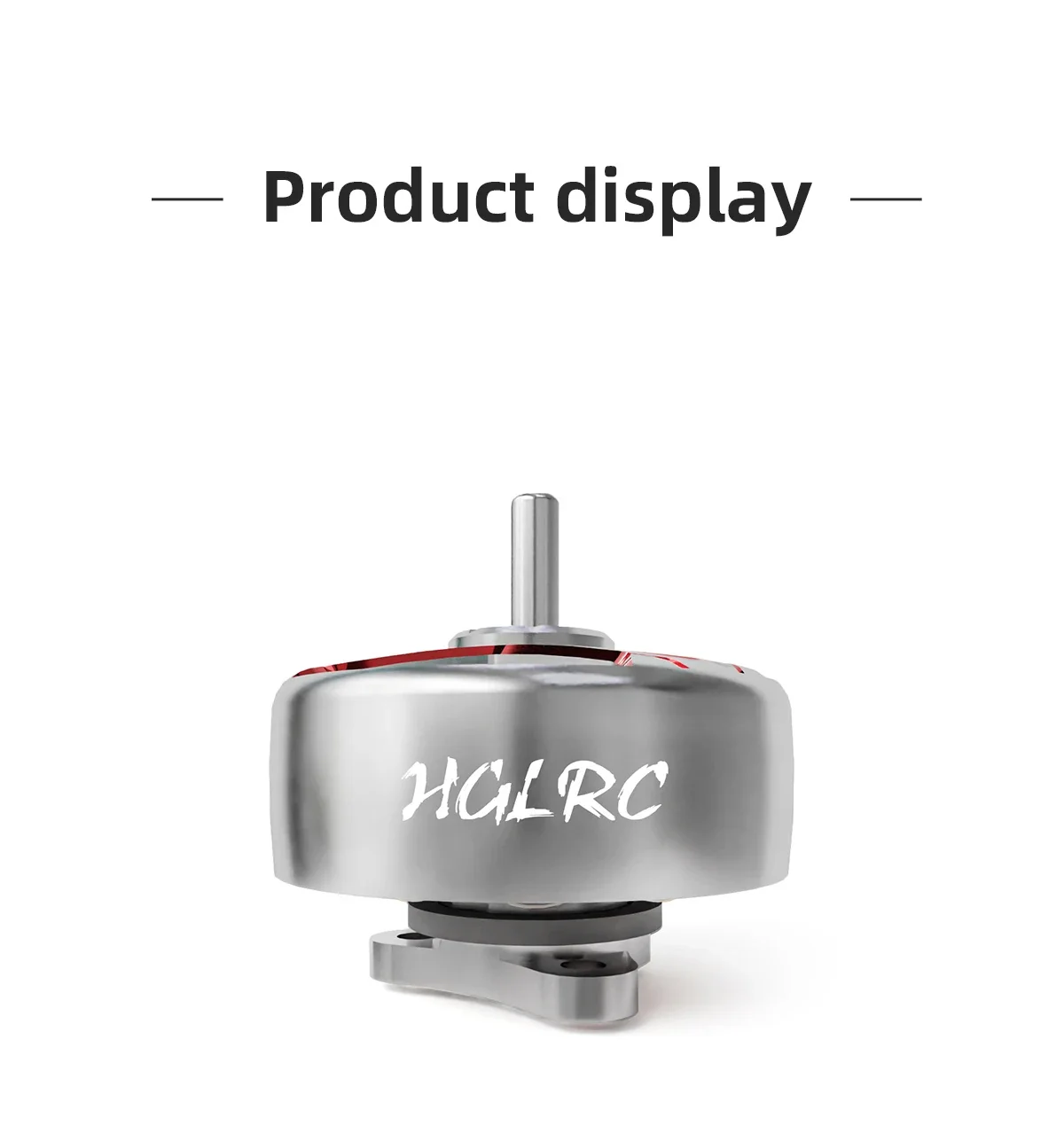

Product Details
Features

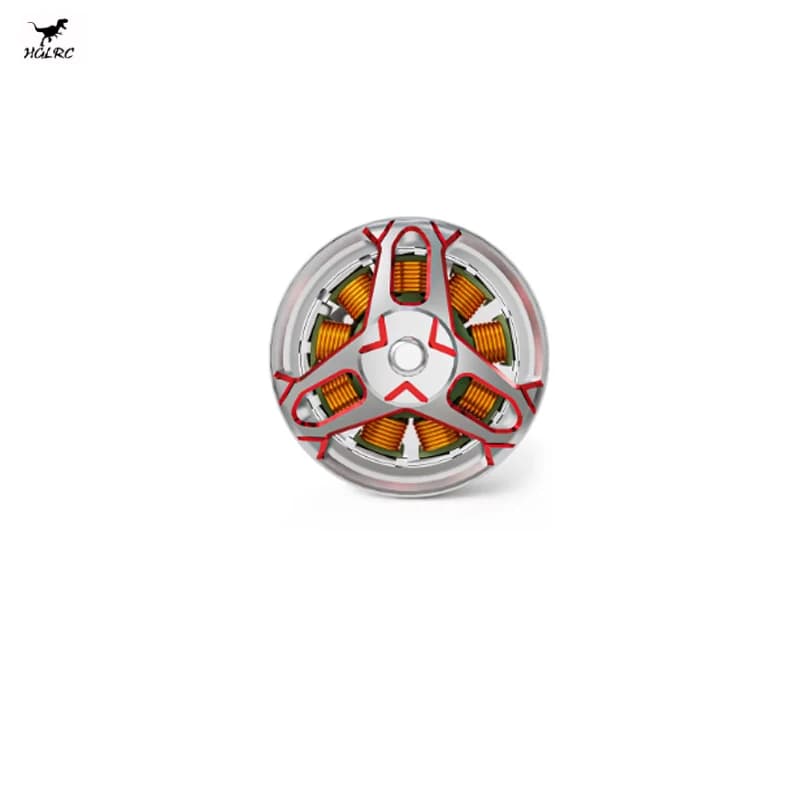

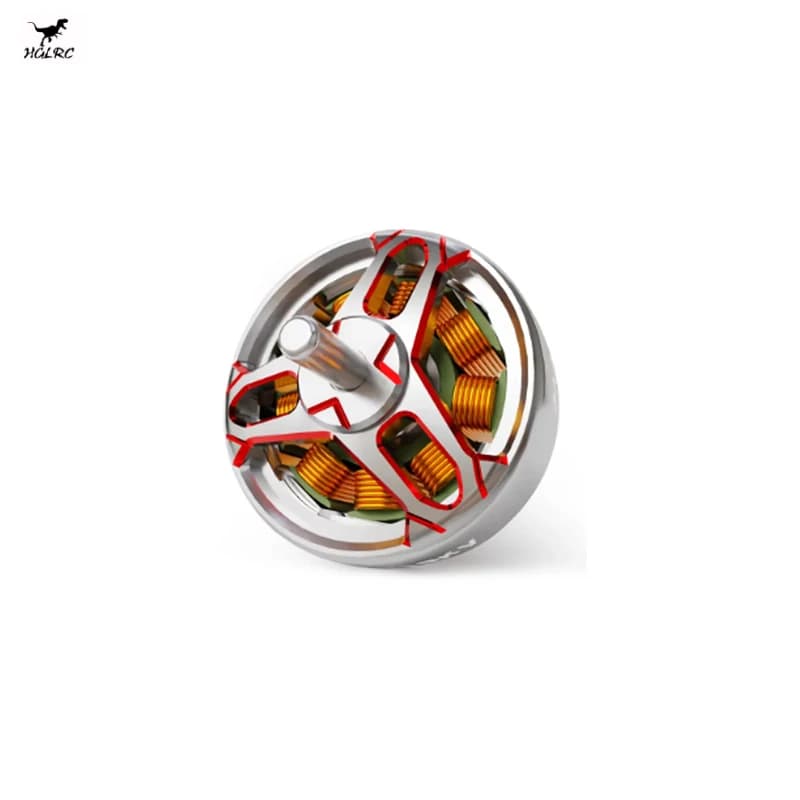

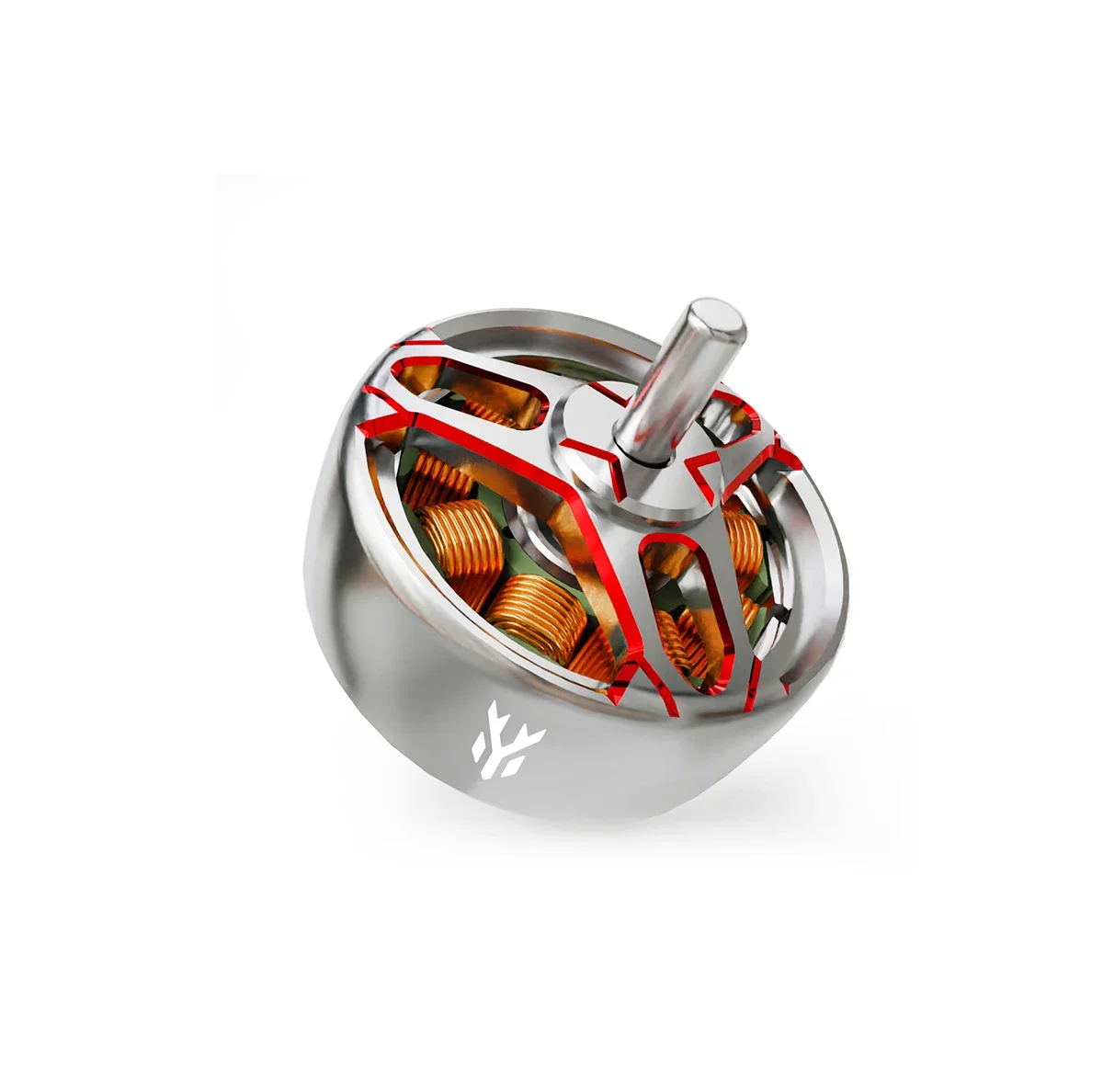

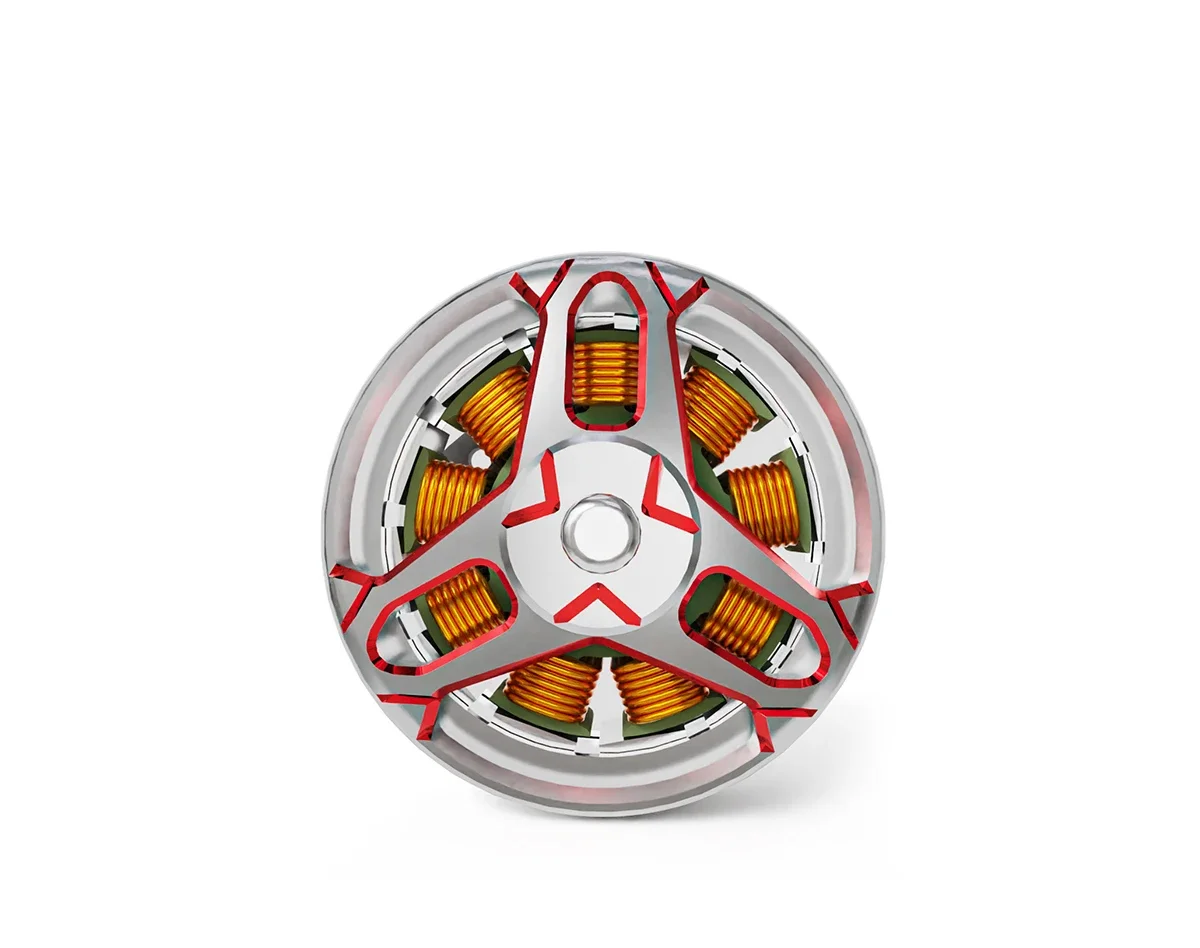

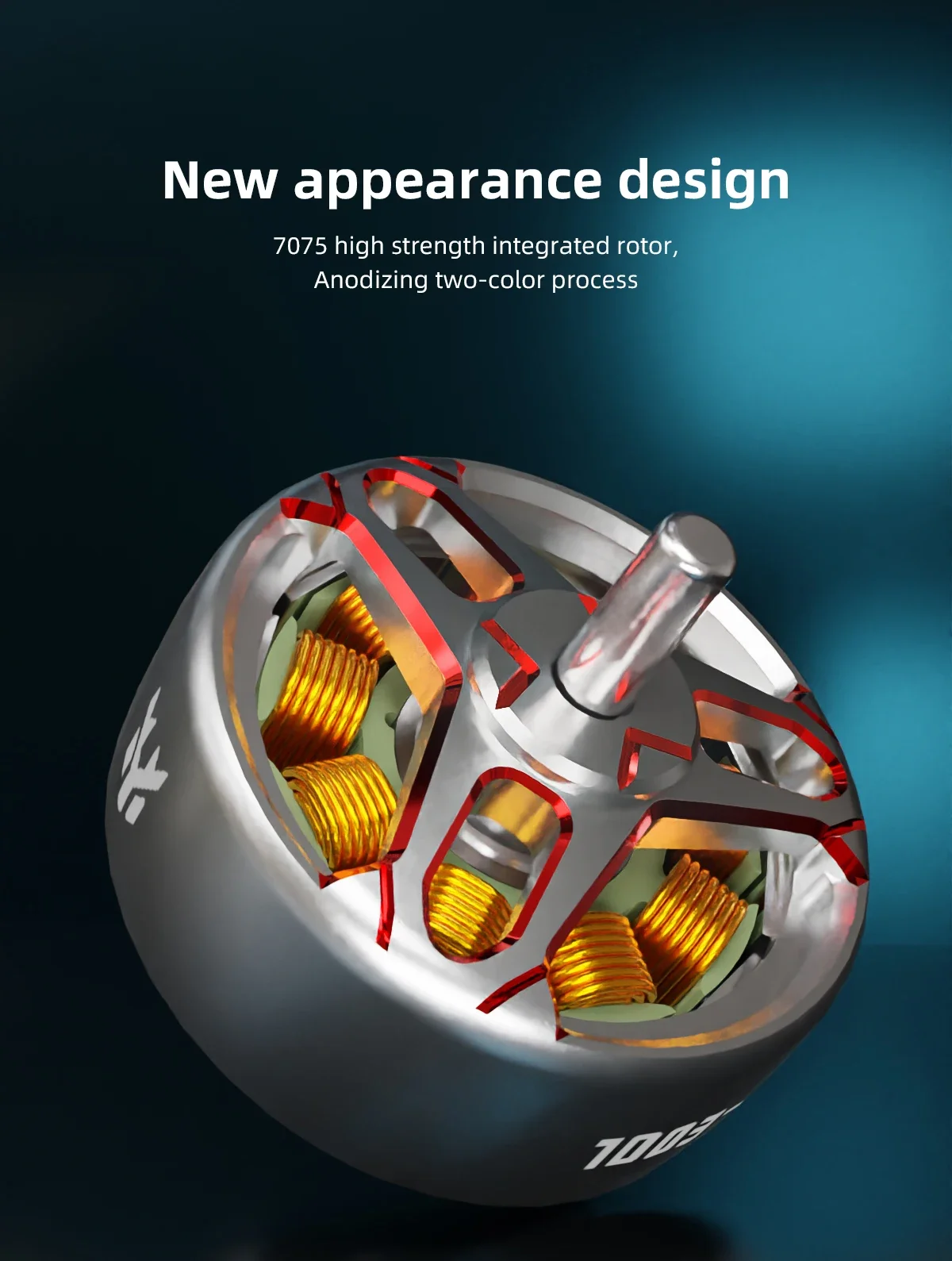

1. Brand new rotor appearance design, anodized two-color process
2. 7075 aviation aluminum material, high-strength one-piece rotor
3. Customized N52H curved magnetic steel, strong magnetism, high torque

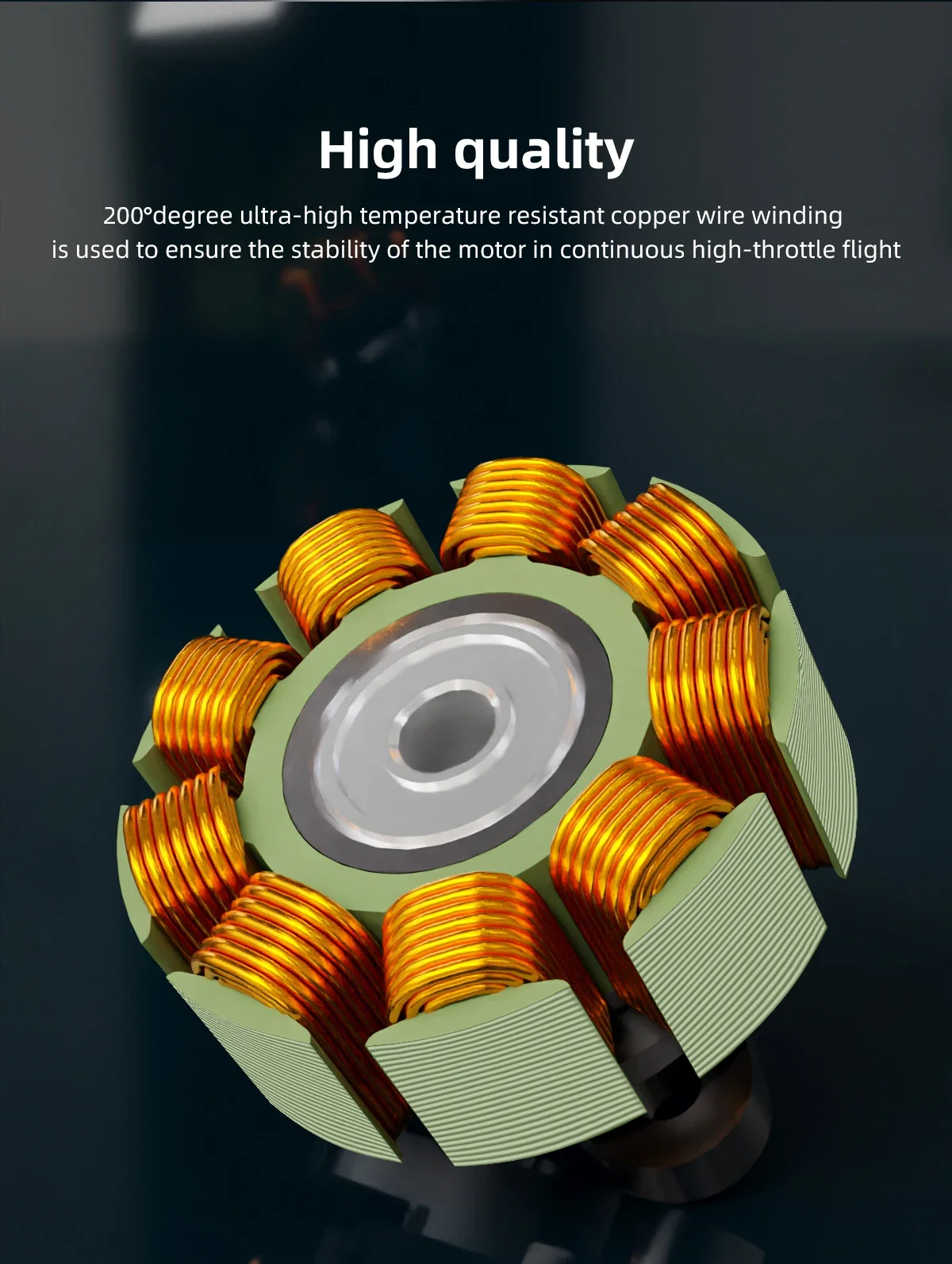

4. Super high temperature resistant 200° copper wire winding, the motor runs more stably

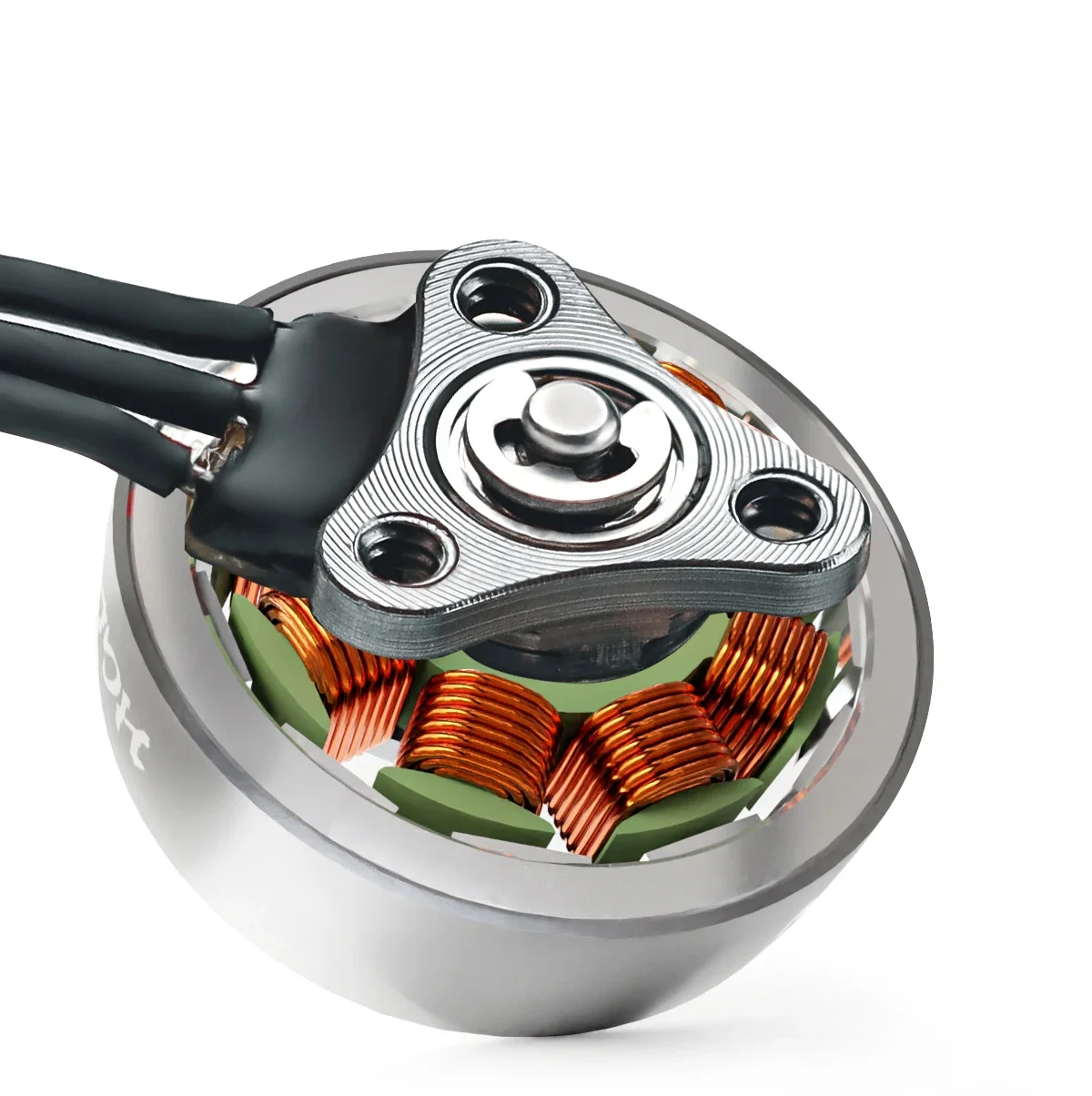

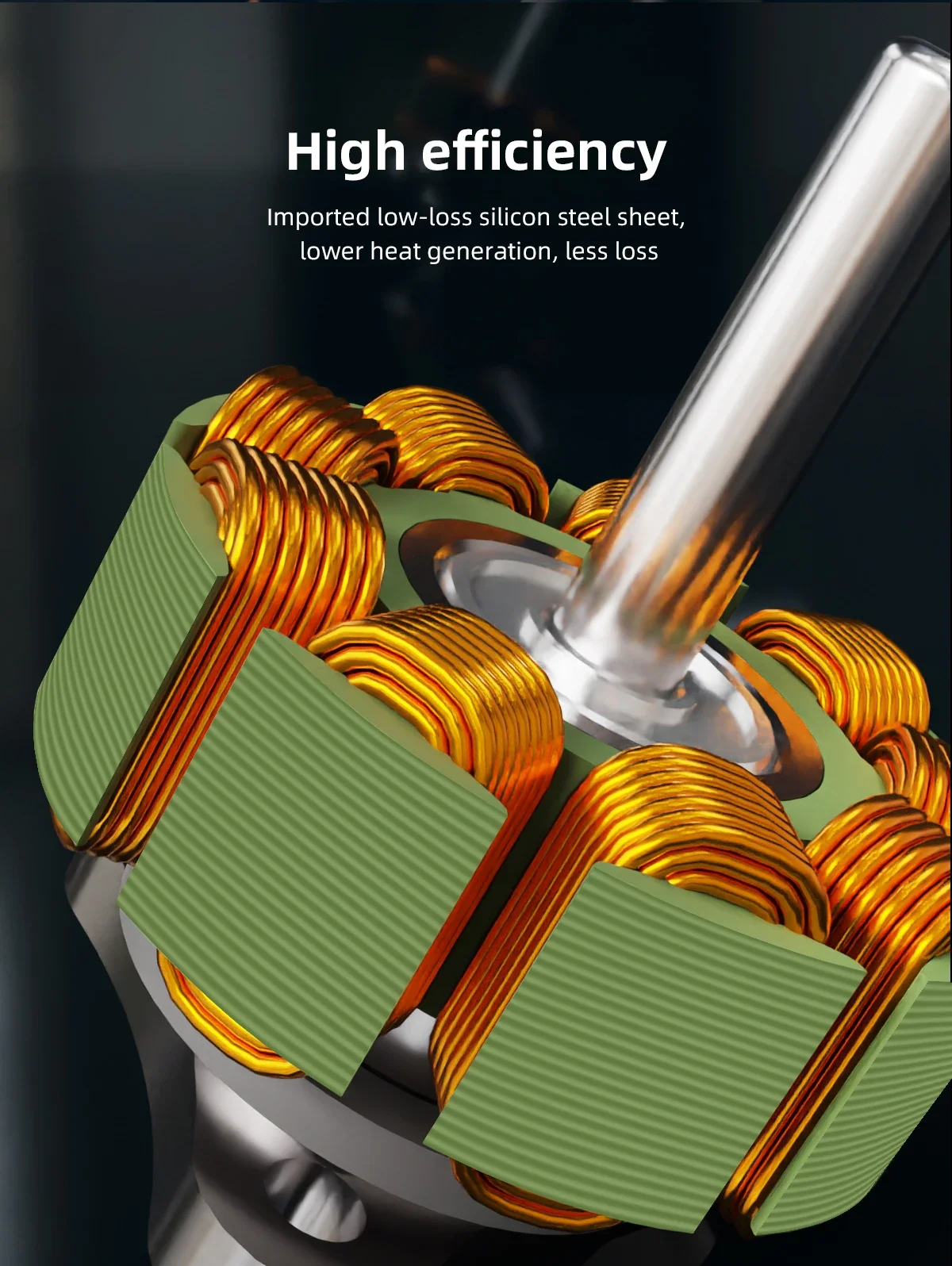

5. Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency

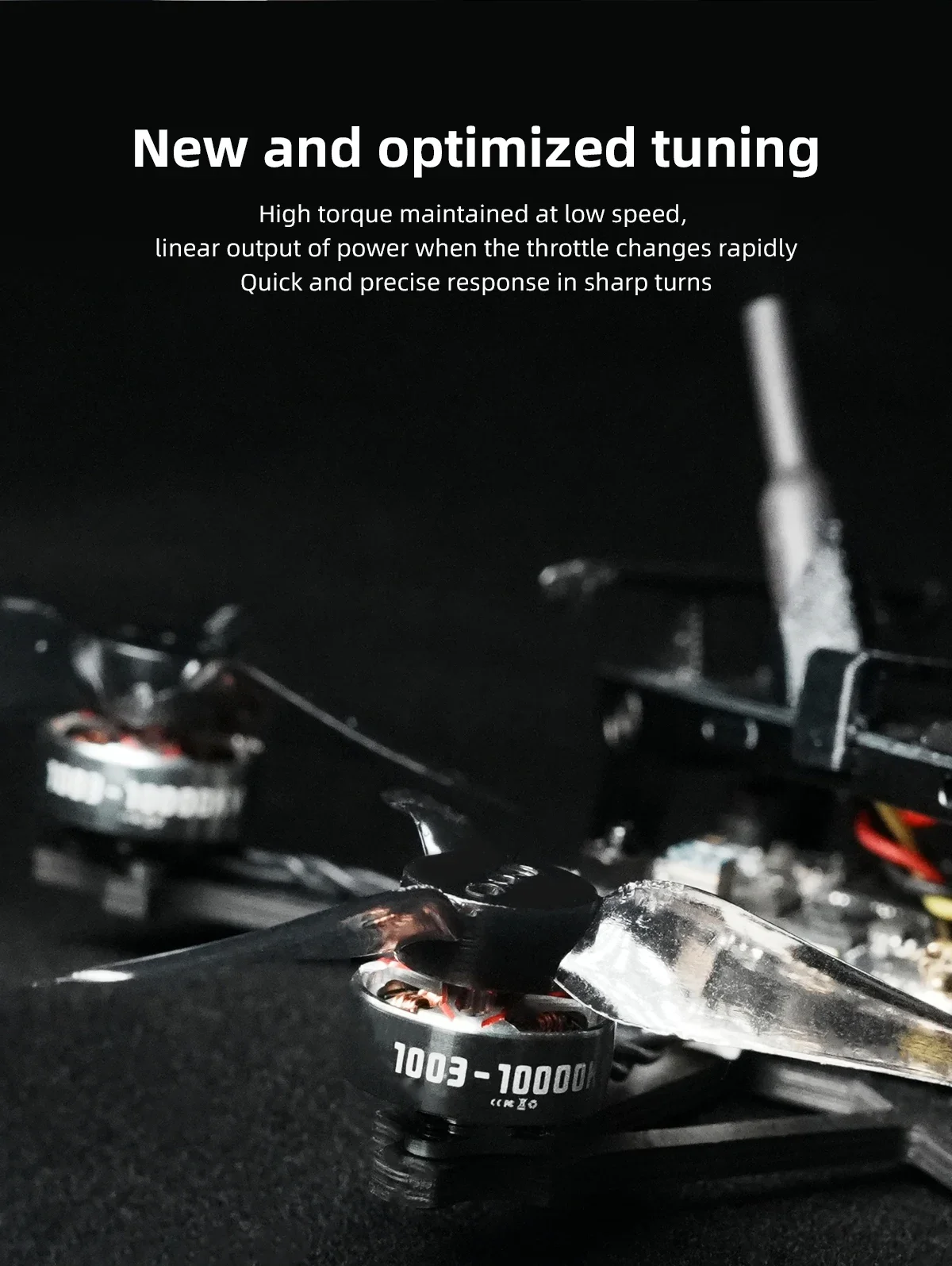

6. New and optimized tuning, maintain high torque at low speed, linear power output when the throttle changes rapidly, and precise and fast response when turning
7. Alloy Steel Outlet Shaft, high strength and reduce the weight of the fuselage
8. Suitable for 75 Tiny drone or 75 toothpick drone

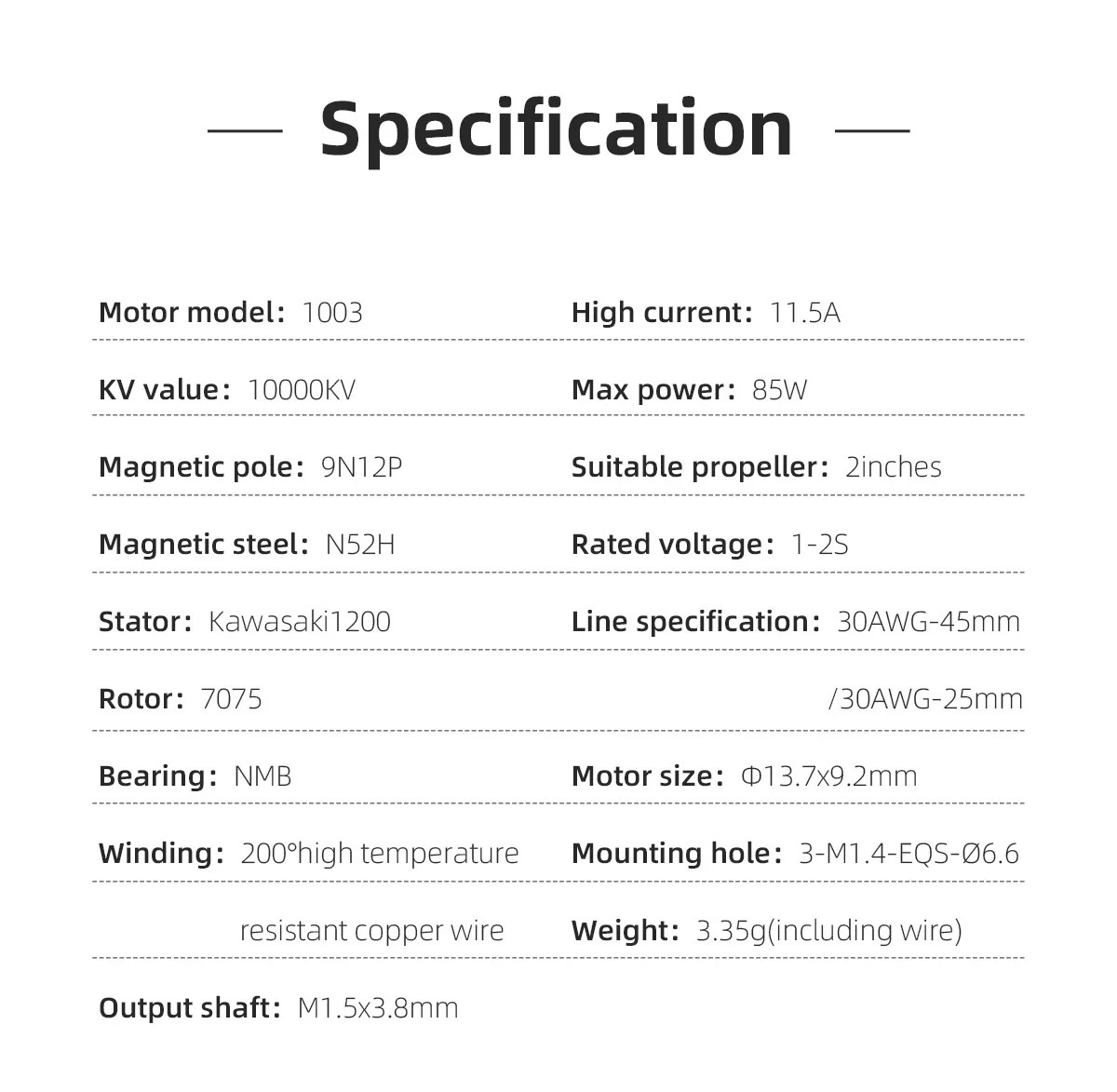

Specification
Motor: 10000KV
Slot pole: 9N12P
Maximum continuous current: 11.5A
Maximum power: 85W
Input voltage: 1-2s
ESC:> 5A
Recommended propeller: 1.6-2 inches

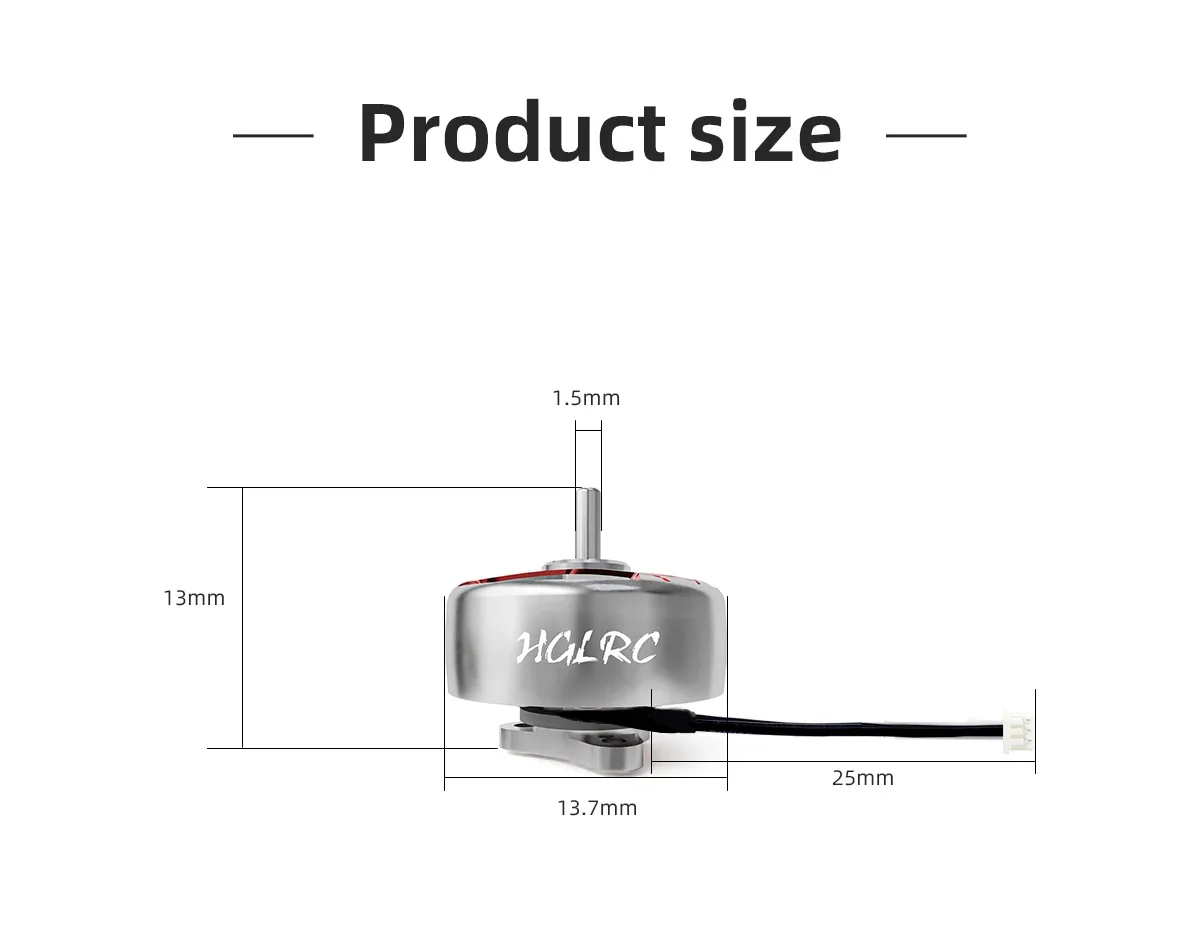

Motor size: 13.7mx 9.2mm

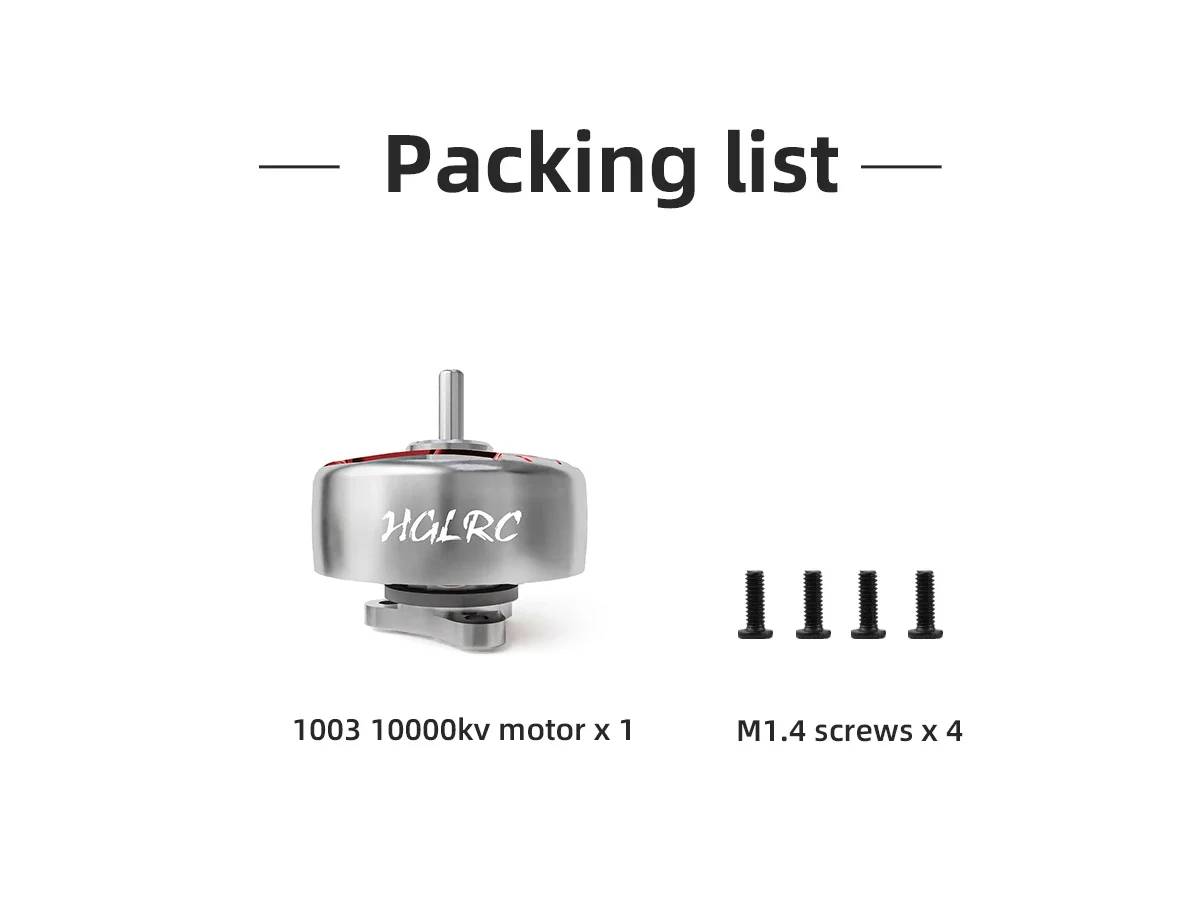

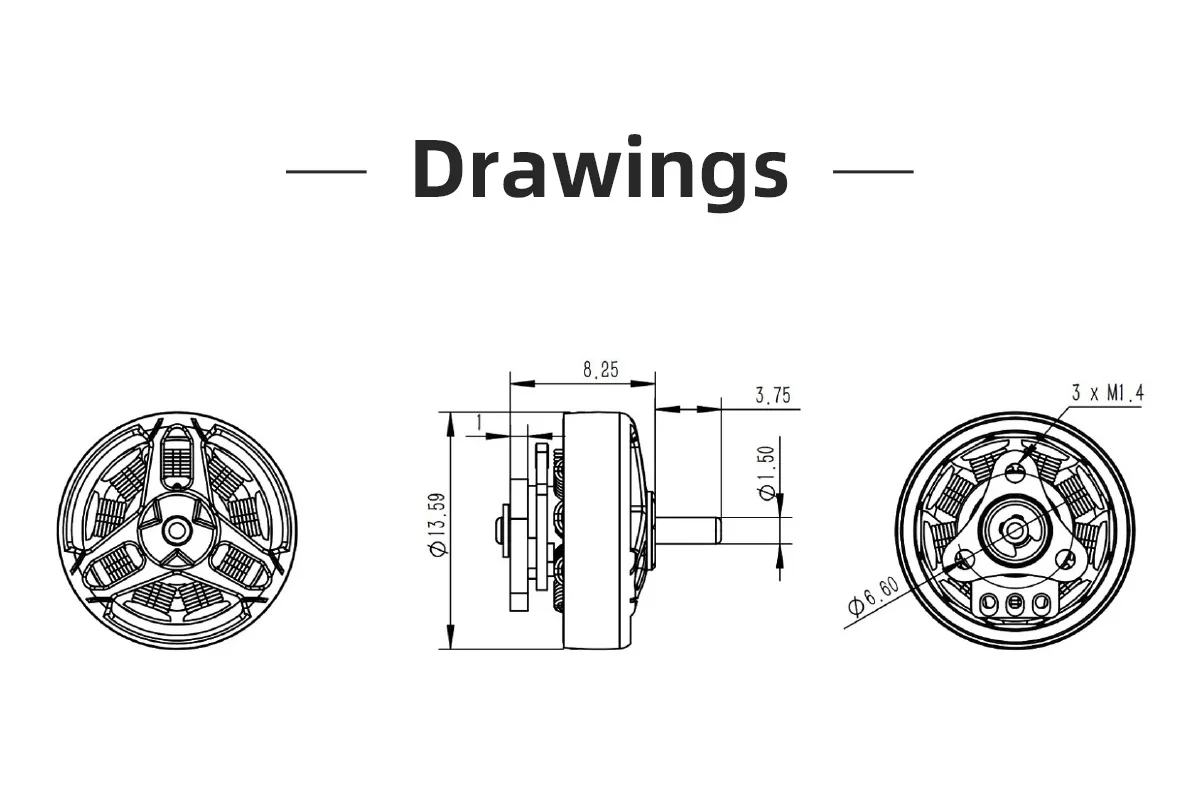

Mounting hole: 3*M1.4-6.6

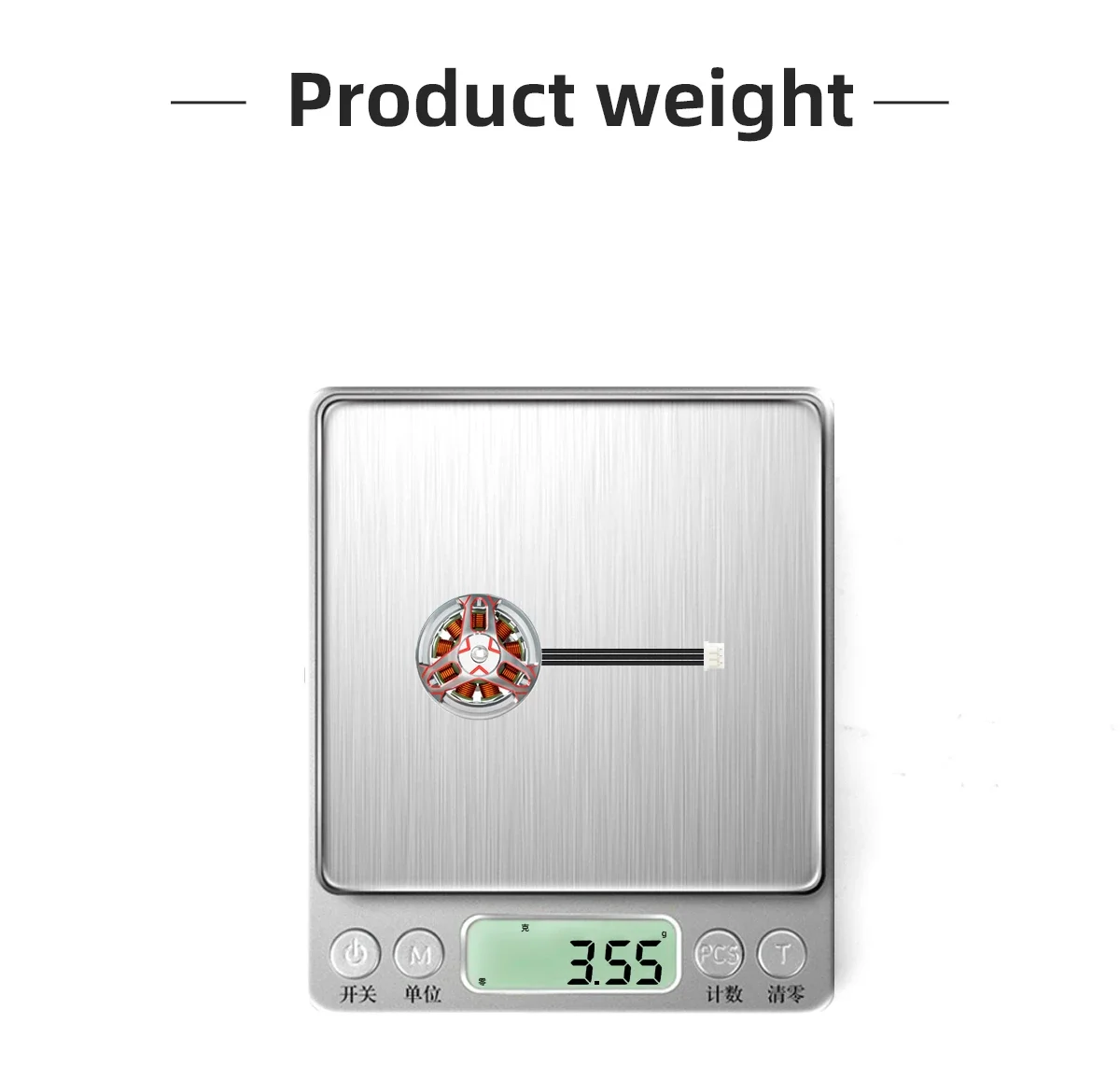

Weight: 3.35g (with wire
Line length45mm
