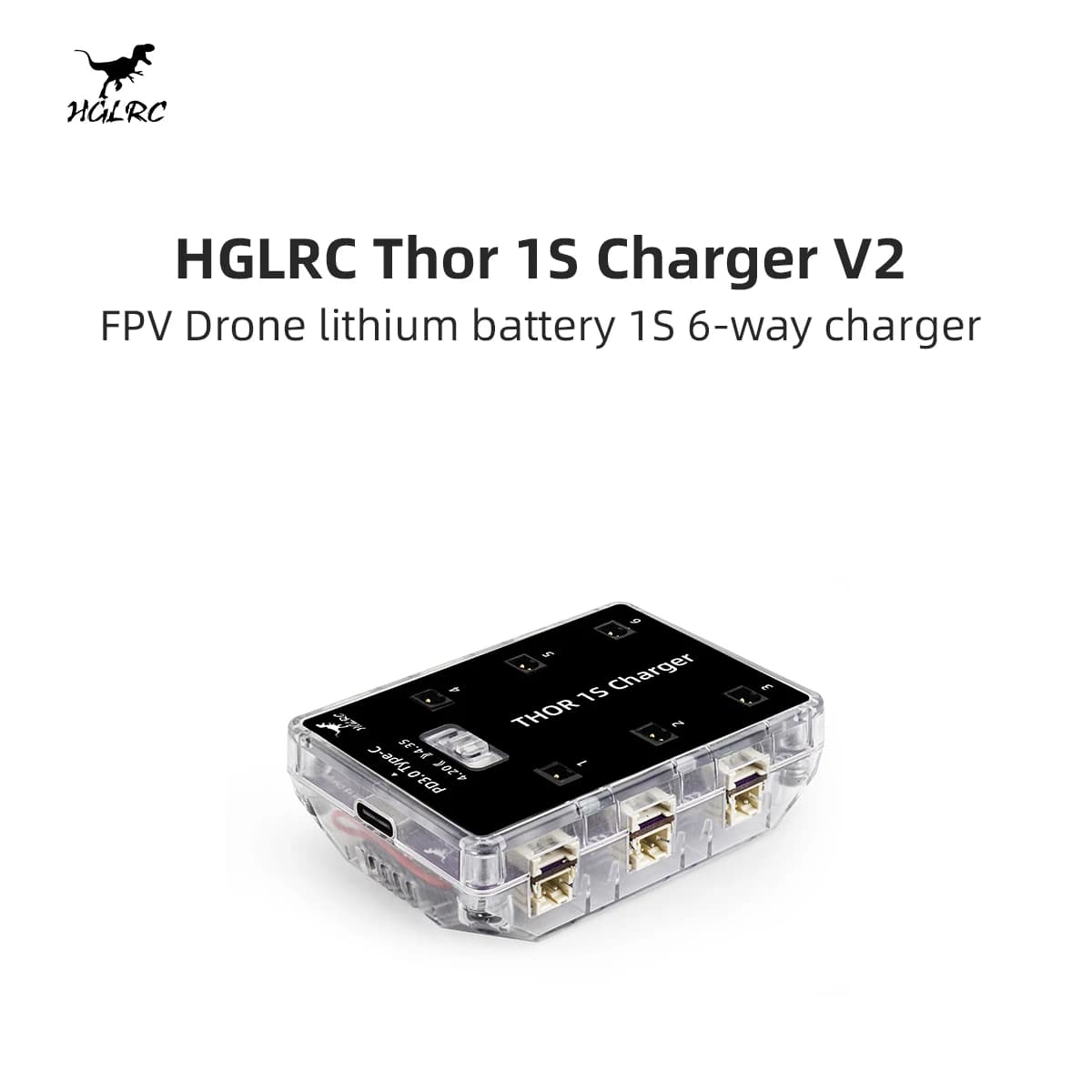

HGLRC Thor 1S Charger V2 6-way parallel charging board supports PH2.0 & MX2.0 & A30 & BT2.0 connector PD3.0 Type C 12V interface
Description
[xlmodel]-[custom]-[8888]
HGLRC Thor 1S Charger V2 Racing Model FPV drone Lithium Battery 6-way Charging Board Charger
Selling Points:
- The input terminal supports PD3.0/QC3.0/BC1.2 fast charging protocol, optional 65w high-power super fast charging adapter
- Supports lithium batteries with multiple interfaces PH2.0 & MX2.0 & A30 & BT2.0 plugs
- Can quickly charge 6 ports batteries at the same time, with a maximum charging current of 800mah-1A
- Supports ordinary 4.2V lithium batteries and 4.35V LIHV lithium batteries, charging voltage switching (switch switching)
* Built-in heat sink and cooling fan to improve usage efficiency

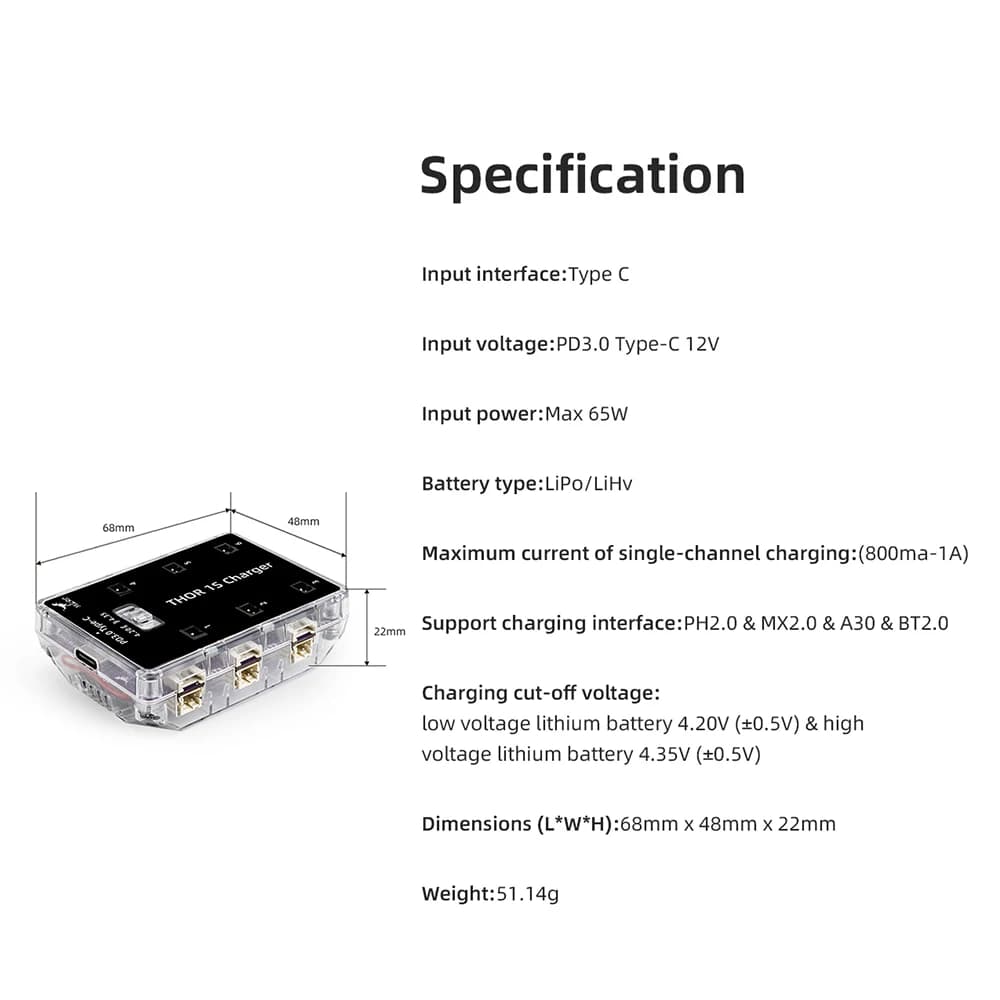

HGLRC Thor 1S Charger V2 Lithium Battery Charger
Input interface: Type C
Input voltage: PD3.0 Type C 12V
Input power: Max 65W
Battery type: LiPo/LiHv
Maximum current of single-channel charging: (800ma-1A)
Support charging interface: PH2.0 & MX2.0 & A30 & BT2.0
Charging cut-off voltage: low voltage lithium battery 4.20V (±0.5V) & high voltage lithium battery 4.35V (±0.5V)
Dimensions (L*W*H): 68mm x 48mm x 22mm

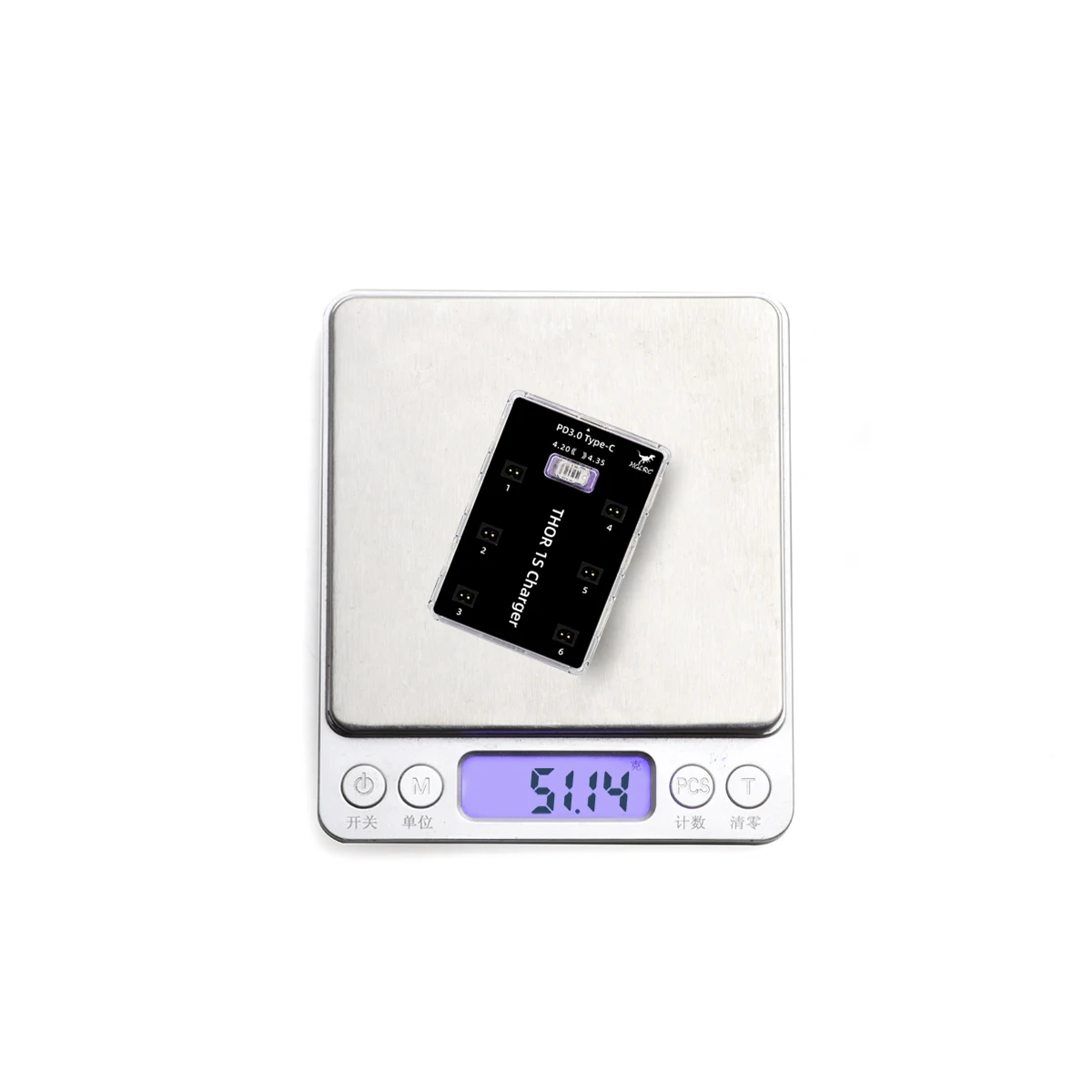

Weight: 51.14g
[xlmodel]-[photo]-[0000]
Specifications
| Option | Values |
|---|---|
| Whether or Not 50Vac or 75Vdc or Higher Power Supply |
|
| High-concerned chemical |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Attribute | Value |
|---|---|
| Whether or Not 50Vac or 75Vdc or Higher Power Supply | No |
| High-concerned chemical | None |
| Brand Name | HGLRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
Product Details
[xlmodel]-[custom]-[8888]
HGLRC Thor 1S Charger V2 Racing Model FPV drone Lithium Battery 6-way Charging Board Charger
Selling Points:
* The input terminal supports PD3.0/QC3.0/BC1.2 fast charging protocol, optional 65w high-power super fast charging adapter
* Supports lithium batteries with multiple interfaces PH2.0 & MX2.0 & A30 & BT2.0 plugs
* Can quickly charge 6 ports batteries at the same time, with a maximum charging current of 800mah-1A
* Supports ordinary 4.2V lithium batteries and 4.35V LIHV lithium batteries, charging voltage switching (switch switching)
* Built-in heat sink and cooling fan to improve usage efficiency
HGLRC Thor 1S Charger V2 Lithium Battery Charger
Input interface: Type C
Input voltage: PD3.0 Type C 12V
Input power: Max 65W
Battery type: LiPo/LiHv
Maximum current of single-channel charging: (800ma-1A)
Support charging interface: PH2.0 & MX2.0 & A30 & BT2.0
Charging cut-off voltage: low voltage lithium battery 4.20V (±0.5V) & high voltage lithium battery 4.35V (±0.5V)
Dimensions (L*W*H): 68mm x 48mm x 22mm
Weight: 51.14g
[xlmodel]-[photo]-[0000]
