GEPRC SPEEDX2 2809 V1.1 Motor Brushless Black with 7/8 Inch MOZ7 RC FPV Racing Drone Multicopter Accessories
79 orders (reference)
Description
GEPRC SPEEDX2 2809 V1.1 Motor Brushless Black with 7/8 Inch MOZ7 RC FPV Racing Drone Multicopter Accessories High-concerned chemical: None Is Electric: No Battery Wheelbase: Screws Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: GEPRC SPEEDX2 2809 V1.1 Motor For Vehicle Type: Helicopters
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | GEPRC SPEEDX2 2809 V1.1 Motor |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Gear |
| RC Parts & Accs | Motors |
| Material | Metal |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Summary

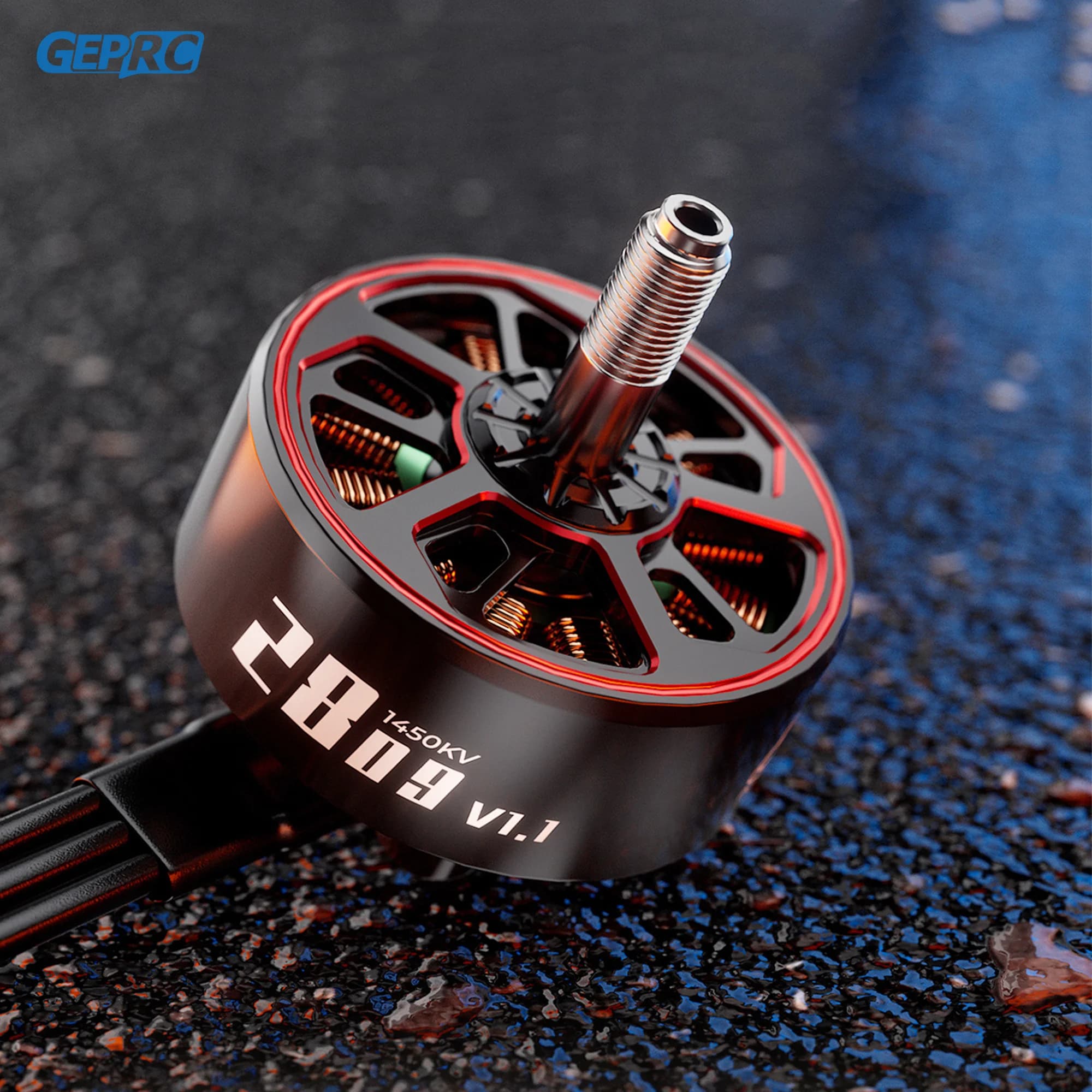

The GEPRC SPEEDX2 2809 V1.1 is built for 7–8 inch long-range FPV drones. The stator uses 0.2mm Kawasaki silicon steel for efficient magnetic flow, paired with high-temp N52H magnets that offer 30% better heat resistance. Finished in matte black with red accents, it looks as sharp as it performs. The motor mounting pattern is 19×19mm.
Feature
CNC-machined from 7075 aerospace aluminum.

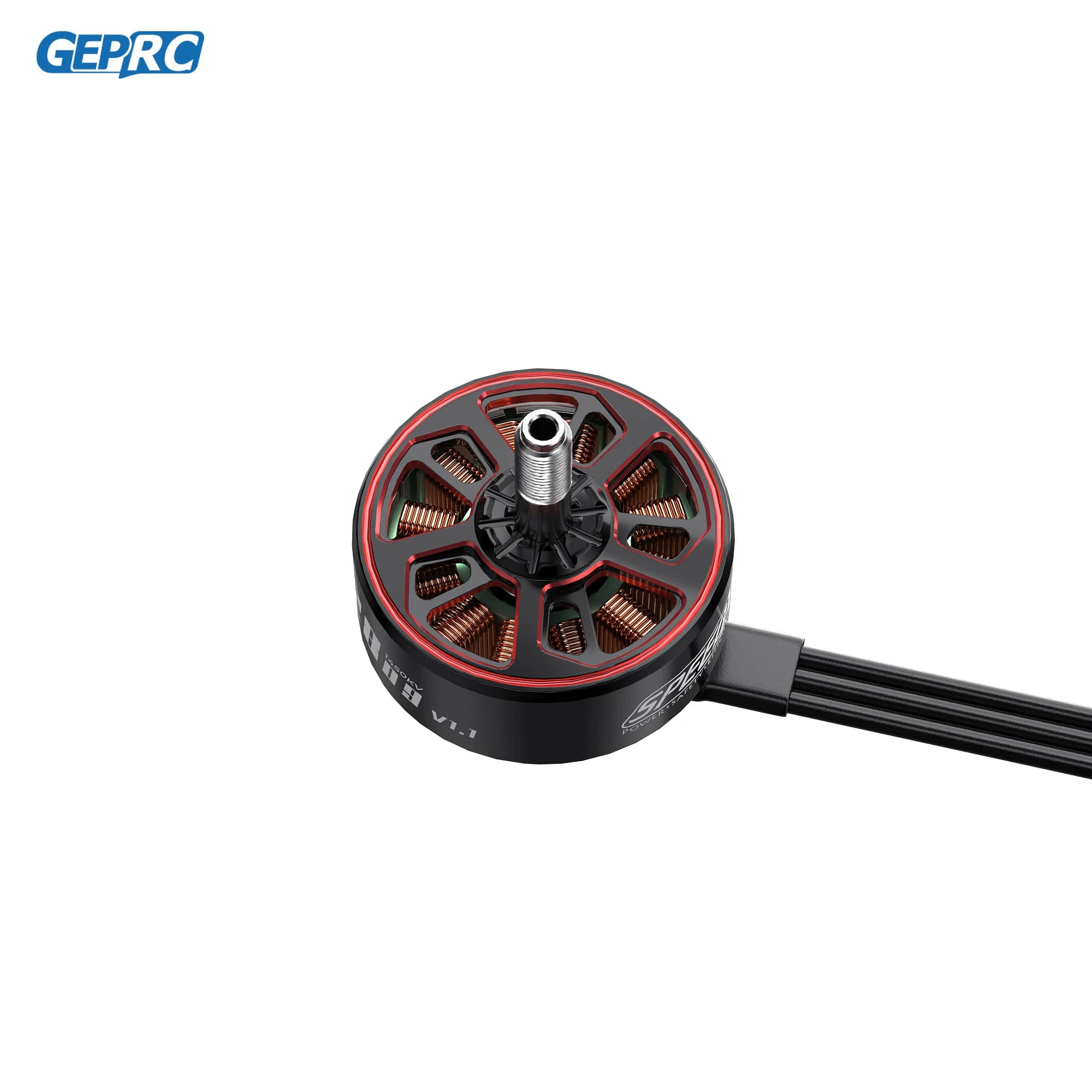

Clean black finish with red trim.
Reinforced rotor edges for better impact resistance.

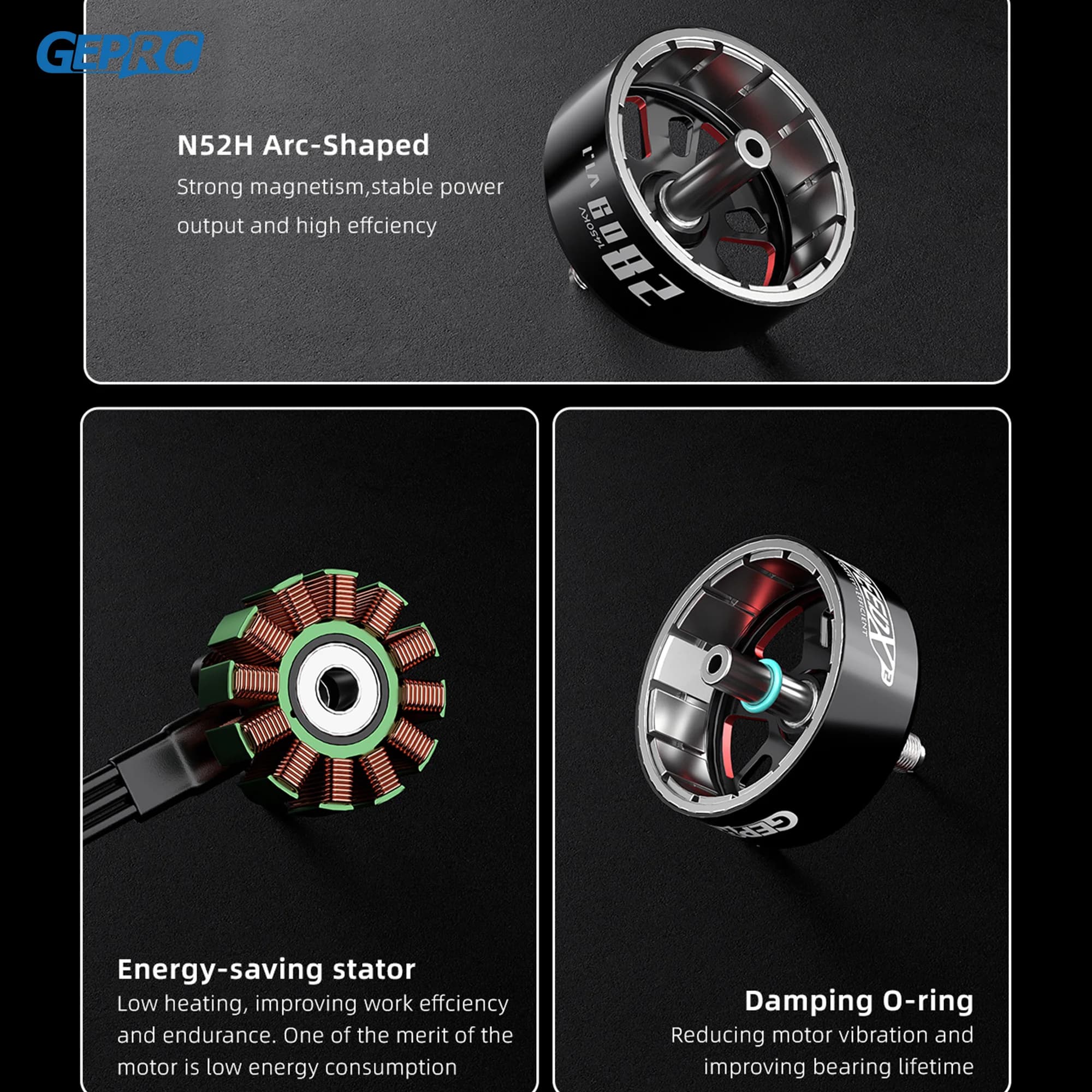

N52H magnets reduce the risk of heat-related demagnetization.
Specifications---1450KV
Model: GEPRC SPEEDX2 2809 1450KV Motor
KV: 1450KV
Magnets: N52H
Rotor Material: 7075-T6 aerospace-grade aluminum
Stator Diameter: 28mm
Stator Height: 9mm
Shaft Diameter: Φ5mm

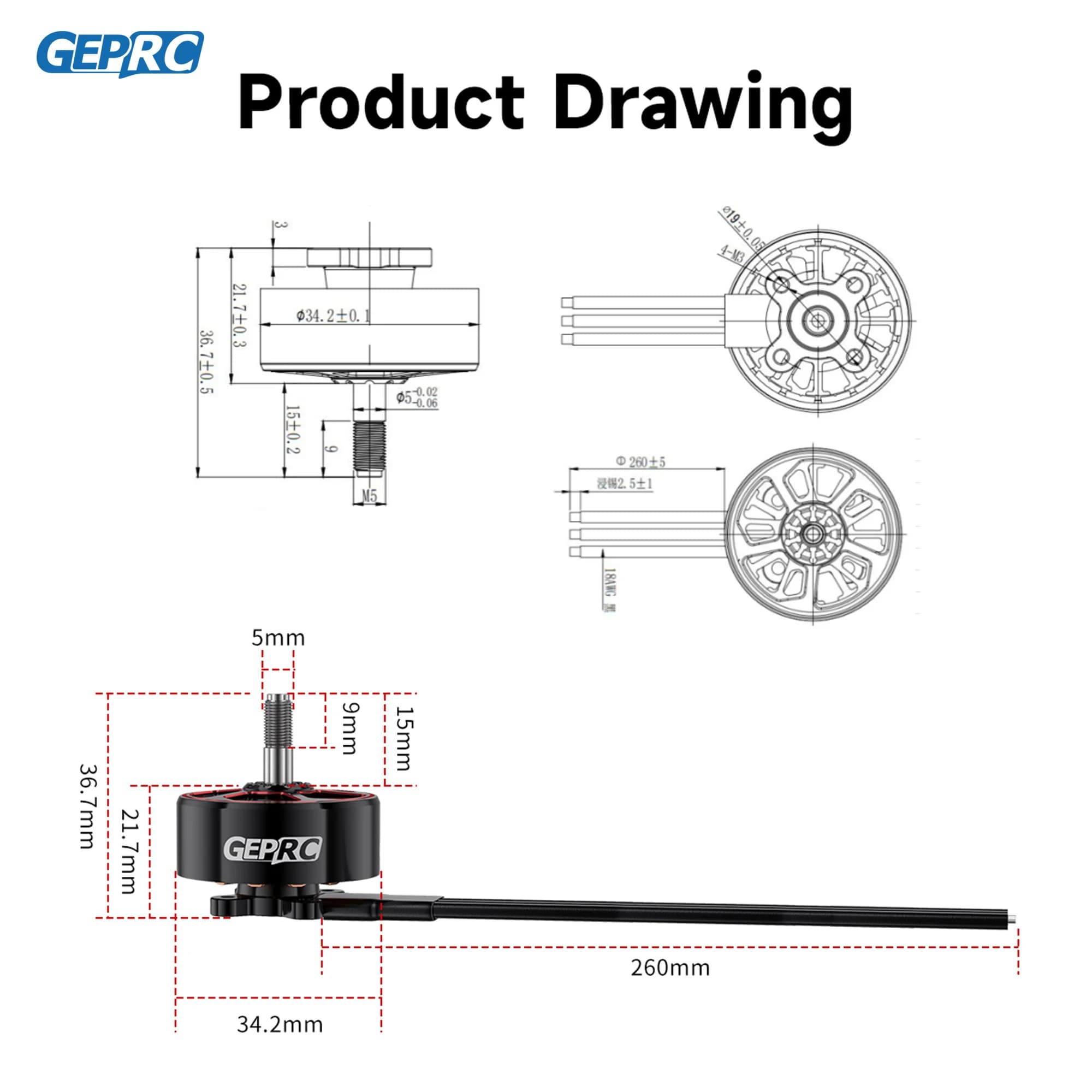

Dimensions: Φ34.2mm × 36.7mm
Wire: 18AWG, 250mm
Input Voltage: 25.2V 6S (Lipo)
Max Power (W): ≤1455.2W
Max Current (A):60.88A
Mounting Pattern: 19×19mm (M3)
Color: reddish black
Weight: 60.1g (with wire)
Compatible Models: 7–7.5 inch long-range FPV drones / 7–7.5 inch X8 builds
Specifications----1280KV
Model: GEPRC SPEEDX2 2809 1280KV Motor
KV: 1280KV
Magnets: N52H
Rotor Material: 7075-T6 aerospace-grade aluminum
Stator Diameter: 28mm
Stator Height: 9mm
Shaft Diameter: Φ5mm
Dimensions: Φ34.2mm * 36.7mm
Wire: 18AWG, 250mm
Input Voltage: 25.2V 6S (Lipo)
Max Power (W): ≤1486.5W
Max Current (A): 59.06A
Mounting Pattern: 19×19mm (M3)
Color: Reddish black
Weight: 60.1g (with wire)
Compatible Models: 7–8 inch long-range FPV drones / 7–8 inch X8 builds

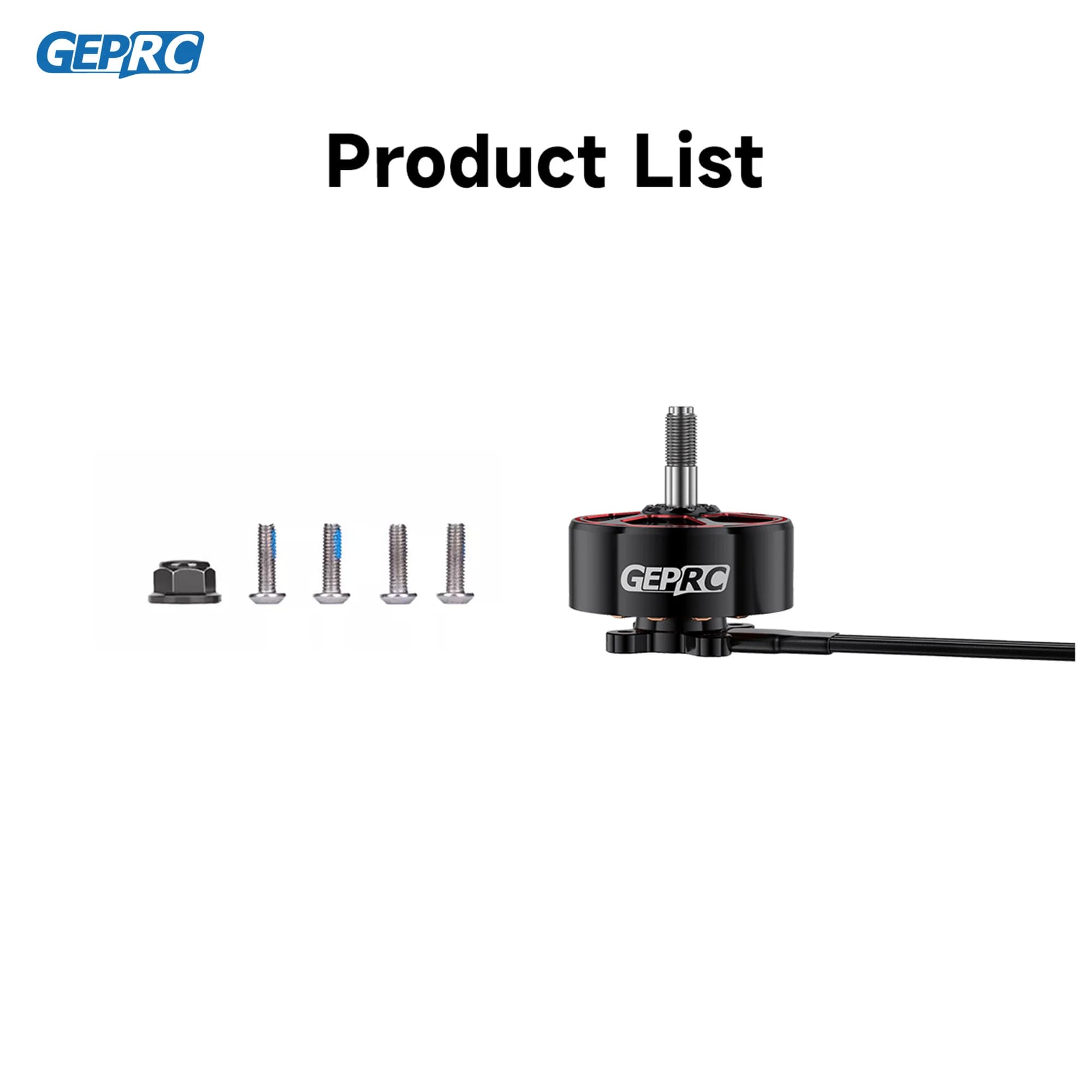

Product List
1 x GEPRC SPEEDX2 2809 motor
4 x M3*9 half-round head screws
1 x M5 anti-slip mut
