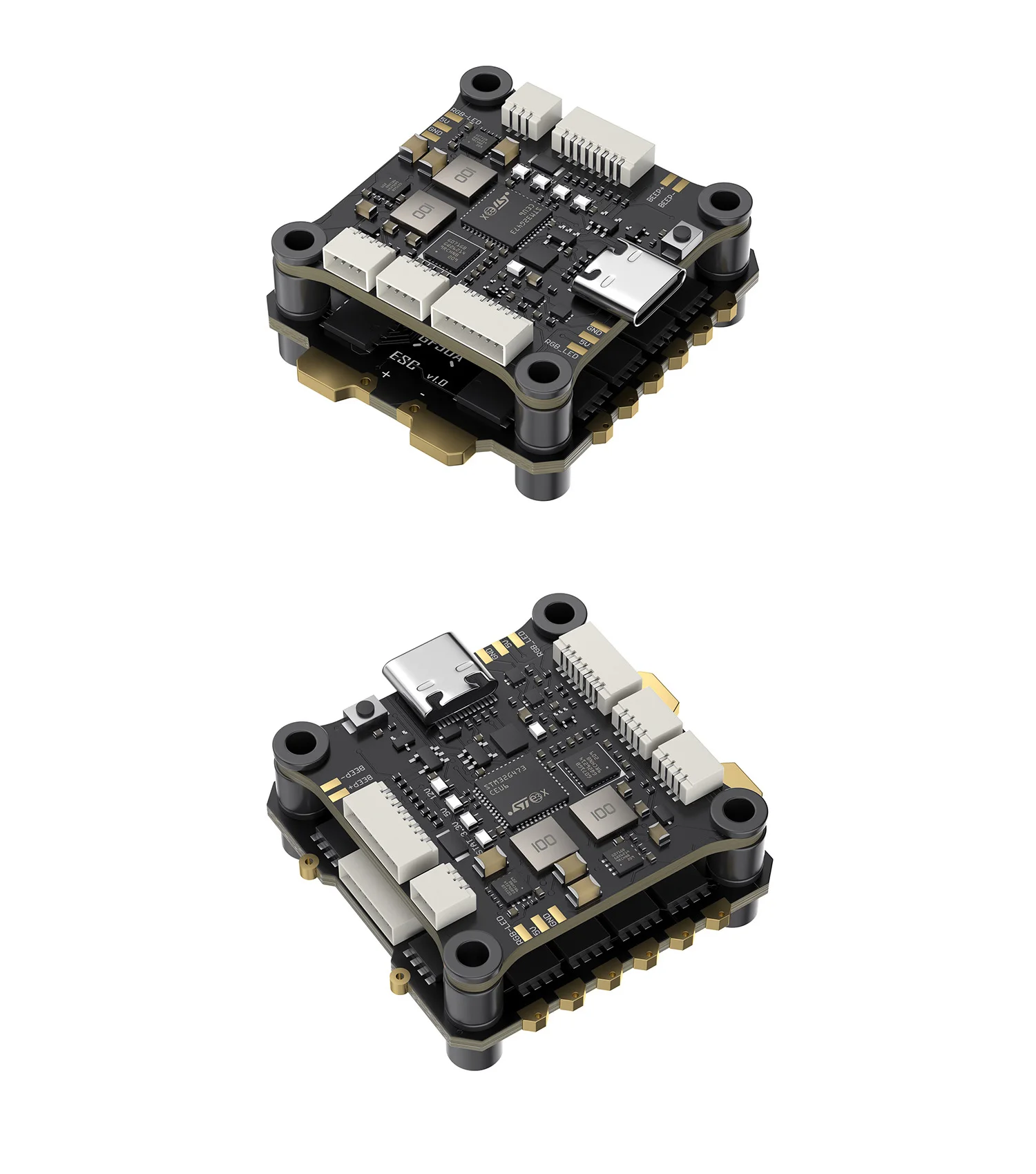

GEPRC Fettec G4 Alpha GF50A FPV Stack G473 Flight Controller FETTEC S2M Dshot2400 GF50A 4IN1 ESC for FPV Freestyle Drone Model
2 orders (reference)
Description
Summary
The co-branded GEPRC Fettec G4 Alpha GF50A stack by GEPRC and FETTEC has been released. The FC features a G473 main controller, built-in FETTEC Alpha firmware, and S2M or Dshot2400 high-speed protocol with GF50A ESC to achieve exceptional stability and lightning-fast responsiveness. Additionally, the powerful FETTEC closed-source firmware and feature-rich software will elevate your FPV flight experience to new levels.
Features
The flight controller uses FETTEC Alpah firmware, the ESC uses FETTEC firmware, and supports high-speed protocols such as S2M and Dshot2400.

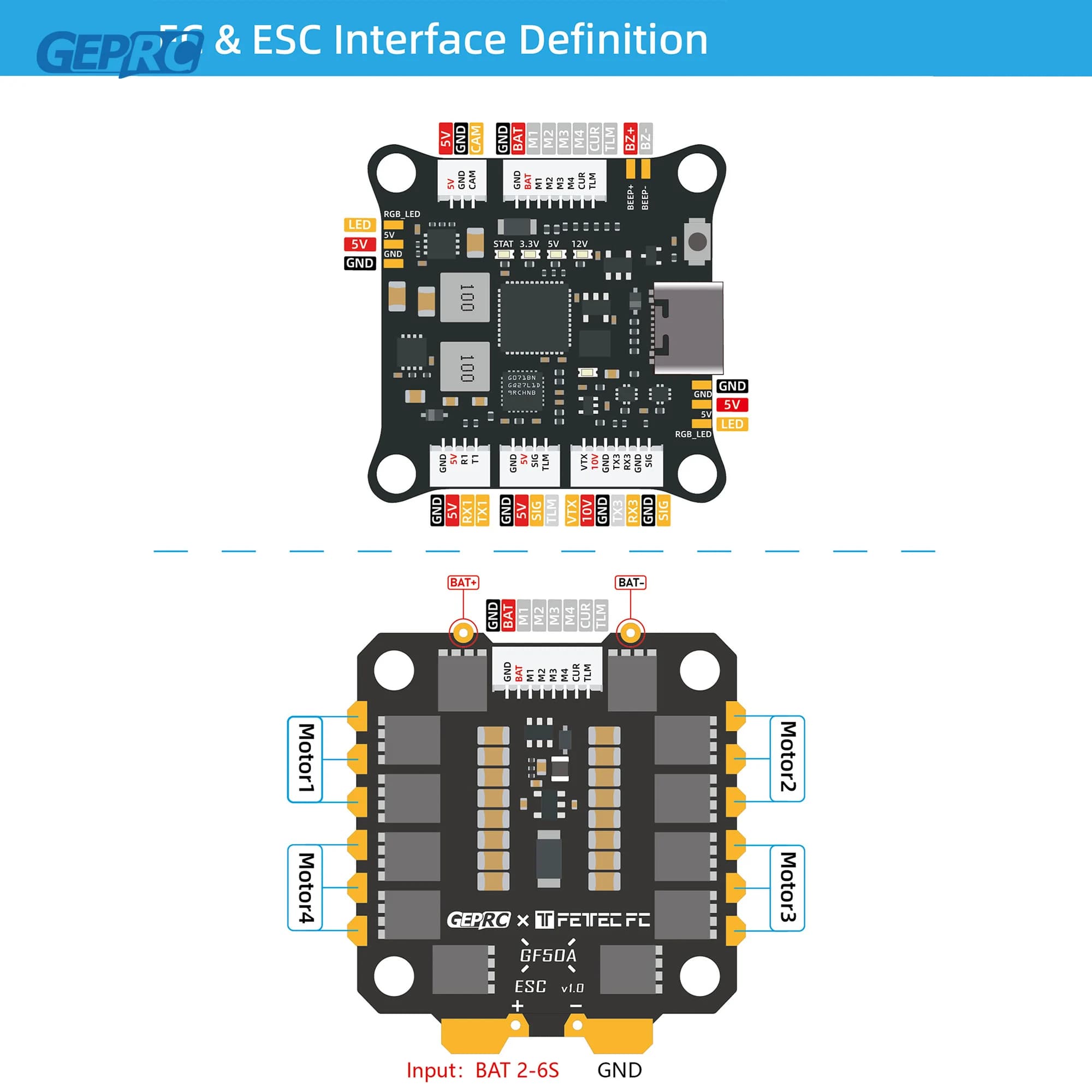

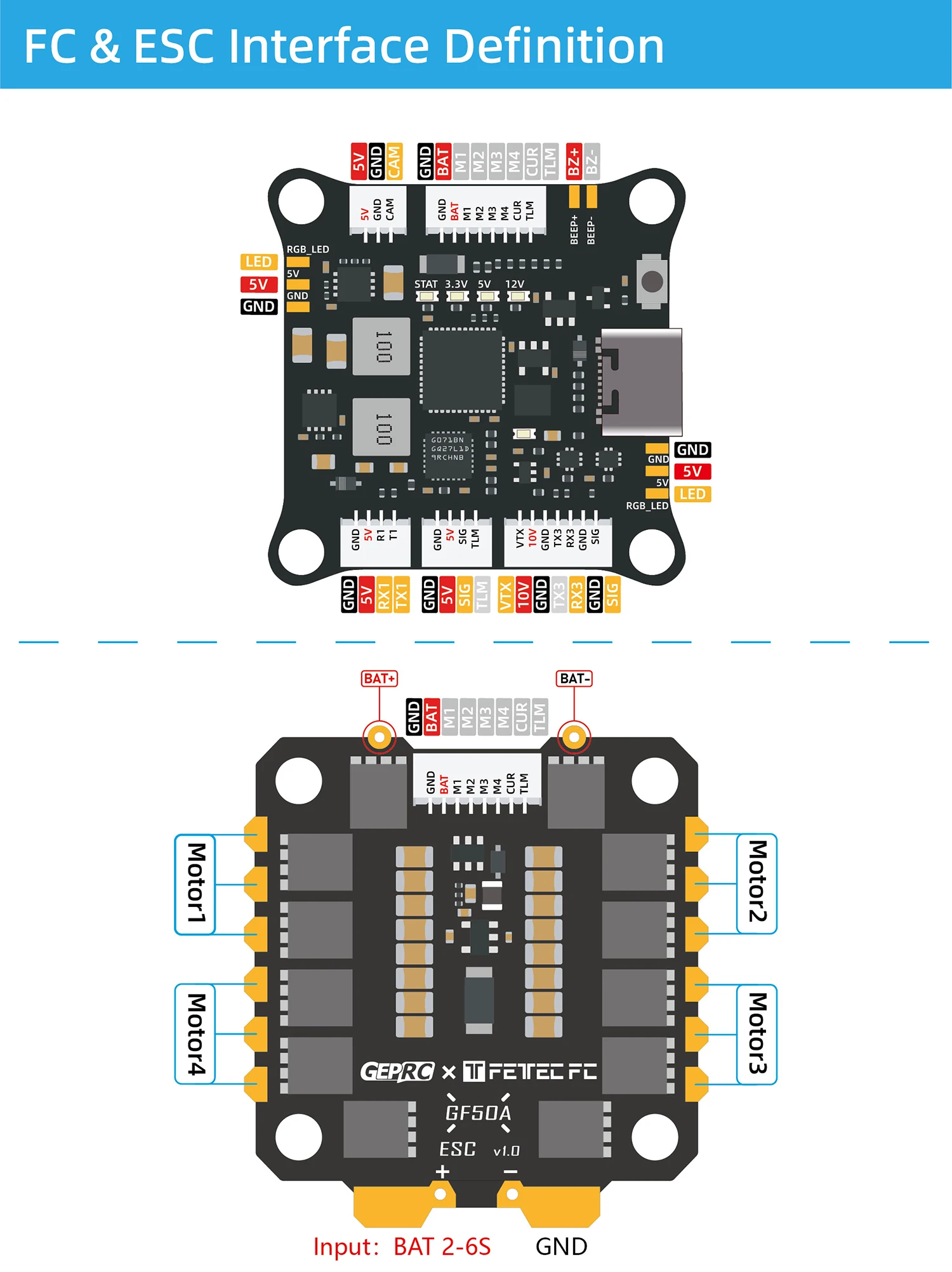

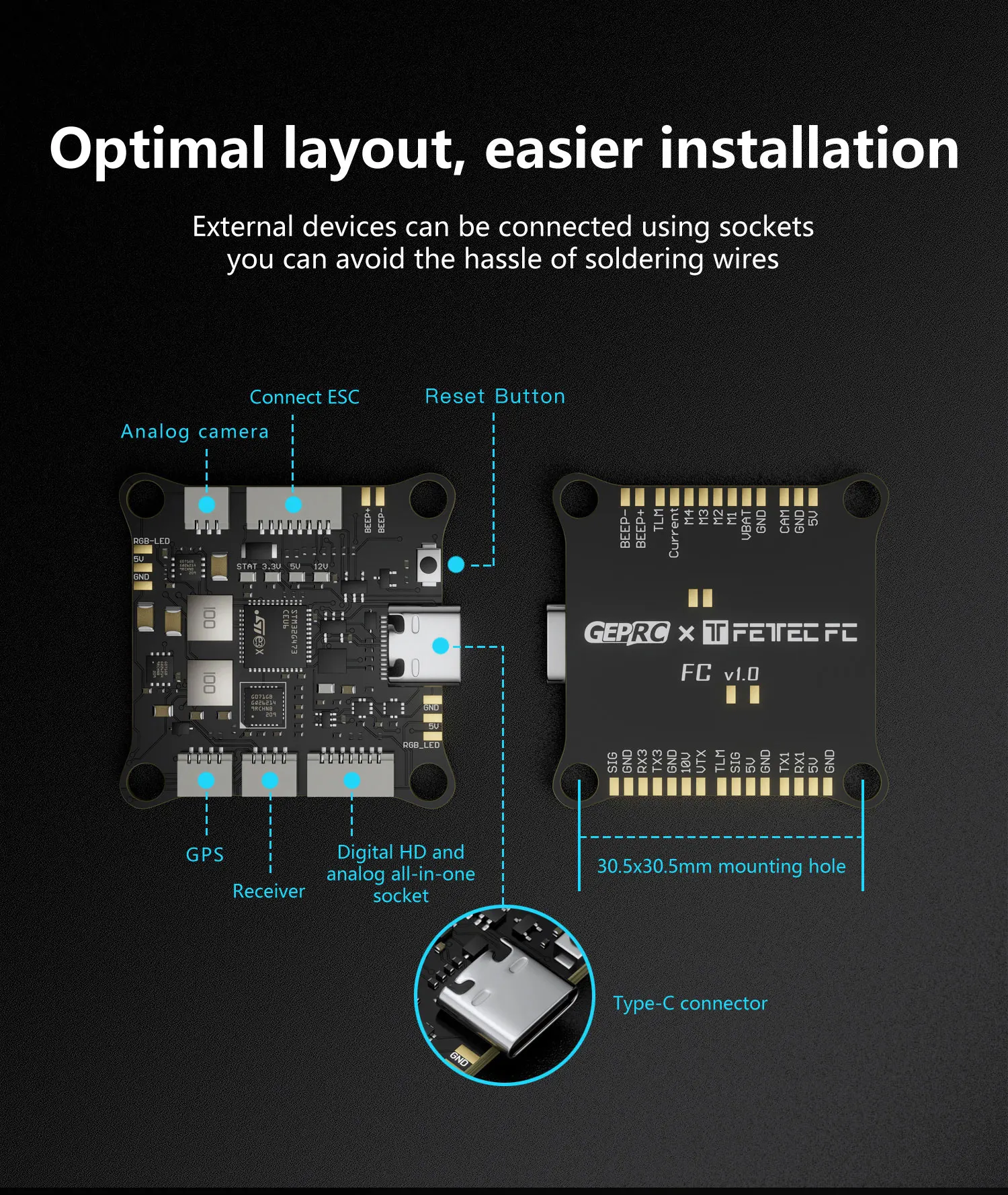

All flight control function interfaces support SH1.0 cable connection, which makes assembly without soldering wires more convenient.

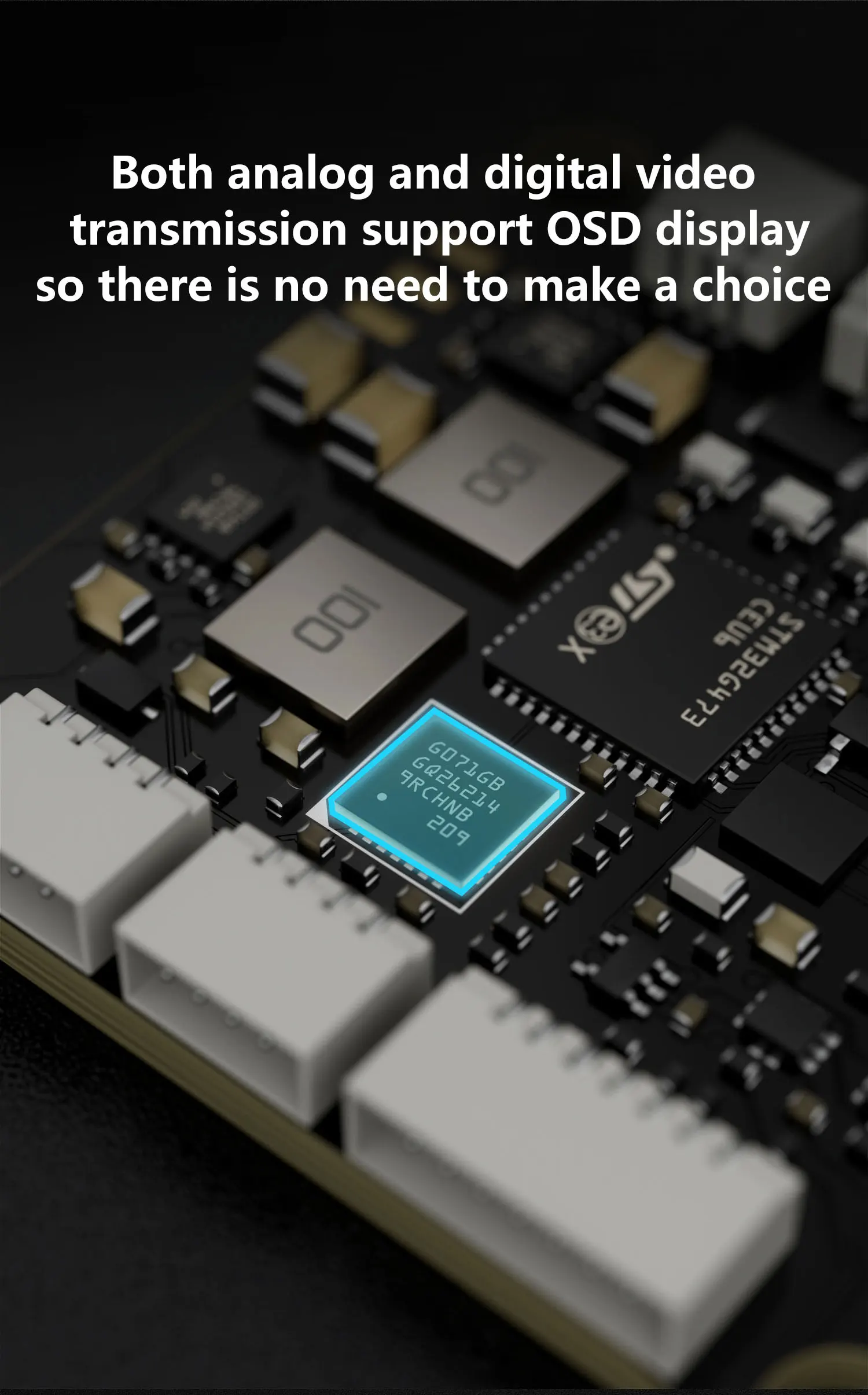

High-definition analog two-in-one socket, supporting D JI digital image transmission and analog image transmission
The FC features high robustness to handle challenging situations, such as bent propellers caused by crashes, under harsh flight conditions.
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | GEPRC Fettec G4 Alpha GF50A Stack |
| For Vehicle Type | Helicopters |
| Tool Supplies | ESC |
| Four-wheel Drive Attributes | ESC |
| Remote Control Peripherals/Devices | Stack |
| Upgrade Parts/Accessories | Stack |
| RC Parts & Accs | Stack |
| Material | Metal |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Summary
The co-branded GEPRC Fettec G4 Alpha GF50A stack by GEPRC and FETTEC has been released. The FC features a G473 main controller, built-in FETTEC Alpha firmware, and S2M or Dshot2400 high-speed protocol with GF50A ESC to achieve exceptional stability and lightning-fast responsiveness. Additionally, the powerful FETTEC closed-source firmware and feature-rich software will elevate your FPV flight experience to new levels.
Features
The flight controller uses FETTEC Alpah firmware, the ESC uses FETTEC firmware, and supports high-speed protocols such as S2M and Dshot2400.

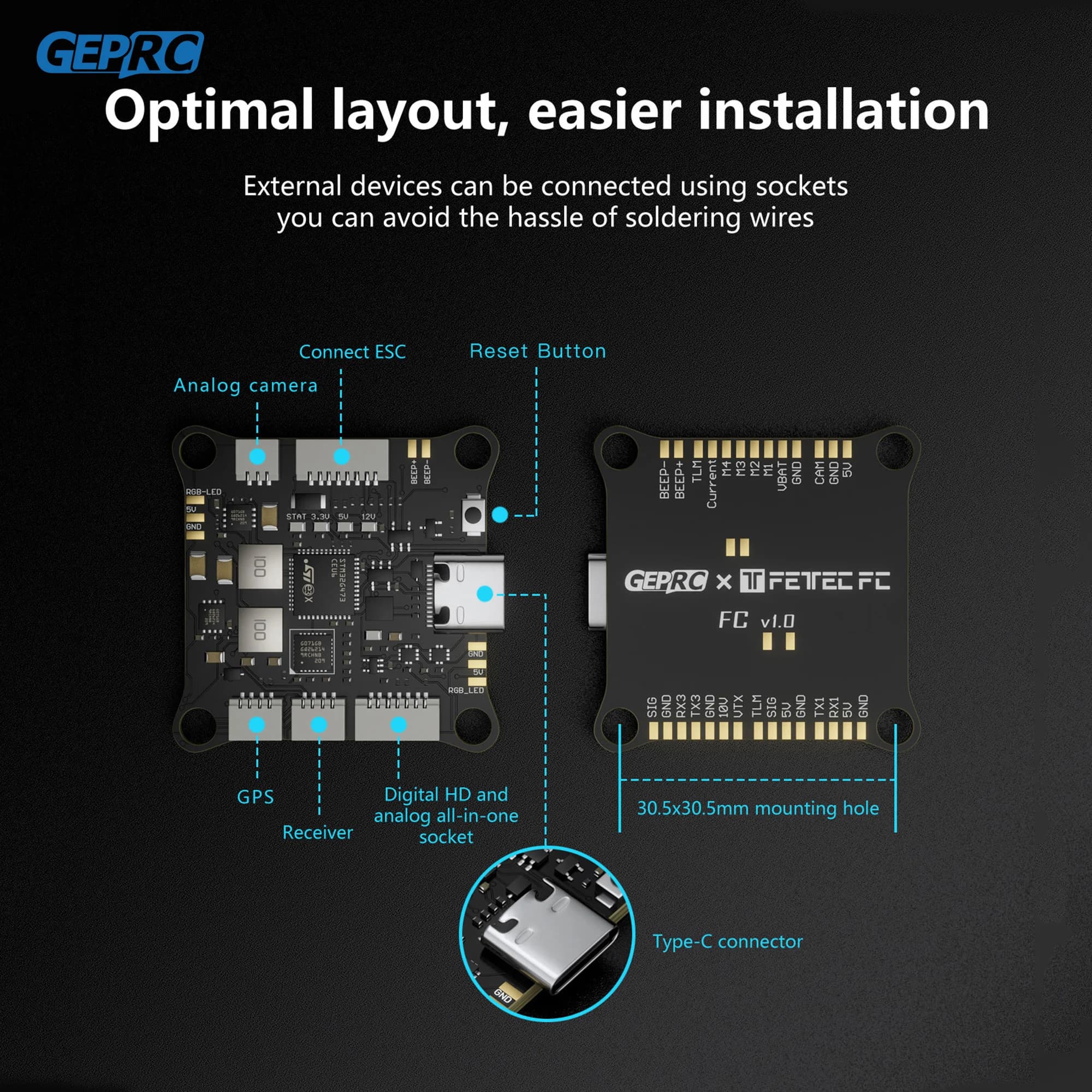

All flight control function interfaces support SH1.0 cable connection, which makes assembly without soldering wires more convenient.
High-definition analog two-in-one socket, supporting D JI digital image transmission and analog image transmission
The FC features high robustness to handle challenging situations, such as bent propellers caused by crashes, under harsh flight conditions.
Specifications

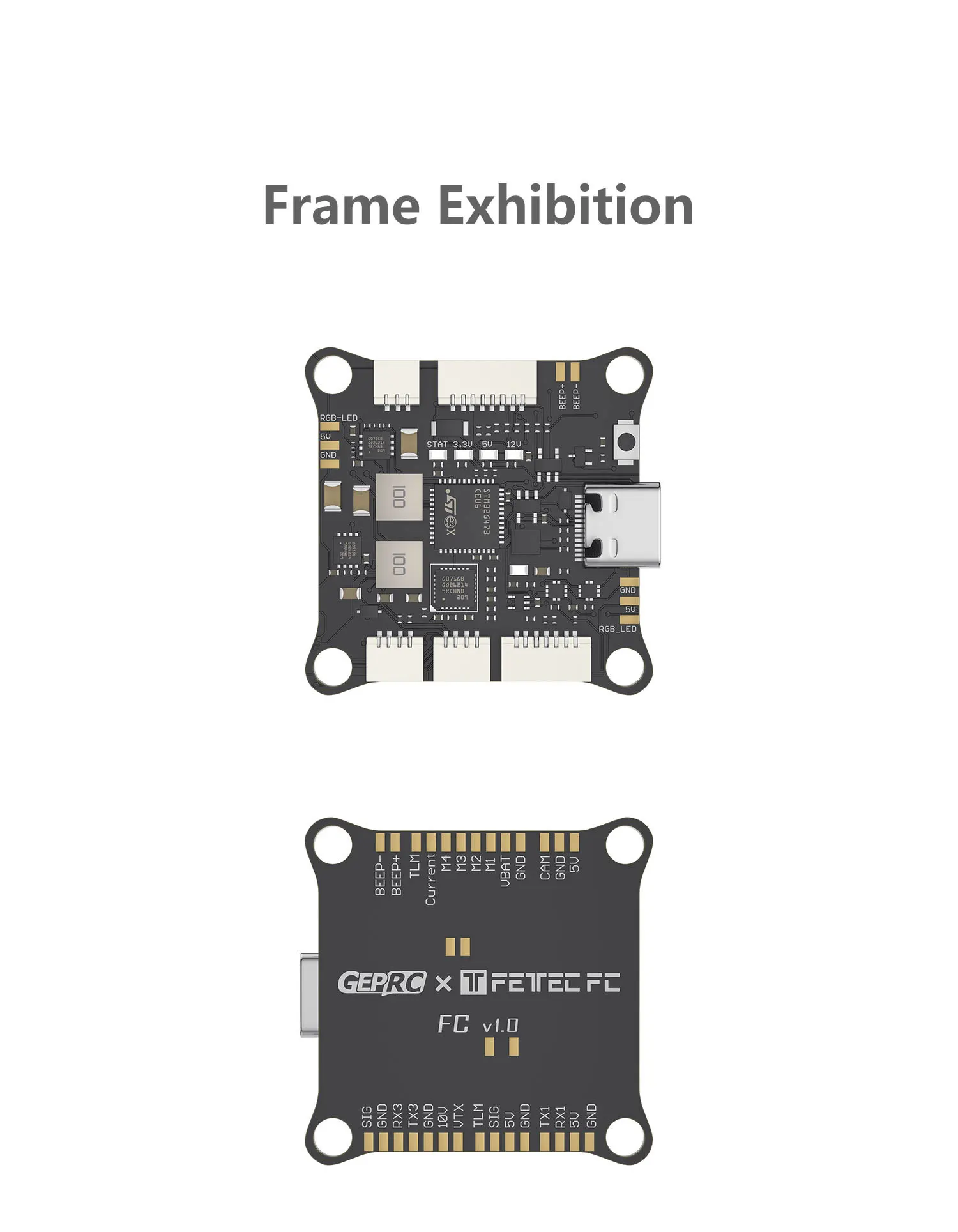

GEPRC Fettec G4 Alpha FC
Model:GEPRC Fettec G4 Alpha FC
MCU:STM32G473CEU6
IMU:llM 42602
Firmware:FETTEC ALPHA
OSD:FETTEC OSD
External buzzer:YES
External LED :YES
USB Interface:TYPE-C
BEC Output:9v@2A MAX 2.5A 5V@2A MAX 2.5A
Weight:6.6g

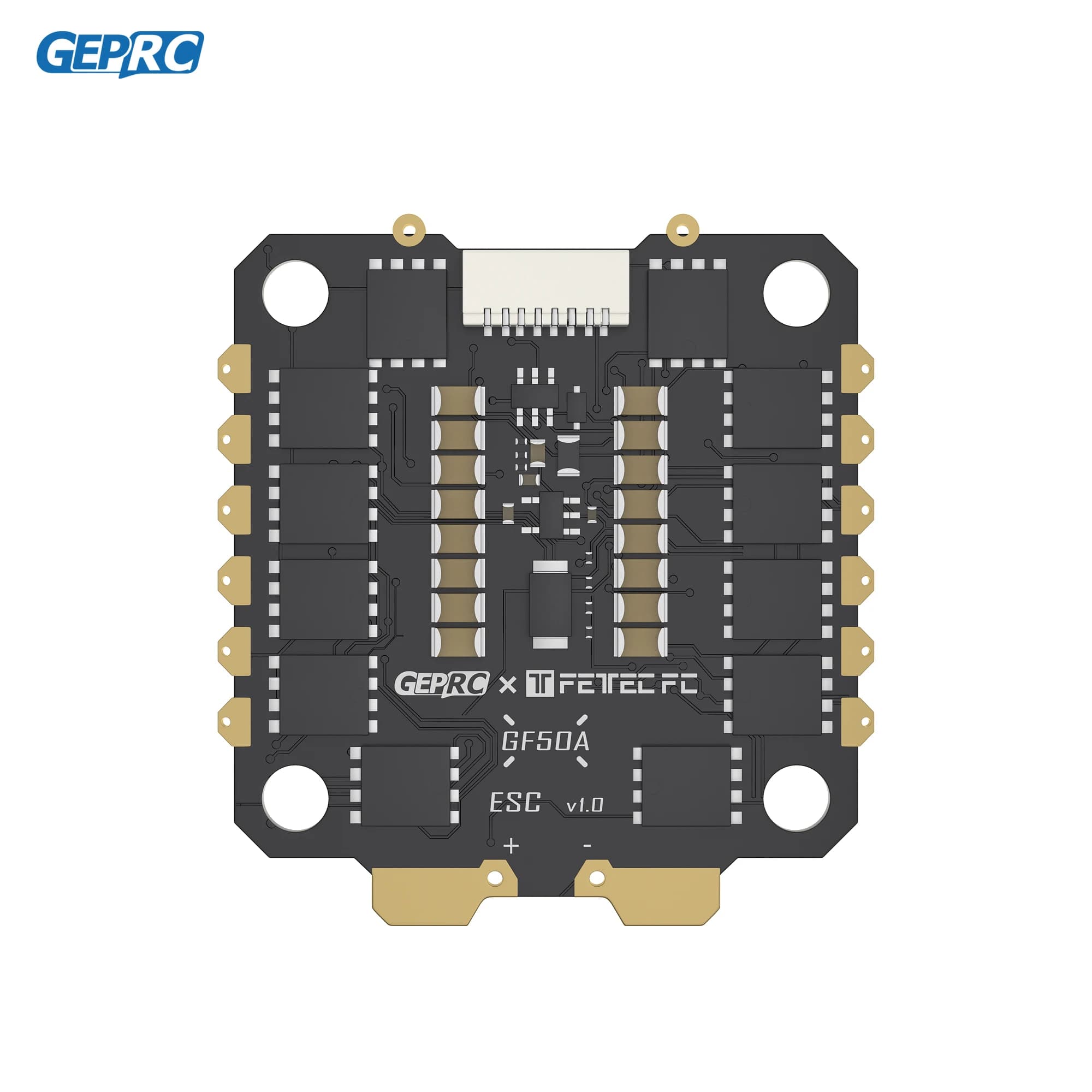

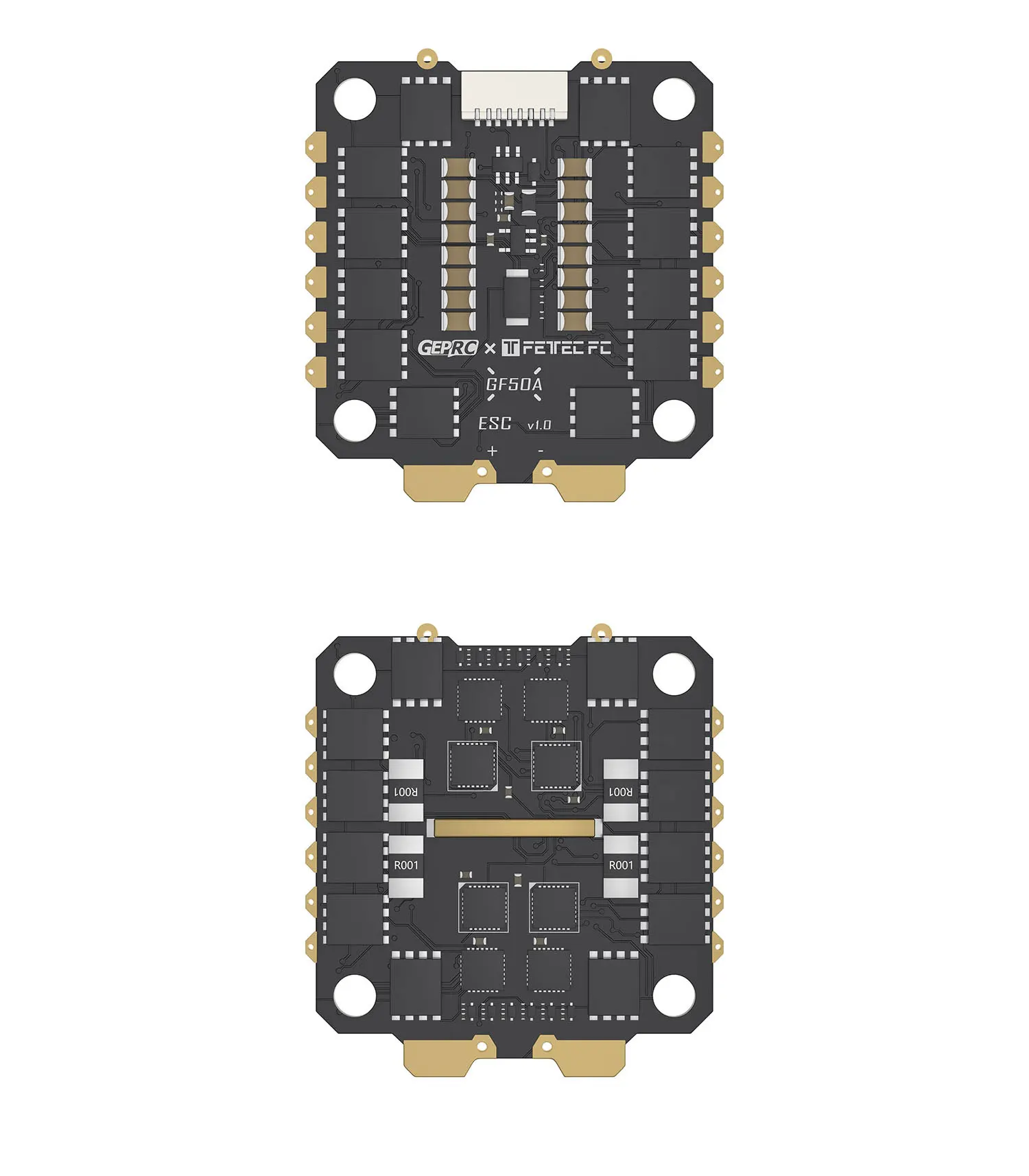

GEPRC Fettec GF50A 4IN1 DShot2400 ESC
Model:GEPRC Fettec GF50A 4IN1 DShot2400 ESC
MCU: STM32G071
Continuous current: 50A
Peak current: 55A
Input: 2~6S (LIPO Battery)

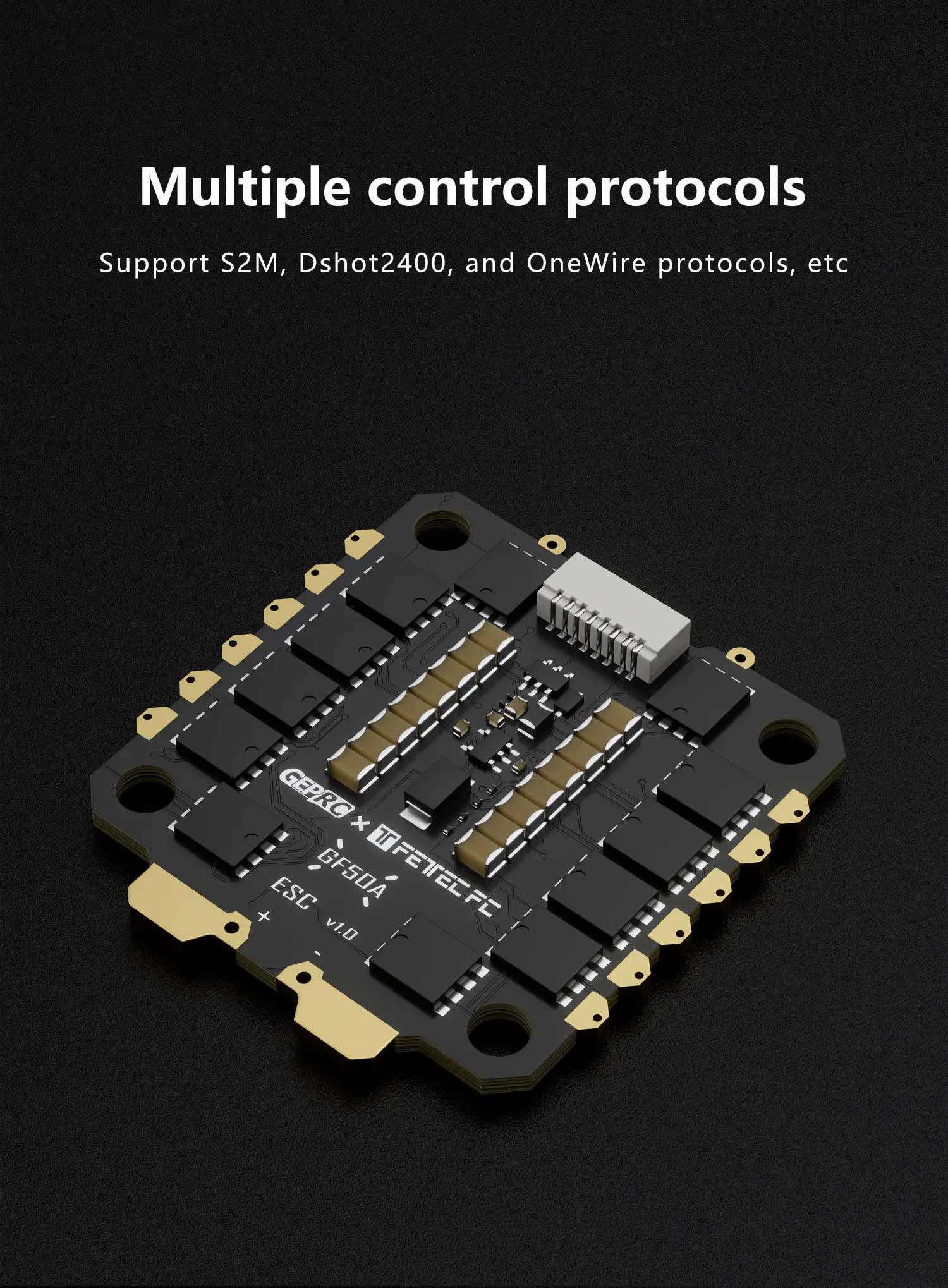

Protocol: S2M+OW, S2M, Dshot300-2400
Galvanometer: YES
Firmware: FETTEC

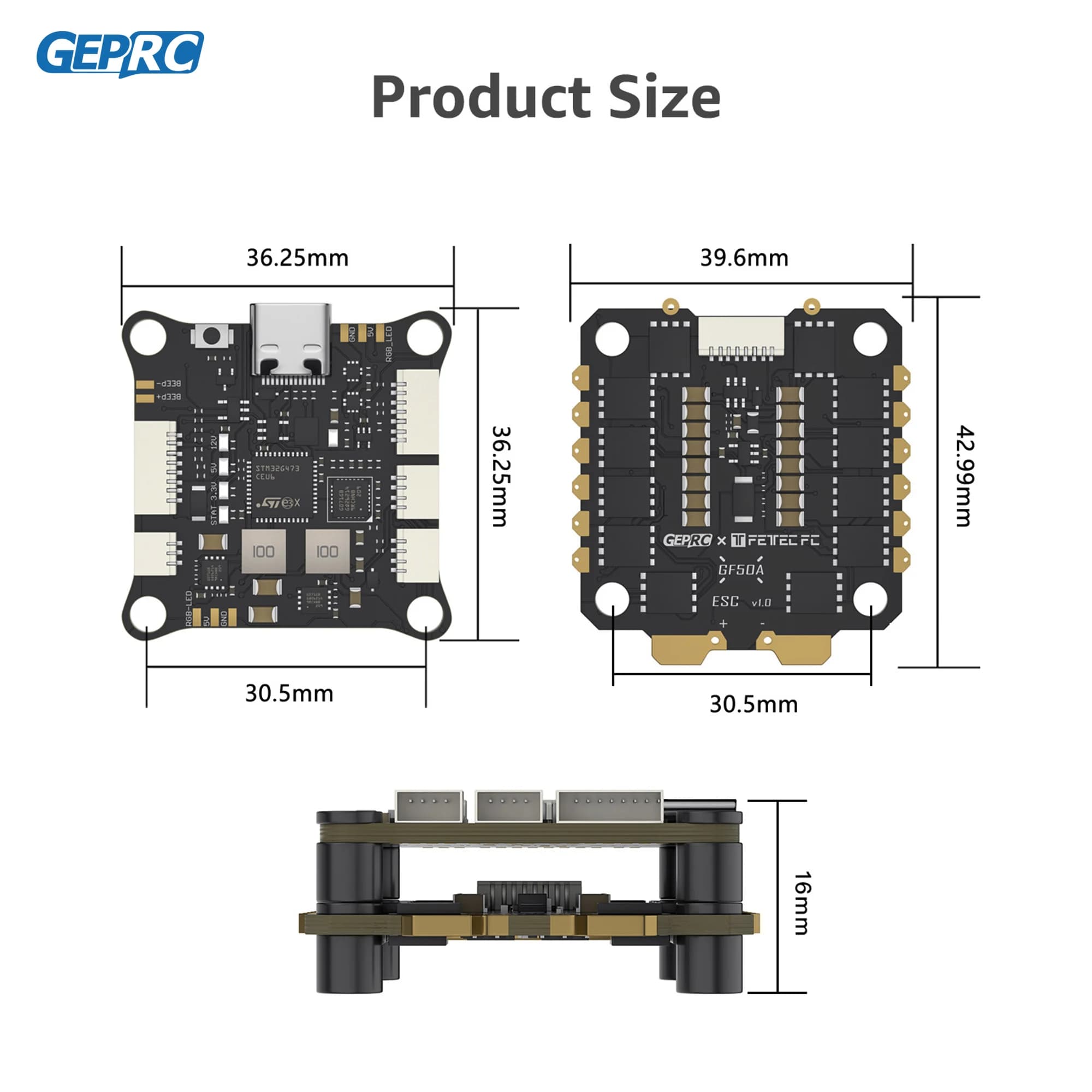

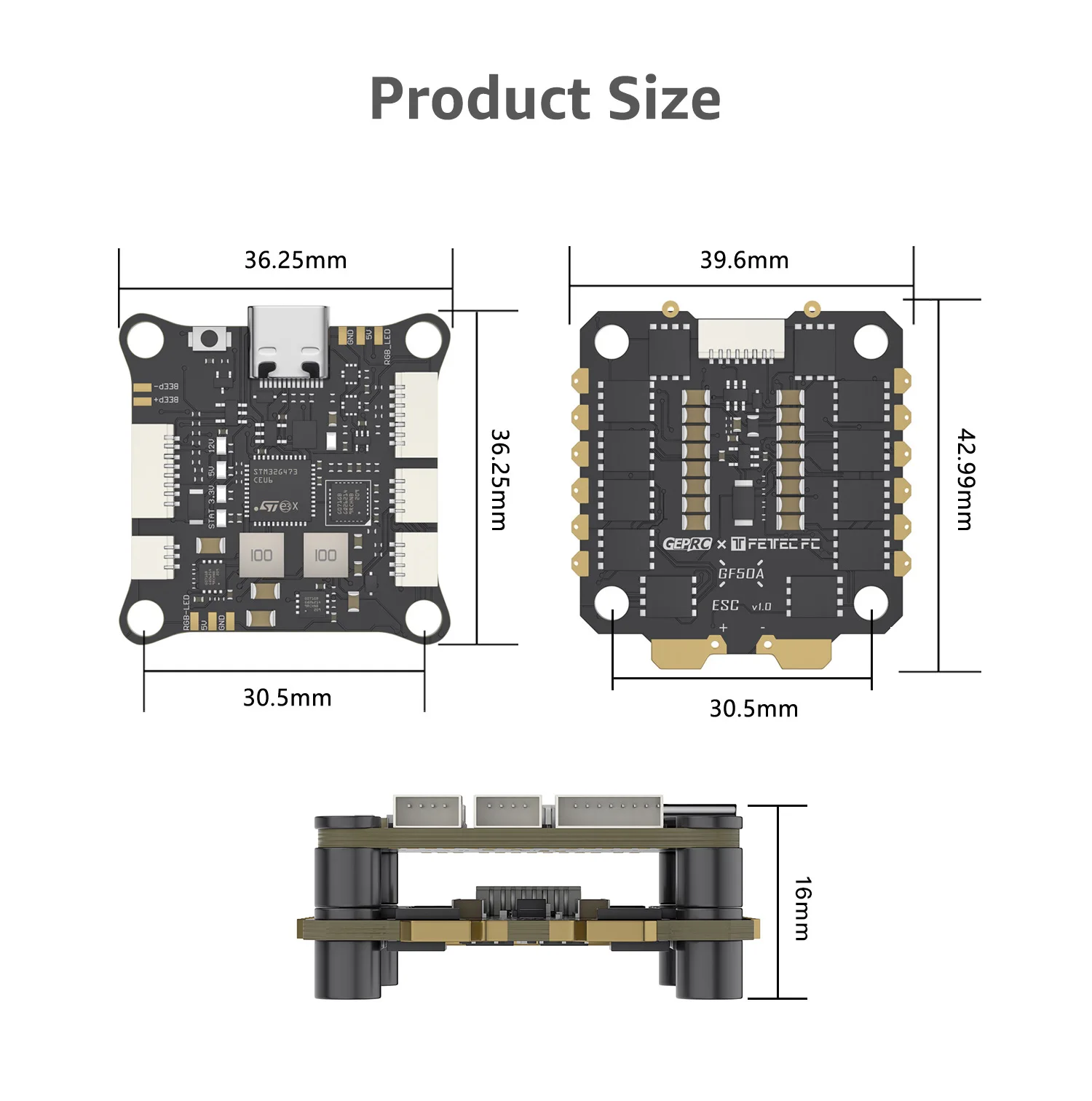

Dimension: 32x32mm Board
Installation hole position: 30.5mmx30.5mm M4
Weight: 13g

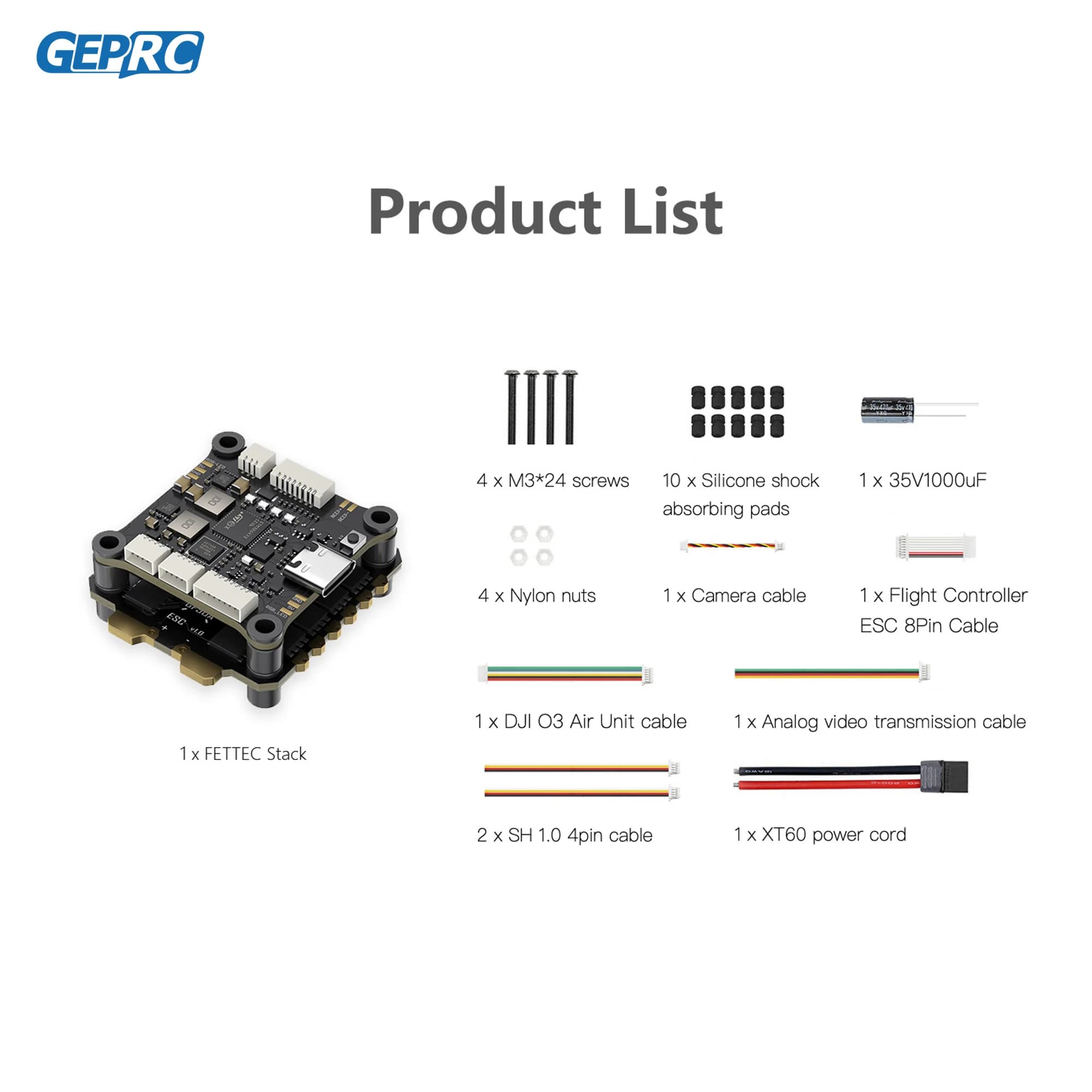

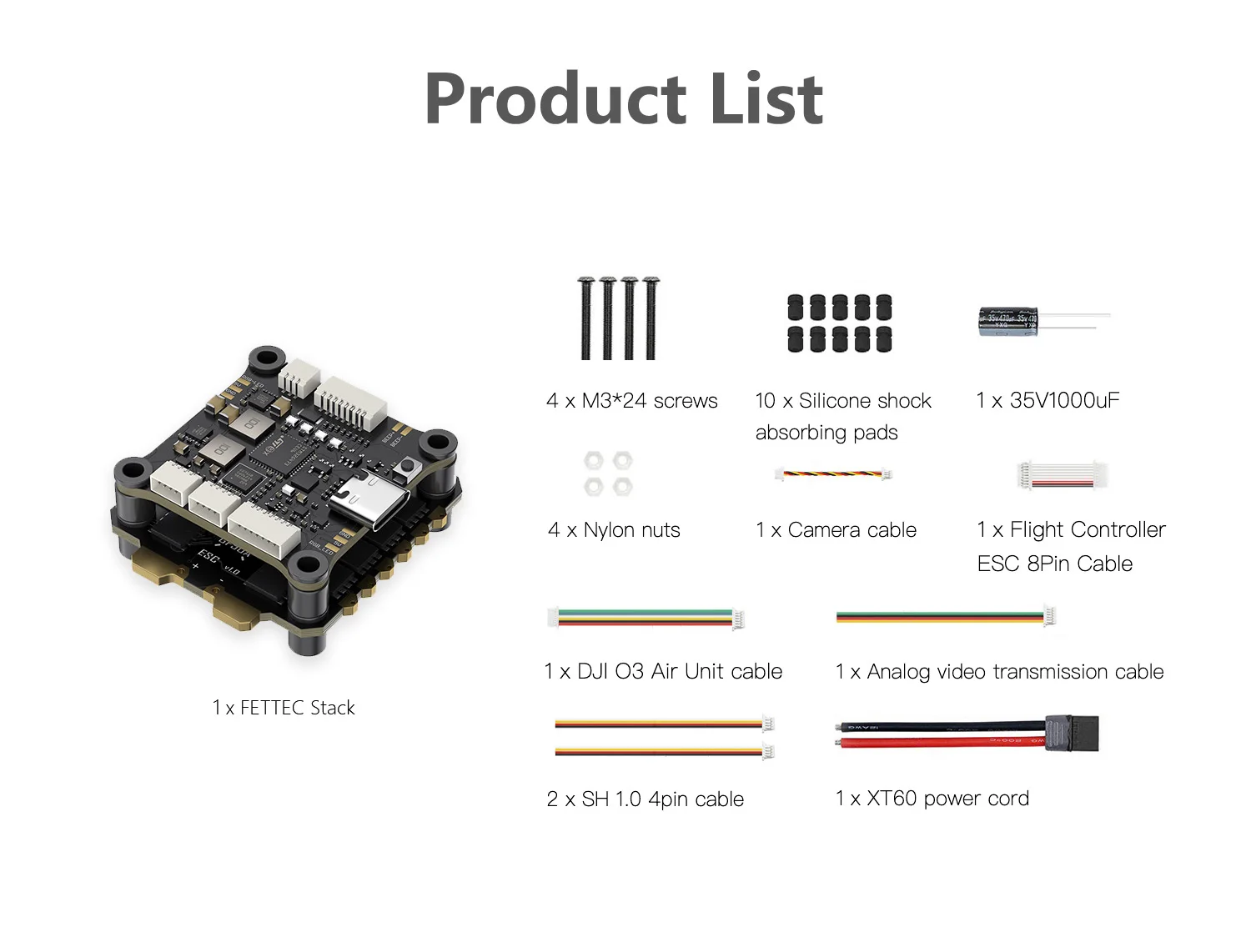

Includes
1 x GEPRC Fettec GF50A 4IN1 DShot2400 ESC
1 x GEPRC Fettec G4 Alpha FC
2 x SH1.0-4Pin 100mm silicone wire
1 x SH1.0-6P to SH1.0-7Pin silicone cable 60mm
1 x SH1.0 8Pin 30mm silicone cable
1 x SH1.0 7pin to 6pin 80MM silicone cable
1 x XT60 power cable 110MM

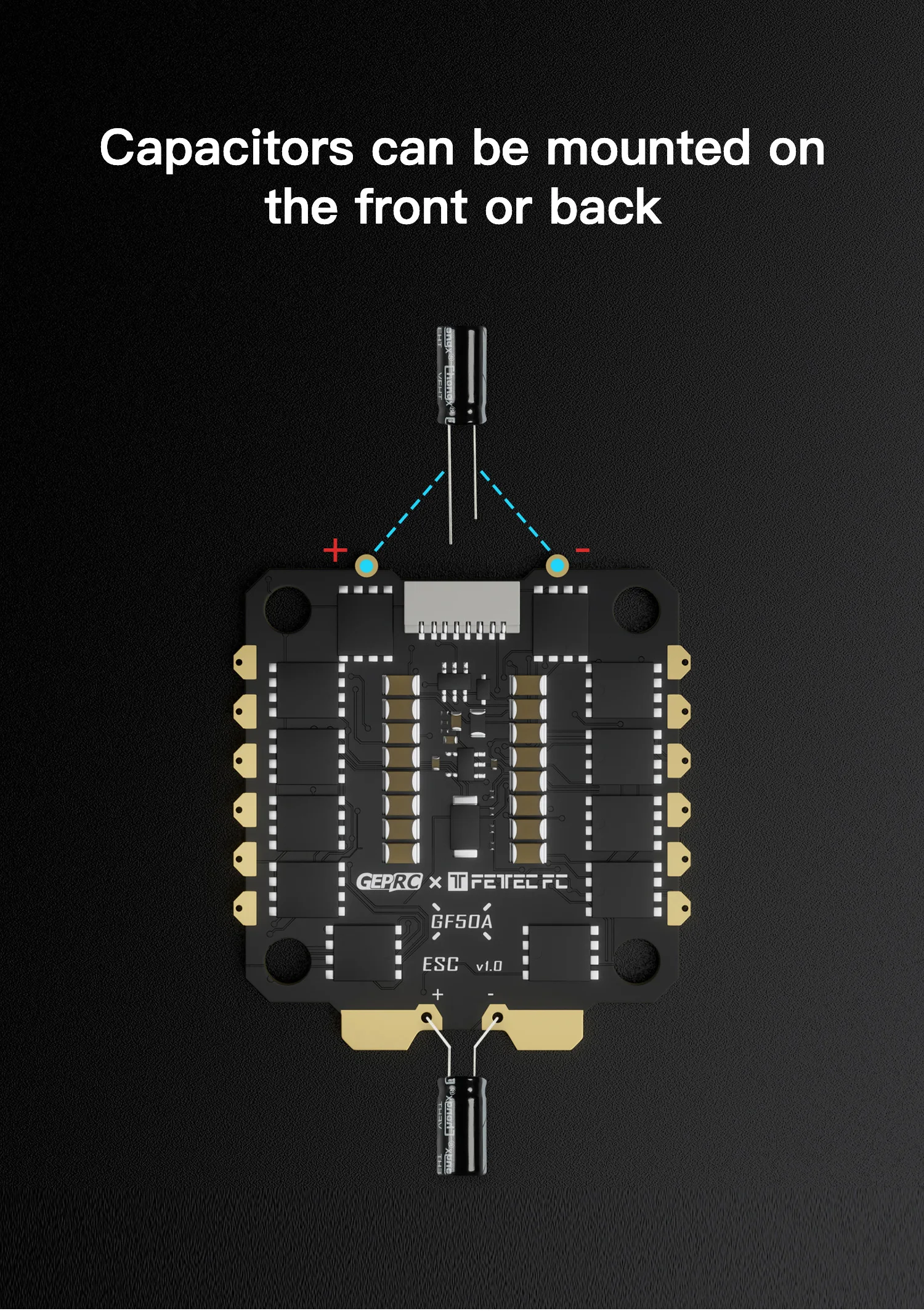

1 x 35v 1000uf capacitor
4 x Hexagon socket screw M3*24
4 x Transparent color M3 nylon nut
10 x M3*8 damping ball
1 x Product manual
