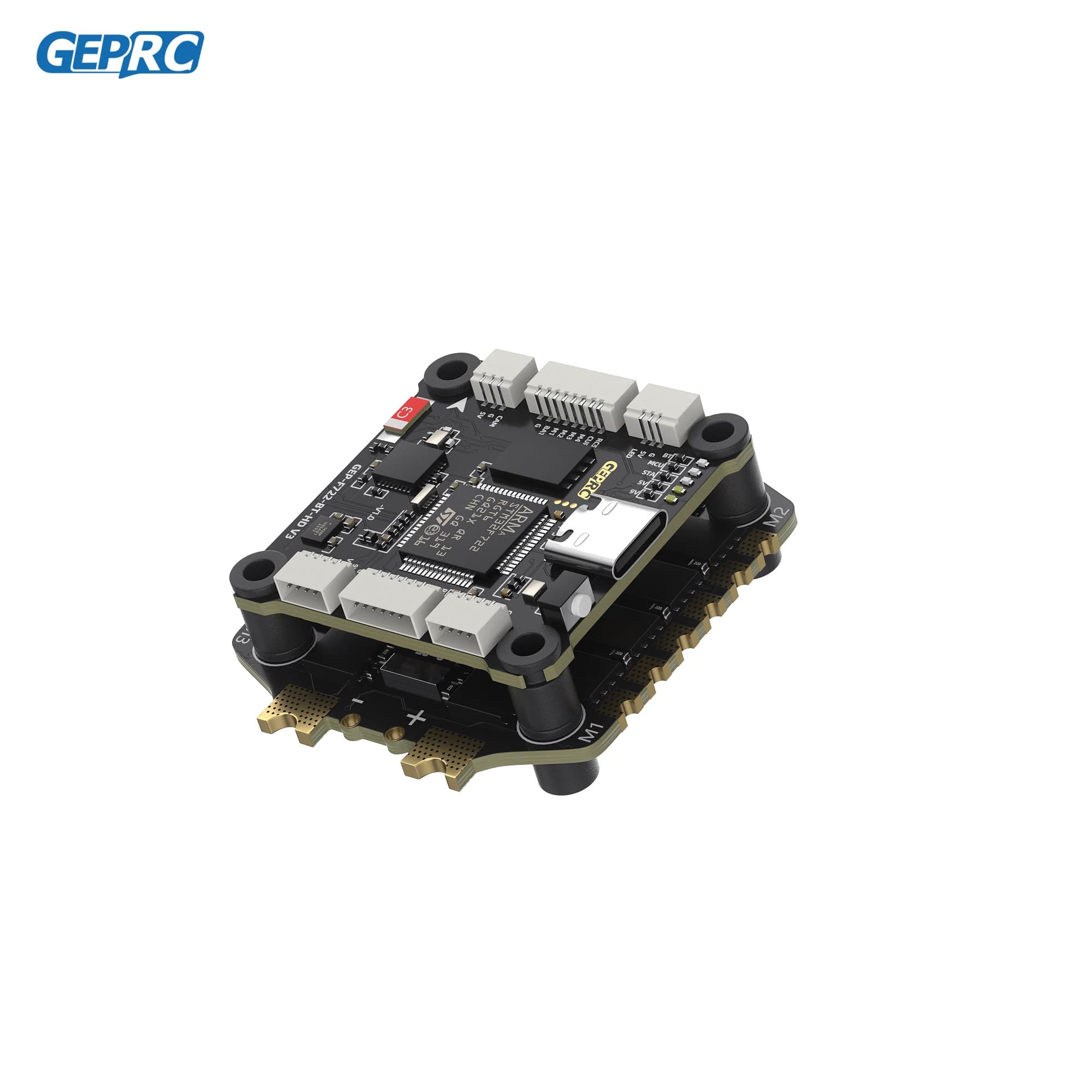

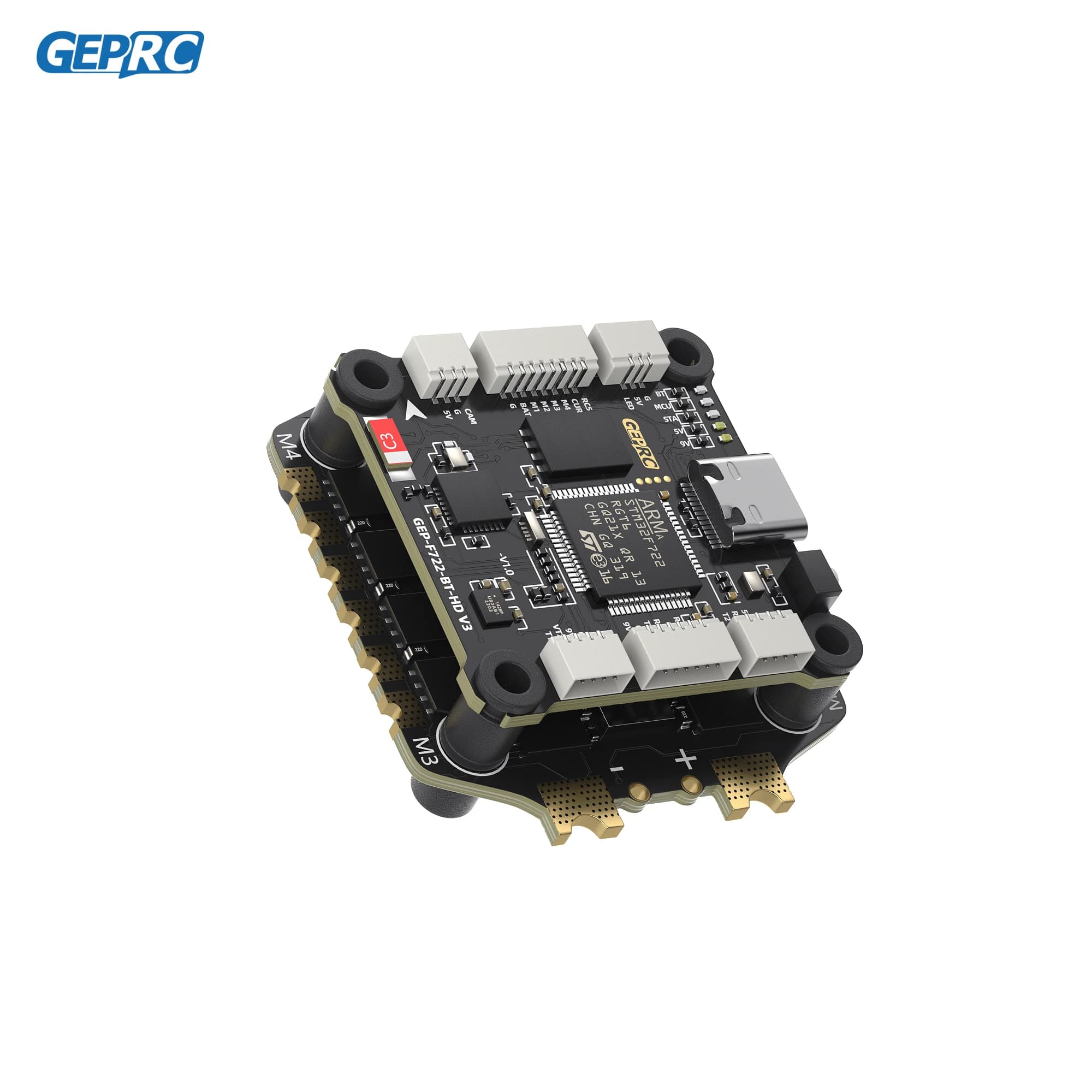

GEPRC TAKER F722 BT 8Bit 65A 60A 50A Stack 4IN1 ESC 512M Black Box 32Bit Data Analyze Record Flight Barometer Racing FPV Drone
73 orders (reference)
Description
Features-TAKER F722 BT 32Bit 50A STACK
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the Air Unit
- Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC
Features-TAKER F722 BT 8Bit 60A STACK
7.With TAKER H60_BLS 60A 4IN1 ESC, silky flight
Features-TAKER F722 BT 8Bit 65A STACK
7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight
Features-GEP-F722-BT-HD V3 Flight Controller
7. Directly plugs into the DJI Air Unit
- Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
9. Integrated Barometer
10. 9V@2.5A + 5V@3A dual independent BEC
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | TAKER F722 BT 32Bit 50A 8Bit 60A 65A STACK |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | STACK |
| Remote Control Peripherals/Devices | ESC |
| Upgrade Parts/Accessories | STACK |
| RC Parts & Accs | STACK |
| Material | Composite Material |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

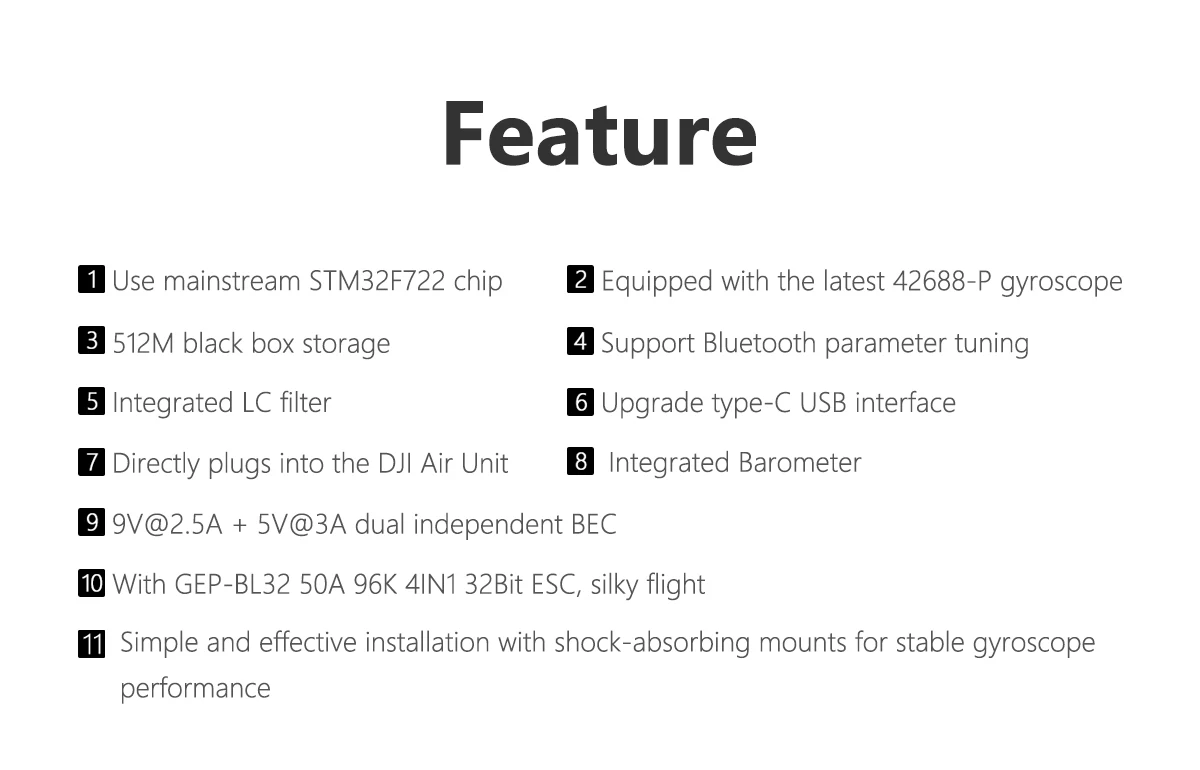

Features-TAKER F722 BT 32Bit 50A STACK
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC
Specifications

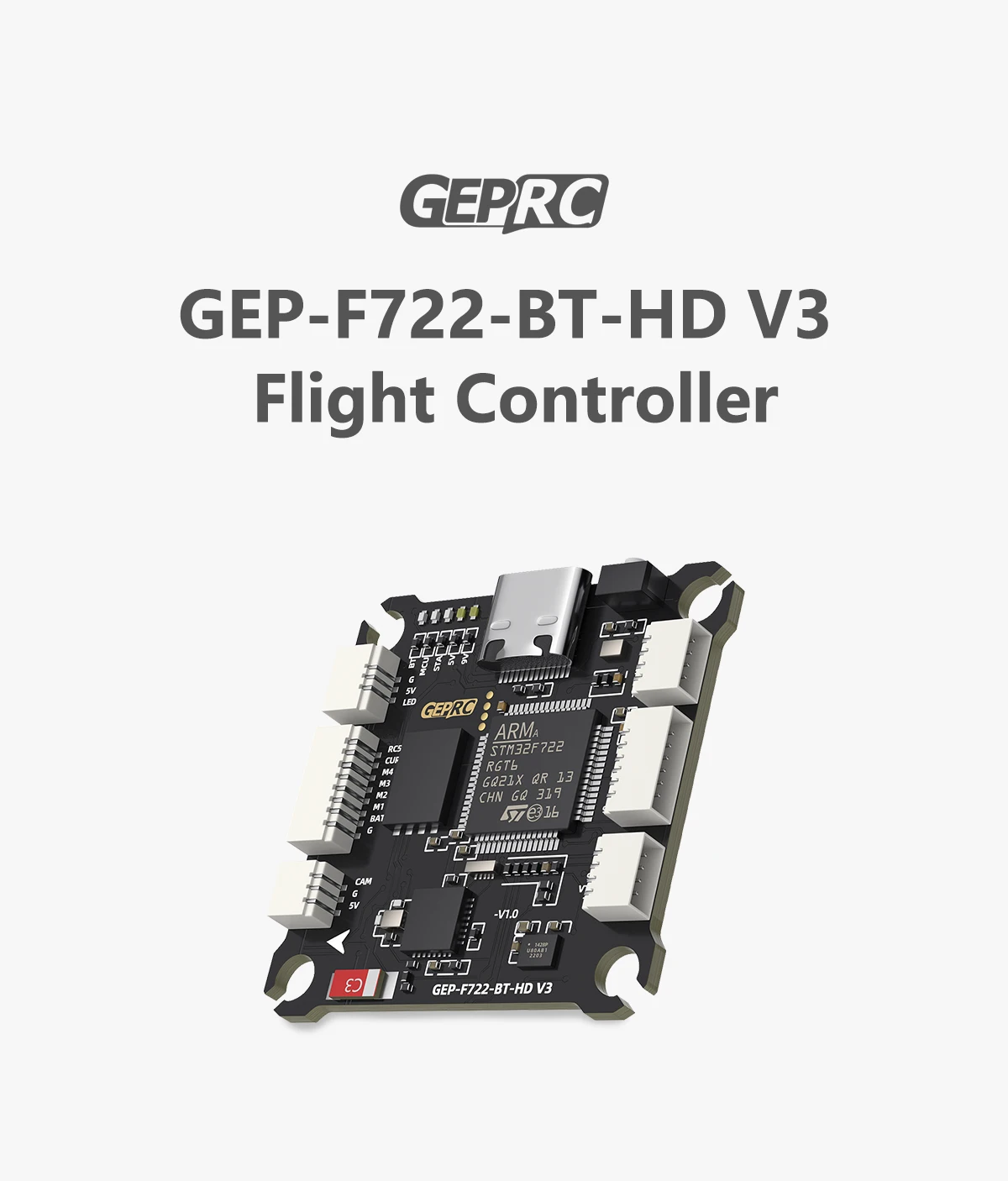

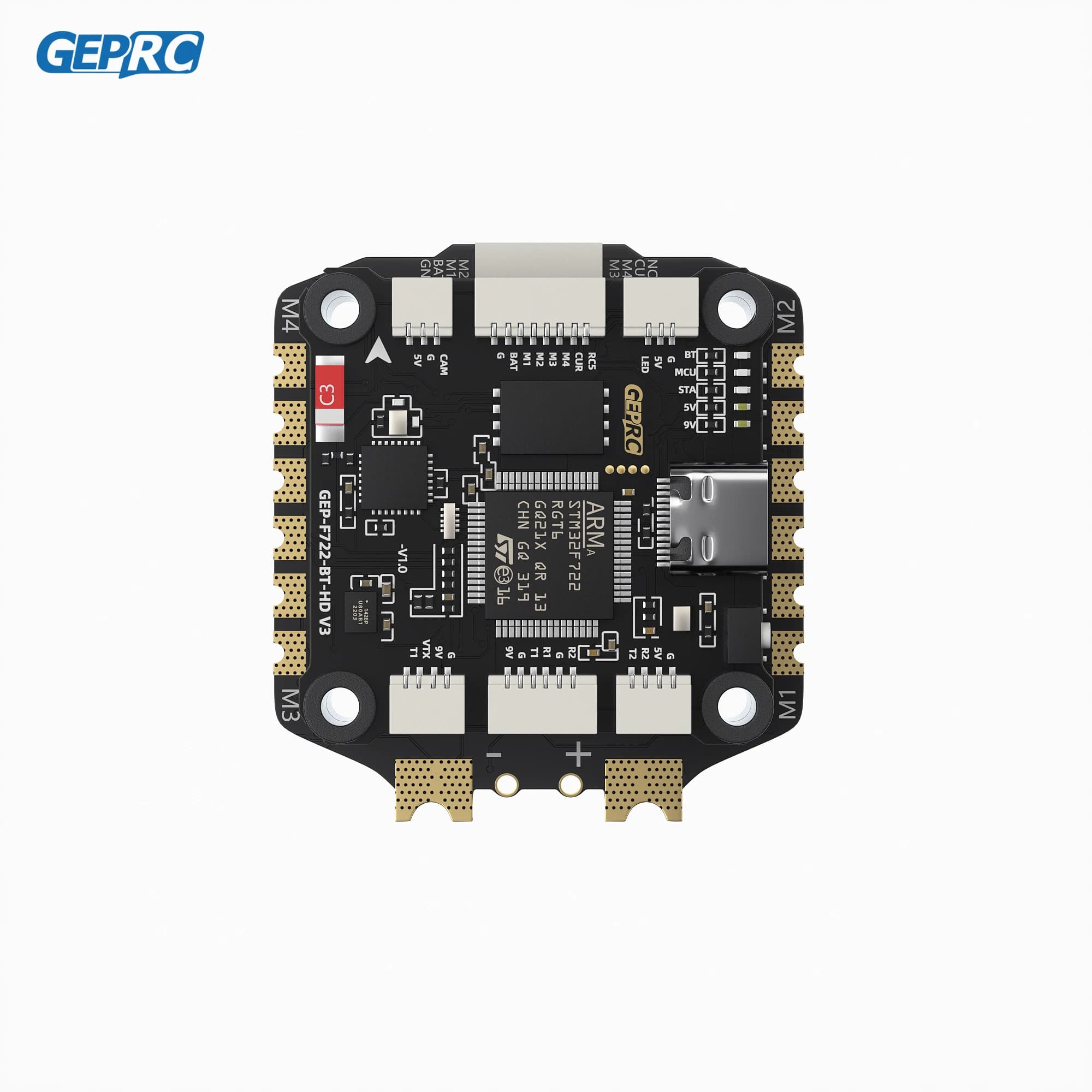

GEP-F722-BT-HD V3 Flight Controller
MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g

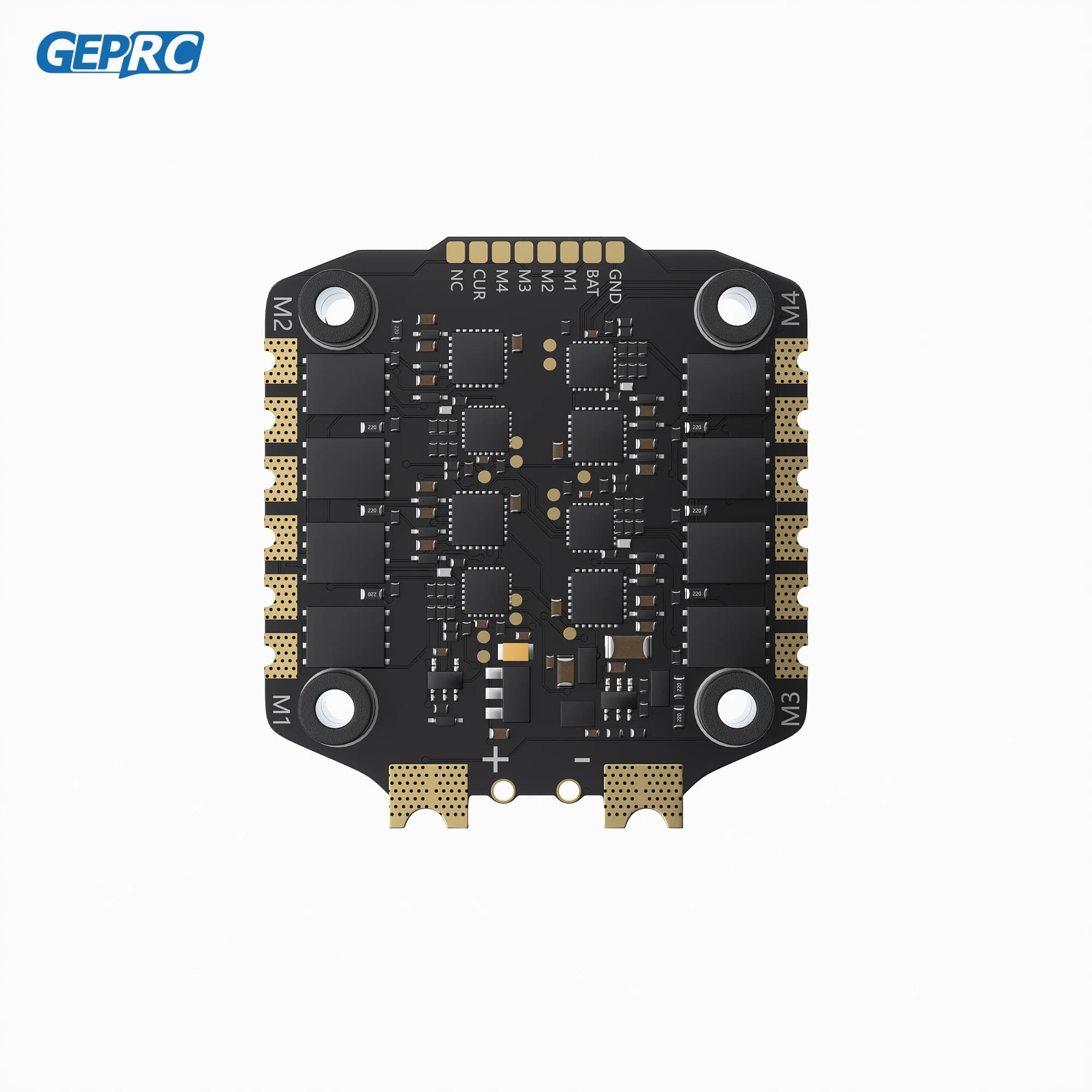

GEP-BL32 50A 96K 4IN1 ESC
Input Voltage：3-6S Lipo
Continue Current：50A
Burst Current：55A（5 second）
Galvanometer：Support
Telemetry: Support
Support Protocol：Dshot 150/300/600
Size：42.5x42.1mm，hole30.5x30.5mm
Weight：14g
Target: ST_G0_05 - 31.92

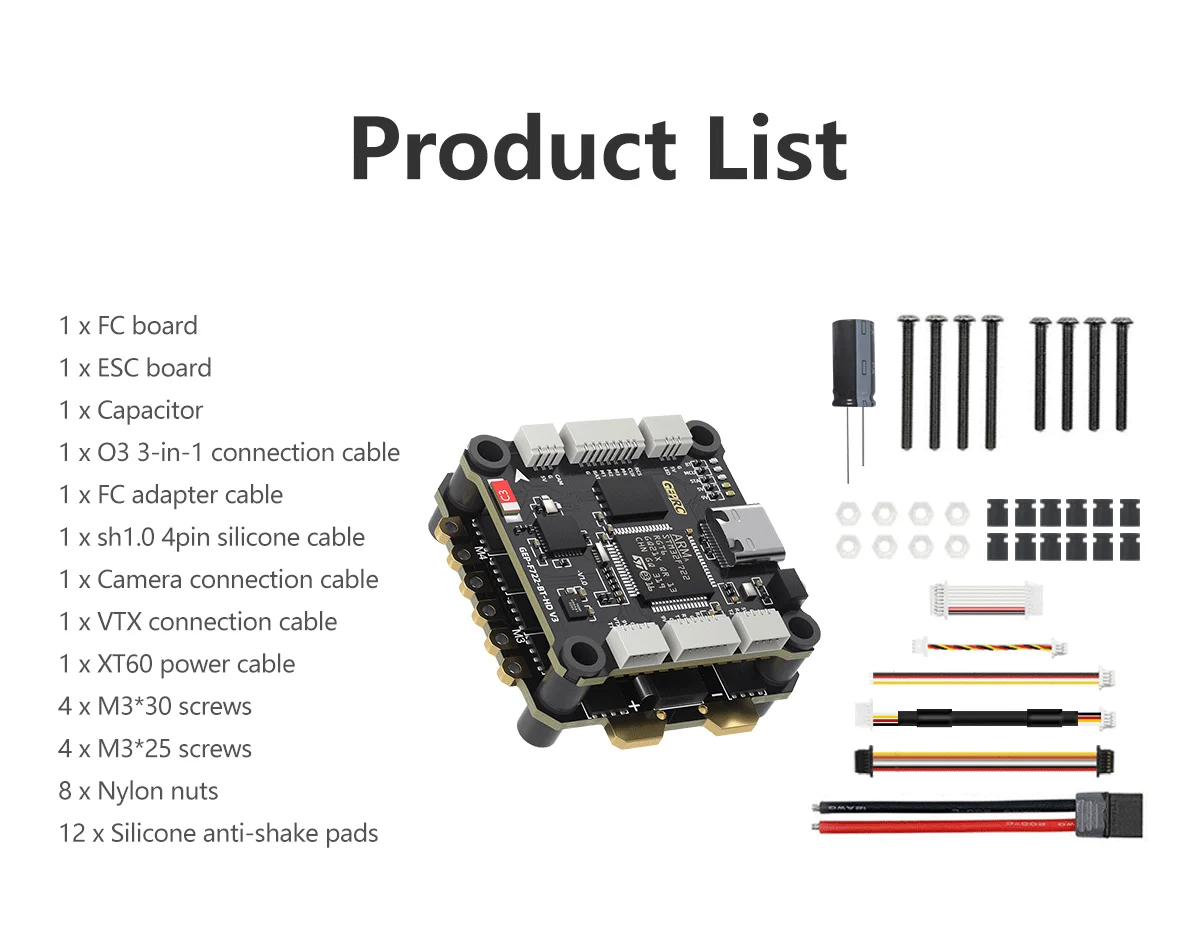

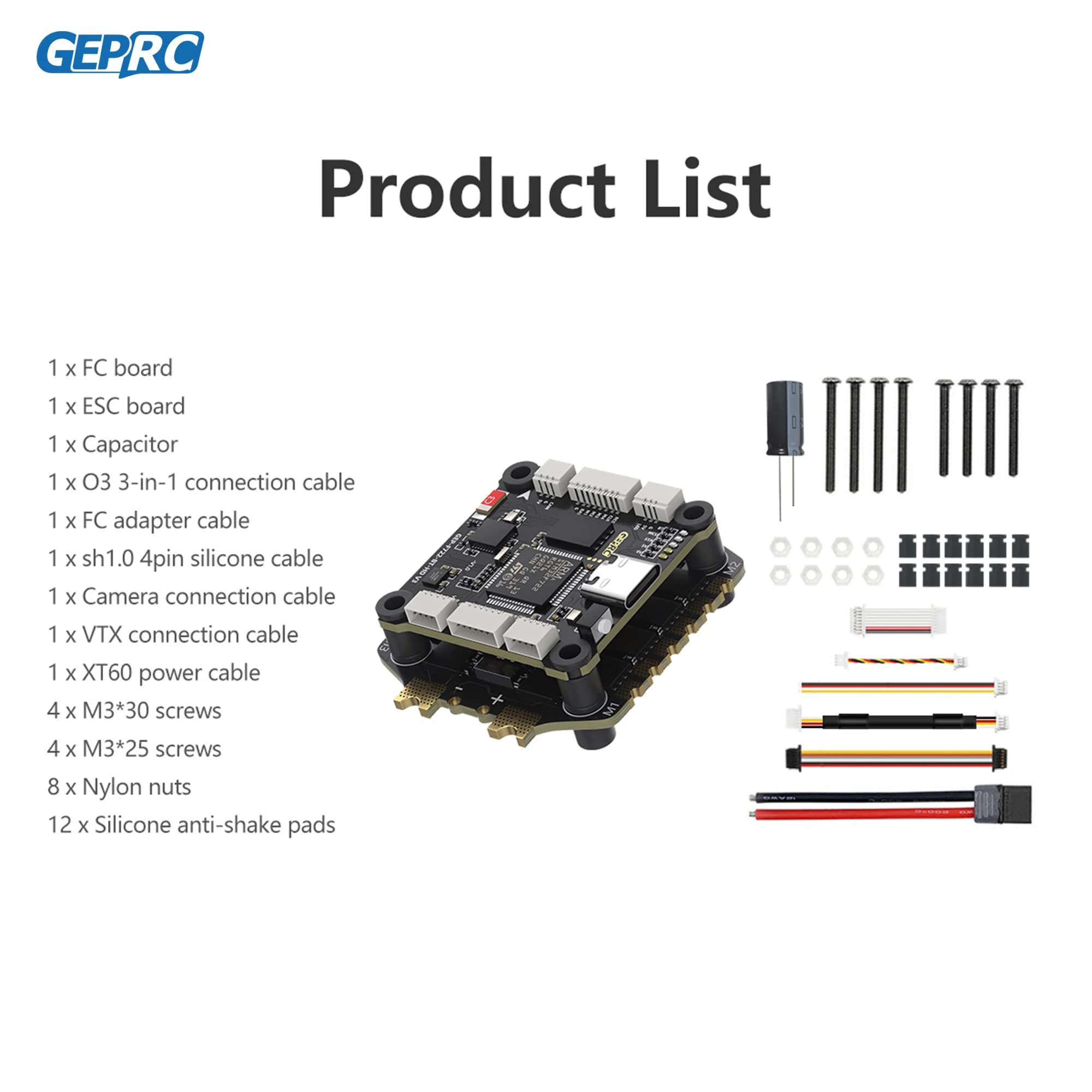

Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads

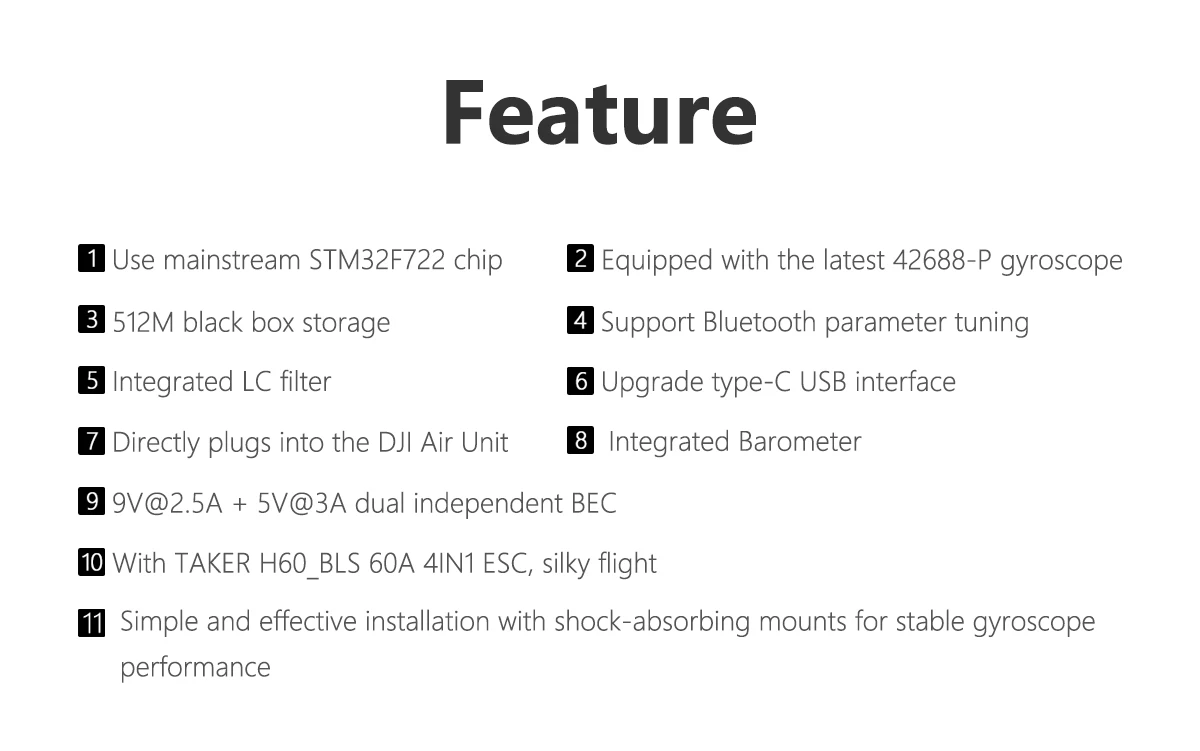

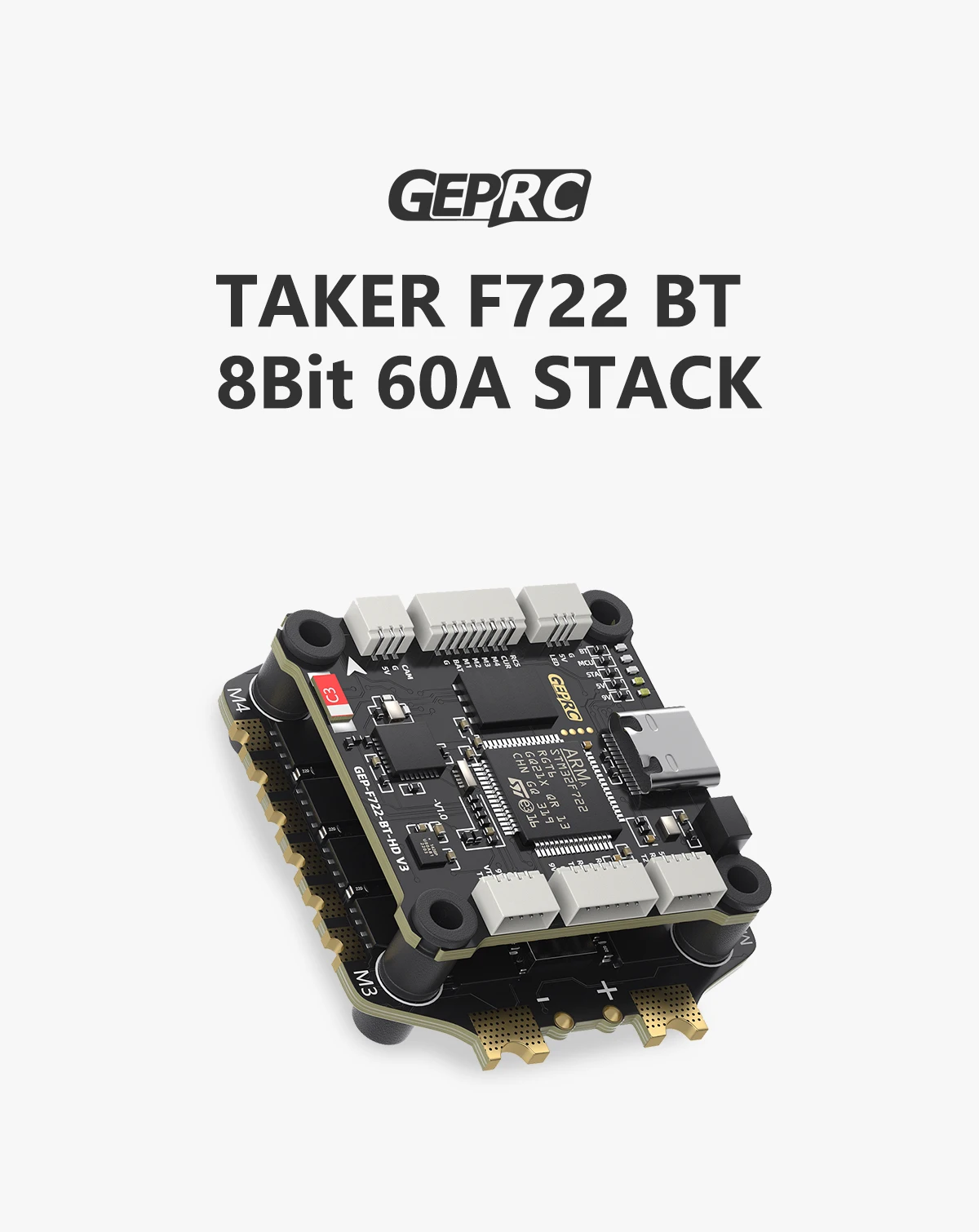

Features-TAKER F722 BT 8Bit 60A STACK
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With TAKER H60_BLS 60A 4IN1 ESC, silky flight
8. Directly plugs into the Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC

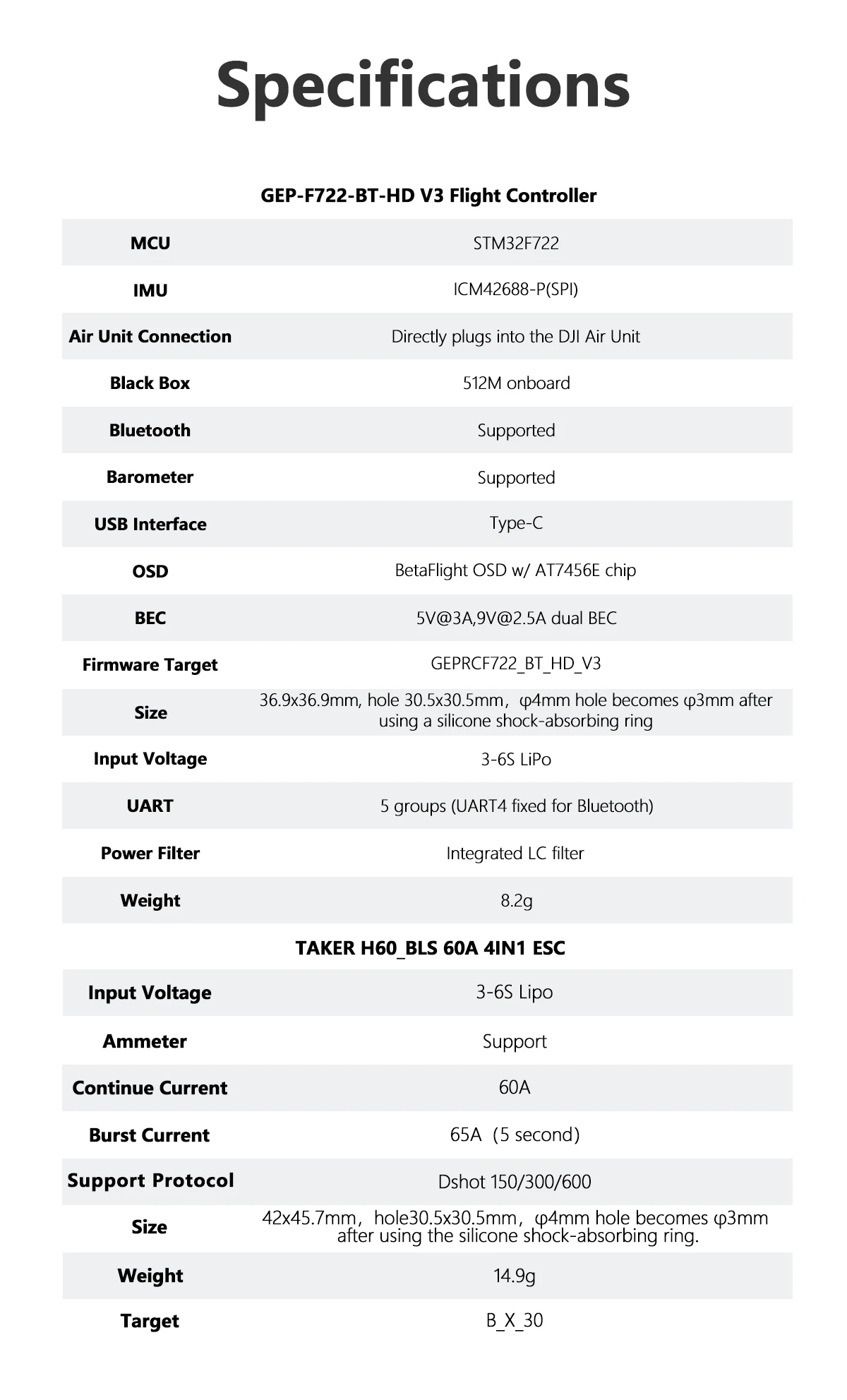

Specifications
GEP-F722-BT-HD V3 Flight Controller
MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g
TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Ammeter: Support
Continue Current：60A
Burst Current：65A（5 second）
Support Protocol: Dshot 150/300/600
Size：42x45.7mm，hole30.5x30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Target: B_X_30

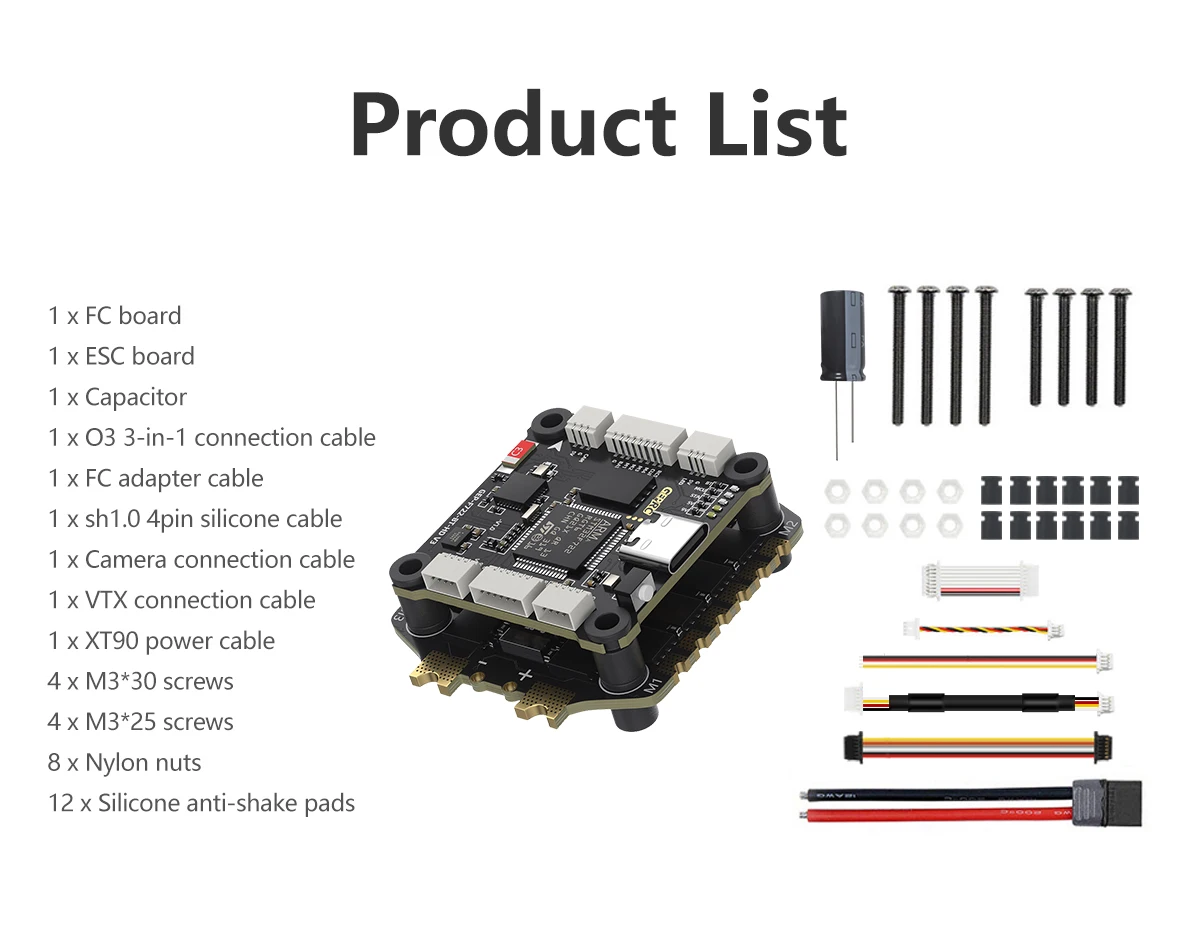

Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads

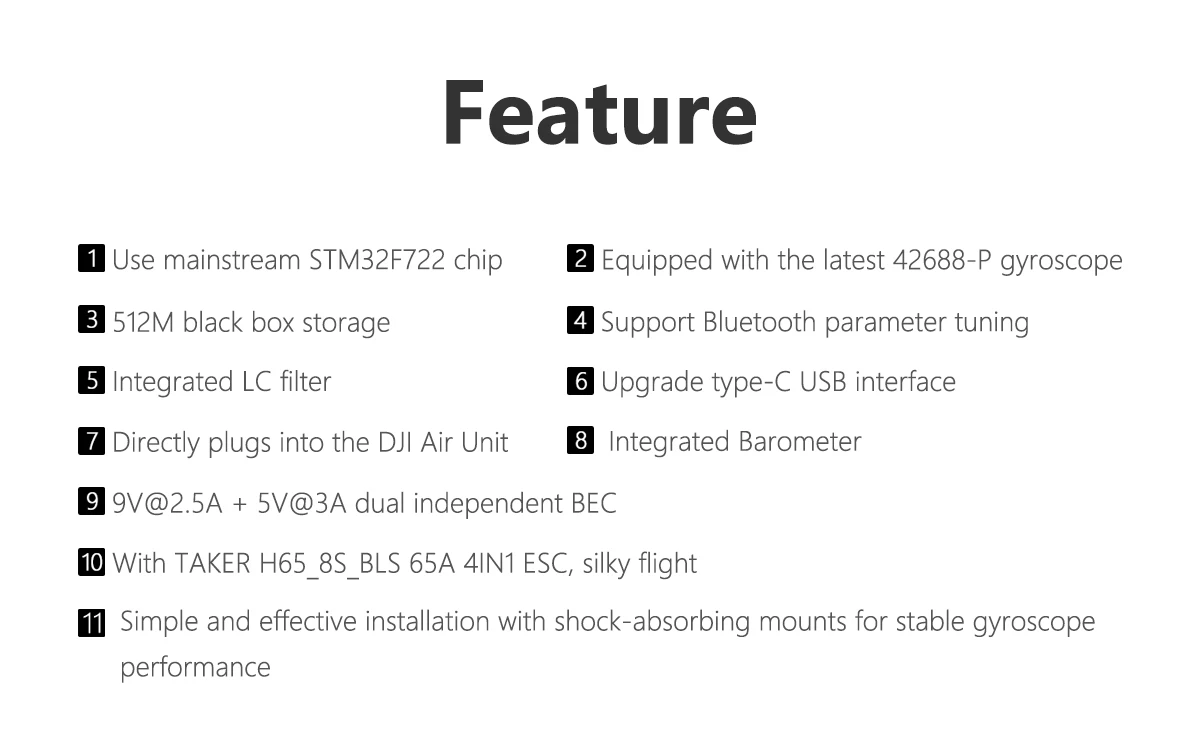

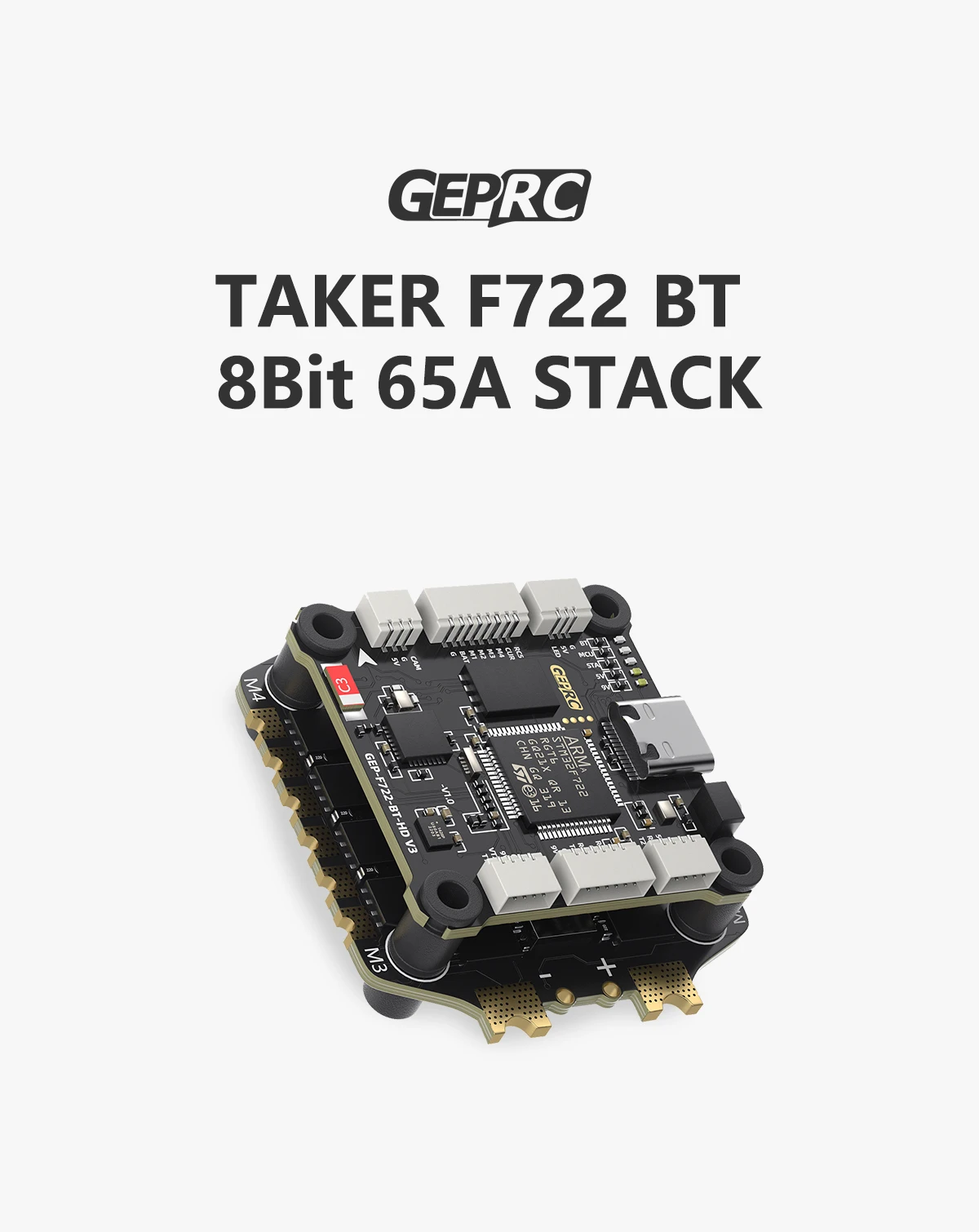

Features-TAKER F722 BT 8Bit 65A STACK
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7.With TAKER H65_8S_BLS 65A 4IN1 ESC, silky flight
8. Directly plugs into the Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC

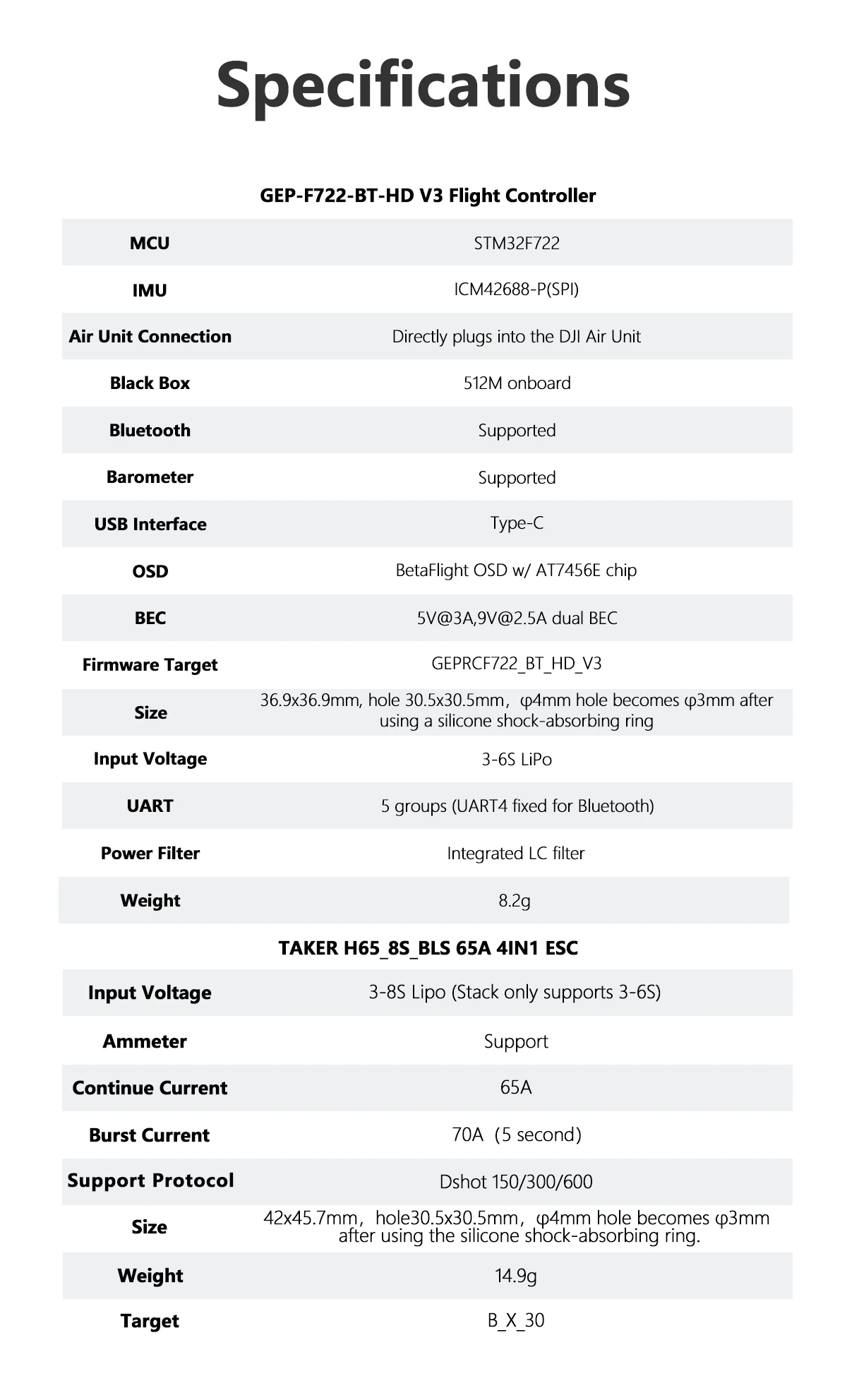

Specifications
GEP-F722-BT-HD V3 Flight Controller
MCU:STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g
TAKER H65_8S_BLS 65A 4IN1 ESC
Input Voltage: 3-8S Lipo
Ammeter: Support
Continue Current：65A
Burst Current：70A（5 second）
Support Protocol: Dshot 150/300/600
Size：42x45.7mm，hole30.5x30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 14.9g
Target: B_X_30

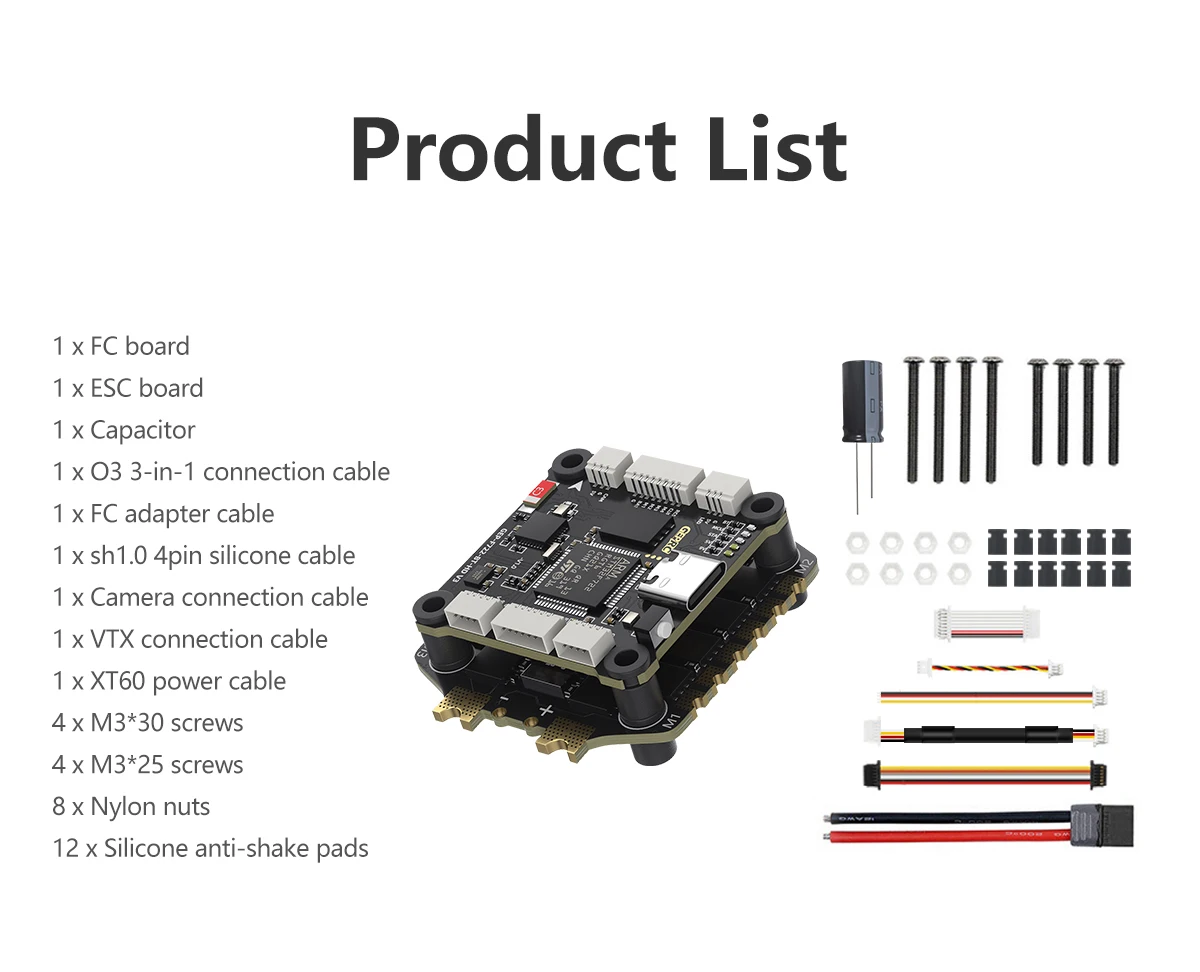

Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT60 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads

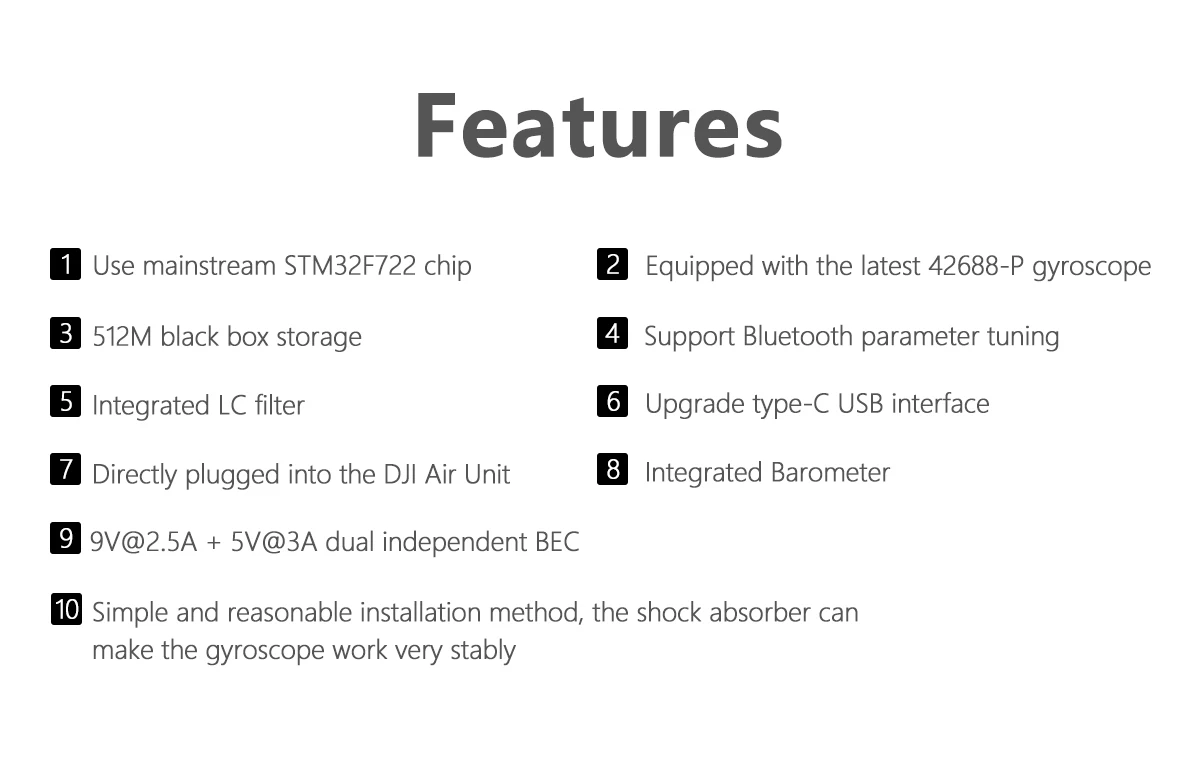

Features-GEP-F722-BT-HD V3 Flight Controller

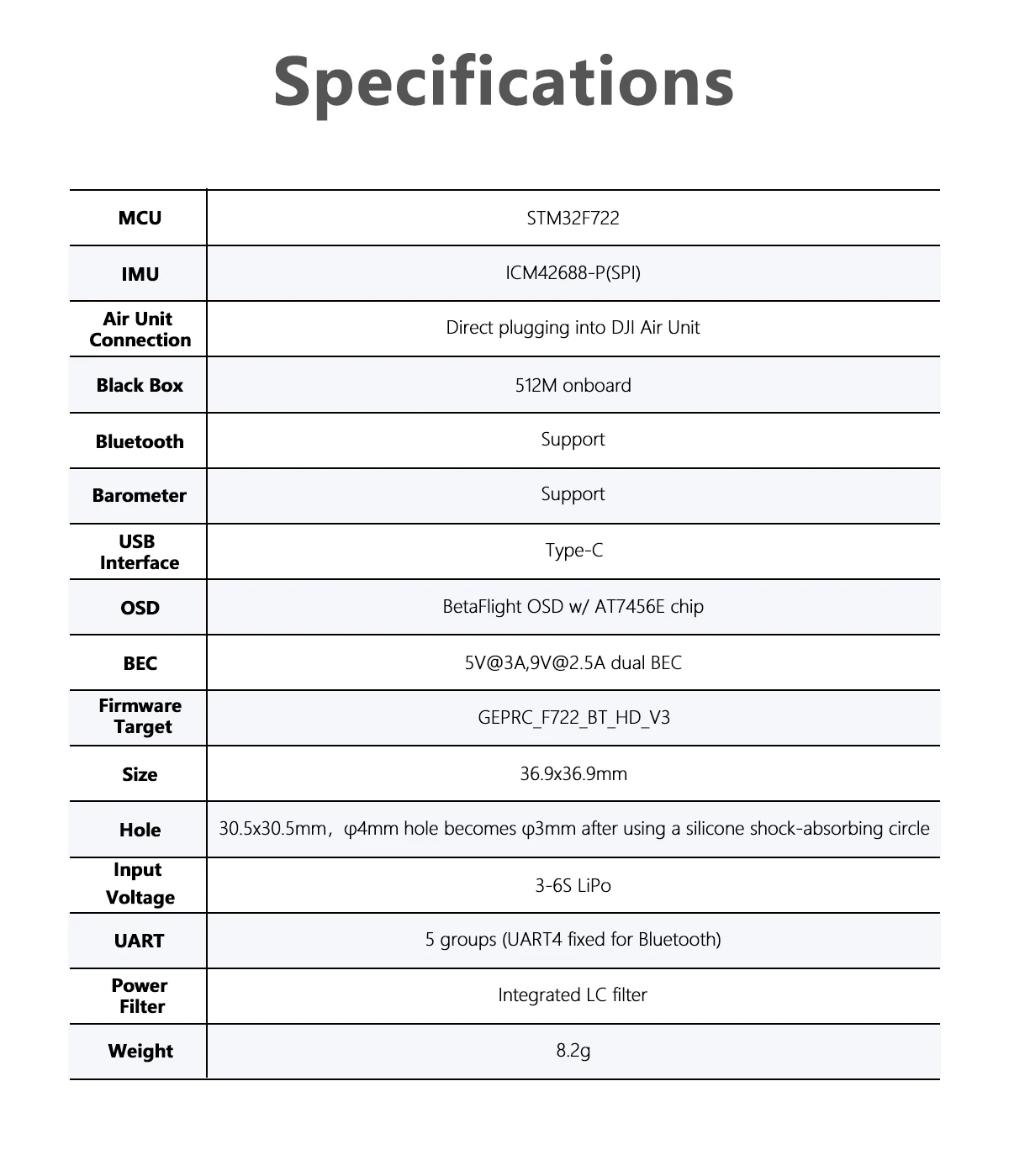

Specifications
MCU: STM32F722
IMU：ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size：36.9x36.9mm, hole 30.5x30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC
Weight: 8.2g

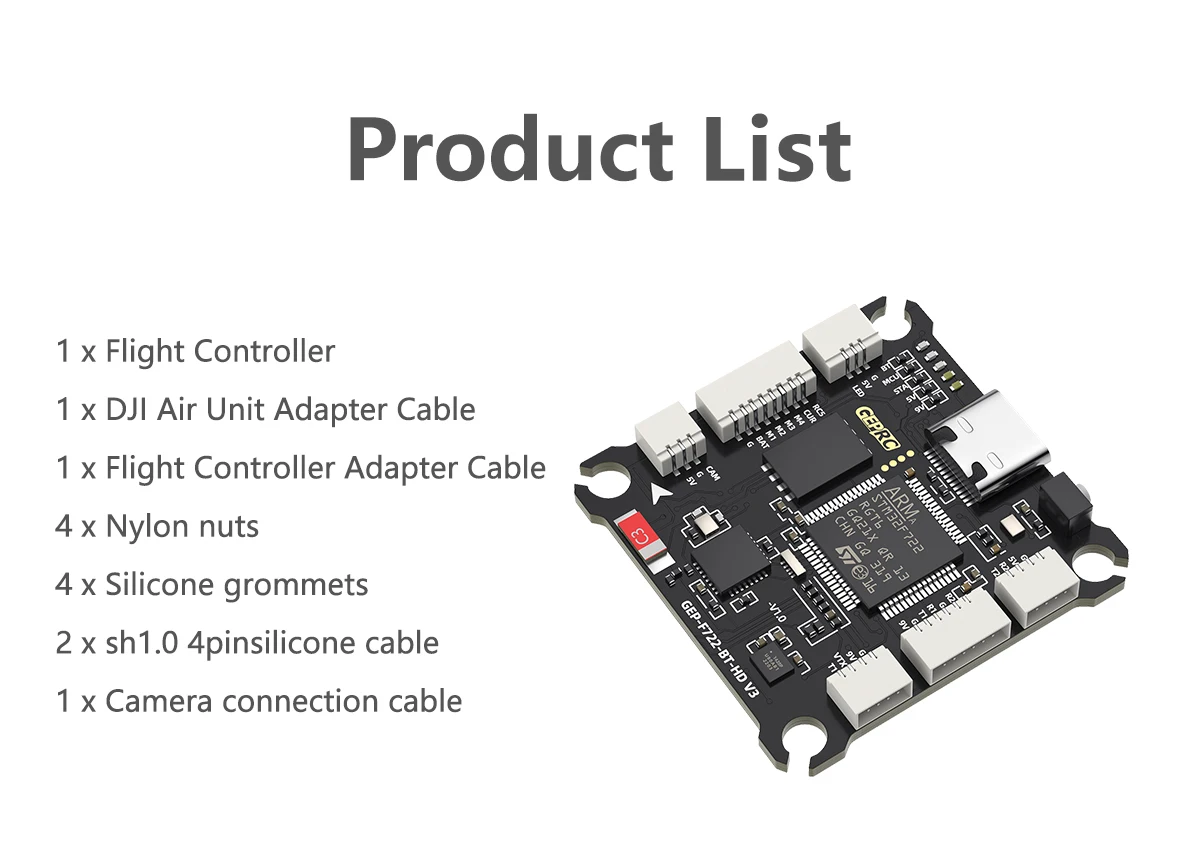

Includes
1 x Flight Controller
1 x D JI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
4 x Nylon nuts
4 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
