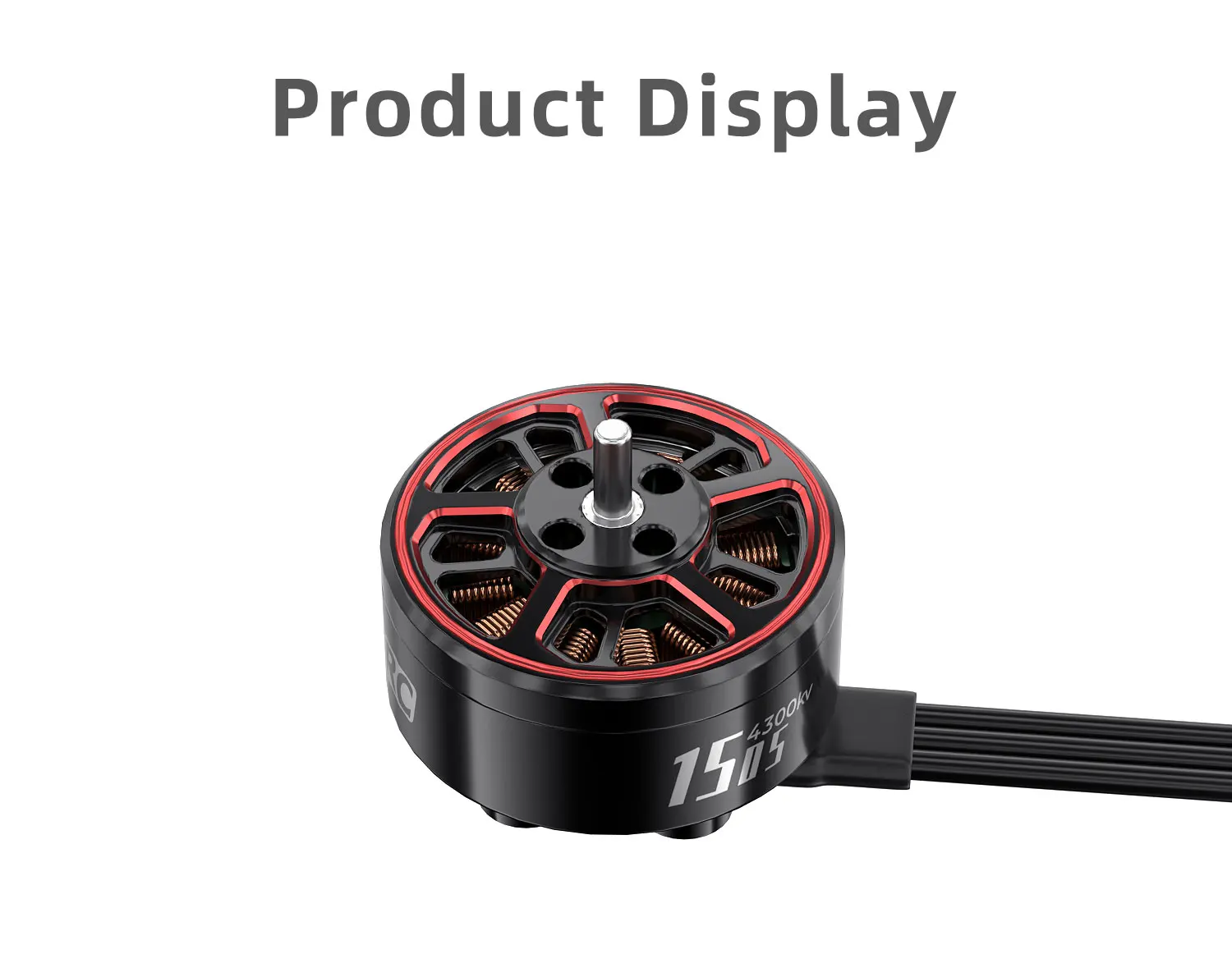

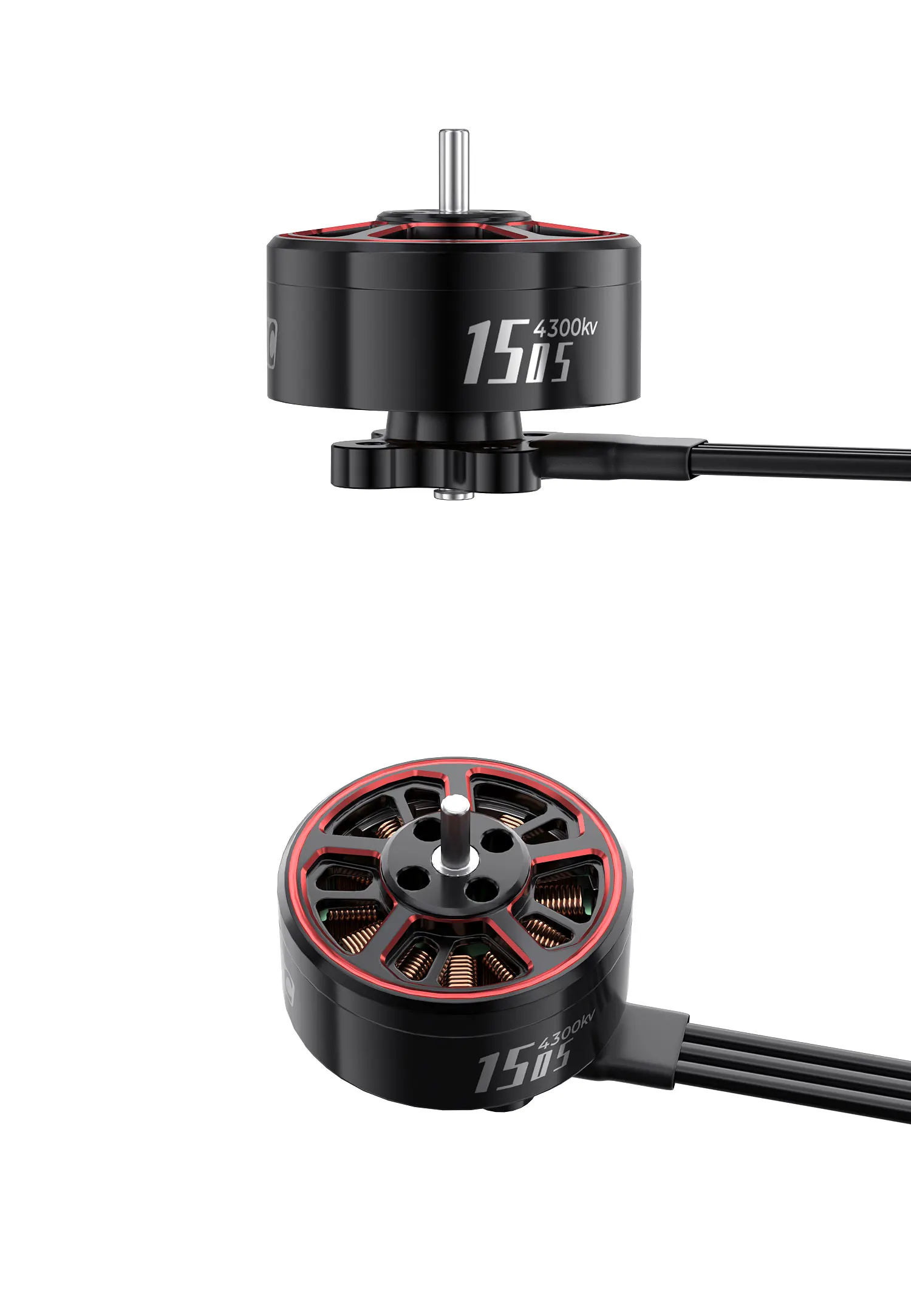

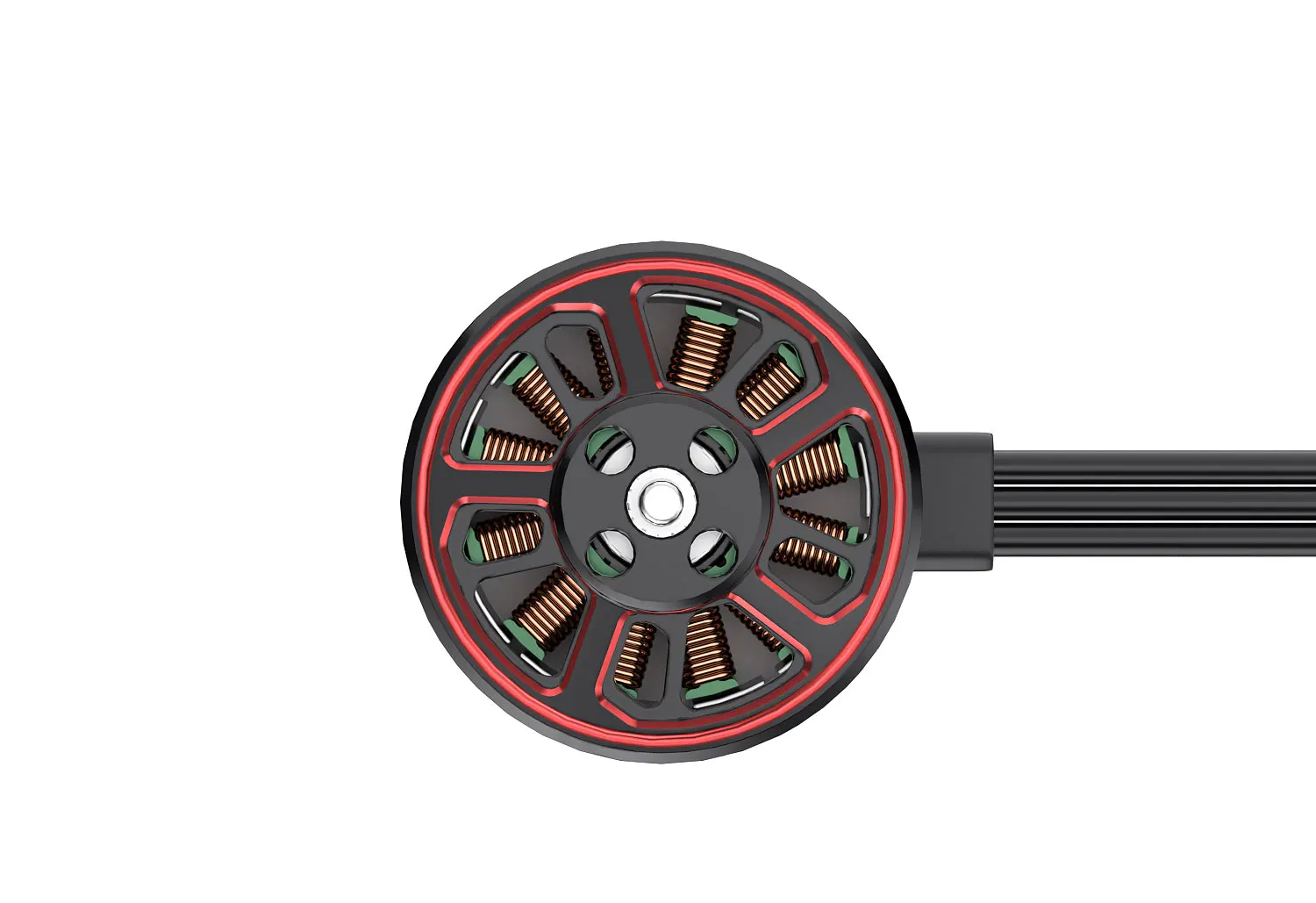

GEPRC SPEEDX2 1505 4300KV Motor 20A-30A Brushless 16.8V Motor Black with 2.5 - 3.5 Inch RC FPV Racing Drone Multicopter
35 orders (reference)
Description
Summary
SPEEDX2 1505 4300KV motor, compatible with 2.5-3.5 inch blades. Adopting high-precision and wear-resistant bearings, the motor has a longer service life.
Feature
The match of matt black and red upscale the exterior appearance.
Adoption of high-precision, wear-resistant bearings.
Light texture, high-power density.
Suitable for 2.5-inch~3.5-inch light-weight drone.
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Brand Name |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | SPEEDX2 1505 Motor 4300KV |
| For Vehicle Type | Helicopters |
| Tool Supplies | Assembly Category |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motors |
| Upgrade Parts/Accessories | Motors |
| RC Parts & Accs | Motors |
| Material | Metal |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Summary
SPEEDX2 1505 4300KV motor, compatible with 2.5-3.5 inch blades. Adopting high-precision and wear-resistant bearings, the motor has a longer service life.
Feature
The match of matt black and red upscale the exterior appearance.
Adoption of high-precision, wear-resistant bearings.
Light texture, high-power density.
Suitable for 2.5-inch~3.5-inch light-weight drone.
Specifications
Model:SPEEDX2 1505 4300KV Motor

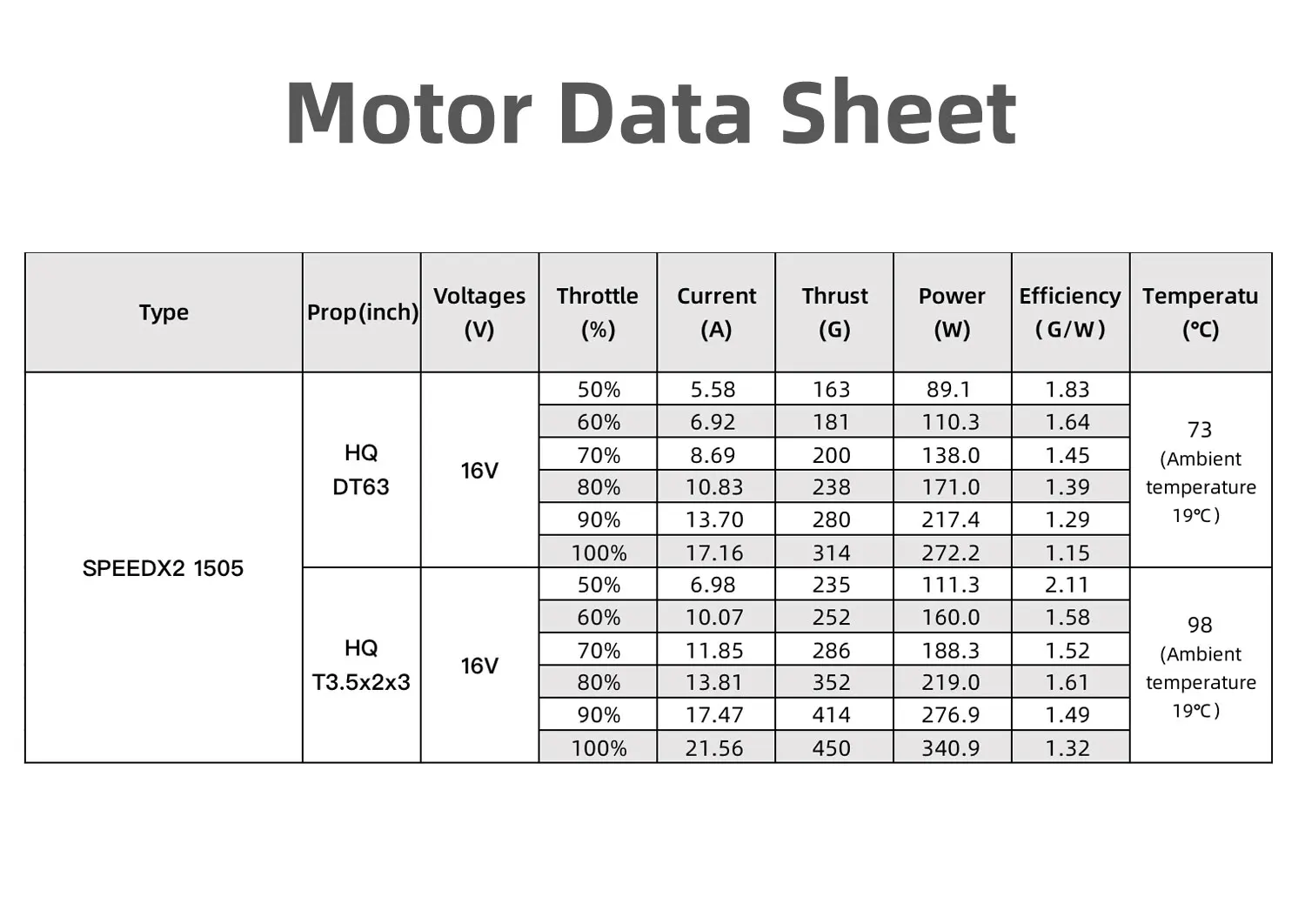

Max Watt:340.9W
Peak current:21.56A/3s
Interphase resistance:97mΩ
Magnet:N52H
Bearing type:NSK/NMB
Configuration:12N/14P

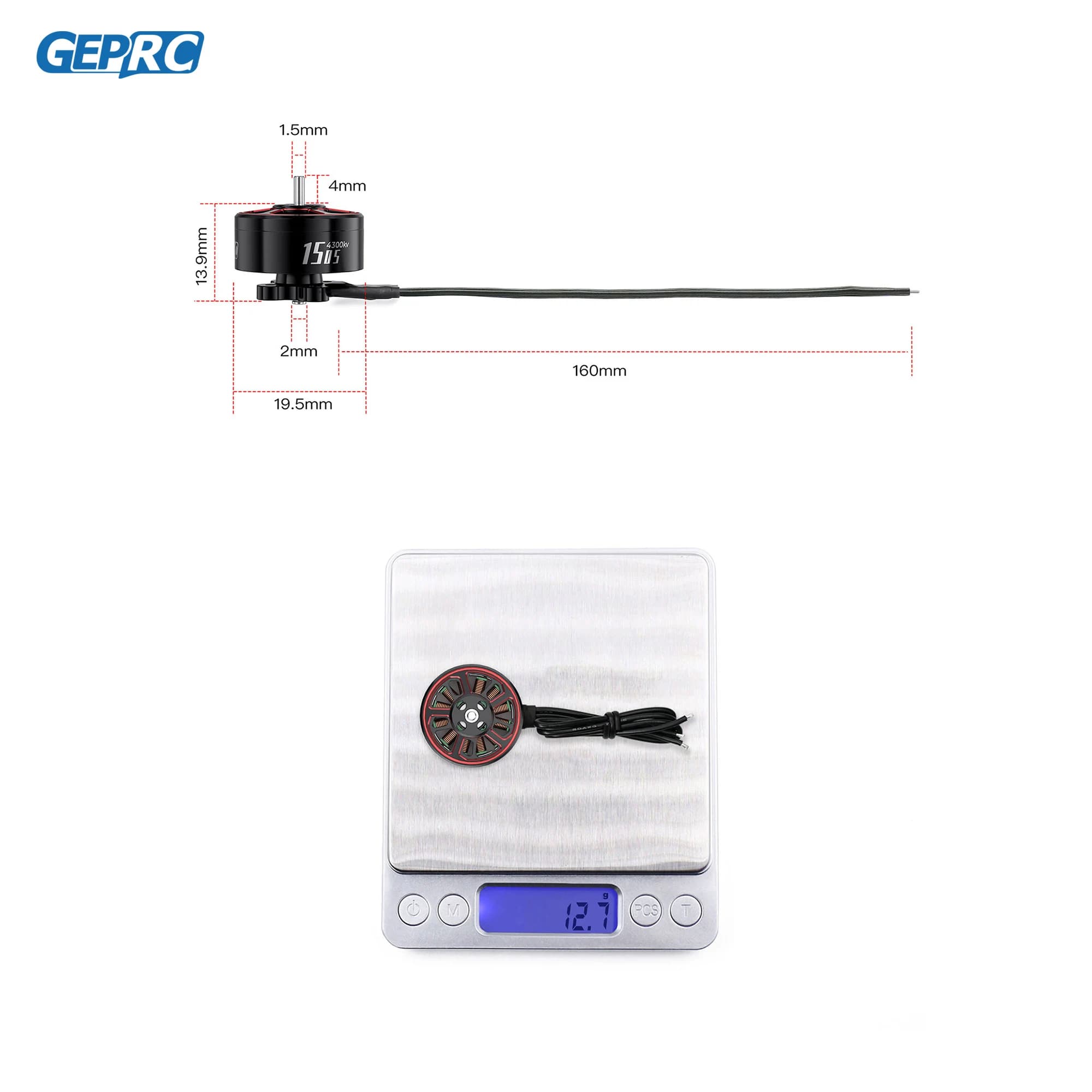

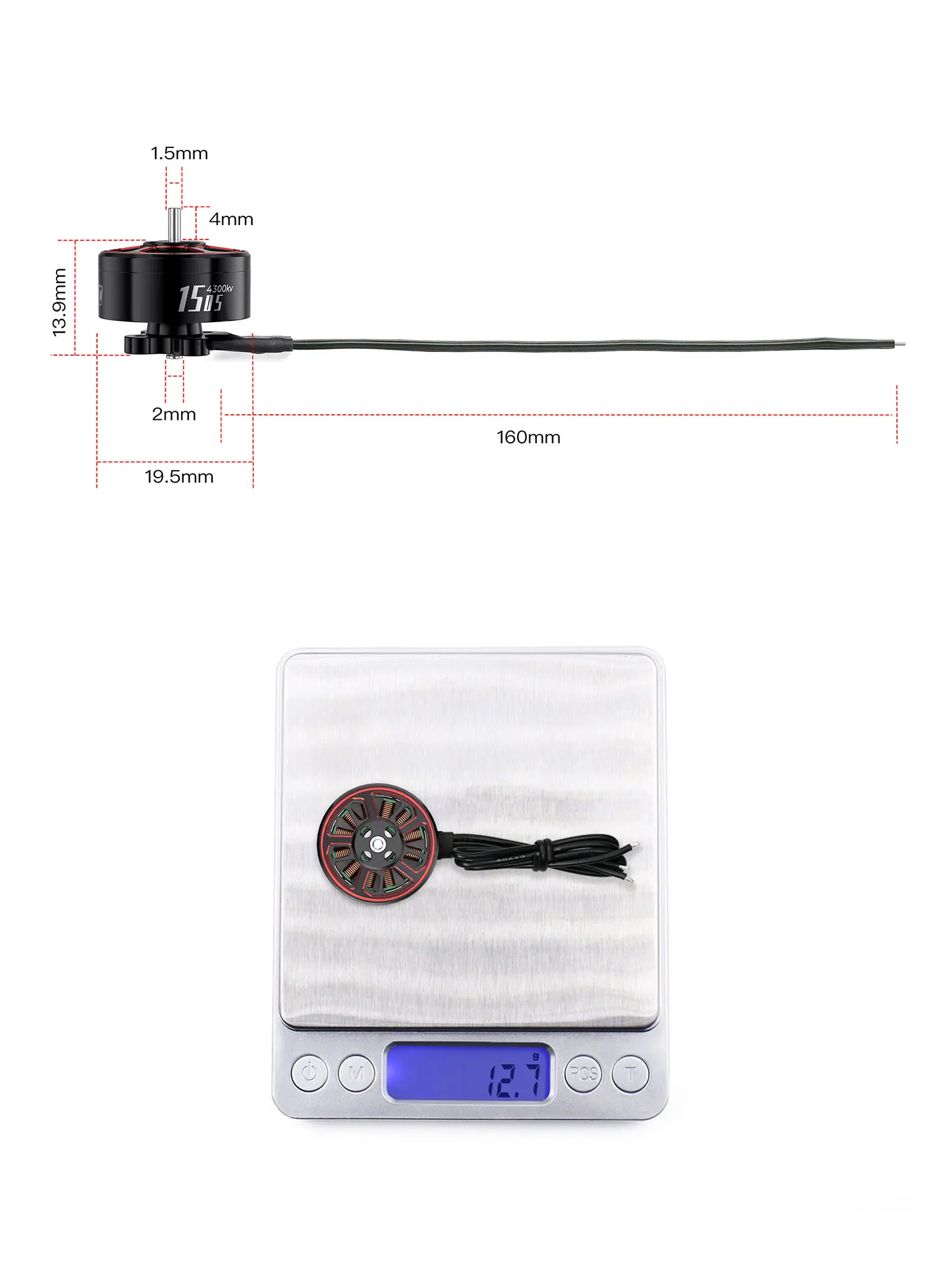

Dimension: φ19.5mmx13.9mm
Shaft Diameter:φ1.5mm
Shaft Protruding Length:4mm
Mounting holes:9mm*9mm(M2)
Lead:160mm/26AWG
ESC:20A-30A
Input Volts: 16.8V(4S LiPo)
Winding:Single strand copper winding
Weight:12.7g(included wire)
Suitable for:2.5 inch - 3.5 inch lightweight models

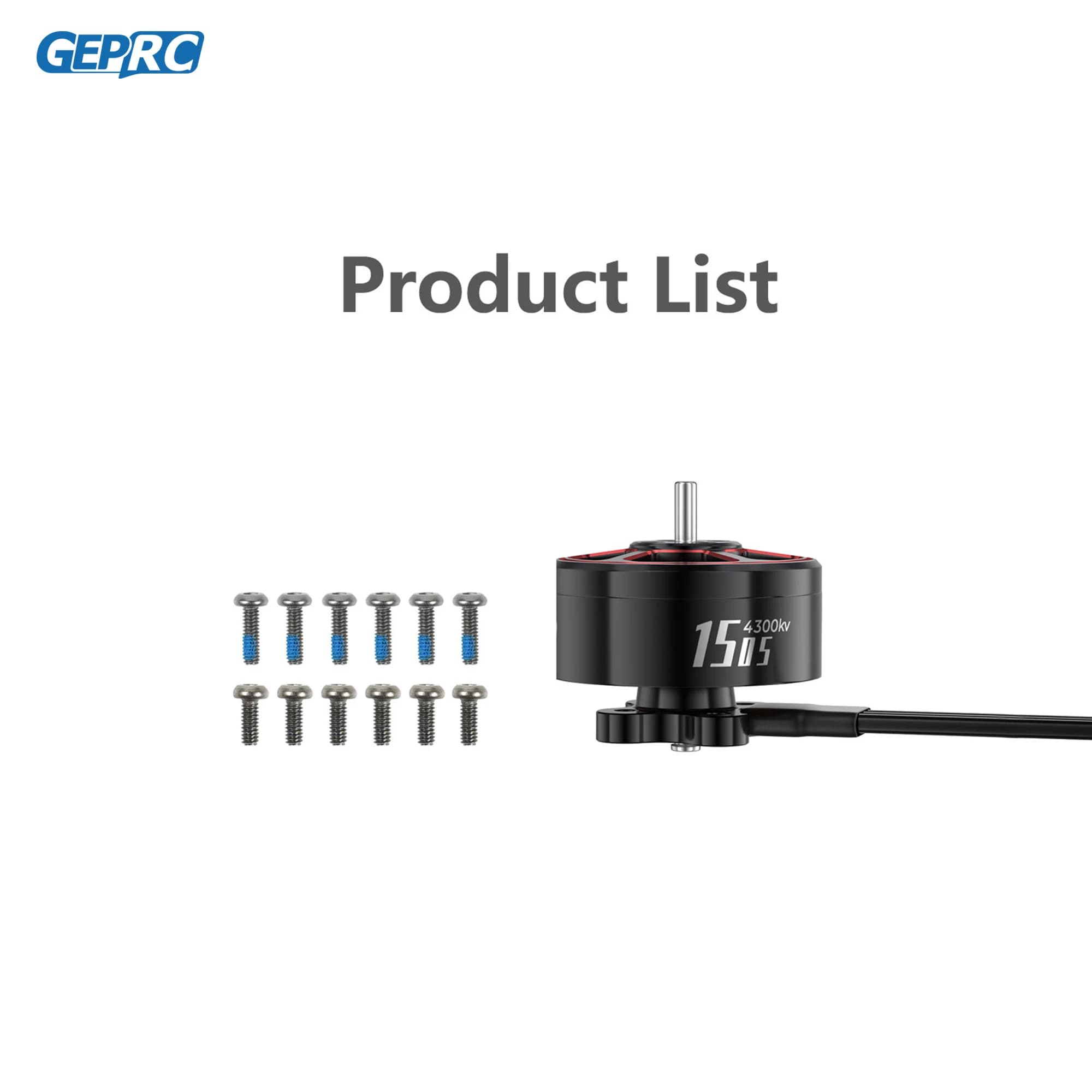

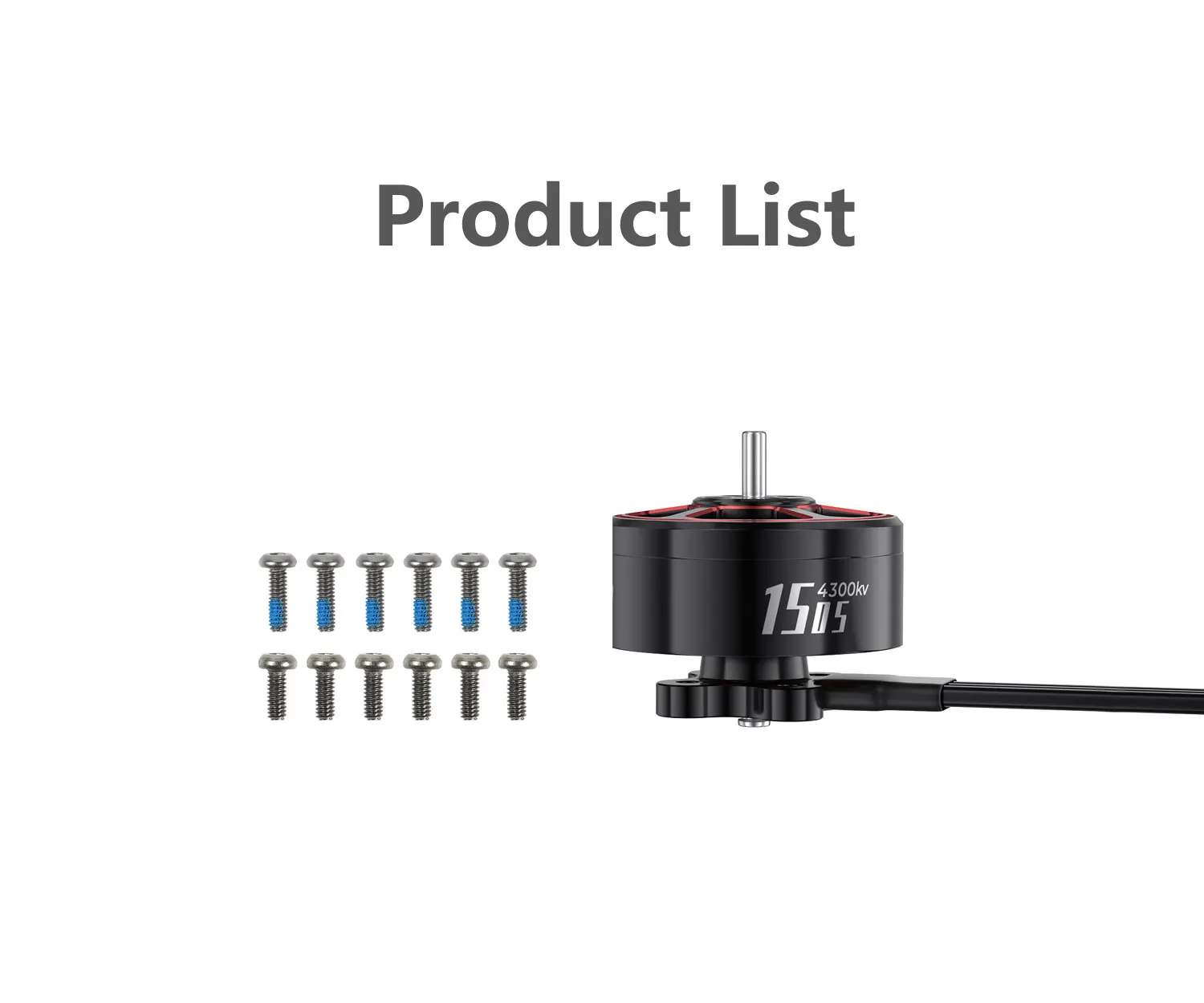

Includes
1 x SPEEDX2 1505 4300KV Motor
6 x M2*5mm Screw
6 x M2*7mm Screw
