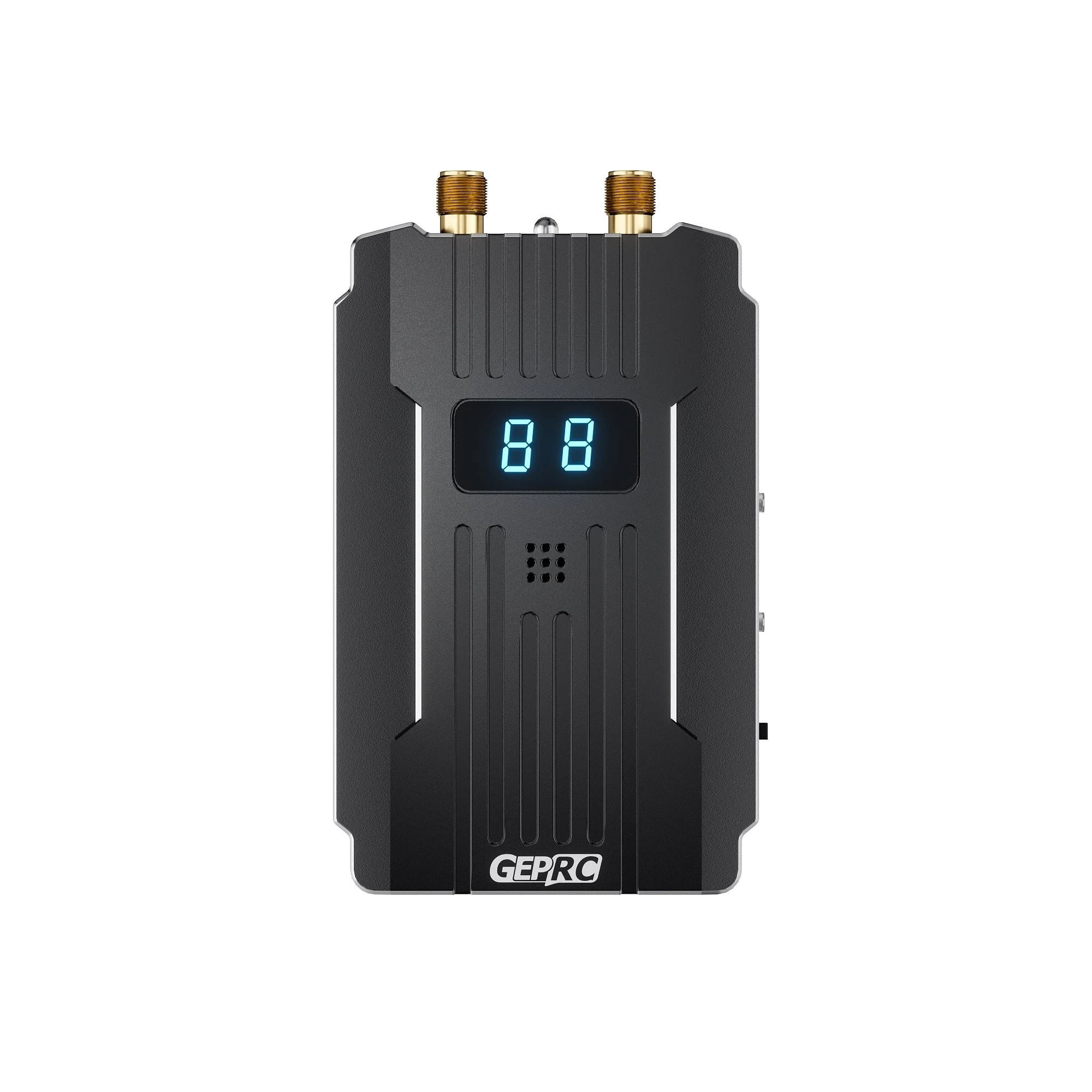

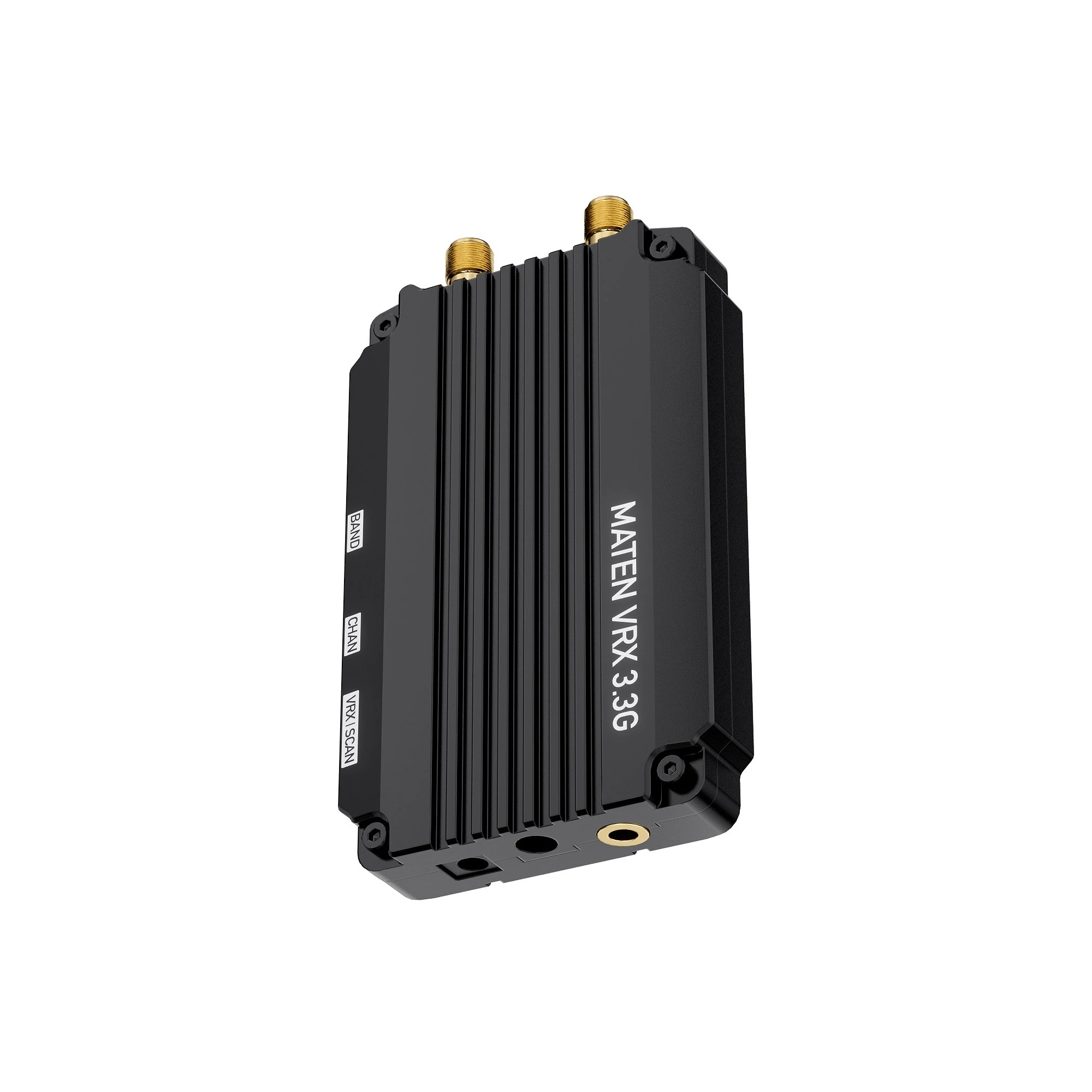

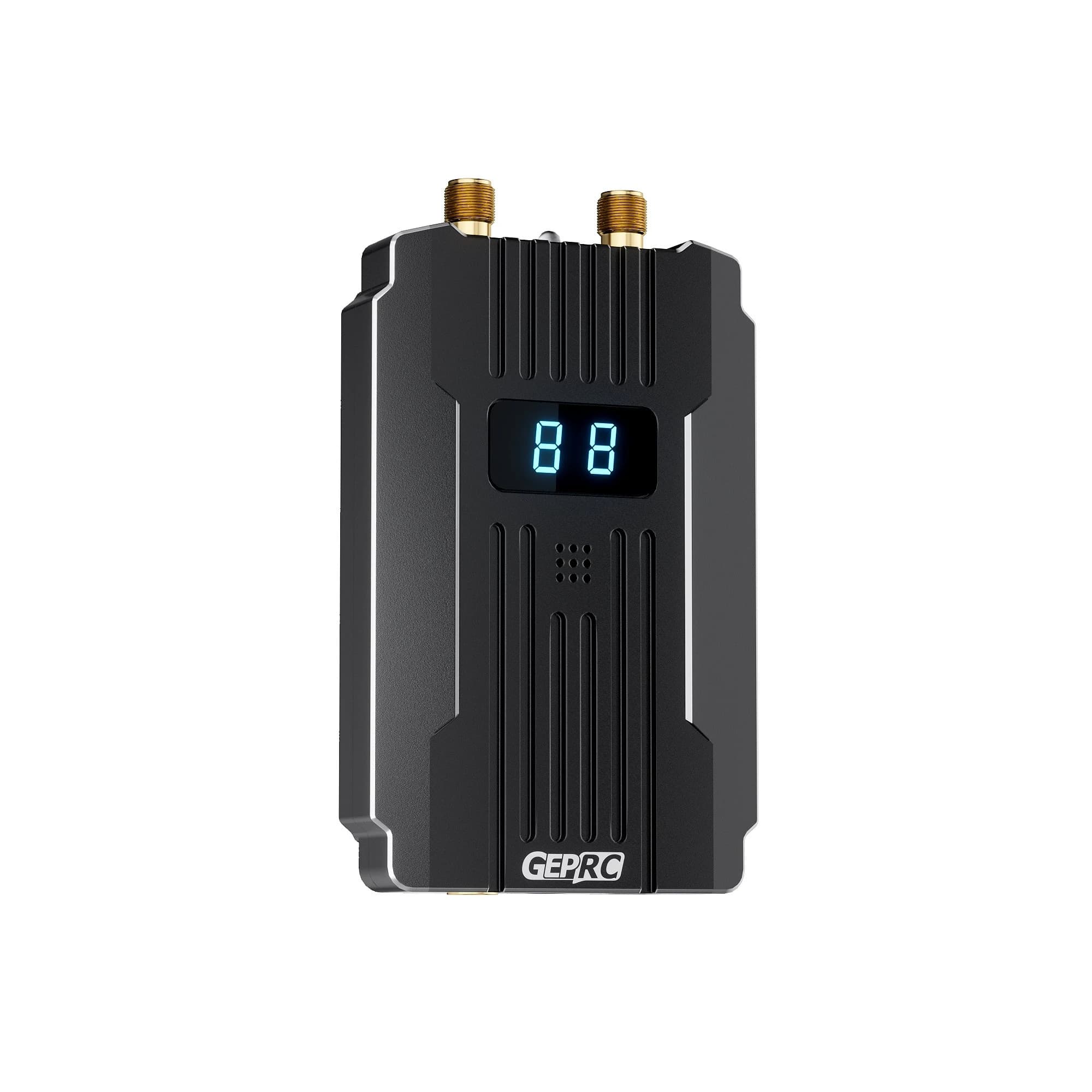

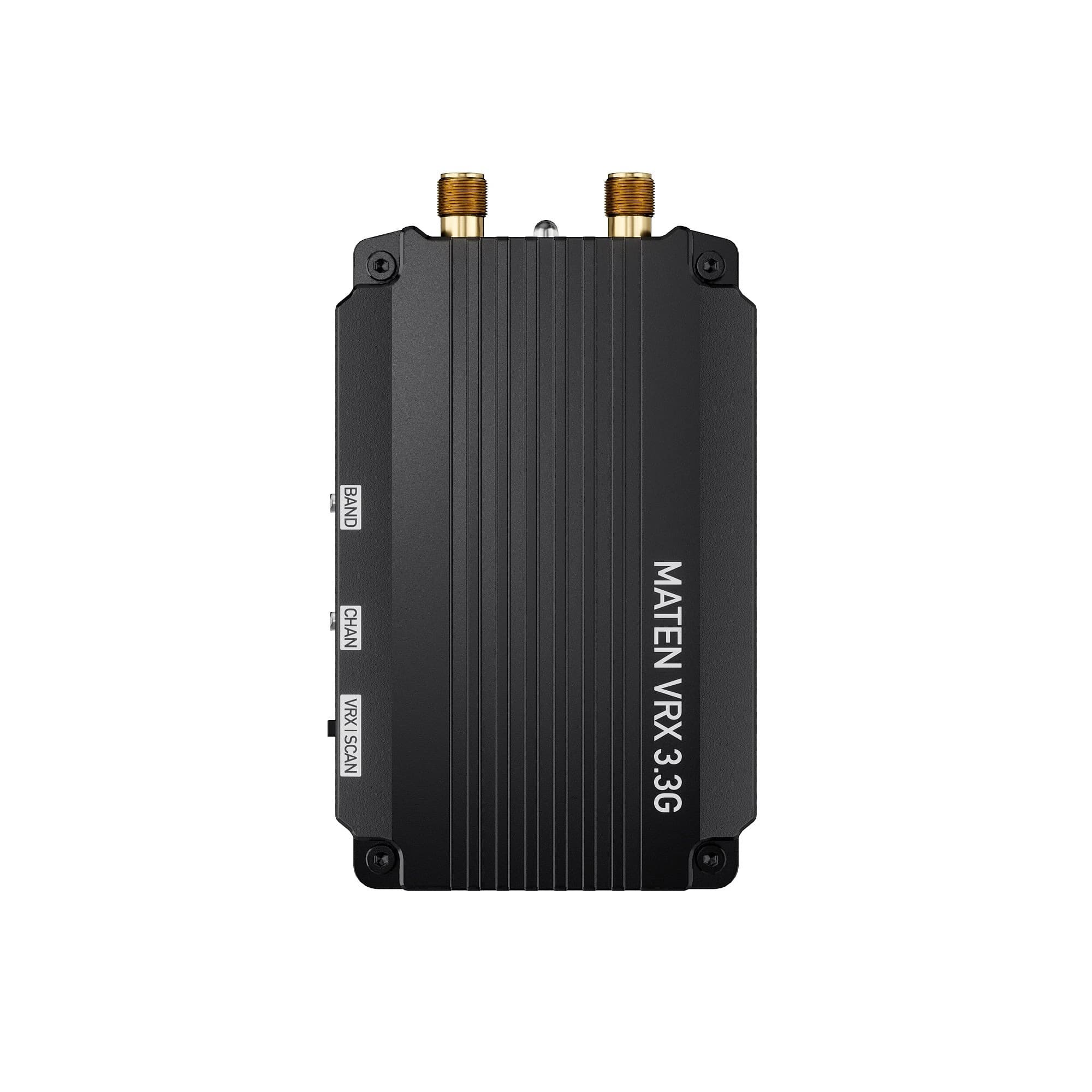

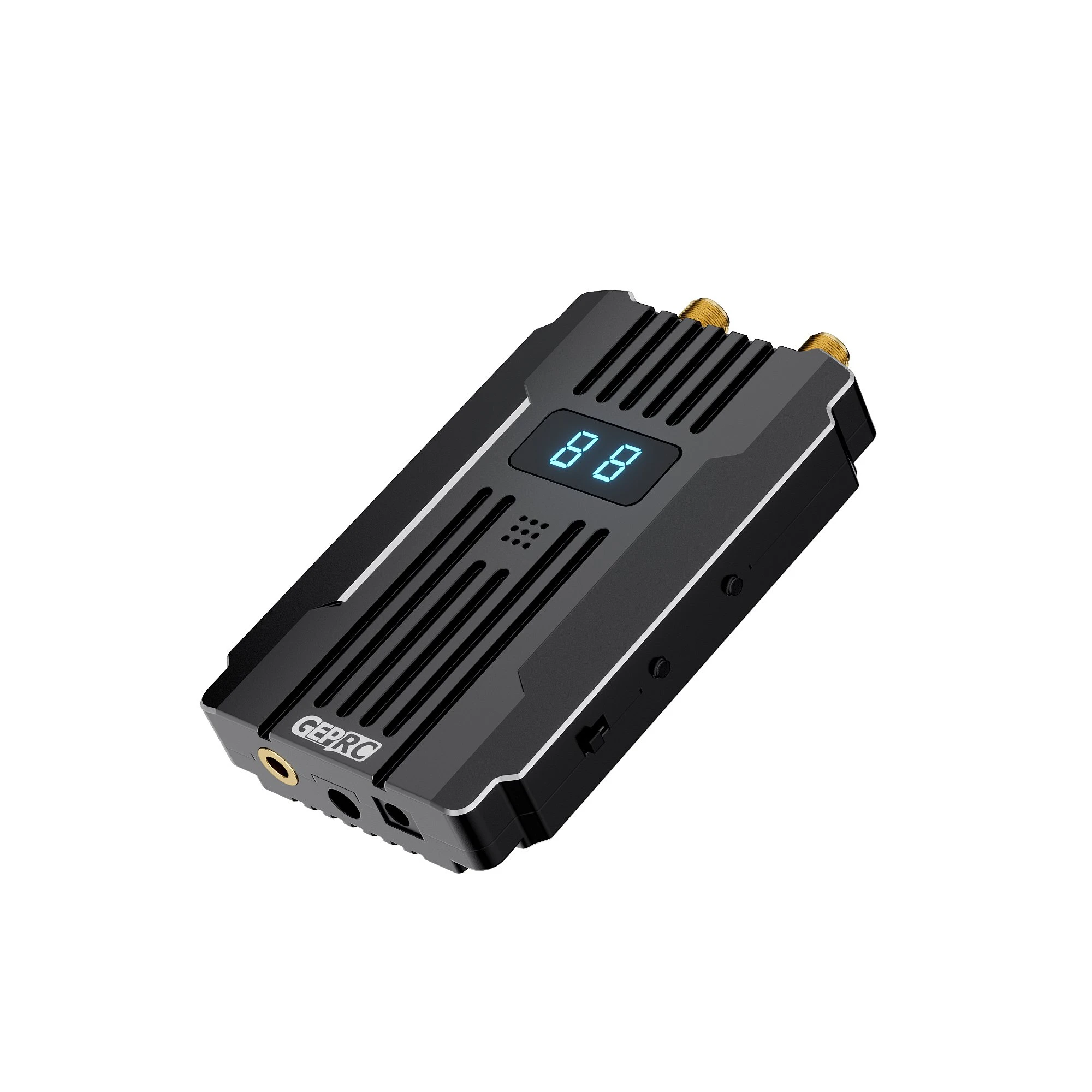

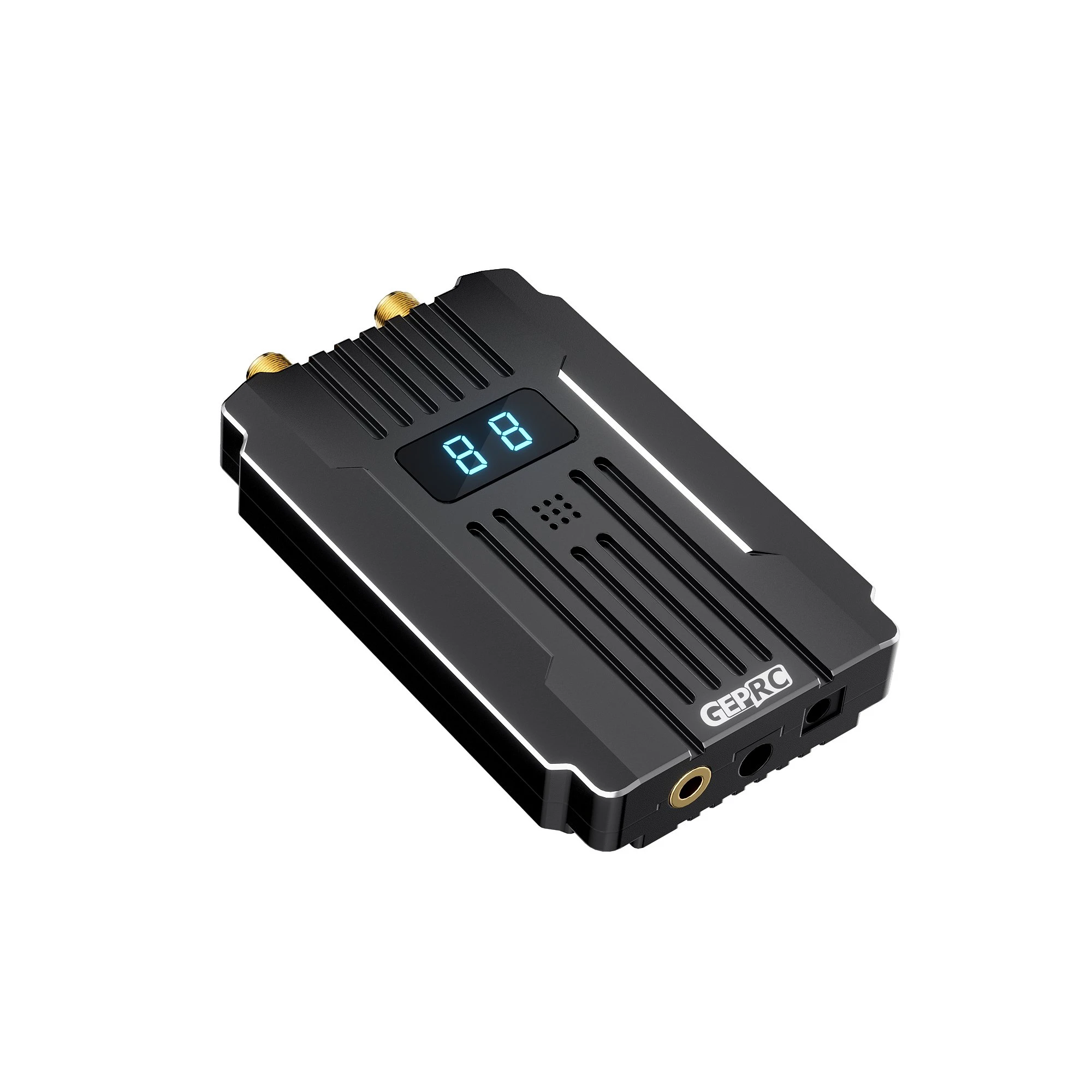

GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer 40CH 3.3GHz Video Receiver for FPV Long Range Drone
Description
GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer 40CH 3.3GHz Video Receiver for FPV Long Range Drone High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No For Vehicle Type: Helicopters Material: Composite Material Brand Name: GEPRC
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| For Vehicle Type | Helicopters |
| Material | Composite Material |
| Brand Name | GEPRC |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer 40CH 3.3GHz Video Receiver for FPV Long Range Drone
Specifications
- Model: GEPRC MATEN 3.3G VRX with 3.3G Signal Alarmer
- Dimension: 52.3×87.5×14.7mm
- Frequency: 3083-3480MHz
- Channels: 40CH
- Input Voltage: DC12-36V(3-8S Battery)
- Antenna Connector: SMA
- Sensitivity: -98dBm
- Modes: VRX Mode, SCAN Mode
- Video Connector: 3.5mm coaxial
- Power Input: DC3.5mm/1.35mm
- Mounting Hole: 1/4 threaded hole
- Weight: 69g
Frequency Bands
A:3083,3114,3145,3176,3207,3238,3269,3300
B:3215,3235,3255,3275,3295,3315,3335,3355
C:3170,3190,3210,3230,3250,3270,3290,3310
D:3320,3345,3370,3395,3420,3445,3470,3495
E:3310,3330,3355,3380,3405,3430,3455,3480
Instructions
VRX Mode: Switch to SCAN mode,press the BAND button to cycle through frequency bands, and the CHAN button to change channels. Hold either button to activate auto-scan, which will lock onto the channel with the strongest signal.
SCAN Mode: Switch to SCAN mode to automatically scan all available channels. The strongest signal will be displayed, and a beeper will sound, increasing in speed as the signal strength increases.
Includes
1 x MATEN 3.3G VRX with 3.3G Signal Alarmer
1 x Power supply cable
1 x Video signal cable
1 x User manual
