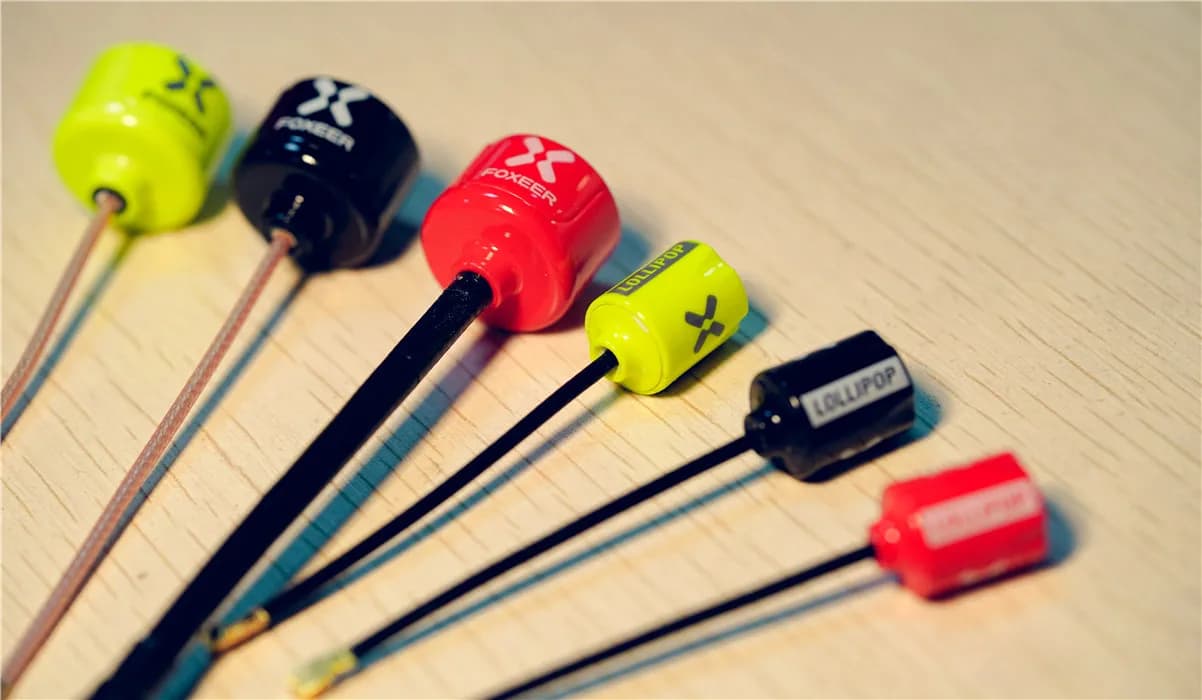

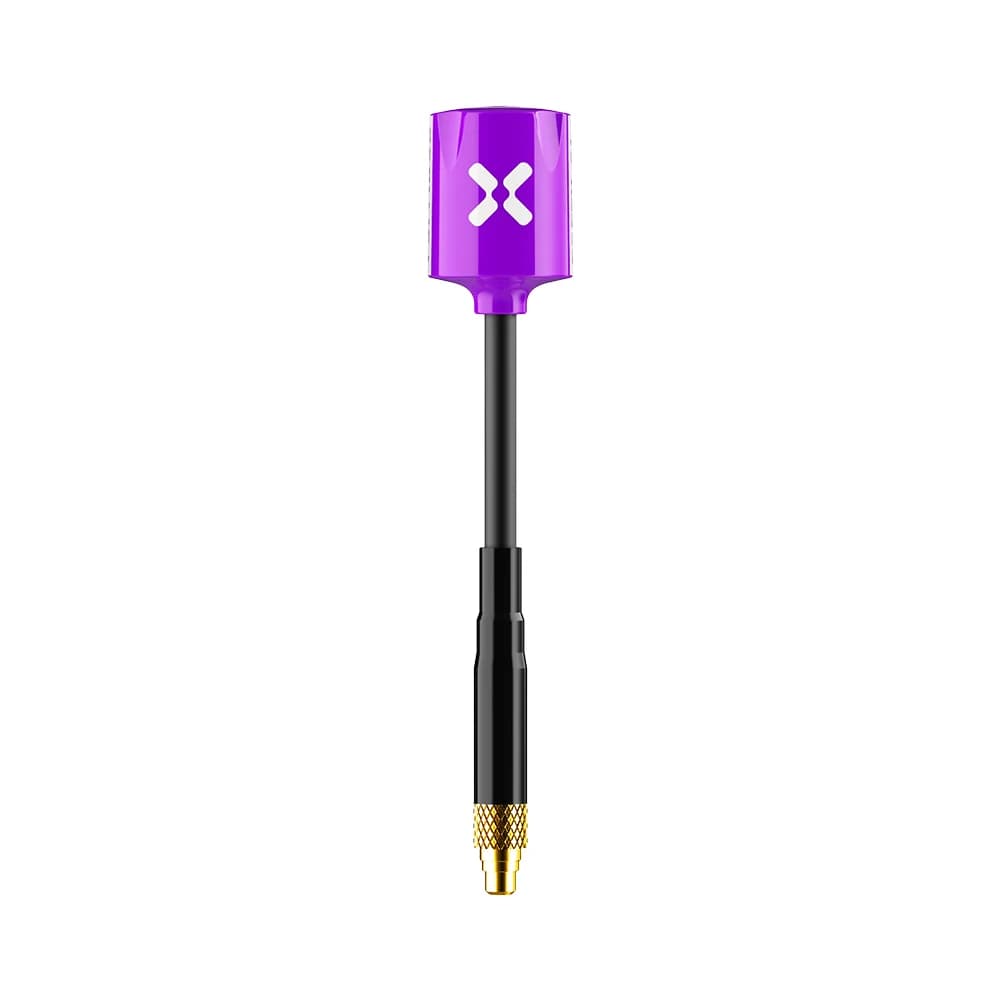

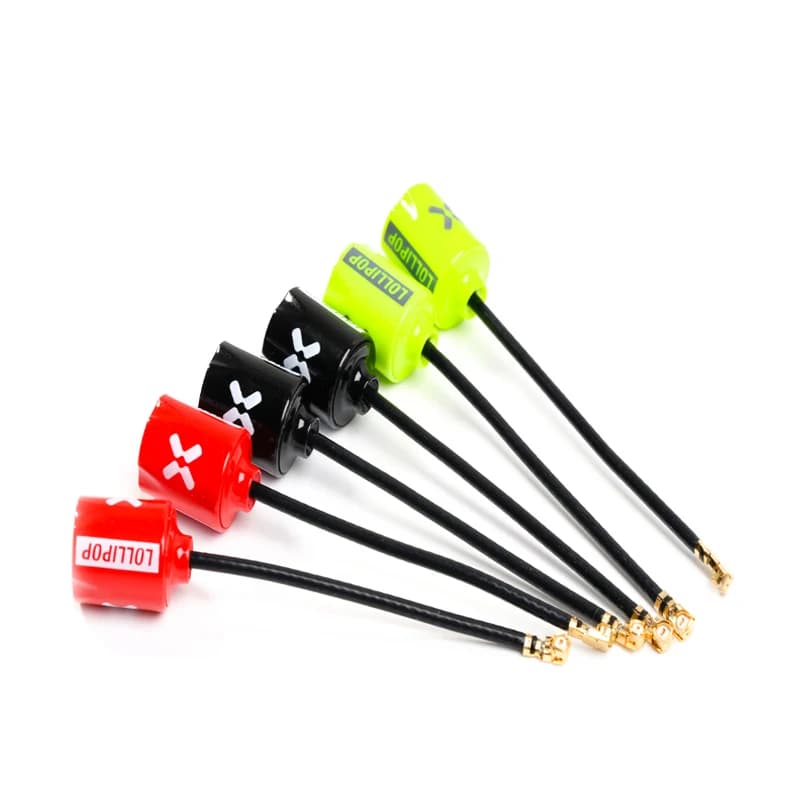

Upgraded Version Foxeer Antenna MICRO Lollipop V4 FPV Antenna 5.8G 2.3Dbi Omni RHCP SMA RPSMA UFL MMCX For FPV Racing Drone
Reference price:
US $13.92
1-10 pcs$13(-3%)
10-100 pcs$12(-7%)
100+ pcs$11(-12%)
57 orders (reference)
Description
Upgraded Version Foxeer Antenna MICRO Lollipop V4 FPV Antenna 5.8G 2.3Dbi Omni RHCP SMA RPSMA UFL MMCX For FPV Racing Drone High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Material: Composite Material Origin: Mainland China Recommend Age: 14+y Use: Vehicles & Remote Control Toys
Select options
Variant
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details
Description:
Brand name: Foxeer
Item number: Micro Lollipop
Center frequency: 5.8 GHz
Gain: 2.5 Dbi
Axial ratio: Close to 1
Bandwidth: 5.5-6 GHz
Radiation efficiency: 98%
V.SWR: 1.07 in center frequency
Connector: SMA/RP-SMA/Angle MMCX/Straight MMCX/U.FL
Weight: SMA & RP-SMA 4.7g/Angle MMCX 3.2g/Straight MMCX 3.1g/U.FL 1.6g (Optional)
Dimension(mm): Ф11*65
Cable length(mm): 51
Polarization: RHCP
Shell material: PC + ABS
Color: Purple,Black,Green, Red (Optional)
Cable: RG178,SFX086
Package includes: 2pcs/pack
Features:
* Body adopt imported PC+ABS material, can withstand high strength impact.
* IRoot reinfircement design 360° protection.
*Flexible cable,easy to bent and install.
*Customed MMCX angle connector,compatible with DJI AIR Unit.
Note: 1PCS selection of friends,Because the factory packaging is 2PCS, the antenna you receive may not have foxeer box. If it is acceptable then you can choose to buy it.thanks
Package Included:
1PCS or 2PCS
Foxeer Lolliop V3 or MICRO 5.G Antenna (according to buyer's choice)
Send according to your choice
Package Included:
1PCS or 2PCS Foxeer Antenna (according to buyer's choice)
Note: 1PCS selection of friends,Because the factory packaging is 2PCS, the antenna you receive may not have foxeer box. If it is acceptable then you can choose to buy it.thanks
Specification:
Brand: Foxeer
Item name: Foxeer Lollipop 3 V3 5.8G RHCP FPV Antenna
Gain: 2.5DBi
Shell Material:imported PC+ABS
Center frequency:5.8GHz
Polarization: RHCP
Color:Black,Red,Purple,Green
Bandwidth:500 MHz(5.5 - 6.0 GHz)
Matching:VSWR<1.2(at center frequency)
Axial Ration:<3db
Center Frequency：5750MHz
Radiation efficiency:98%
Connector: RP-SMA / SMA/UFL/straight MMCX/ angle MMCX
Length:
straightMMCX / AngleMMCX：60mm
SMA, RPSMA：60mm
UFL ：85.5mm
Weight:
straightMMCX ：3.7g
AngleMMCX：3.7g
SMA, RPSMA：7.3g
UFL ：2.6g
