Foxeer M10Q-120 V2 / M10Q-180 V2 / M10Q-250 V2 M10 Dual Protocol GPS FPV Built-in QMC5883 Compass For FPV RC Airplane Drone
Description
Foxeer M10Q-120 V2 / M10Q-180 V2 / M10Q-250 V2 M10 Dual Protocol GPS FPV Built-in QMC5883 Compass For FPV RC Airplane Drone High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Material: Composite Material Brand Name: Foxeer Origin: Mainland China
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Material | Composite Material |
| Brand Name | Foxeer |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
Product Details

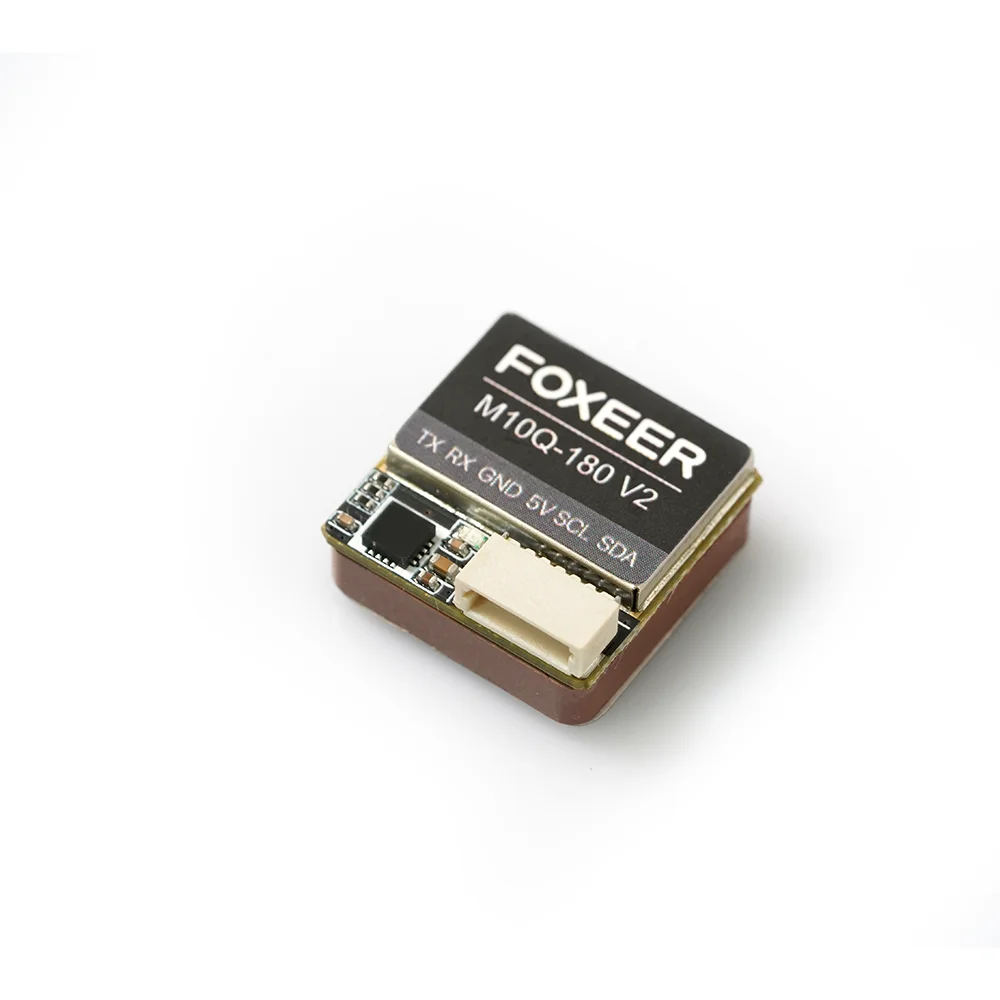

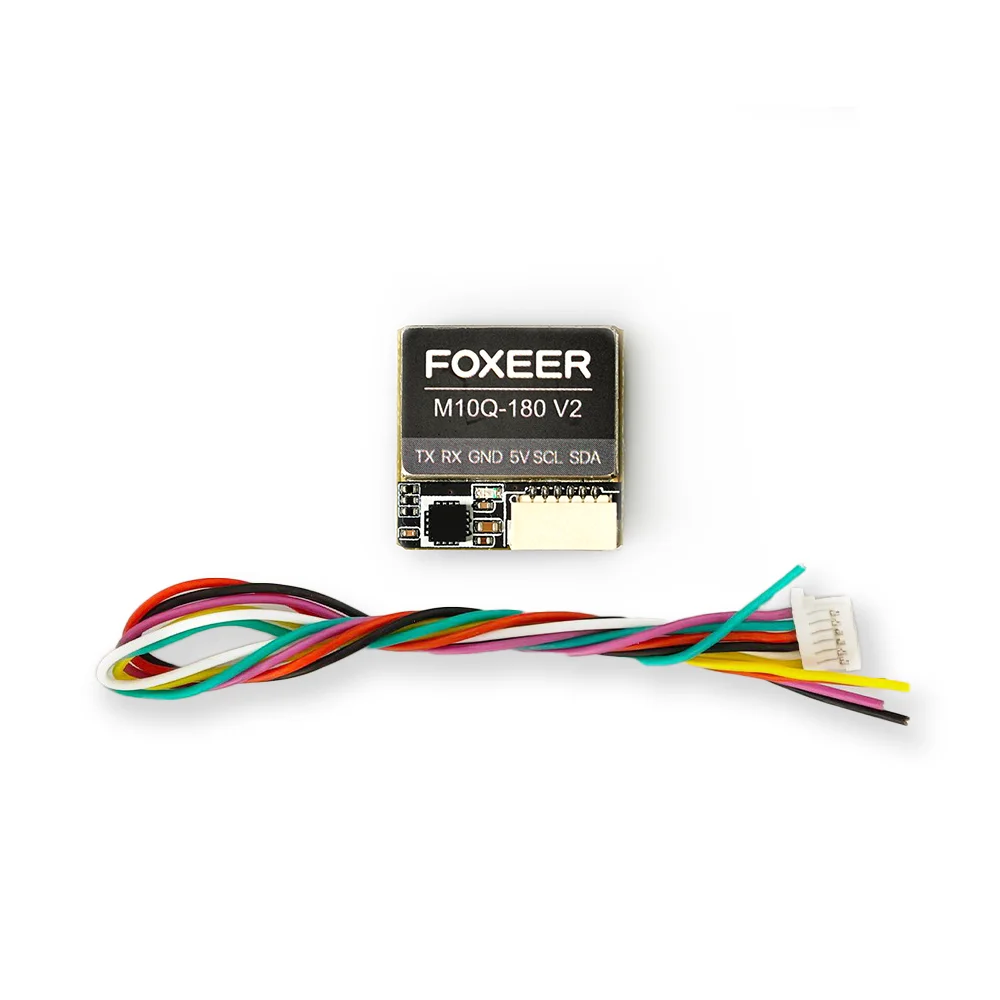

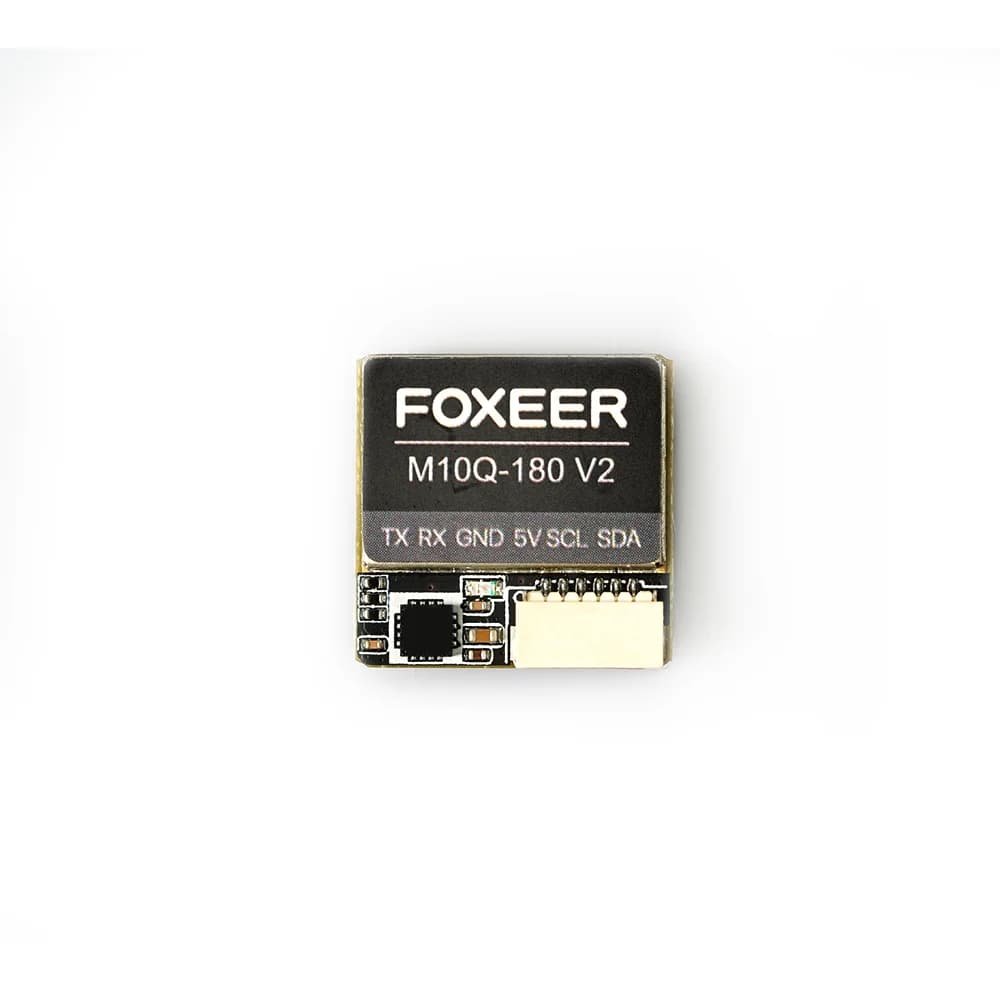

M10Q 180 V2 GPS
Chip M10(10th Generation Chip)
Frequency GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
Input Voltage 5V
Antenna Ceramic Antenna
Channel 72
Battery Bilid-in
Compass IST8310
Compass Orientation Plug facing direction of flight and obviously antenna up, BF: CW 270° Flip
Baud Rate 115200bps
Protocol Dual NMEA/UBLOX
Output Frequency 1Hz-10Hz,10Hz default
Speed Accuracy 0.05m/s
Horizontal Positioning Accuracy 2D ACC1.5m(outdoor)
Receiver Sensitivity Trace -166dBm; Capture -160dBm
Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature -40C-+85C
Storage temperature -40C-+105C
Weight 7.5g
Size 18*18*8mm

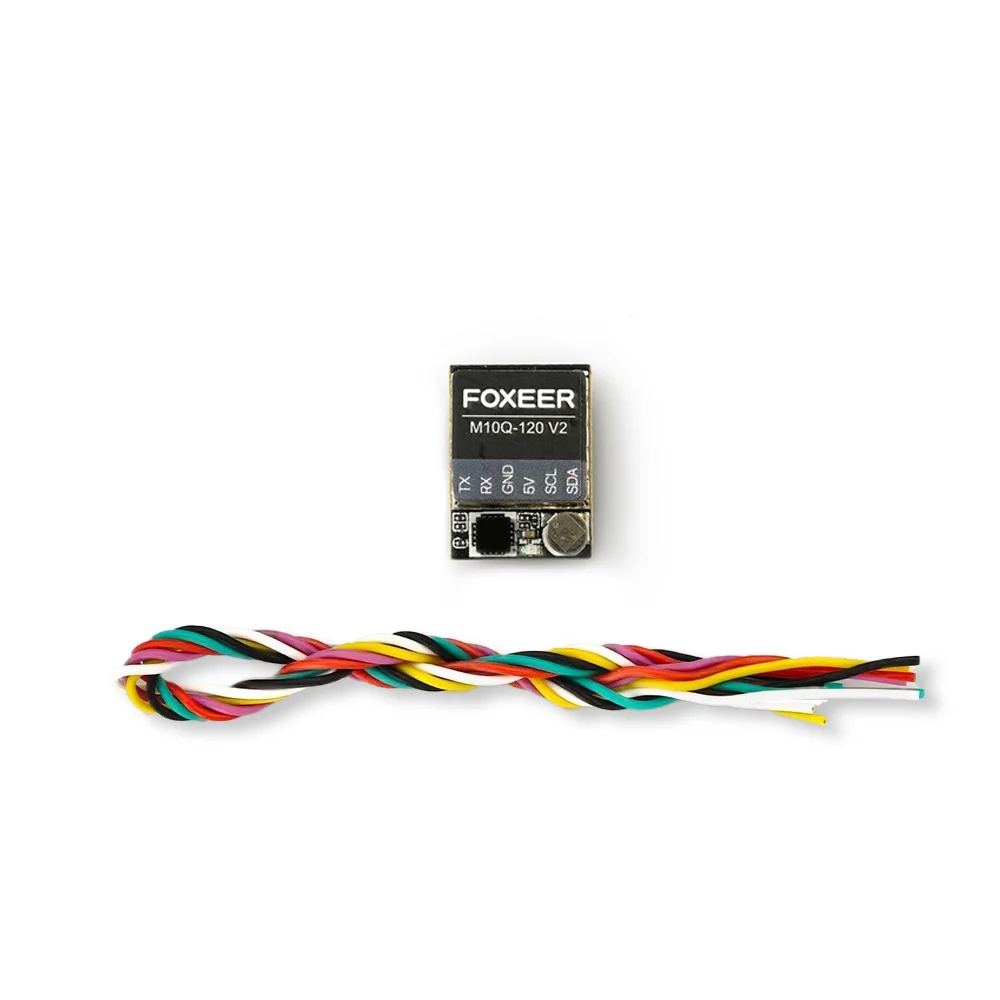

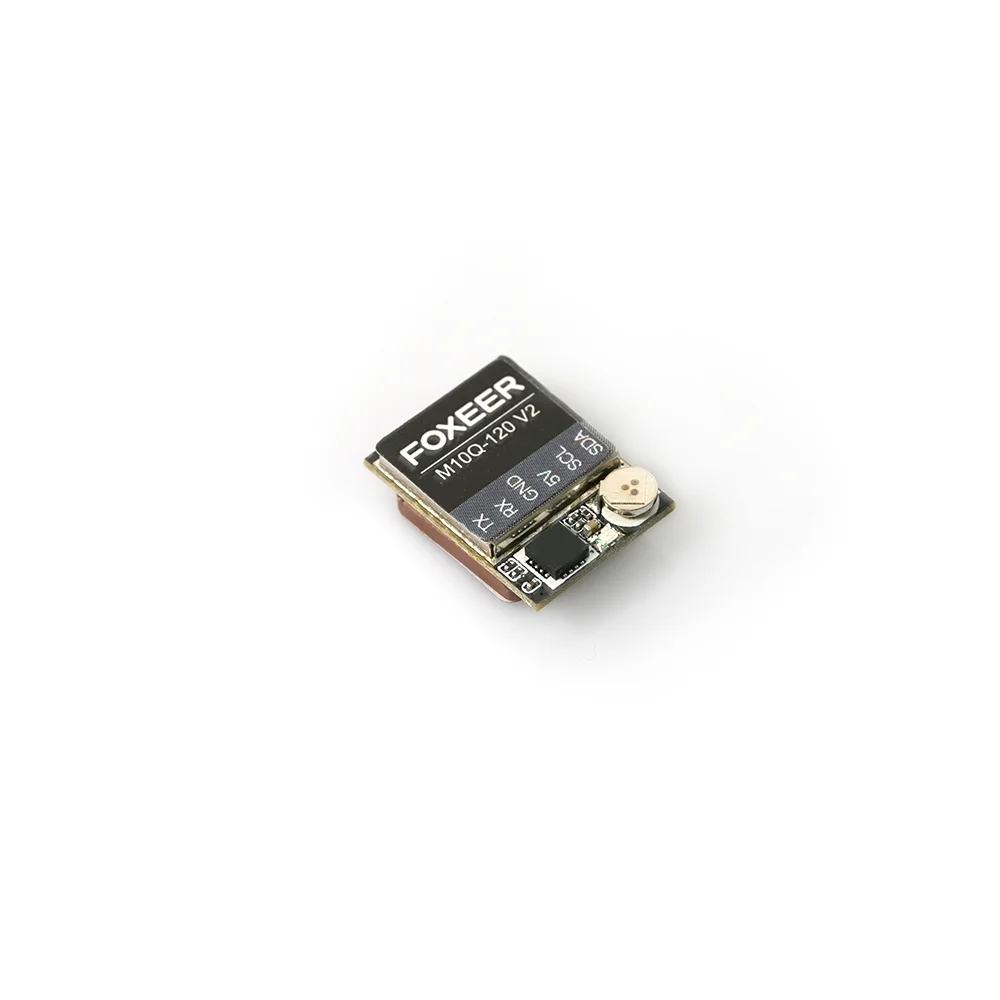

M10Q 120 V2 GPS
Chip M10(10th Generation Chip)
Frequency GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
Input Voltage 5V
Antenna Ceramic Antenna
Channel 72
Battery Bilid-in
Compass IST8310
Compass Orientation Plug facing direction of flight and obviously antenna up, BF: CW 90° Flip
Baud Rate 115200bps
Protocol Dual NMEA/UBLOX
Output Frequency 1Hz-10Hz,10Hz default
Speed Accuracy 0.05m/s
Horizontal Positioning Accuracy 2D ACC1.5m(outdoor)
Receiver Sensitivity Trace -166dBm; Capture -160dBm
Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature -40C-+85C
Storage temperature -40C-+105C
Weight 2.7g
Size 12.5*17*5mm

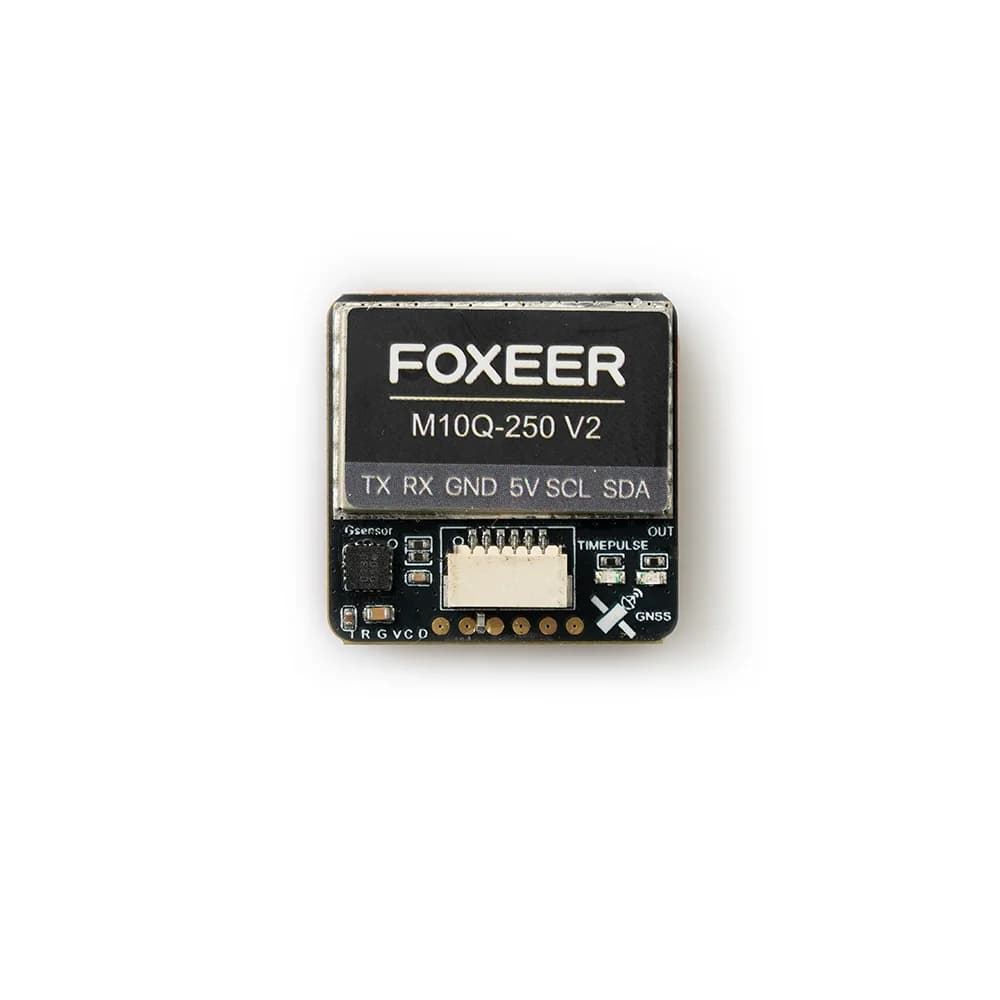

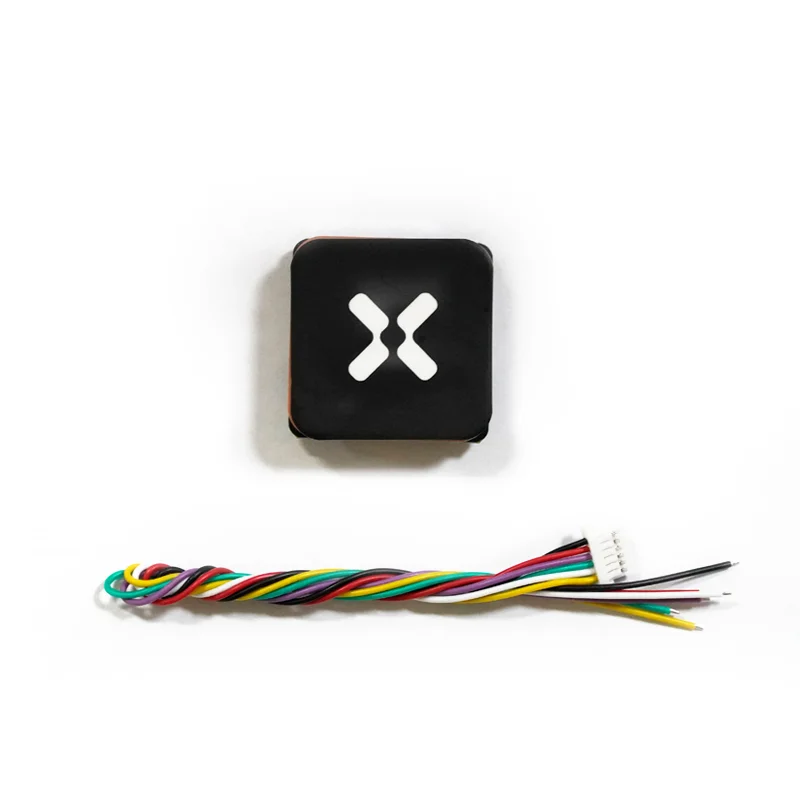

M10Q 250 V2 GPS
Chip M10(10th Generation Chip)
Frequency GPS L1，GLONASS L1，BDS B1，GALILEO， ESBAS L1，QZSS L1
Input Voltage 5V
Antenna Ceramic Antenna
Channel 72
Battery Bilid-in
Compass IST8310
Compass Orientation Plug facing direction of flight and obviously antenna up, BF: CW 180 flip
Baud Rate 115200bps
Protocol Dual NMEA/UBLOX
Output Frequency 1Hz-10Hz,10Hz default
Speed Accuracy 0.05m/s
Horizontal Positioning Accuracy 2D ACC1.5m(outdoor)
Receiver Sensitivity Trace -166dBm; Capture -160dBm
Dynamic Characteristics Height 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature -40C-+85C
Storage temperature -40C-+105C
Weight 12g
Size 25*25*8mm
