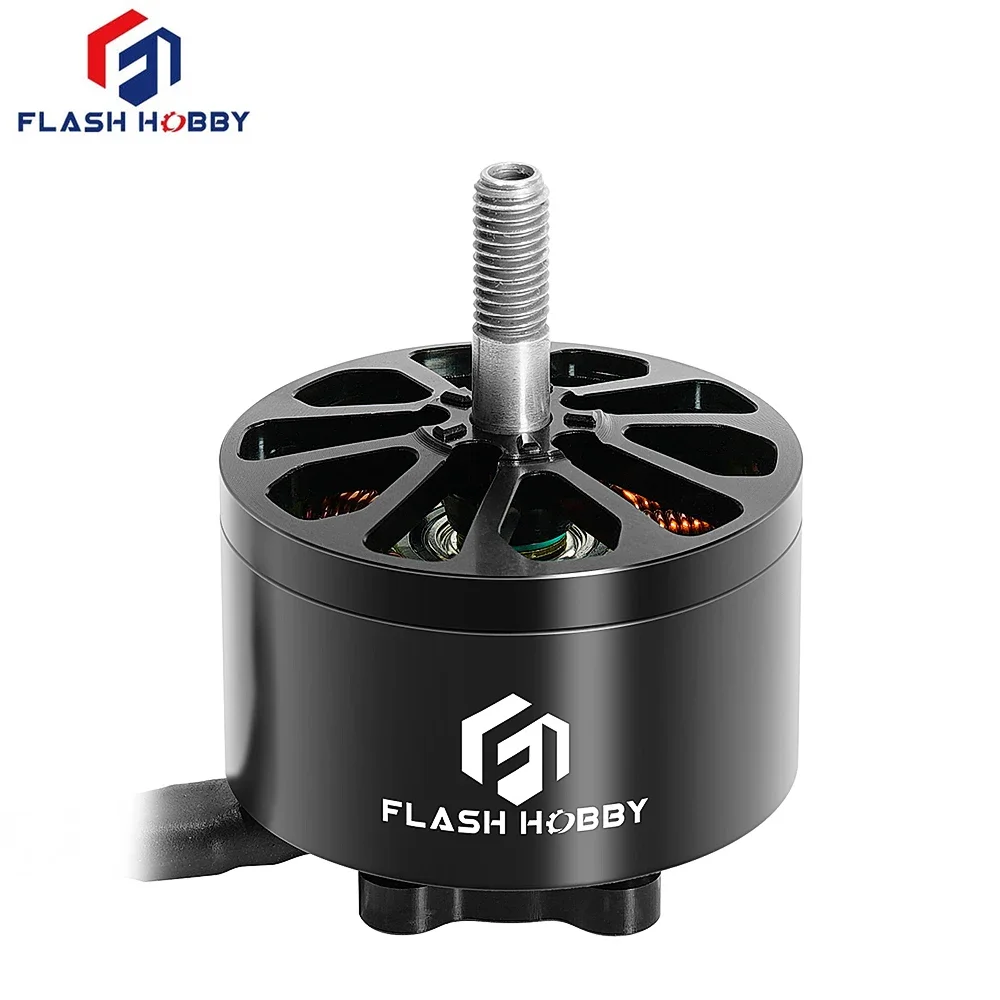

FLASHHOBBY A3115 3115 690KV/ 900KV/ 1200KV Brushless Motor 6S LIPO for RC FPV Freestyle 9inch 10inch Long Range Drone DIY Parts
From US $22.50
Est. US $22.50 / unit (1-9 pcs)
$20 @ 10+ pcs$19 @ 100+ pcs
3 orders (reference)
Description
Features:
52H Level Magnet
Precision Balanced Rotor Test

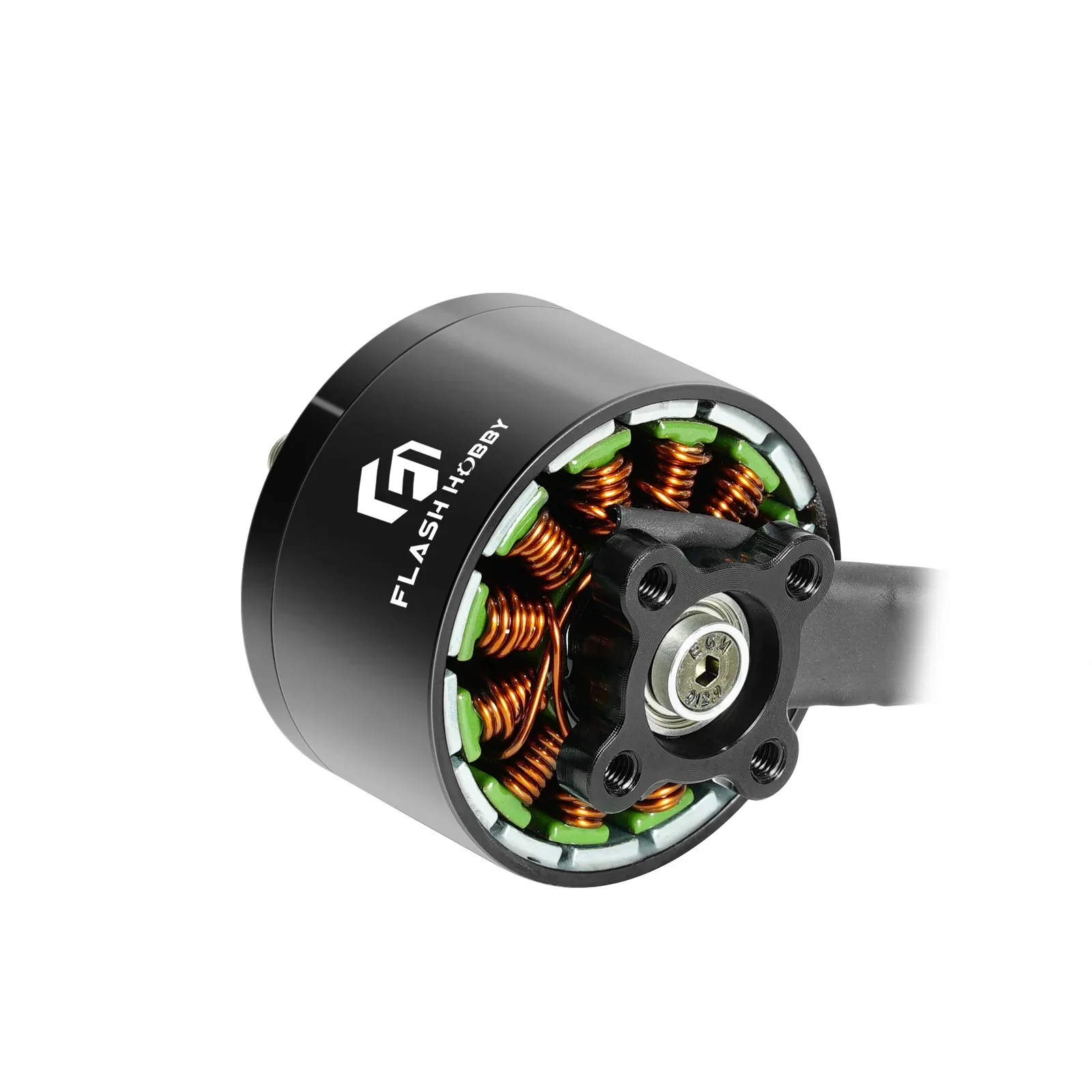

14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported NSK-5x11x5mm Bearing
High Temperature Resistant Copper Wire Winding

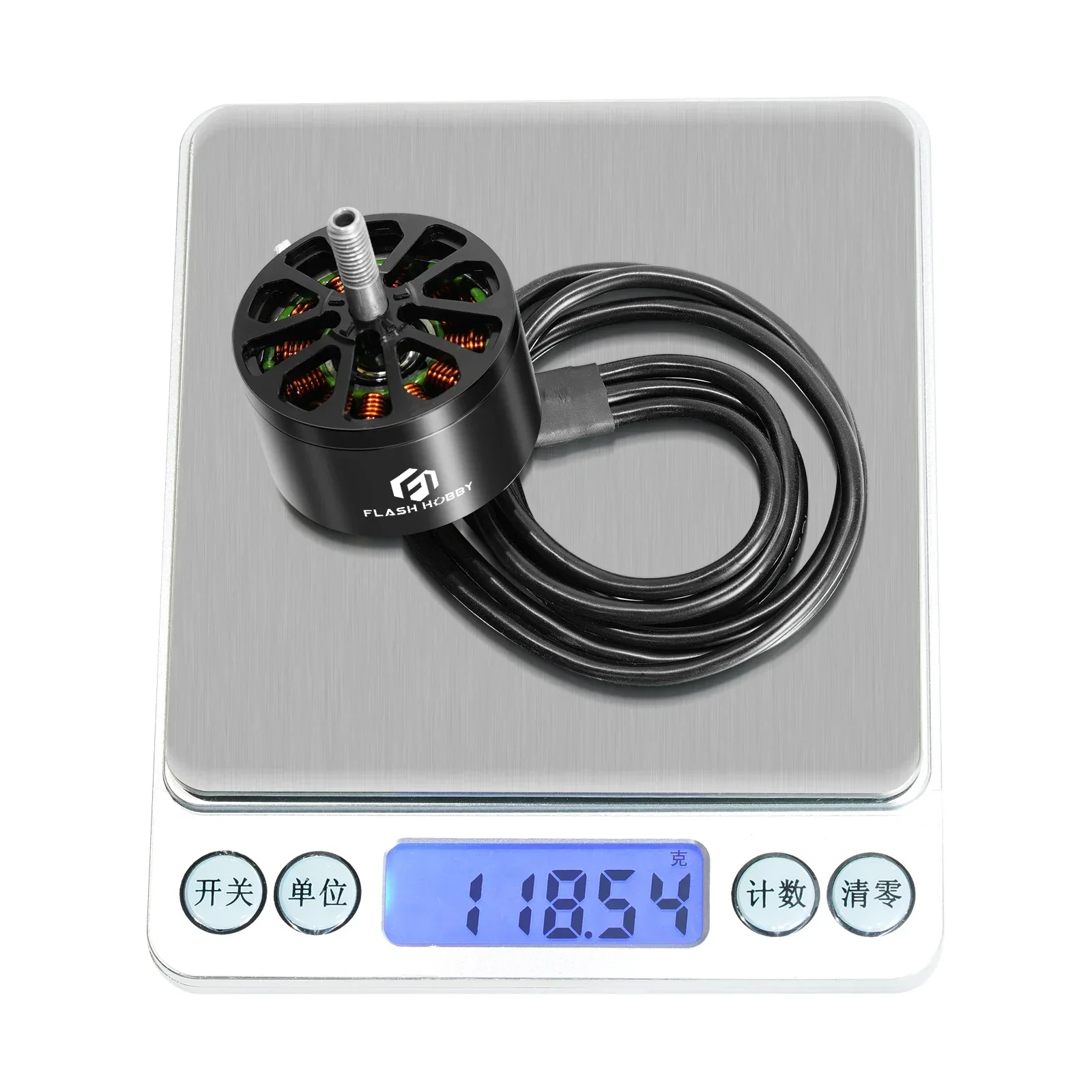

● Weight: 113g (including the cables)
● Motor Size: 37.1 x 32mm
● Shaft Diameter: 5.0mm
● Motor Mount: 19*19mm(M3*4)
● Configuration: 12N14P
● Motor Cable: 16#AWG 300mm
● KV Value: 690KV 900KV 1050KV
● Recommend: 9~10 inch prop application
A3115KV 900KV Motor Specification
Max pull:4080g
Volts:25V(6S)
Suggested ESC: 60A~80A
Maximum Power:1592W
Variant
Selected priceUSD 90.40
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | FLASHHOBBY A3115 3115 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | 3115 690KV/900KV/1050KV Brushless Motor |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
Features:
52H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported NSK-5x11x5mm Bearing
High Temperature Resistant Copper Wire Winding
● Weight: 113g (including the cables)
● Motor Size: 37.1 x 32mm
● Shaft Diameter: 5.0mm
● Motor Mount: 19*19mm(M3*4)
● Configuration: 12N14P
● Motor Cable: 16#AWG 300mm
● KV Value: 690KV 900KV 1050KV
● Recommend: 9~10 inch prop application

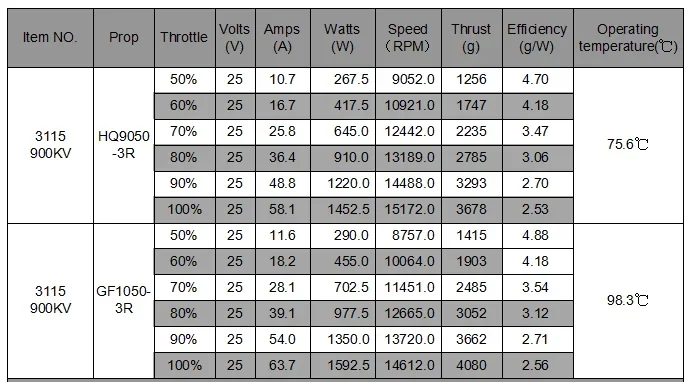

A3115KV 900KV Motor Specification
Max pull:4080g
Volts:25V(6S)
Suggested ESC: 60A~80A
Maximum Power:1592W
