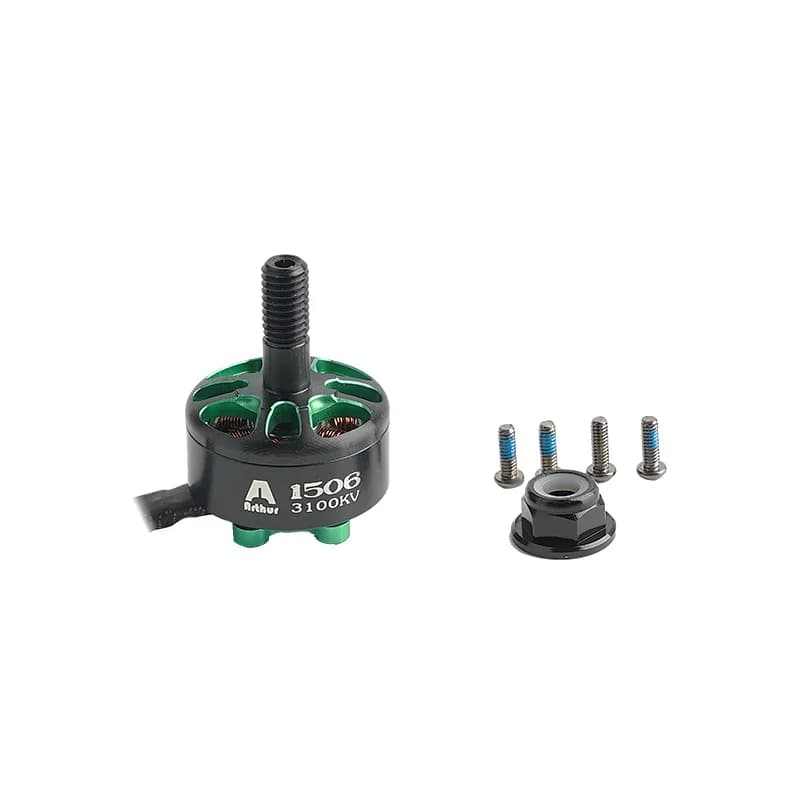

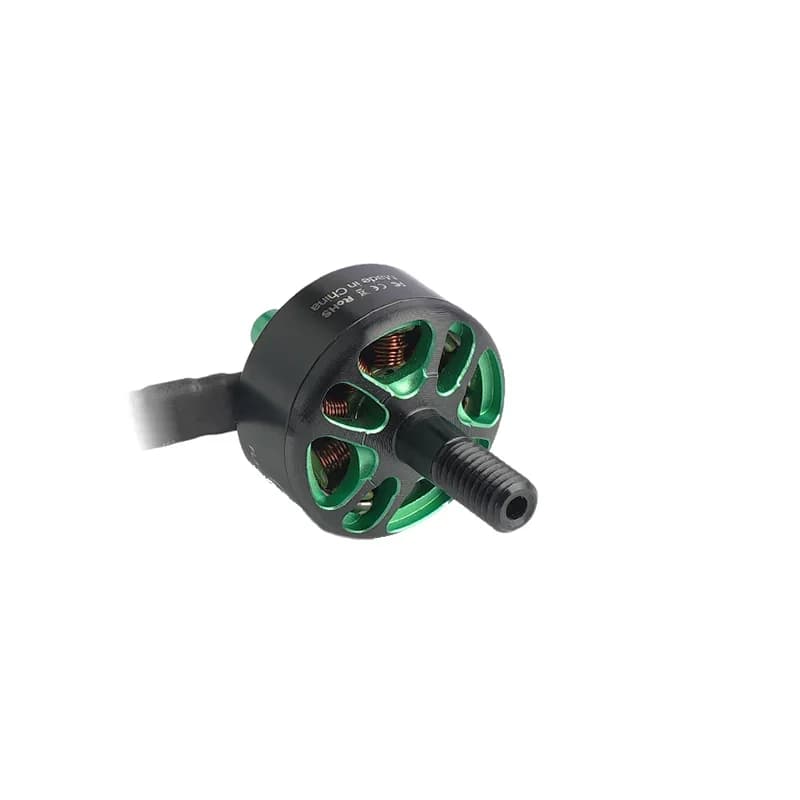

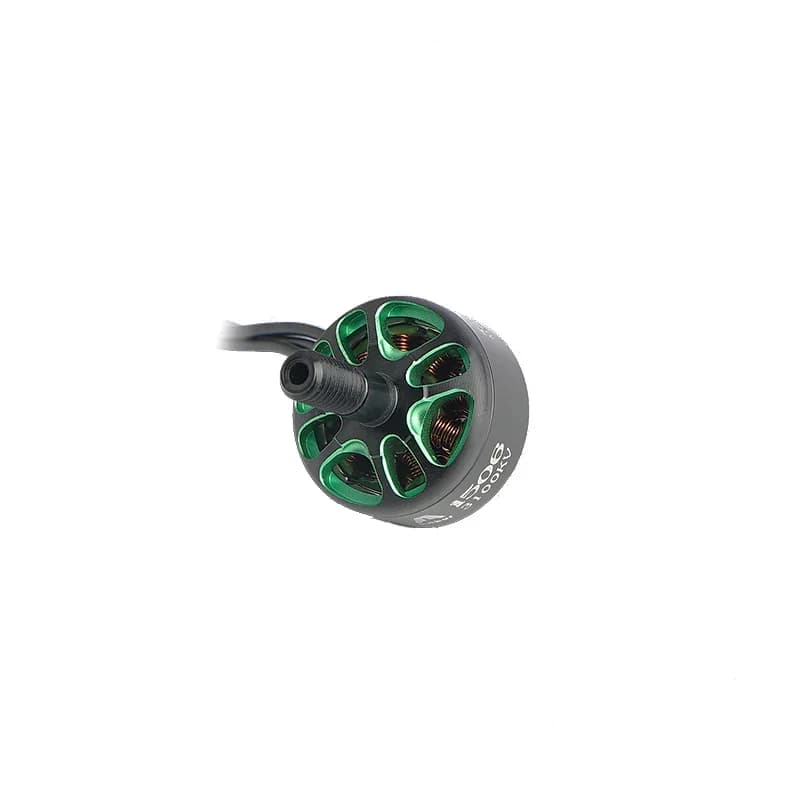

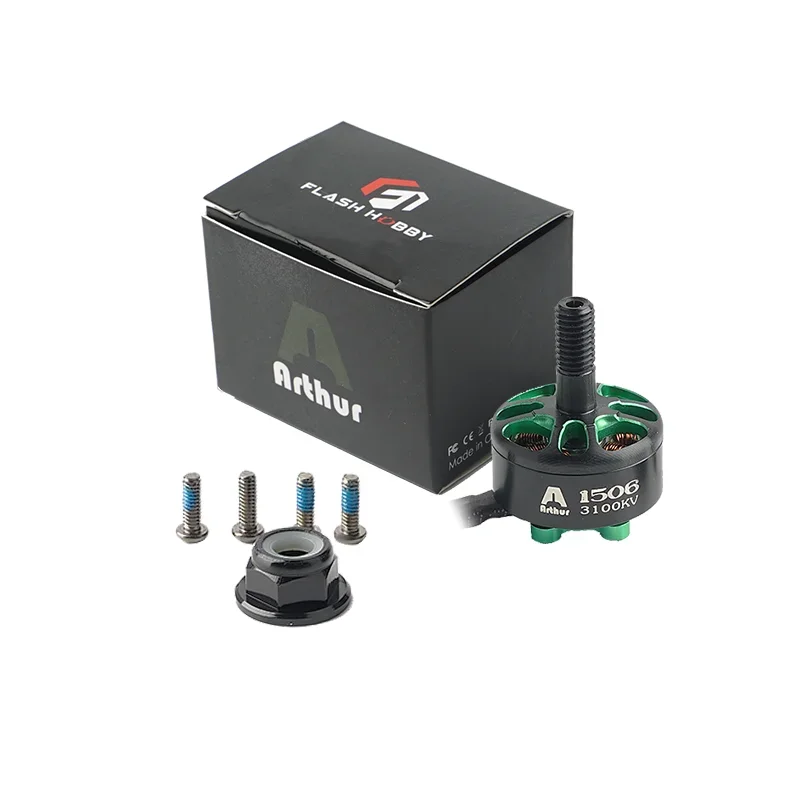

4Pcs/Lot FlashHobby Arthur Series A1506 1506 3100KV 4300KV Brushless Motor Mini RC Motor For FPV Racing RC Multicopter Part
From US $23.09 - 81.32
Est. US $23.09 - 81.32 / unit (1-9 pcs)
$21 @ 10+ pcs$20 @ 100+ pcs
35 orders (reference)
Description
Item Name:A1506
Feature:
1.NMB Bearing
2.Arc Magnet
3.7075-T6 Aluminum bell
4.Double color design
5.0.15mm silicon steel sheet from Kawasaki,Japan

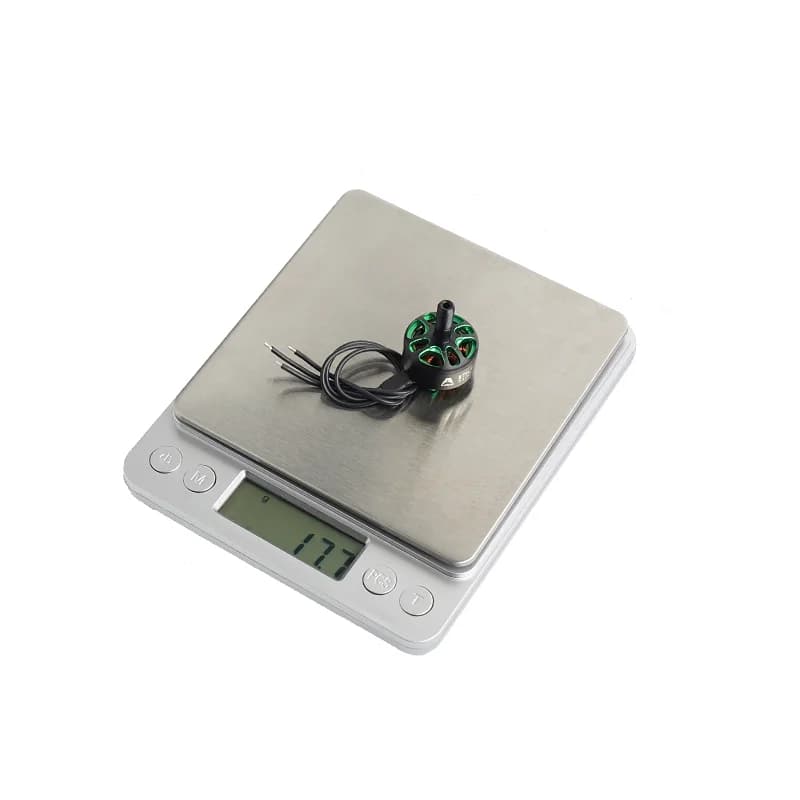

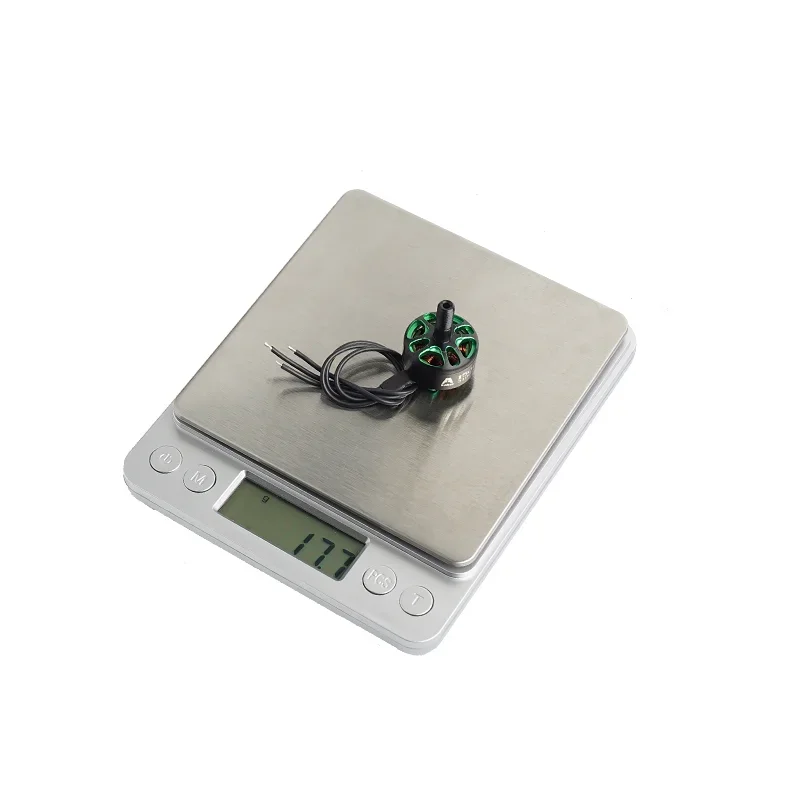

Weight: 15.5g (including the cables)
Motor Size: 18.0x 27.2mm
Shaft Diameter: 1.5mm
Stator Diameter:1.5mm
Stator Height:6mm
Prop Mount Shaft Dia: M5
Motor Mount: 12*12mm(M2*4)
Configuration: 9N12P
Motor Cable: 26#AWG 115mm
KV Value: 3100KV, 4300KV or customed KV
Recommend: 3~4 inch prop application
A1506-3100KV Motor Specification
Max pull:615g
Volts:22V(6S)
Suggested ESC: 10A~20A
Maximum Power:375W
Suggested Prop: 3 inch prop
A1506-4300KV Motor Specification
Max pull:482g
Volts:15V(4S)
Maximum Power:280W
Variant
Selected priceUSD 20.30
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Brand Name |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 18.0x 27.2mm |
| Model Number | A1506 |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | FLASHHOBBY |
Product Details
4pcs/Lot FlashHobby Arthur Series A1506 3100KV 4300KV Brushless Motor Mini RC Motor For FPV Racing RC Multicopter Part
Item Name:A1506
Feature:
1.NMB Bearing
2.Arc Magnet
3.7075-T6 Aluminum bell
4.Double color design
5.0.15mm silicon steel sheet from Kawasaki,Japan
Weight: 15.5g (including the cables)
Motor Size: 18.0x 27.2mm
Shaft Diameter: 1.5mm
Stator Diameter:1.5mm
Stator Height:6mm
Prop Mount Shaft Dia: M5
Motor Mount: 12*12mm(M2*4)
Configuration: 9N12P
Motor Cable: 26#AWG 115mm
KV Value: 3100KV, 4300KV or customed KV
Recommend: 3~4 inch prop application
A1506-3100KV Motor Specification
Max pull:615g
Volts:22V(6S)
Suggested ESC: 10A~20A
Maximum Power:375W
Suggested Prop: 3 inch prop
A1506-4300KV Motor Specification
Max pull:482g
Volts:15V(4S)
Suggested ESC: 10A~20A
Maximum Power:280W
Suggested Prop: 3 inch prop
