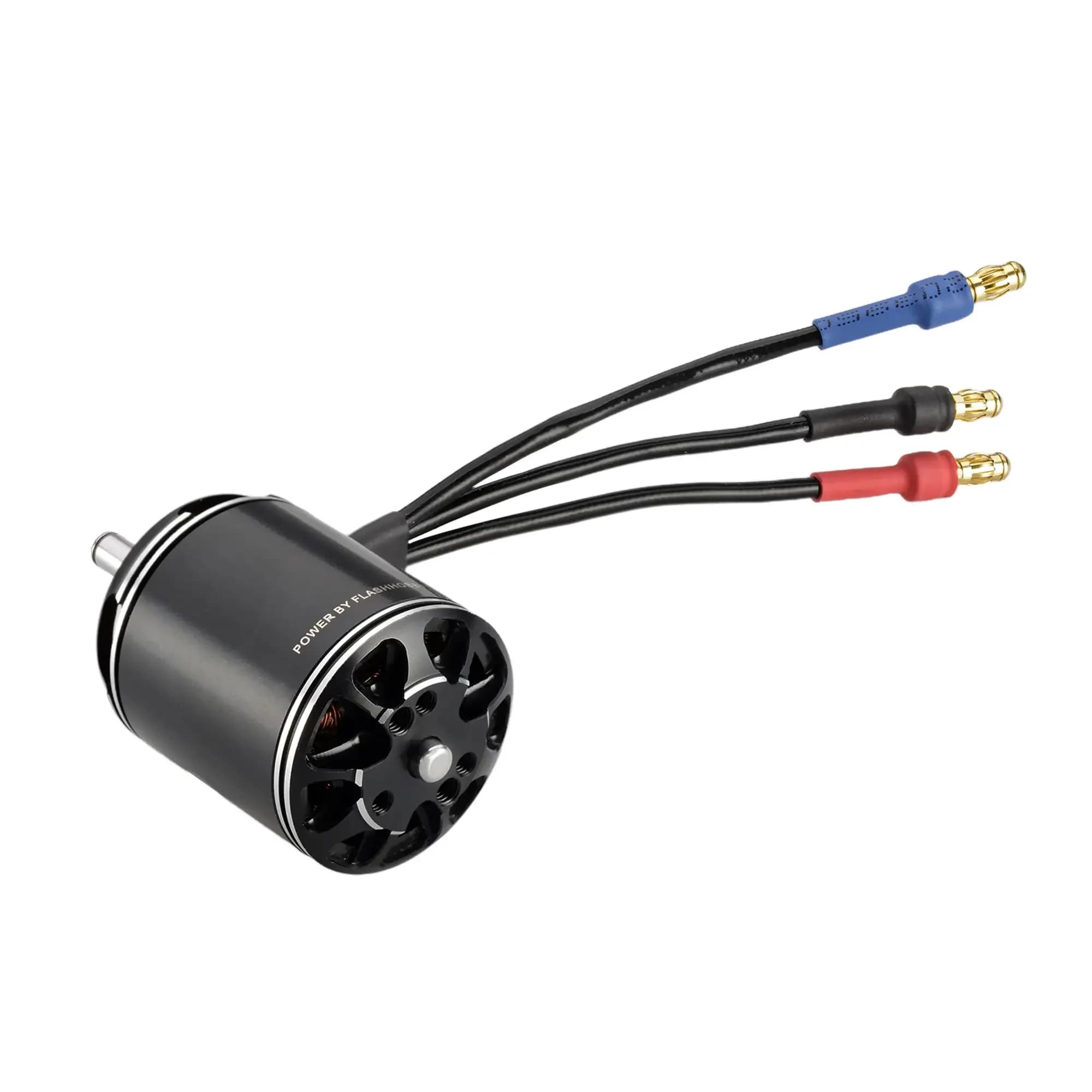

Flashhobby D2836EVO 2836 2217 750KV 850KV 1100KV 1450KV RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
19 orders (reference)
Description
FLASHHOBBY D2836EVO(2217) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

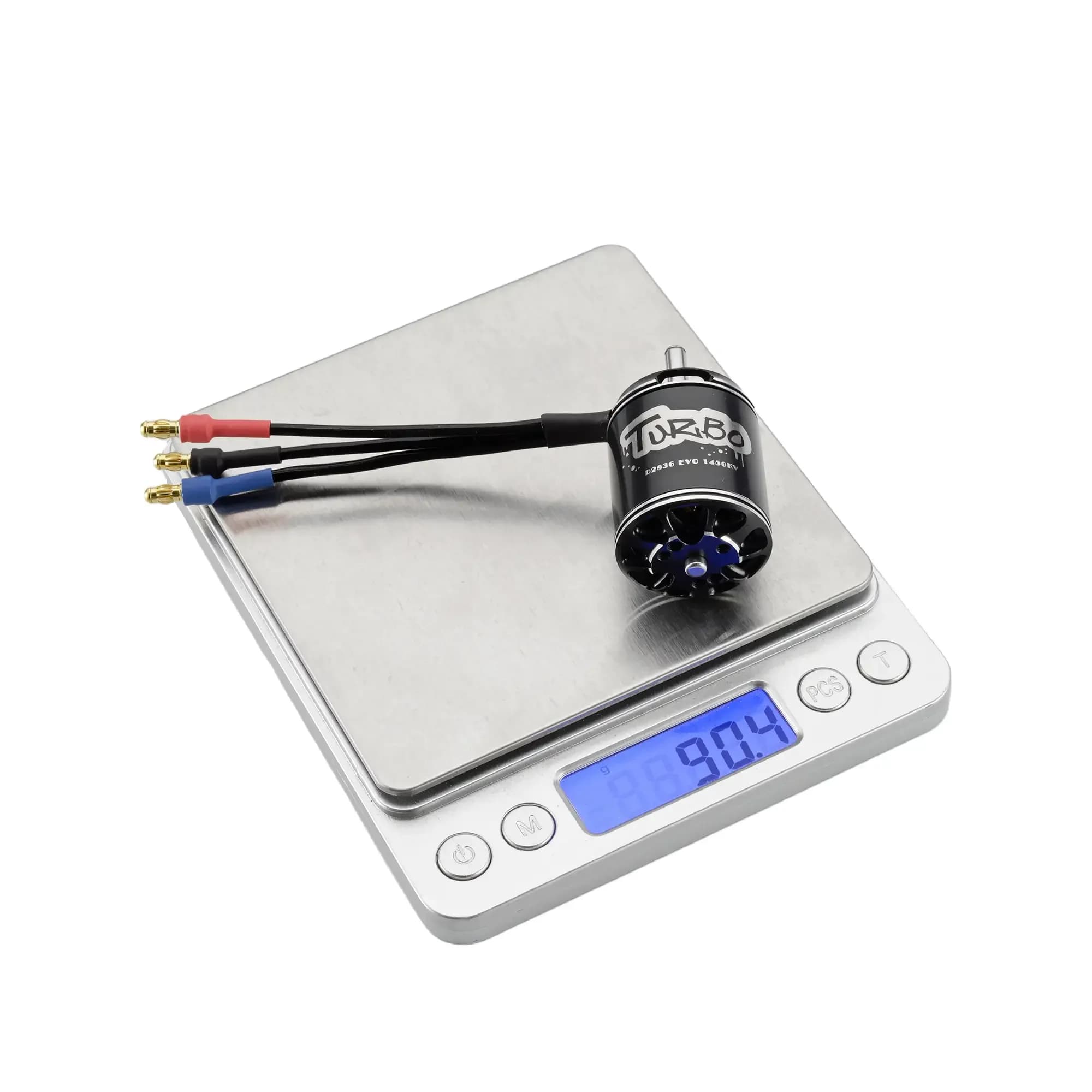

Weight: 88.6g(Including wires)

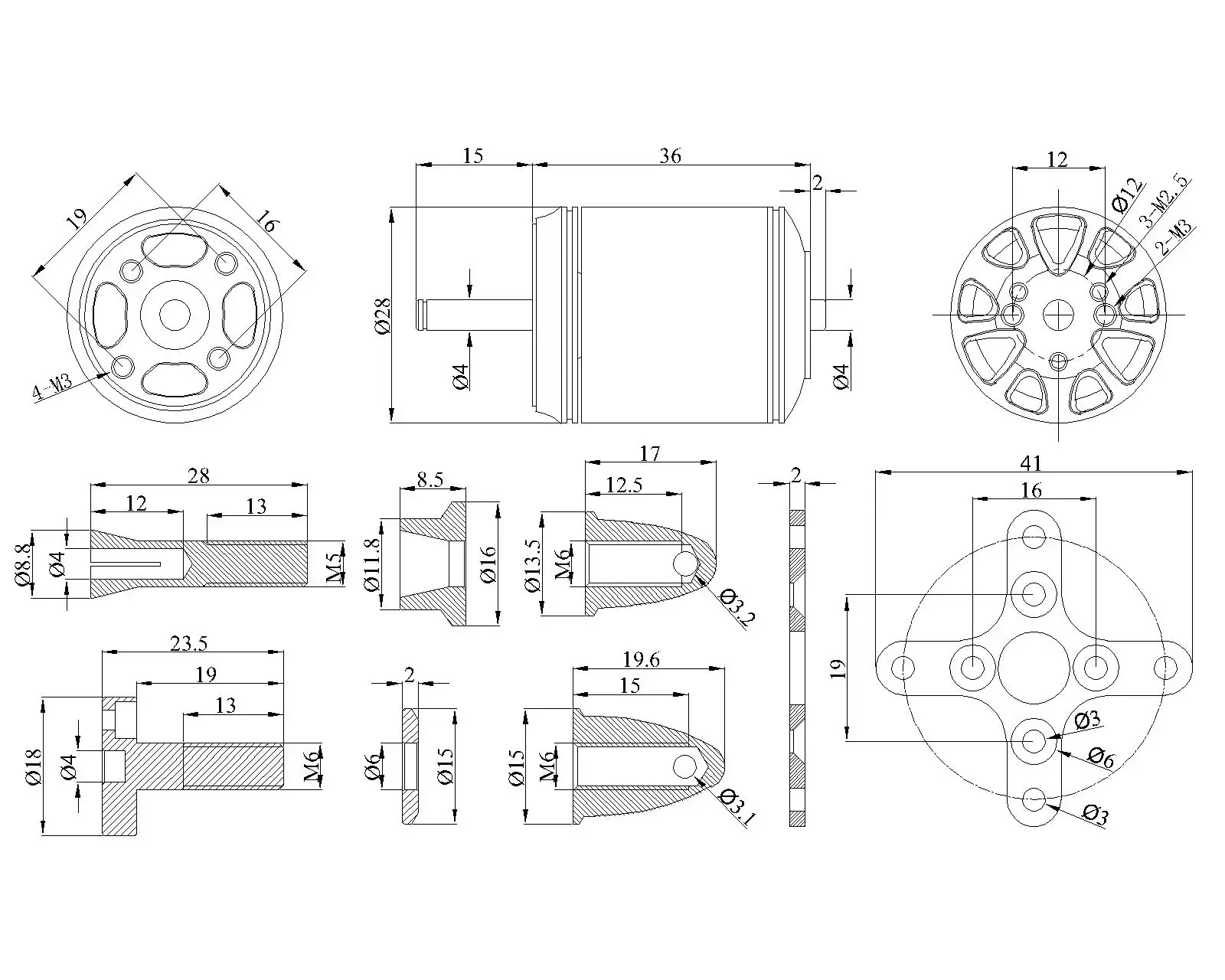

Motor Size: 28 x36mm
Shaft Size: 4.0*53.0mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P
KV Value: 750KV, 850KV,1100KV,1450KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor

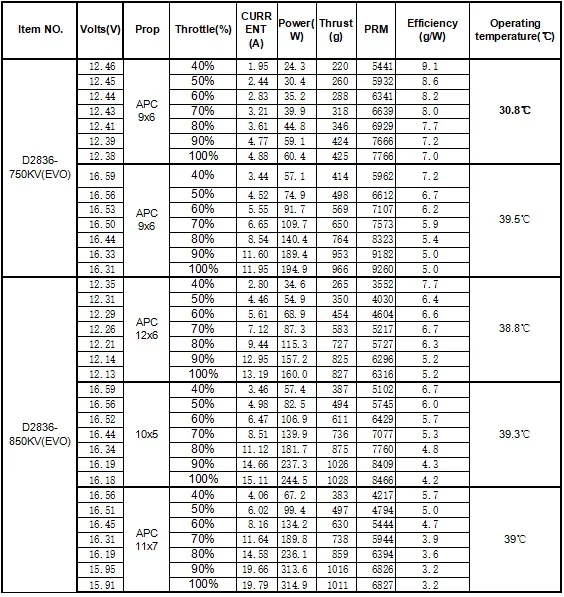

KV: 750KV
Max watts: 194.9W
Max Current: 11.95A
No Load current: 0.74A
Resistance: 124mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 850KV
Max watts: 244.5W
Max Current: 15.11A
No Load current: 0.92A
Resistance: 97.4mΩ
Suggested Prop: 10 inch prop

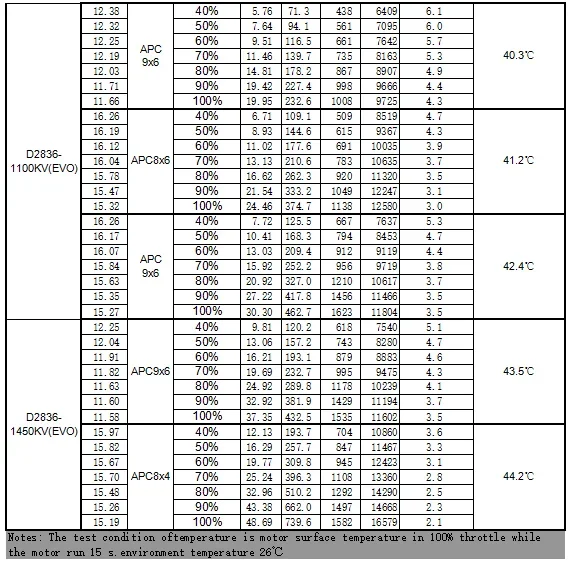

KV: 1100KV
Max watts: 462.7W
Max Current: 30.3A
No Load current: 1.37A
Resistance: 57.9mΩ
KV: 1450KV
Max watts: 739.6W
Max Current: 48.69A
No Load current: 2.24A
Resistance: 33.5mΩ
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Brand Name |
|
| Weight: |
|
| Motor Size: |
|
| Shaft Size: |
|
| Motor Mount: |
|
| Configuration: |
|
| KV Value: |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | D2836EVO |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | FLASHHOBBY |
| Weight: | 88.6g(Including wires) |
| Motor Size: | 28 x36mm |
| Shaft Size: | 4.0*53.0mm |
| Motor Mount: | 16*19mm(M3*4) |
| Configuration: | 12N14P |
| KV Value: | 750KV, 850KV,1100KV,1450KV |
Product Details
FLASHHOBBY D2836EVO(2217) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding
Weight: 88.6g(Including wires)
Motor Size: 28 x36mm
Shaft Size: 4.0*53.0mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P
KV Value: 750KV, 850KV,1100KV,1450KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
KV: 750KV
Max watts: 194.9W
Max Current: 11.95A
No Load current: 0.74A
Resistance: 124mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 850KV
Max watts: 244.5W
Max Current: 15.11A
No Load current: 0.92A
Resistance: 97.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
KV: 1100KV
Max watts: 462.7W
Max Current: 30.3A
No Load current: 1.37A
Resistance: 57.9mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 1450KV
Max watts: 739.6W
Max Current: 48.69A
No Load current: 2.24A
Resistance: 33.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
