Flashhobby D3542EVO 3542 2820 1000KV 1250KV 1450KV RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
77 orders (reference)
Description
Flashhobby D3542EVO 3542 2820 1000KV 1250KV 1450KV RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter High-concerned chemical: None Is Electric: No Battery Wheelbase: Screws Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Model Number: D3542EVO For Vehicle Type: Airplanes
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Wheelbase | Screws |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Model Number | D3542EVO |
| For Vehicle Type | Airplanes |
| Tool Supplies | Battery |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| Upgrade Parts/Accessories | Frame |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | FLASHHOBBY |
| Weight: | 136g(Including wires) |
| Motor Size: | 35.3 x42mm |
| Shaft Size: | 5.0*61.5mm |
| Motor Mount: | 19*25mm(M3*4) |
| Configuration: | 12N14P |
| KV Value: | 1000KV, 1250KV,1400KV |
Product Details

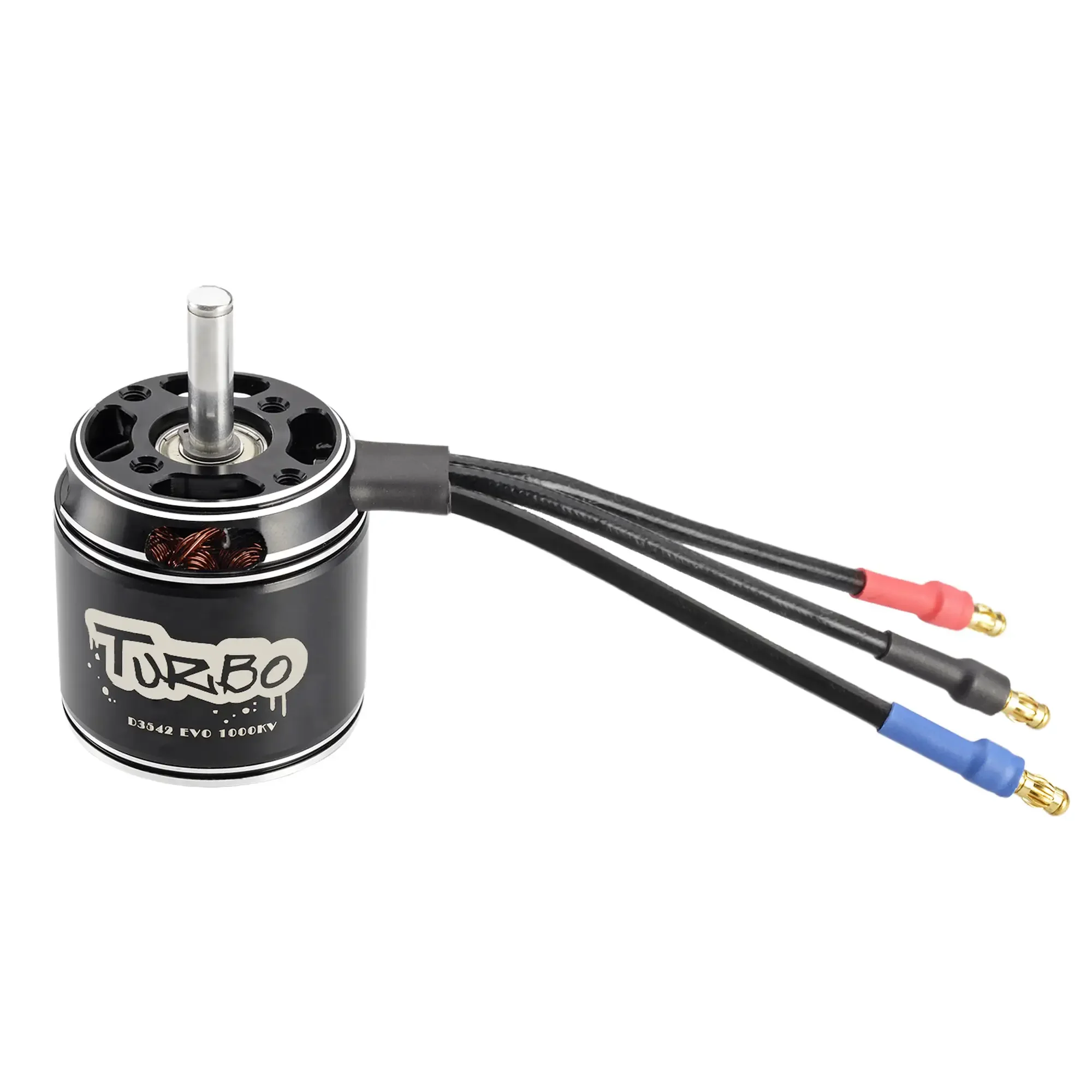

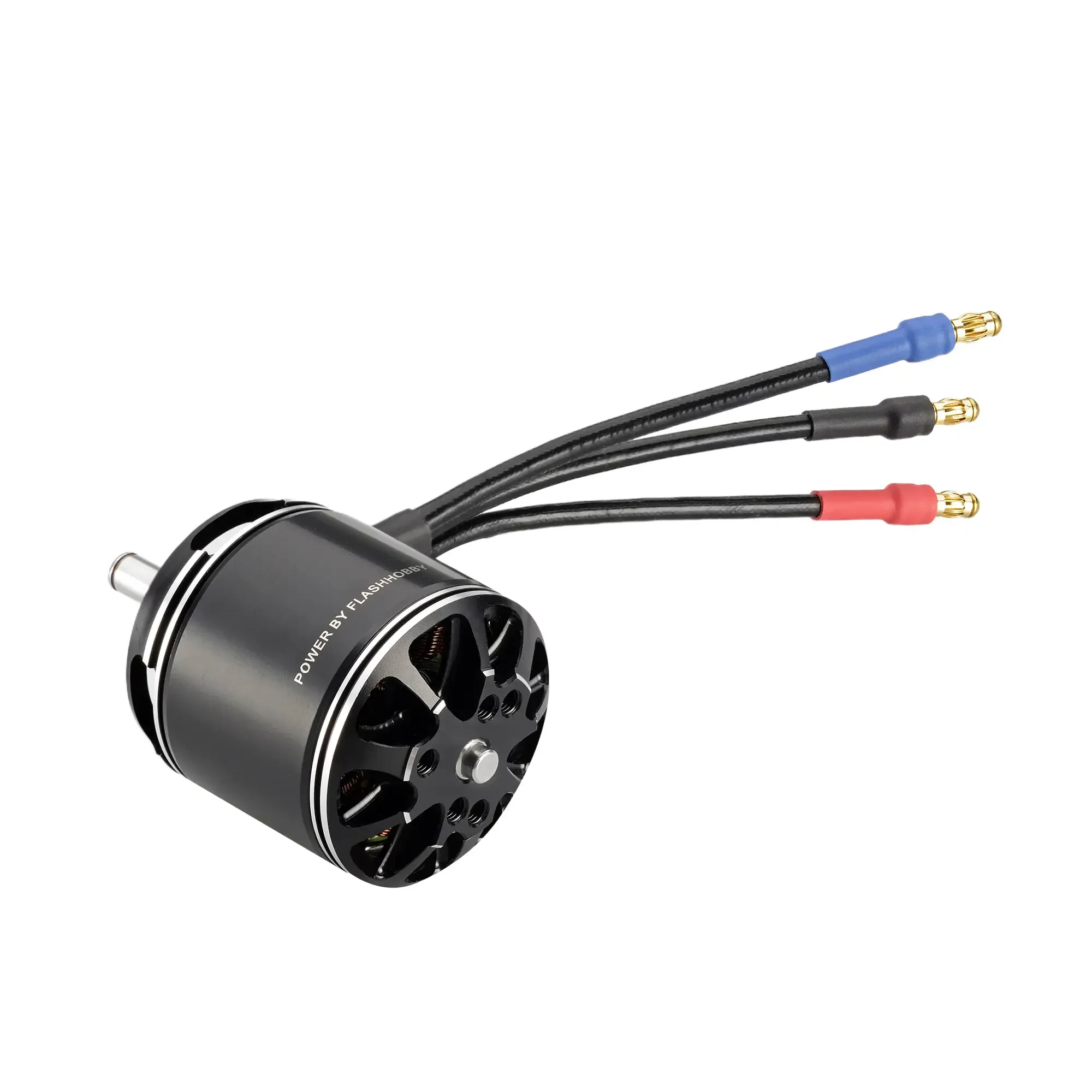

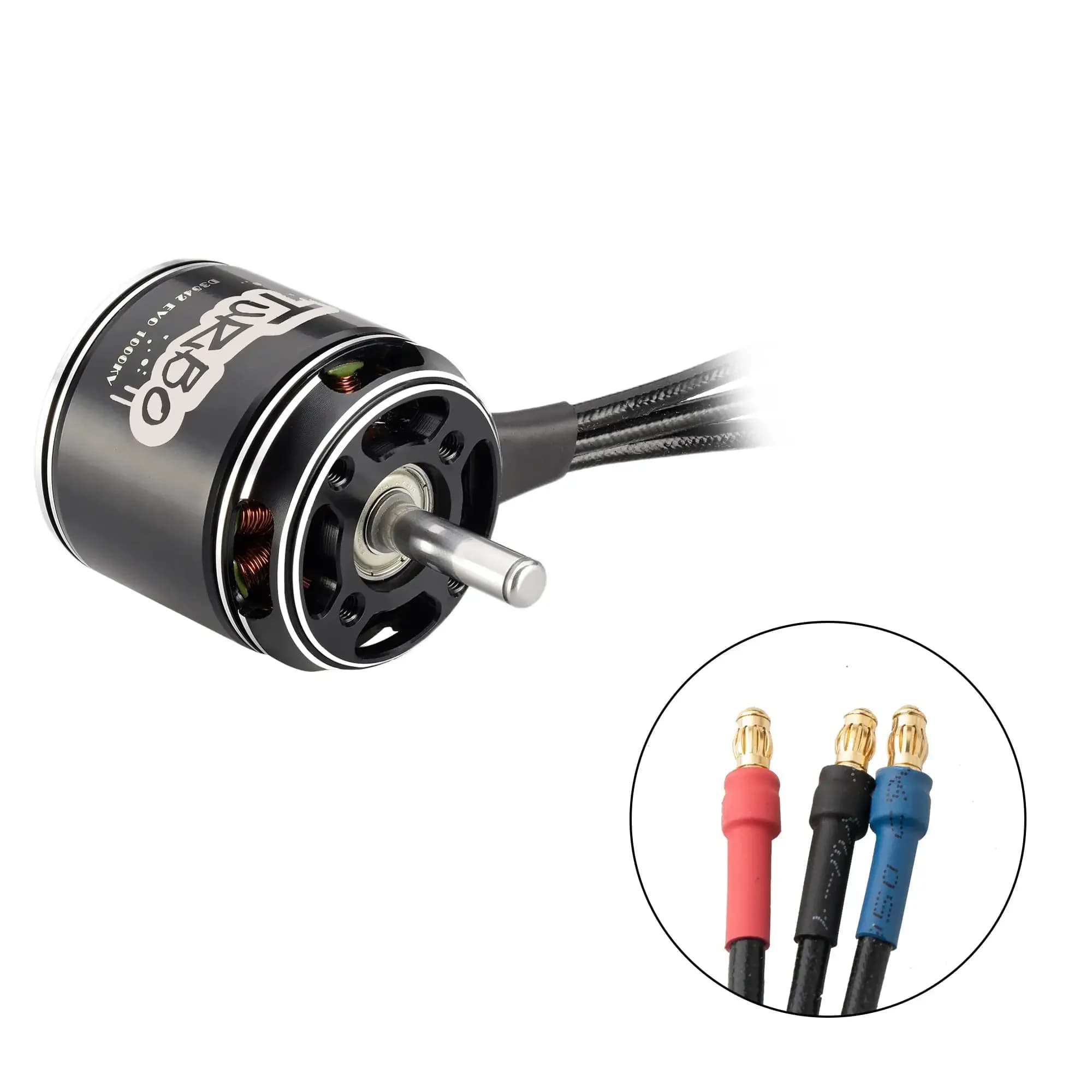

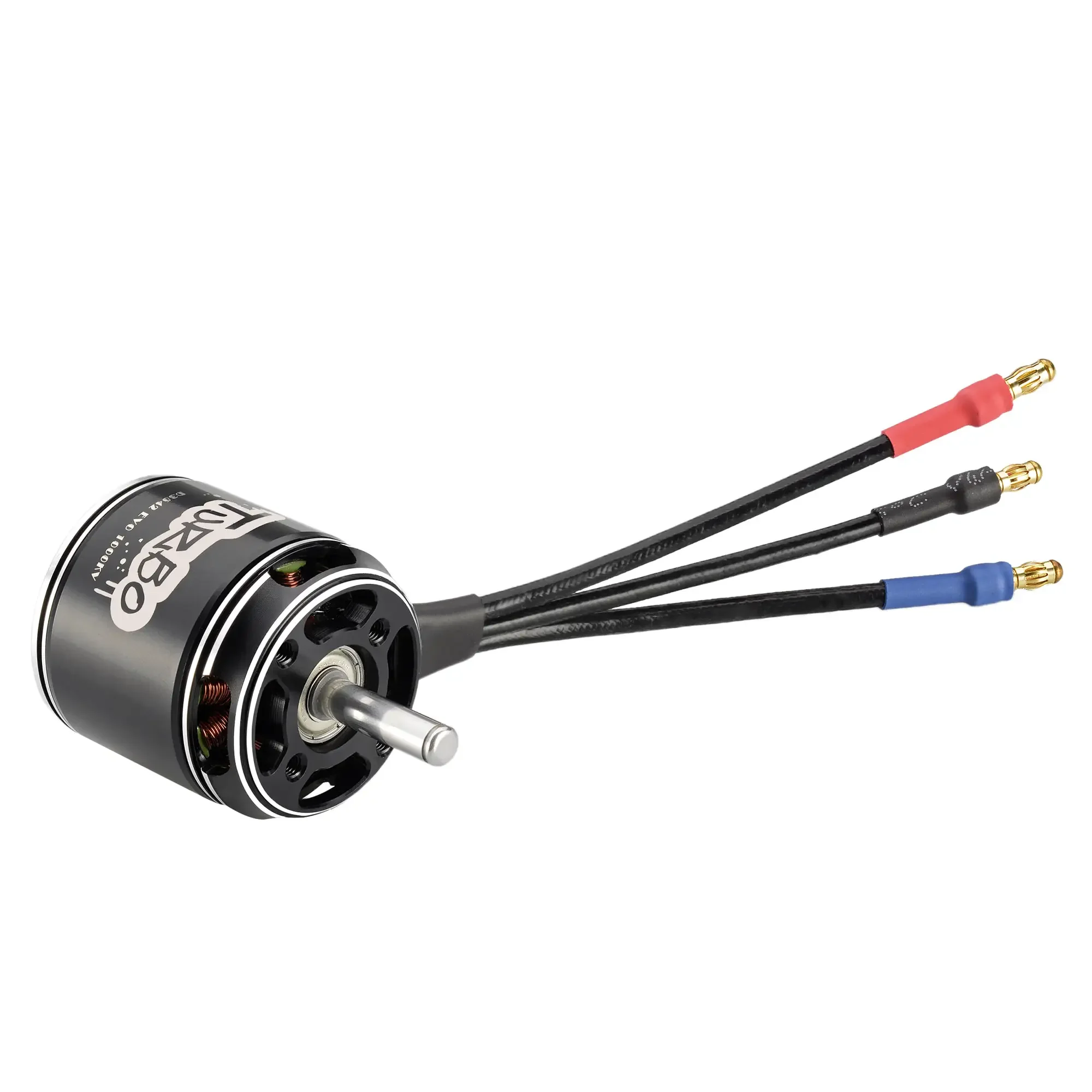

FLASHHOBBY D3542EVO(2820) RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter
Brushless Motor for Fixed-Wing 3D RC Drone Helicopter Airplane Parts Accessories
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

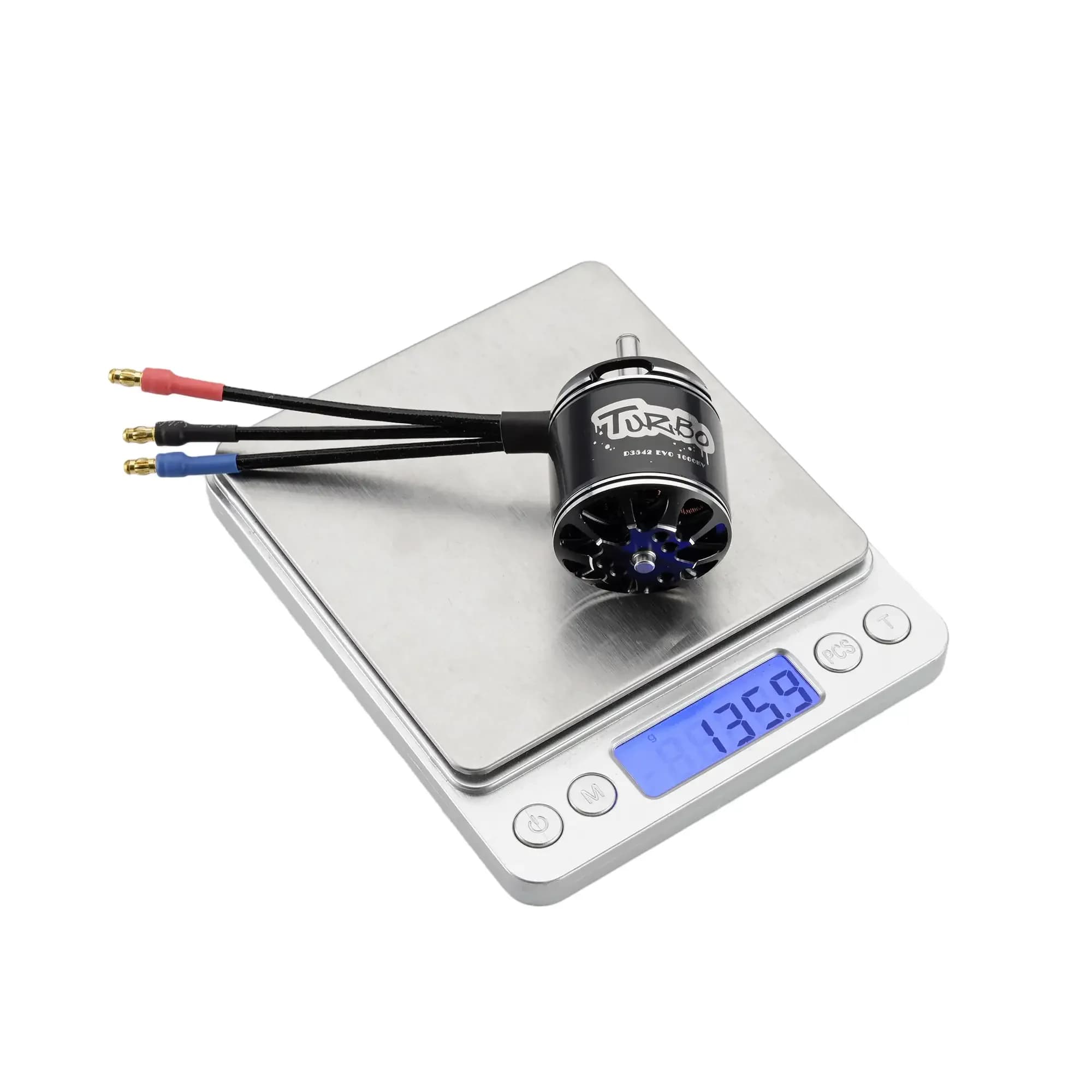

Weight: 136g(Including wires)

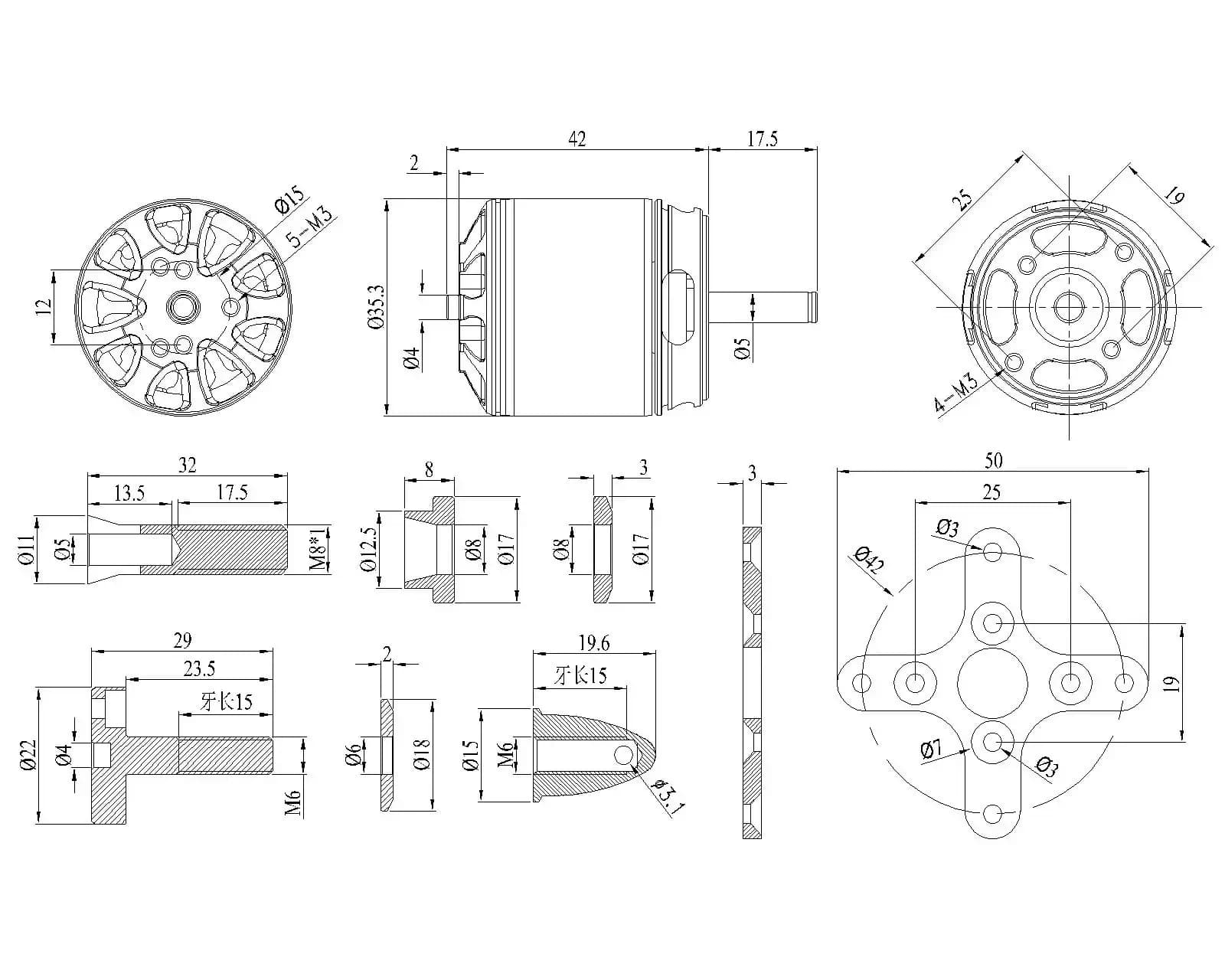

Motor Size: 35.3 x42mm
Shaft Size: 5.0*61.5mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
KV Value: 1000KV, 1250KV,1400KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor

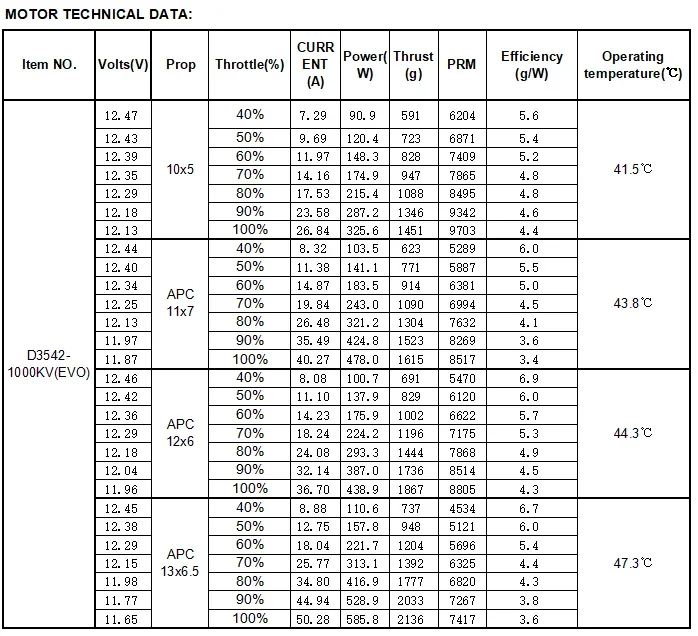

KV: 1000KV
Max watts: 585.2W
Max Current: 50.28A
No Load current: 2.05A/10V
Resistance: 34.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 13 inch prop

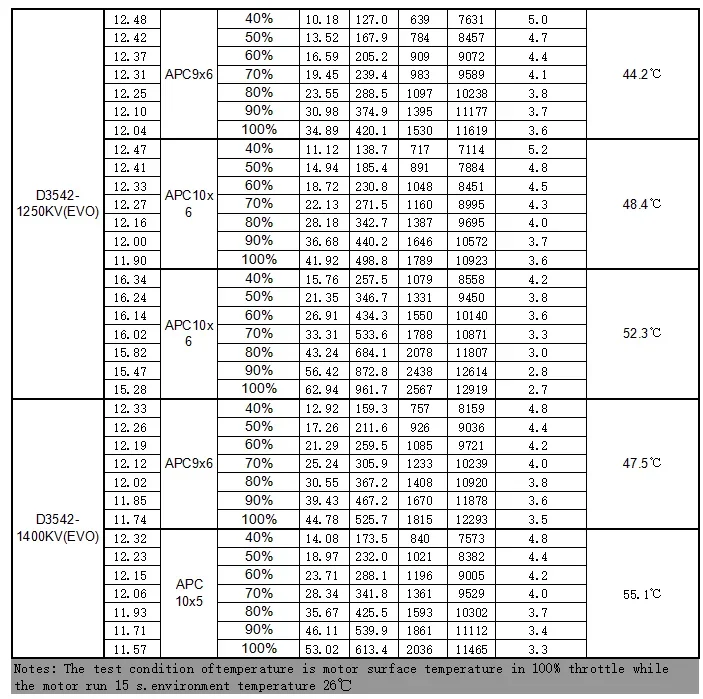

KV: 1250KV
Max watts: 961.7W
Max Current: 62.94A
No Load current: 2.66A/10V
Resistance: 24.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
KV: 1400KV
Max watts: 613.4W
Max Current: 53.02A
No Load current: 3.34A/10V
Resistance: 19.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
