Diatone MAMBA TOKA 1606 2700KV 3750KV Brushless Motor 3~6S Lipo 1.5mm Shaft Diameter for RC 3~4inch Propeller Quadcopter Drones
1 orders (reference)
Description
Diatone MAMBA TOKA 1606 2700KV 3750KV Brushless Motor 3~6S Lipo 1.5mm Shaft Diameter for RC 3~4inch Propeller Quadcopter Drones High-concerned chemical: None Is Electric: No Battery Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: 22.2x15mm Model Number: TOKA 1606 For Vehicle Type: Airplanes
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 22.2x15mm |
| Model Number | TOKA 1606 |
| For Vehicle Type | Airplanes |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y,6-12Y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | SPARKHOBBY |
Product Details

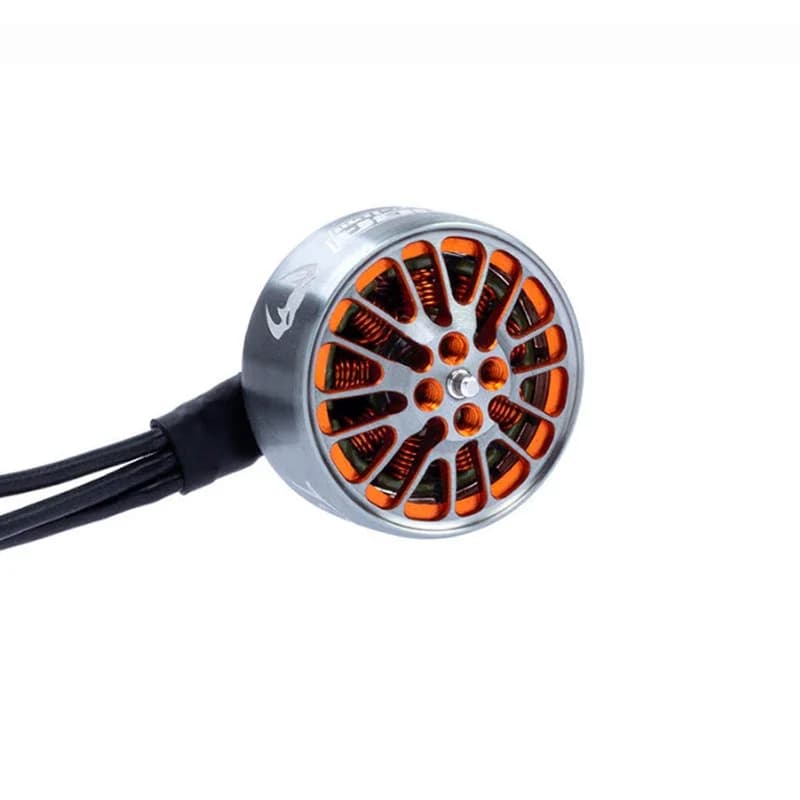

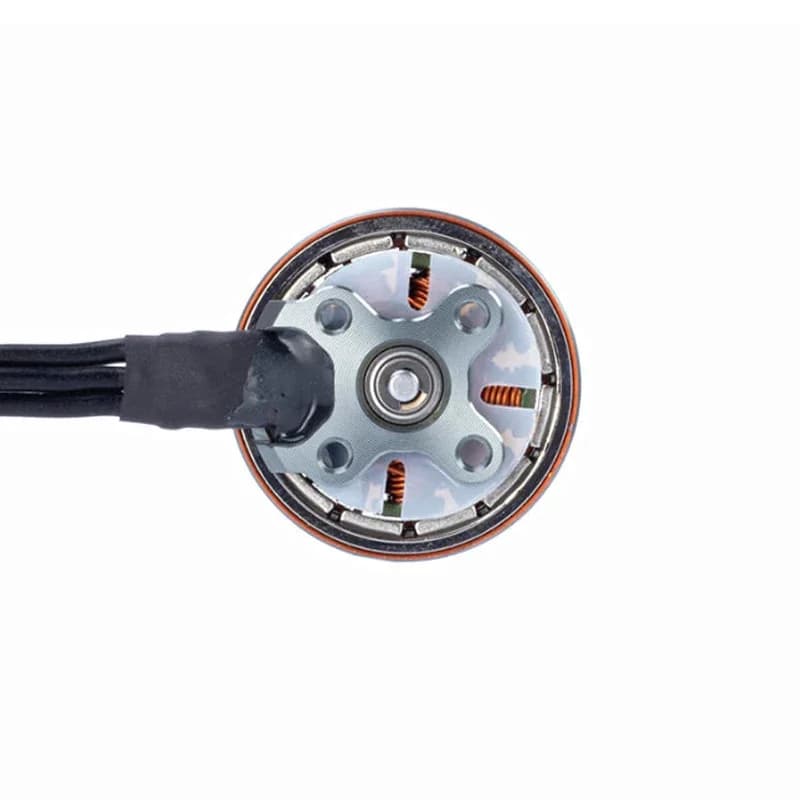

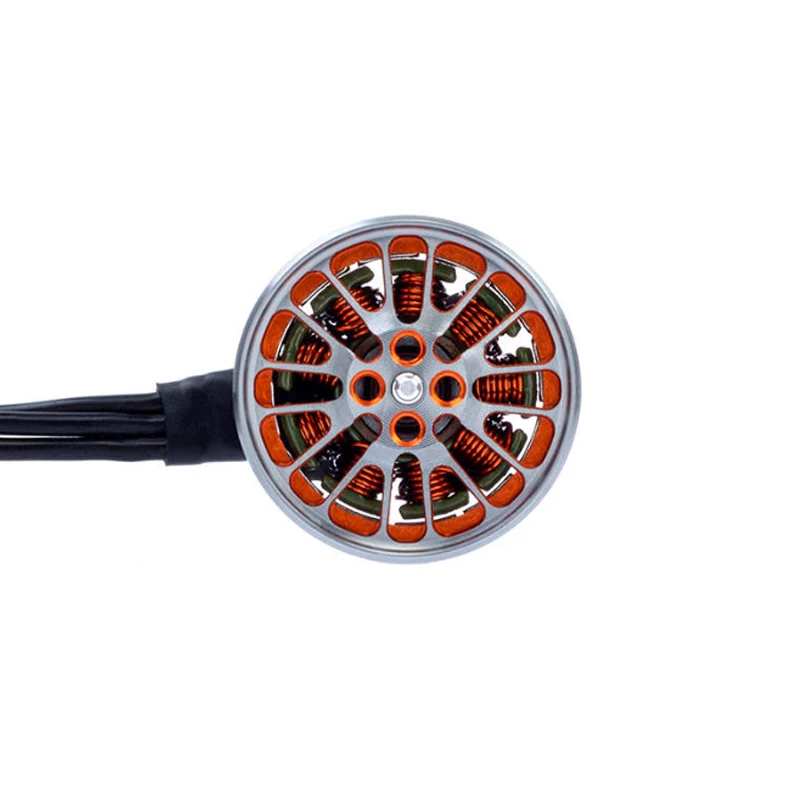

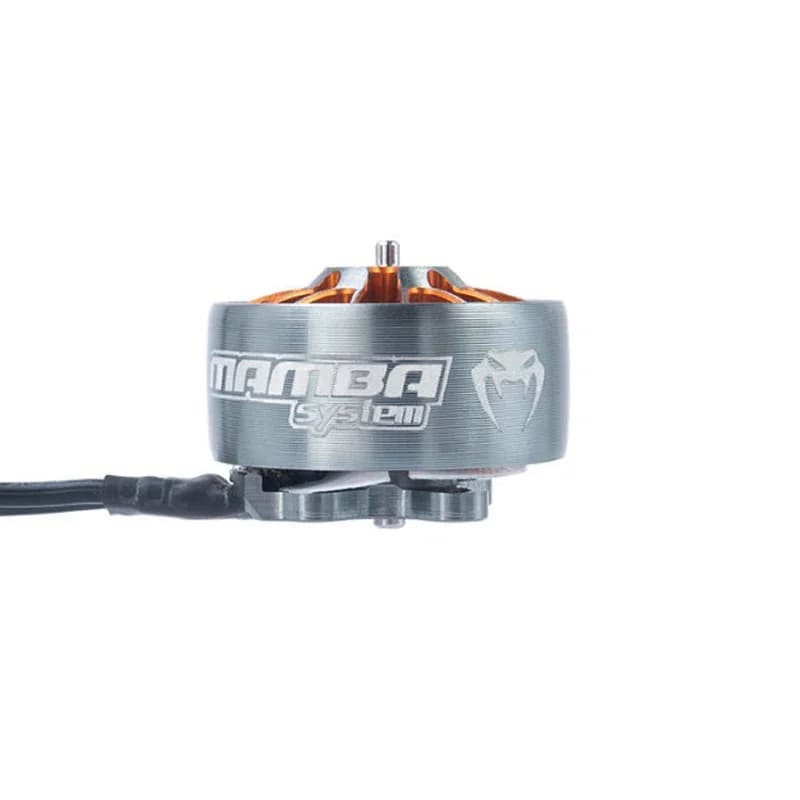

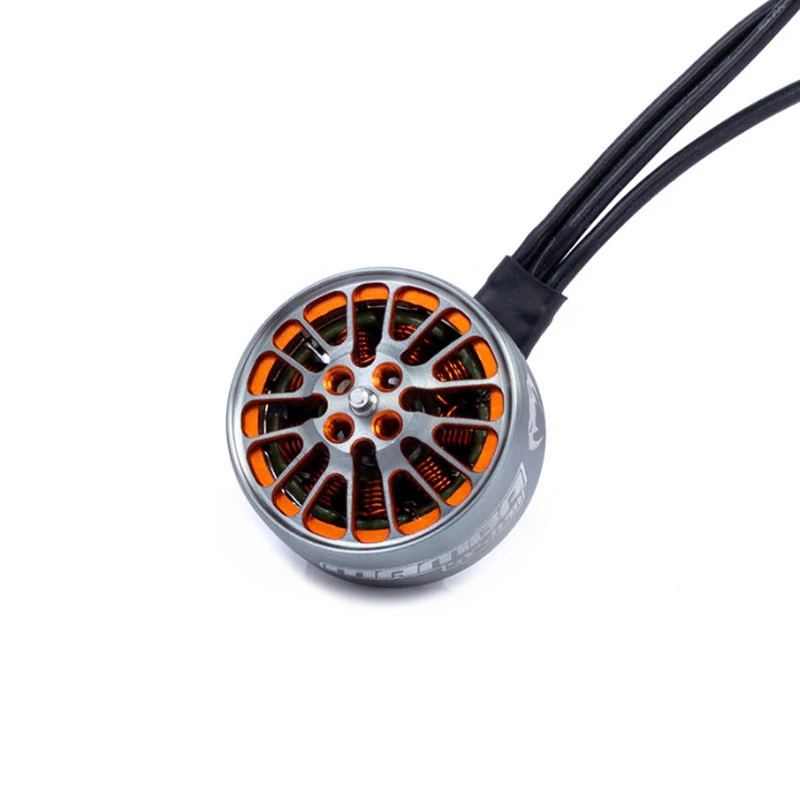

Item Name:Diatone MAMBA TOKA 1606 Brushless Motor
Product Parameters:

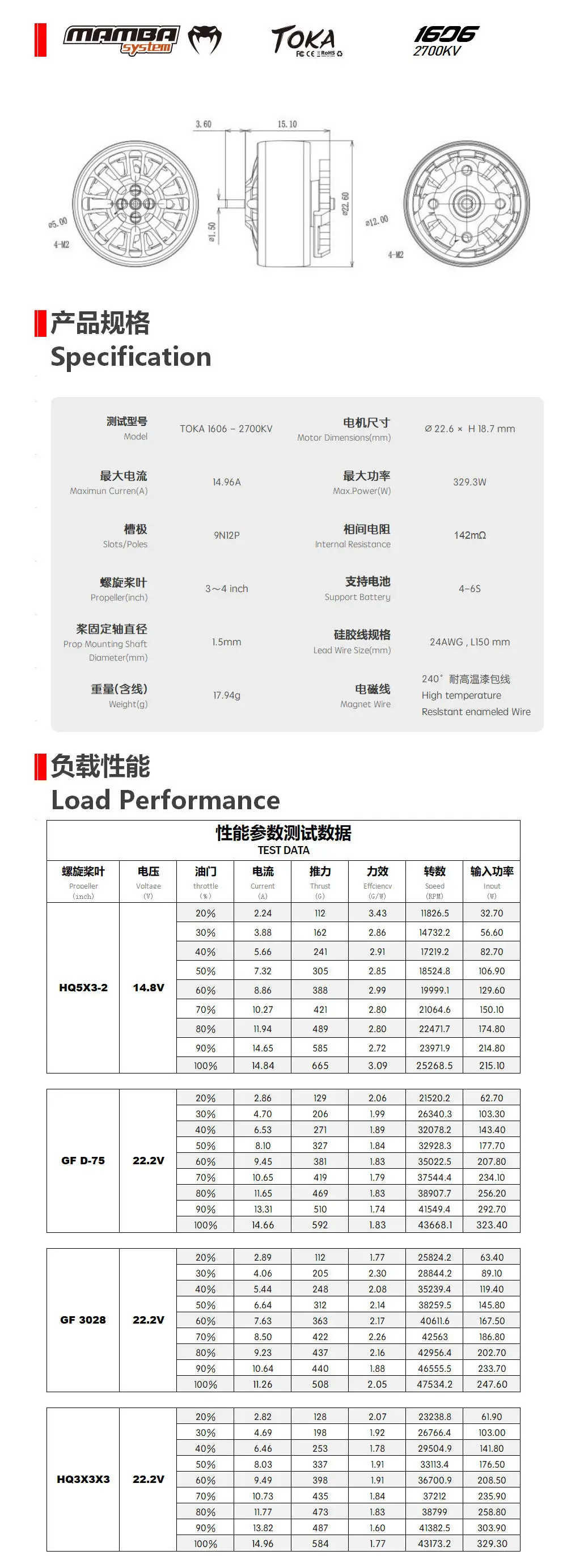

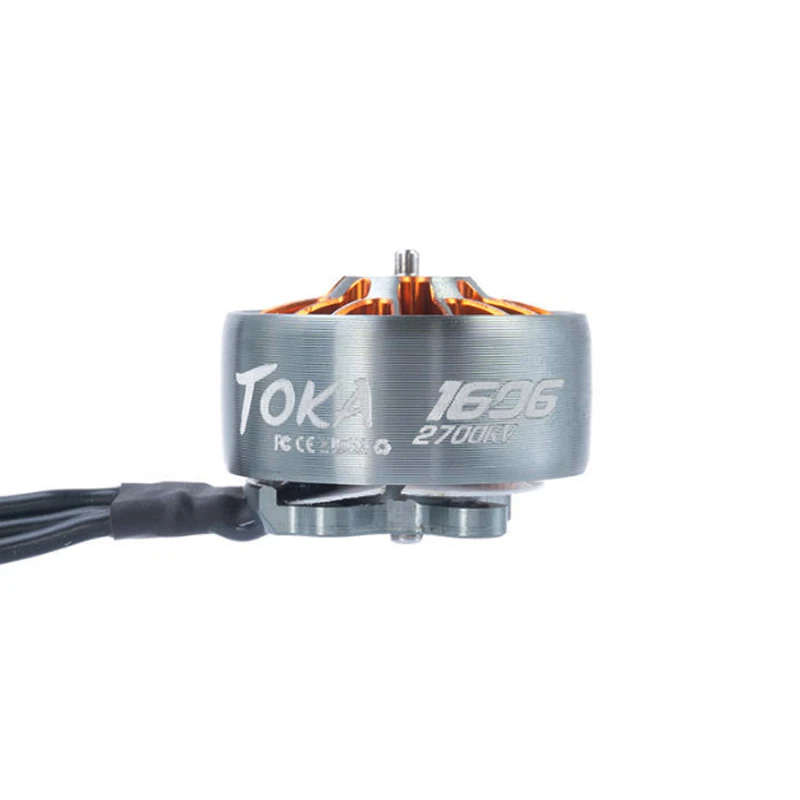

2700KV

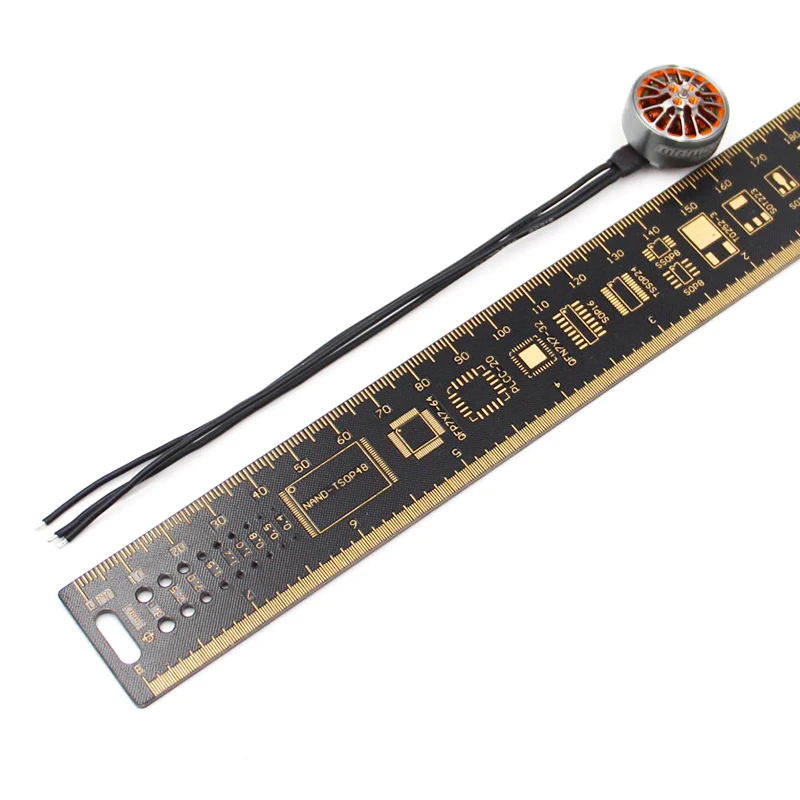

Overall Dimension:Φ22.2×15mm

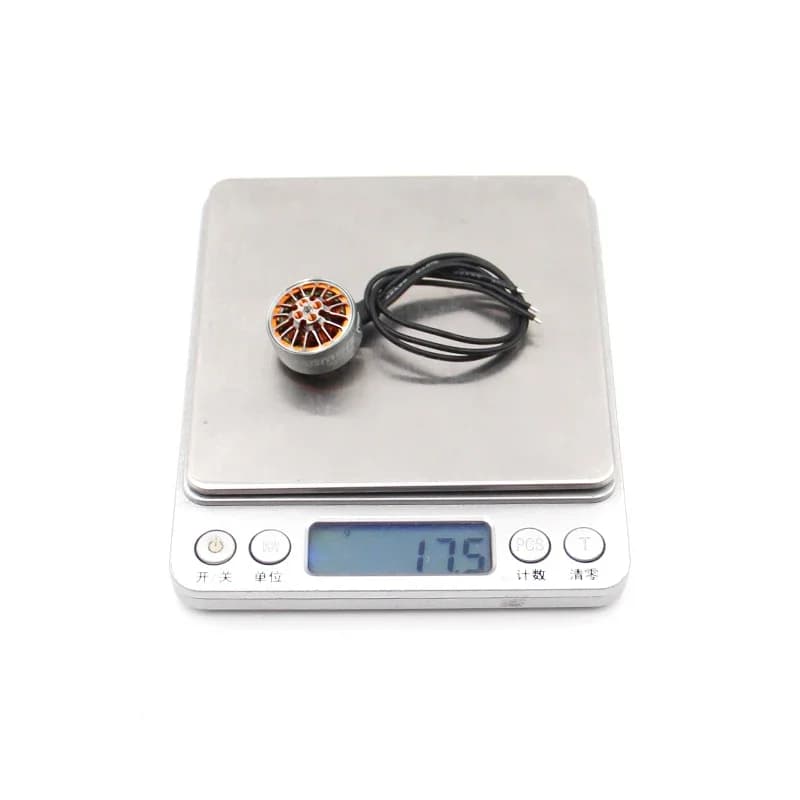

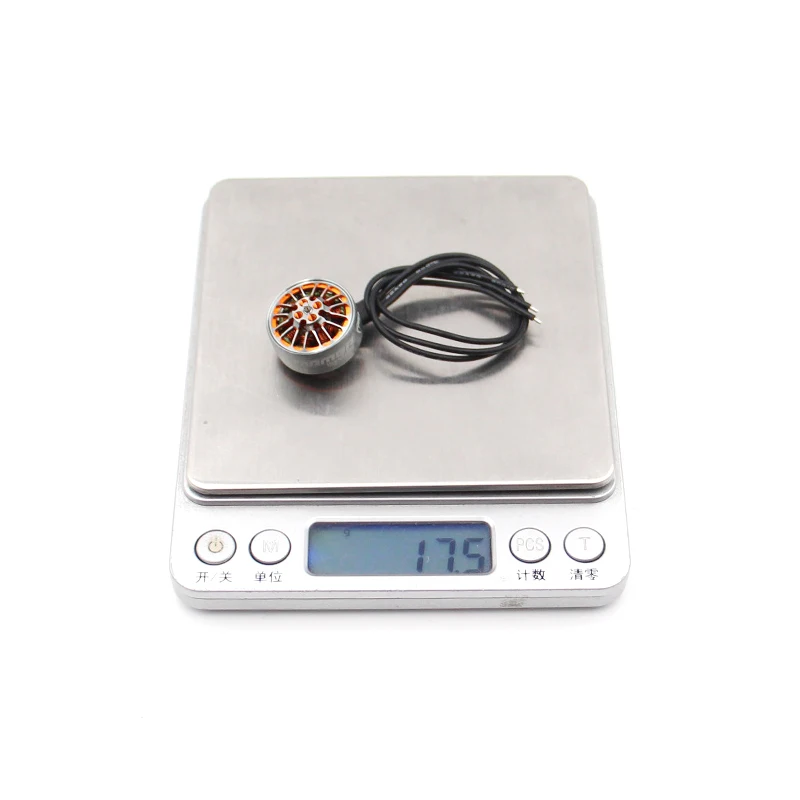

Weight:17.5g
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop:3inch~4inch
Bearing:5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire:Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage:4~6S (12.6V~25.2V)
Peak Current:17.6A
ldle Current:10V/0.5A
Maximum Power:409W
Internal Resistance:164mΩ

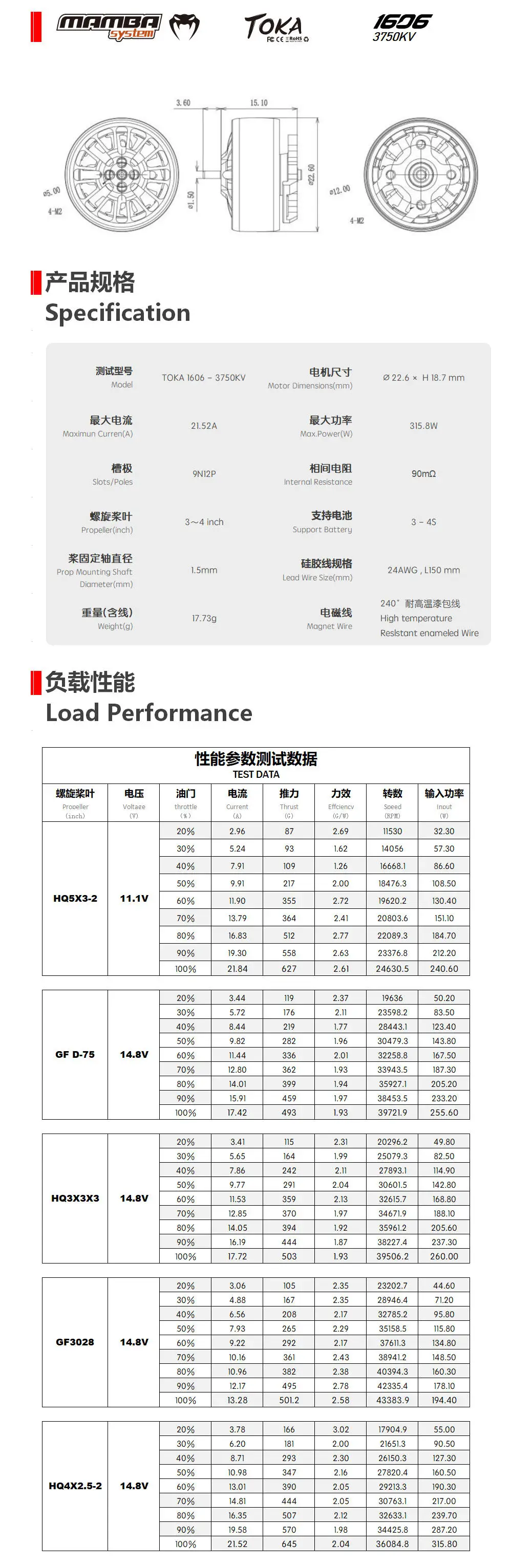

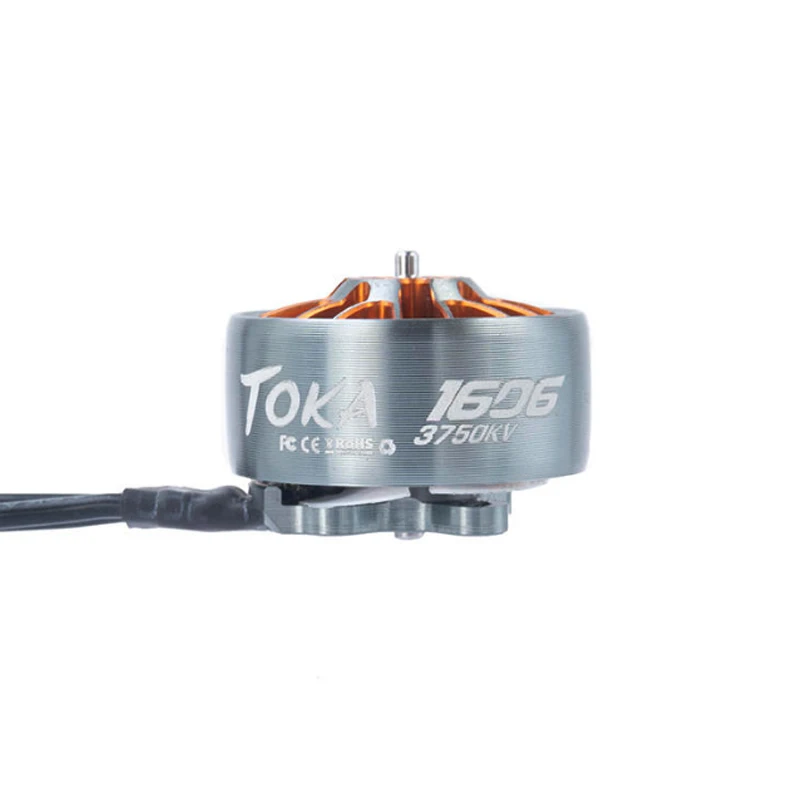

3750KV
Overall Dimension:Φ22.2×15mm
Weight:17.5g
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop:3inch~4inch
Bearing:5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG ×150mm
Configuration:9N12P
Magnet Wire:Class H,220℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current:21.1A
ldle Current:9v/0.8A
Maximum Power:338W
Internal Resistance:114mΩ
- Package Included:
- Diatone MAMBA TOKA 1606 Brushless Motor x 1/4
M2*5 screw x 4/16
M2*6 screws x 4/16
M2*7 screws x 2/8
(Quantity, Model Optional)
