Diatone MAMBA TOKA 2207.5 1700 2450KV 4-6S Motor 5inch-6inch Brushless Motor 16x16mm for FPV Racing Roma F5 2019 GTR569 RC Drone
1 orders (reference)
Description
Diatone MAMBA TOKA 2207.5 1700 2450KV 4-6S Motor 5inch-6inch Brushless Motor 16x16mm for FPV Racing Roma F5 2019 GTR569 RC Drone High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: 28.5X32.65mm Model Number: 2207.5 2450KV
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | 28.5X32.65mm |
| Model Number | 2207.5 2450KV |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Motors |
| Remote Control Peripherals/Devices | Motor |
| RC Parts & Accs | Motors |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y,6-12Y |
| Use | Vehicles & Remote Control Toys |
| Brand Name | LANNRC |
Product Details

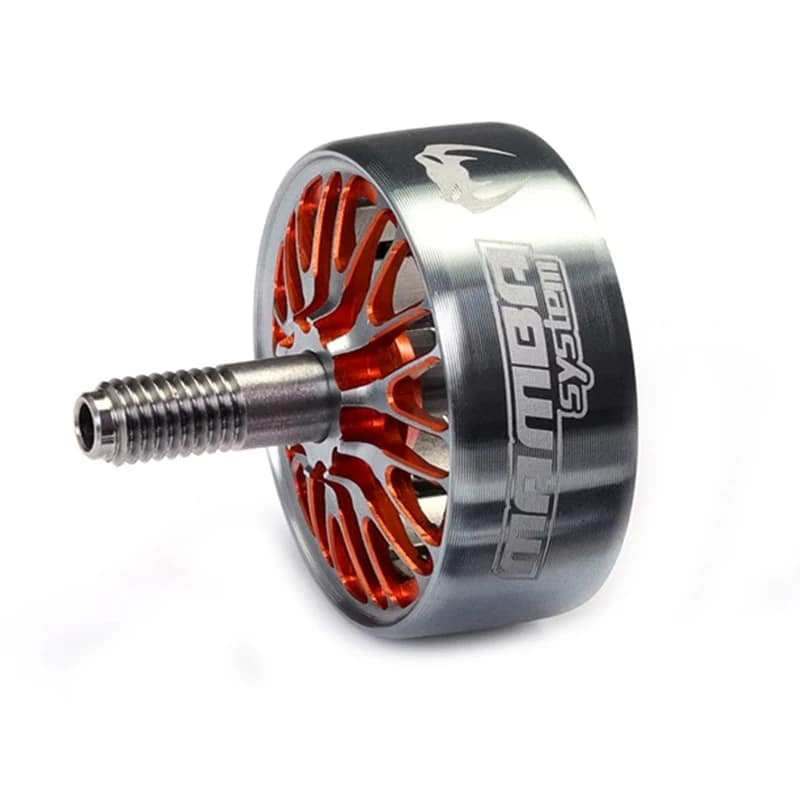

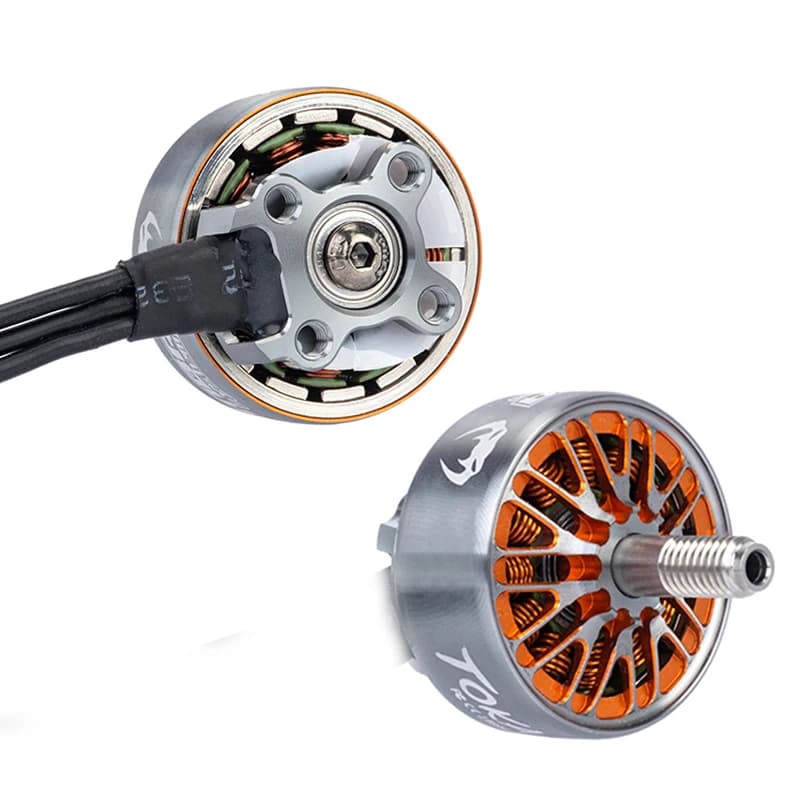

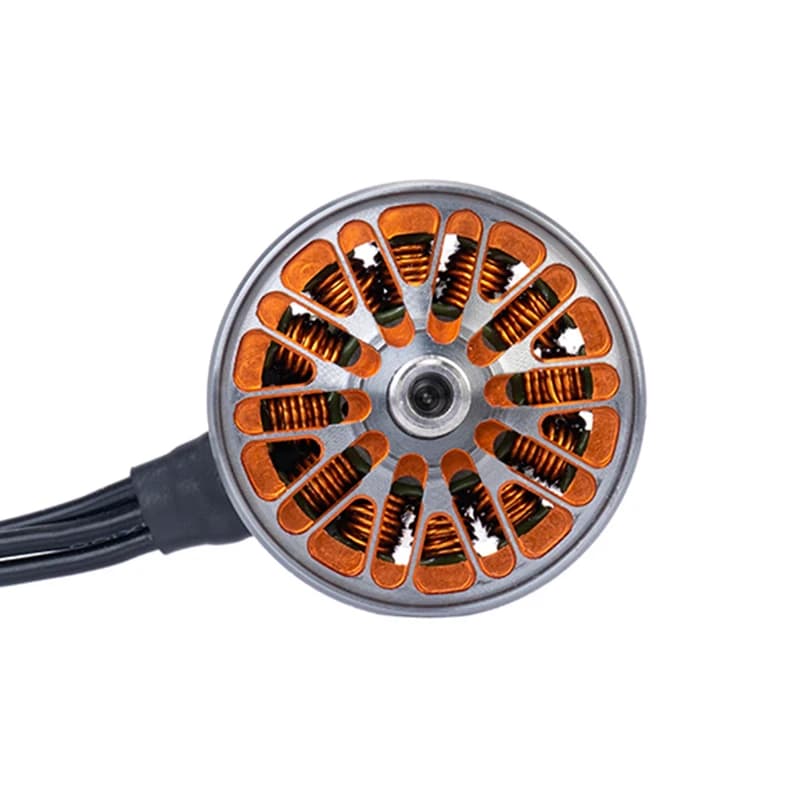

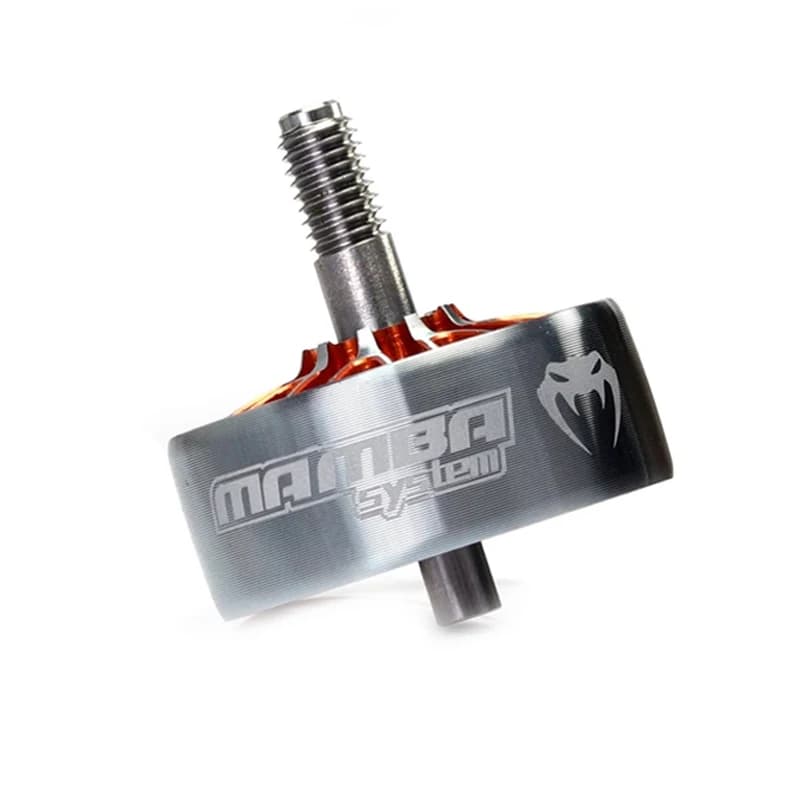

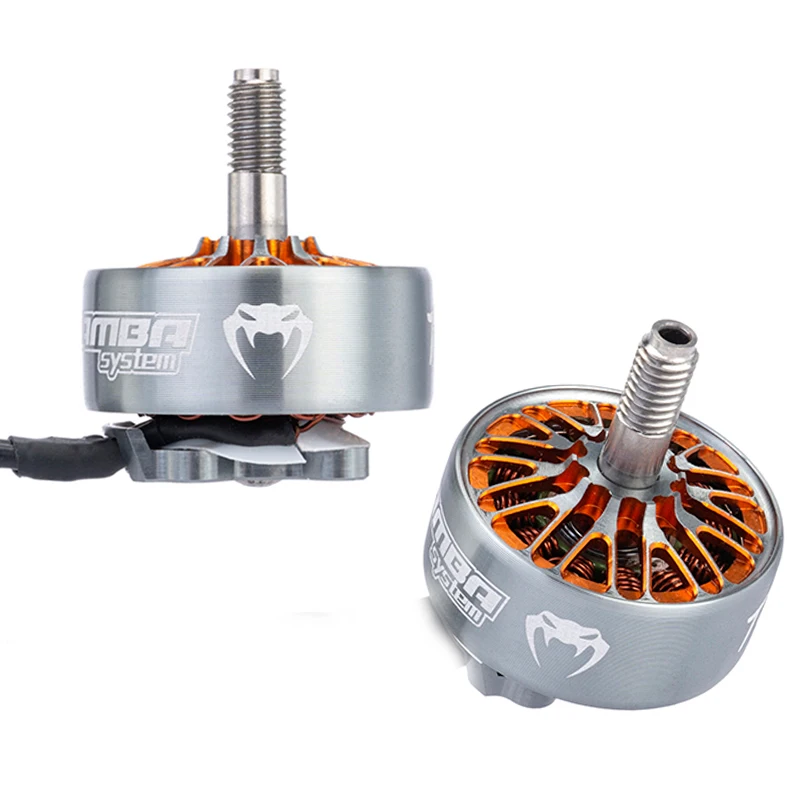

Item: Diatone MAMBA TOKA 2207.5 1700KV 2450KV Brushless Motor

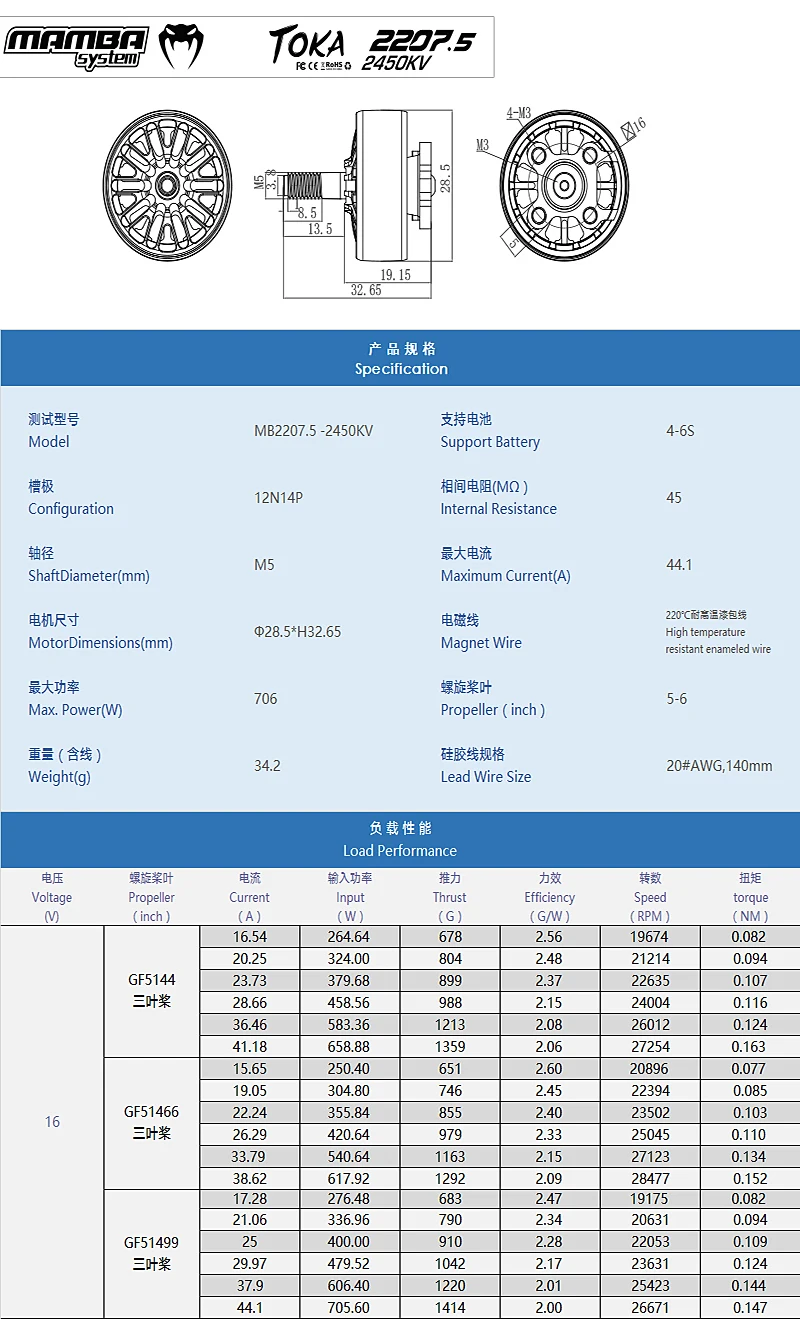

Parameters:
TOKA 2207.5 1700KV

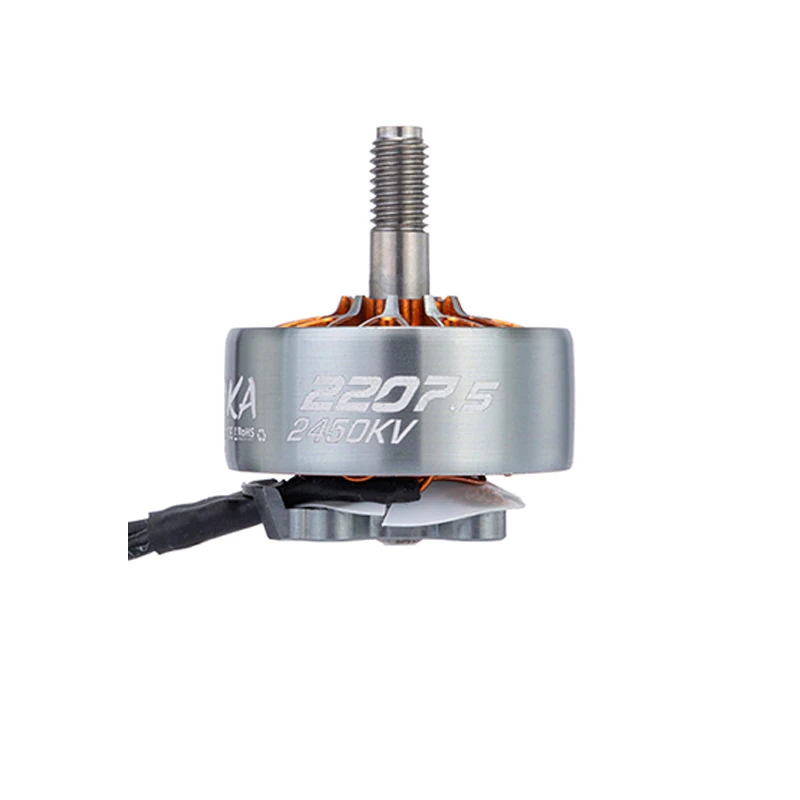

TOKA 2207.5 2450KV
Motor model: 2207.5
KV value: 2450
Weight: 35g
Dimensions: Φ28.5×32.65mm
Propeller fixed shaft diameter: M5

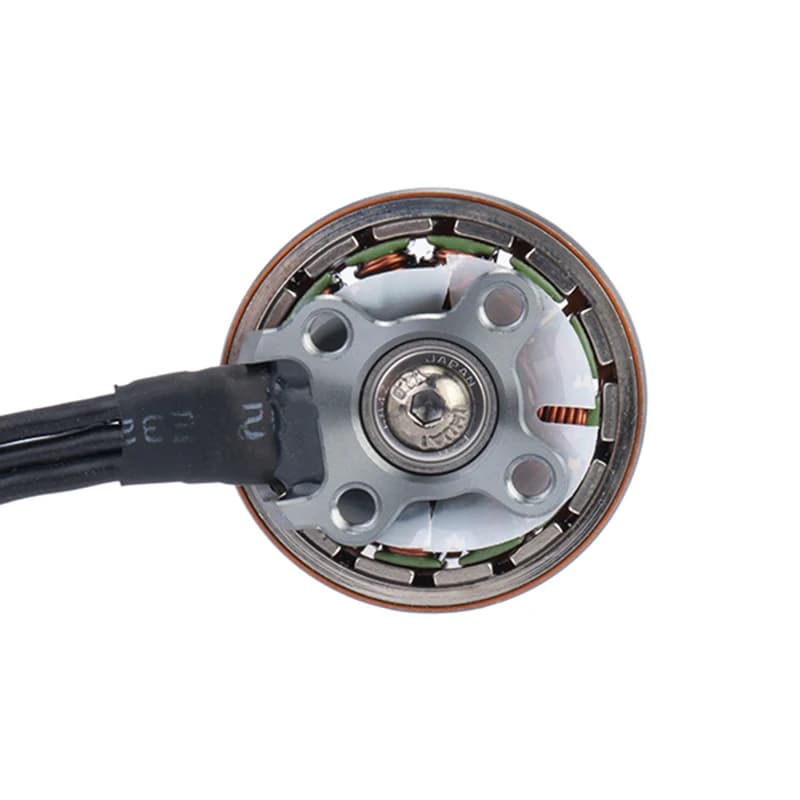

Mounting hole position: 16×16mm, M3
Applicable blade: 5inch~6inch
Bearing size: 4*9*4
Shaft diameter: 4mm
Outlet specification: 24AWG ×190mm
Configuration: 12N14P
Enameled Wire: Class H, 220℃ Enameled Wire
Stator diameter: 22mm
Stator thickness: 7.5mm
Rated voltage: 3~4S (12.6V~16.8V)
Peak current: 44.1A
Maximum power: 706W
Package Included:
Diatone MAMBA TOKA 2207.5 1700KV Brushless Motor x1
or Diatone MAMBA TOKA 2207.5 2450KV Brushless Motor x1
or Diatone MAMBA TOKA 2207.5 1700KV Brushless Motor x4
or Diatone MAMBA TOKA 2207.5 2450KV Brushless Motor x4
