Diatone MAMBA F405MK2 Betaflight Flight Controller & F40MK2 40A 3-6S DSHOT600 FPV Racing Brushless ESC for RC Drone Mini Quad
From US $74.93
Est. US $74.93 / unit (1-9 pcs)
$69 @ 10+ pcs$65 @ 100+ pcs
Description
Description:
INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
CONTINUE CURRENT: 40A×4 BURST
CURRENT: 50A (10S)
BEC: NO
MOUNTING: 30.5mm/M3
CURR: 169A
About Current: 50A/4S OR 40A/5S (The same total power)
Motor:Suggest Below 1900KVfor 6S
Mounting: 30mm / φM3
Weight: 10g
Variant
Price rangeUS $74.93
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
Product Details
Specification
FIRMWARE TARGET : FURYF4OSD (LEGACY)

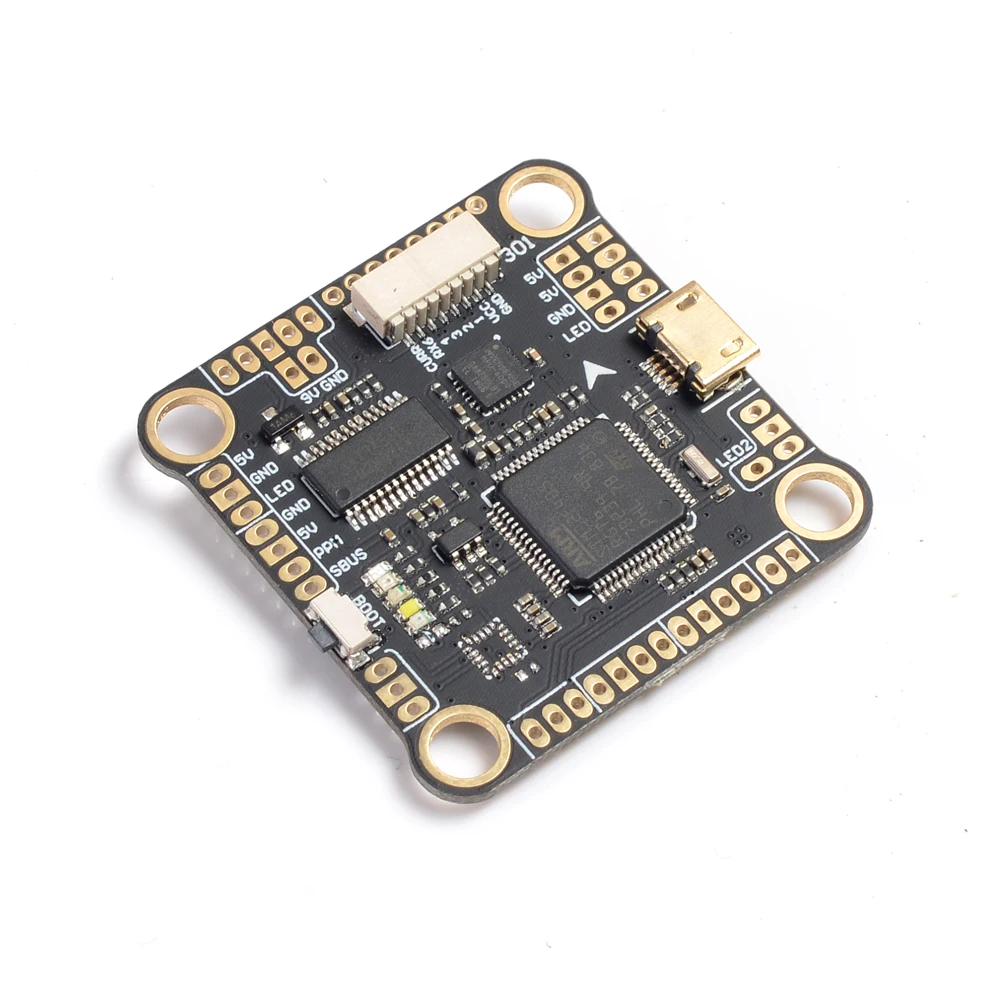

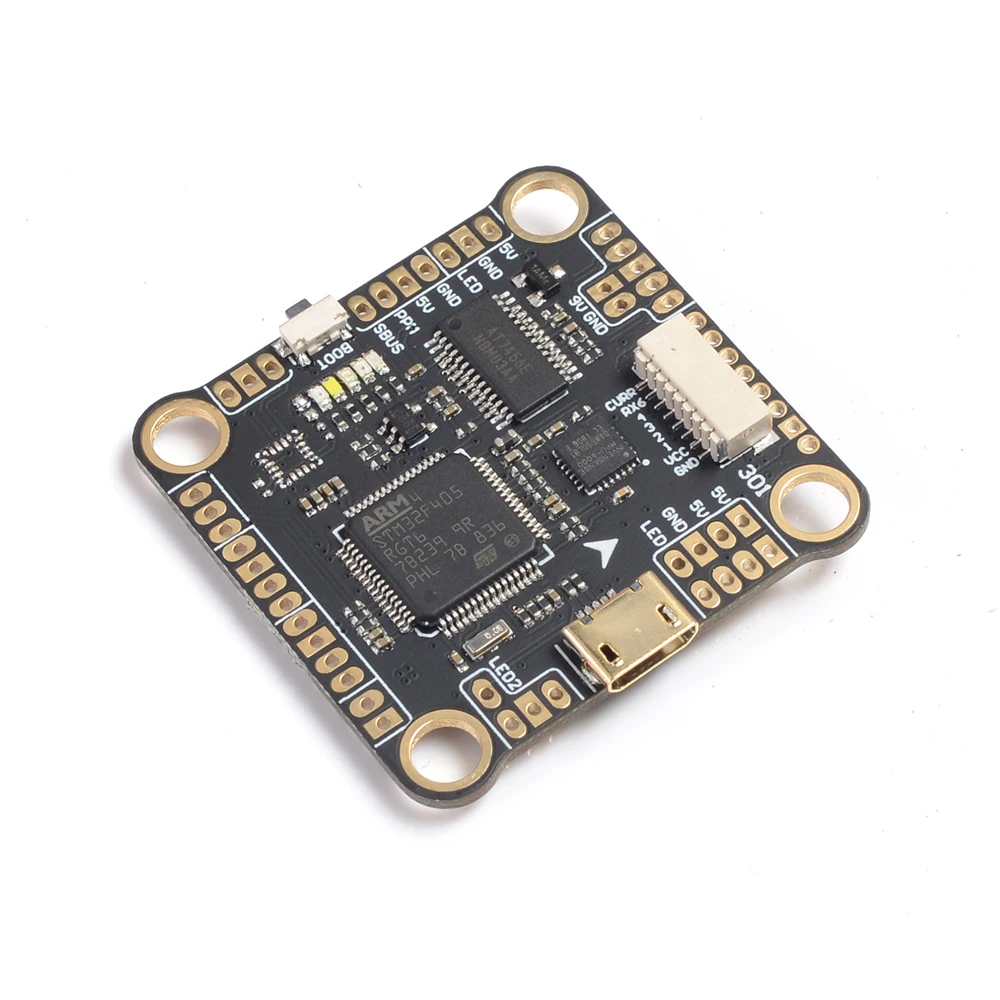

Mamba F405 FC
Item name: F405 Betaflight Flight Controller
Input power: 12.6-25V (3-6S)
BEC:5V 2.5A & 9V 2A
MCU: STM32F405
Gyro: MPU6000
Flash: 16MB
OSD: AT7456
Mounting hole:M3
Weight: 6g
Description:
INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
CONTINUE CURRENT: 40A×4 BURST
CURRENT: 50A (10S)
BEC: NO
MOUNTING: 30.5mm/M3
CURR: 169A
About Current: 50A/4S OR 40A/5S (The same total power)
Motor:Suggest Below 1900KVfor 6S
Mounting: 30mm / φM3
Weight: 10g
Package Included:
1 x Mamba F405 Betaflight Flight Controller
1 x Mamba F40 HV ESC
