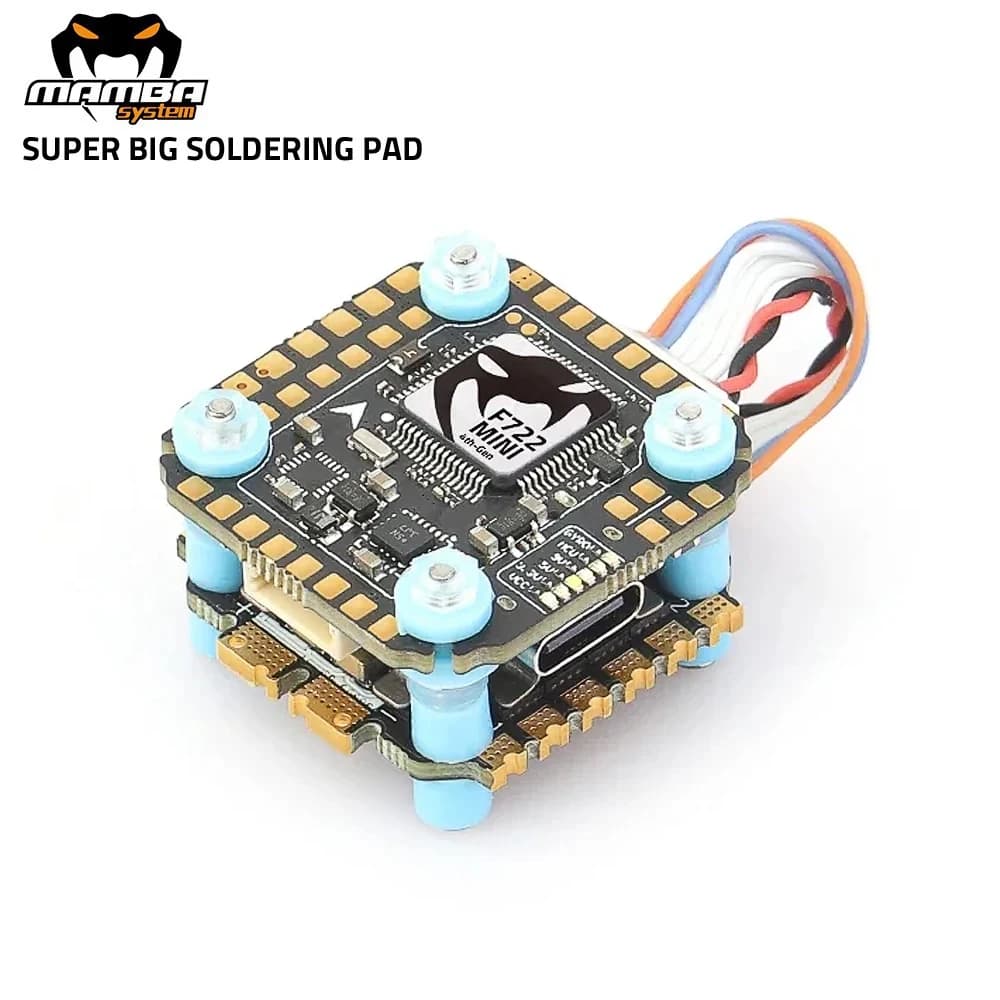

DIATONE MAMBA MK4 F722 MINI OSD Flight Controller W/ BLHeli_32 F40_128K ESC Dshot300/600/1200 3-6S for RC FPV Racing Drone Parts
From US $40.62
Est. US $40.62 / unit (1-9 pcs)
$37 @ 10+ pcs$35 @ 100+ pcs
2 orders (reference)
Description
MAMBA MK4 F722 MINI
MCU: 216MHz STM32F722
GYRO: MPU6000
OSD: Yes
Black box: 16M Flash Memory
Barometer: SPL06
Number of serial ports: 6Set
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer: Yes
Galvanometer: Yes
ESC signal: 8 Set
ESC program: Dshot300/600/1200
ESC kickback: Yes
Flight control status indicator: Yes
LED control switch: BF LED
Air terminal interface: Yes
WIFI: No
Video transmission power control: Yes
Receiver Short Circuit Protection: Yes
TVS power protection: Yes
BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
Input voltage: 3~6S Lipo (12.6~25.2V)
Mounting hole: 20mm, M2/M3
MAMBA F40_128K_MINI
Input voltage: 3~6S Lipo (12.6V~25.2V)
Rated current: 40A×4
Peak current: 45A (10S)
BEC: No
Firmware: BLHeli_32 MAMBA F40_128K_MINI
Program: Dshot300/600/1200
PWM: 24~128K
Variant
Selected priceUSD 81.45
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | MAMBA MK4 F722 MINI Flight Controller |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | MK4 F722 MINI Flight Controller |
| RC Parts & Accs | MINI Flight Controller |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details

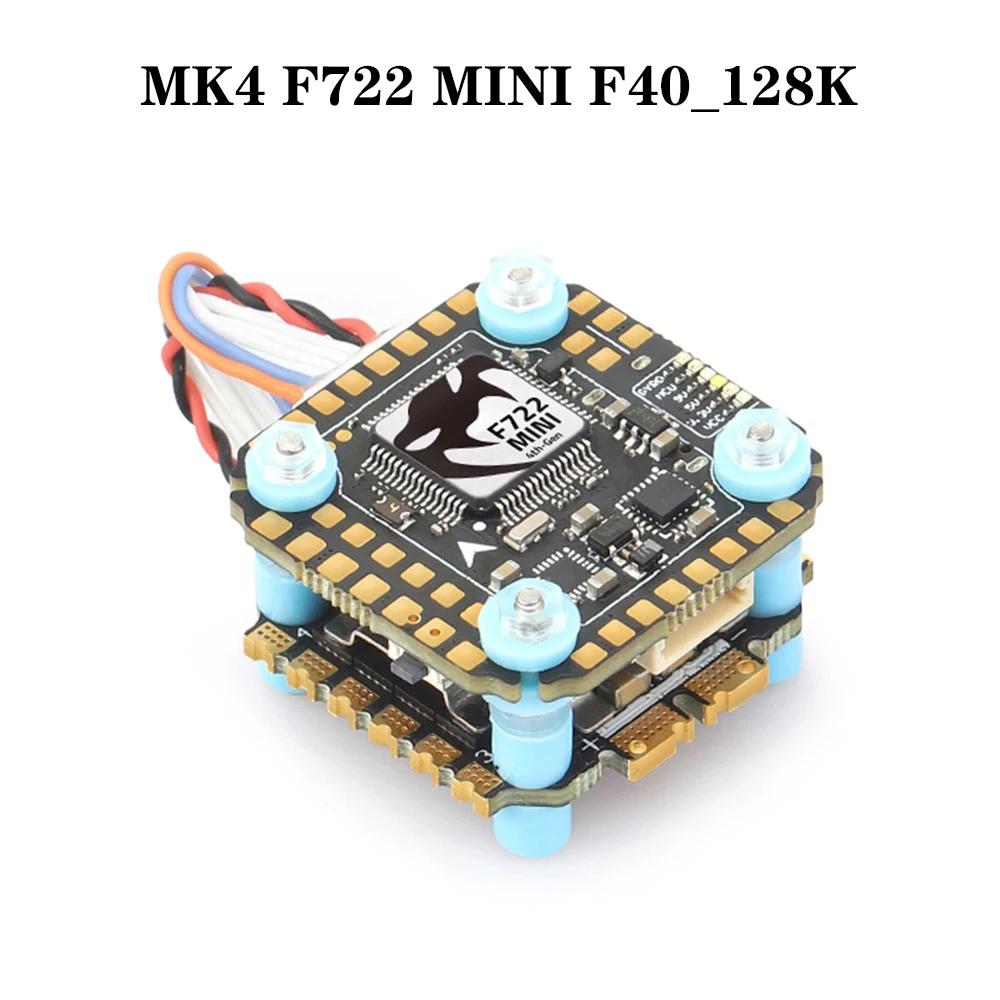

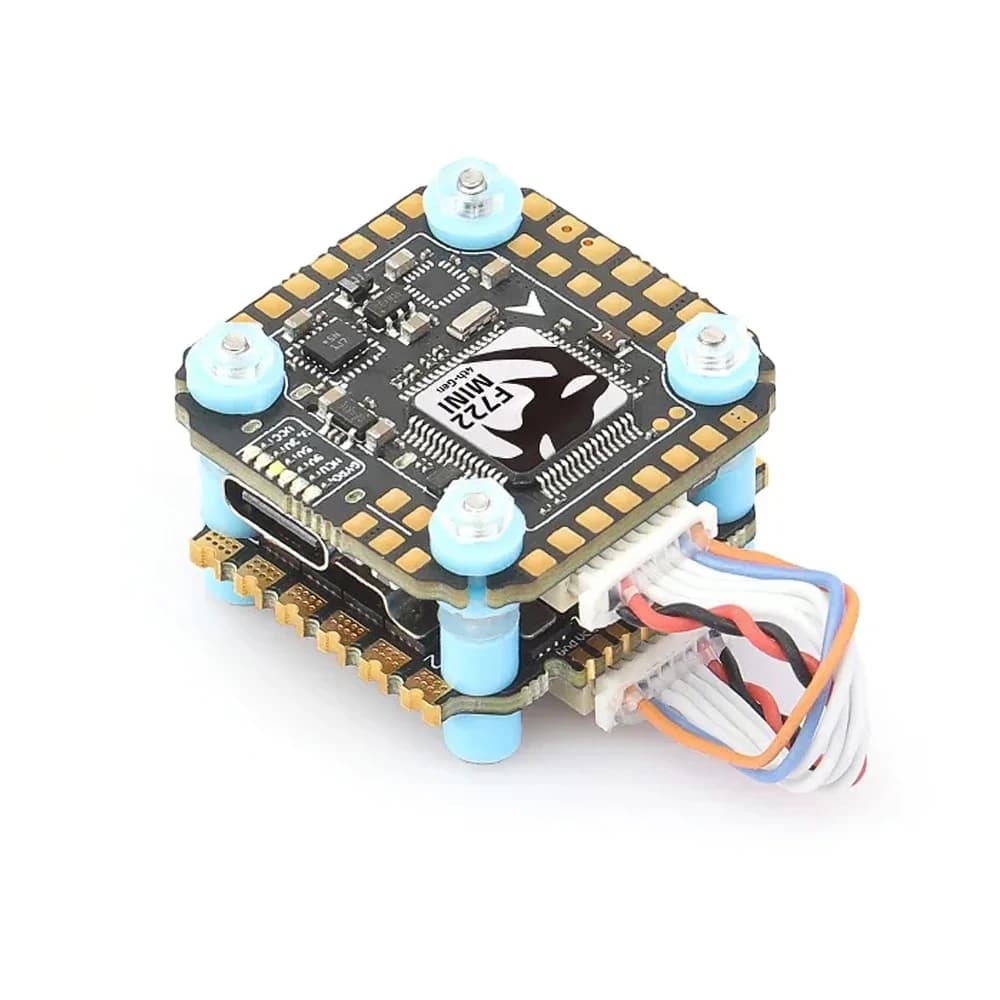

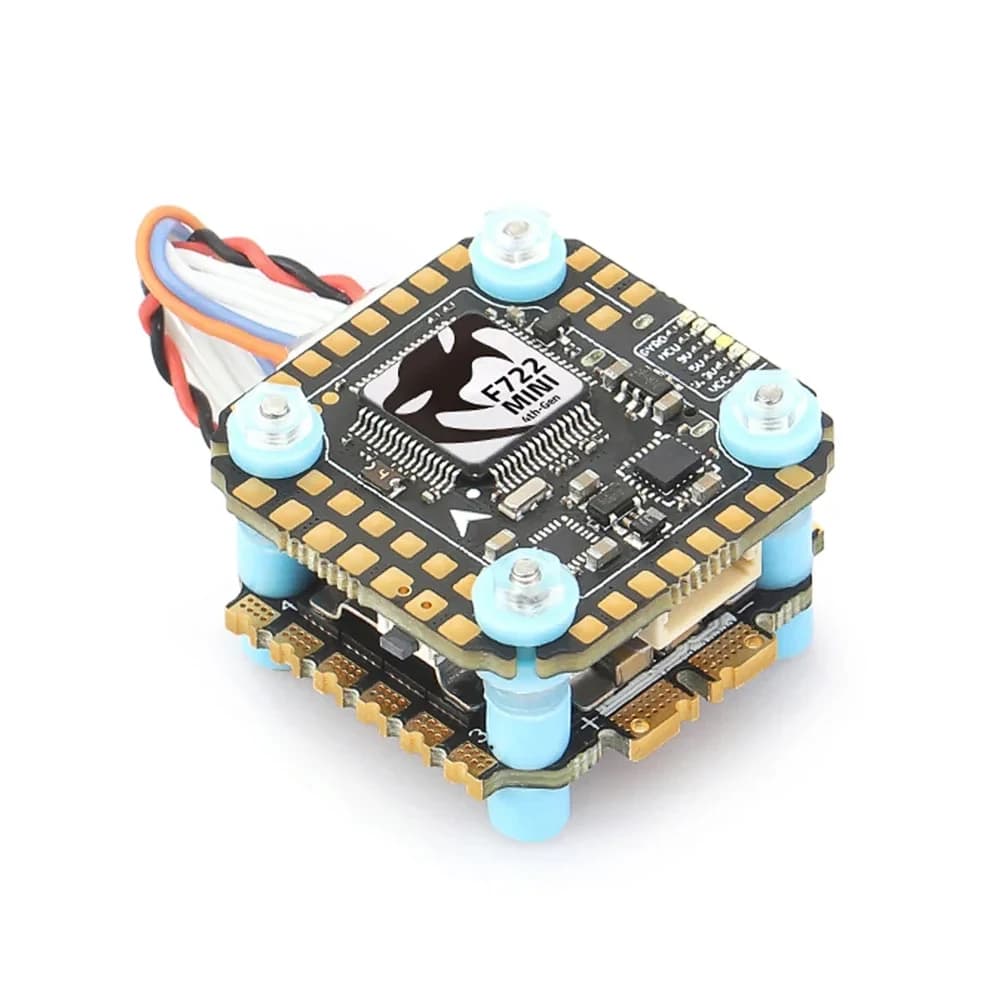

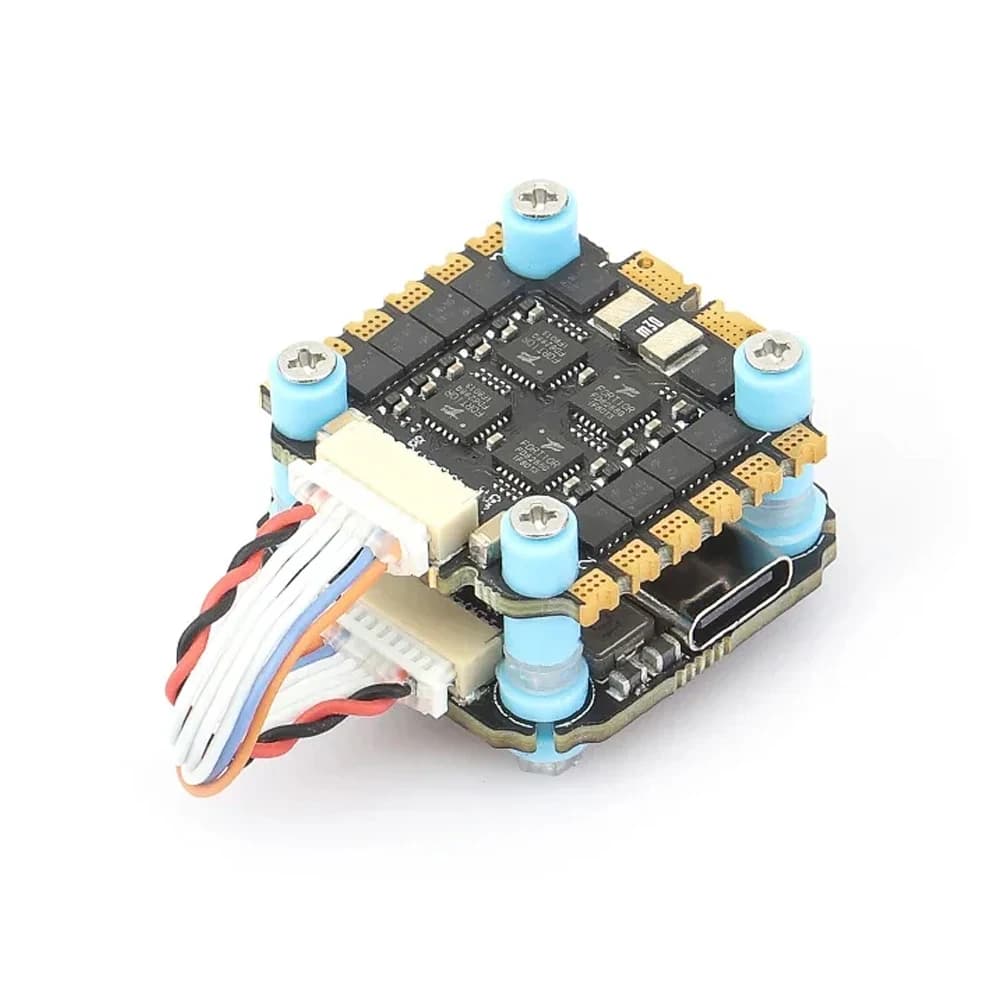

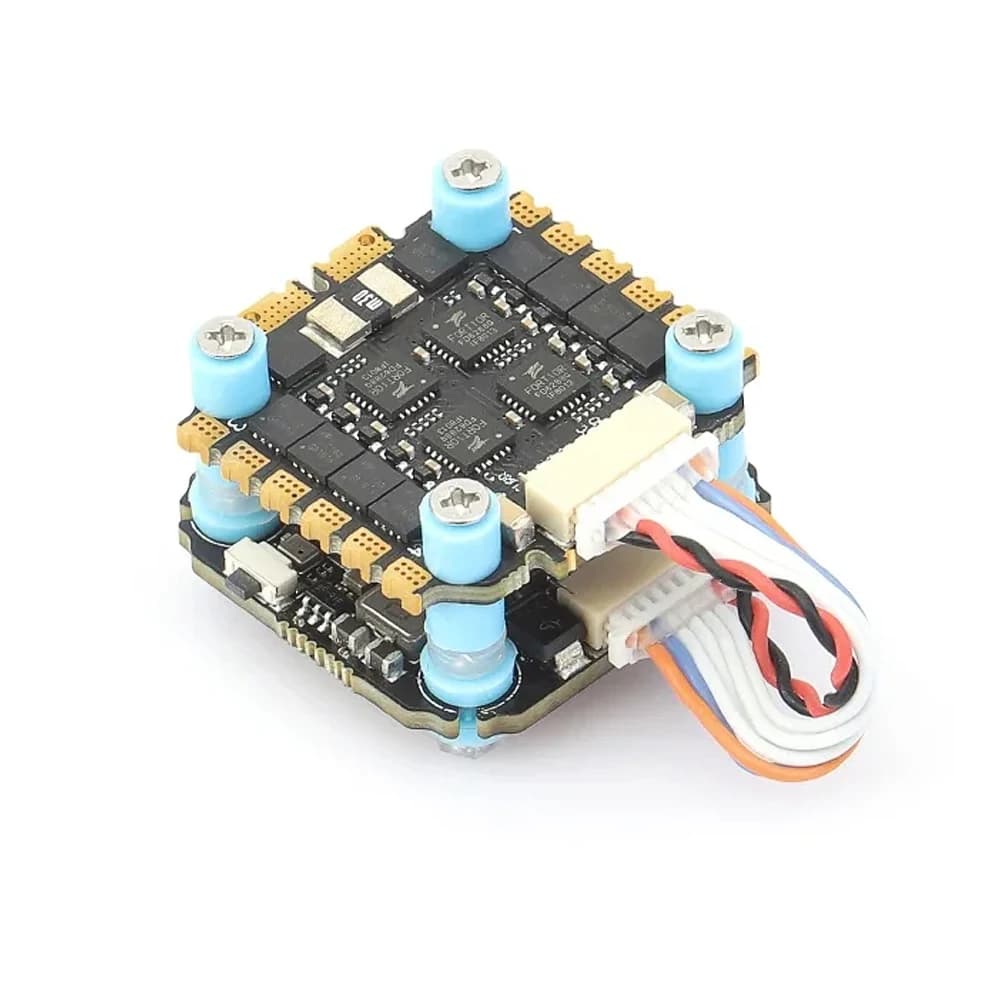

DIATONE MAMBA MK4 F722 MINI OSD Flight Controller MPU6000 W/ BLHeli_32 F40 _128K ESC Dshot300/600/1200 3-6S for RC FPV Racing Drone

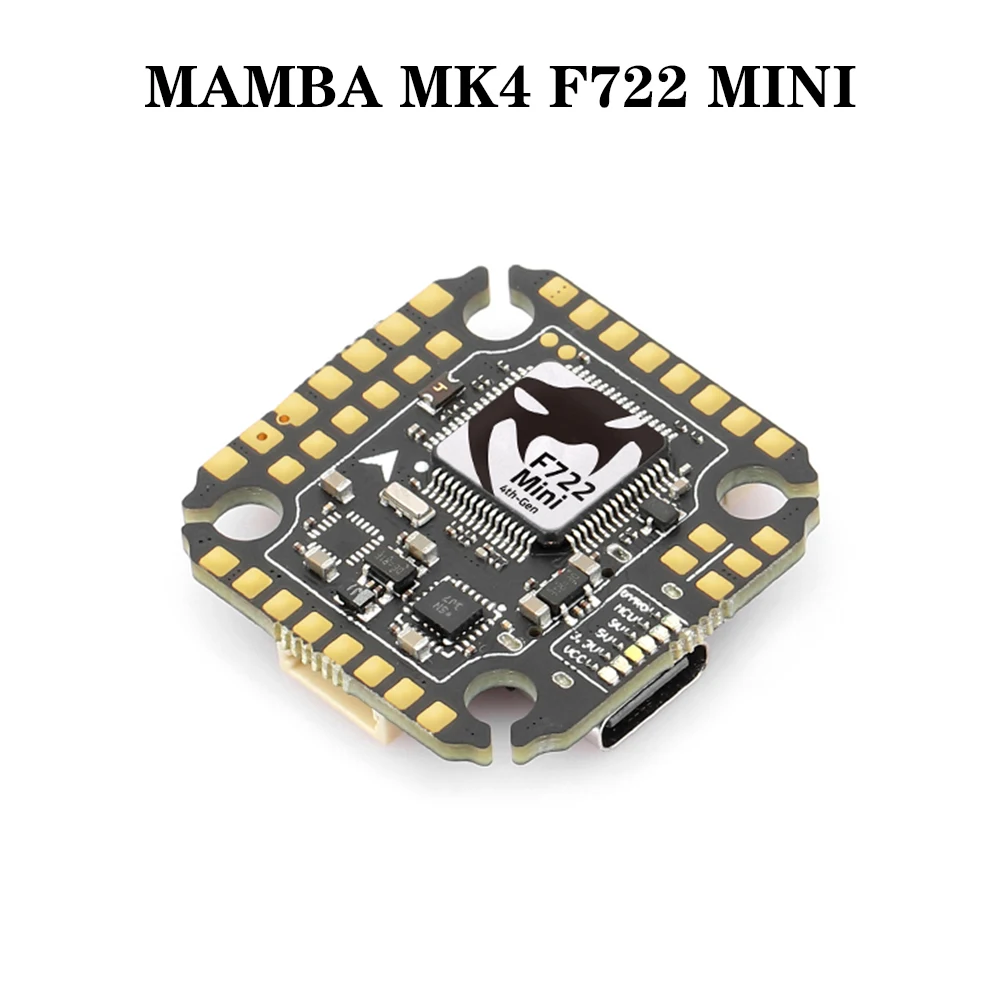

MAMBA MK4 F722 MINI
- MCU: 216MHz STM32F722
- GYRO: MPU6000
- OSD: Yes
- Black box: 16M Flash Memory
- Barometer: SPL06
- Number of serial ports: 6Set
- I2C: Yes
- F.Port: Yes
- RSSI: No
- Buzzer: Yes
- Galvanometer: Yes
- ESC signal: 8 Set
- ESC program: Dshot300/600/1200
- ESC kickback: Yes
- Flight control status indicator: Yes
- LED control switch: BF LED
- Air terminal interface: Yes
- WIFI: No
- Video transmission power control: Yes
- Receiver Short Circuit Protection: Yes
- TVS power protection: Yes
- BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A
- Input voltage: 3~6S Lipo (12.6~25.2V)
- Mounting hole: 20mm, M2/M3

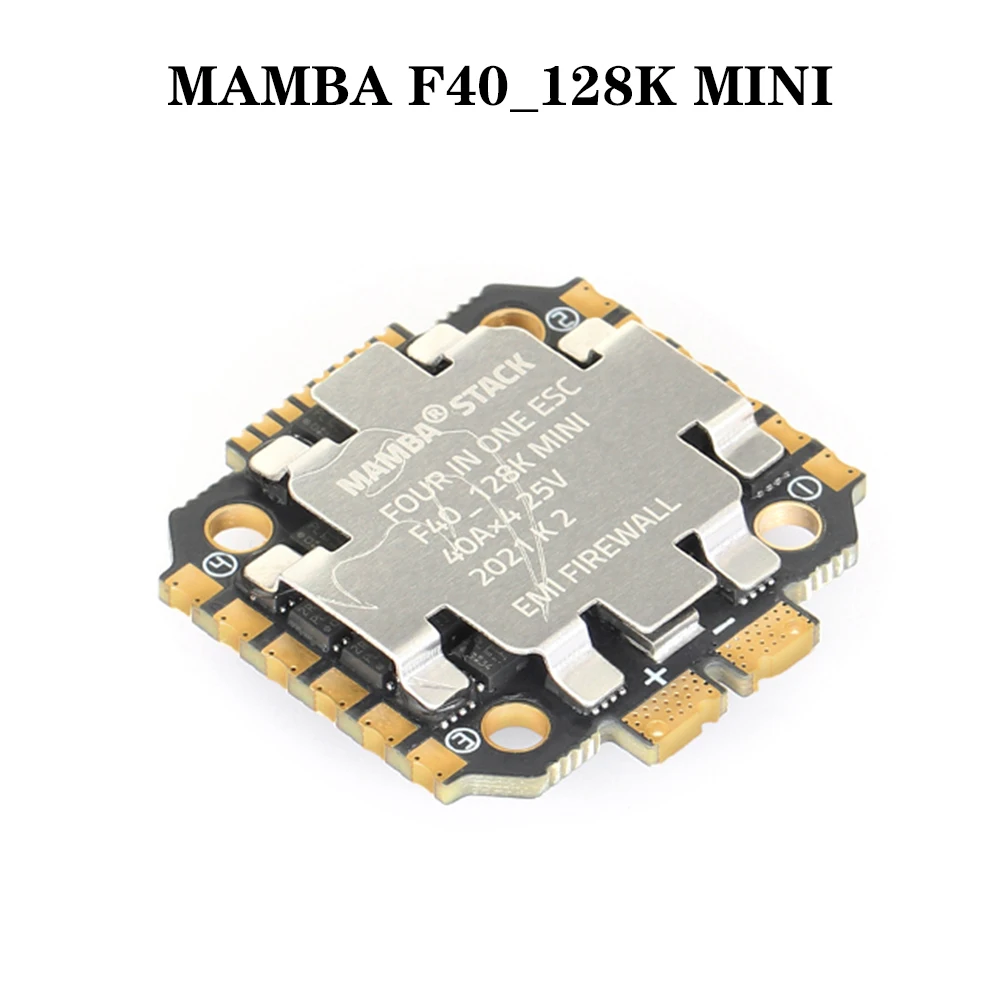

MAMBA F40_128K_MINI
- Input voltage: 3~6S Lipo (12.6V~25.2V)
- Rated current: 40A×4
- Peak current: 45A (10S)
- BEC: No
- Firmware: BLHeli_32 MAMBA F40_128K_MINI
- Program: Dshot300/600/1200
- PWM: 24~128K
- TVS power protection: Yes
- Mounting hole: 20mm, M2/M3
Package Included:
- 1x MAMBA MK4 F722MINI FC
- 1x MAMBA F40_128K_MINI
- High Frequency 470uF/35V ×1
- 8pin sh1.0 ×2
- AIR UNIT sh1.0 ×2
- 16AWG 60mm × 2
- AMASS Original XT60
