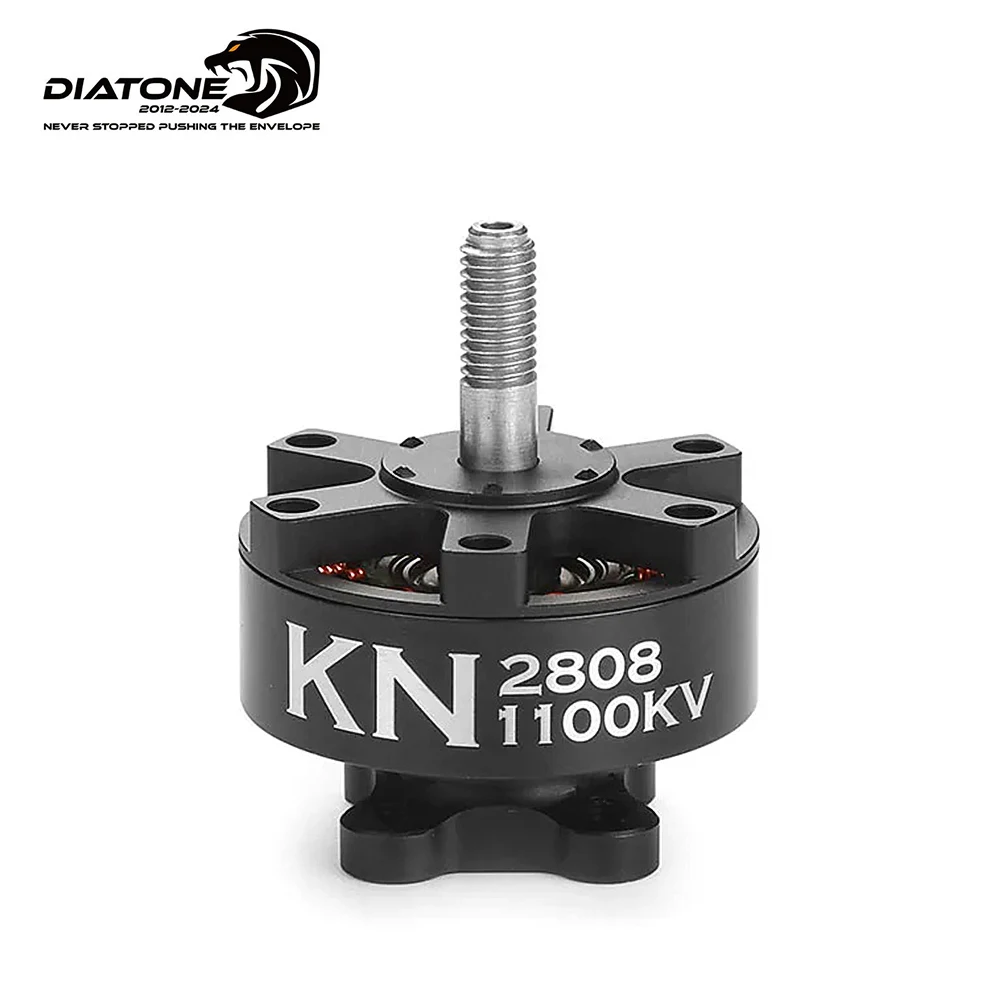

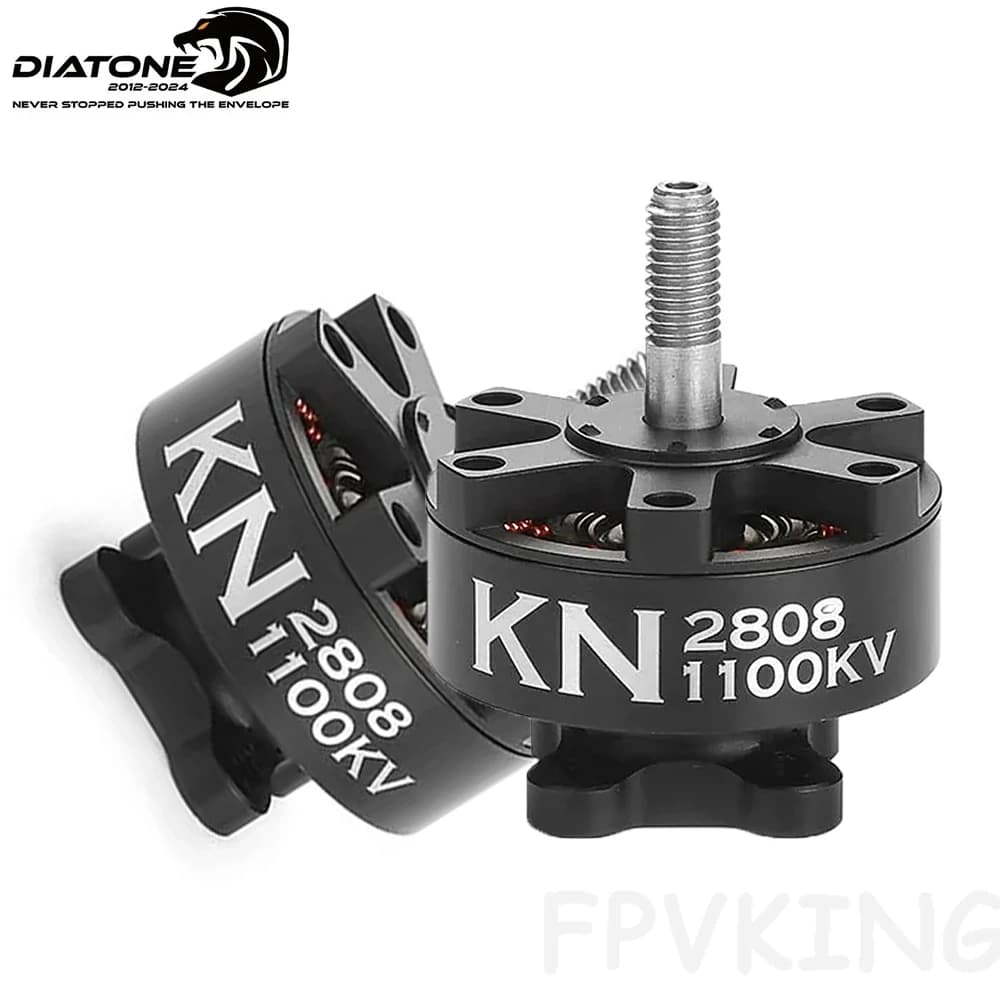

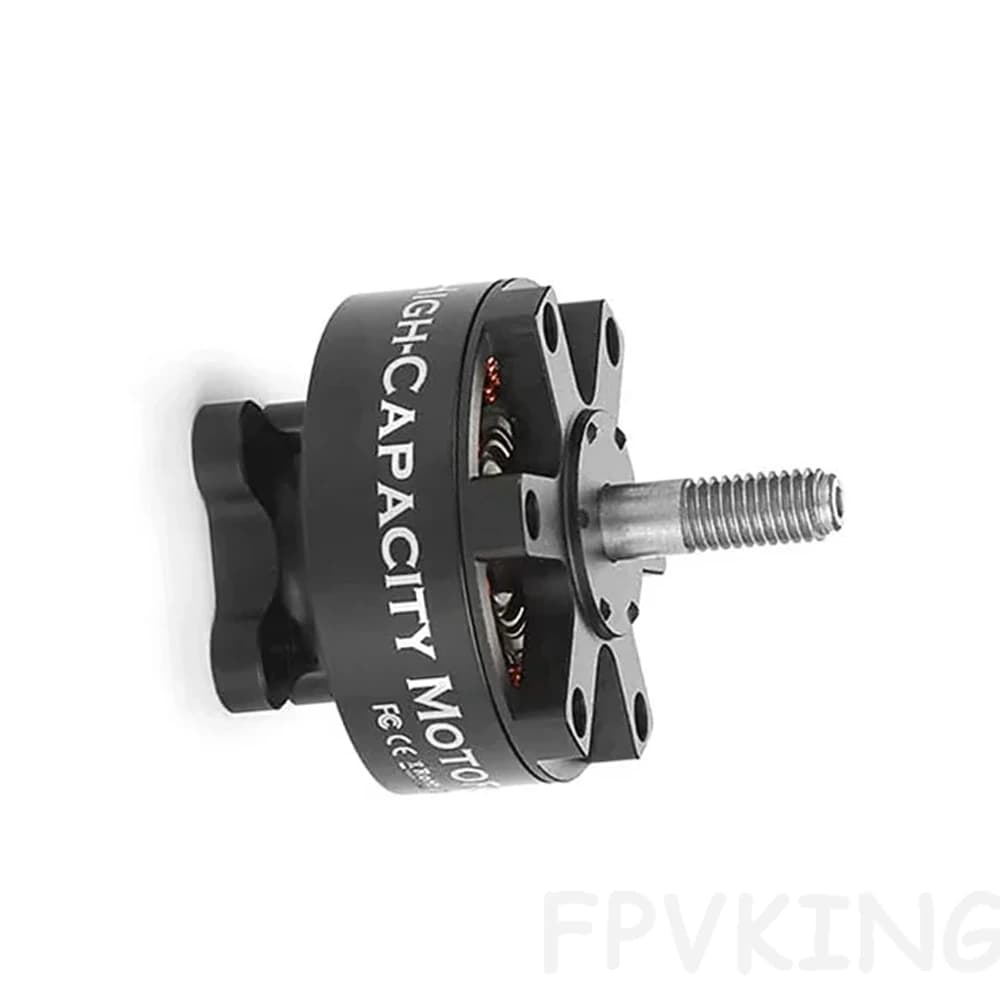

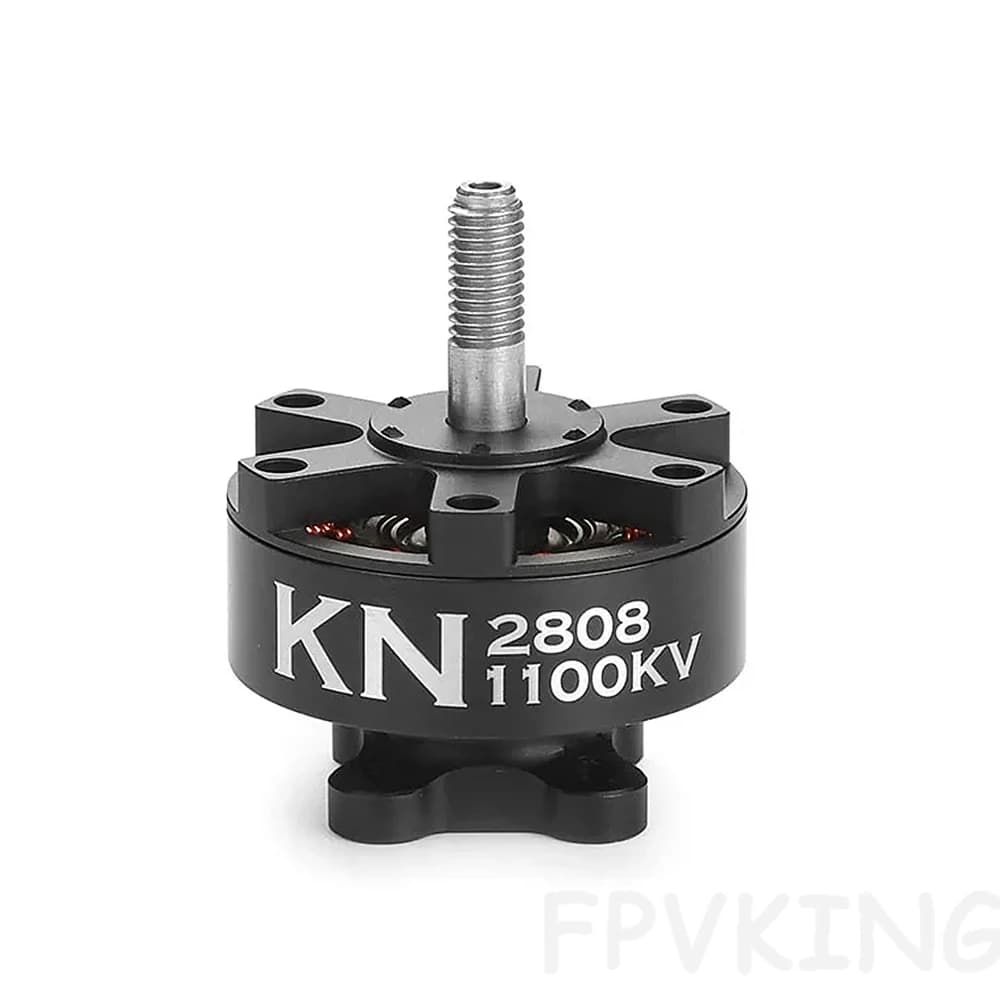

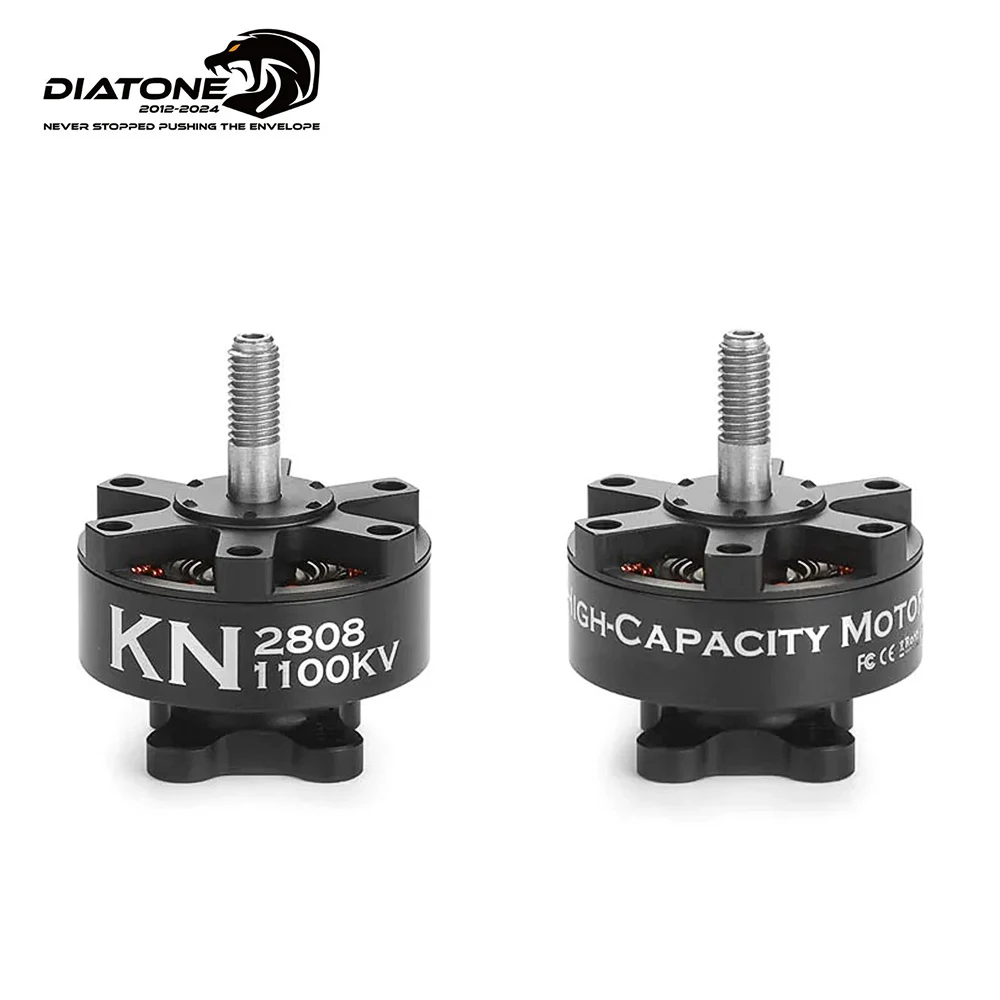

DIATONE MAMBA KN2808 1100KV Brushless Motor - 6mm Titanium Shaft for 7inch 4-6S RC FPV Racing Drone
Reference price:
US $19.83
1-10 pcs$18(-3%)
10-100 pcs$18(-7%)
100+ pcs$17(-12%)
1 orders (reference)
Description
DIATONE MAMBA KN2808 1100KV Brushless Motor - 6mm Titanium Shaft for 7inch 4-6S RC FPV Racing Drone High-concerned chemical: None Is Electric: No Battery Quantity: 1 pcs Wheelbase: Bottom Plate Is it battery/power supply: N Is it charger/adapter: N Is Batteries Included: No Size: NA
Select options
Variant
Specifications
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | MAMBA KN 2808 1100KV |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Material | Metal |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | NONE |
| RC Parts & Accs | Motors |
Product Details
DIATONE MAMBA KN2808 1100KV Brushless Motor W/ 6mm titanium alloy shaft Compatible 7inch Propeller 4-6S for FPV Racing Drone
Description
MAMBA KN 2808 1100KV
Color: black

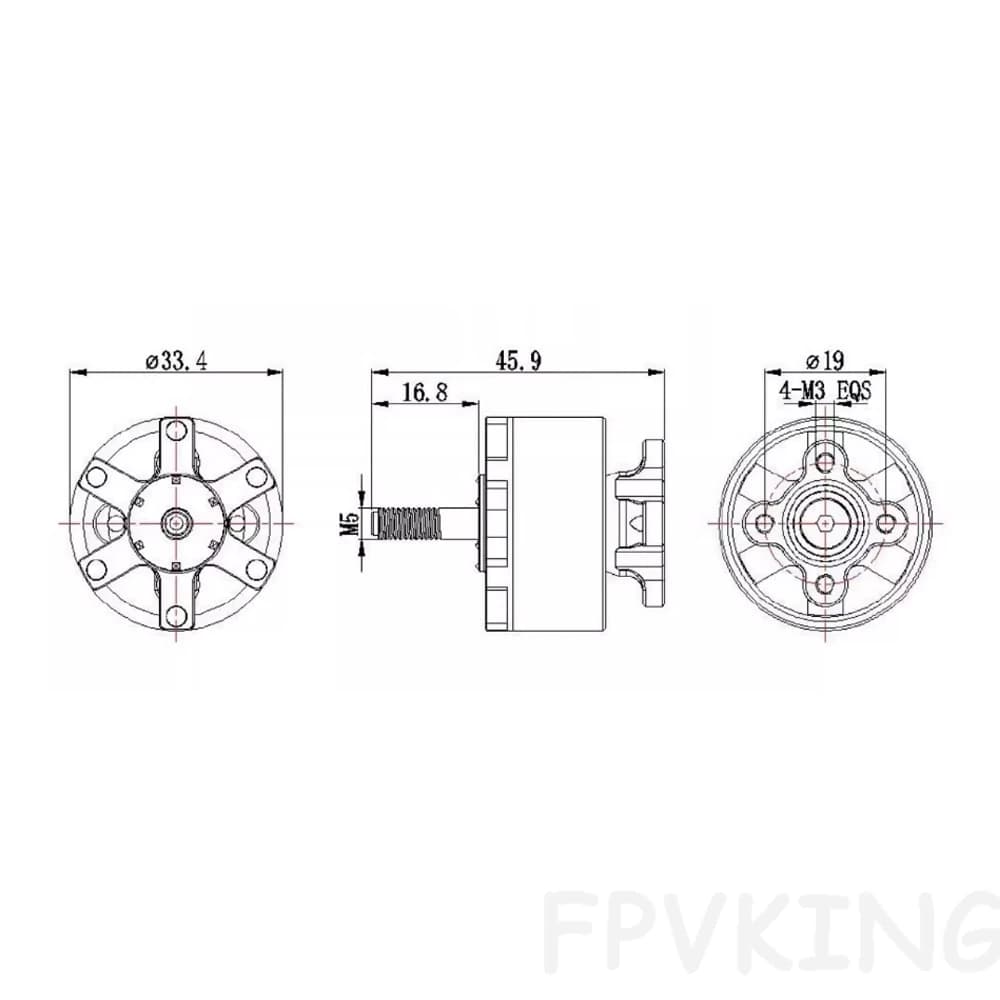

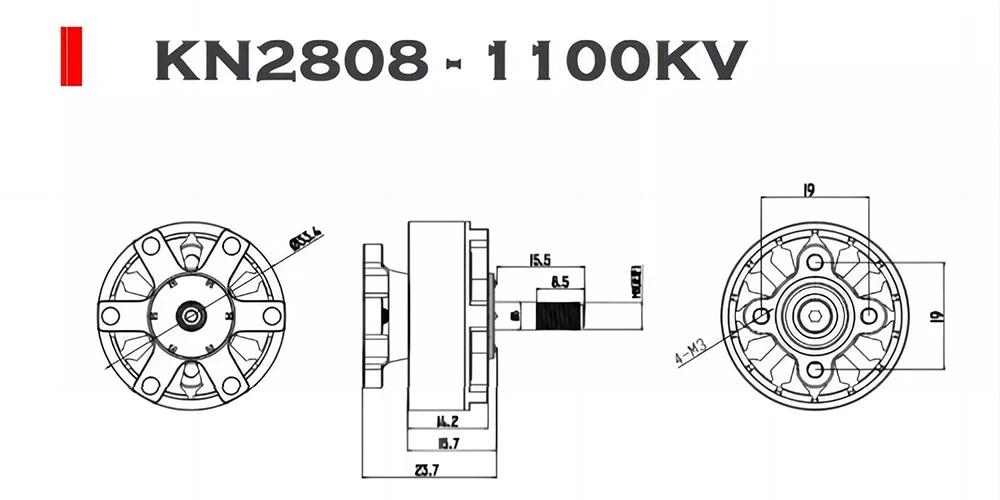

Overall Dimension:Φ35.1×40.3mm
prop mounting shaft diameter:5mm
Installation hole position:19×19mm,M3
Prop: 7 inch
Bottom Bearing:13*6*5
Top Bearing:10*6*4
slots/poles:12N14P
Shaft Diameter:6.0mm
Magnet Wire: 240℃ Enameled Wire
Stator Diamter:28mm
Stator Height:8mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current:38.7A
ladle Current:1.2A
Maximum Power: 862.5W
Internal Resistance:68mΩ
Weight 63.5g
