DIATONE MAMBA F55 / F65_128K AM32 4in1 ESC Dshot 300-600-1200 Installation 30.5x30.5mm / M3 4-6S For RC FPV Racing Drone Parts
From US $47.60 - 61.52
Est. US $47.60 - 61.52 / unit (1-9 pcs)
$44 @ 10+ pcs$41 @ 100+ pcs
26 orders (reference)
Description

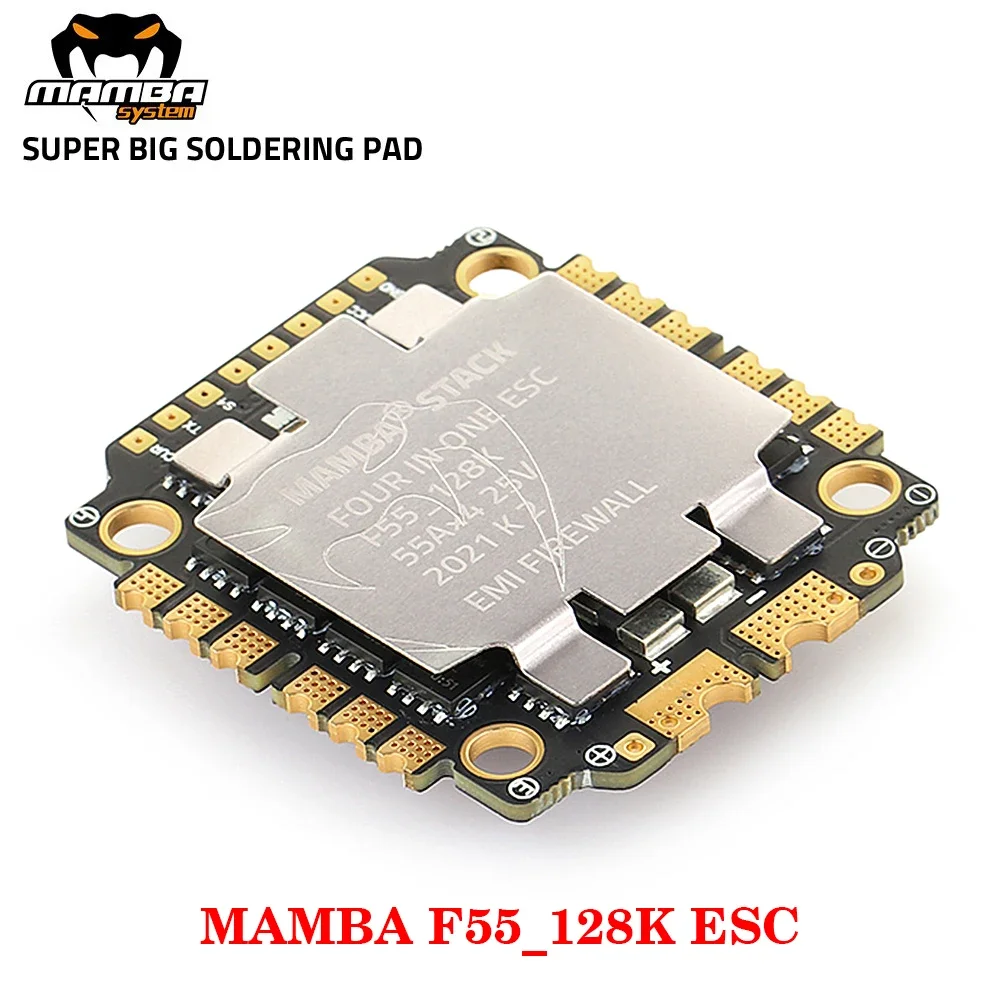

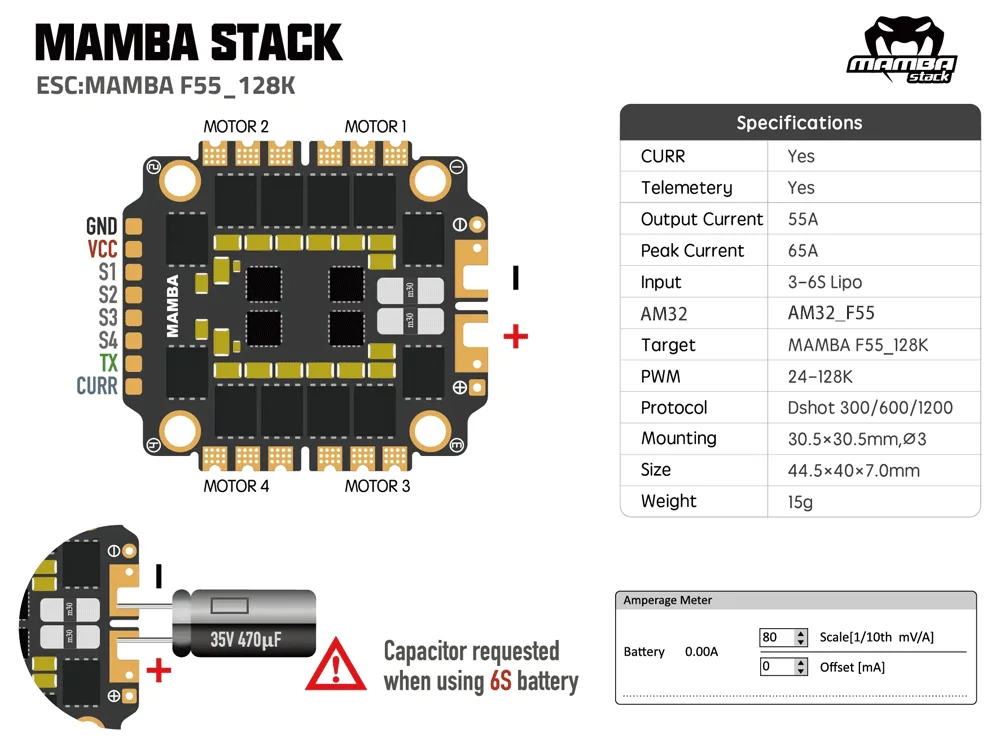

MAMBA AM32 F55_ 128K ESC
Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
Work current: 55A × 4
Peak current: 65A (10S)
BEC output: NO
Firmware: AM32 MABA F55_128K
Agreement: DSHOT300/600/1200
PWM: 24 ~ 128K
TVS Power Protection: Yes
Installation size: 30.5mm/m3

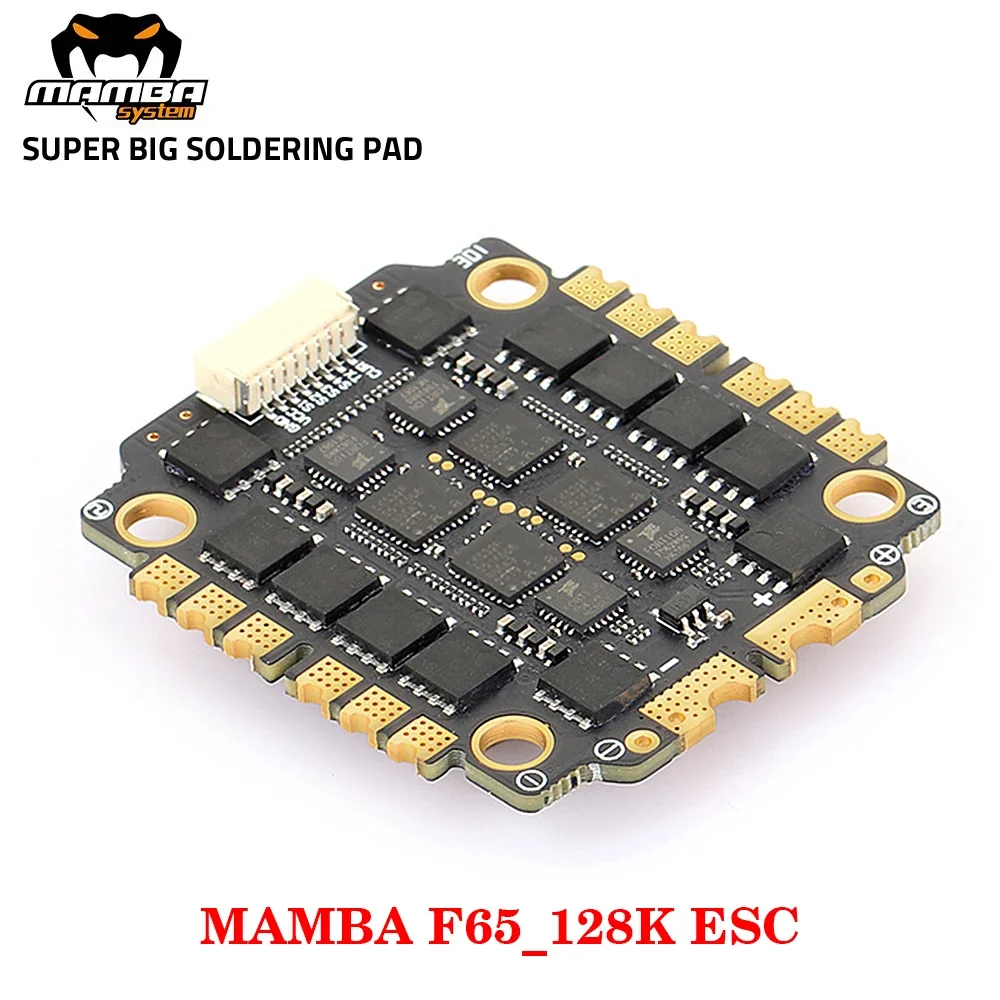

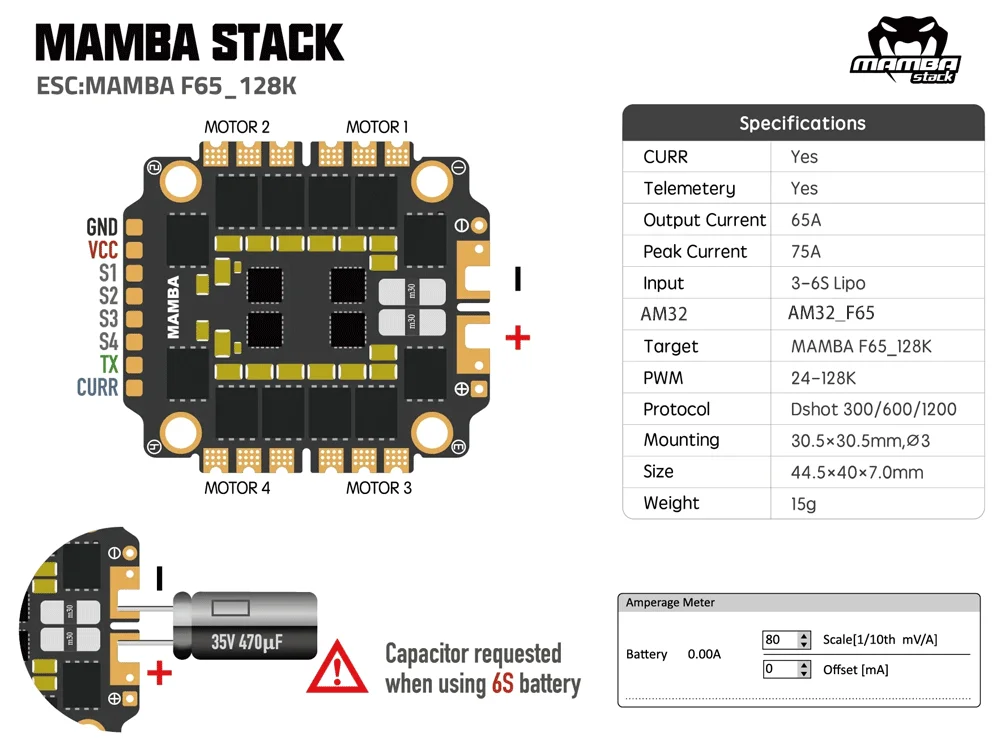

MAMBA AM32 F65_ 128K ESC
Work current: 65A × 4
Peak current: 75A (10S)
Firmware: AM32 MABA F65_128K
Variant
Selected priceUSD 35.07
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | MAMBA F55 / F65_128K |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | 4IN1 Brushless ESC |
| RC Parts & Accs | Brushless ESC |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
DIATONE MAMBA F55 / F65_128K AM32 4in1 ESC Dshot 300-600-1200 Installation 30.5x30.5mm / M3 4-6S For RC FPV Racing Drone Parts
MAMBA AM32 F55_ 128K ESC
- Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
- Work current: 55A × 4
- Peak current: 65A (10S)
- BEC output: NO
- Firmware: AM32 MABA F55_128K
- Agreement: DSHOT300/600/1200
- PWM: 24 ~ 128K
- TVS Power Protection: Yes
- Installation size: 30.5mm/m3
MAMBA AM32 F65_ 128K ESC
- Working voltage: 4 ~ 6S Lipo (16.8V ~ 25.2V)
- Work current: 65A × 4
- Peak current: 75A (10S)
- BEC output: NO
- Firmware: AM32 MABA F65_128K
- Agreement: DSHOT300/600/1200
- PWM: 24 ~ 128K
- TVS Power Protection: Yes
- Installation size: 30.5mm/m3
