DIATONE MAMBA F405 MK2 V2 (ICM42688P) Flight Controller W/ F55 BLS F65 BLS 4in1 ESC Dshot 300/600 3-6S for RC FPV Racing Drone
From US $40.32
Est. US $40.32 / unit (1-9 pcs)
$37 @ 10+ pcs$35 @ 100+ pcs
146 orders (reference)
Description

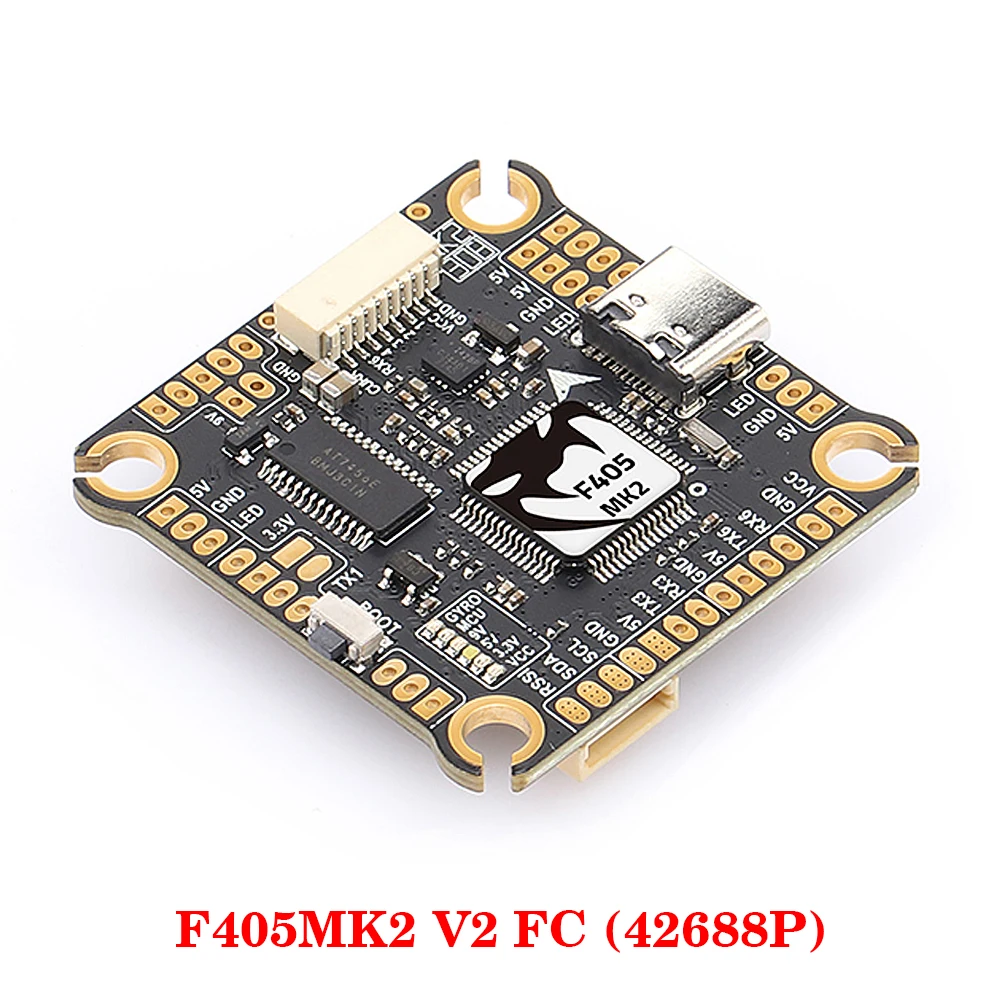

MAMBA F405MK2 V2 FC (42688P)
Firmware: Furyf4osd
Main control: 168MHz STM32F405
Gyroscope: ICM-42688-P
OSD: Support
Black box: 16M Flash Memory
Ben: NO
Serial port: 3SET
I2C signal: support
F.Port signal: NO
RSSI signal: support
Bee Narrator: Support
Electric output: 6 set
Electrical Agreement: DSHOT300/600
Electrochemical return: support
Status indicator: Yes
LED output: BF LED
Sky end interface: support
Wifi tuning: NO
VTX power control: NO
BEC protection: yes
Receiving machine protection: yes
TVS Power Protection: Yes
BEC output: 3.3V 0.5A & 5V 2A & 9V2A
Working voltage: 3 ~ 6S Lipo (12.6 ~ 25.2V)
Installation size: 30.5mm/m3
MAMBA F55 BLS ESC
Input voltage: 4 ~ 6s Lipo (12.6V ~ 25.2V)
Rating current: 55A × 4
Peak current: 60A (10S)
BEC: NO program: DSHOT300/600
Firmware: BLHELI_S CH40
Install holes: 30.5mm/m3
Size: 44.5 × 40 × 6.8mm
Shipping: 8pin SH1.0 × 2
AMASS Original XT60 × 1
High -frequency capacitor 470UF/35V × 1
MAMBA F65 BLS ESC
Input voltage: 4~6S Lipo (14.8~25.2V)
Output Current: 65A×4
Peak Current: 75A (10S)
BEC Output: No
Target Firmware: BLHeli_S CH40/DX40/DX30
Protocol: Dshot300/600
Product Size: 44.5×40×6.8mm
Shipping:
8pin SH1.0 × 2
AmAss Original XT60
High -frequency capacitor 470UF/35V
Variant
Selected priceUSD 41.26
Specifications
| Option | Values |
|---|---|
| High-concerned chemical |
|
| Is Electric |
|
| Quantity |
|
| Wheelbase |
|
| Is it battery/power supply |
|
| Is it charger/adapter |
|
| Is Batteries Included |
|
| Size |
|
| Technical parameters |
|
| Model Number |
|
| For Vehicle Type |
|
| Tool Supplies |
|
| Four-wheel Drive Attributes |
|
| Remote Control Peripherals/Devices |
|
| Upgrade Parts/Accessories |
|
| RC Parts & Accs |
|
| Material |
|
| Origin |
|
| Recommend Age |
|
| Use |
|
| Certification |
|
| Attribute | Value |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Quantity | 1 pcs |
| Wheelbase | Bottom Plate |
| Is it battery/power supply | N |
| Is it charger/adapter | N |
| Is Batteries Included | No |
| Size | NA |
| Technical parameters | KV1100 |
| Model Number | MAMBA F405+F55 F65 BLS |
| For Vehicle Type | Airplanes |
| Tool Supplies | Assembled class |
| Four-wheel Drive Attributes | Assemblage |
| Remote Control Peripherals/Devices | Remote Controller |
| Upgrade Parts/Accessories | MAMBA F405MK2 V2 (42688P) |
| RC Parts & Accs | Flight Controller |
| Material | Composite Material |
| Origin | Mainland China |
| Recommend Age | 14+y |
| Use | Vehicles & Remote Control Toys |
| Certification | CE |
Product Details
DIATONE MAMBA F405 MK2 V2 (ICM42688P) Flight Controller W/ F55 BLS F65 BLS 4in1 ESC Dshot 300/600 3-6S for RC FPV Racing Drone

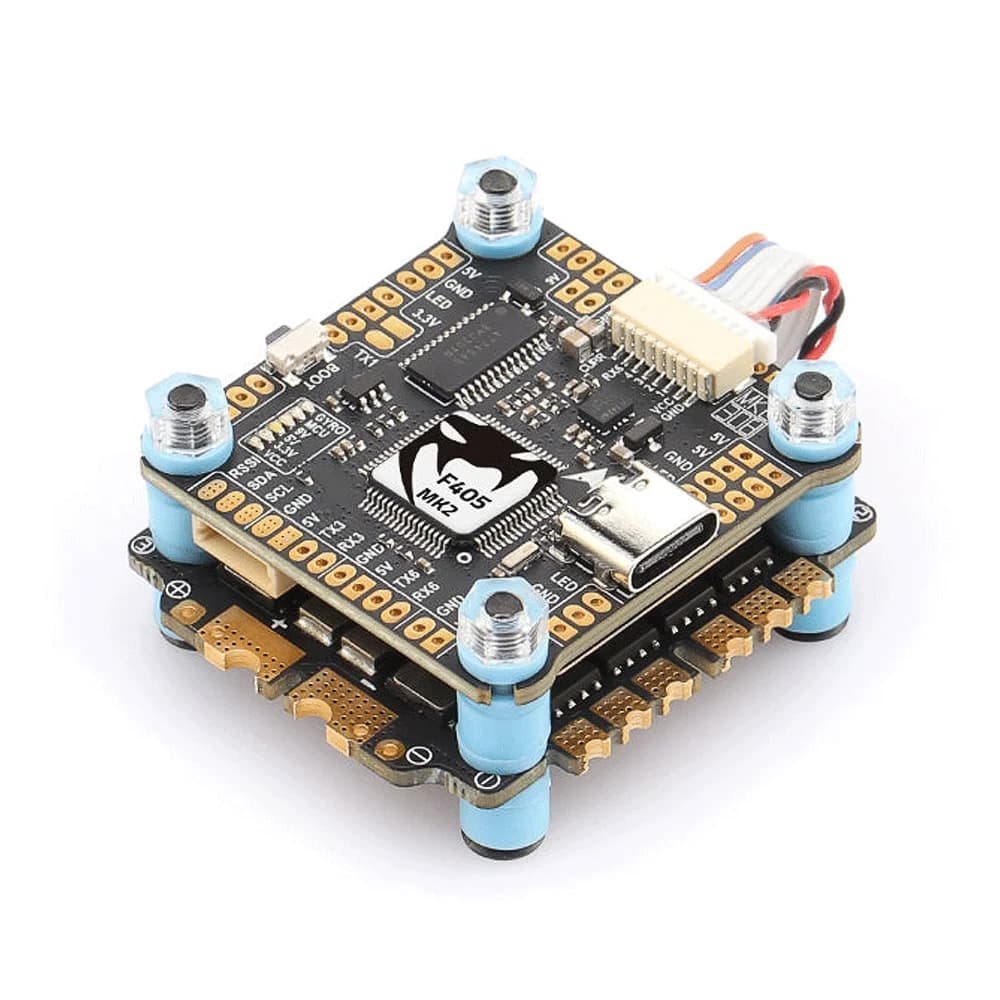

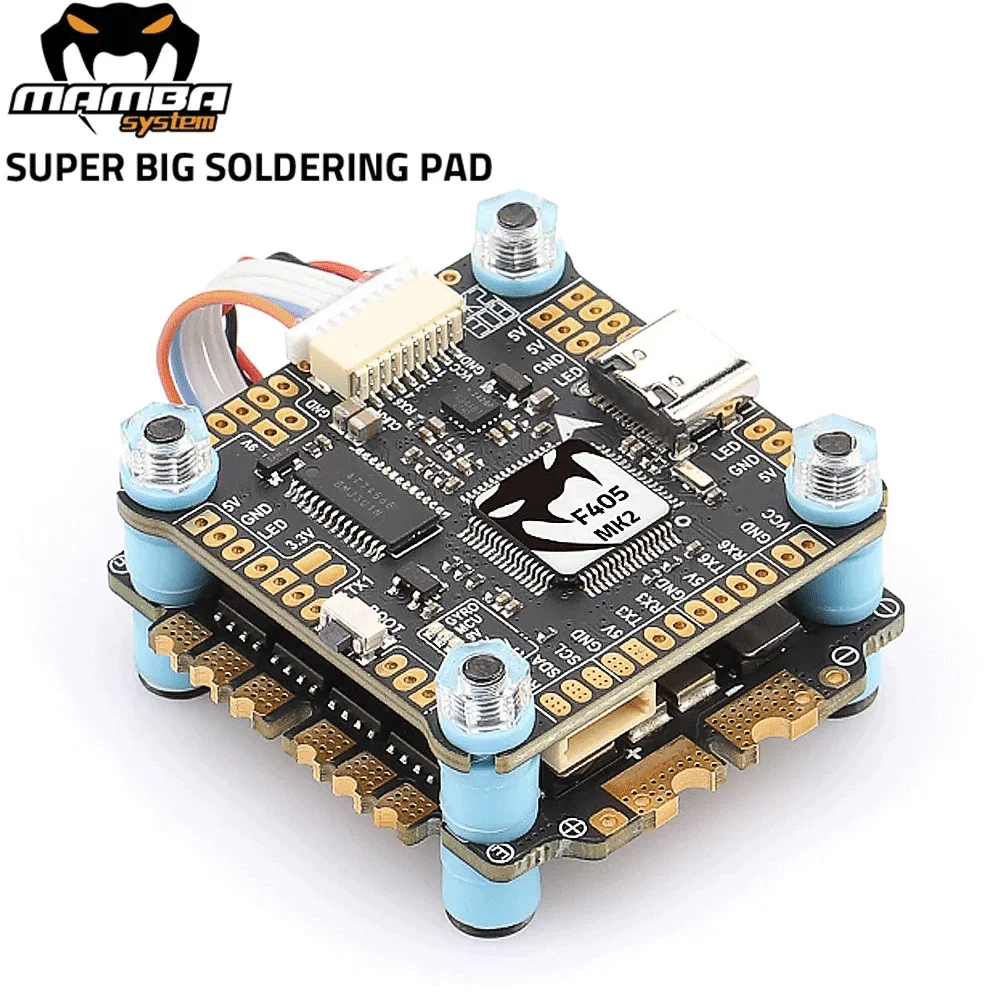

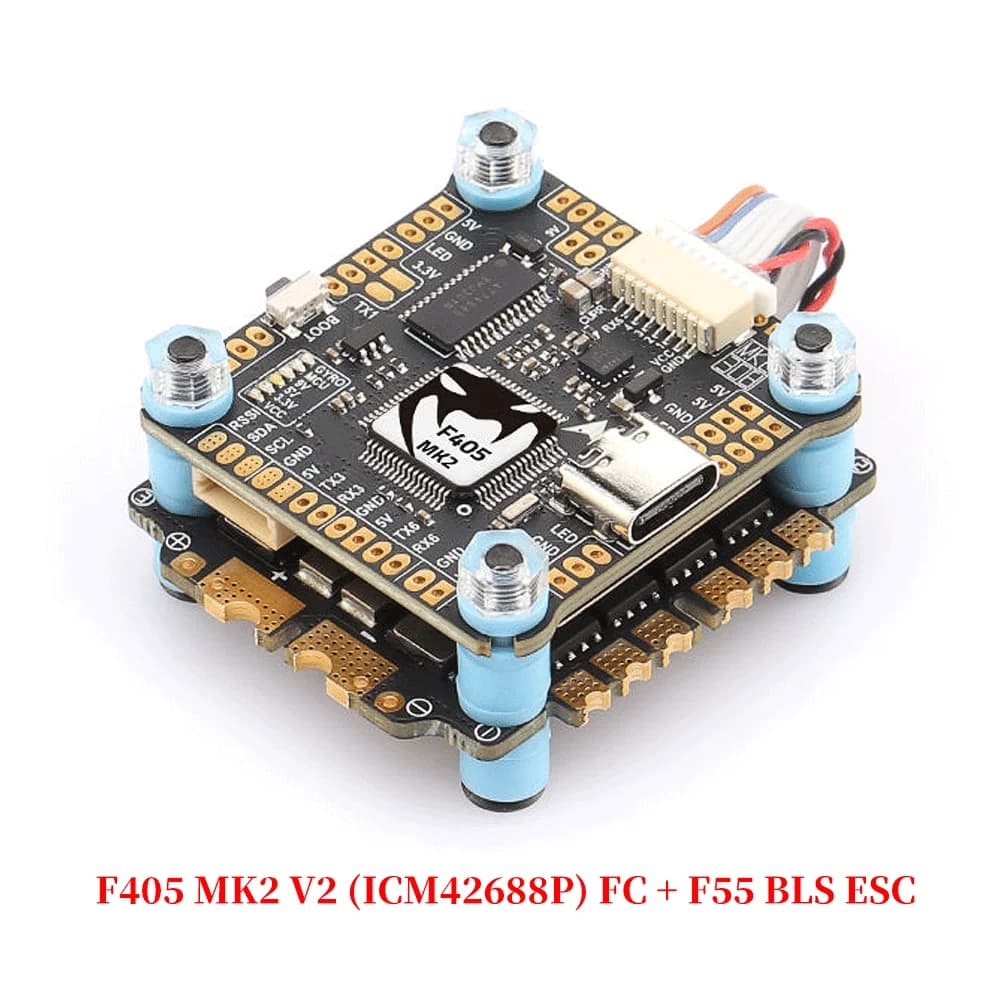

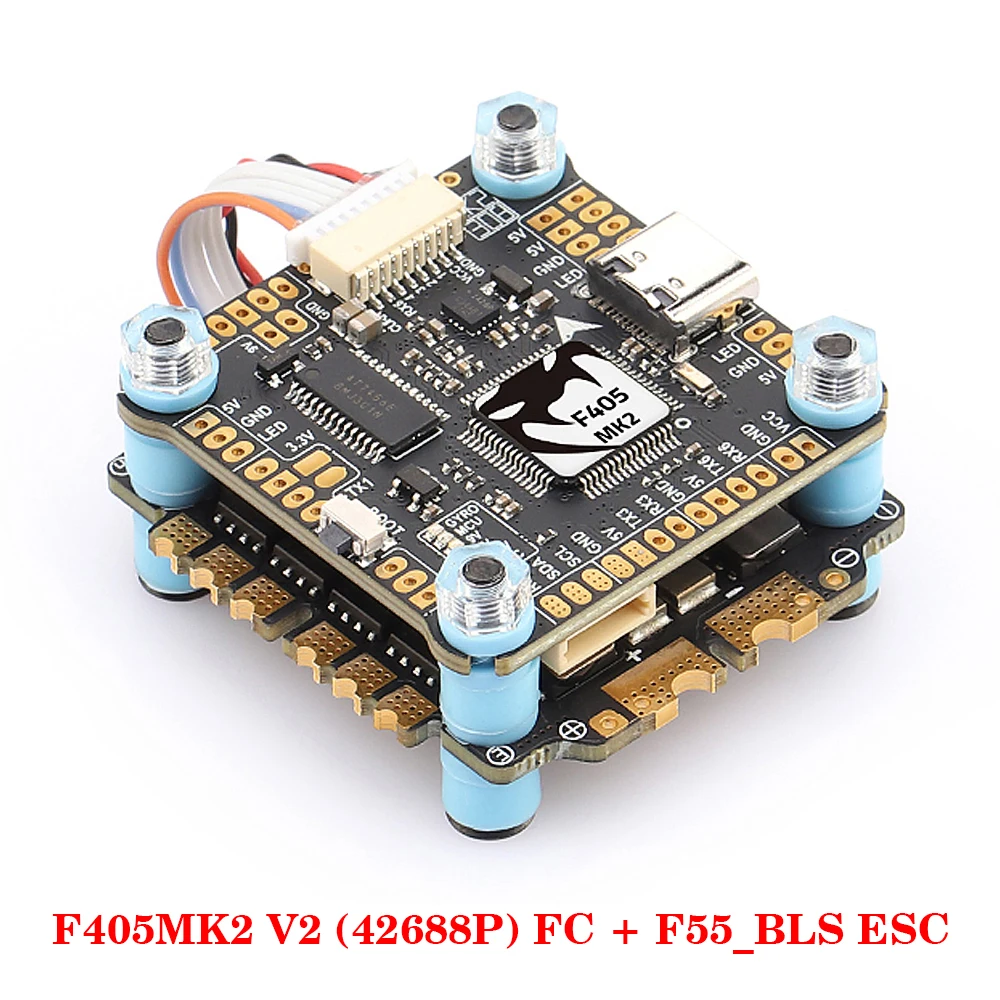

MAMBA F405MK2 V2 FC (42688P)
- Firmware: Furyf4osd
- Main control: 168MHz STM32F405
- Gyroscope: ICM-42688-P
- OSD: Support
- Black box: 16M Flash Memory
- Ben: NO
- Serial port: 3SET
- I2C signal: support
- F.Port signal: NO
- RSSI signal: support
- Bee Narrator: Support
- Electric output: 6 set
- Electrical Agreement: DSHOT300/600
- Electrochemical return: support
- Status indicator: Yes
- LED output: BF LED
- Sky end interface: support
- Wifi tuning: NO
- VTX power control: NO
- BEC protection: yes
- Receiving machine protection: yes
- TVS Power Protection: Yes
- BEC output: 3.3V 0.5A & 5V 2A & 9V2A
- Working voltage: 3 ~ 6S Lipo (12.6 ~ 25.2V)
- Installation size: 30.5mm/m3

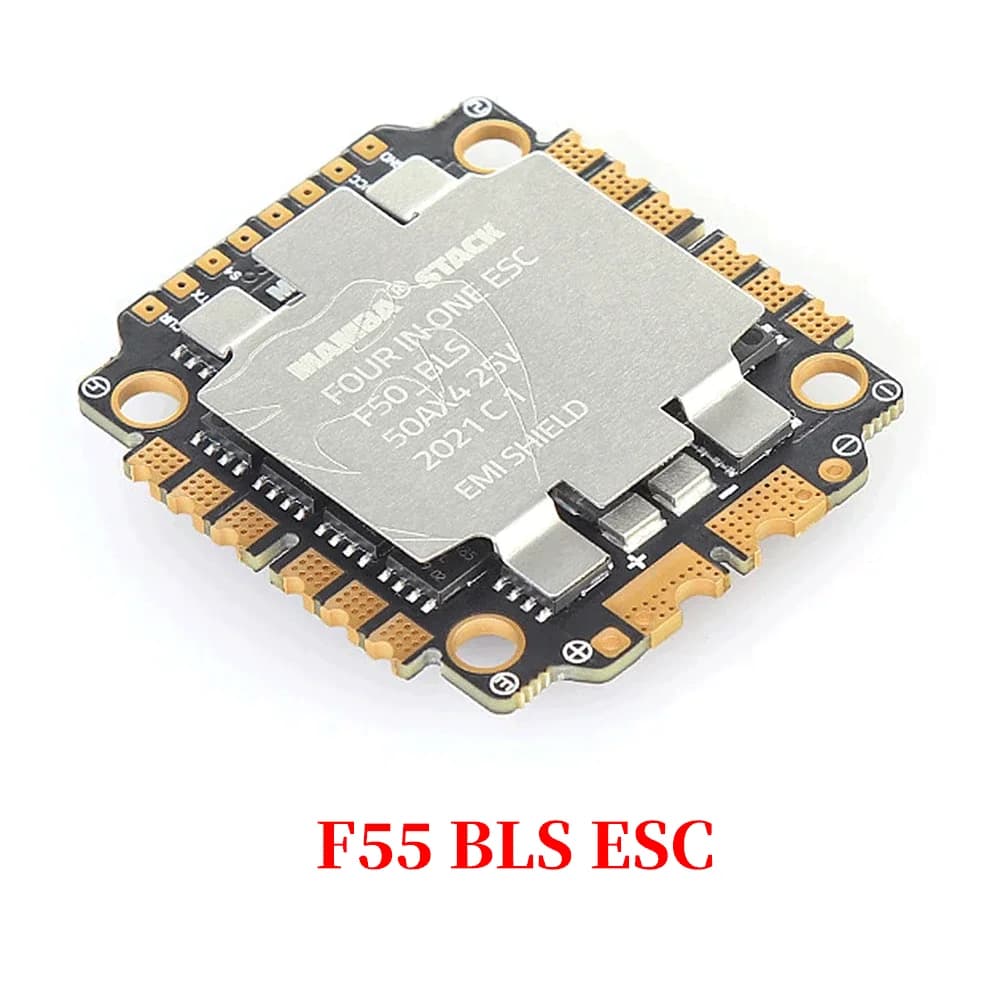

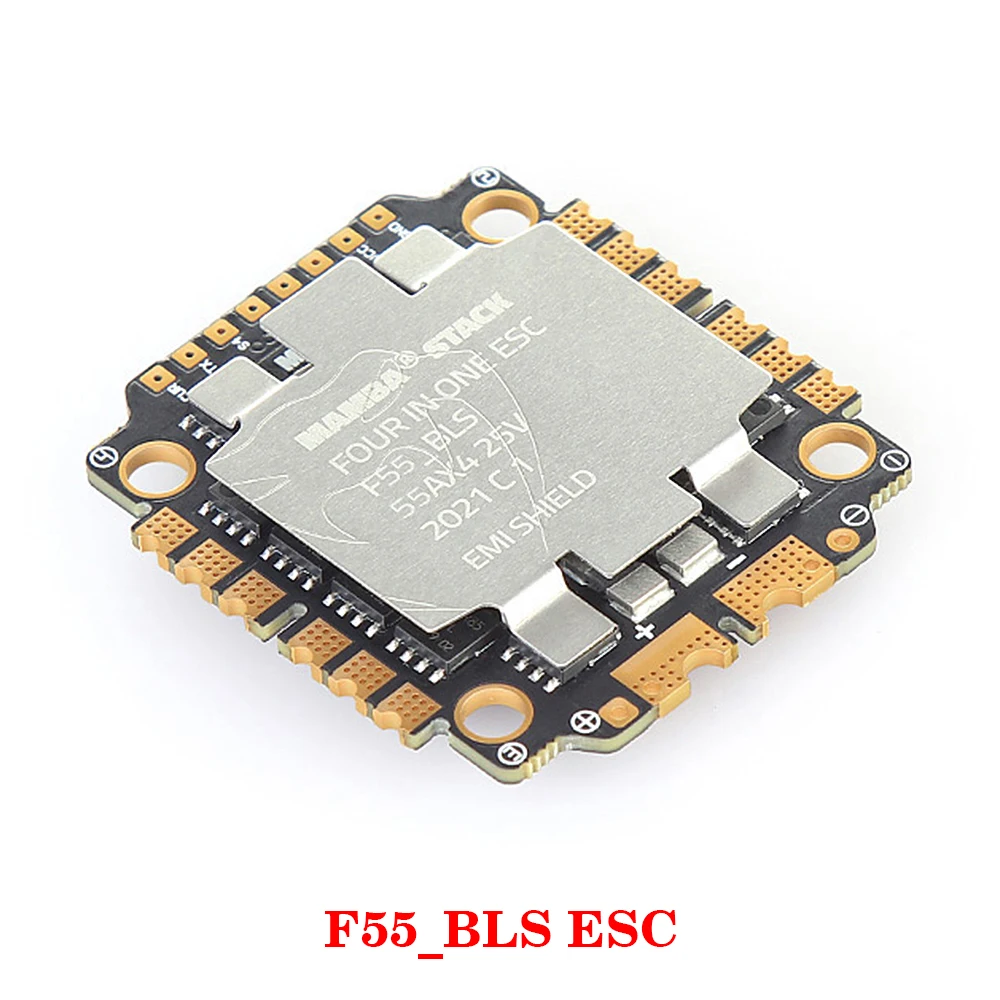

MAMBA F55 BLS ESC
- Input voltage: 4 ~ 6s Lipo (12.6V ~ 25.2V)
- Rating current: 55A × 4
- Peak current: 60A (10S)
- BEC: NO program: DSHOT300/600
- Firmware: BLHELI_S CH40
- TVS Power Protection: Yes
- Install holes: 30.5mm/m3
- Size: 44.5 × 40 × 6.8mm
- Shipping: 8pin SH1.0 × 2
- AMASS Original XT60 × 1
- High -frequency capacitor 470UF/35V × 1

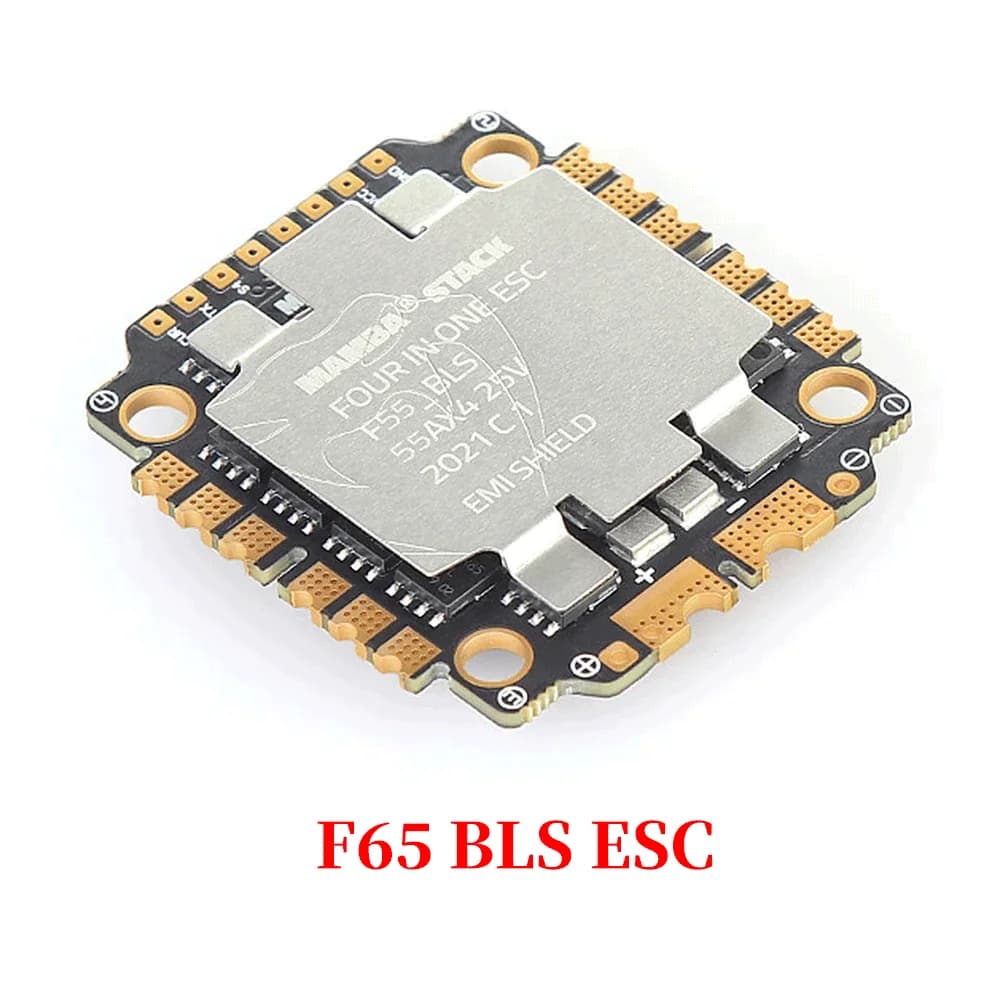

MAMBA F65 BLS ESC
- Input voltage: 4~6S Lipo (14.8~25.2V)
- Output Current: 65A×4
- Peak Current: 75A (10S)
- BEC Output: No
- Target Firmware: BLHeli_S CH40/DX40/DX30
- Protocol: Dshot300/600
- TVS Power Protection: Yes
- Product Size: 44.5×40×6.8mm
Shipping:
- 8pin SH1.0 × 2
- AmAss Original XT60
- High -frequency capacitor 470UF/35V
